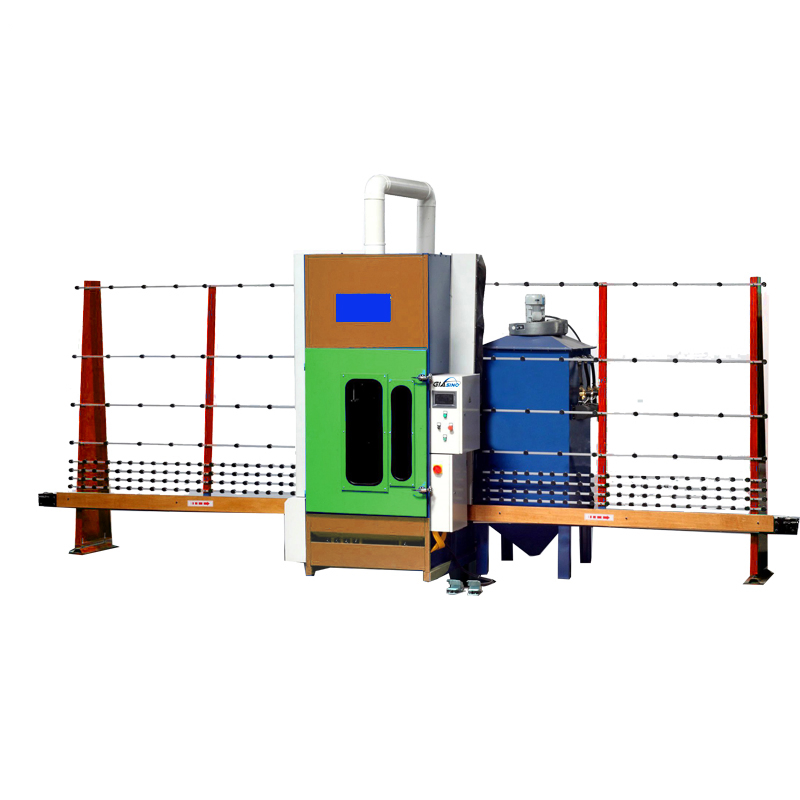

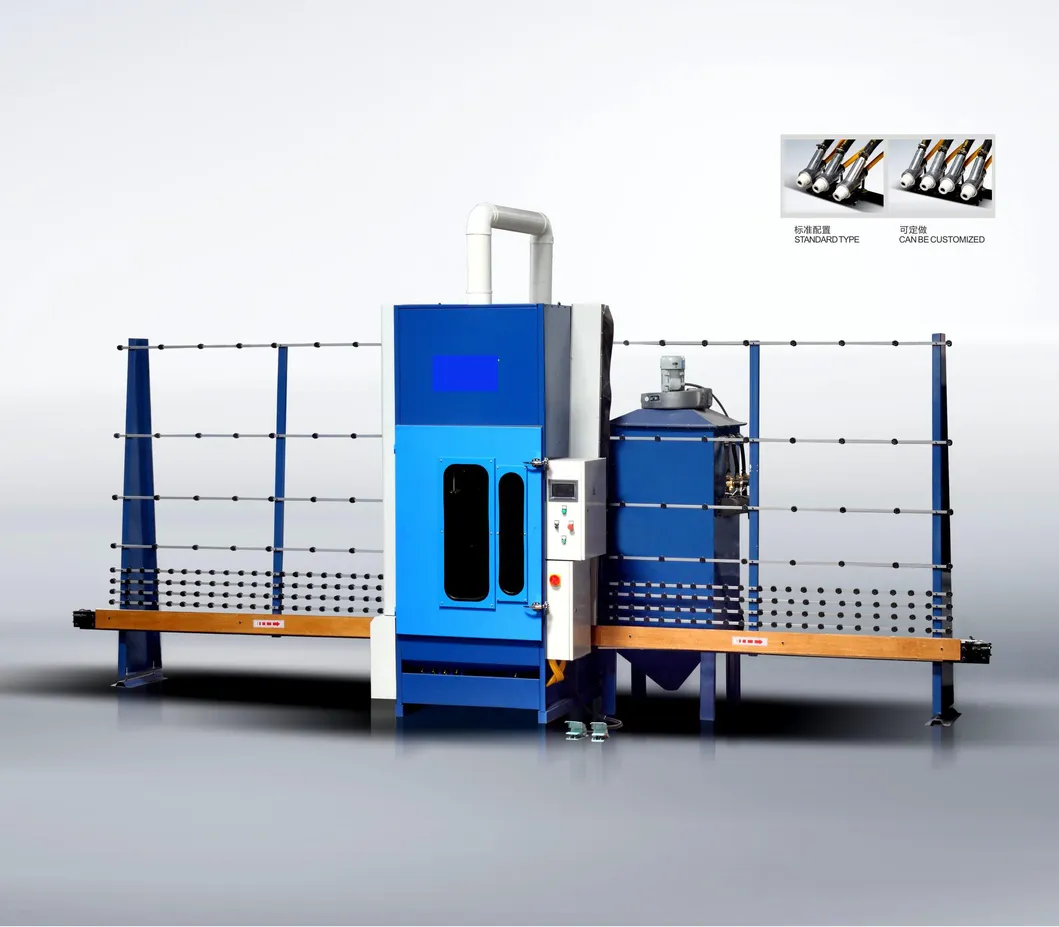

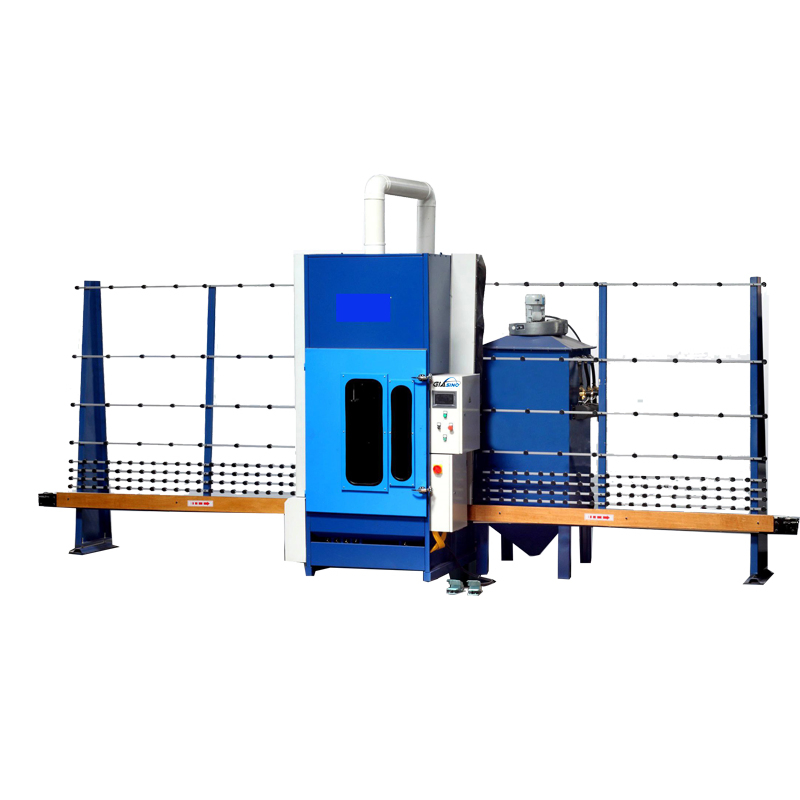

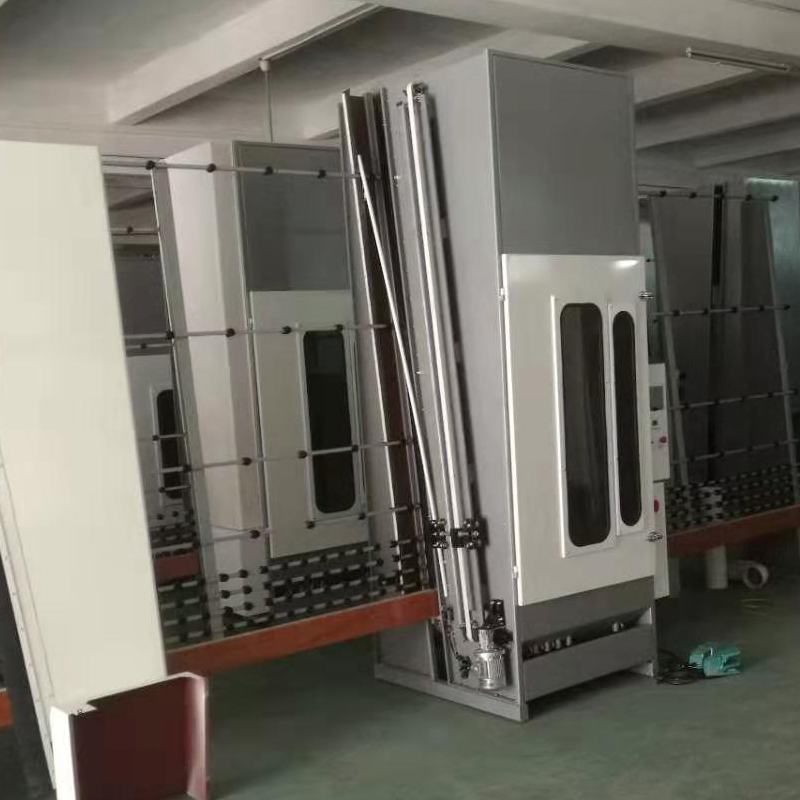

GS series glass sandblasting machine is an advanced automatic system powered by a high-resolution touch screen and PLC control. The system is designed for precision and efficiency in industrial glass processing.
The gun nozzles are crafted from specialized materials to significantly extend operational life. The machinery integrates a conveying section, a sealed sandblasting cabinet, an automatic sand spraying system, and a sand collection unit. The process is fully automated: once glass is conveyed into the cabinet, the three guns apply sand based on the exact specifications entered on the touch screen.

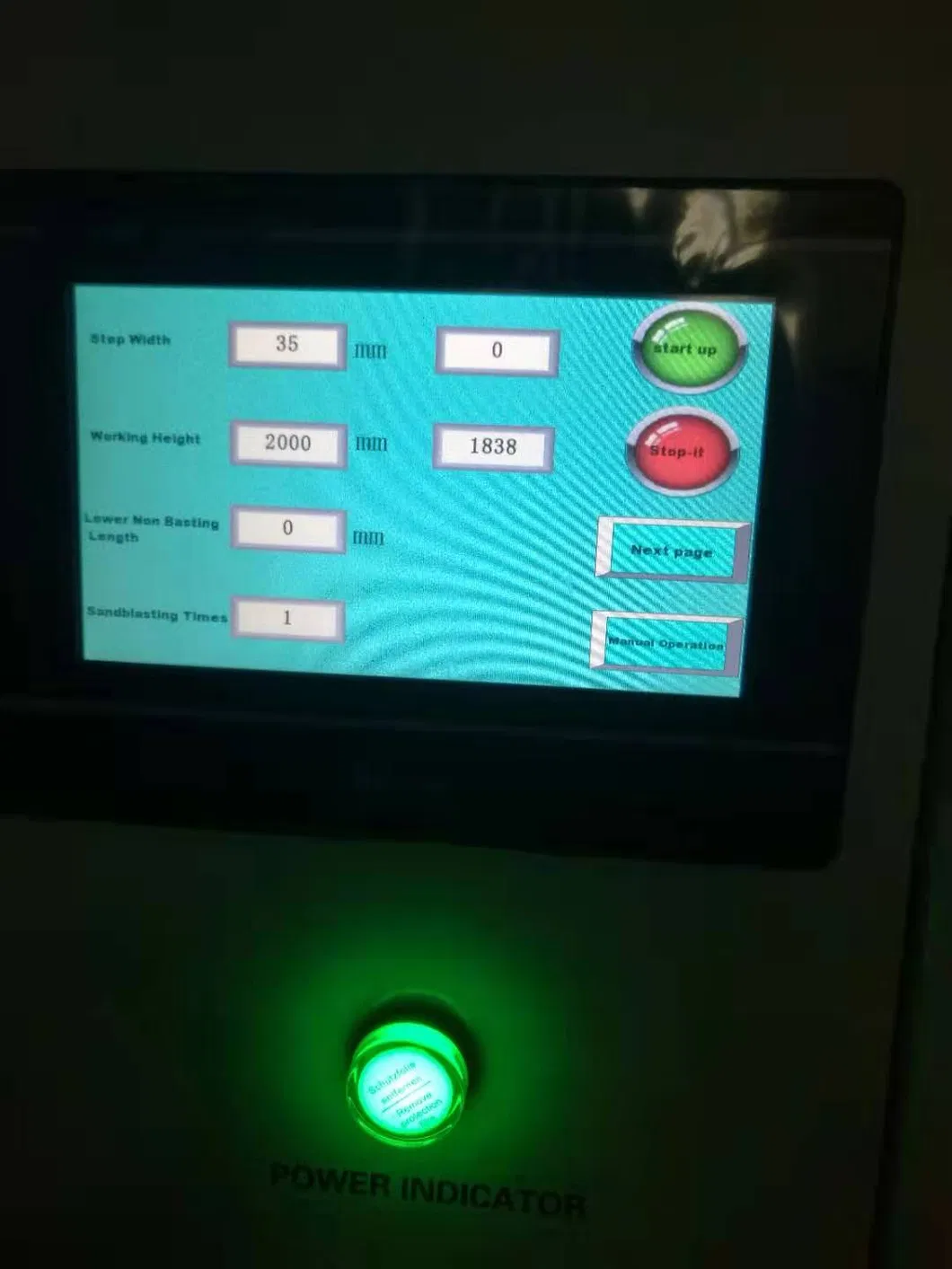

PLC Control: High-precision adjustment for various glass processing data.

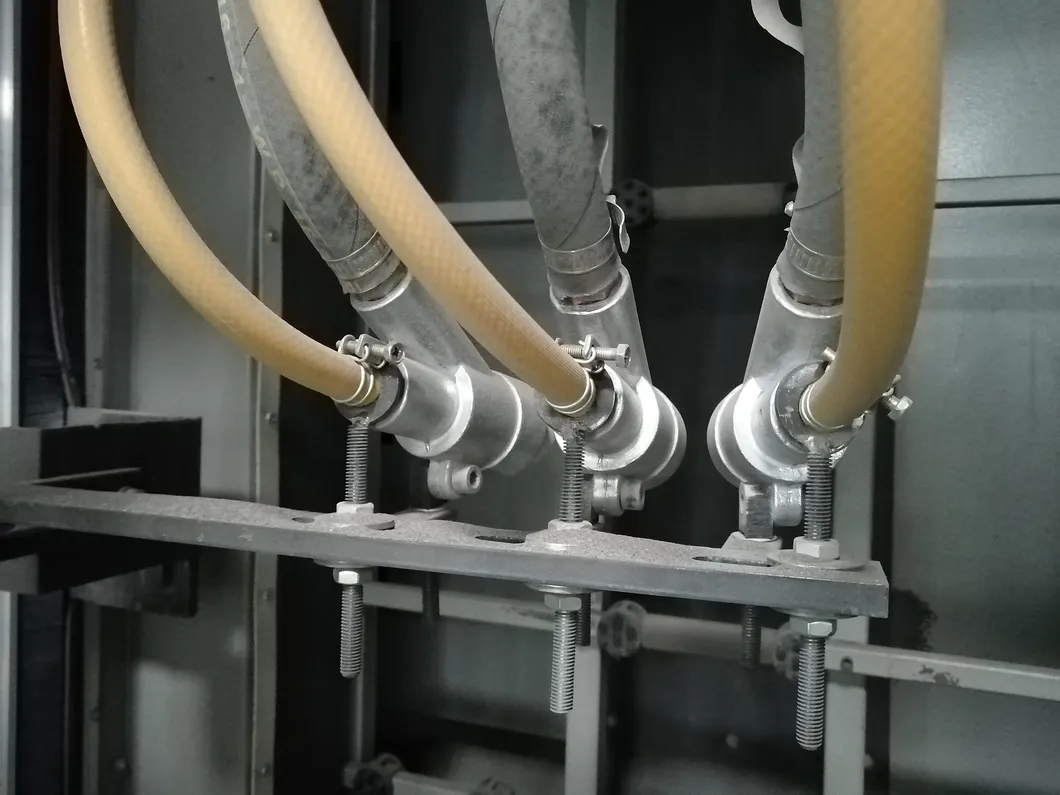

Tough Air Pipes: Quality materials to prevent wear from high-velocity sand.

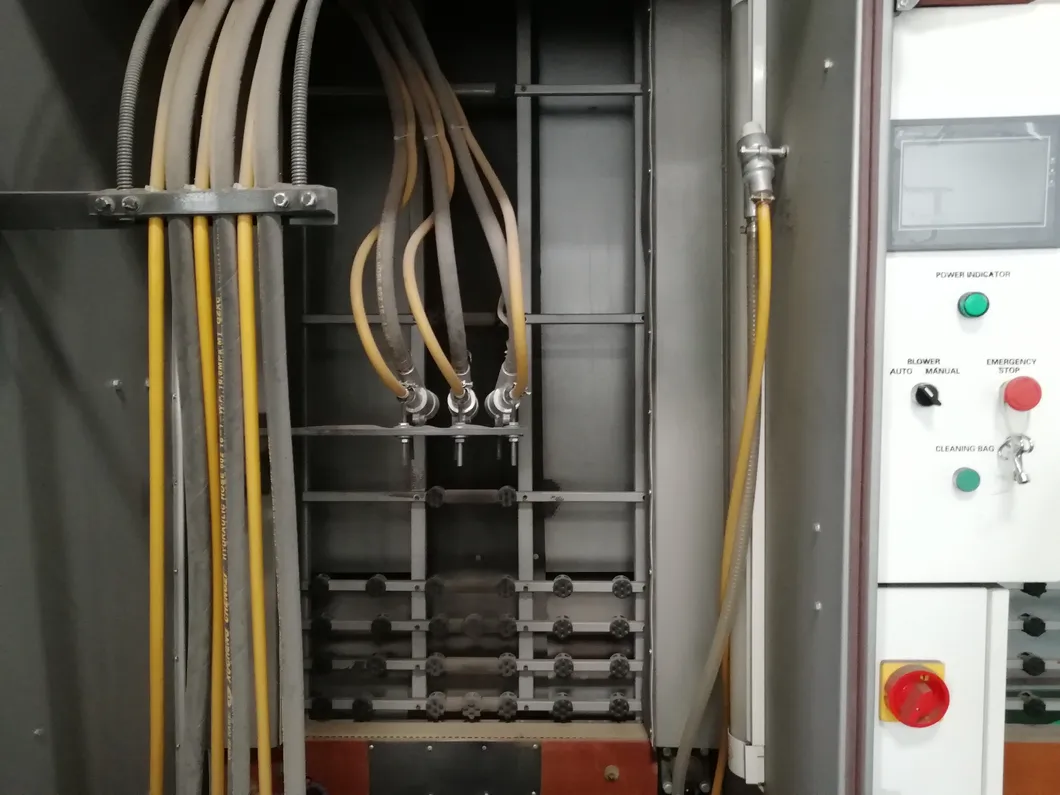

High-Quality Gun: Ensures a smooth and perfectly even sandblasted finish.
| Model Number | GS-1500 | GS-2000 | GS-2500 |
|---|---|---|---|
| Glass height (mm) | 1500 | 2000 | 2500 |
| Max. glass size (mm) | 1500*3000 | 2000*3000 | 2500*3000 |
| Nozzle speed (m/min) | 5-25 | 5-25 | 5-25 |
| Working Pressure | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa |
| Total Power (kw) | 3.5kw | 3.5kw | 3.5kw |
| Outer Dimension (m) | 4.5*1.5*2.5 | 7*1.5*2.8 | 8*1.5*3.3 |
This equipment is essential for high-quality processing of glass partition walls and decorative mirrors.
Founded in 2003, we are a high-tech enterprise specializing in the production of CNC glass cutting machines, insulating glass machines, and curtain wall glass machinery. Our commitment to innovation has secured a leading market position.
Our product range includes automatic glass cutting lines, multifunctional glass processing units, and full sets for insulating glass production. With European CE, Switzerland SGS, and ISO 9001:2008 certifications, we maintain a global reputation for quality and reliability.
