Home > Glass Sand Blasting Machine > Vertical Type Glass Sand Blasting Machine in China
Vertical Type Glass Sand Blasting Machine in China
Vertical Type Glass Sand Blasting Machine in China
Vertical Type Glass Sand Blasting Machine in China
Vertical Type Glass Sand Blasting Machine in China
Vertical Type Glass Sand Blasting Machine in China
1 / 5
Vertical Type Glass Sand Blasting Machine in China
Vertical Type Glass Sand Blasting Machine in China
Vertical Type Glass Sand Blasting Machine in China
Vertical Type Glass Sand Blasting Machine in China
Vertical Type Glass Sand Blasting Machine in China

Vertical Type Glass Sand Blasting Machine in China

Customization: Available
Certification: CE
Glass Thickness: 3-40mm
Send Inquiry

Product Description

📊

Basic Information

Model NO.
YD-SB-Series
Voltage
220/240/380/415/480V
Warranty
1 Year
Control System
Semi-Automatic
Description
Sand Blasting Machine
Color
Creamy-White/Optional
Type
Glass Sandblasting Machine
Structure
Vertical
HS Code
84642010
Production Capacity
20 Sets Per Month
🔍

Product Description

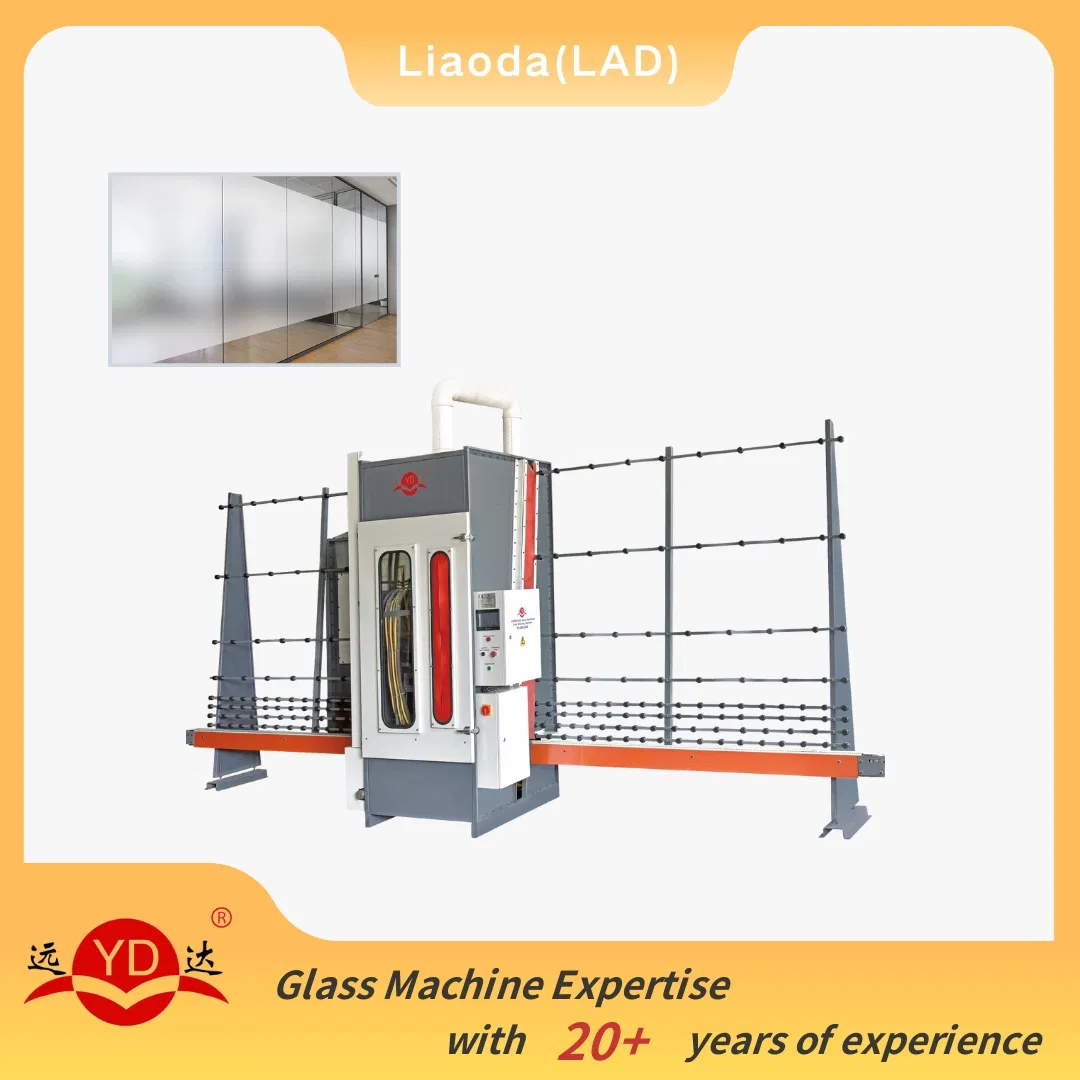

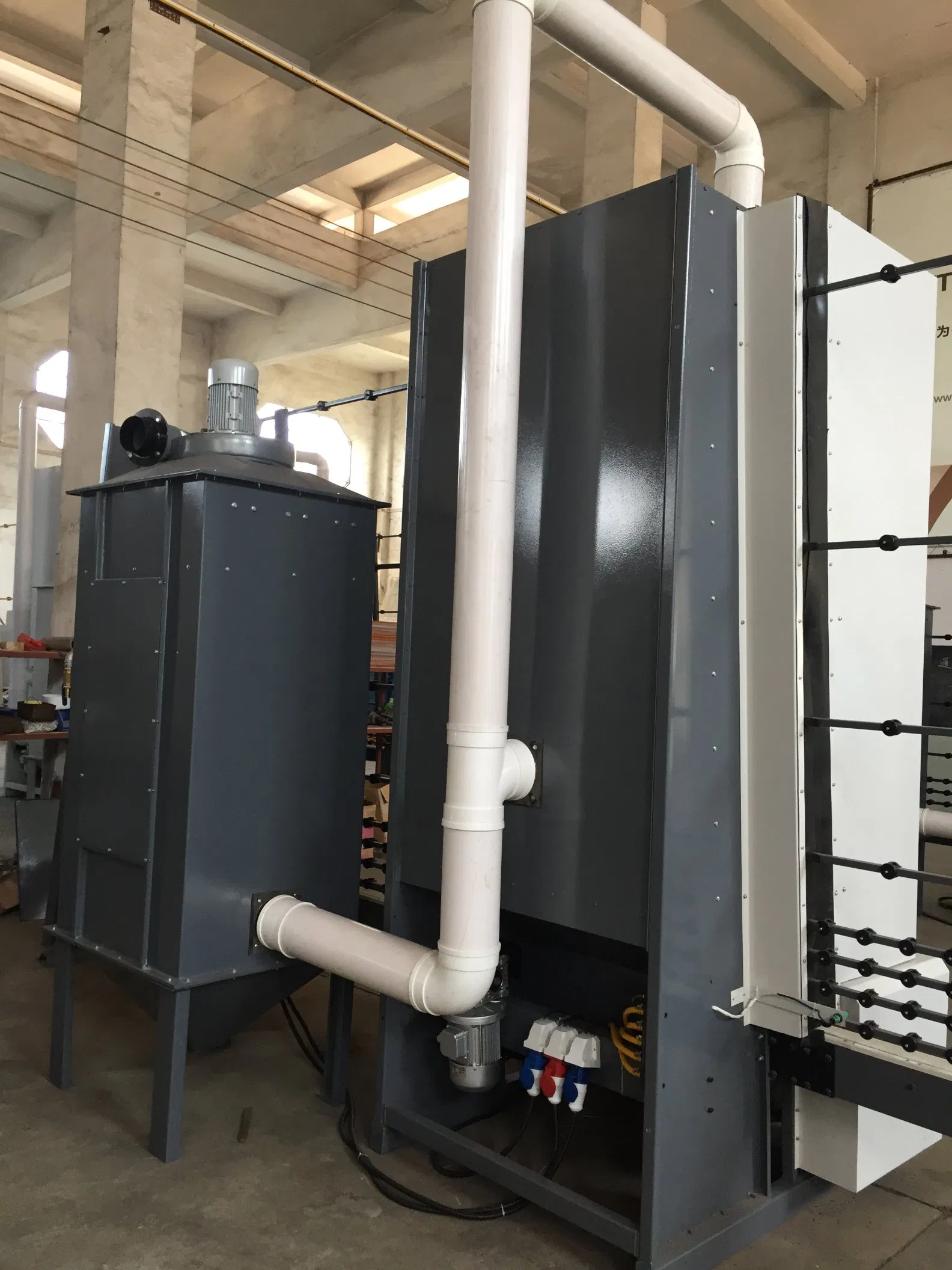

Vertical Type Glass Sand Blasting Machine
Vertical Type Glass Sand Blasting Machine

Our vertical sand blasting machine is designed for efficient processing of glass surfaces, offering both full surface blasting and intricate pattern creation.

Key Specifications:
  • Easy to operate with semi-automatic control
  • Capable of creating complex sand blasting patterns
  • Ideal for applying trademarks on glass surfaces

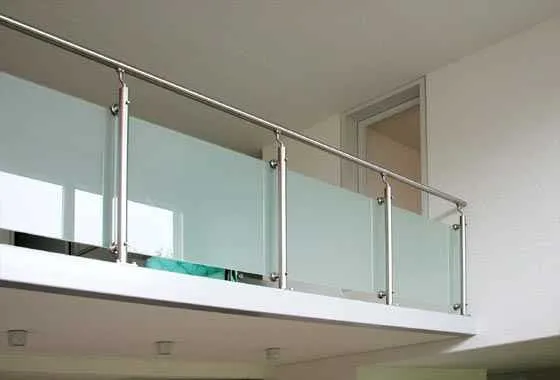

  • Complete surface blasting for partition walls and shower doors
⚙️

Technical Specifications

Model Number YD-SB-1500 YD-SB-2000 YD-SB-2500
Glass height(mm)150020002500
Max.glass size(mm)1500×30002000×30002500×3000
Min.processing size(mm)200×500200×500200×500
Glass transfer speed(m/min)555
Nozzle moving speed(m/min)5-255-255-25
Working pressure0.6MPa-0.8MPa0.6MPa-0.8MPa0.6MPa-0.8MPa
Power (kw)3.5kw4.5kw4.5kw
Weight (kg)100012001300
📦

Packaging & Shipping

Flexible shipping options available to meet global requirements:

  • Shipped via LCL (Less Than Container Loading) or FCL (Full Container Loading)
  • Single machines are secured on steel pallets with protective packaging
  • Integrated dust collectors and support frames included in the package
Machine Dimensions (Including support & dust collector):
  • YD-SB-1500: 2400×1800×2200 mm
  • YD-SB-2000: 2800×1800×2250 mm
  • YD-SB-2500: 3200×1800×2250 mm
🖼️

Machine Display & Loading

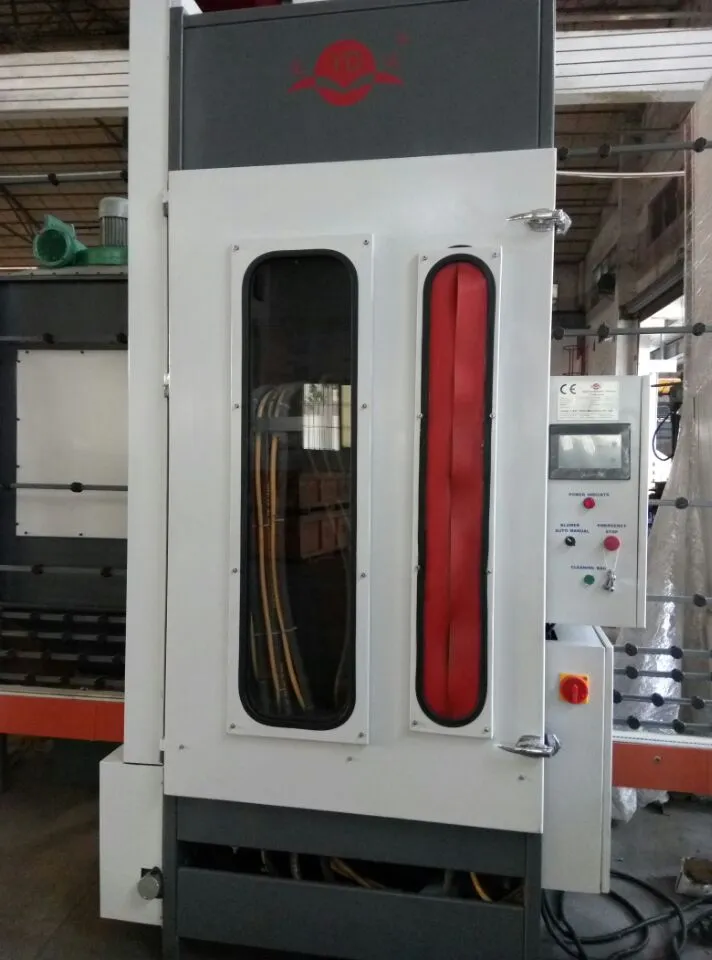

Machine Detail 1

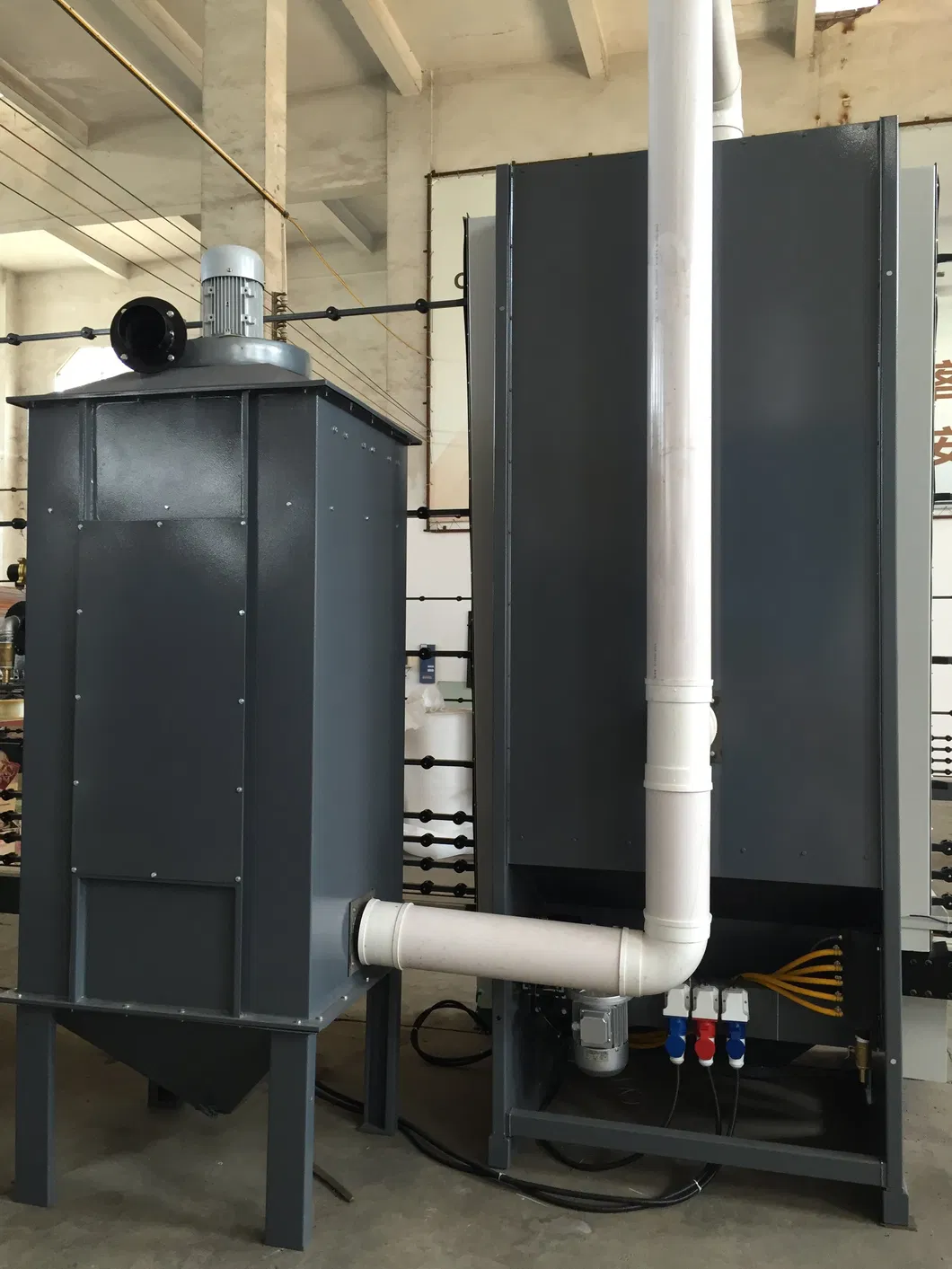

Machine Detail 2

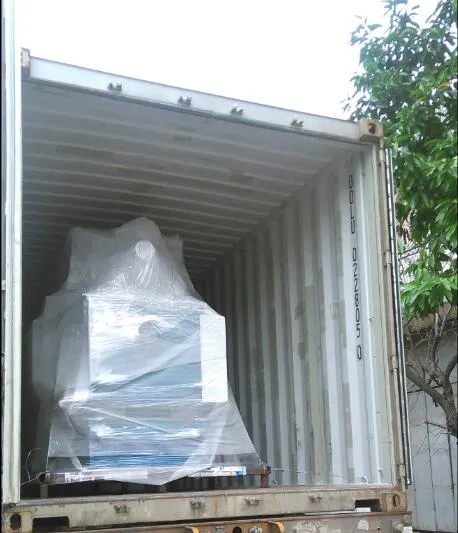

Machine Detail 3
Workshop & Order Process

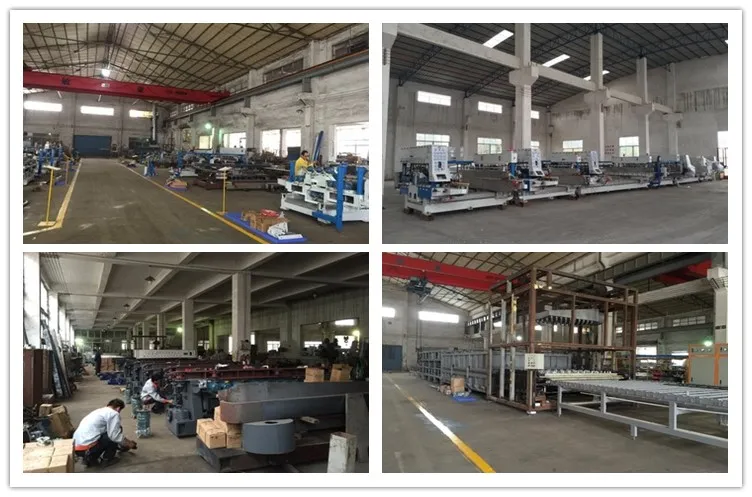

Workshop

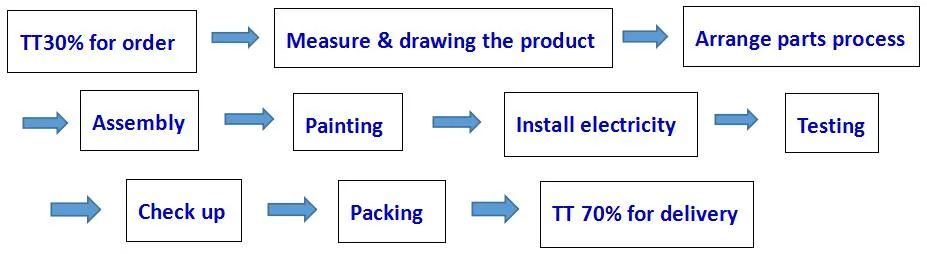

Order Process
Shipping Preparation
❓

Frequently Asked Questions

What is the manufacturing lead time for the machine?
The standard production time is approximately 20 days.
What type of sand is recommended for use?
We recommend alum sand, grit 60#. We provide 100kg of sand free of charge with the machine delivery.
How much sand is consumed daily?
The machine typically consumes between 25kg to 30kg of sand per operating day.
What auxiliary equipment is required?
You will need to prepare an air compressor, a gas container, and a filter for optimal operation.
What is the daily processing capacity?
The machine can spray approximately 160-200 square meters of glass per day.
What components are included in the package?
The standard package includes the machine unit, a tool cabinet, the support frame, and an integrated dust collector.
