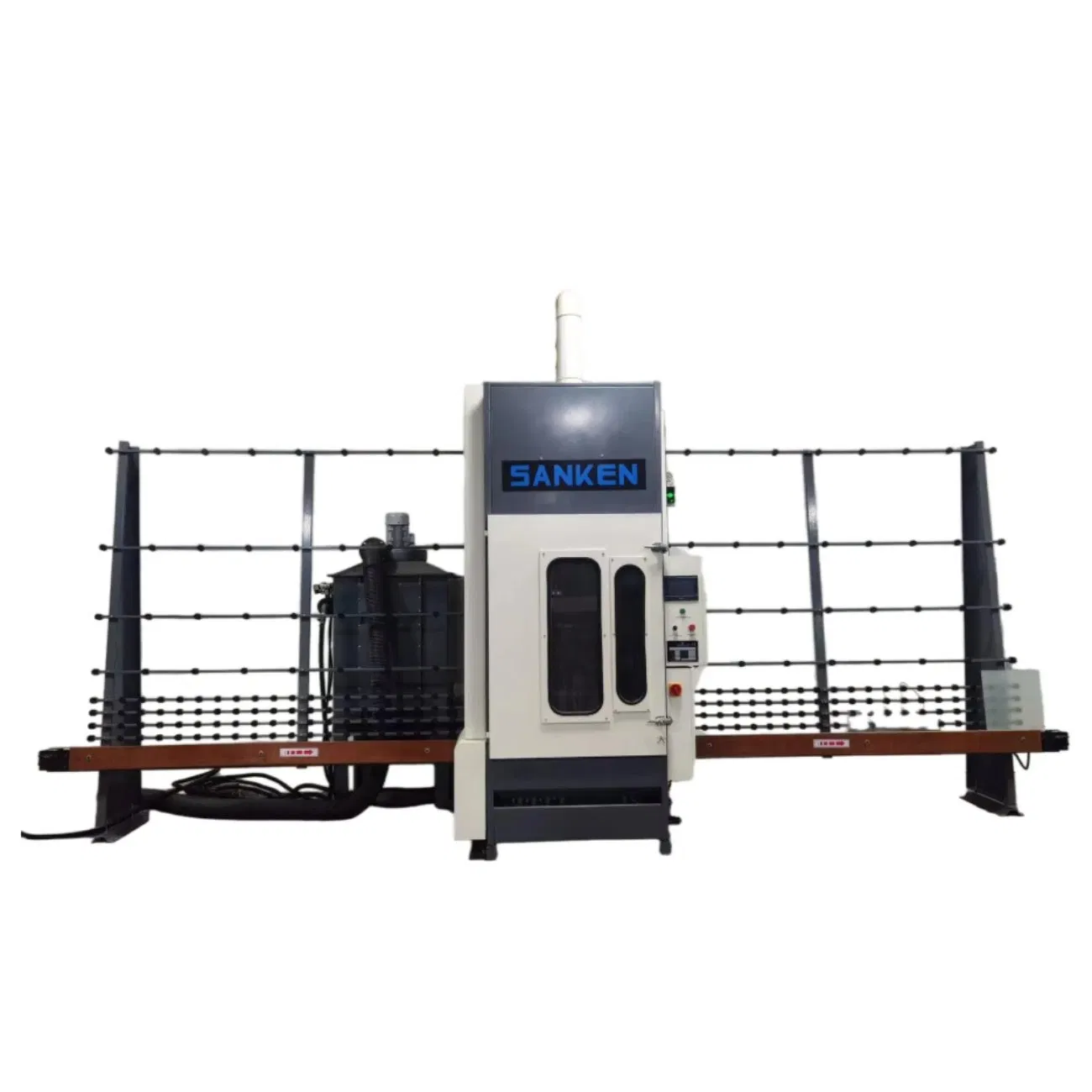

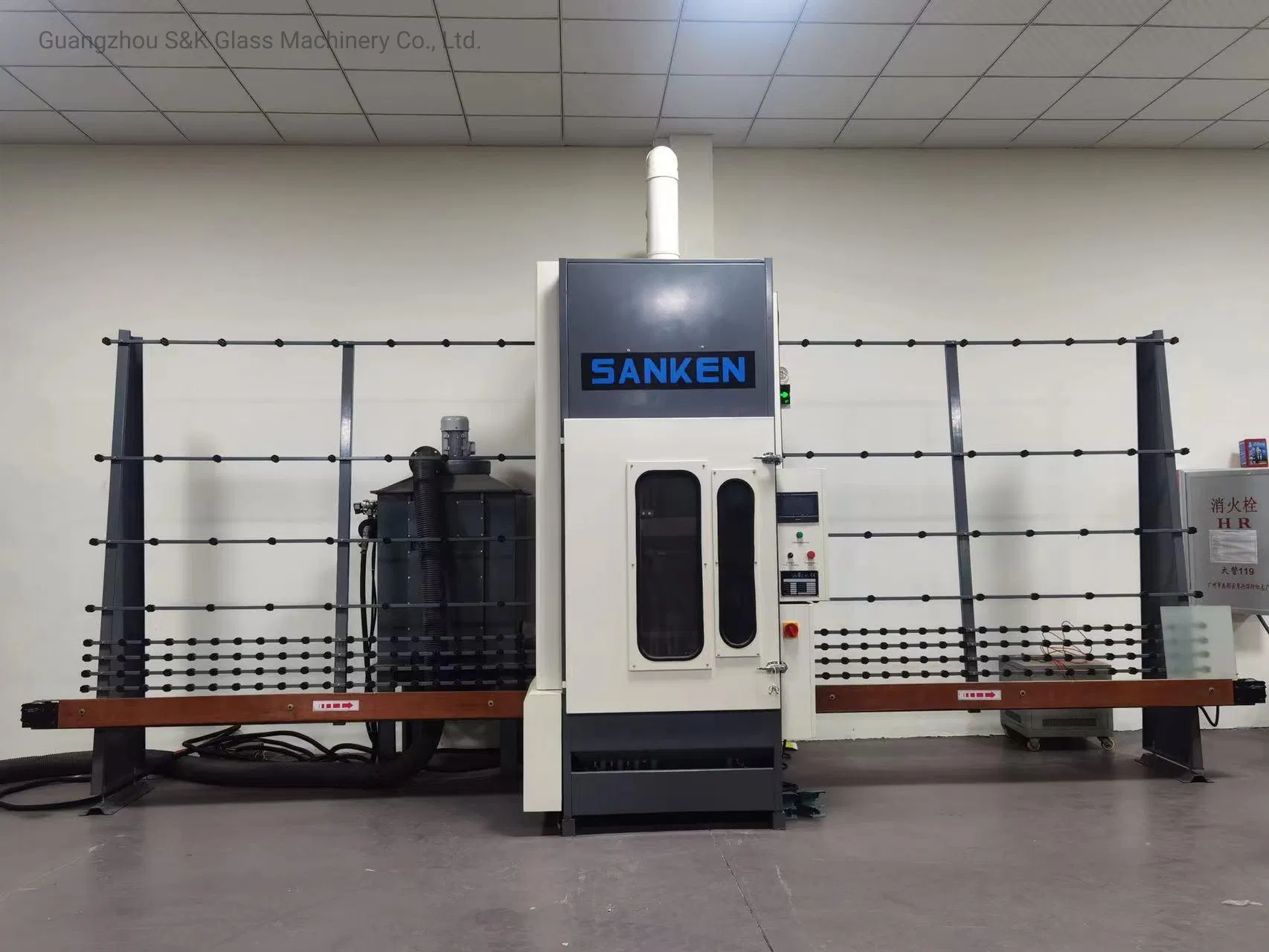

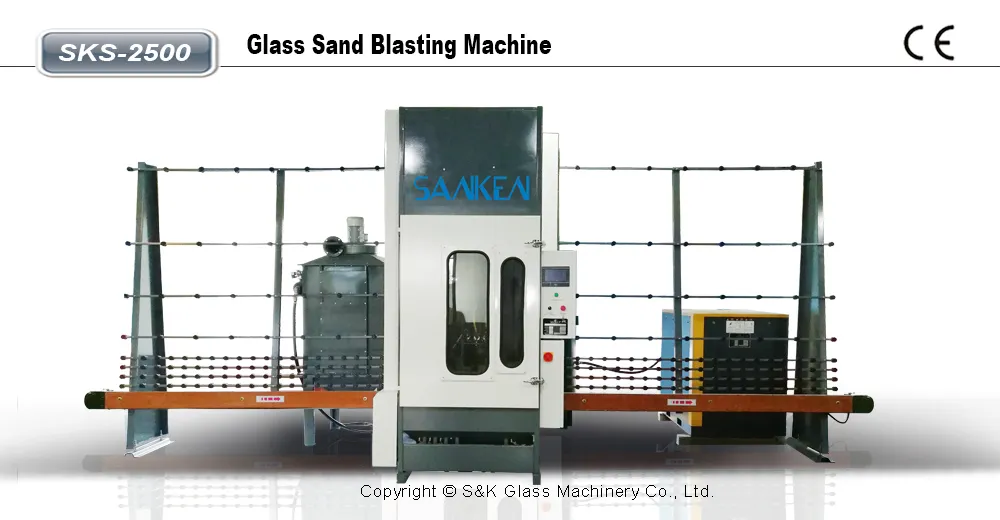

Glass CNC Automatic Mirror Sandblasting Machine SKS-2500

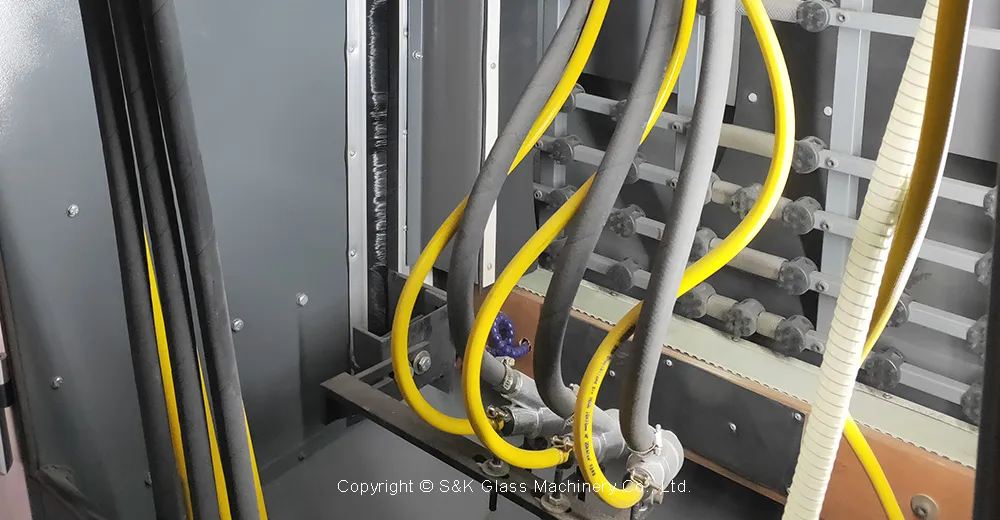

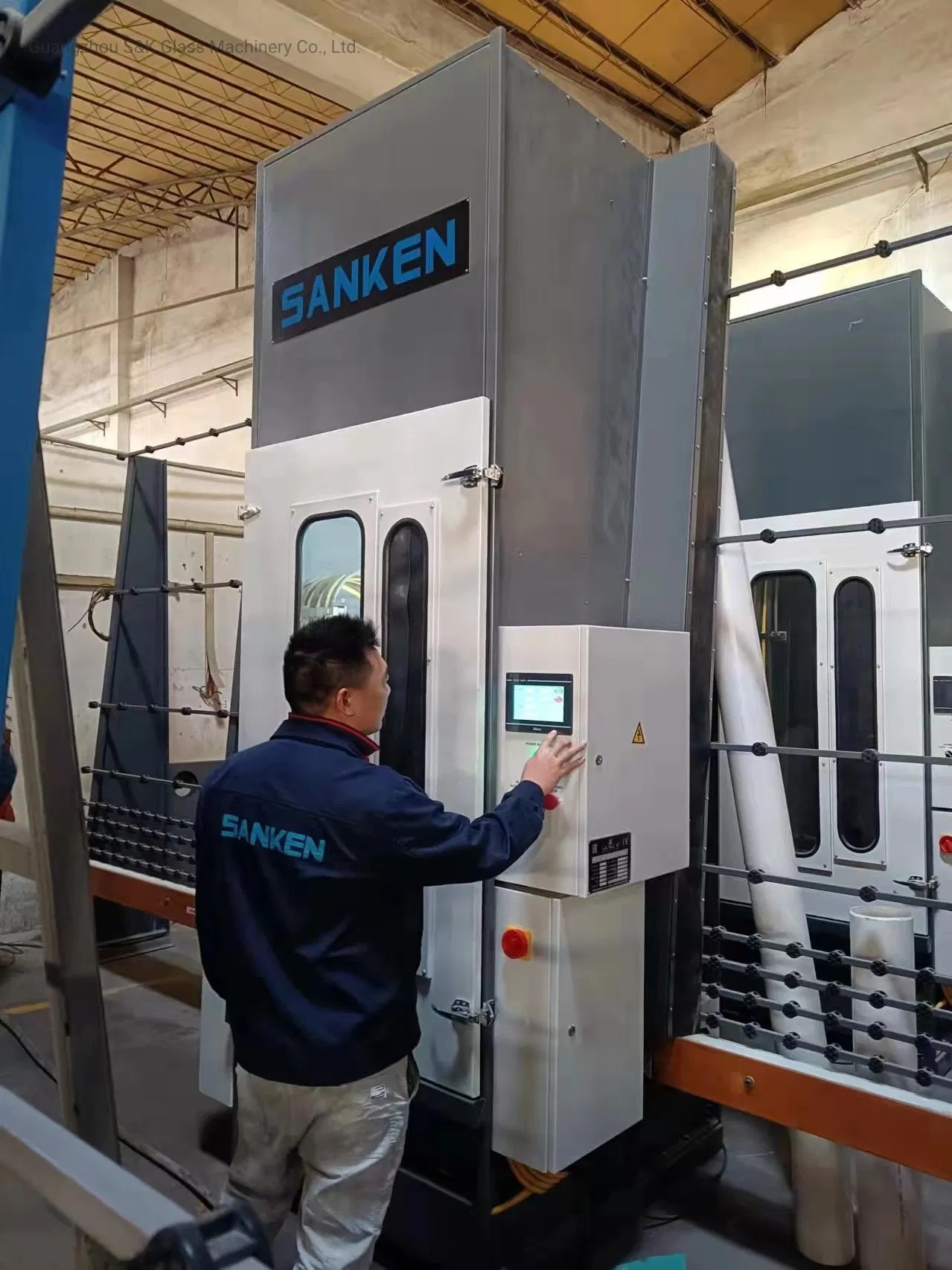

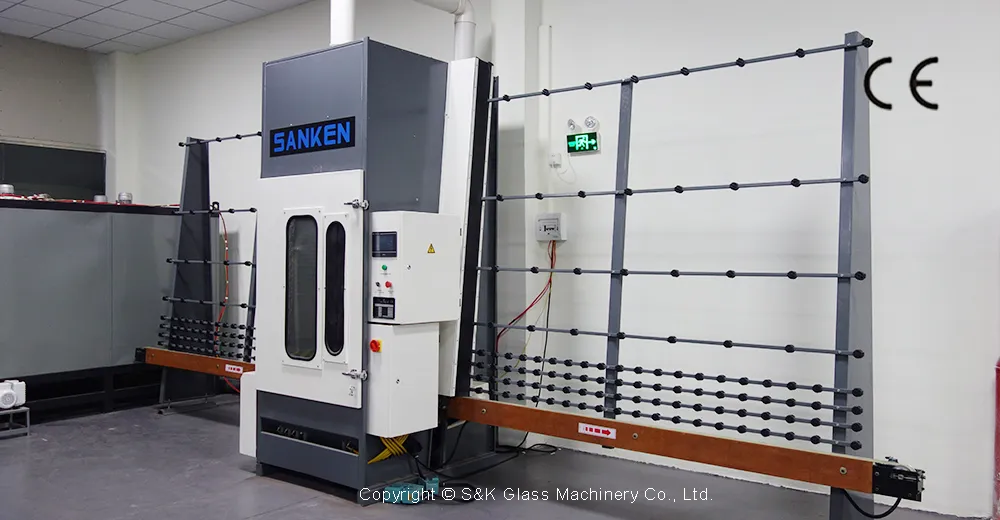

Vertical glass CNC sandblasting machine adopts touch screen operation and PLC control. It features both automatic and manual processing functions, equipped with 3 sets of automatic spray guns and 1 set of manual spray guns. The nozzles are crafted from special materials ensuring a long service life.

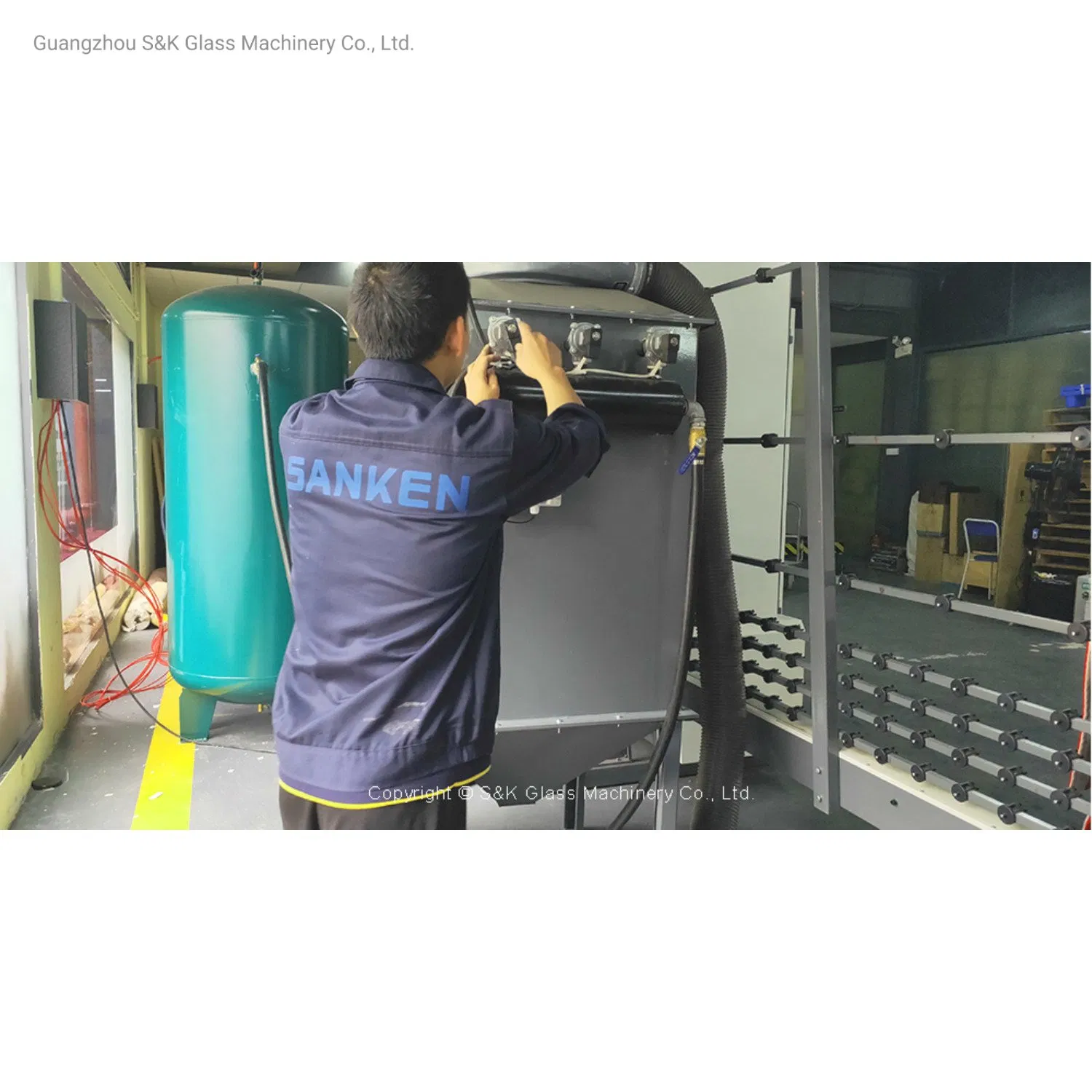

The system includes an automatic dust collection system with reverse air blowing for cleaning. High-quality synchronous belts are used for spray gun lifting and glass drive systems. This machine offers high stability, low failure rate, and simple operation. Its unique design ensures almost no dust escape during processing, meeting environmental protection standards.
| Model |
Max. Size |
Min. Size |
Total Power |
Thickness |
Weight |
Machine Size |
| SKS-1600 |
1600 x 3000 mm |
200 x 500 mm |
3.5 KW |
3-50 mm |
1.0 Tons |
4700 x 1500 x 2300 mm |
| SKS-2000 |
2000 x 3000 mm |
200 x 500 mm |
5.5 KW |
3-50 mm |
1.1 Tons |
6800 x 1500 x 2800 mm |
| SKS-2500 |
2500 x 3000 mm |
200 x 500 mm |
3.5 KW |
3-50 mm |
1.2 Tons |
6800 x 1500 x 3300 mm |
Frequently Asked Questions
What control system does the SKS-2500 use?

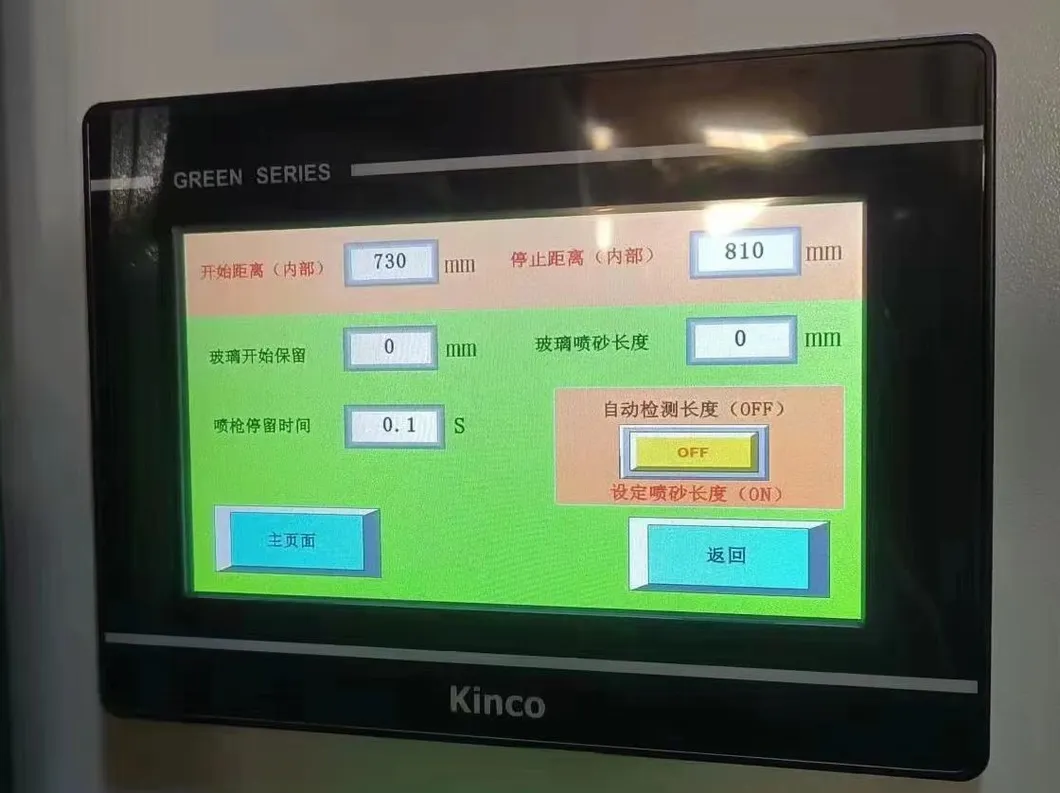

The machine utilizes a PLC control system paired with a user-friendly touch screen for easy operation.
How many spray guns are included with the machine?
The standard configuration includes 3 sets of automatic spray guns and 1 set of manual spray guns for versatile processing.
Is the machine environmentally friendly?
Yes, it features a unique design and an automatic dust collection system that prevents dust from floating outside, meeting environmental protection standards.
What is the maximum glass width it can handle?
The SKS-2500 model can process glass with a maximum width of 2500 mm and a thickness of up to 50 mm.
What is the warranty and after-sales service policy?
The machine comes with a 1-year warranty and 1 year of dedicated after-sales service support.
Can the machine operate in manual mode?
Yes, the SKS-2500 supports two operation modes: fully automatic for efficiency and manual for customized processing needs.
