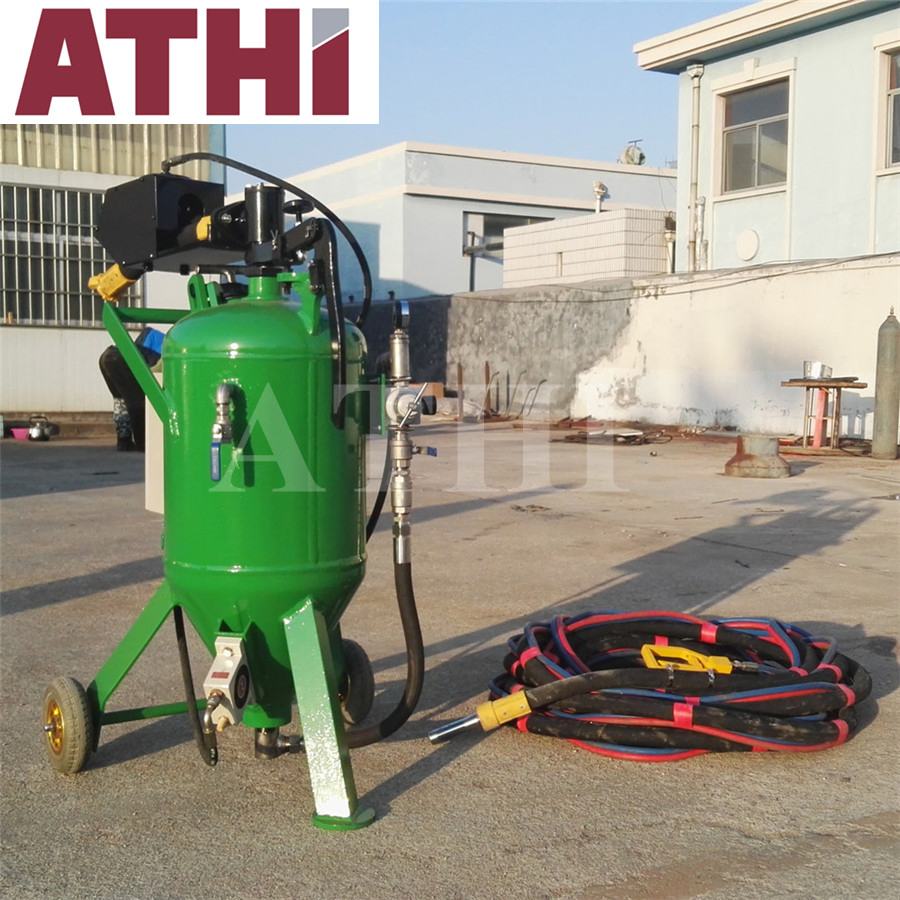

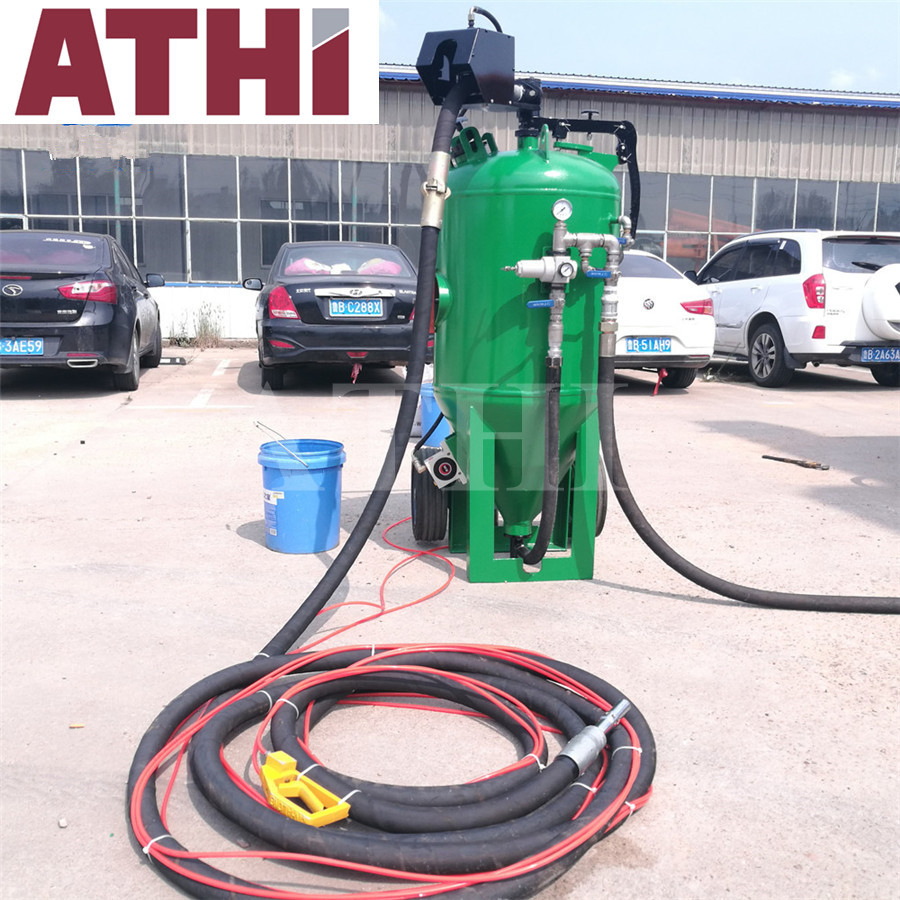

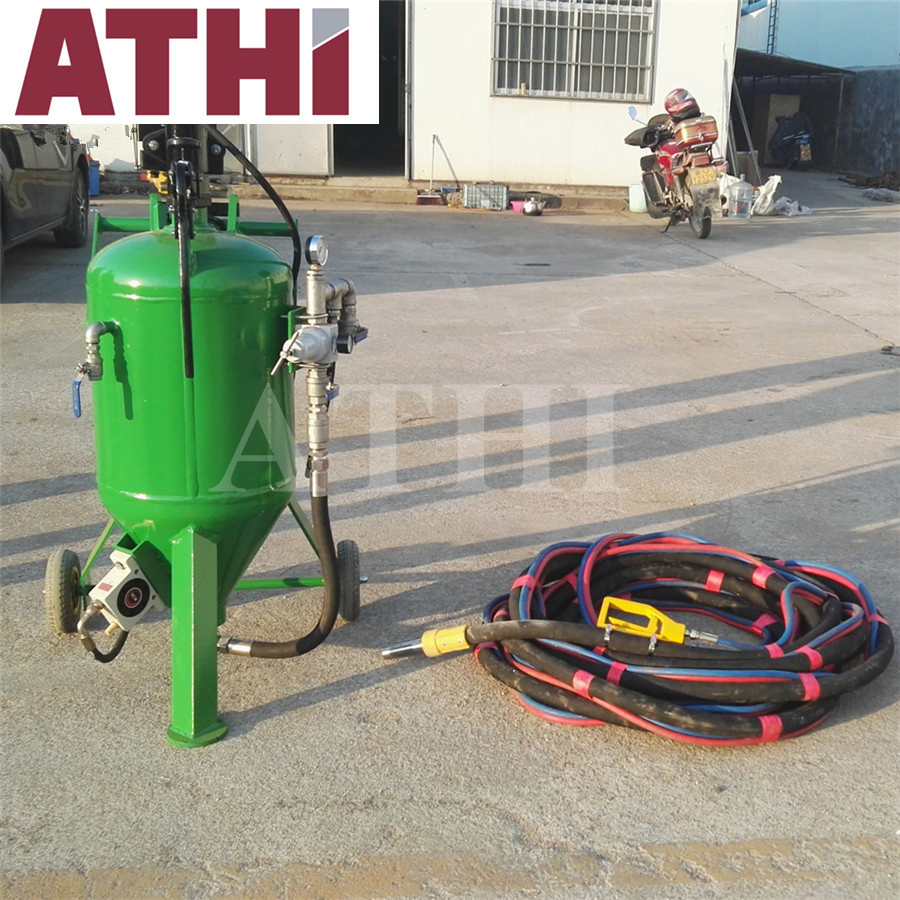

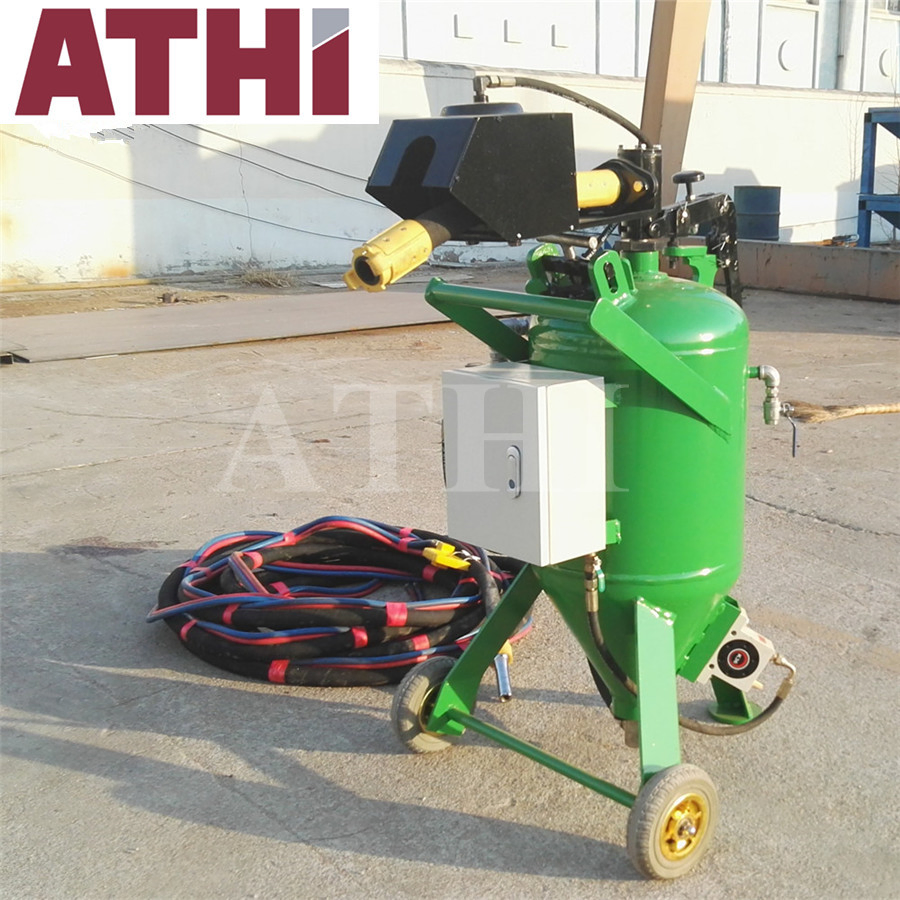

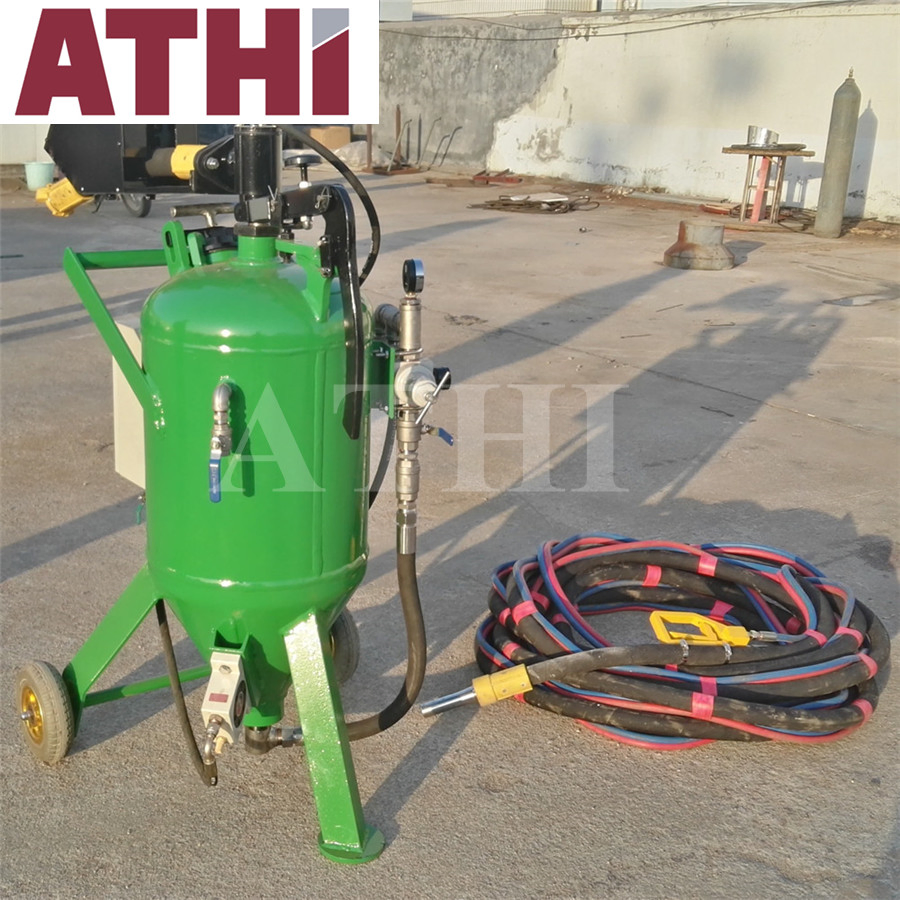

High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine
High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine
High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine
High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine
High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine
1 / 5
High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine
High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine
High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine
High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine
High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine

High Pressure Water Glass Bead Dustless Sandblaster Wet Type Sand Blasting Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
DB150 DB225 DB500 DB800 DB1500 DB3000
Application
Metal Cleaning
Fuel
Electric, Diesel
Type
Dustless Blasting
Automation
Automatic
Certification
CE
Blasting Media
Water, Glass Bead, Sand
Usage
Rust Removal
Nozzle Material
Tungsten Carbide
⚙️

Product Parameters

I. Technique Parameter (Blast Tank)

Technical Parameter DB150 DB225 DB500 DB800 DB1500 DB3000
Blasting mode air jet air jet air jet air jet air jet air jet
Capacity 0.03m³ 0.06m³ 0.14m³ 0.23m³ 0.42m³ 0.85m³
Blast time ~15min ~30min ~60 min ~90 min ~2+ hours ~4+ hours
Compressor 60+CFM 185+CFM 185+CFM 300+CFM 425+CFM 425+CFM
Size (L/B/H mm) 1067/584/533 1397/660/863 1397/914/1016 1626/914/1016 1981/1245/1245 2490/1245/1245
Weight 72 kg 120 kg 167 kg 194 kg 380 kg 544kg
Operating Pressure 30-150 PSI 30-150 PSI 30-150 PSI 30-150 PSI 30-150 PSI 30-150 PSI

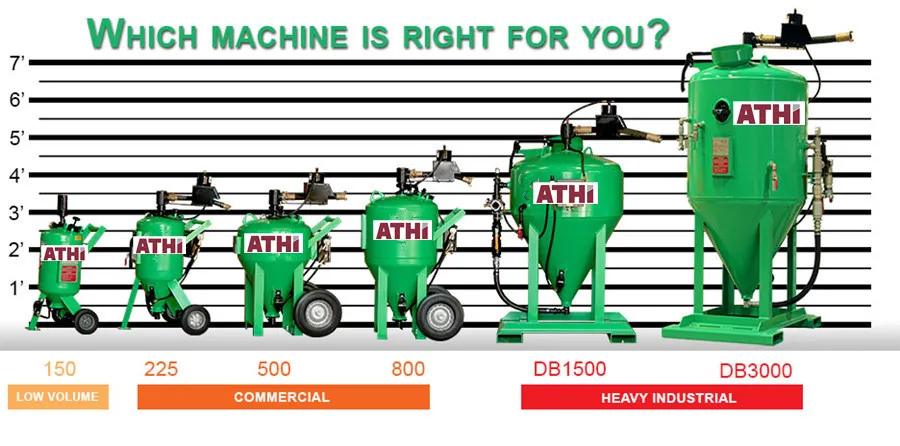

Blast Tank Technical Parameter

(2) Requirement for air compressor

4-10 bar, 185-375 CFM, 30-150 PSI, 0.2-1.0 Mpa
Air consumption: 5.2m³/min

(3) Package Includes

  • 10m blast hose (diameter 32mm)
  • Deadman activator valve
  • Boron carbide nozzle (diameter 10mm)
  • Fill funnel
  • Lifetime warranty on blast pot

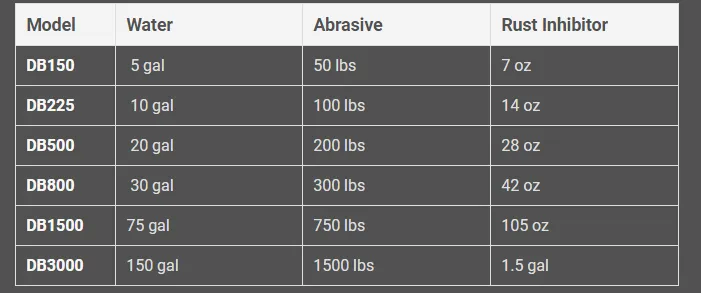

(4) Consumables

Consumables
📝

Product Description

Commercial Terms

  • Production time: 20 days after receiving payment.
  • Payment terms: 100% in advance by TT.
  • Packaging: Plywood box.
  • Warranty: One year from delivery time.

Product Application

Our dustless sand blasting machines are integrated with a wide range of nozzles, wet blast attachments, internal pipe cleaning devices, and dust-free blasting heads. It is widely used in:

Application 1

Common Fields: Automotive, Marine, Refinery, Fleet vehicles, Graffiti removal, stripe Removal, Heavy equipment, Surface cleaning, Powder coating, Offshore, Wood restoration.

Main Features

  • High quality surface appearance
  • High productivity efficiency
  • Environmental friendly & Safe (no sparking)
  • Prevents rust for 72 hours
  • Does not warp metal
  • Easy to clean up
🖼️

Detailed Photos

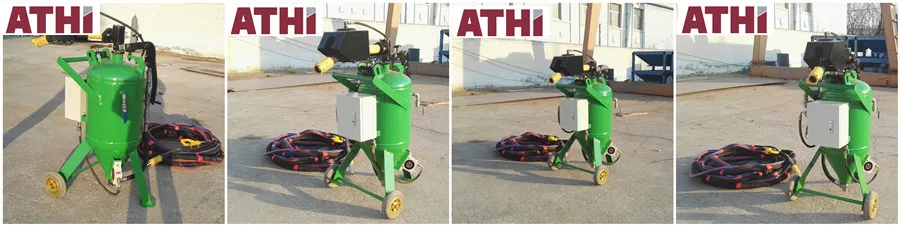

Detail 1

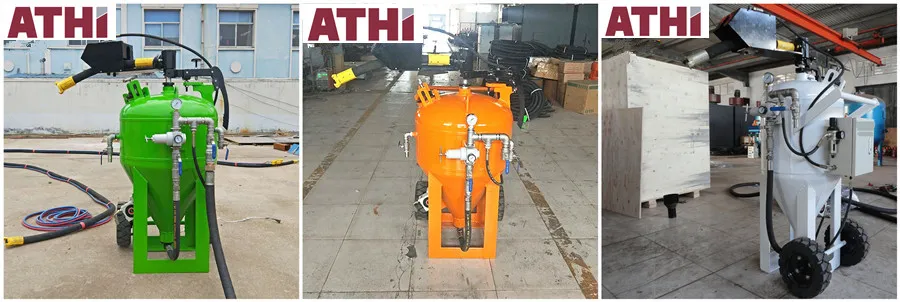

Detail 2

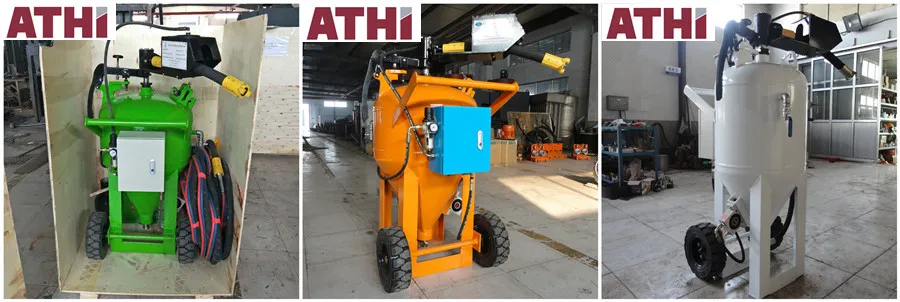

Detail 3

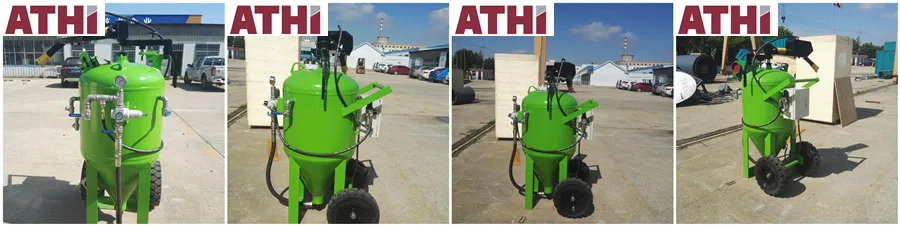

Detail 4

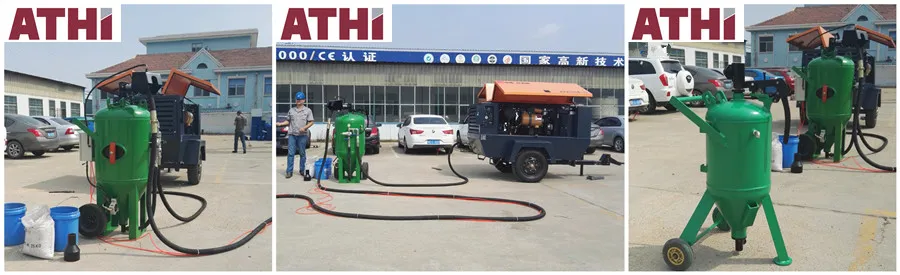

Detail 5

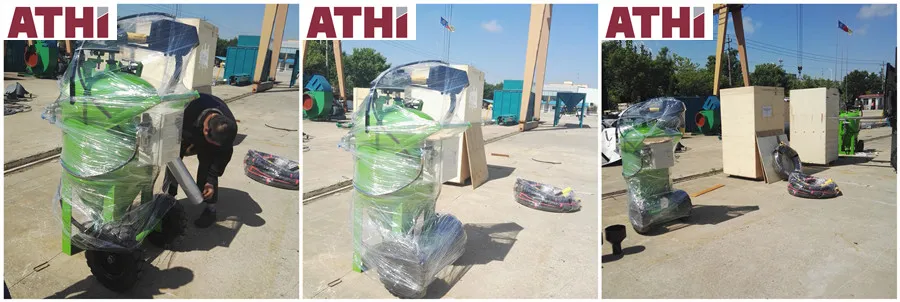

Detail 6
Detail 7
System Flow

Quality Standards
❓

Frequently Asked Questions

Q: What media can be used with this dustless blasting machine?
A: The machine is versatile and can use water, glass beads, and various types of sand for different cleaning requirements.
Q: What is the operating pressure range?
A: The machines are designed for an operating pressure range of 30 to 150 PSI, accommodating various surface sensitivities.
Q: Does the blasting process cause metal warping?
A: No, the dustless blasting process is designed to be gentle enough that it does not warp metal surfaces, unlike some traditional dry blasting methods.
Q: How long does the surface stay rust-free after treatment?
A: The process can prevent flash rust for up to 72 hours, leaving a primer-ready surface for painting or coating.
Q: What are the main maintenance benefits?
A: The machine features a boron carbide nozzle for durability and offers a lifetime warranty on the blast pot, ensuring long-term reliability.
Q: Is it suitable for indoor use or near other workers?
A: Yes, because it is dustless and environmental friendly, it is often not necessary to stop nearby jobs while the machine is in operation.
