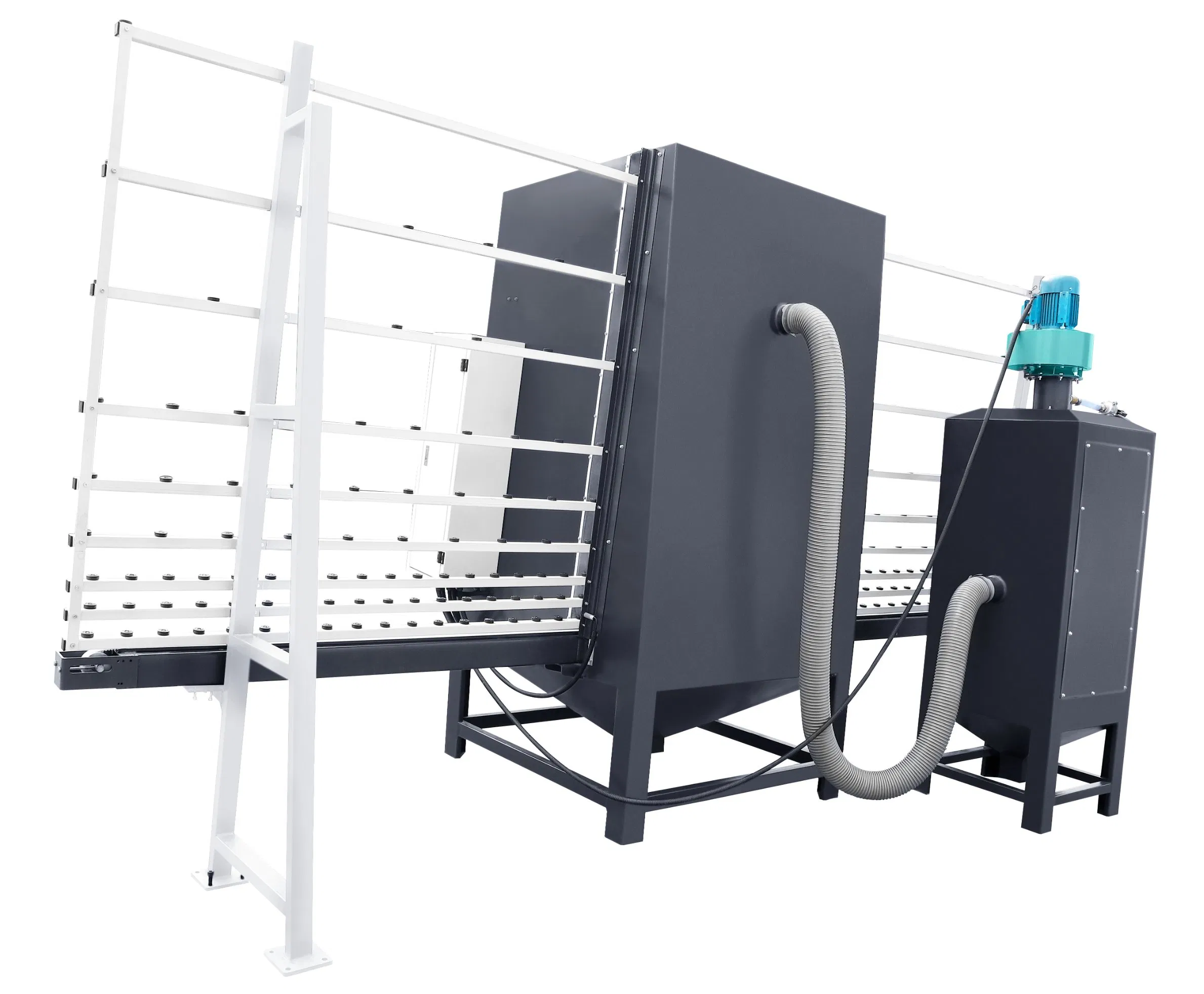

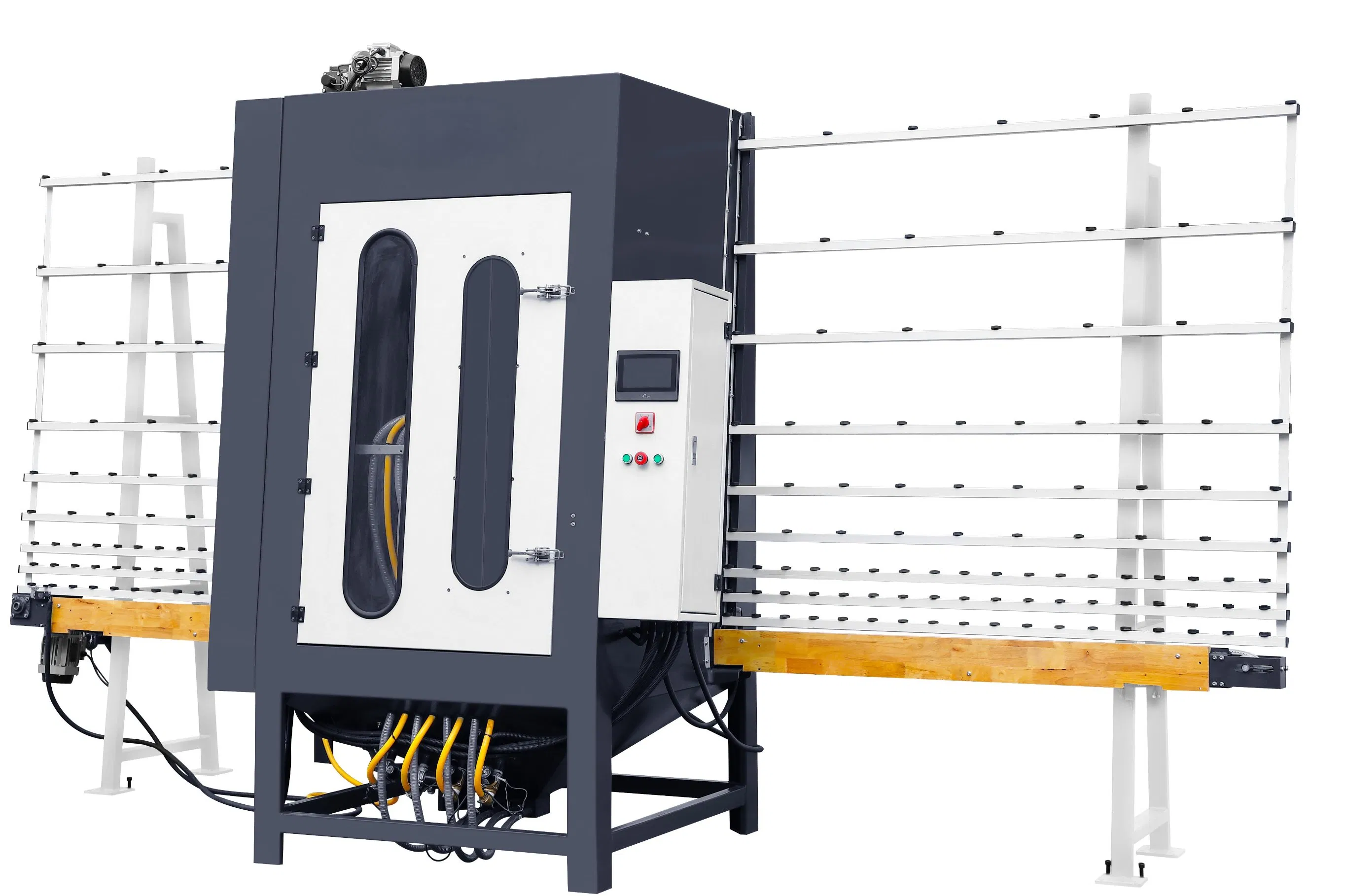

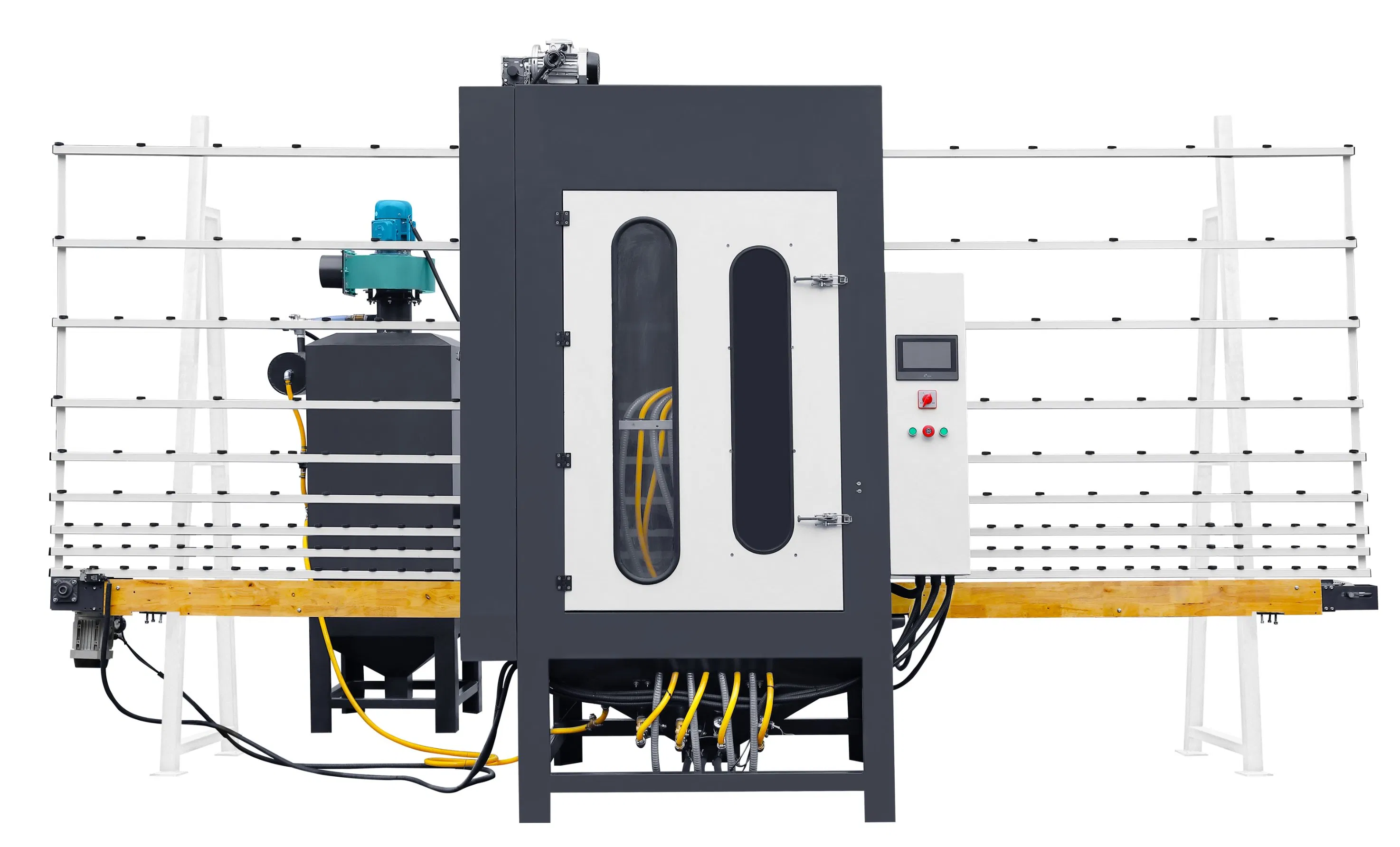

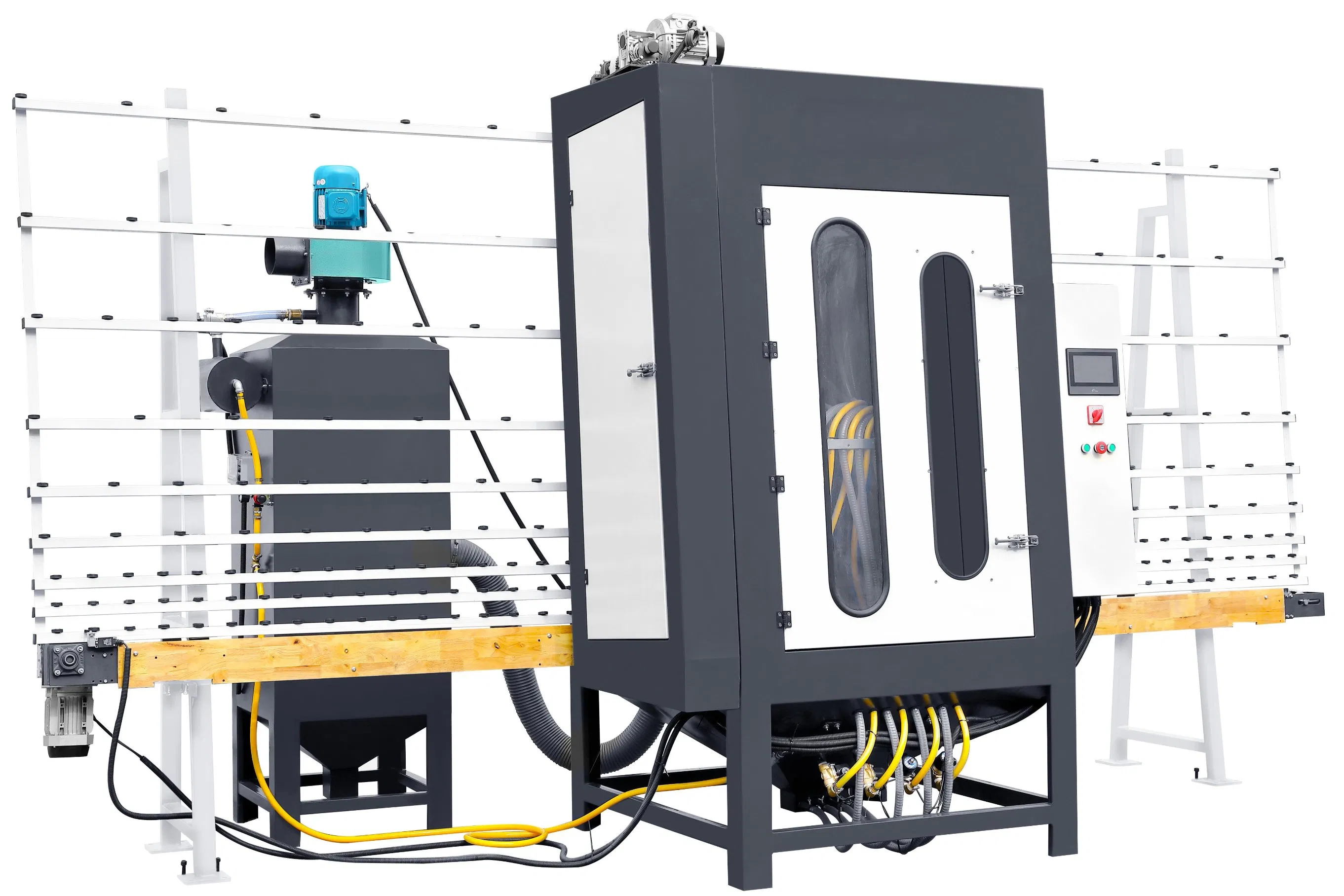

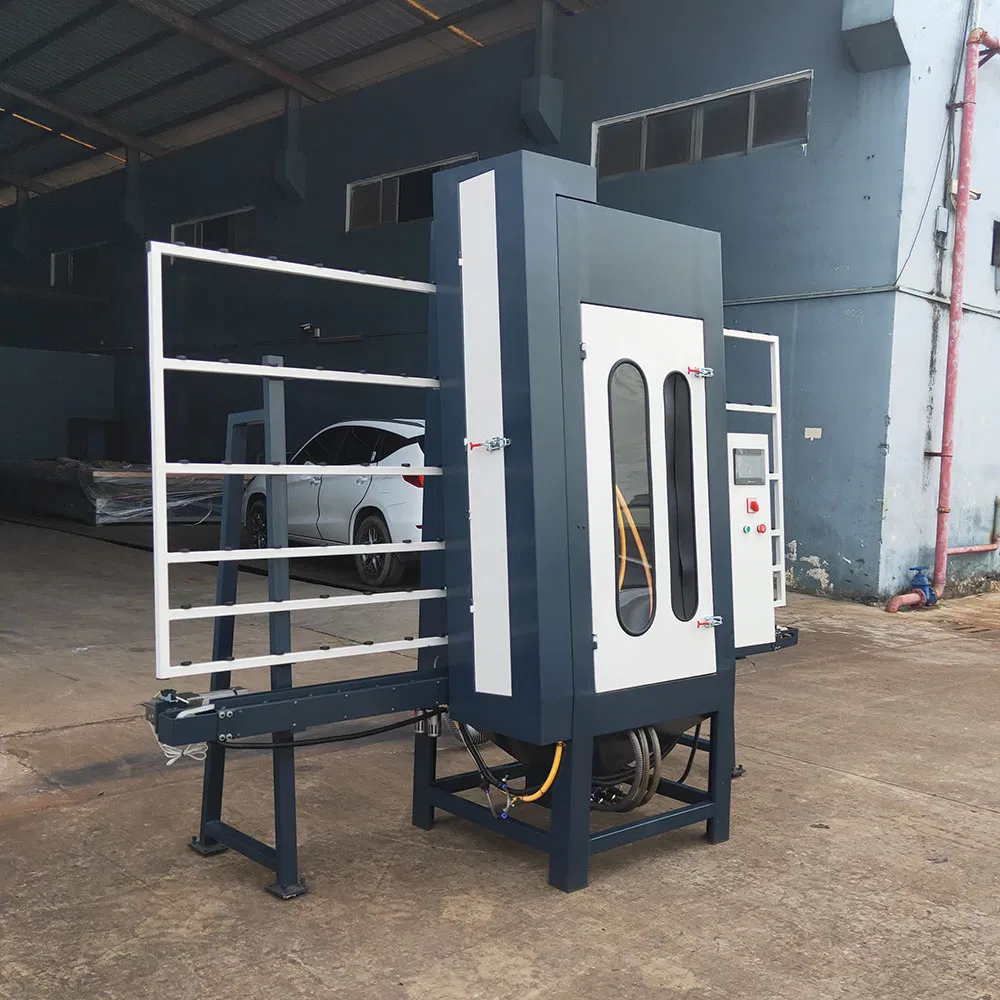

Glass Sand Blasting Machine
Glass sandblasting machine adopts touch screen operation and special materials for the nozzle. It features automatic dust collection and a reverse blowing mode for filter bag cleaning, ensuring low costs for usage and maintenance.
| NAME | Brand | Origin | Remarks |
|---|---|---|---|
| PLC | SanLing | Japan | - |
| Touch screen | XianKong | ShenZhen | - |
| Electric appliance | ZhengTai | ZheJiang | - |
| Nozzle | - | China | Boron carbide |
| Fan motor | GuangDong HuiDian | GuangDong | 2.2kw |
Working Gas Source Requirements:
| Air compressor | Power: 22KW, flow rate: not less than 3m³/min |
| Gas tank | Not less than 1m³ |

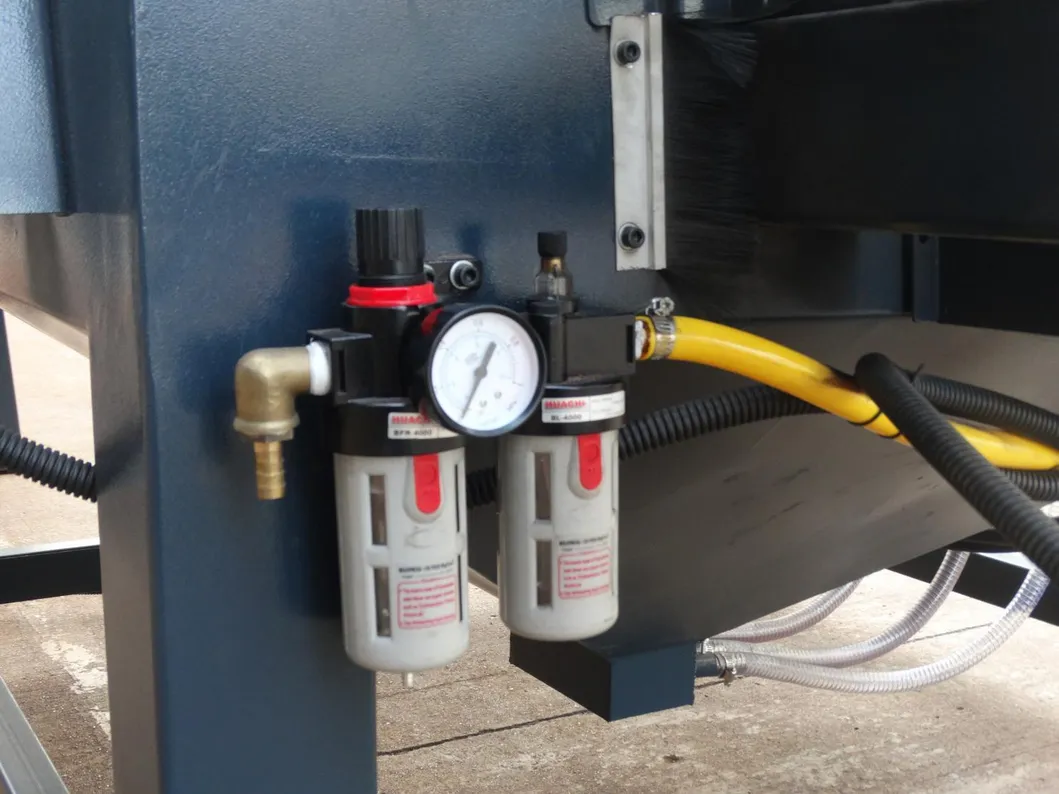

| Filter | Match with air compressor to filter moisture |
| Technical Parameters | PS16LA | PS20LA | PS25LA |
|---|---|---|---|
| Max blasting height | 1600mm | 2000mm | 2500mm |
| Floor area (mm) | 4700x1500x2300 | 6800x1500x2800 | 6800x1500x3300 |
| Total power | 3.5Kw | 3.5Kw | 3.5Kw |
| Weight | 1000Kg | 1100Kg | 1200Kg |

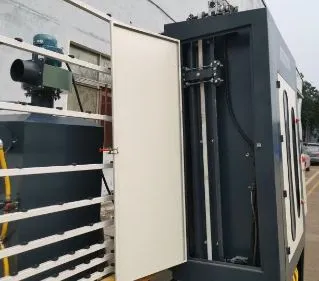

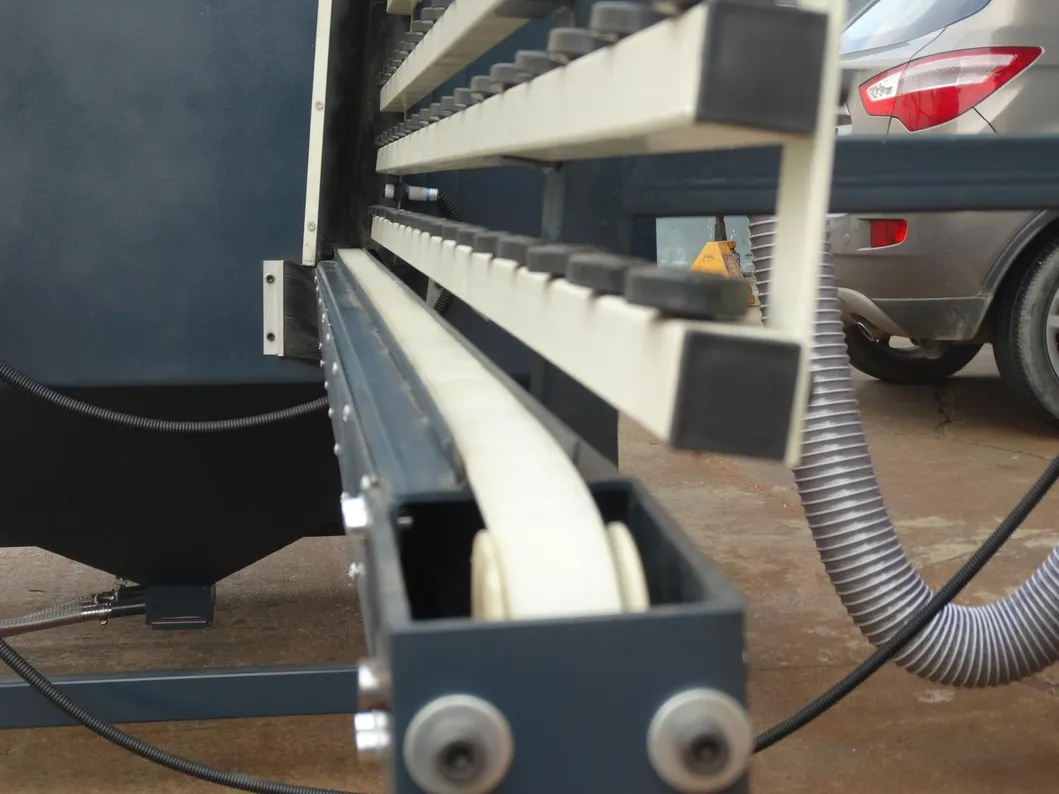

Synchronous belt drive system

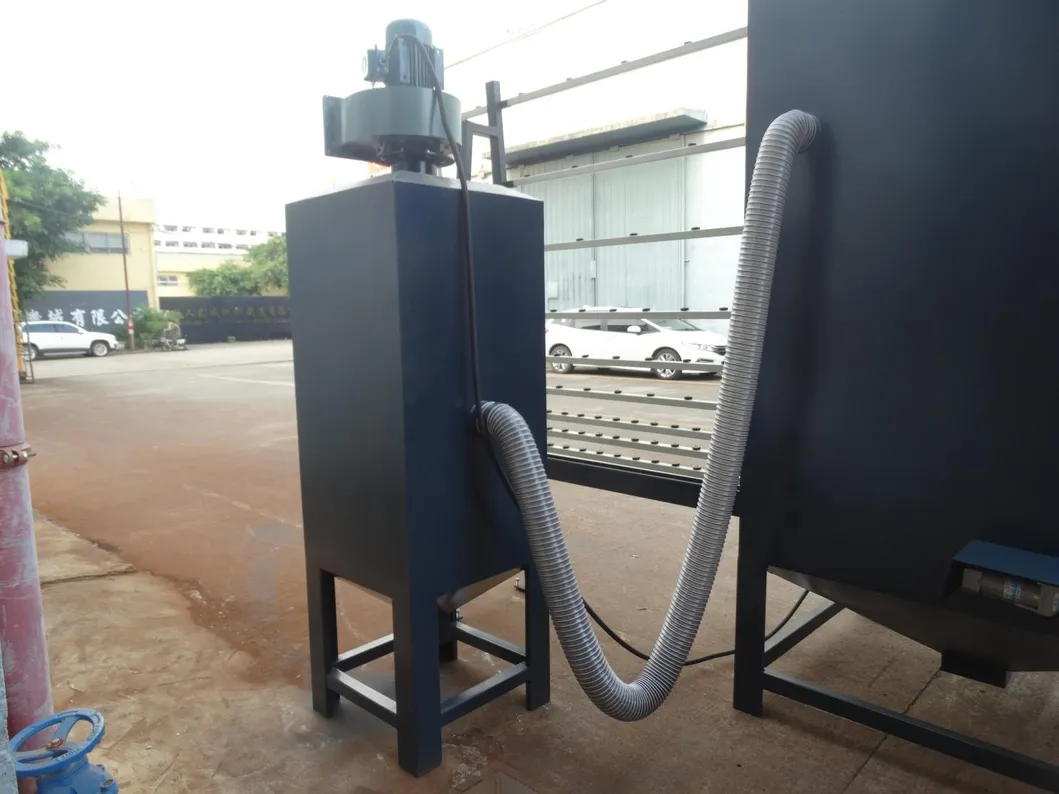

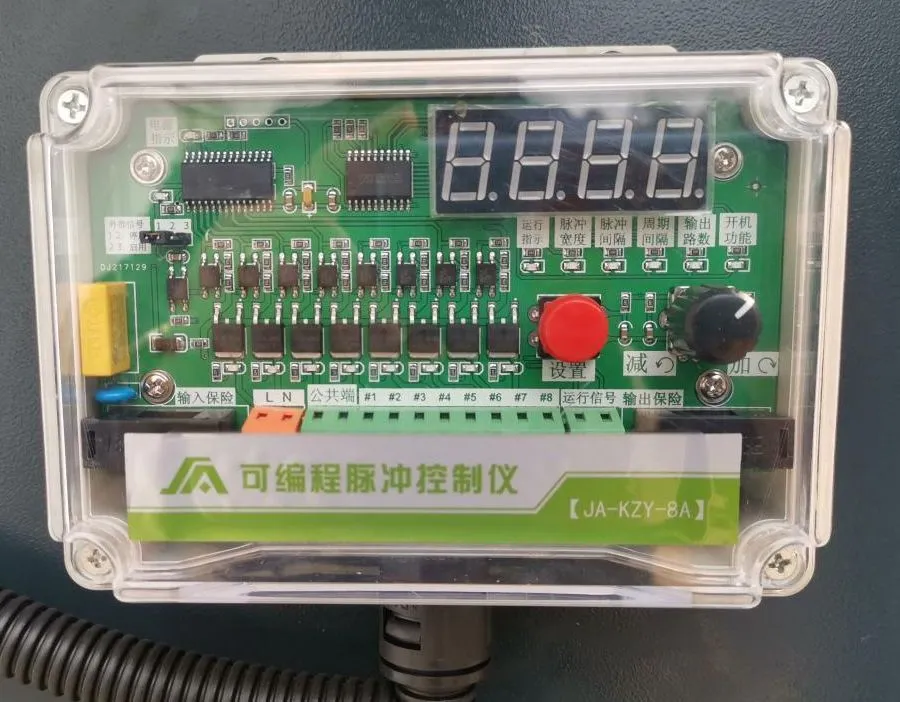

Pulse dust removal system

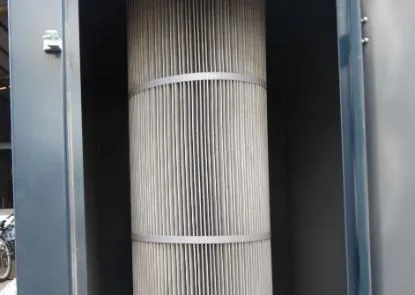

Filter element detail
