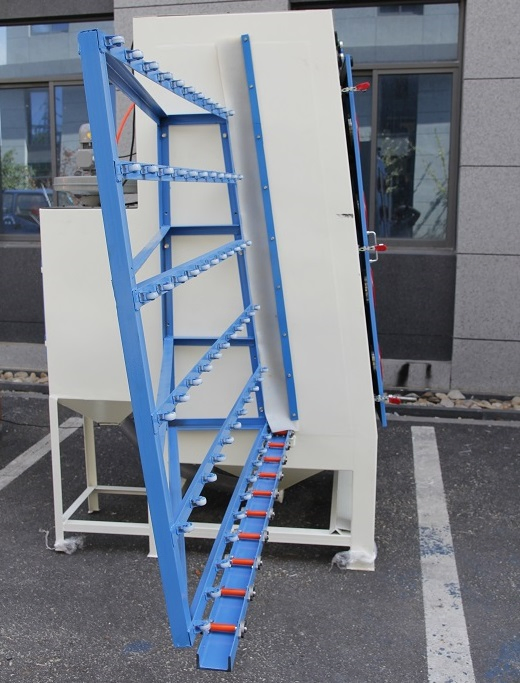

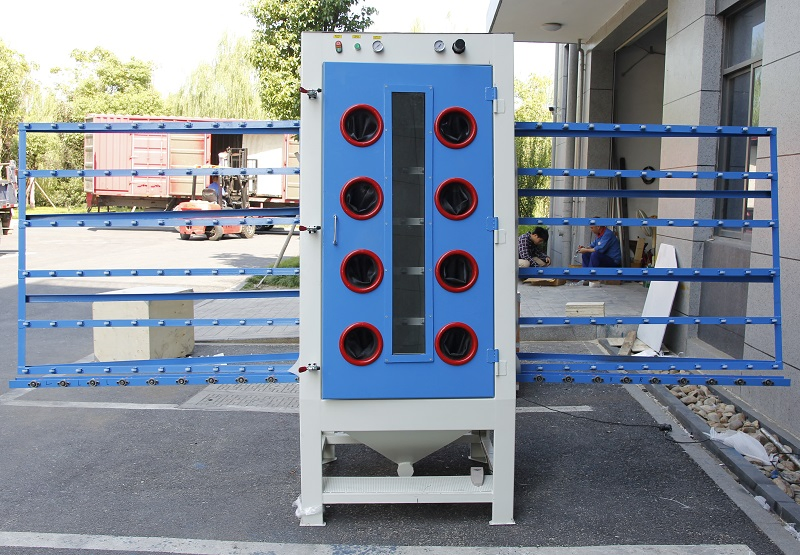

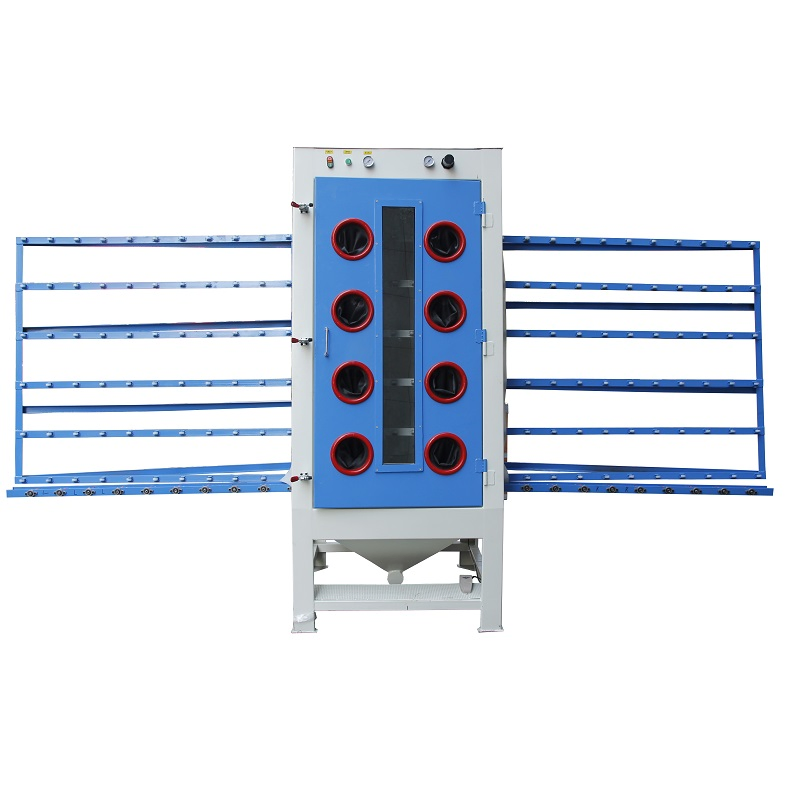

Sand Blasting Machine for Glass
Sand Blasting Machine for Glass
Sand Blasting Machine for Glass
Sand Blasting Machine for Glass
Sand Blasting Machine for Glass
1 / 5
Sand Blasting Machine for Glass
Sand Blasting Machine for Glass
Sand Blasting Machine for Glass
Sand Blasting Machine for Glass
Sand Blasting Machine for Glass

Sand Blasting Machine for Glass

Customization: Available
Warranty: 12months
Drive: Electric
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
KF-1080B
Principle
Inhaled
Control
PLC
Layout
Vertical
Automation
Manual
Kind
Dry Sandblaster
Condition
New
Certification
CE
Item
Glass Sandblasting Cabinet
Air Source
Pressure 5-8 Bar
Body Material
Cold-Rolled Plate
Weight
360kg
★

Product Description

The glass sandblasting equipment is specially designed for decorating glass plate, applicable for its thickness 3-30mm. It works within a certain height, while the length can be larger than the blasting cabinet. This glass sandblasting machine features ease of use and provides an environmentally friendly solution for high-quality glass finishing.
Glass Sand Blasting Machine

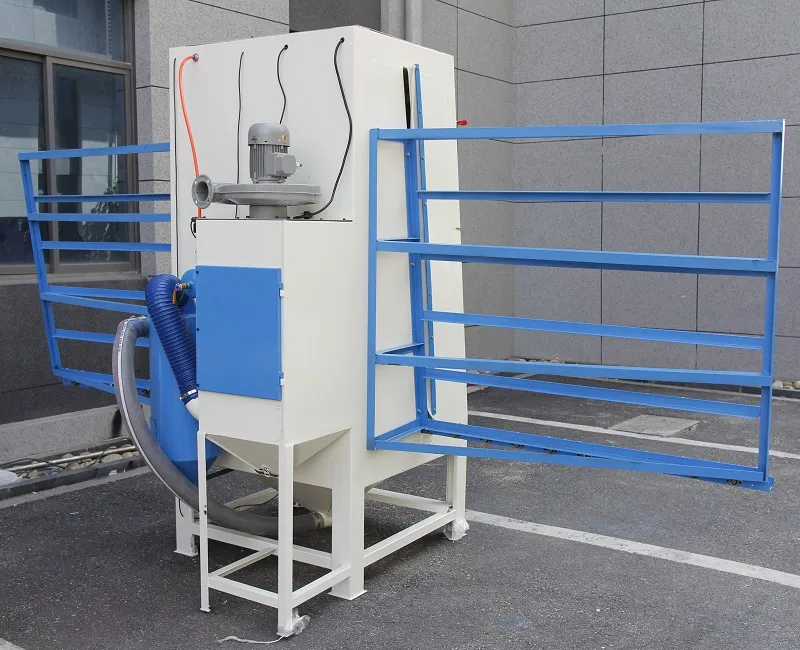

Sand Blasting Cabinet Details
✔

Key Features

1
Customizable working chamber size based on actual product requirements.
2
Equipped with multiple sets of arm holes and blasting gloves in a vertical arrangement.
3
Integrated rollers in the conveyor rail for smooth movement of glass plates.
4
Advanced cartridge filter dust collector and cyclone separator for efficient dust removal.

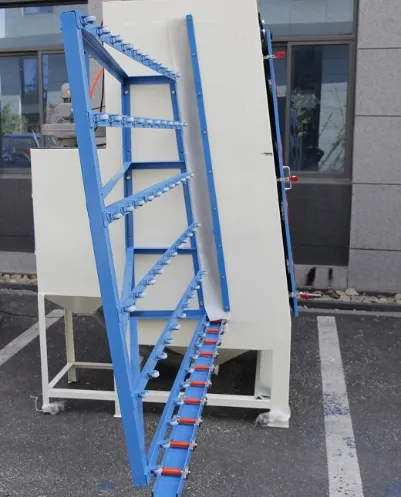

Machine Component

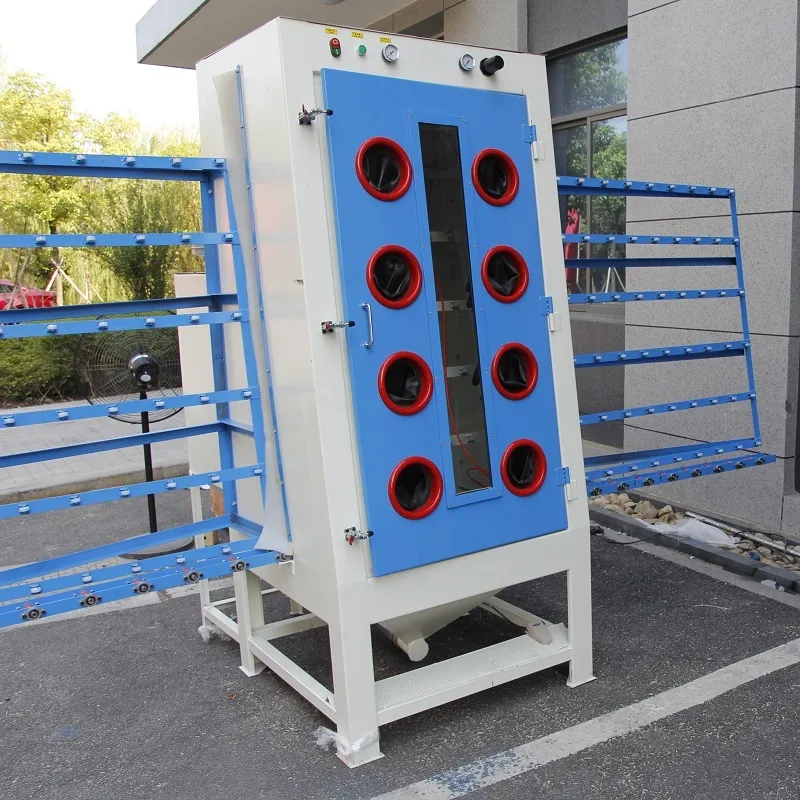

Processing Effect
▦

Technical Parameters

ModelKF-1080B
Outer Dimension3400mm * 1360mm * 2100mm
Working Dimension1000mm * 800mm * 1300mm
Max. Workpart SizeWidth 1300mm, Length 4000mm
Dust Collector0.37Kw, 220V, 50Hz
Lighting18w fluorescent lamp
Blast Gun1 pc aluminum alloy blast gun
Machine Body2mm thickness cold-rolled steel
Air Pressure5-8bar (kg/cm2)
Total Weight360kg
⚙

Surface Treatment Solutions

Professional surface treatment solutions are available for industries including shipping, steel structures, automotive accessories, stone carving, crystals, glass, and ceramics. The equipment range includes manual suction cabinets, pressure blasting machines, wet abrasive systems, and automatic conveyor systems.

Equipment Variety
Workshop Display

Frequently Asked Questions

What glass thickness can this machine process?
The equipment is specifically designed to handle glass plates with a thickness ranging from 3mm to 30mm.
How does the machine handle dust during operation?
It uses a high-efficiency cartridge filter dust collector and a cyclone separator to remove even the finest dust particles, ensuring a clean working environment.
Is the machine suitable for very long glass plates?
Yes, while the machine has a set height, the design allows for glass plates with lengths exceeding the cabinet size to be processed.
What kind of air supply is required?
The system requires a stable air source with a pressure between 5 and 8 Bar (kg/cm2).
Are the working dimensions customizable?
Yes, we can design the size of the working chamber to meet the specific size requirements of your products.
How is the glass moved during the sandblasting process?
The conveyor rail is built with integrated rollers that facilitate the smooth movement of heavy glass plates through the cabinet.

Related Products

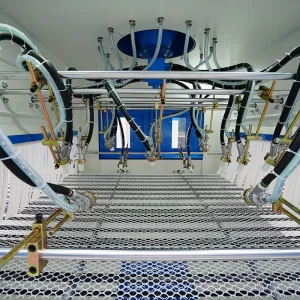

Full Automatic Sand Blasting Machine Industrial Conveyor Sandblasting Machine for Glass Plate

Full Automatic Sand Blasting Machine Industrial Conveyor Sandblasting Machine for Glass Plate

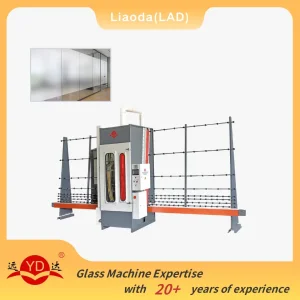

Vertical Type Glass Sand Blasting Machine in China

Vertical Type Glass Sand Blasting Machine in China

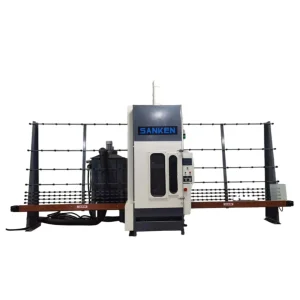

Sanken Vertical Glass Sand Blasting Machine for Mirror Toughened Glass Plant

Sanken Vertical Glass Sand Blasting Machine for Mirror Toughened Glass Plant
New Arrival Sandblasting Machine Automatic for Glass Sand Blasting

New Arrival Sandblasting Machine Automatic for Glass Sand Blasting

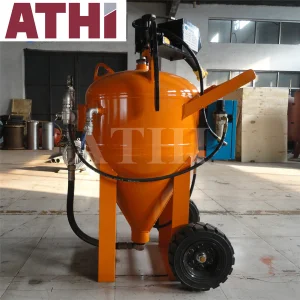

Glass Bead and Water Wet Mobile Portable Type Dustless Sand Blasting Machine

Glass Bead and Water Wet Mobile Portable Type Dustless Sand Blasting Machine

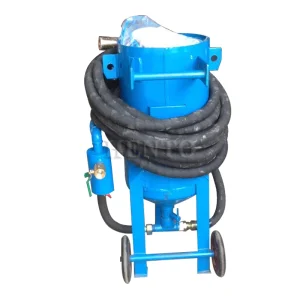

Portable Sandblaster / Sand Blasting Machine / Glass Sandblasting Machine

Portable Sandblaster / Sand Blasting Machine / Glass Sandblasting Machine

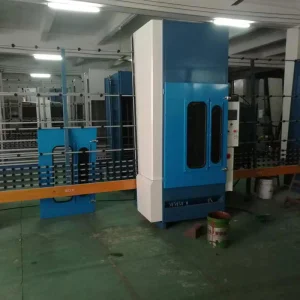

Flat Sandblasted Glass Marking Sand Blasting Machine Sand Blaster Machine

Flat Sandblasted Glass Marking Sand Blasting Machine Sand Blaster Machine

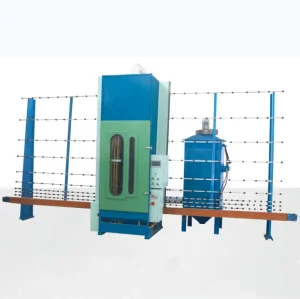

Basic Customization 2000mm Vertical Automatic Glass Sand Blasting Machine with CE for Float Glass Processing Machinery

Basic Customization 2000mm Vertical Automatic Glass Sand Blasting Machine with CE for Float Glass Processing Machinery

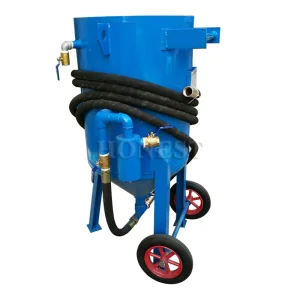

Mobile Sand Blaster / Sand Blasting Electric / Glass Sandblasting Machine

Mobile Sand Blaster / Sand Blasting Electric / Glass Sandblasting Machine

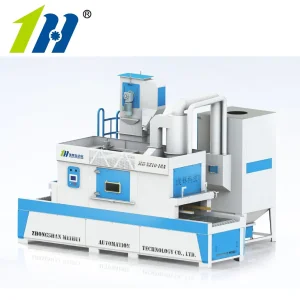

Meihui Cooking Utensils Pot Aluminum Plate Profiles Glass Hardware Use Pass-Through Sand Blasting Machine Automatic Sand Blast Machine
