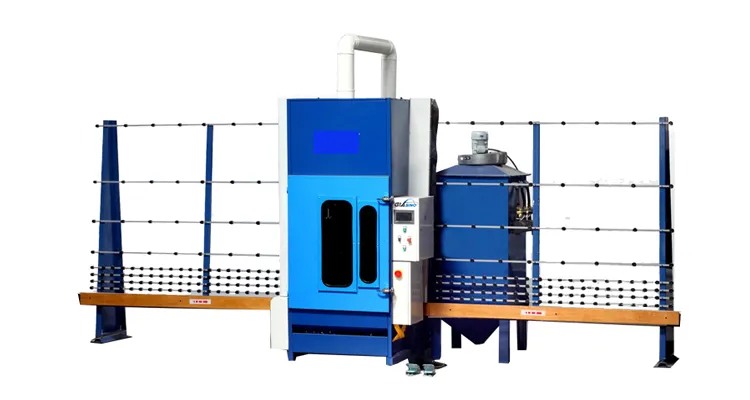

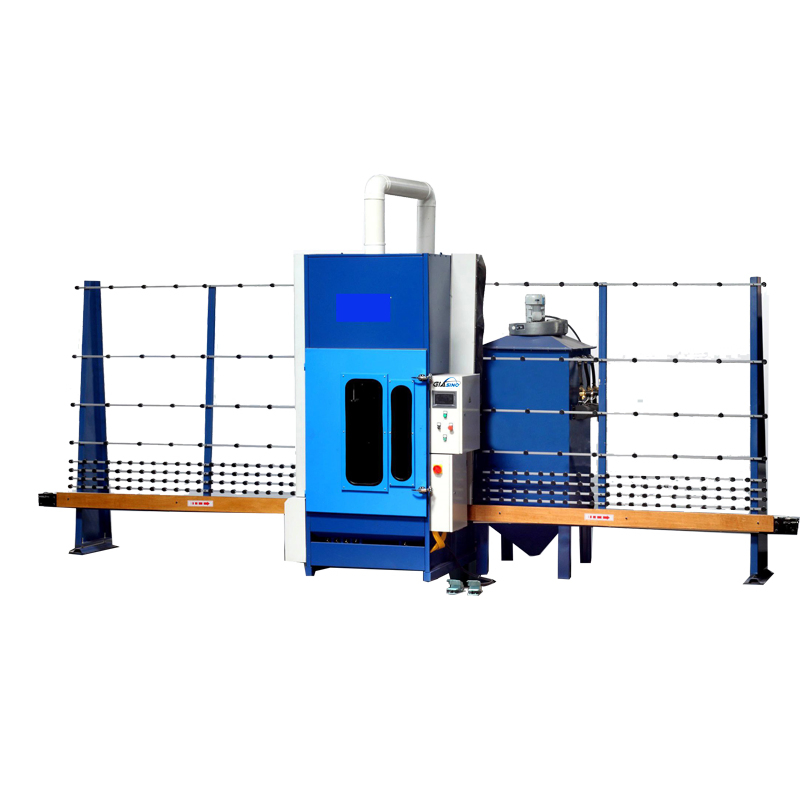

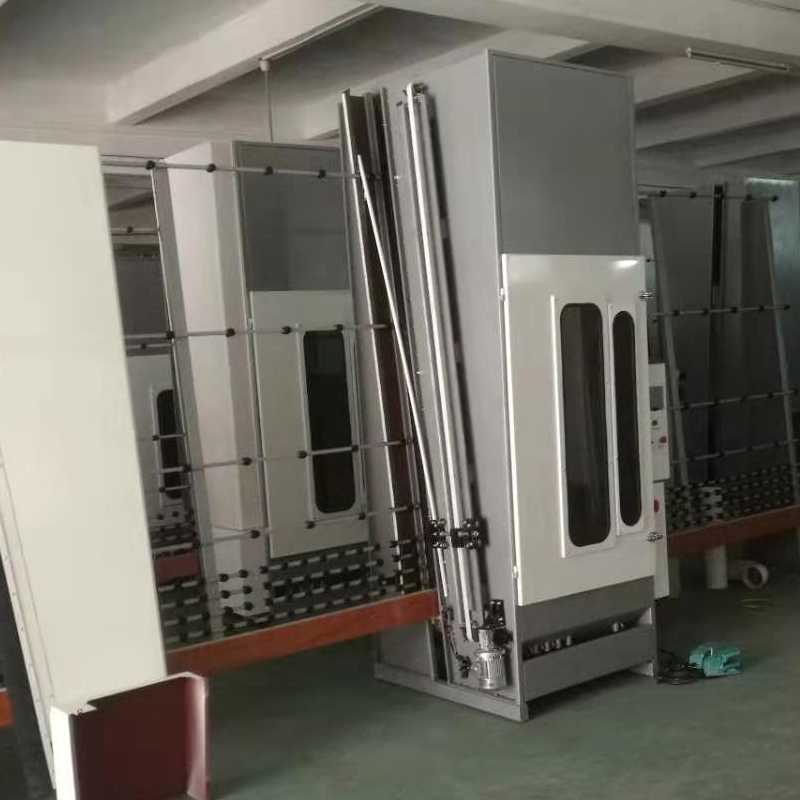

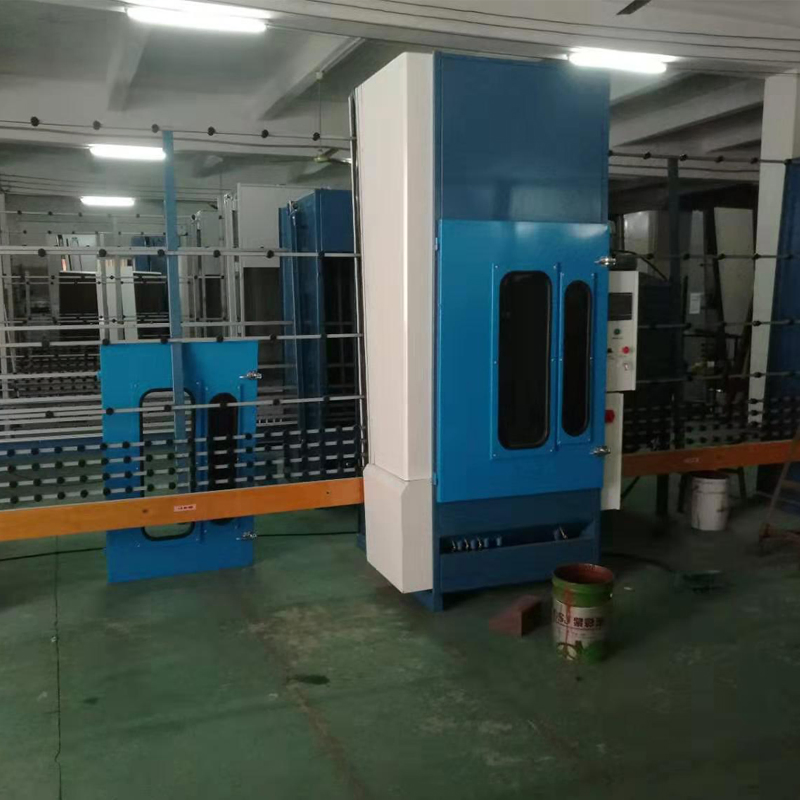

Glass Sandblasting Machine

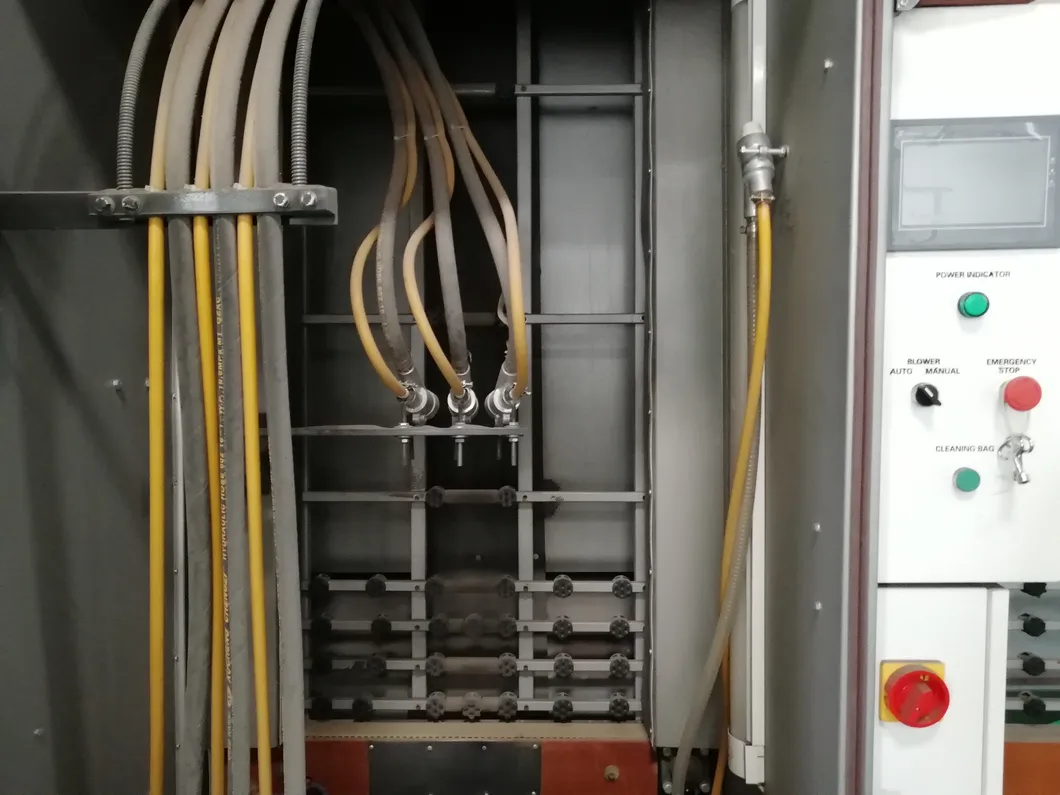

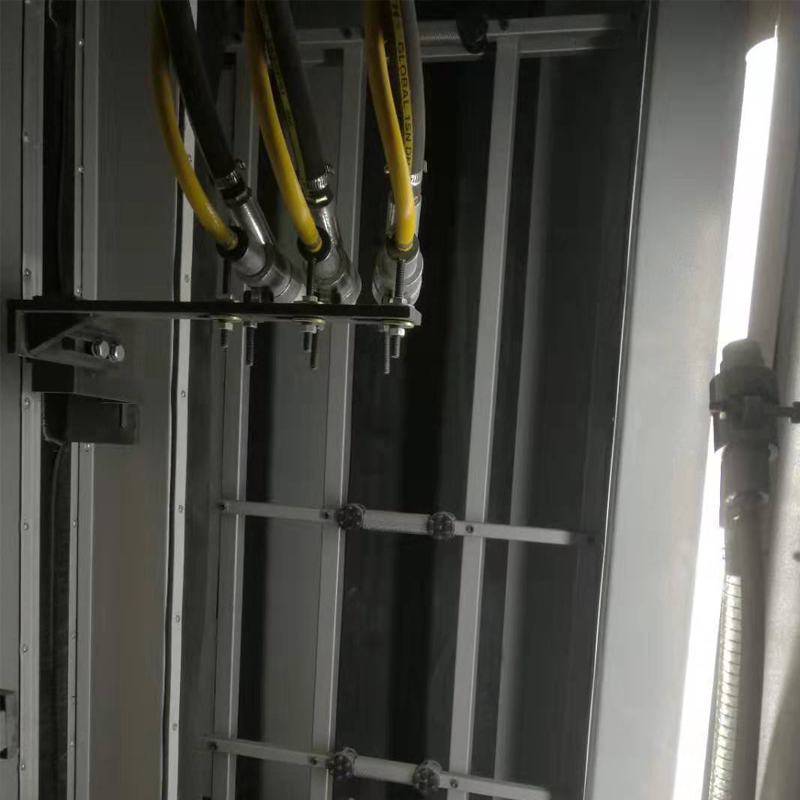

The automatic system for the glass sandblasting machine is constructed with a high-precision touch screen and PLC. The machine is equipped with three automatic spray guns and one manual spray gun, enabling both manual and automatic sandblasting functionalities.
Key Features:
Advanced Components for Glass Processing

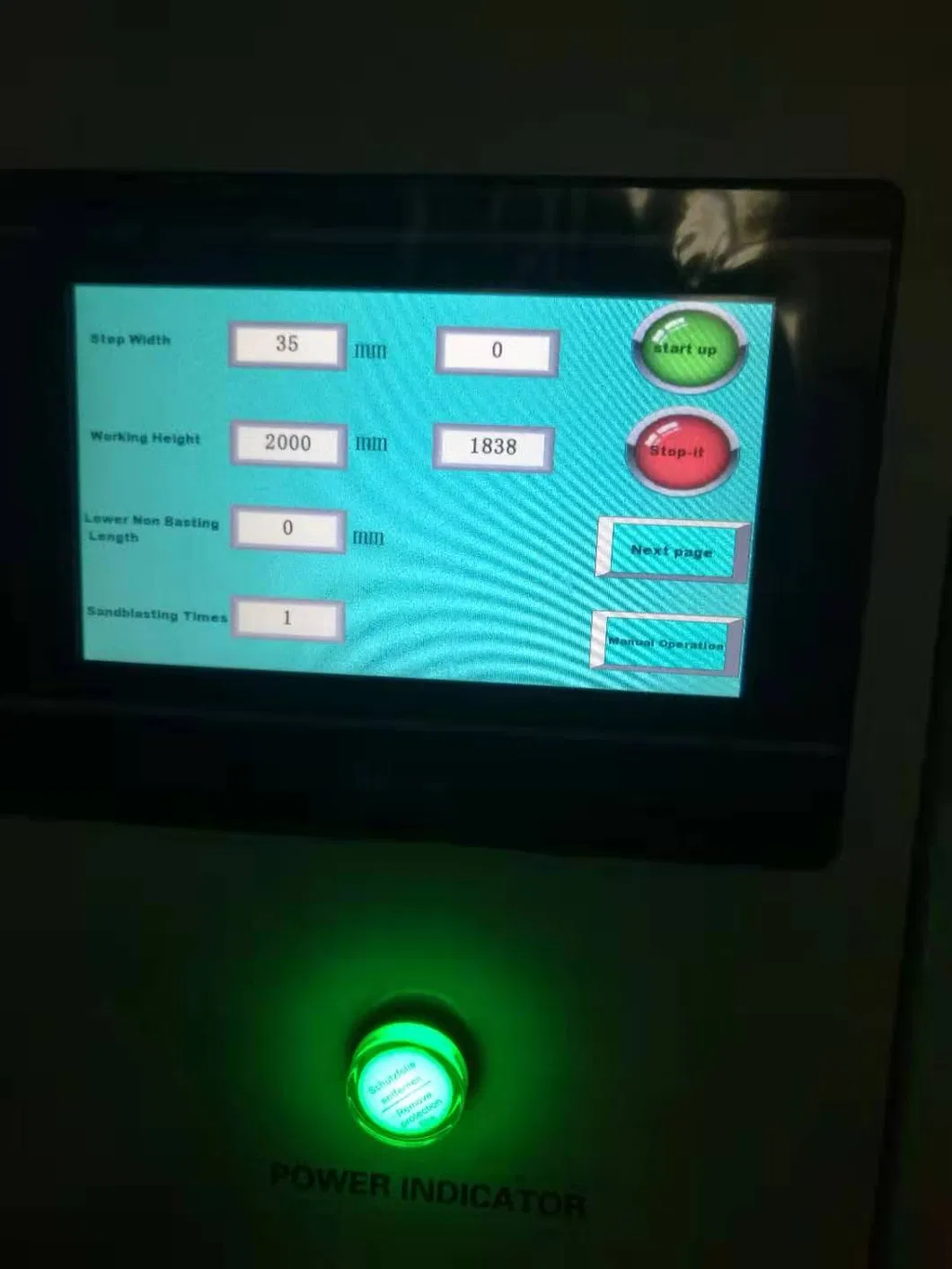

Adopt PLC control system; the machine can adjust automatically after inputting the glass processing data. Both automatic and manual operations are available.

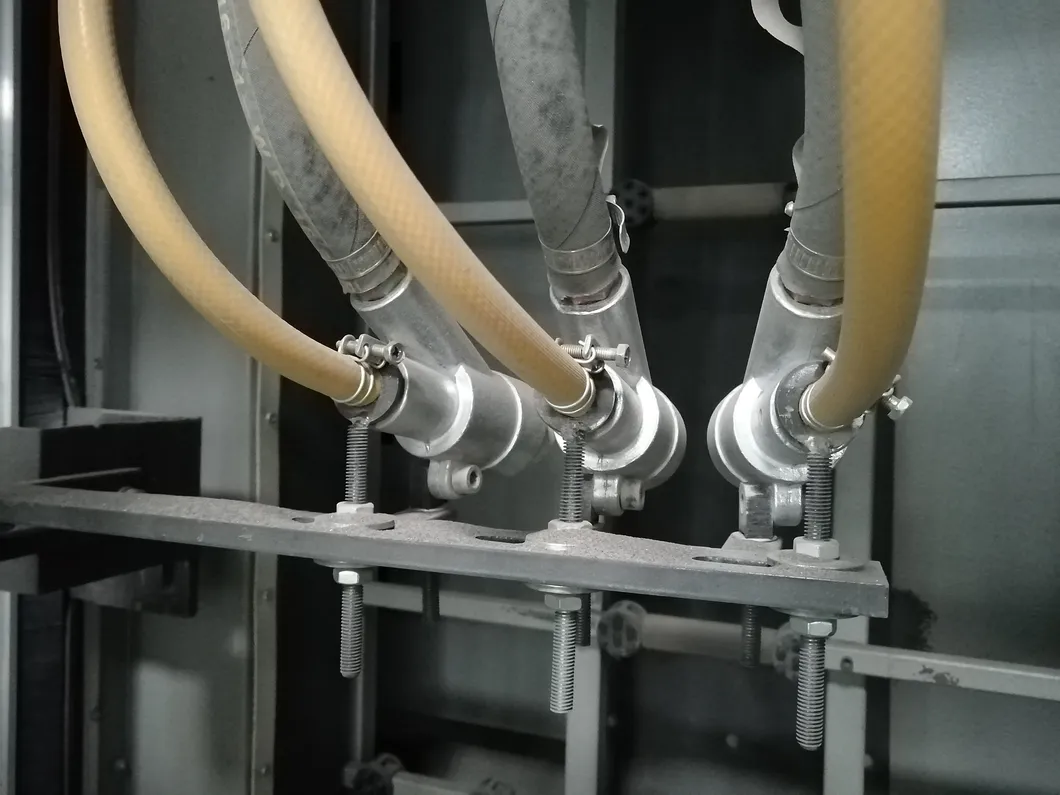

High-quality air pipes are used to ensure durability against sand abrasion. Specialized nozzle materials ensure an extended operational life.
| Model Number | GS-1500 | GS-2000 | GS-2500 |
|---|---|---|---|
| Glass height (mm) | 1500 | 2000 | 2500 |
| Max. glass size (mm) | 1500*3000 | 2000*3000 | 2500*3000 |
| Min. processing size (mm) | 200*500 | 200*500 | 200*500 |
| Nozzle moving speed (m/min) | 5-25 | 5-25 | 5-25 |
| Working pressure (continuous) | 0.6MPa-0.8MPa | 0.6MPa-0.8MPa | 0.6MPa-0.8MPa |
| Power (kw) | 3.5kw | 3.5kw | 3.5kw |
| Outer dimension (m) | 4.5*1.5*2.5 | 7*1.5*2.8 | 8*1.5*3.3 |
| Weight (kg) | 1000 | 1000 | 1000 |

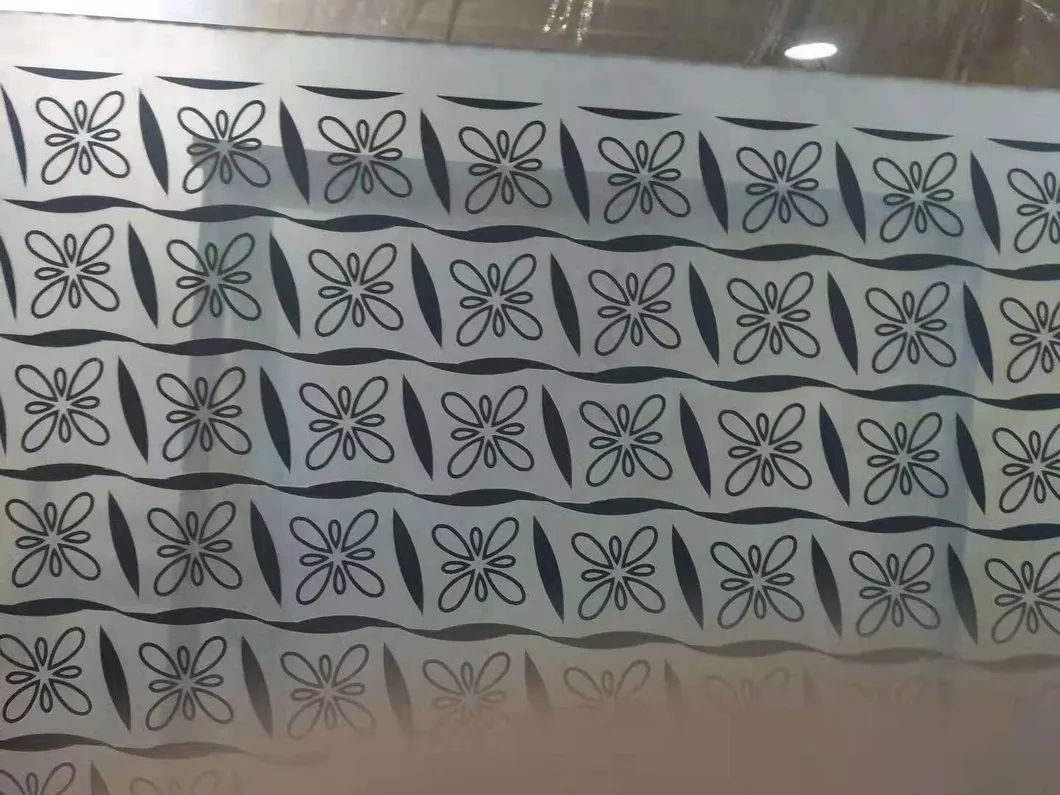

Essential equipment for processing glass partition walls and decorative glass.

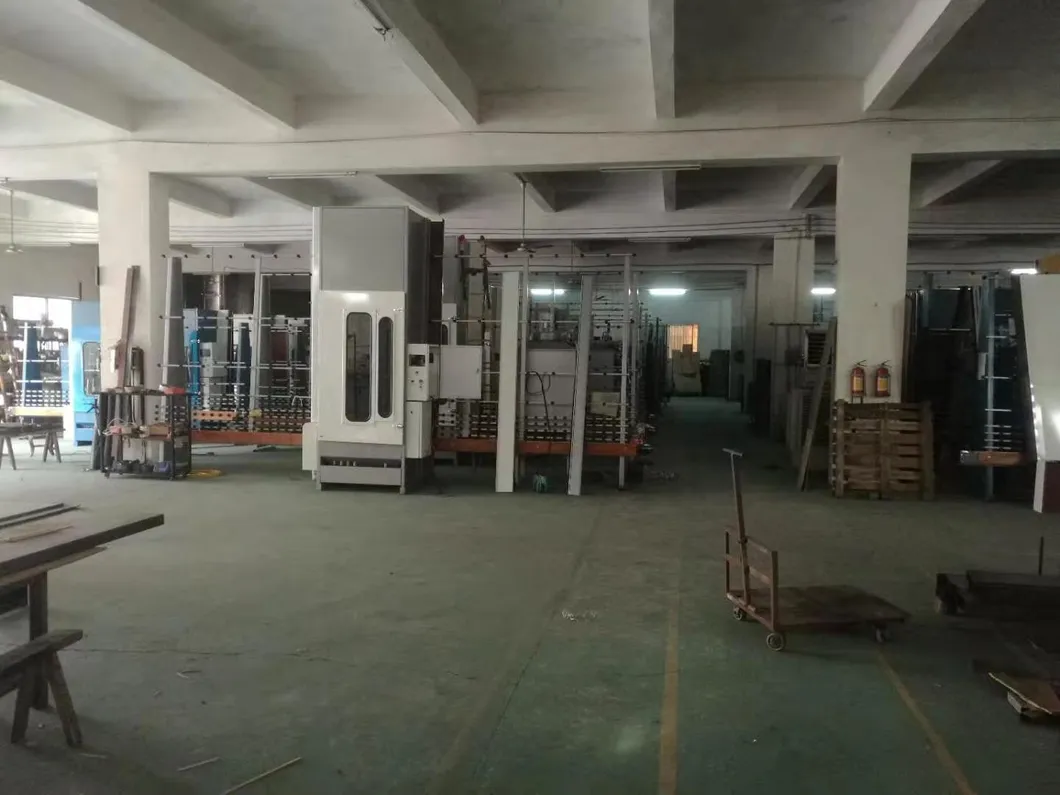

Specializing in the production of high-tech glass machinery since 2003, our expertise covers glass tempering furnaces, CNC glass cutting machines, insulating glass lines, and sandblasting solutions. We have achieved European CE certification, Switzerland SGS certification, and ISO 9001: 2008 quality control standards. Our commitment to perpetual innovation and outstanding quality ensures satisfying service for domestic and international markets.
