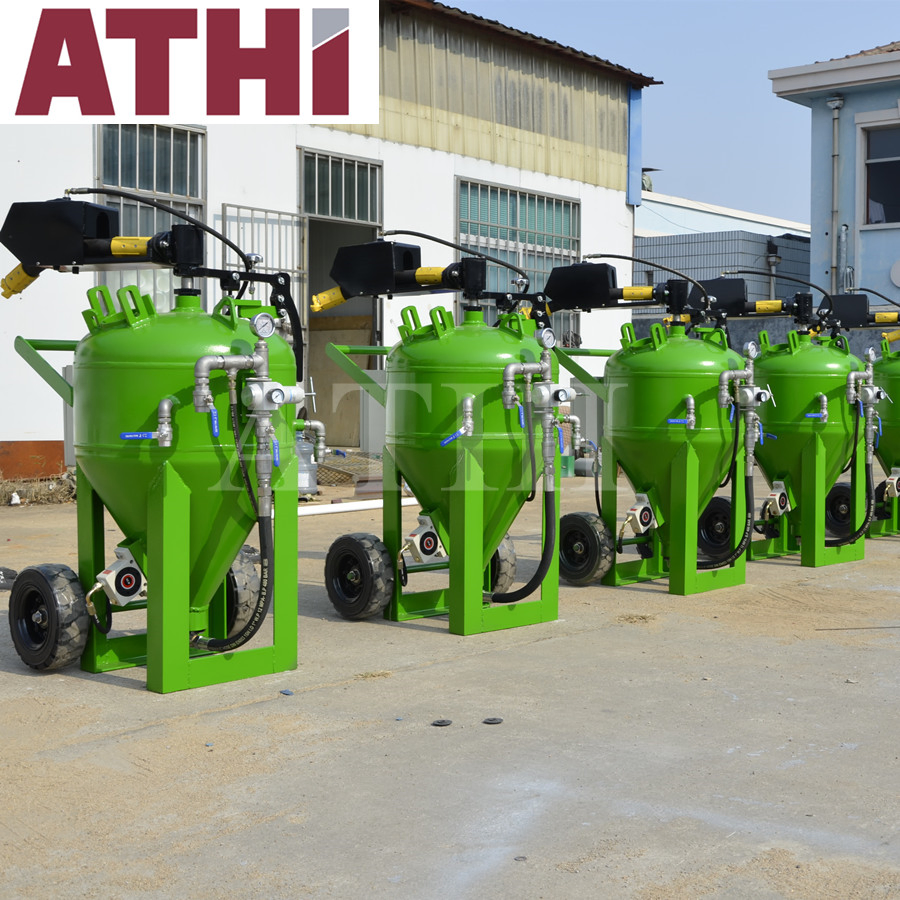

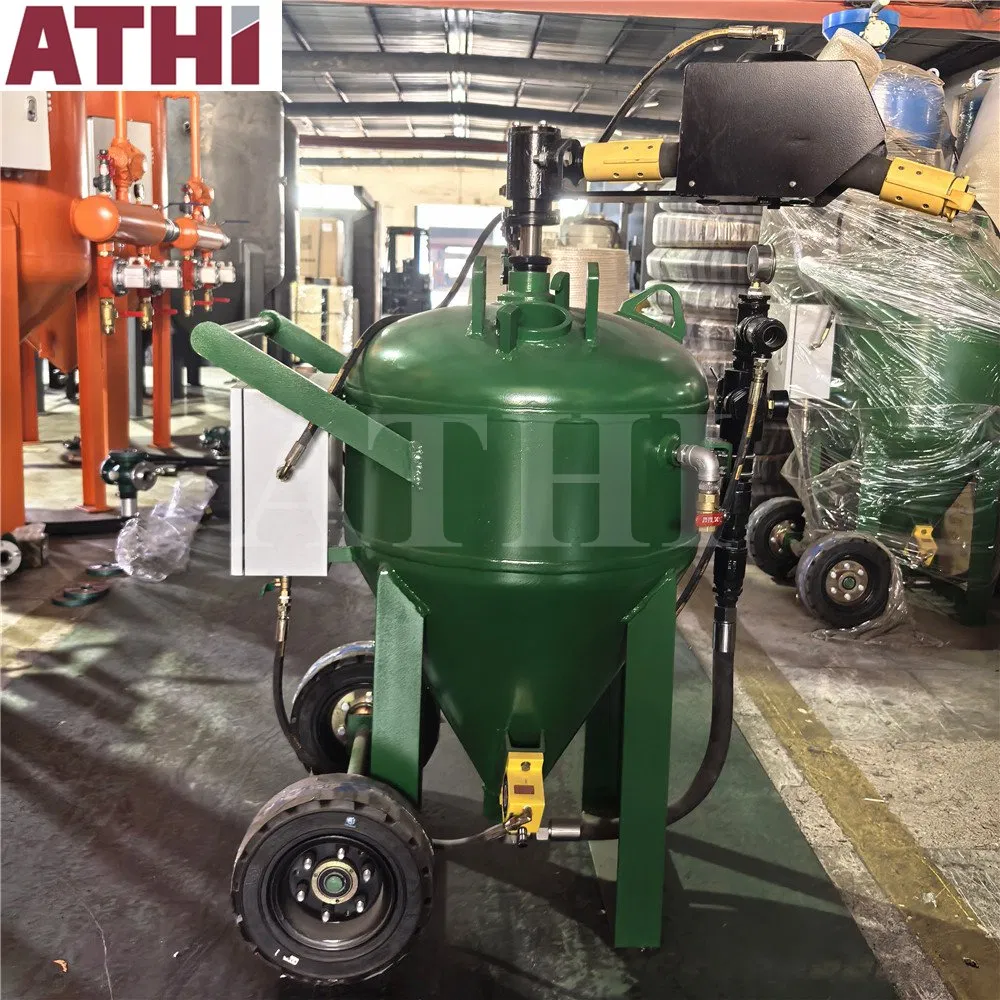

Glass Bead and Water Wet Mobile Portable Type Dustless Sand Blasting Machine

1 / 5

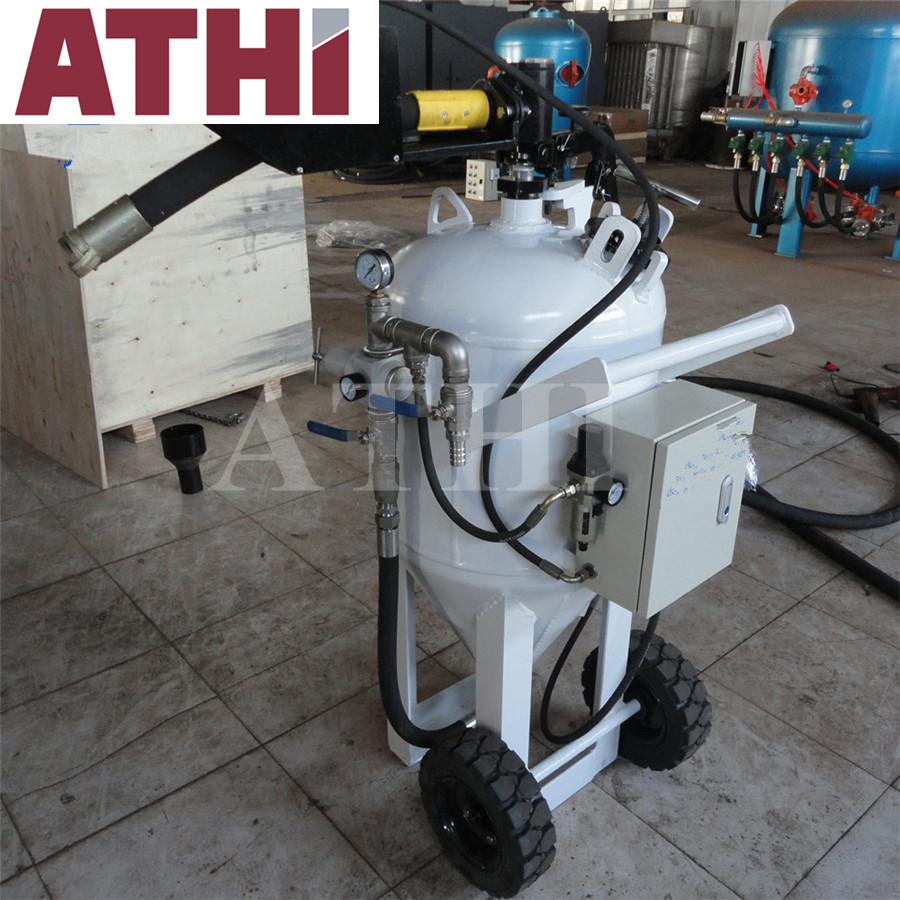

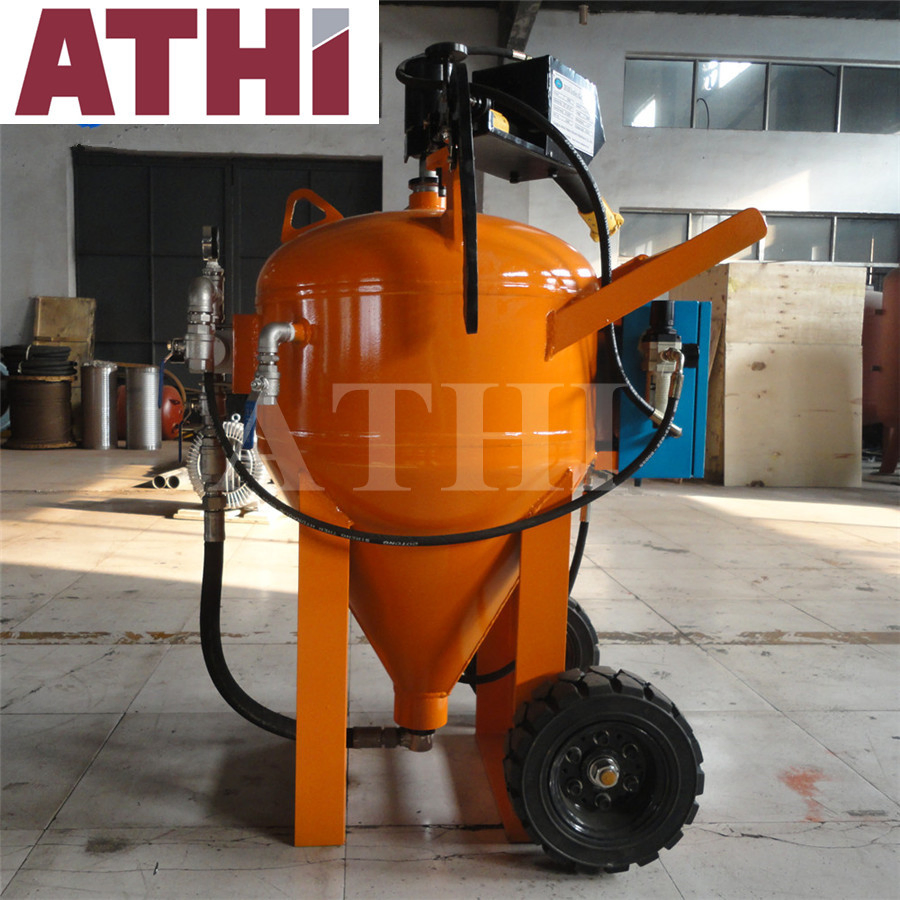

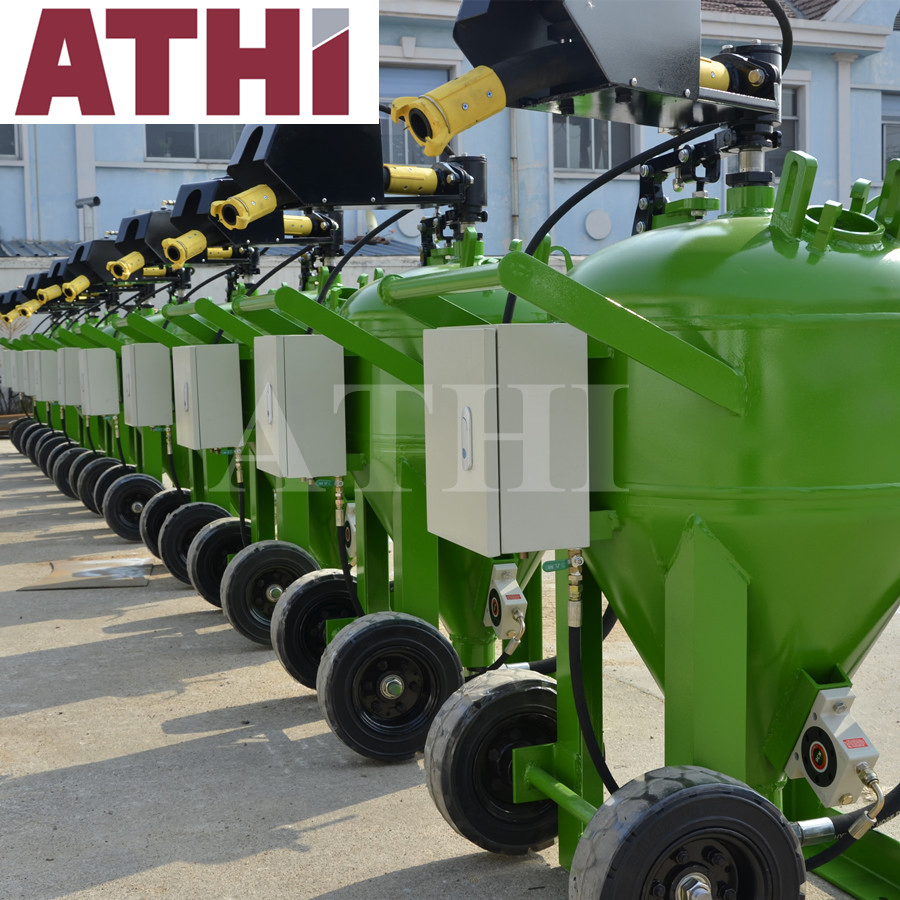

Glass Bead and Water Wet Mobile Portable Type Dustless Sand Blasting Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:

DB150 DB225 DB500 DB800 DB1500 DB3000

Application:

Metal Cleaning

Fuel:

Electric, Diesel

Type:

Dustless Blasting

Cleanliness:

High Cleanliness

Automation:

Automatic

Certification:

Feature:

Critical Cleaning / Residue Free

Condition:

New

Customized:

Customized

Operating Pressure:

30-150 Psi

HS Code:

84243000

Product Description & Application

Dustless sand blasting machines are mainly designed and integrated with the wide range of nozzles, wet blast attachments, internal pipe cleaning devices, dust free blasting heads, and abrasive control devices.

The dustless sand blasting machine is used for various fields worldwide, such as: Automotive, Marine, Refinery, Fleet vehicles, Graffiti removal, Stripe Removal, Heavy equipment, Surface cleaning, Powder coating, Offshore, Wood restoration, and Asbestos Abatement.

All machines can be fitted with a well-designed single piece remote control dead man switch and silencer which significantly reduce labor cost, improve efficiency of abrasive performance and safety. The machines are constructed for a maximum 150 PSI working pressure.

Dustless Sand Blasting Machine Application

Main Features:

High quality surface appearance
High productivity efficiency
Low cost & Environmental friendly
Lower abrasive consumption
Safe, no sparking

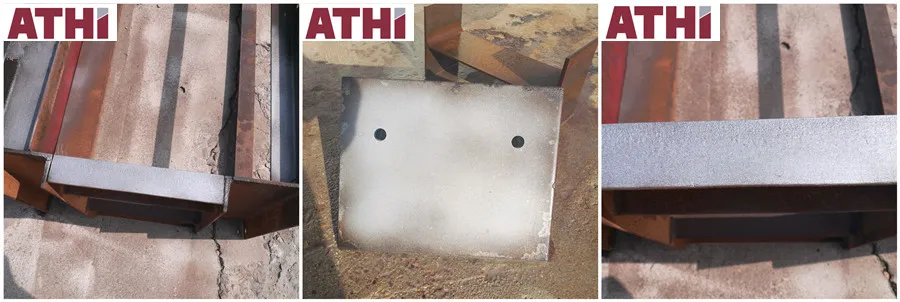

Removes scale for paint ready surface
Does not warp metal
Prevents rust for 72 hours

Product Parameters

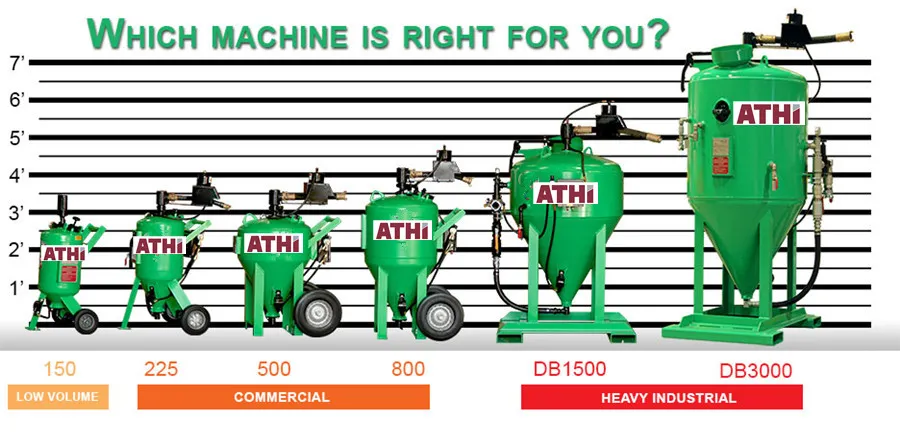

Technical Parameter	DB150	DB225	DB500	DB800	DB1500	DB3000
Blasting mode	air jet	air jet	air jet	air jet	air jet	air jet
Capacity	0.028m³ (1ft³)	0.057m³ (2ft³)	0.14m³ (5ft³)	0.23m³ (8ft³)	0.42m³ (15ft³)	0.85m³ (30ft³)
Blast time	~15min	~30min	~60 min	~90 min	~2-3 hours	~4-6 hours
Compressor Req.	60+CFM	185+CFM	185+CFM	185+CFM	375+CFM	375+CFM
Weight	72 kg	120 kg	167 kg	194 kg	380 kg	544kg
Operating Pressure	30-150 PSI

Requirement for air compressor: 4-10 bar, 60-375 CFM, 30-150 PSI, 0.2-1.0 Mpa

Package Includes:

A. Blast hose (ID25OD38mm or ID32OD48mm)
B. Deadman activator valve
C. Tungsten carbide nozzle (8/10/12mm)
D. Fill funnel
E. Lifetime warranty on blast pot

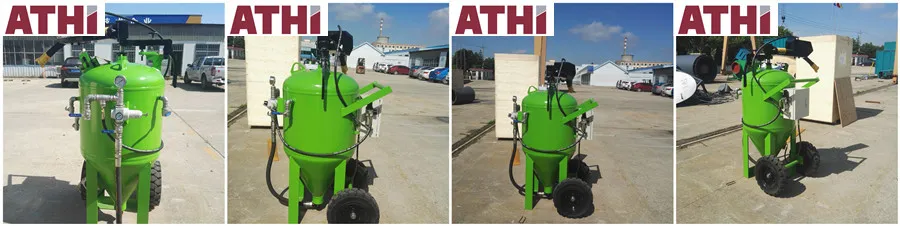

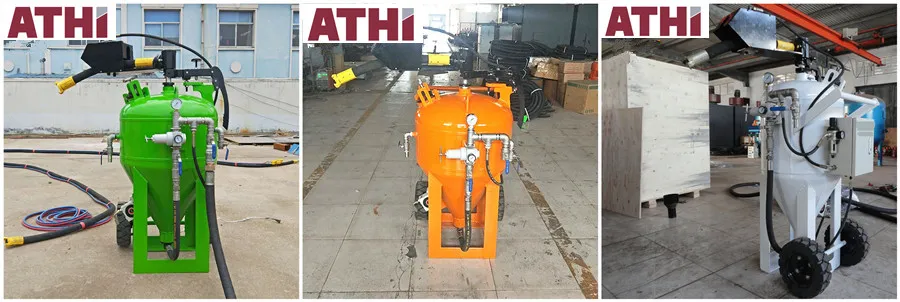

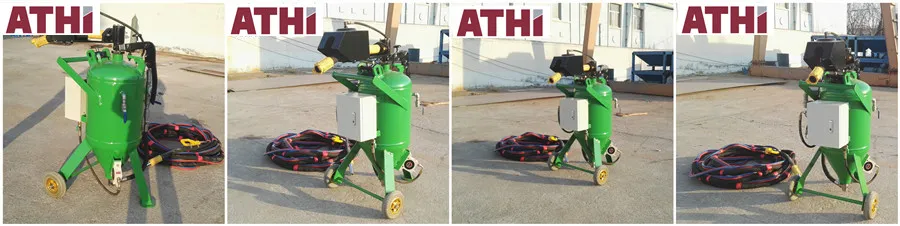

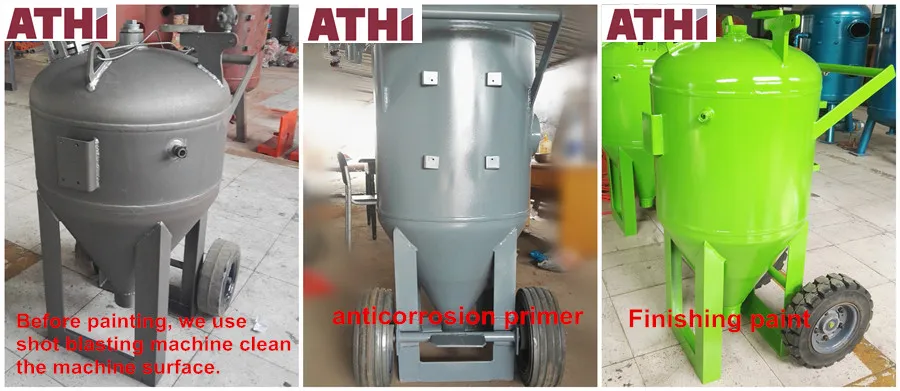

Detailed Images

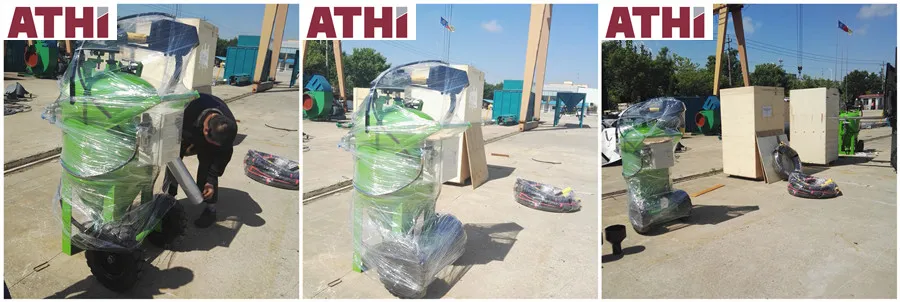

Packaging & Delivery

Frequently Asked Questions

1. What is the standard operating pressure for these machines? The dustless blasting machines operate within a pressure range of 30 to 150 PSI.

2. Does the dustless blasting process cause metal warping? No, one of the main features of our system is that it does not warp metal, making it ideal for automotive and thin metal restoration.

3. How long can the treated surface remain rust-free? The process can prevent flash rust for up to 72 hours, leaving a primer-ready surface.

4. What materials are used for the blasting nozzles? We use high-quality Tungsten Carbide for our nozzles to ensure durability and long-term performance.

5. What are the common applications for this machine? It is widely used for graffiti removal, marine hull cleaning, automotive restoration, heavy equipment cleaning, and powder coating removal.

6. Is the machine environmentally friendly? Yes, the dustless blasting method significantly reduces airborne dust and contamination compared to traditional dry blasting.
