Honghe Machinery
Honghe Machinery

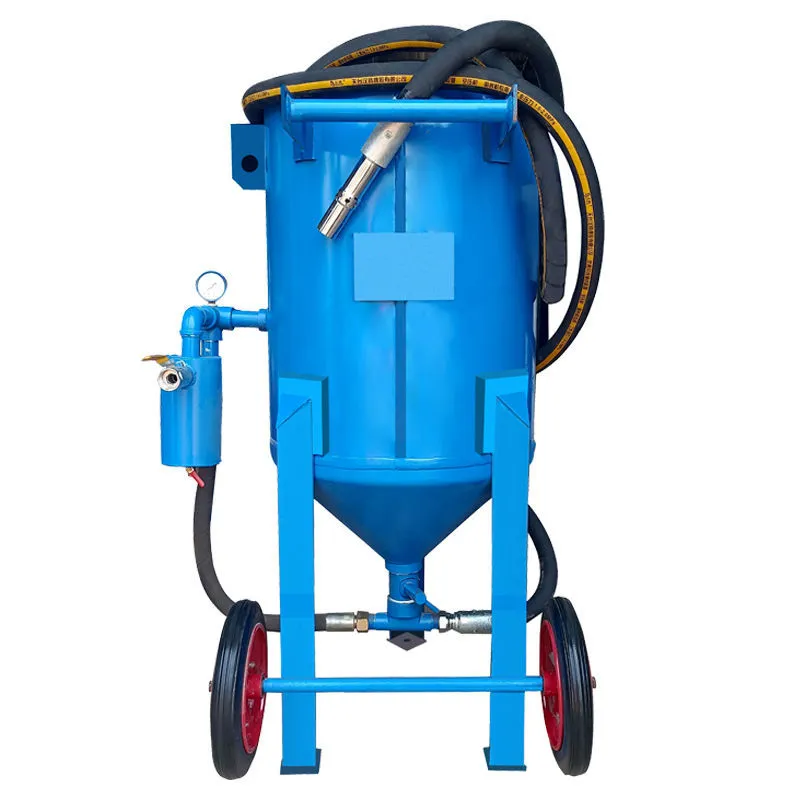

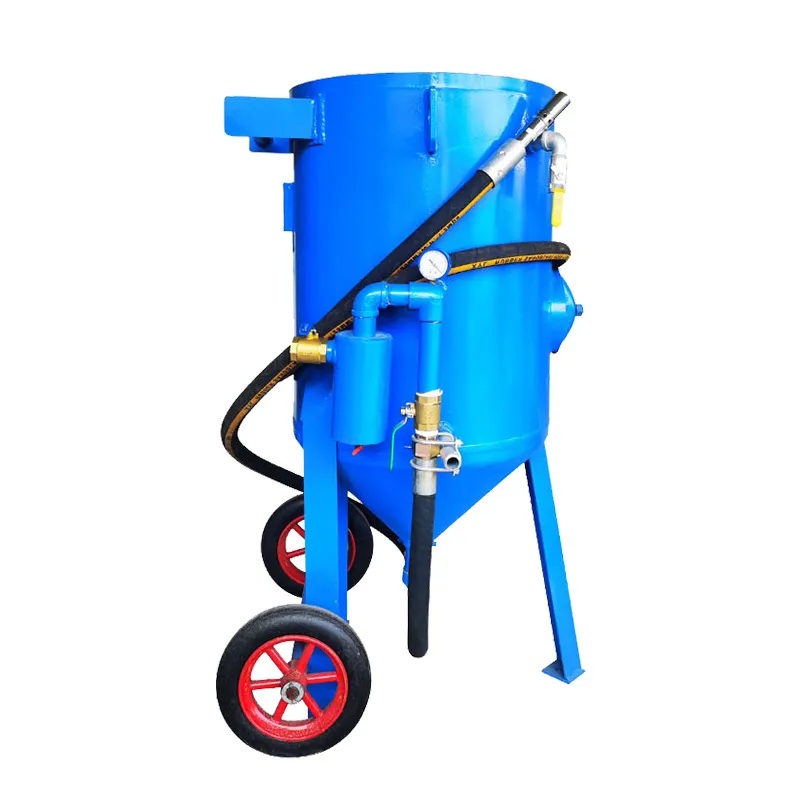

Open mobile sandblasting machine characteristics:
Application Scope:
Suitable for surface sandblasting treatment of large workpieces, such as ship repair, surface rust removal, scale removal, coating cleaning, and enhanced adhesion of boilers, bridges, containers, steel structures, steel plates, etc; Carving of surface text and patterns on stone, glass, etc., and achieving uniform atomization and relief effects; Burr cleaning of wooden furniture and treatment of natural and noticeable wood grain.
Key Features:
The press in working mode has a high working pressure (0.5-0.8 MPa), strong injection force, and high efficiency. Adopting advanced sand valve structure, it can accurately adjust the size of sand and air pressure. Standardized pressure vessel manufacturing ensures safety and reliability. Equipped with wear-resistant sandblasting tubes and nozzles for long-term operation.
| Model | BFYG-600 | BFYG-700 | BFYG-800 | BFYG-1000 |
|---|---|---|---|---|
| Volume(m3) | 0.26 | 0.3 | 0.6 | 1 |
| Height | 1150 | 1250 | 1700 | 2000 |
| Sand peening capacity | 5-10(m3/h) | 6-11(m3/h) | 10-12(m3/h) | 10-30(m3/h) |
| Air source configuration | 3(m2/min) | 3(m2/min) | 3.5(m2/min) | 4(m2/min) |
| Control System | Air control | Air control | Air control | Air control |
| Diameter | 600mm | 700mm | 800mm | 1000mm |
