| MODEL NO. | Max Glass Size (mm) | Max Glass Thickness | Work Time (s) | Thickness (mm) | Power (kW) | Machine Size (mm) | Type |
| ZXQ-L2621 | 2440×2000 | 18 | ≤40 | 3~20 | 11 | 3100*3600*1400 | Three in one |
| ZXQ-L3826 | 3660×2440 | 18 | - | - | 11.8 | 3630*4700*1400 | Three in one |
| ZXQ-L3829 | 3660×2800 | 18 | - | - | 11.8 | 3930*4700*1400 | Three in one |
| ZXQ2621 | 2440×2000 | 20 | - | - | 5 | 3600*2900*1400 | Only cutting |
| ZXQ3826 | 3660×2440 | 20 | - | - | 6 | 4700*3600*1400 | Only cutting |

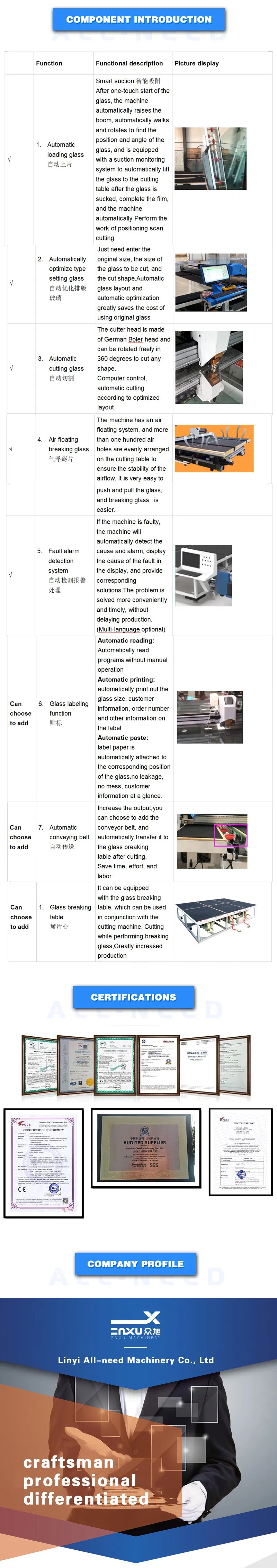

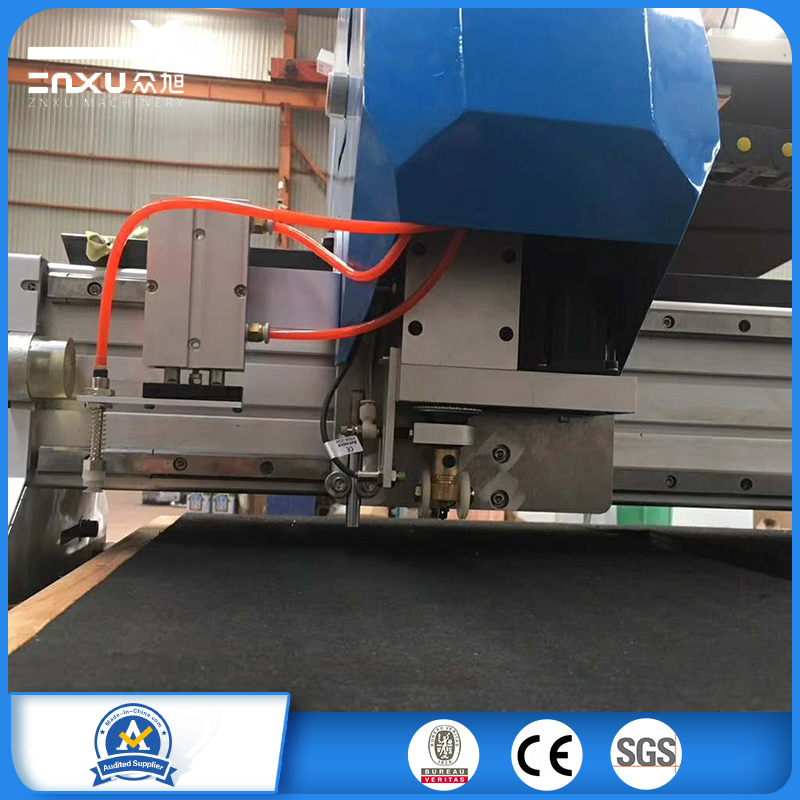

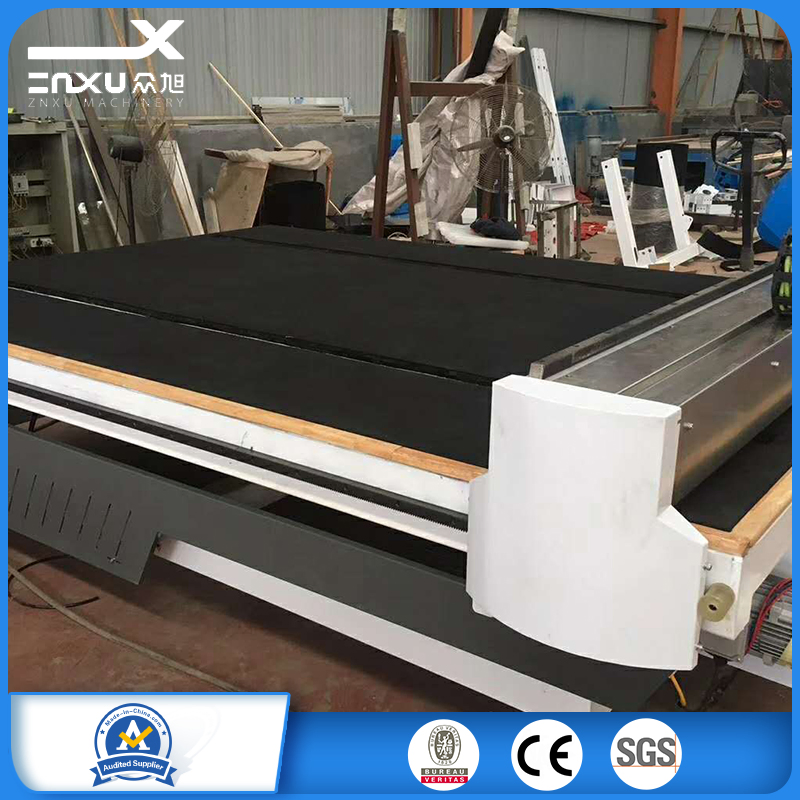

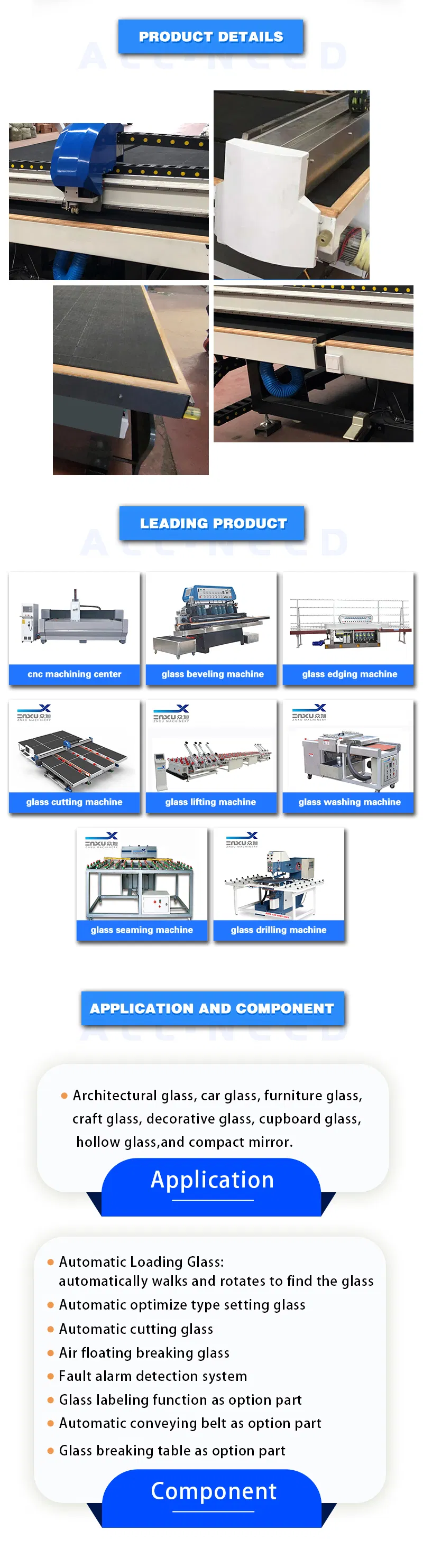

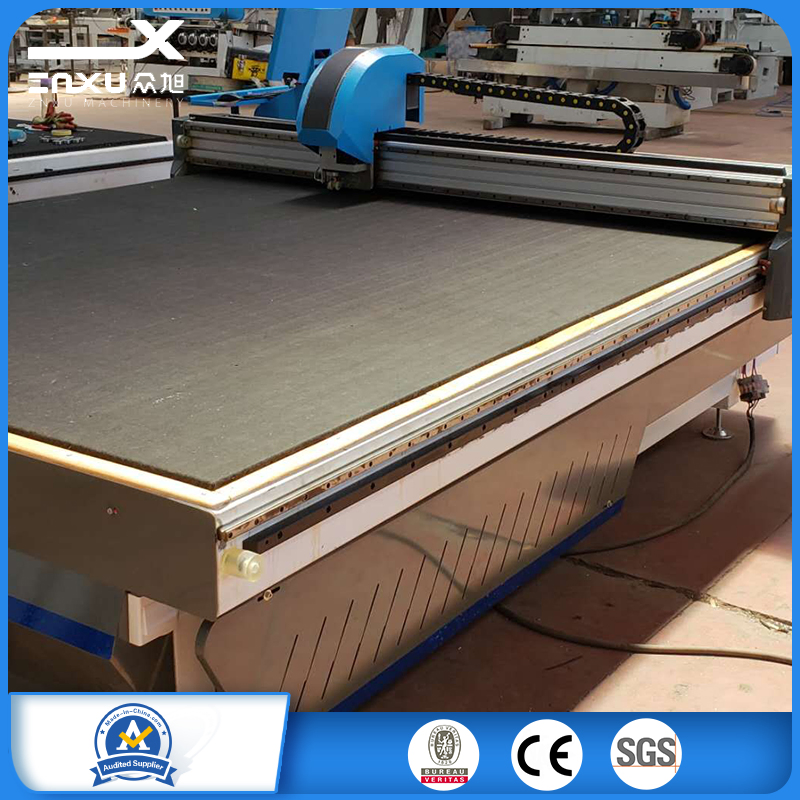

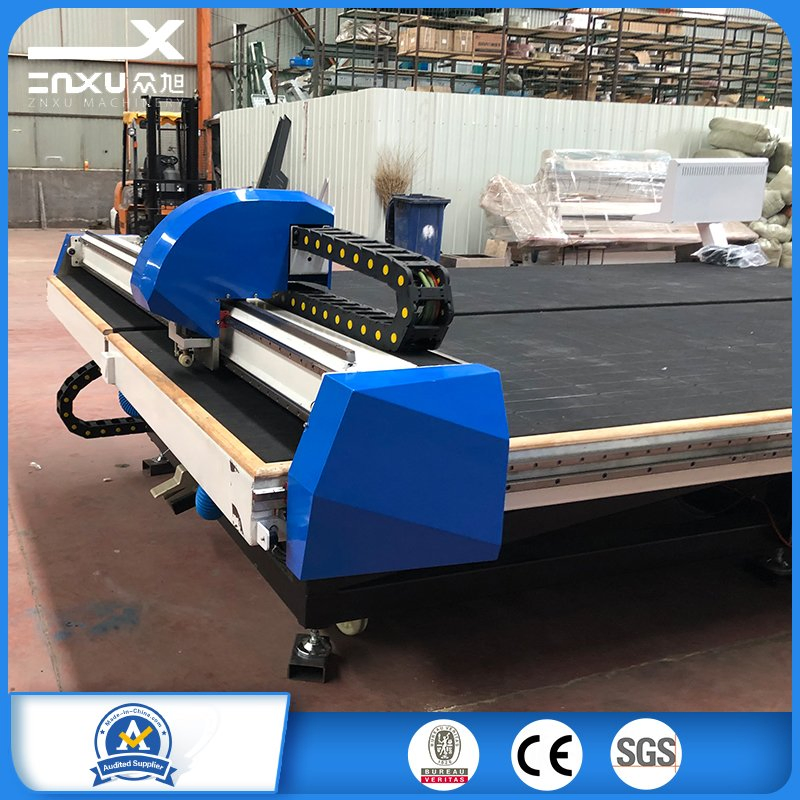

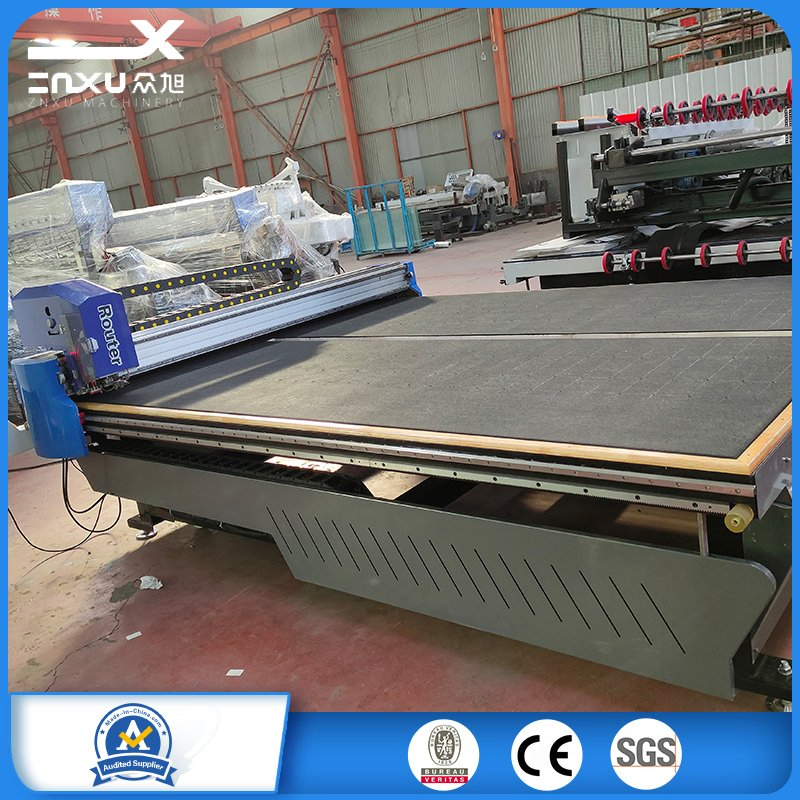

The Multifunctional Glass Cutting Machine integrates automatic glass loading, automatic glass cutting, air floating glass breaking, automatic glass labeling, automatic glass conveying, and automatic walking functions.
It serves as a comprehensive alternative to three separate machines: the glass loading table, the glass cutting machine, and the glass breaking table.
Featuring remote control operation, the entire process from loading to cutting is automatically controlled, significantly reducing labor intensity and safety risks.
