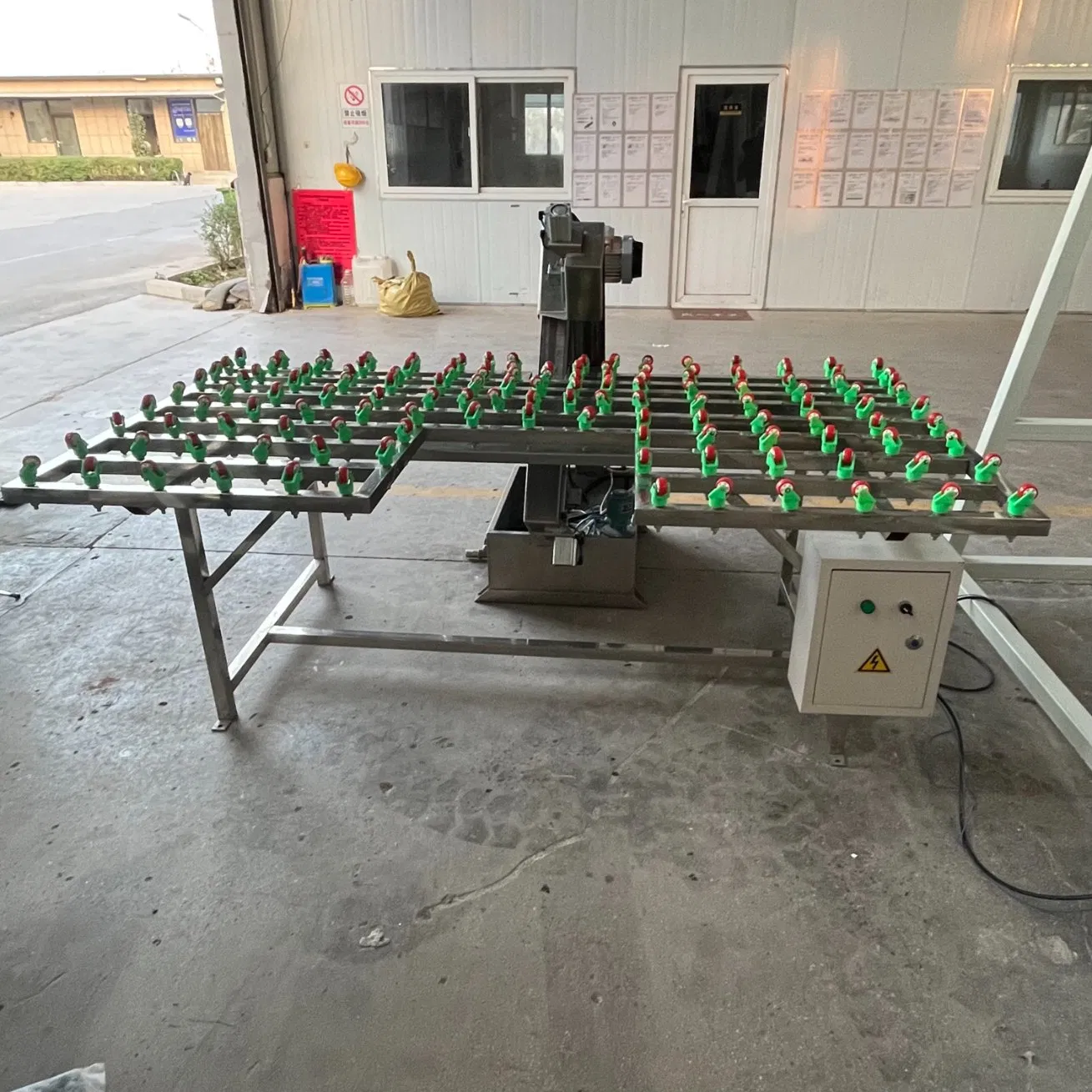

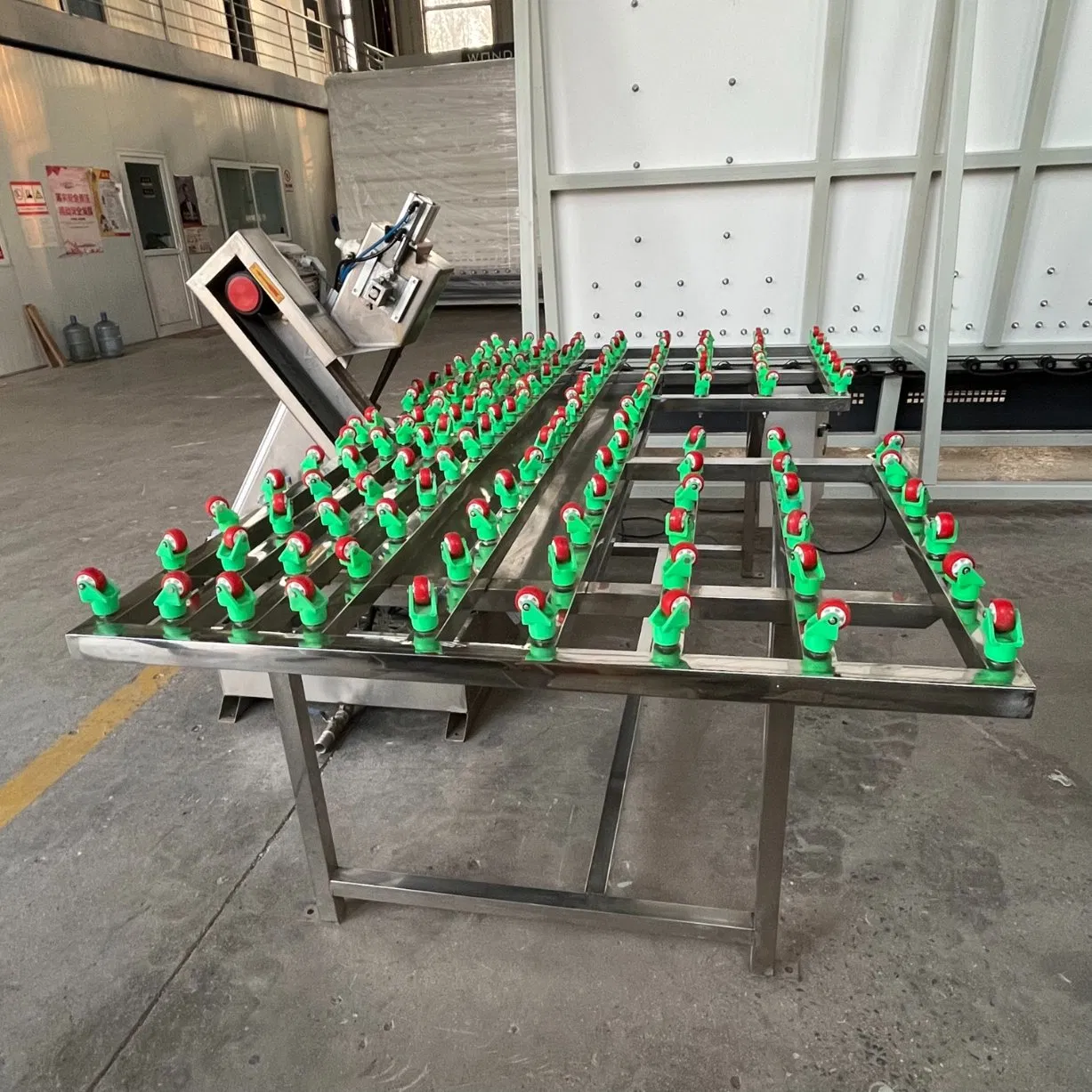

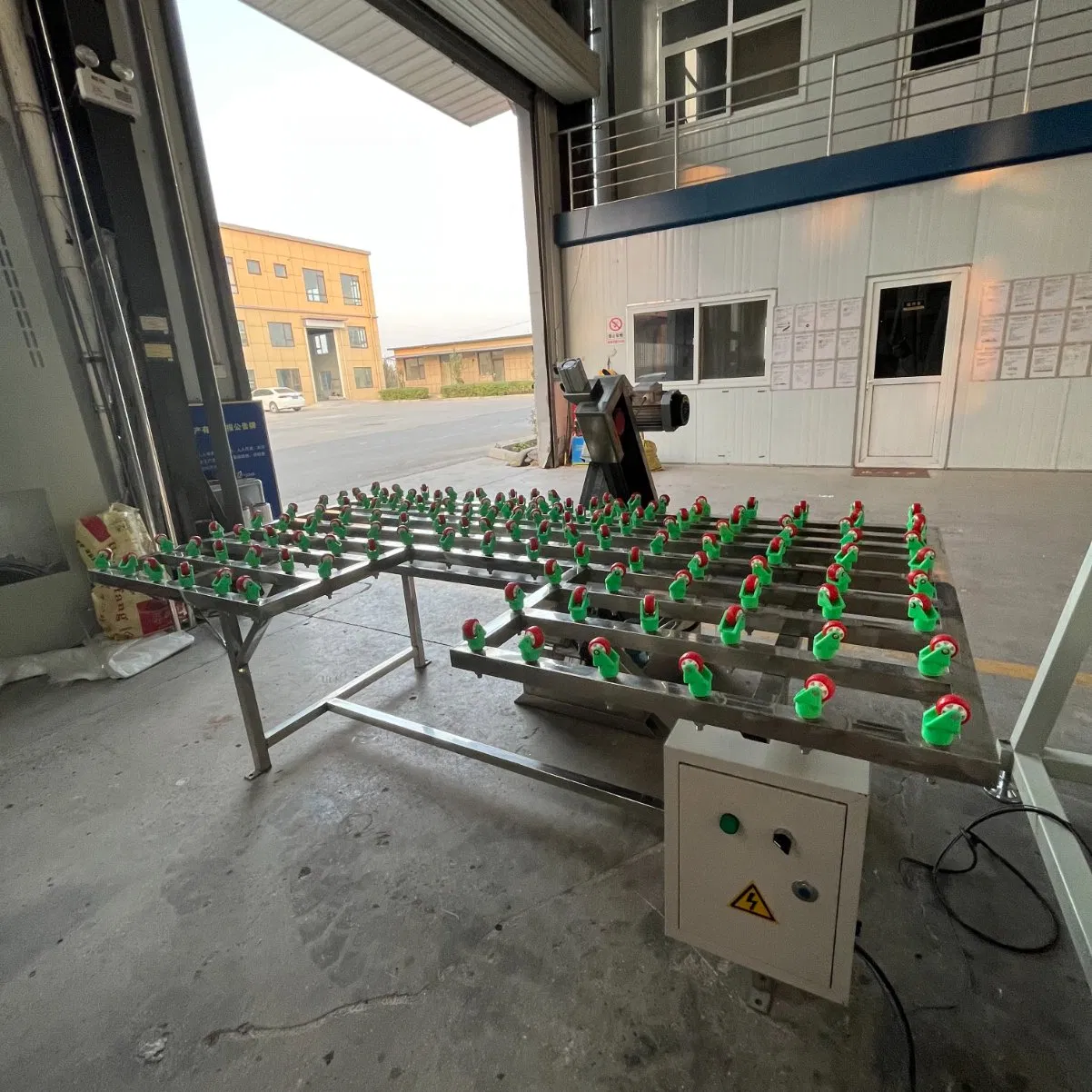

Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery
Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery
Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery
Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery
Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery
1 / 5
Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery
Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery
Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery
Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery
Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery

Wondec Hot Sales Double Wet Belt Edging Equipment Flat Glass Grinding Machinery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
EM80-WT
Color
Can Be Customized
Selling Points
Easy to Operate, Automatic, High-Accuracy
Core Component
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Service
Video Technical Support, Online Support
Type
Insulating Glass Production Line
Structure
Vertical
Washing Type
Ultrasonic
Condition
New
Warranty
1 Year
Capacity
80 set/Per Quarter
Specification
2500x1600mm
Product Description

EM80-WT Double Water Wet Belt Edging Machine

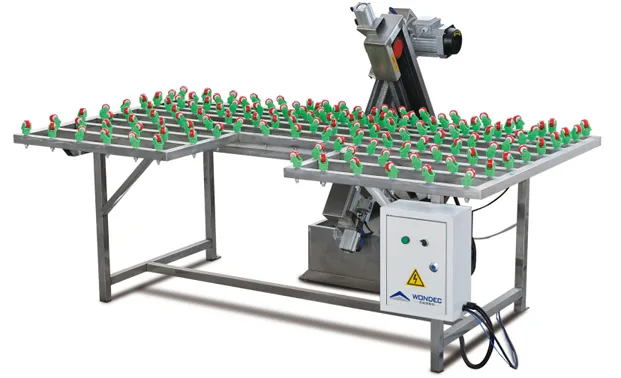

Double Wet Belt Edging Equipment

Equipment Advantages:

  • Achieves high-quality edge grinding similar to CNC seaming machines.
  • Processes small glass pieces below 800x400mm where four-sided grinding fails.
  • Grinds special shapes: Triangle, trapezoidal, semi-circular, circular, and wavy glass.
  • Safety angle grinding to reduce hazards (unique feature over standard machines).
  • Energy-efficient: Consumption less than 2kw/h.
Detailed Photos

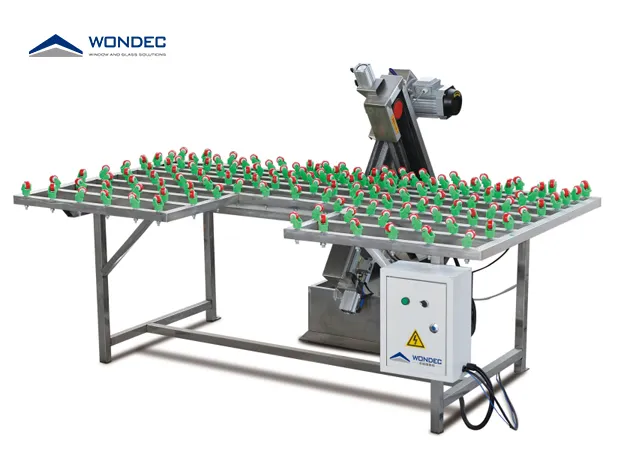

Wet Belt Edging Machinery 1

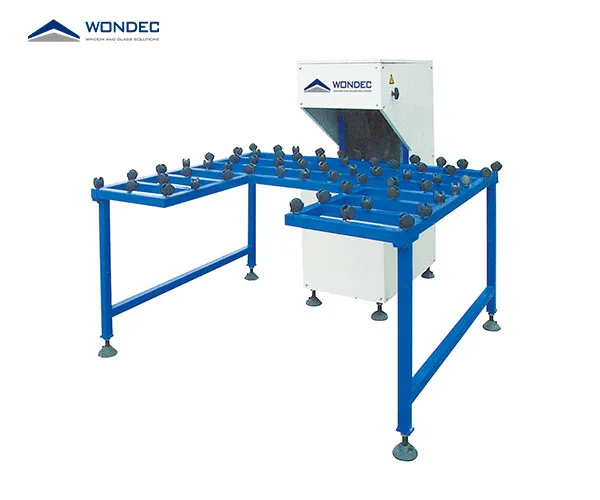

Wet Belt Edging Machinery 2

Used for rough grinding and polishing of single glass edges. Equipped with a water-spray device and waterproofing grinding belt. Composed of a main machine and optional work table with universal wheels for glass support.

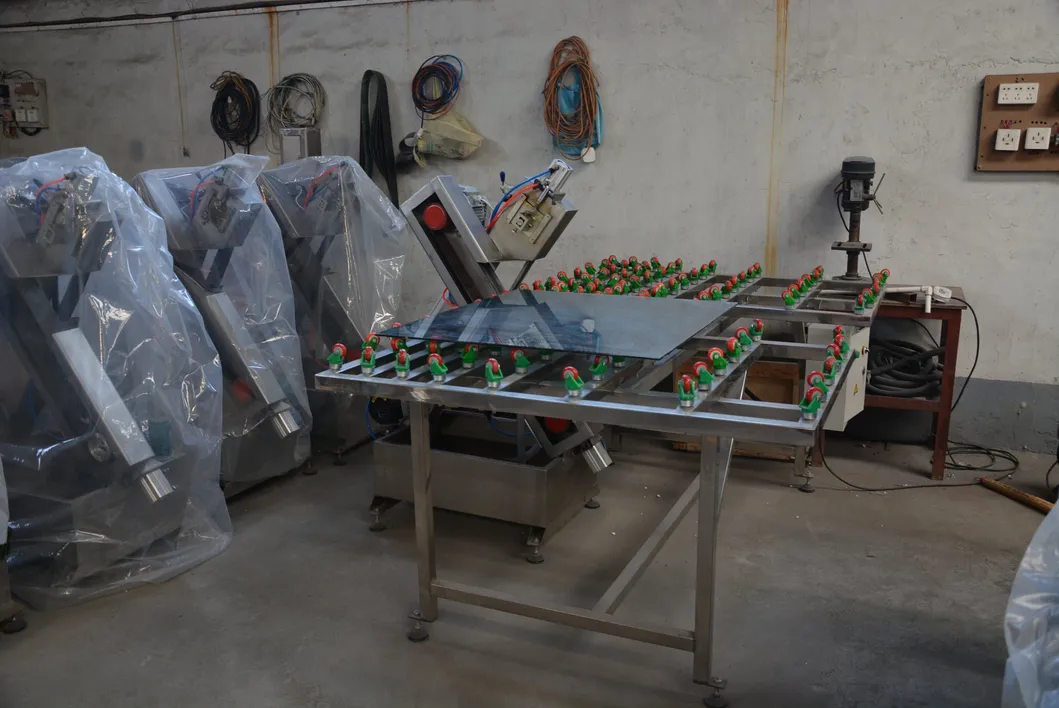

Processing View 1
Processing View 2

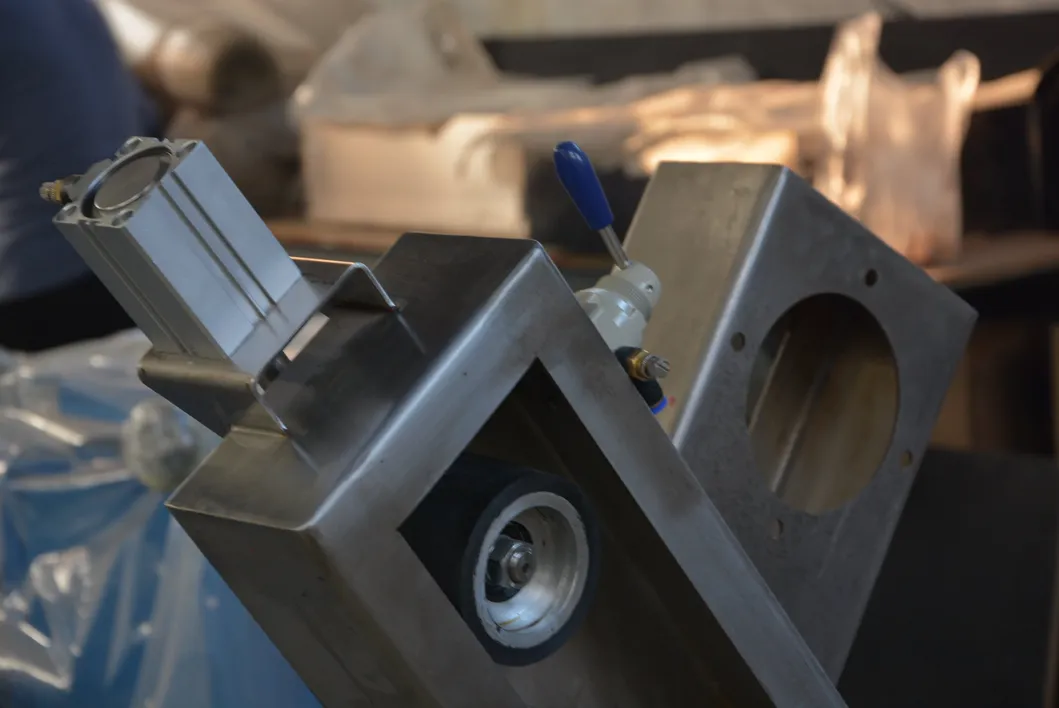

Processing View 3
Importance of Glass Edge Grinding
  • Pro-long Life: Doubles the life of glass washing brushes and conveyor rollers.
  • Safety First: Removes sharp edges after cutting to protect operators' hands.
  • Structural Strength: Removes edge cracks to eliminate stress concentration and increase glass strength.
Product Parameters
Technical Parameter EM80-MT
Power supply380v / 50hz
Motor power2 * 0.75kw
Glass thickness1.5 ~ 1.9mm
Max. glass size2000 * 1600mm
Min. glass size400 * 400mm
Sand linear speed14m/s
Sand belt size2000 * 80mm * 100p
Main machine dimension930 * 620 * 1350mm
Working table dimension2200 * 1200 * 900mm
Packaging & Service
Packaging and Shipping

Pre-sales Support

Layout assistance based on building floor plans and technical drawings provided for equipment optimization.

After-sales Support

Weekly production reports, equipment installation, debugging, and personnel training with English manuals.

Service Support
Exhibitions & Quality Control
Global Exhibition

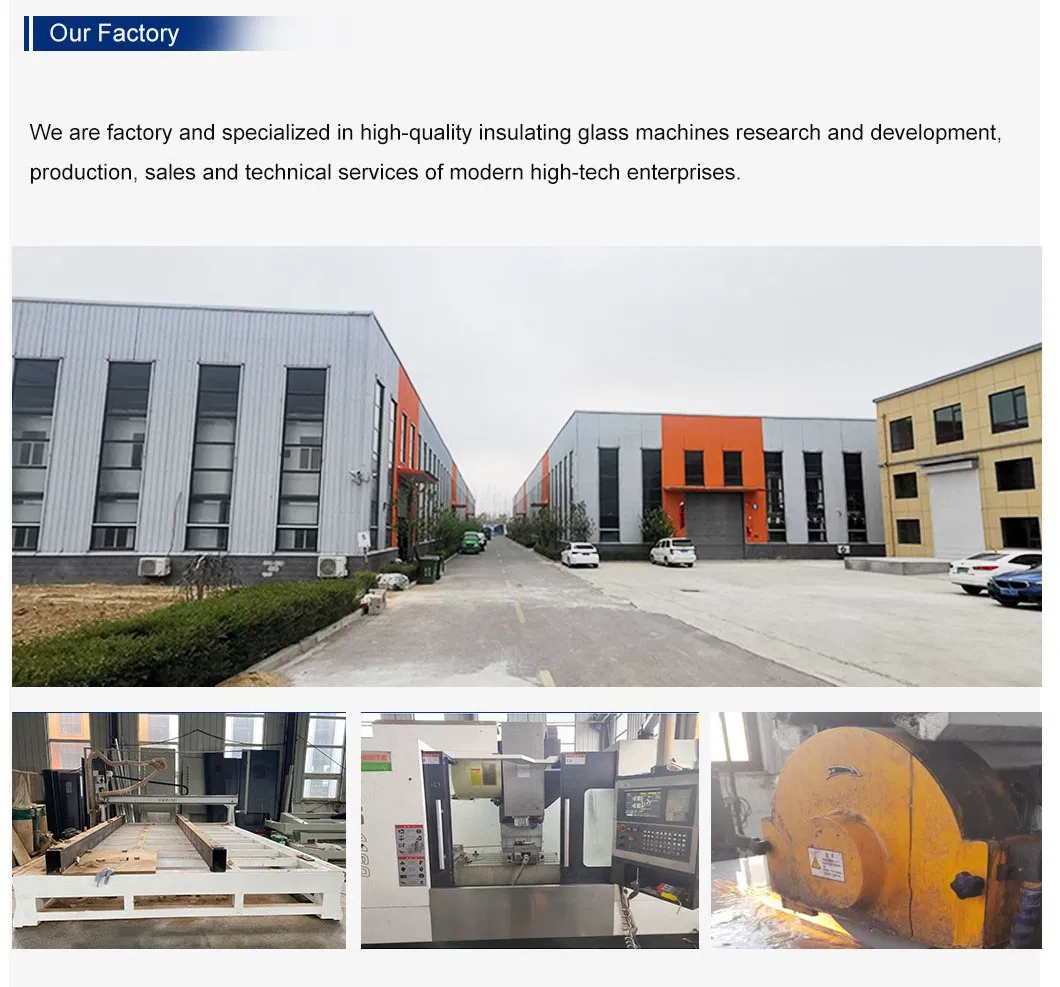

Quality Standard
Production Excellence
Frequently Asked Questions
Which countries are your products exported to?
Our equipment has been exported to over 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and European countries.
How do we operate the glass processing machinery?
We provide comprehensive paper instructions in English and offer training until your team is proficient in operating the machine.
What measures are taken for quality control?
The entire production procedure undergoes regular inspection. Every component is inspected before use, and the complete machine is tested before leaving the factory. Testing videos and pictures are available before delivery.
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in the glass processing area, providing both machines and optimized solutions.
What happens if the machine has a problem after ordering?
Free parts are provided during the warranty period. We also offer lifetime technical service and 24/7 support via phone and mail.
Is on-site installation available?
Yes, we can arrange for engineers to install the machine at your factory and provide hands-on training for your personnel.
