Easy Operating Water Wet Double Belt Glass Polishing Sand Edging Grinding Machine for Insulating Glass Processing

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
EM80-WT
Max. Glass Size
2000*1600mm
Min. Glass Size
200*200mm
Motor Power
2*0.75kw
Sand Linear Speed
14m/S
Sand Belt Size
L2000*W80mm*100p
Type
Insulating Glass Production Line
Warranty
1 Year
🛠️ Product Description

Easy Operating Water Wet Double Belt Glass Polishing Sand Edging Grinding Machine

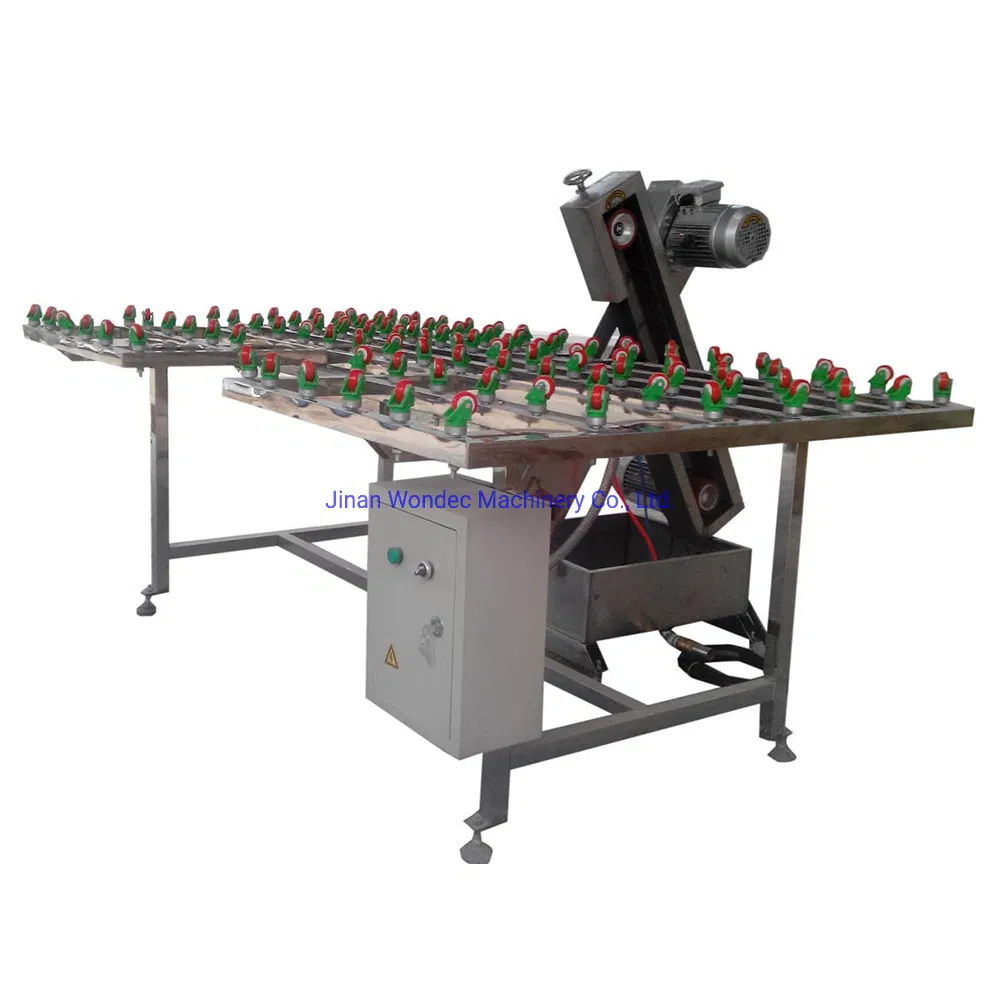

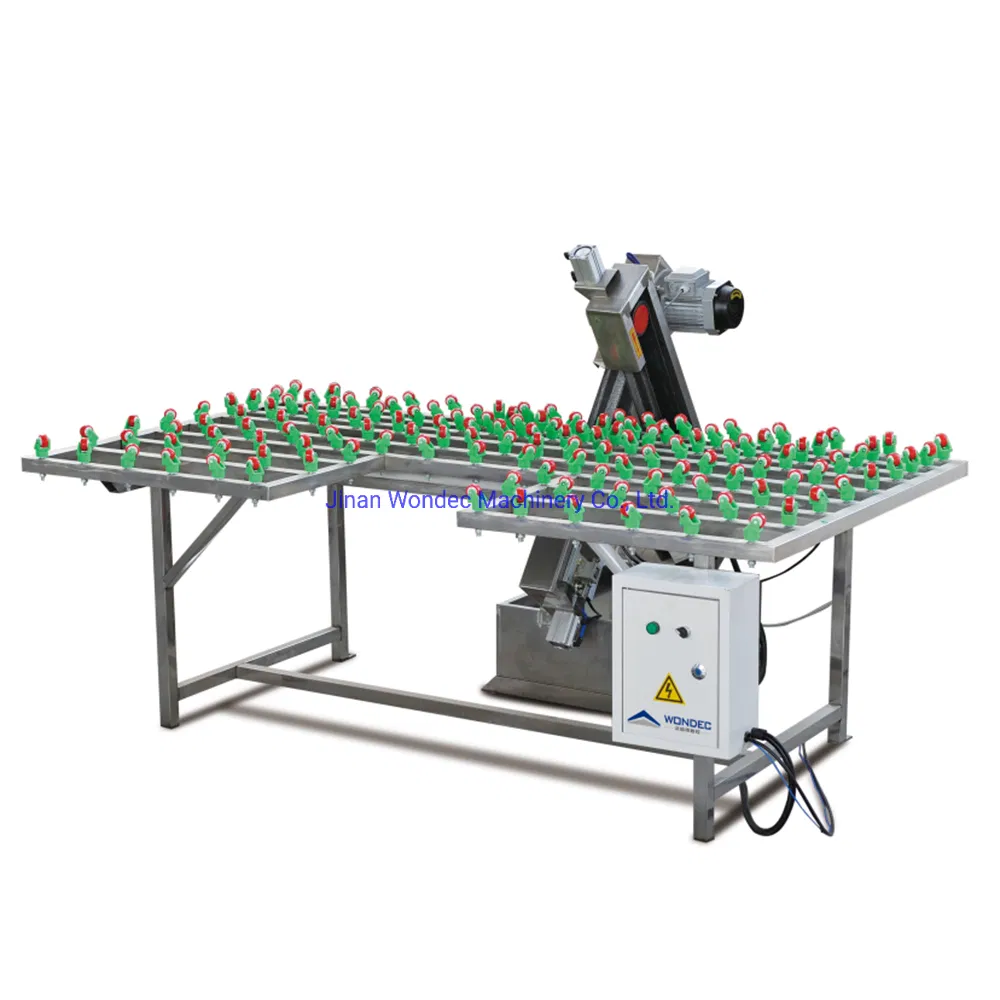

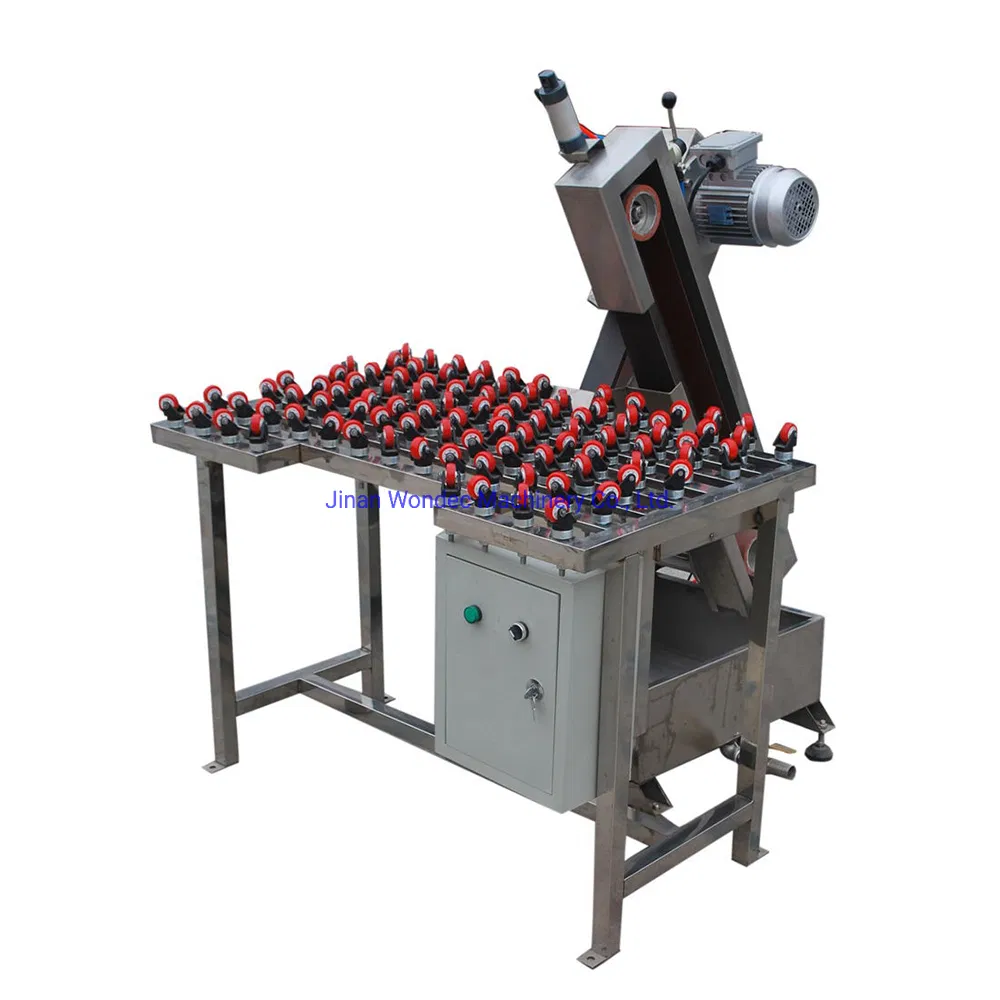

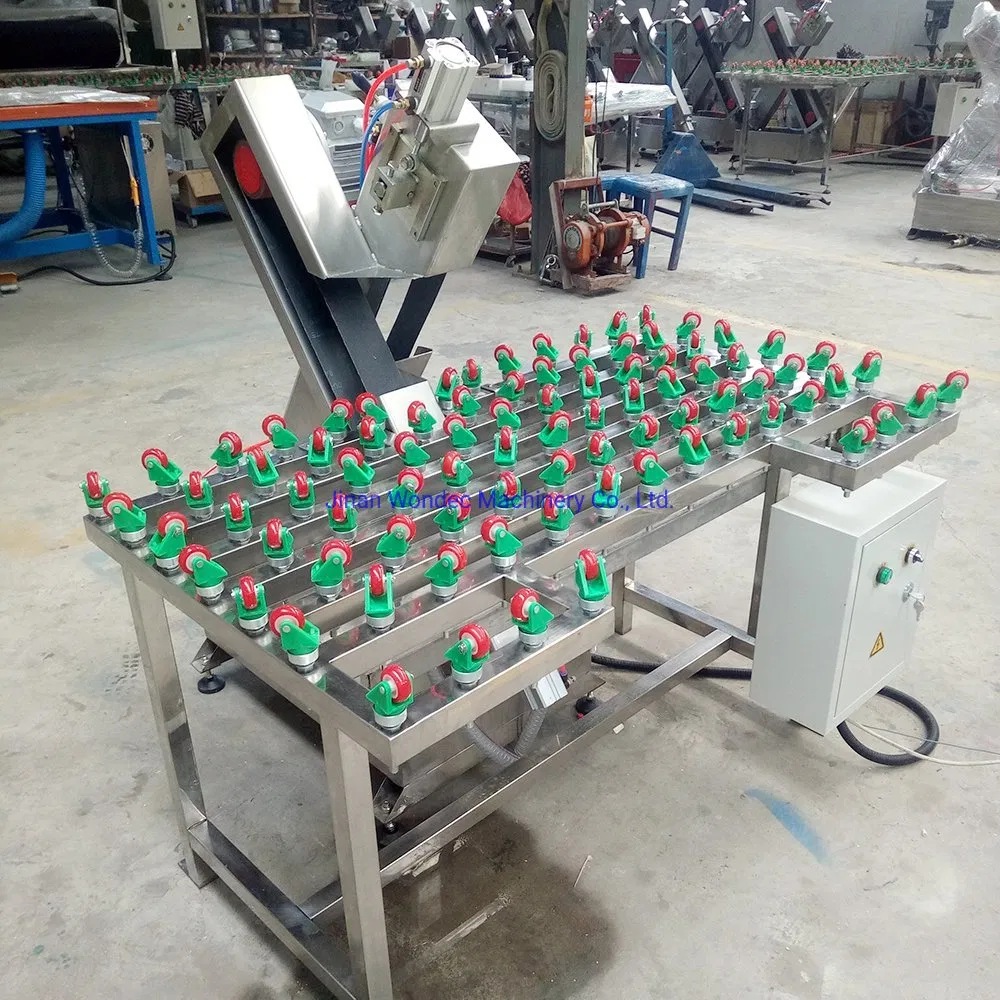

Glass Polishing Machine Main View

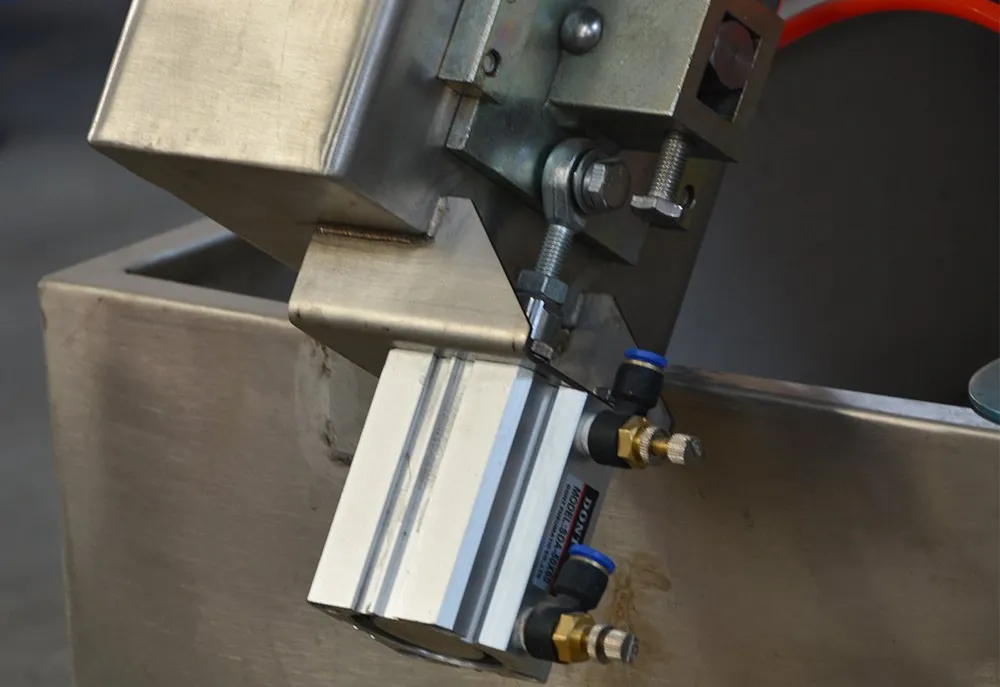

Double Belt Grinding Detail

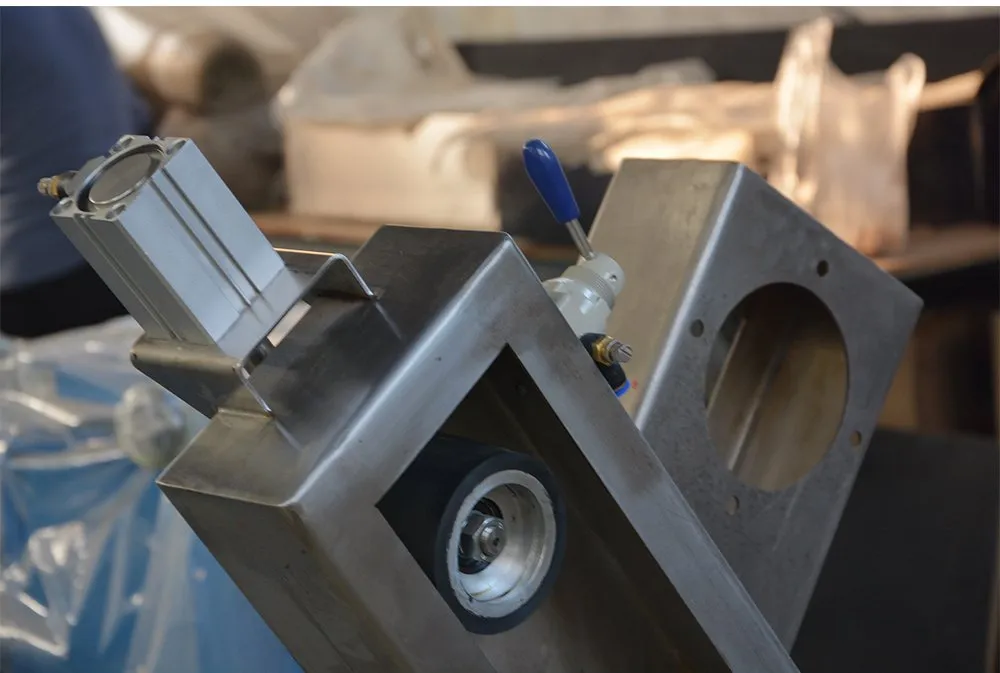

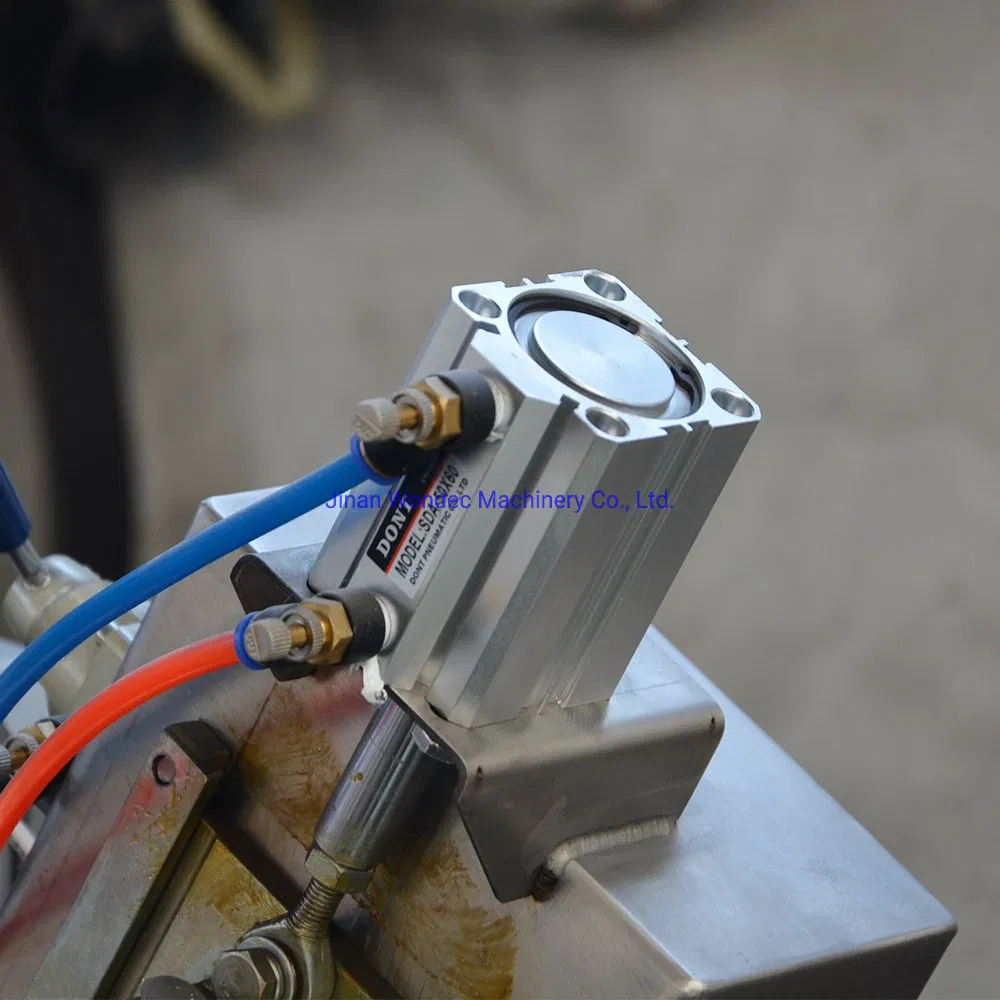

Machine Operation Detail

Key Features & Advantages

Compared with 4-side glass grinders:

  • Better edge process quality with a more economical price and reliable performance.
  • Highly versatile: Can process small size glass (under 800*600mm) which standard 4-side grinders cannot.
  • Multi-shape capability: Handles triangle, arc, round, and ladder-type glass with ease.
  • Broad application: Ideal for auto glass, furniture glass, and mirror frames.

Compared with traditional glass belt sanders:

  • Dust-free environment: Equipped with water supply, vacuum system, and stainless steel water tank.
  • Safety first: Clean edges without chipping or breaking during the process.
  • Smooth operation: Belts are easy to change and run without sliding or leaning.
  • Easy maneuverability: Integrated universal wheels for effortless glass movement.
📊 Technical Parameters
Motor Power 2*0.75KW
Glass Thickness 1-19mm
Max Glass Size 1600*2000mm
Min Glass Size 200*200mm
Sand Linear Speed 14m/s
Sand Belt Size L2000*W80mm*100P
Main Machine Dimension L930*W620*H1350mm
Work Table Dimension L2200*W1200*H900mm
📦 Packaging & Shipping

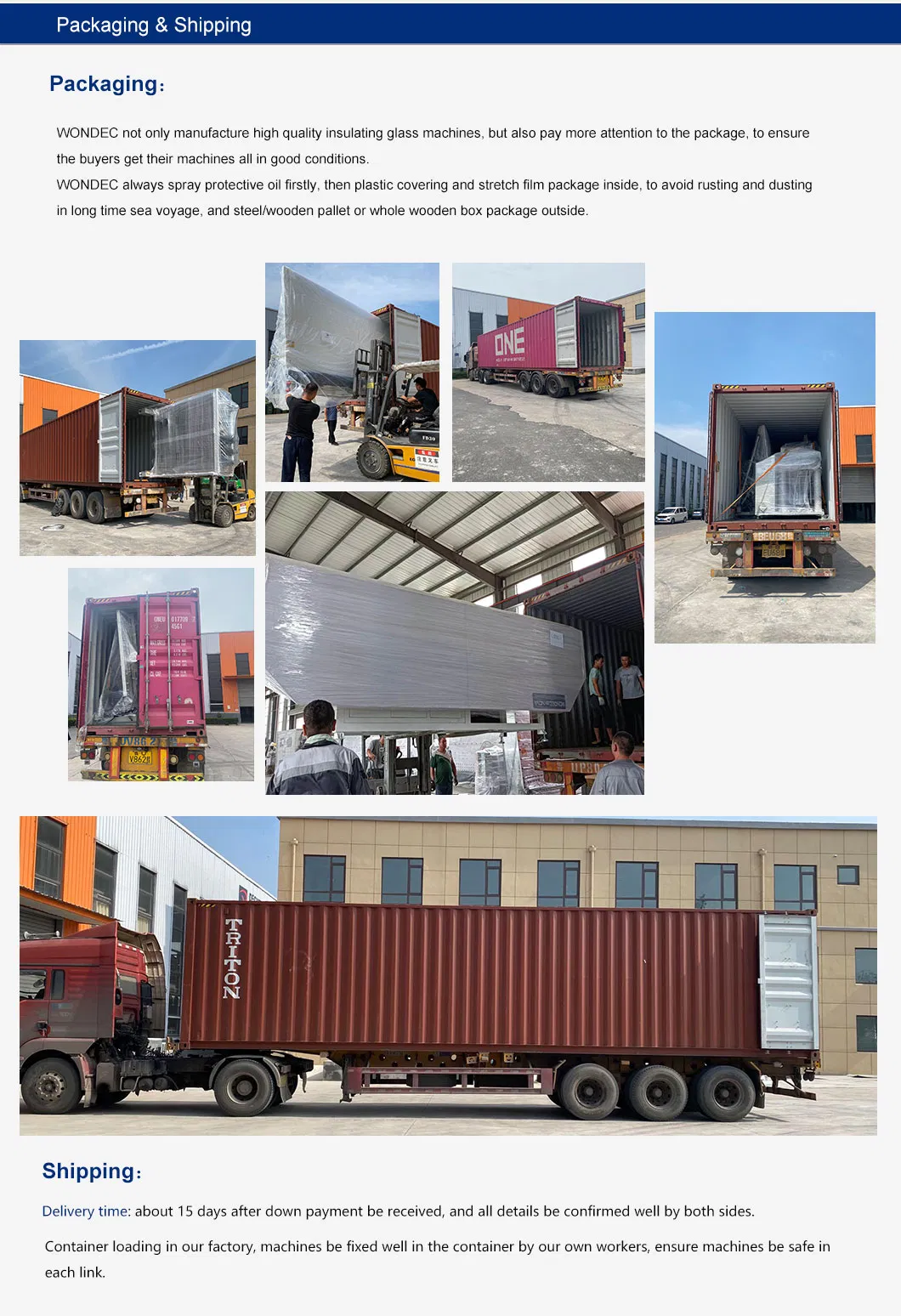

Packaging Process 1
Packaging Process 2
Packaging Process 3
Shipping Preparation 1
Shipping Preparation 2
❓ Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with more than 10 years of experience in the glass processing machinery field.
Can the machine be customized to our local voltage?
Yes, we can customize the electrical configuration of the machine to match your local voltage requirements.
What is the process after payment is made?
Once the deposit is confirmed, we arrange production. After assembly and testing, we provide a performance video for your feedback. Upon approval, the machine is packed for shipment.
Can you help arrange the shipment?
Yes, we work with reliable shipping partners to provide fast delivery and competitive pricing. We can manage the entire shipping process based on your requirements.
How is the machine installed after delivery?
We provide detailed operation manuals and installation videos. Additionally, we set up a dedicated support group with technicians to provide online assistance.
What is the warranty period for this machine?
This machine comes with a standard 1-year warranty along with video technical support for long-term maintenance.
