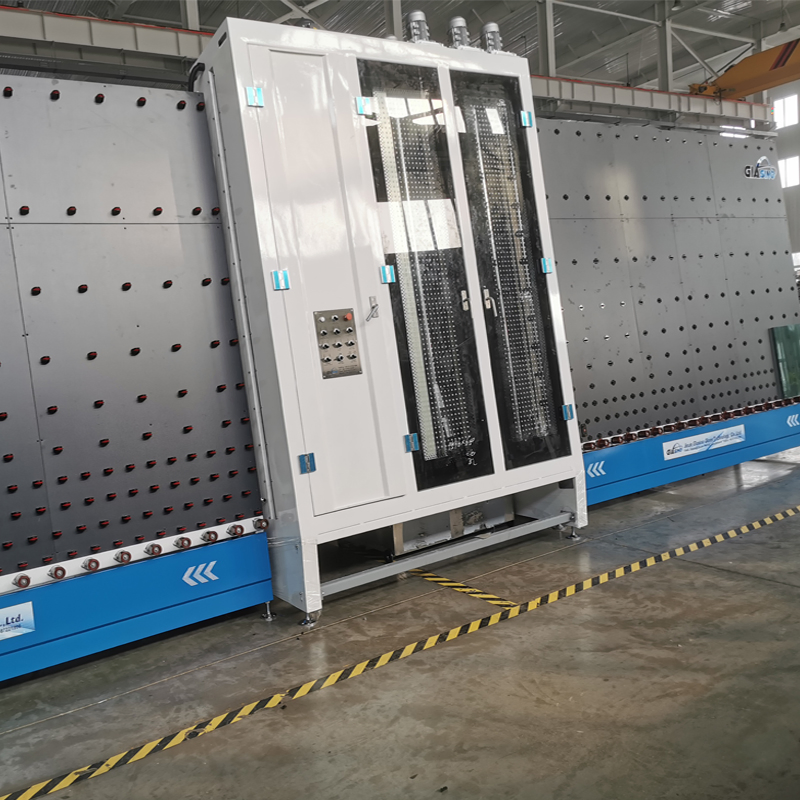

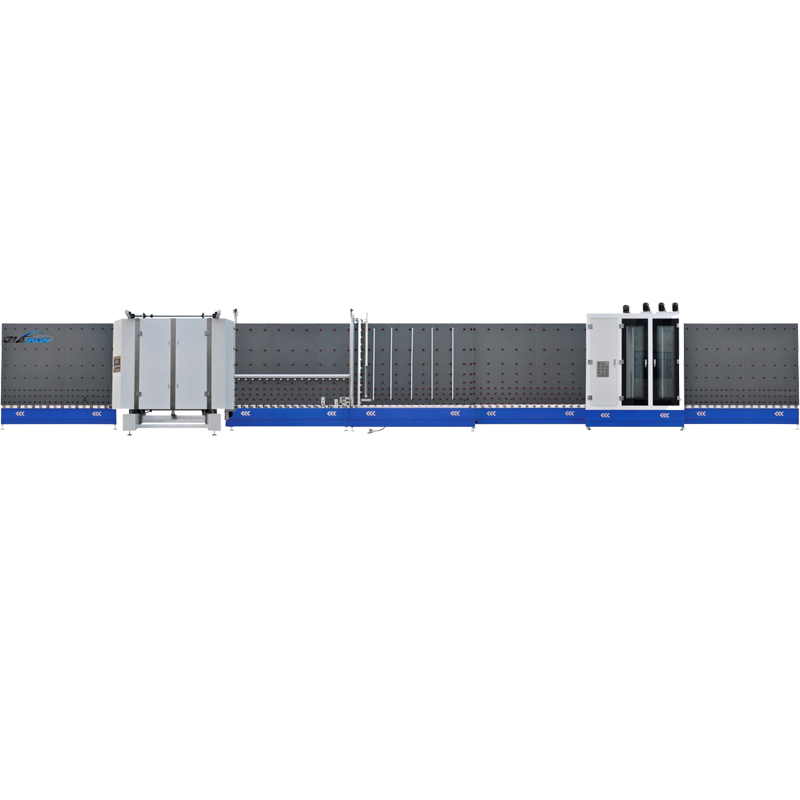

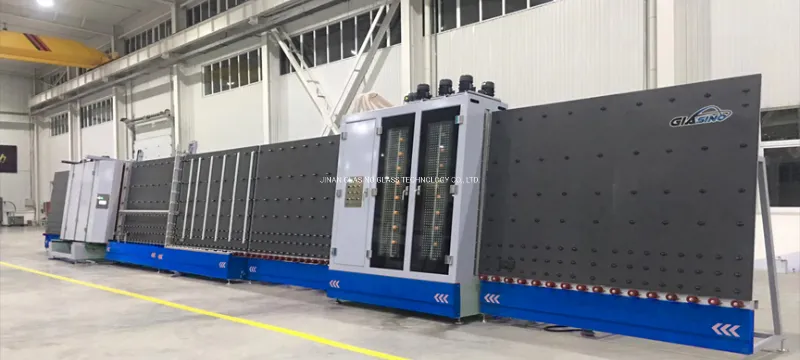

Vertical Automatic Positioning Insulating Glass Machine Production Line
Our insulating glass production line is the professional standard for high-quality glass manufacturing. It is fully capable of processing double layer, triple-layer, stepped sheets, and abnormal shape insulating glass with precision.

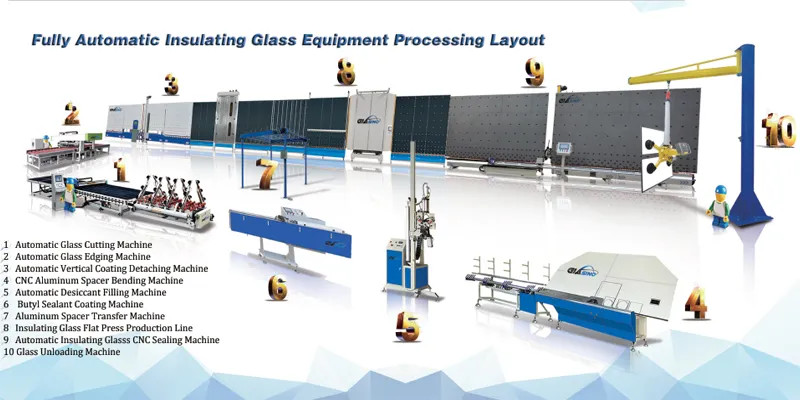

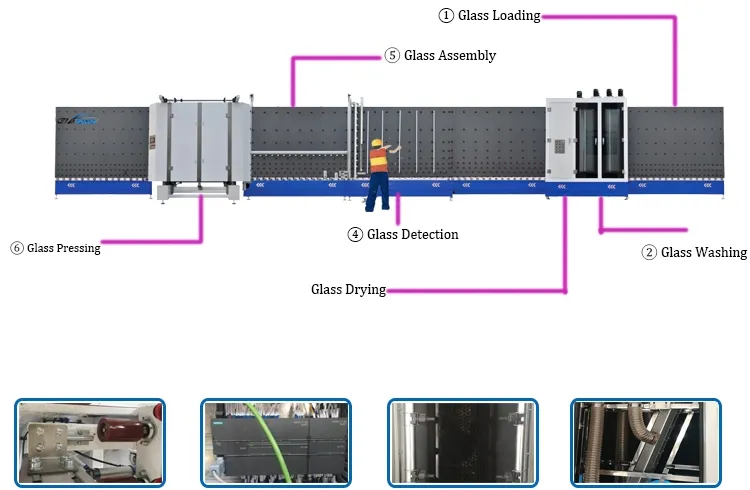

The system is intelligently designed across 7 distinct sections. The fifth section serves as the core assembly hub, where glass is pressed and finished in a single efficient cycle. To further enhance your production capabilities, additional compatible equipment is available, including cutting machines, polishing units, glass lifters, and automatic sealant application tools.
| Parameter | LB2025 | LB2030 | LB2536 |
|---|---|---|---|
| Power Supply | 380v 50Hz | 380v 50Hz | 380v 50Hz |
| Power Consumption | 30kw | 30kw | 34.0kw |
| Max Glass Size | 2000×2500mm | 2000×3000mm | 2500×3660mm |
| Min Glass Size | 300×500mm | 300×500mm | 300×500mm |
| Glass Thickness | 3-12mm | 3-12mm | 3-12mm |
| Transport Speed | 8-45m/min | 8-45m/min | 8-45m/min |
| Total Weight | 5500kg | 6000kg | 6500kg |
We operate as a high-tech enterprise specializing in the production of glass tempering furnaces, CNC glass cutting machines, and comprehensive insulating glass production lines. Our commitment is to continuous innovation and superior production management to meet global market demands.
