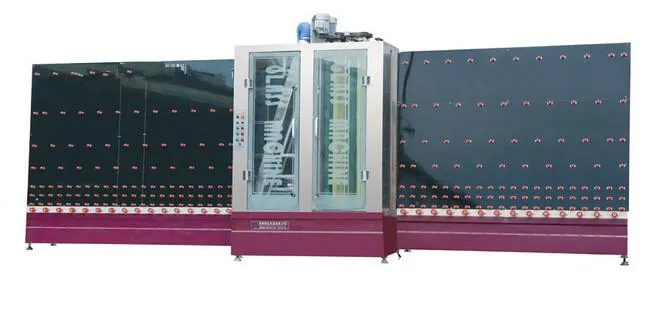

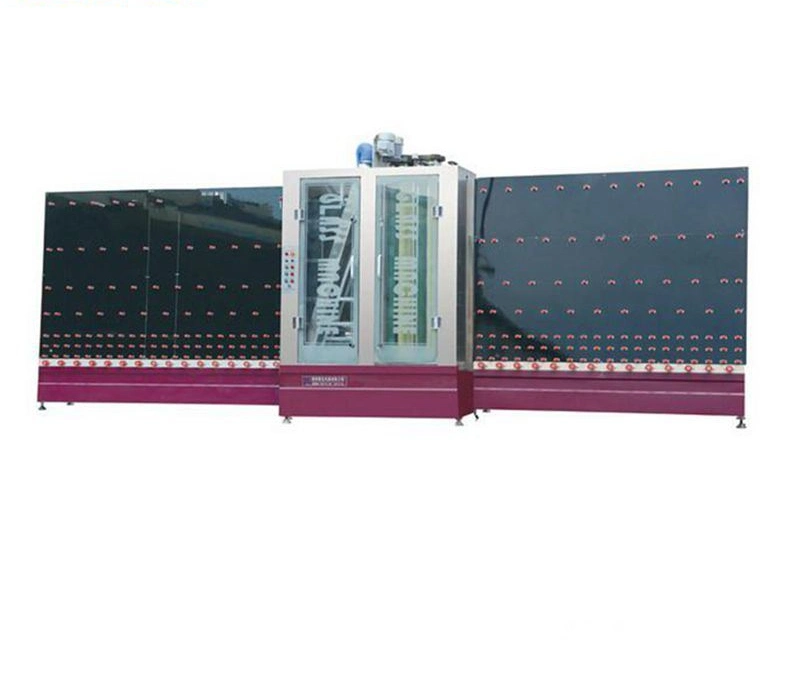

Vertical Glass Washing Machine for Insulating Glass

1 / 5

Vertical Glass Washing Machine for Insulating Glass

Customization:	Available
Certification:	CE, ISO, FDA, UR, PCI, PDA
Power(W):	23kw

Send Inquiry

Product Description

Basic Specifications

Model NO.

JY-2500

Weight

4000kg

Work Pressure

0.5-0.8MPa

Max. Glass Size

2500*3000mm

Min. Glass Size

280*450mm

Glass Thickness

3-18mm

Washing Speed

0-12m/min

Control System

PLC

Type

Vertical Washing & Drying

Production Capacity

15 Sets Per Month

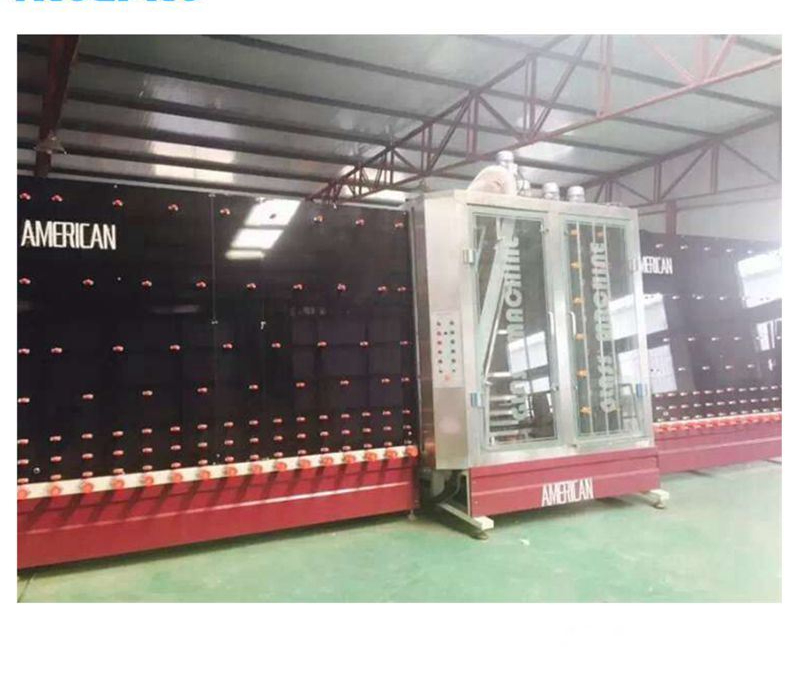

Vertical Glass Washing Machine for Insulating Glass

Main Features:

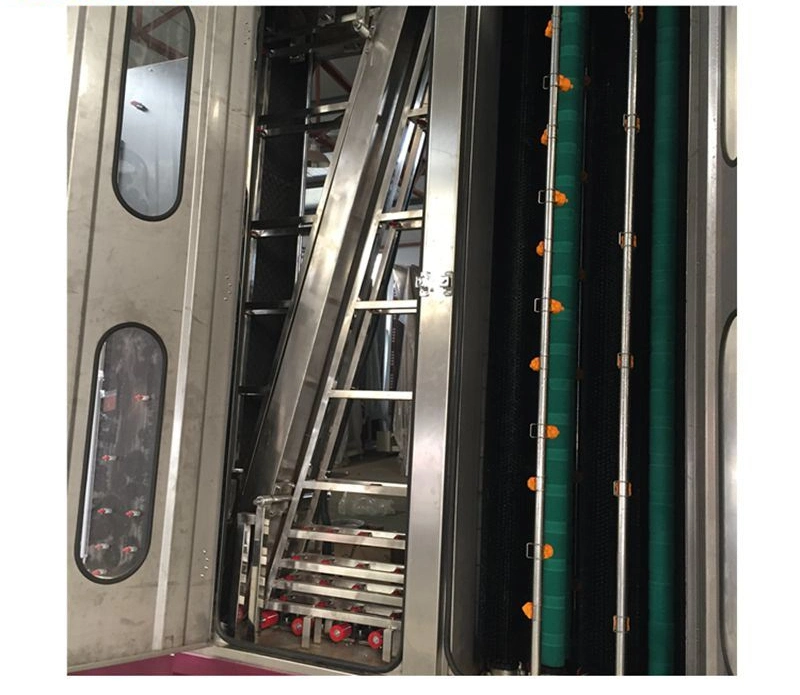

Washing section and water system adopt complete stainless steel or rot-proof materials.
Equipped with 3 pairs of soft brushes suitable for coated glass and LOW-E glass.
Drying section utilizes rubber rollers to scrape water combined with hot wind for thorough drying.
The transmission system features unlimited speed adjustment for maximum application efficiency.

Technical Parameters

Parameter	Value	Parameter	Value
Model	JY-2500	Power Supply	380V 50Hz
Power	23kw	Working Pressure	0.5-0.8MPa
Working Direction	Left-Right	Washing Speed	0-12m/min

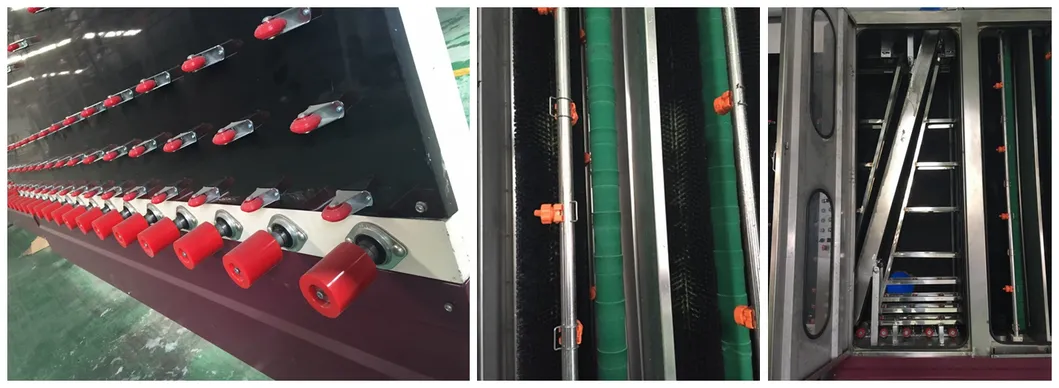

Product Gallery

Frequently Asked Questions

When can we arrange shipment?

We usually arrange shipment within 15 days after receiving the deposit; however, customized machines may require more than 25 days.

What support is provided if the machine has problems?

We can provide free replacement components if the machine is within the guarantee period. Additionally, professional engineers can be dispatched for repairs.

Do you provide equipment operation training?

Yes, we can send professional engineers to the working site for installation, adjustment, and comprehensive operation training.

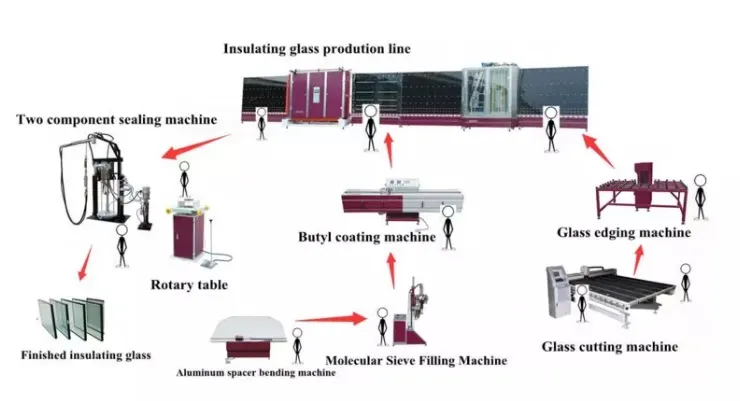

How many basic machines are needed to start making insulating glass?

A basic line typically requires a washing machine, a spacer bar bending or cutting machine, a desiccant filling machine, and a sealing machine. The specific configuration depends on your production goals.

Can this machine wash Low-E or coated glass?

Yes, the machine is equipped with 3 pairs of high-quality soft brushes specifically designed to clean coated glass and Low-E glass without damaging the surface.

What materials are used in the washing and water system?

The entire washing section and the water circulation system are constructed from high-grade stainless steel or rot-proof materials to ensure long-term durability.
