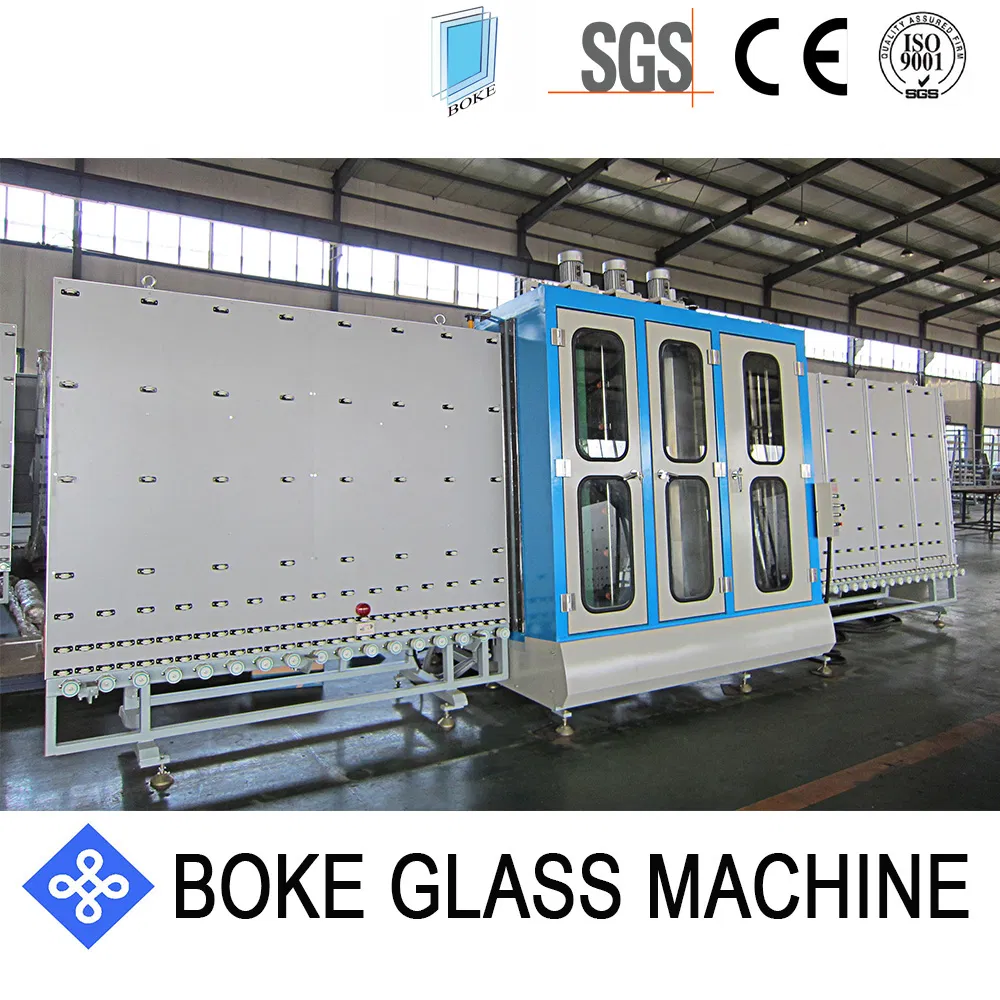

Vertical Glass Washing Machine for Flat Glass Washing and Drying

4000*2500mm Glass Washing and Drying Machine

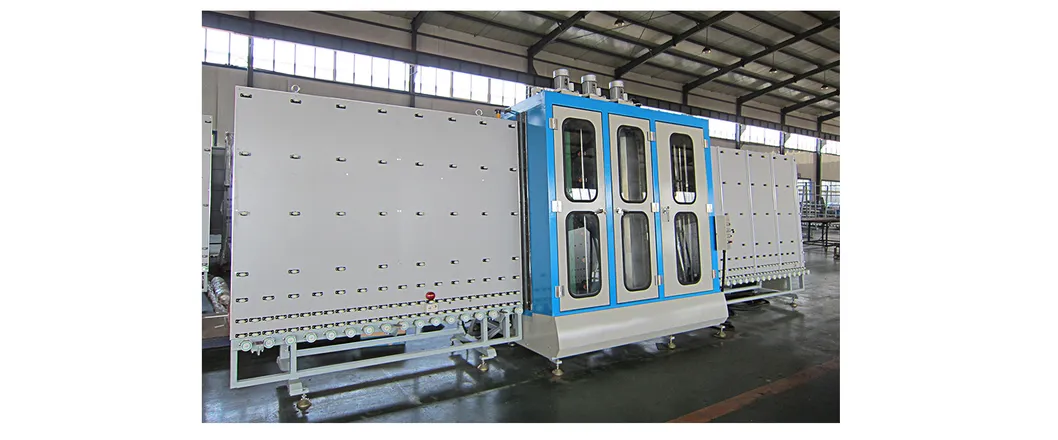

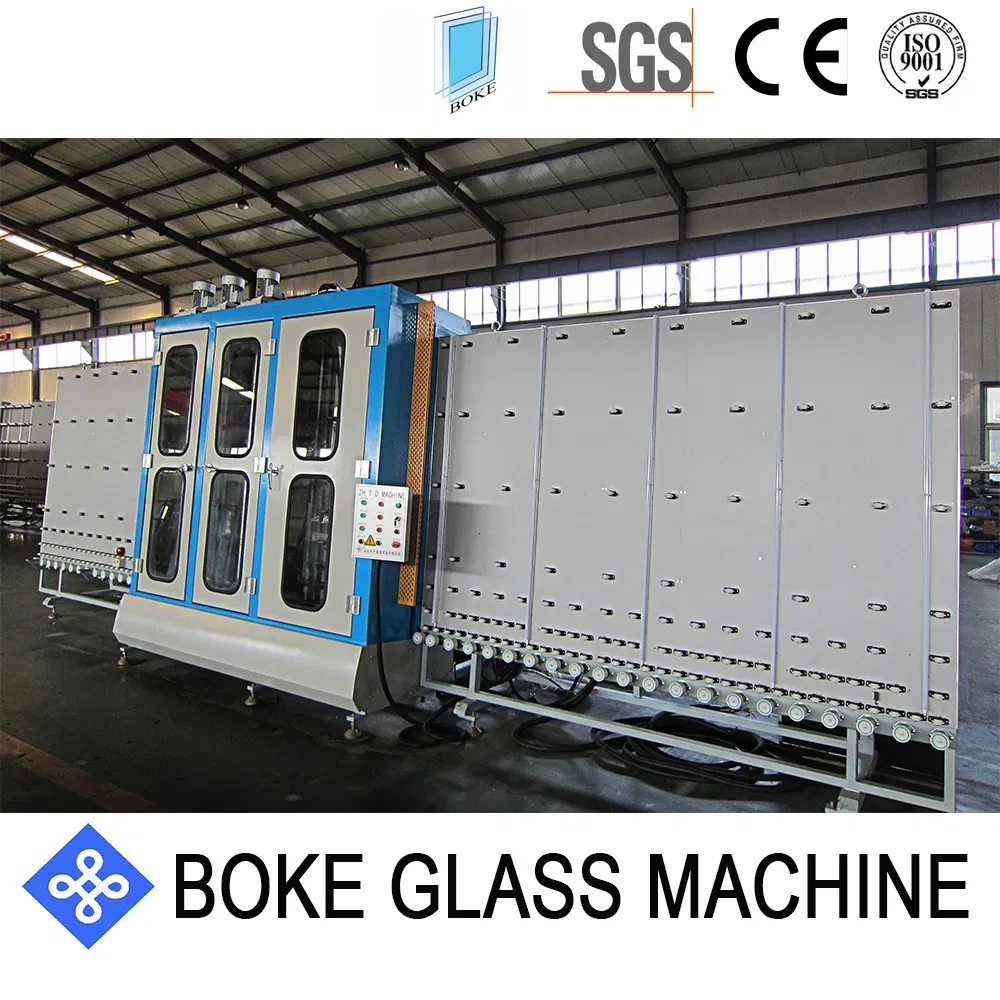

This Vertical Glass Washing Machine is a high-performance solution composed of a loading section (2000mm), a washing and drying section (1750mm), and a light inspection/unloading section (2500mm). Specially designed for Low-E glass, it ensures effective cleaning at high speeds.

Key Performance Characters

• Intelligent Detection: Automatically distinguishes the coating side of coated and Low-E glass with an alarm system.

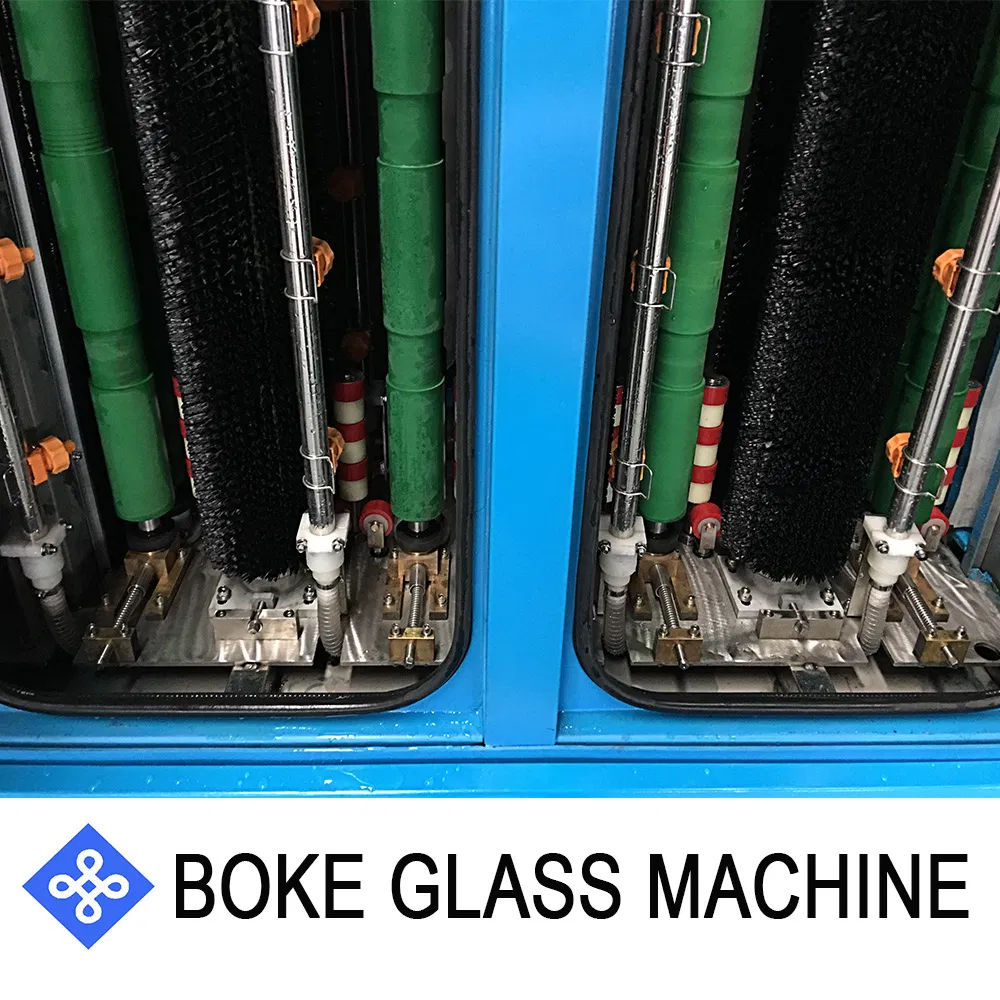

• Premium Components: Utilizes three pairs of DuPont brushes (USA) and waterproof SKF bearings (Sweden) for oil-free operation.
• Durable Construction: The washing body is built from stainless steel and anti-rust materials for long service life.
• Advanced Control: Features a PLC system with a touch screen interface and automatic self-diagnosis.
• Efficient Drying: Uses circulation hot wind and muffling equipment to ensure rapid drying with reduced noise.
• Memory Function: Glass position memory improves production efficiency and quickly resolves operation errors.

Functional Section Analysis

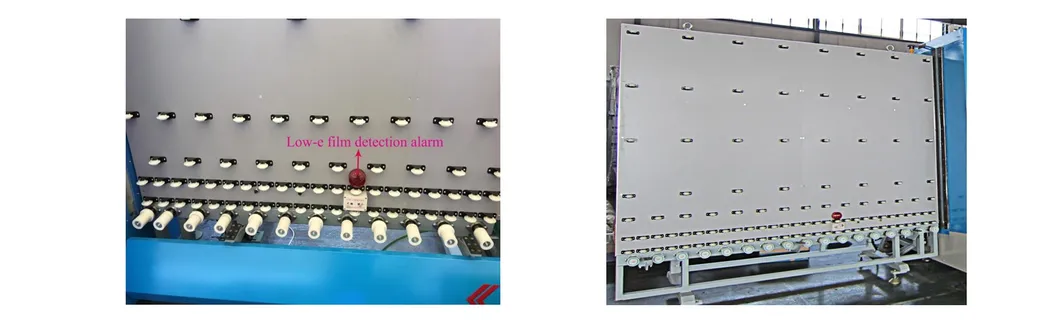

Section 1: Glass Loading Section

Includes a Low-E glass automatic diagnosis system. The backboard is made of high-quality NC-machined board, ensuring durability and preventing deformation.

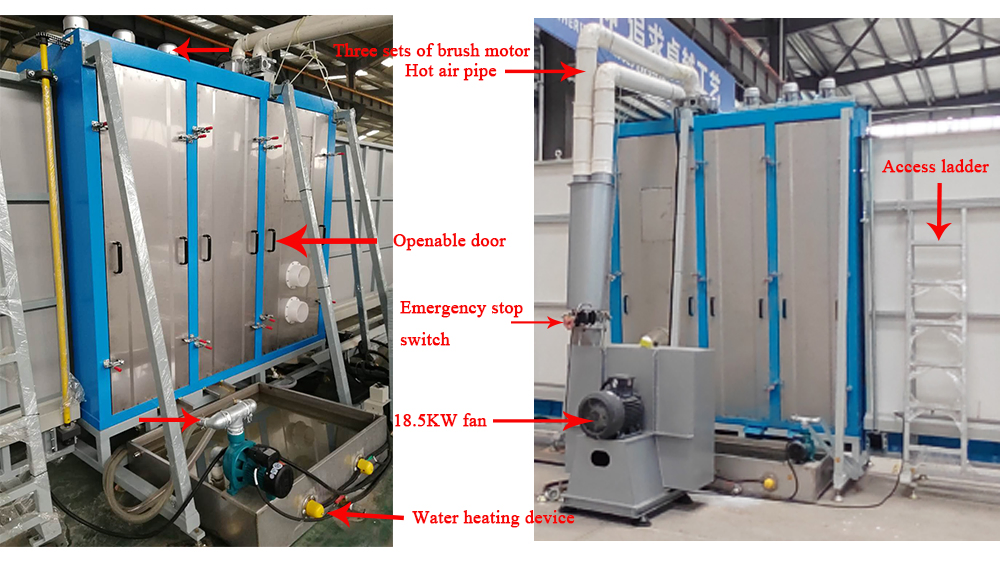

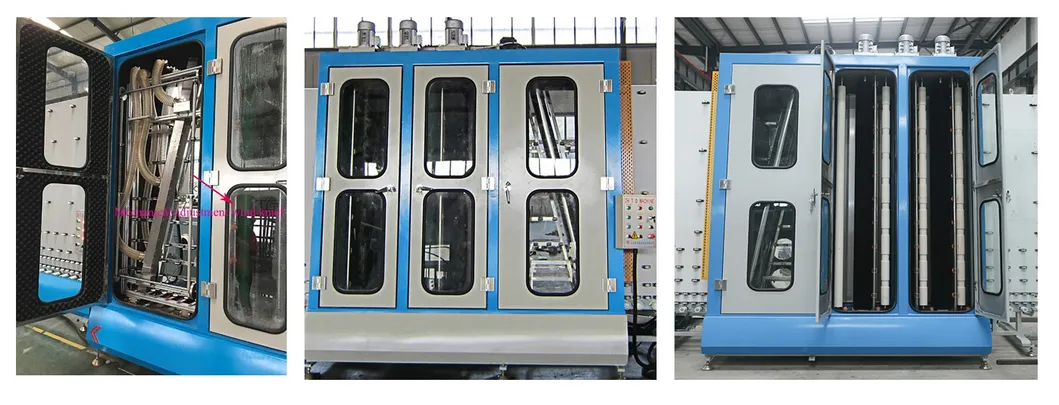

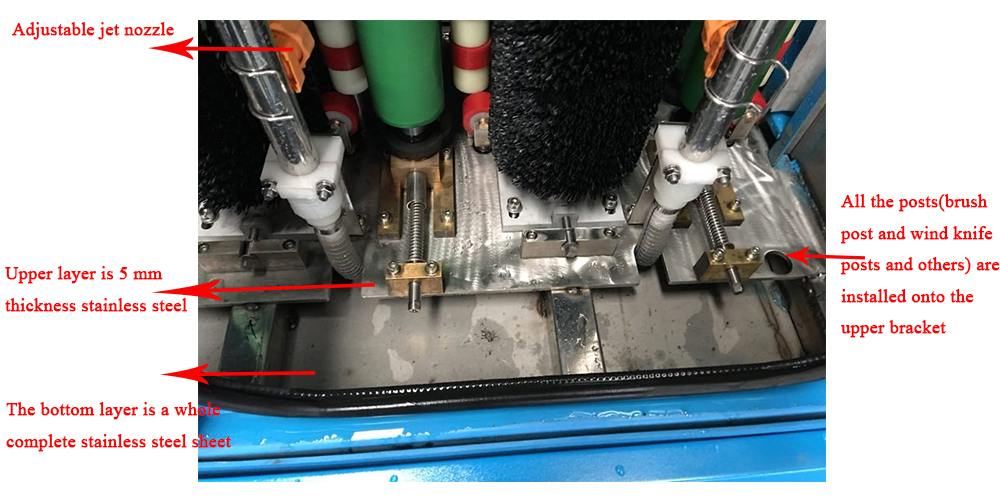

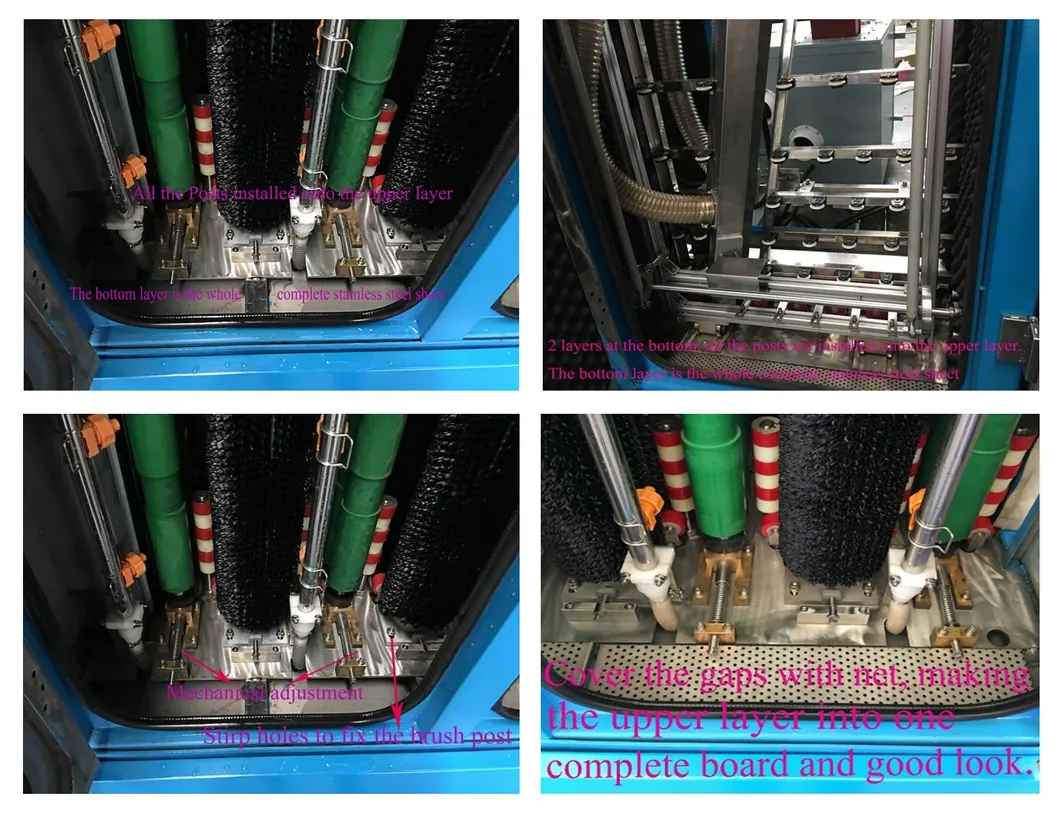

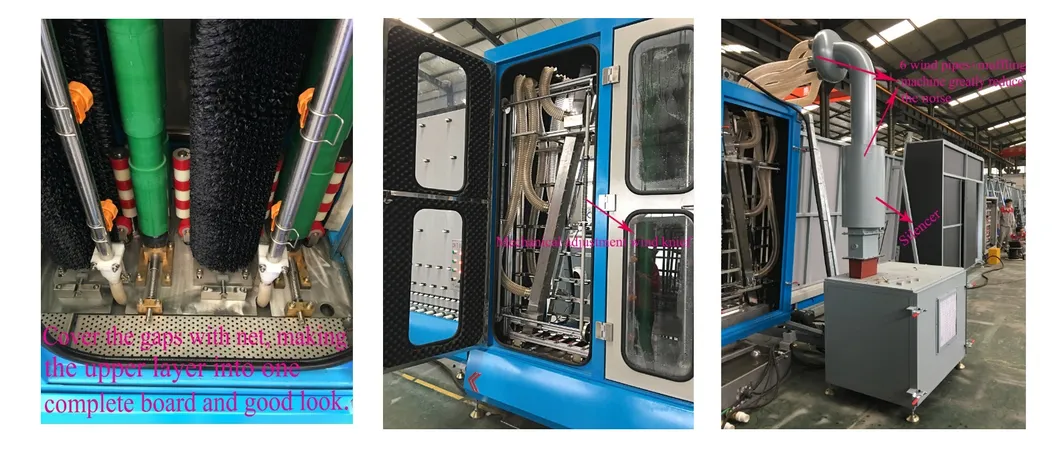

Section 2: Washing and Drying Section

Equipped with two pairs of air knives that adjust automatically based on glass thickness. The washing tank includes heaters to maintain water temperature, ensuring optimal cleanliness.

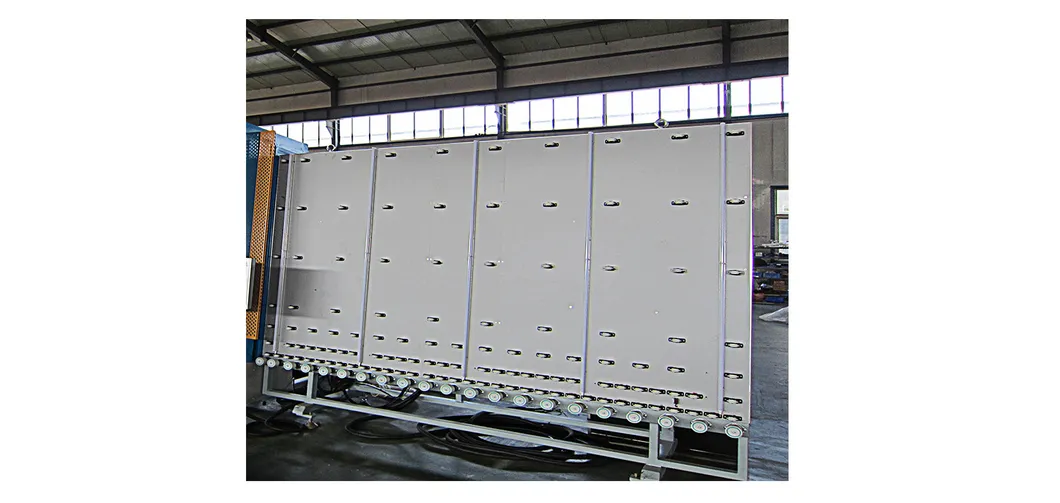

Section 3: Unloading & Light Inspection

Features integrated lighting on the backboard to facilitate clear quality checks of the cleaned glass before unloading.

Technical Parameters

Core Component Brands

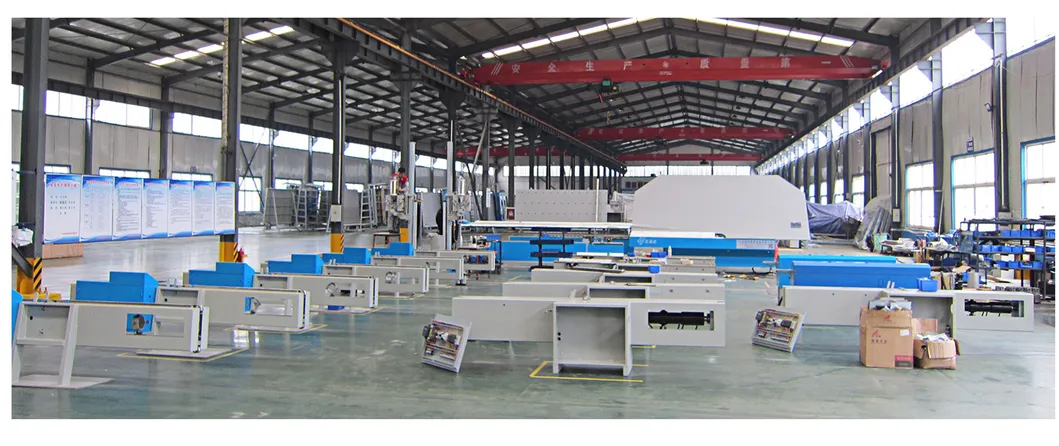

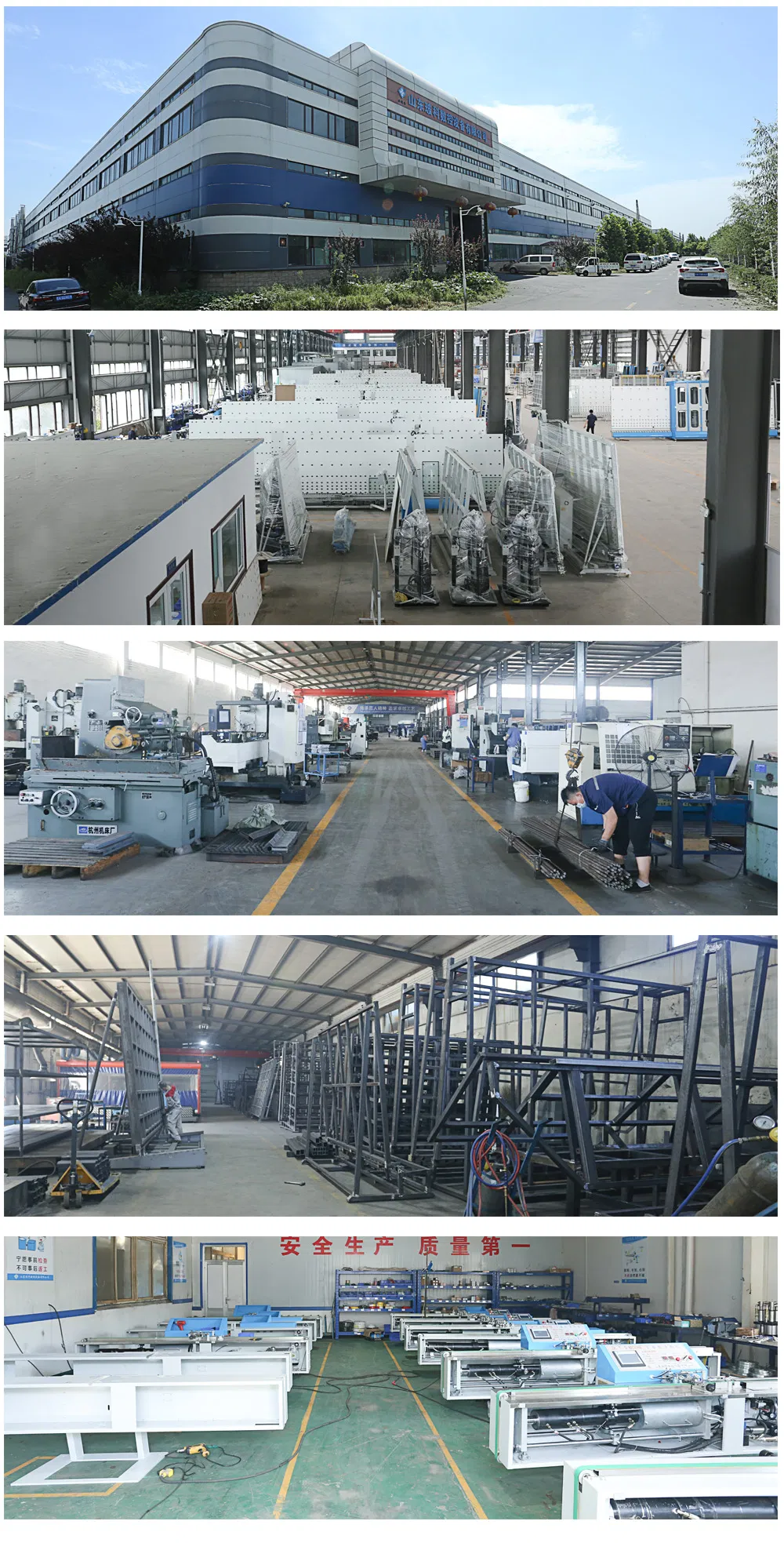

Manufacturing Excellence

With over 21 years of experience in the insulating glass production field, our manufacturing processes are ISO9001 certified and our machines hold full CE certification. We focus on high-grade fabrication methods to maintain our position as a global leader in glass processing technology.
