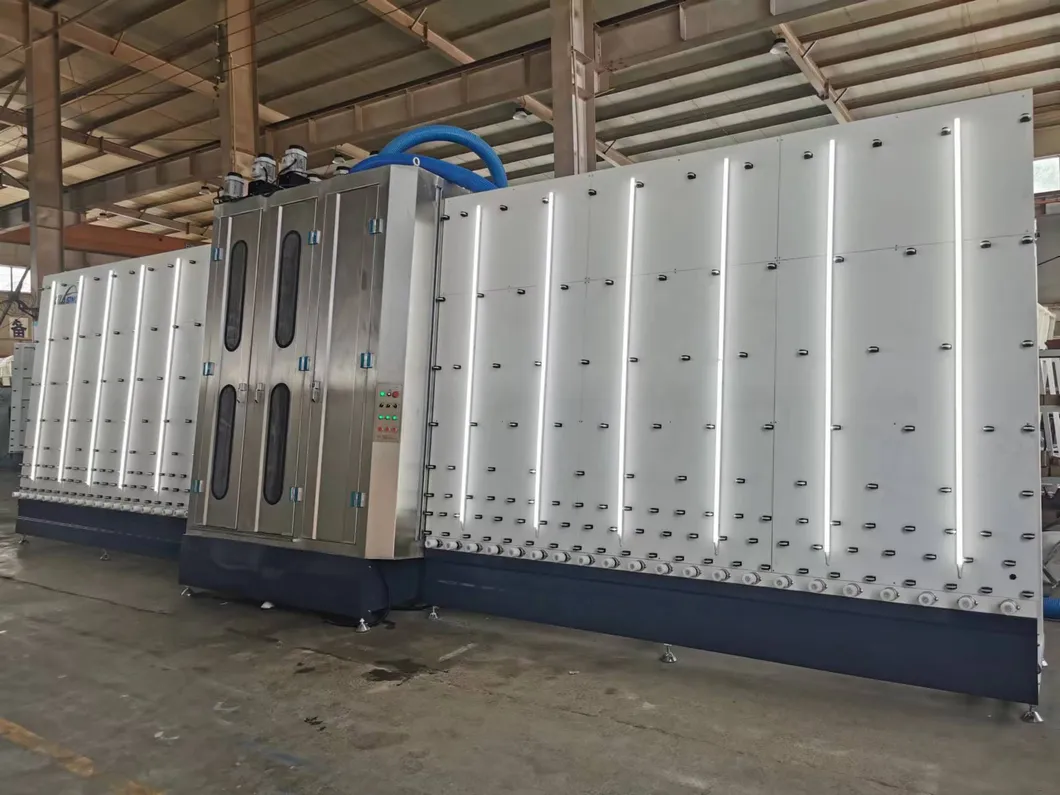

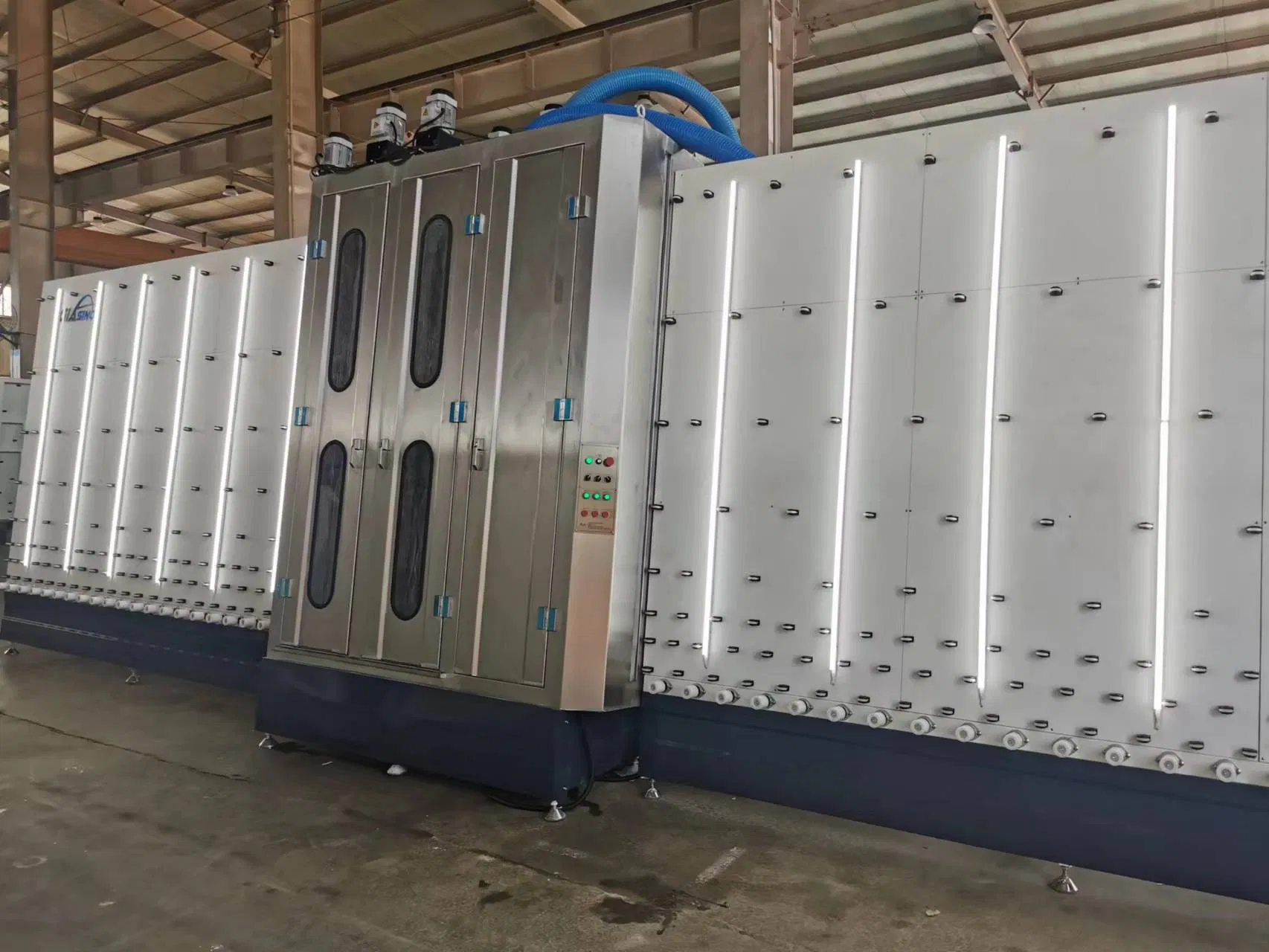

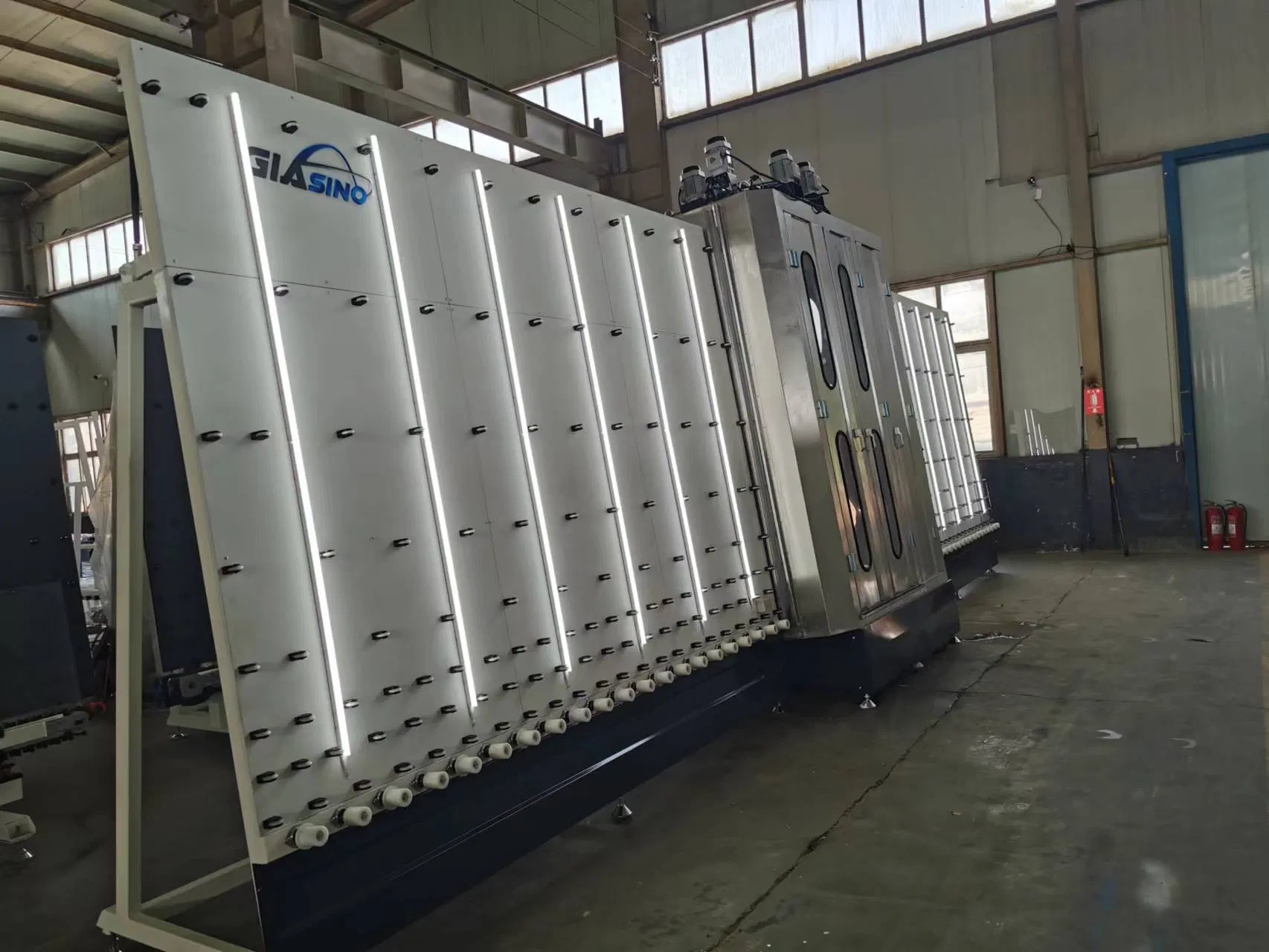

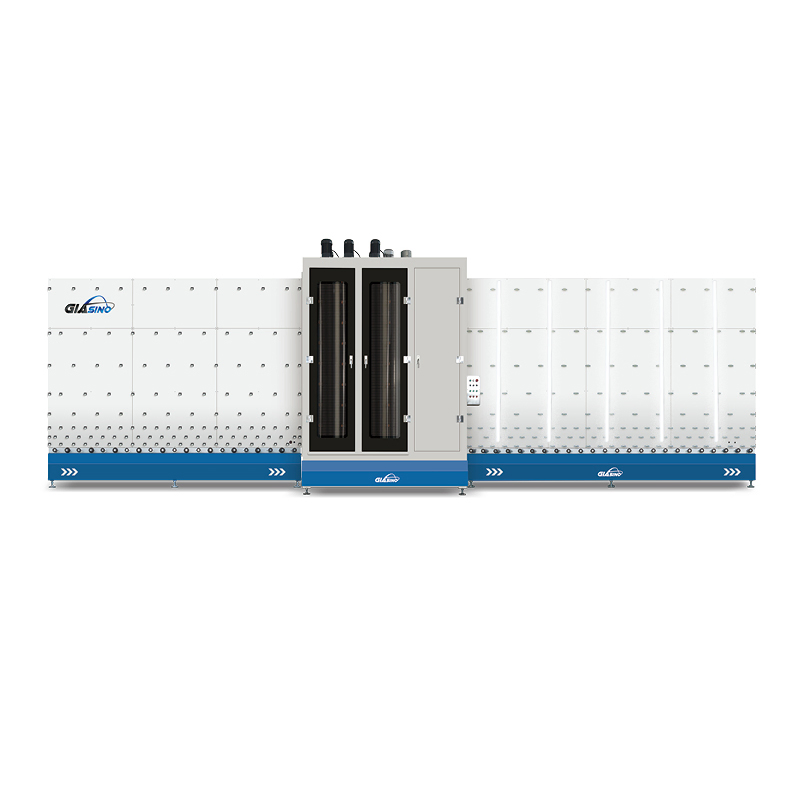

2000mm, 2500mm Vertical Glass Washing Drying Machine Vertical Glass Washing Machine

Customization:	Available
Certification:	CE, ISO
Glass conveyor speed:	10-15m/min

i

Basic Information

Model NO.:2000

Glass Thickness:3-19 mm

Power Supply:380V/50Hz

Total Power:25kw

Type:Glass Washing and Drying Machine

Structure:Vertical

Control System:PLC

Condition:New

Warranty:One Year

Production Capacity:30sets/Month

✔

Product Description

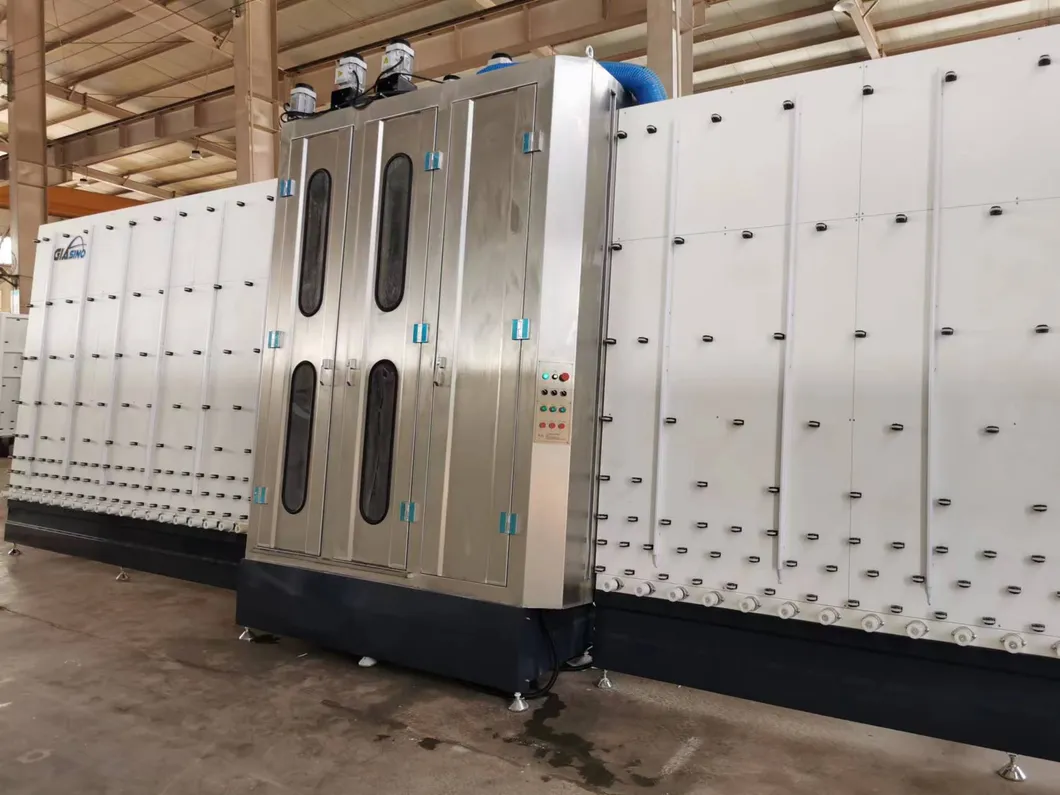

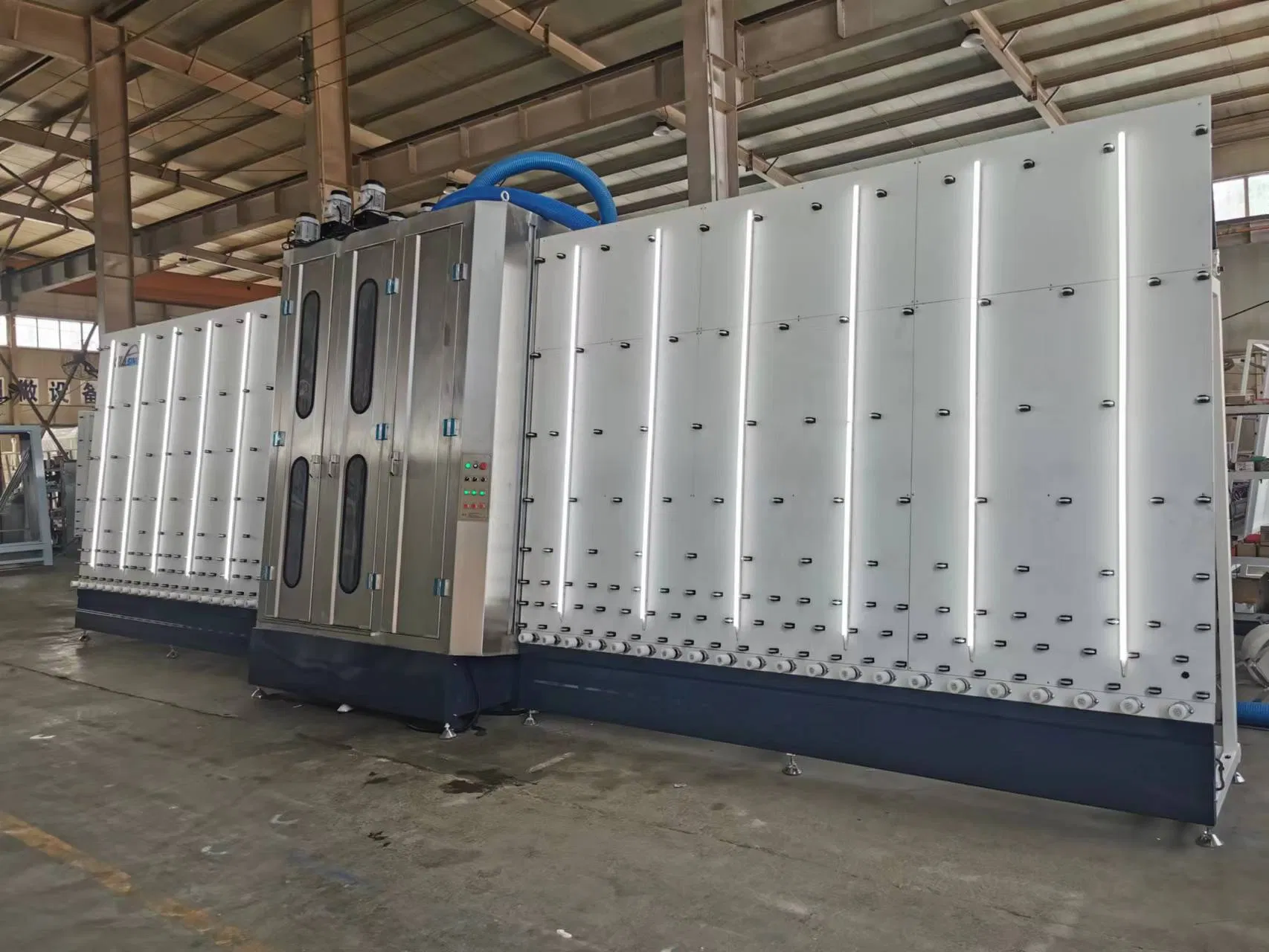

2000x2500mm / 2500x3000mm Vertical Glass Washing and Drying Machine

1 The cleaning case body is made of thickened stainless steel. Components in contact with water are stainless steel or waterproof aluminum, ensuring rust-free long-term use.

2 Adopts upper drive and double-layer structure to avoid aging and water leakage of sealing parts, facilitating maintenance.

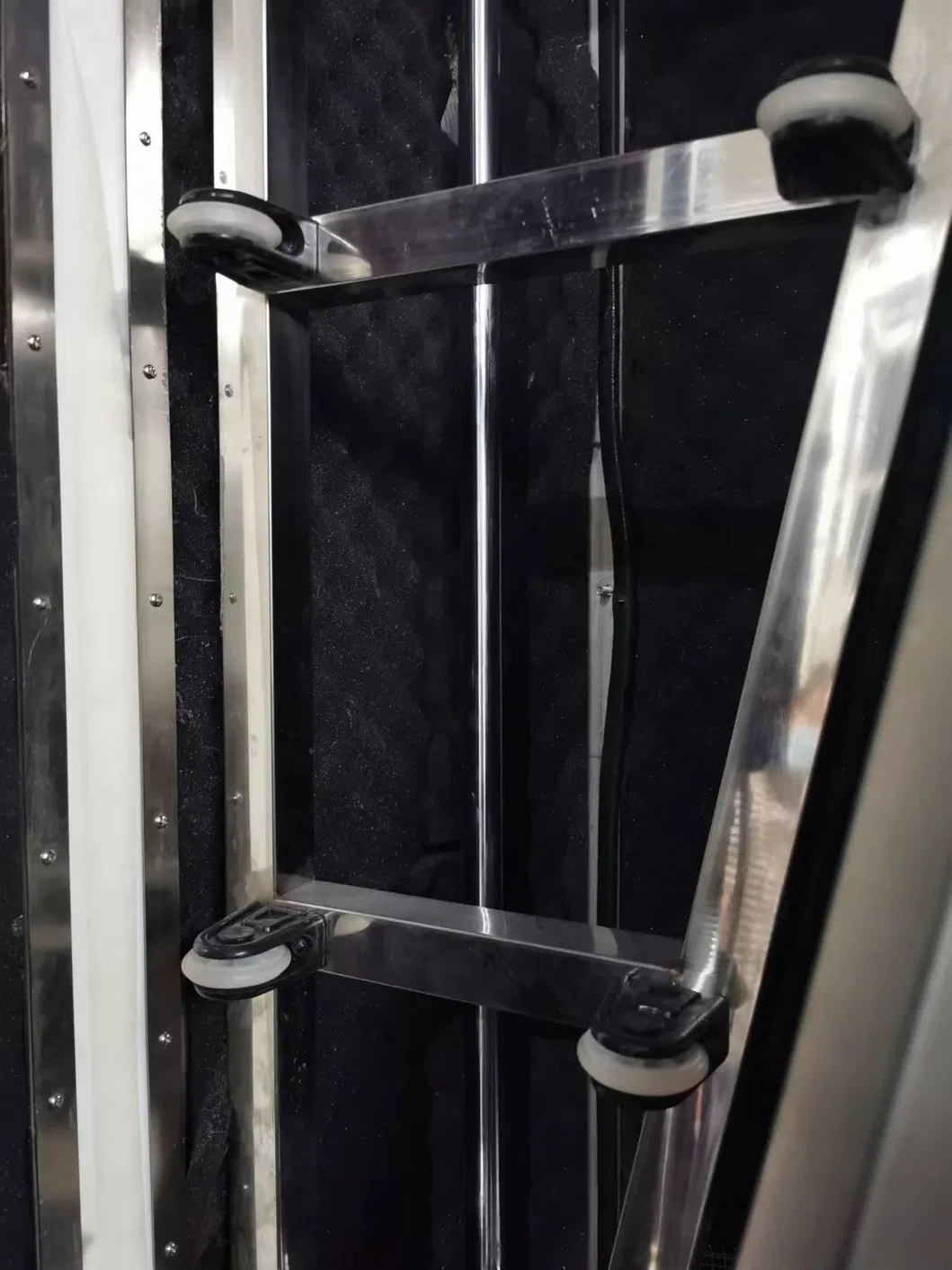

3 Rubber roller drive with automatic spring adjustment for glass thicknesses of 4-15mm.

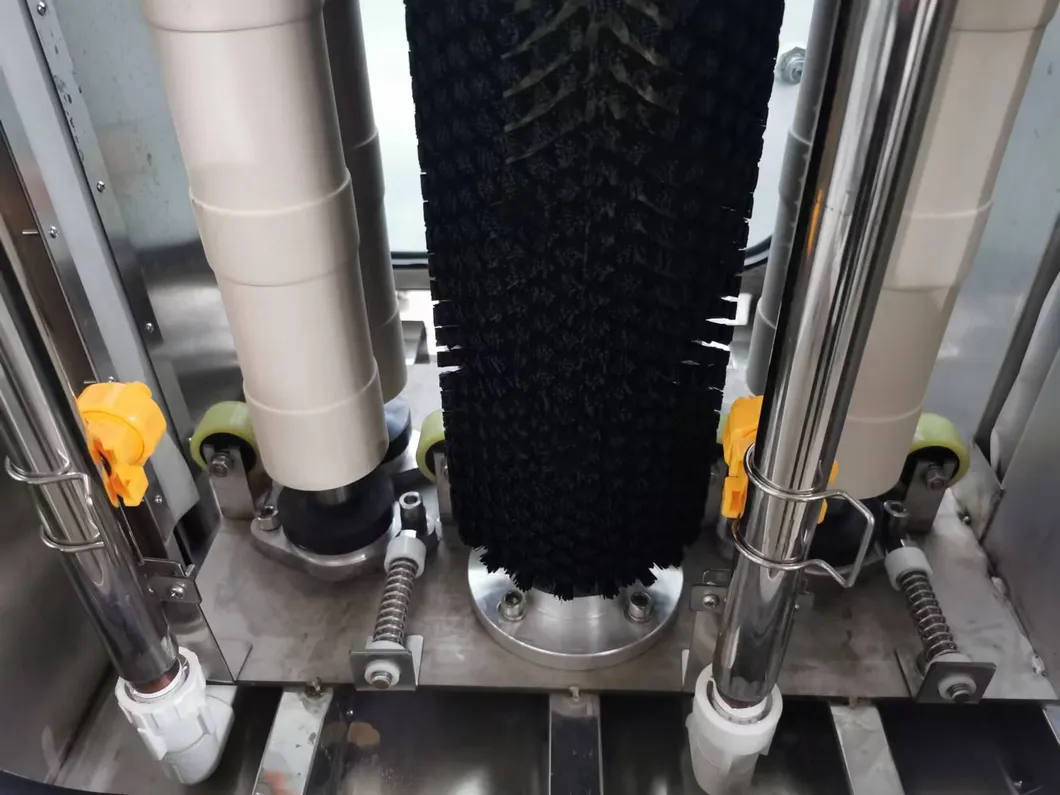

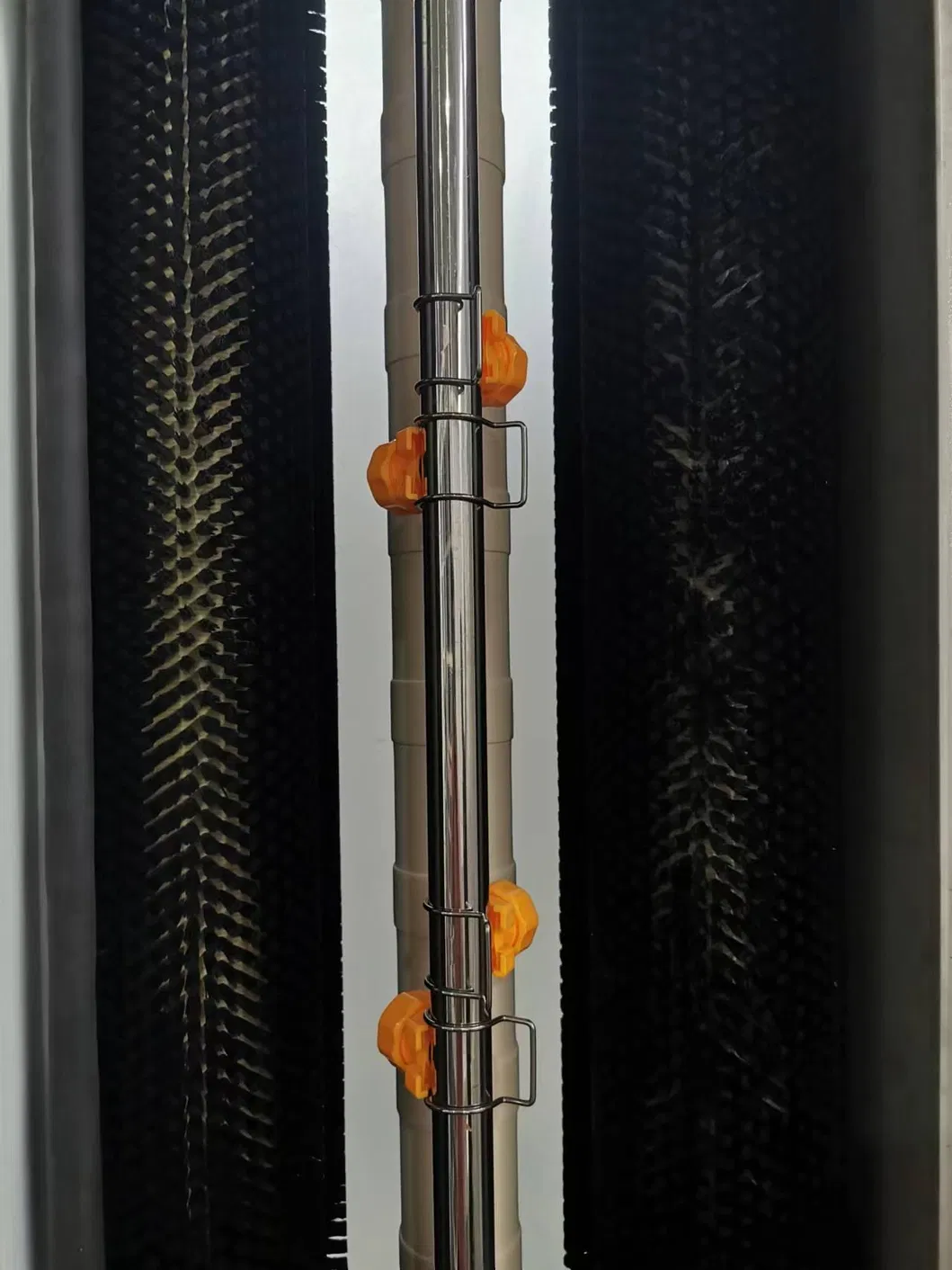

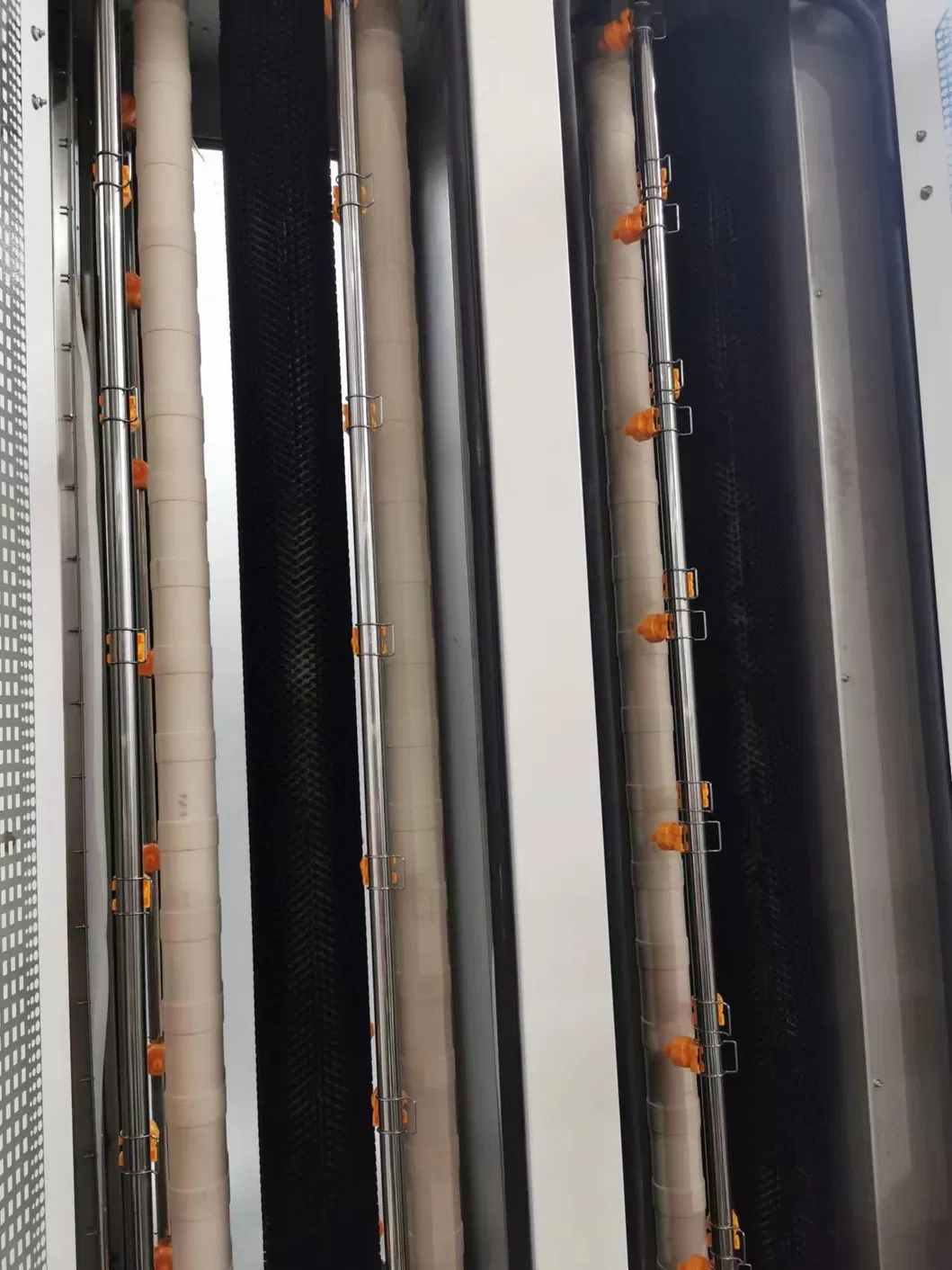

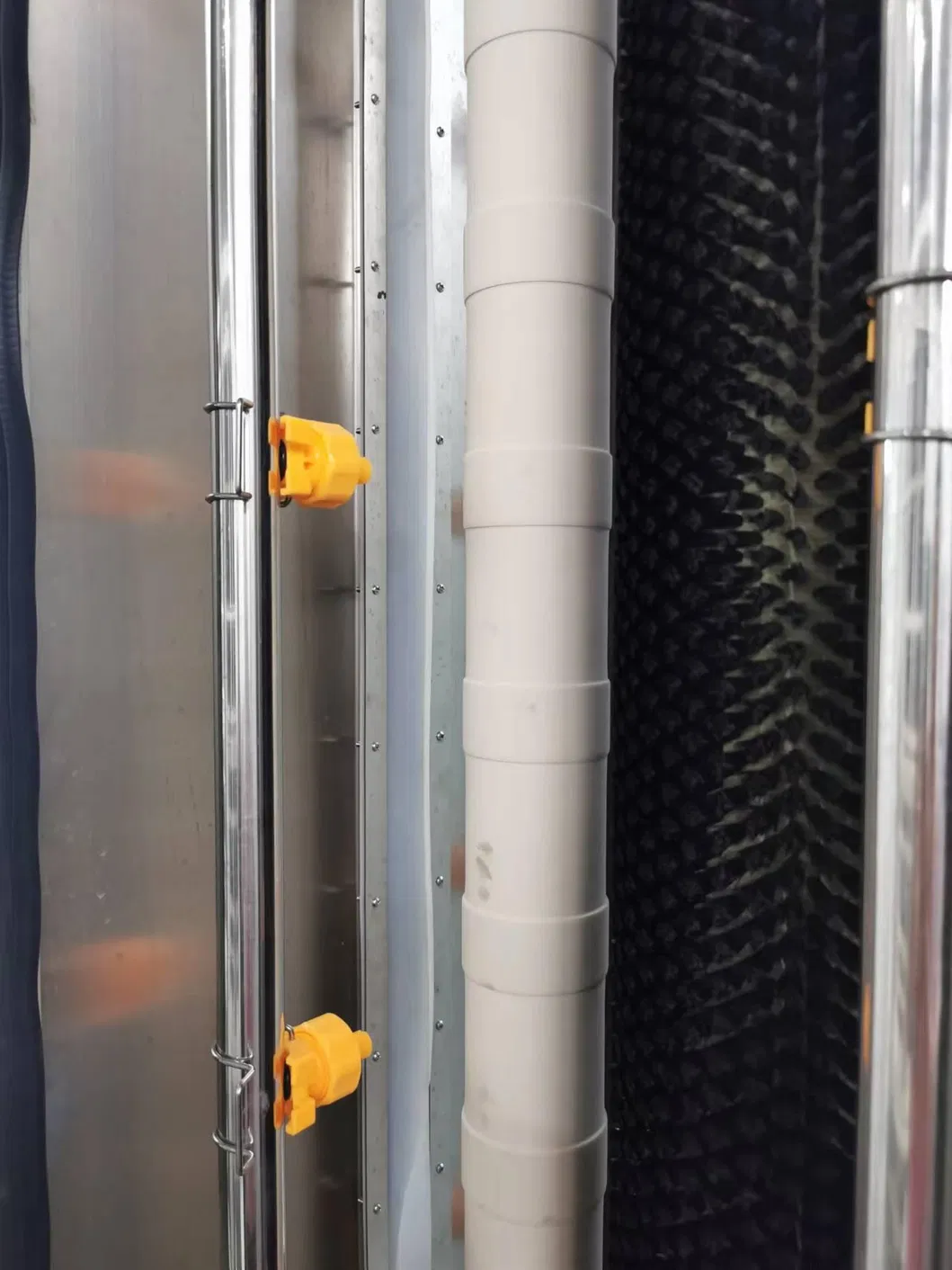

4 Three groups of brushes (six high-quality 1010 nylon wire brushes) and six water sprays ensure quick cleaning (5-12m per minute). Compatible with Low-E and coated glass.

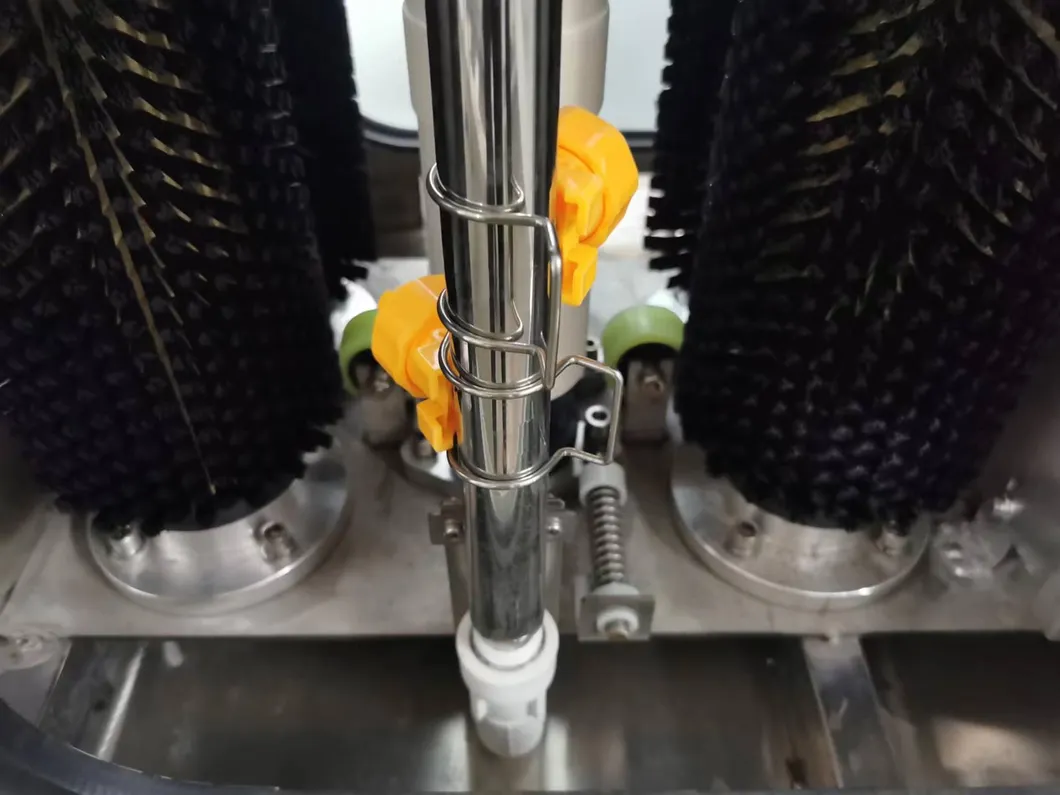

5 Brush device features fore-and-aft adjustment to compensate for wear, extending service life.

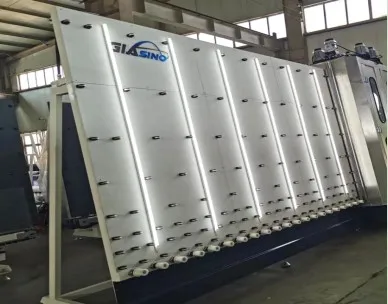

6 Automatic identification for Low-E and coated glass. The first group of coarse brushes yields automatically to protect the film side.

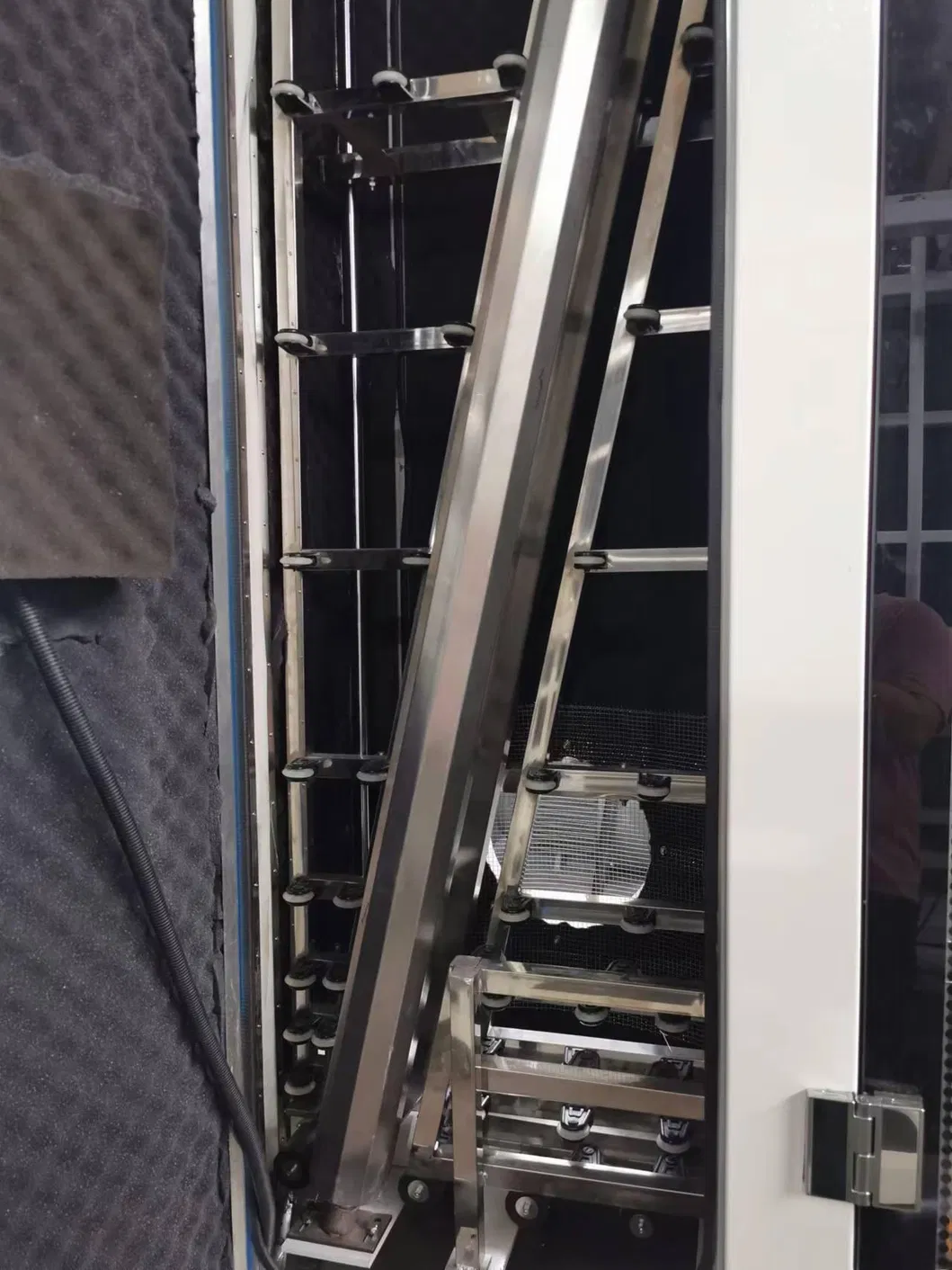

7 Stainless steel air knife and coupling supports prevent secondary pollution during drying.

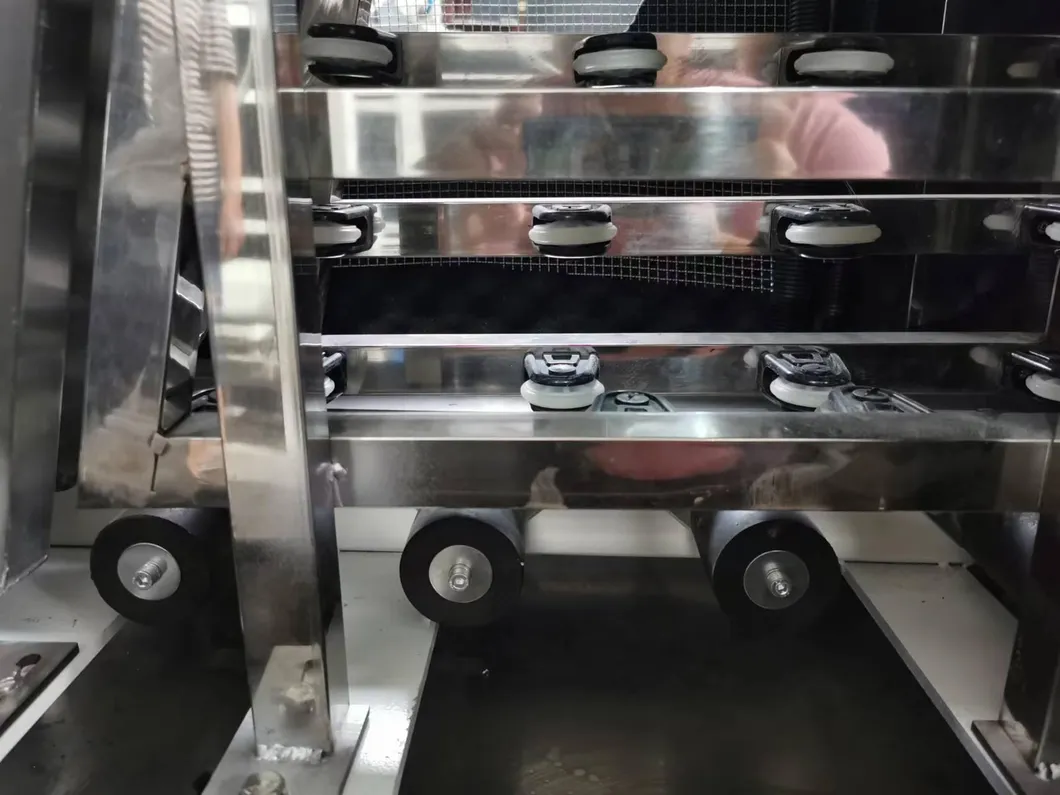

8 Transmission in the drying box is driven by bottom rubber rollers for stable, slip-free movement.

9 Optimized air knife angle and duct layout for superior drying results.

10 Circulating air design saves energy and reduces noise.

11 Precision stainless steel high-speed bearings ensure stable operation.

12 Humanized upper segment design with foot switch control for safe handling of large glass pieces.

⚙

Machine Parameters (2.5m)

Total Power	25kw
Max. glass size	2500*3500mm
Min. glass size	280*450mm
Glass thickness	3-12mm
Working speed	8-45m/min
Total weight	3000kg
Overall dimension	960027003500mm

★

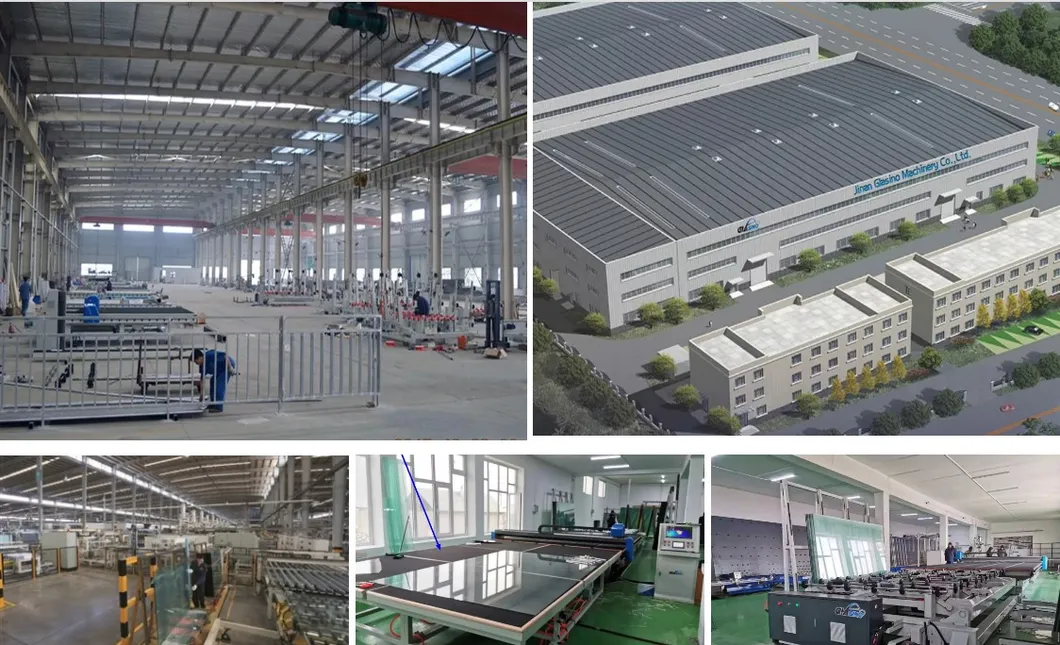

Profile

Founded in 2003, our high-tech enterprise specializes in the production of CNC glass cutting machines, insulating glass machines, and curtain wall glass machines. Our main products include laminated glass cutting lines, multifunctional cutting machines, automatic insulating glass sealing robots, and full sets of processing machinery for insulating glass.

We have obtained European CE certification, SGS certification, and ISO 9001:2008 quality control standards. We persist in taking quality as the life of the enterprise, continuously improving production management and developing advanced technology to meet market needs.

📦

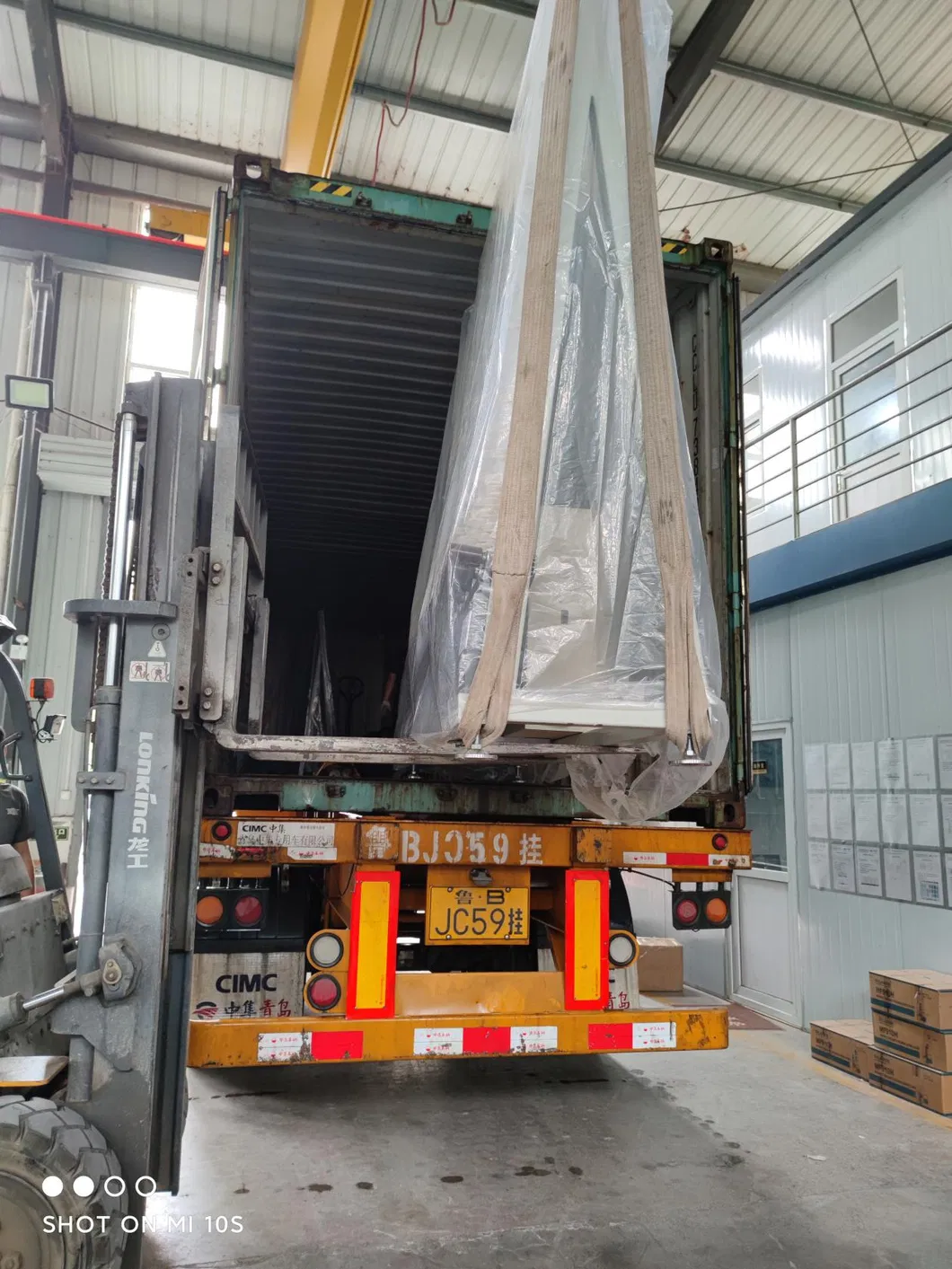

Packaging & Shipping

🤝

Exhibition & Our Customers

👍

Recommended Products

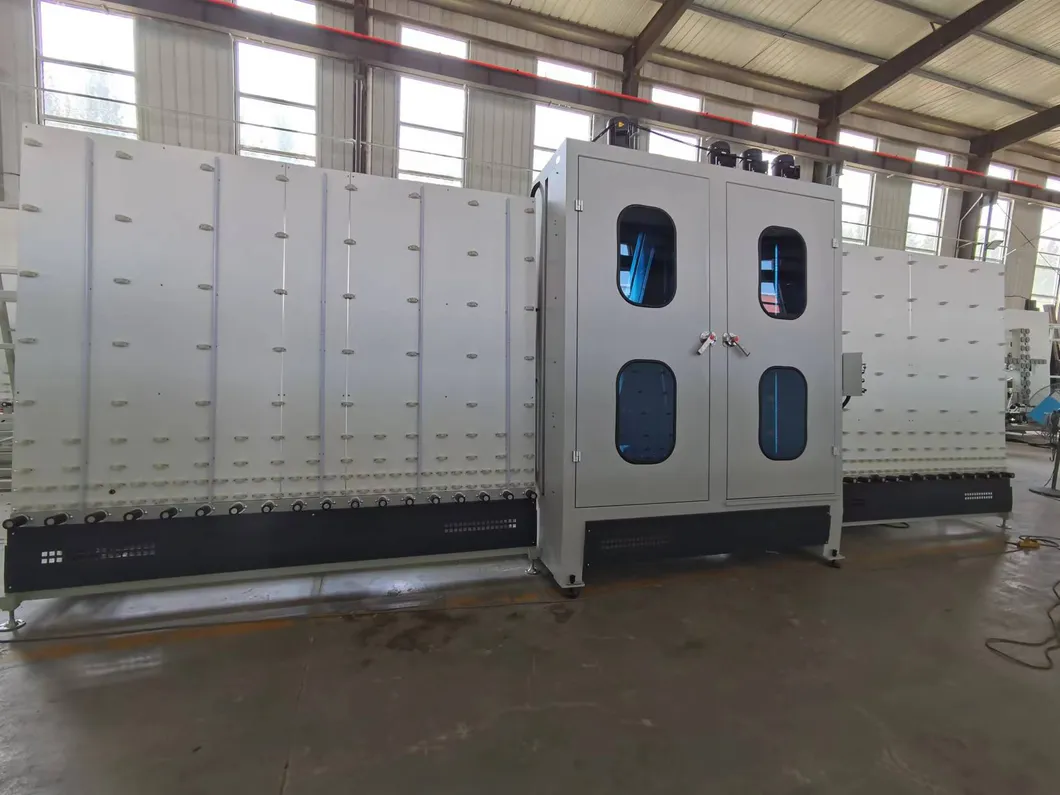

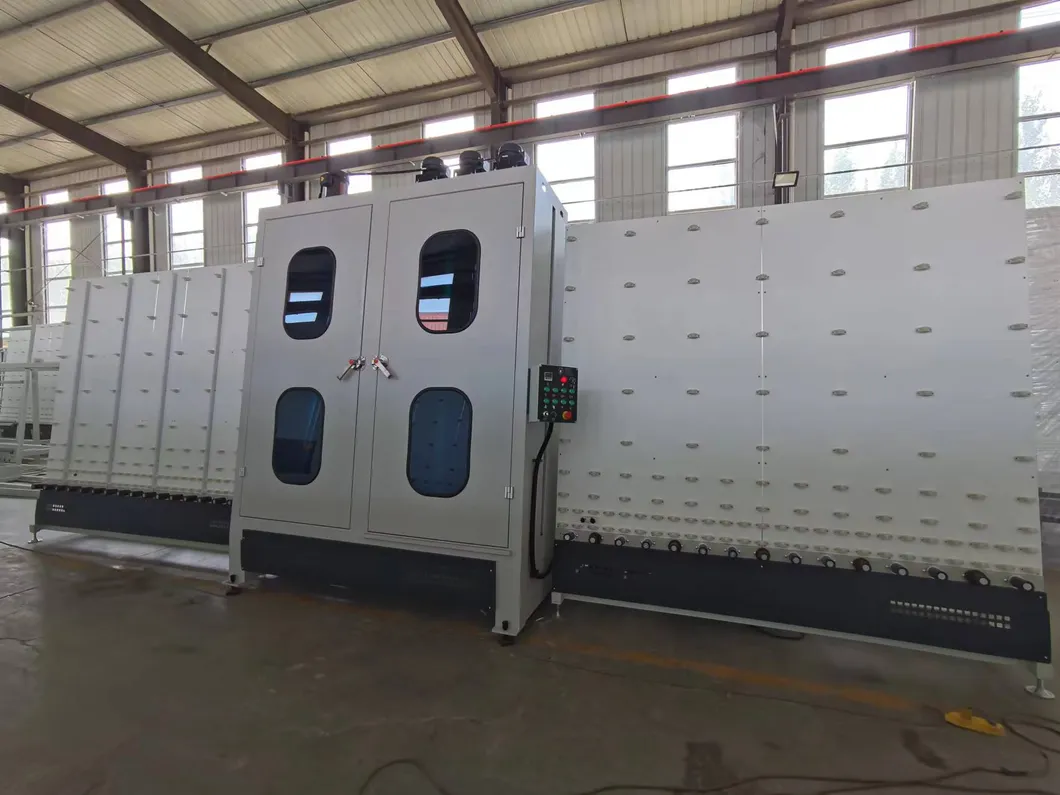

Vertical Glass Washing Machine Options:

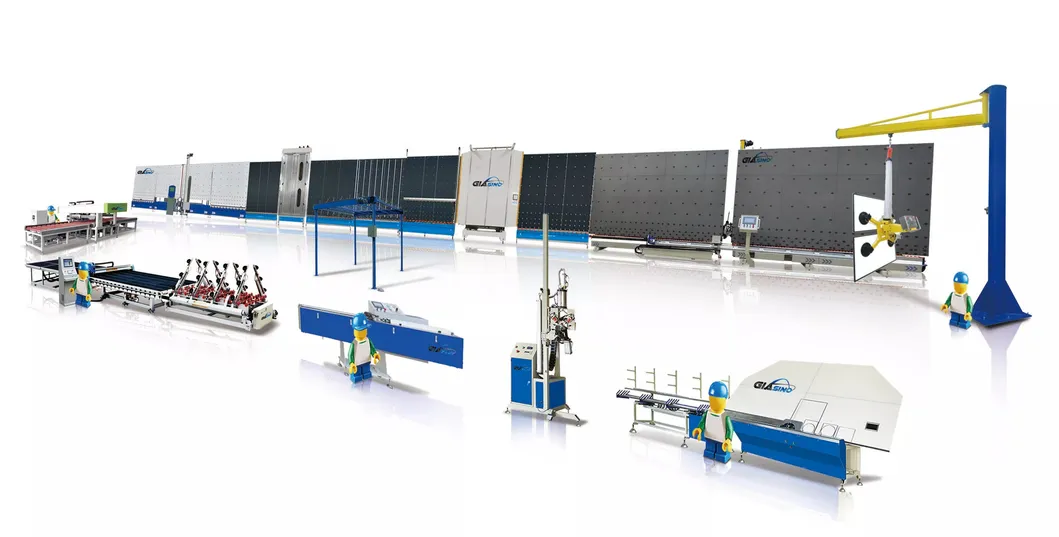

Complete Insulating Glass Solutions:

?

Frequently Asked Questions

Q1: What range of glass thickness can this machine handle? A: The machine is designed to wash and dry glass with thicknesses ranging from 3mm to 19mm, with automatic adjustment for 4-15mm.

Q2: Is this machine compatible with Low-E or coated glass? A: Yes, it features an automatic identification system that detects the coating side and adjusts the brushes to prevent damage to the film.

Q3: How fast does the machine wash the glass? A: Depending on the specific model and glass size, the working speed ranges from 5-12m/min for standard cleaning up to 45m/min for certain configurations.

Q4: What materials are used for the parts in contact with water? A: All parts in contact with water, including the cleaning case and air knives, are made of thickened stainless steel or waterproof aluminum to prevent rust.

Q5: What is the warranty period for this glass washing machine? A: The machine comes with a standard one-year warranty for peace of mind and reliable operation.

Q6: Does the machine include safety features for operators? A: Yes, it includes a humanized design with a foot switch control system to ensure safety when loading or handling large pieces of glass.
