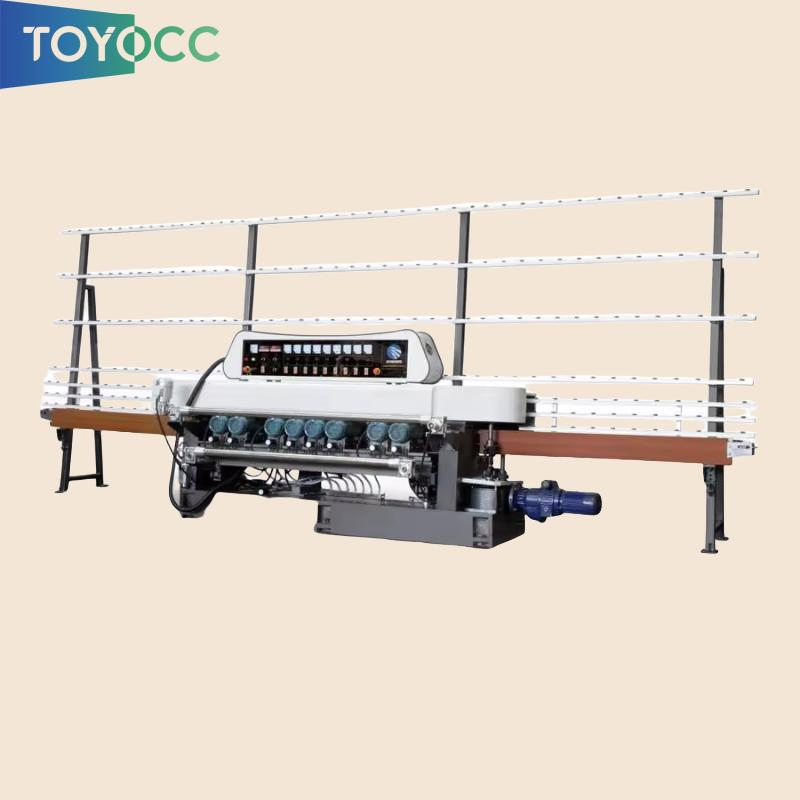

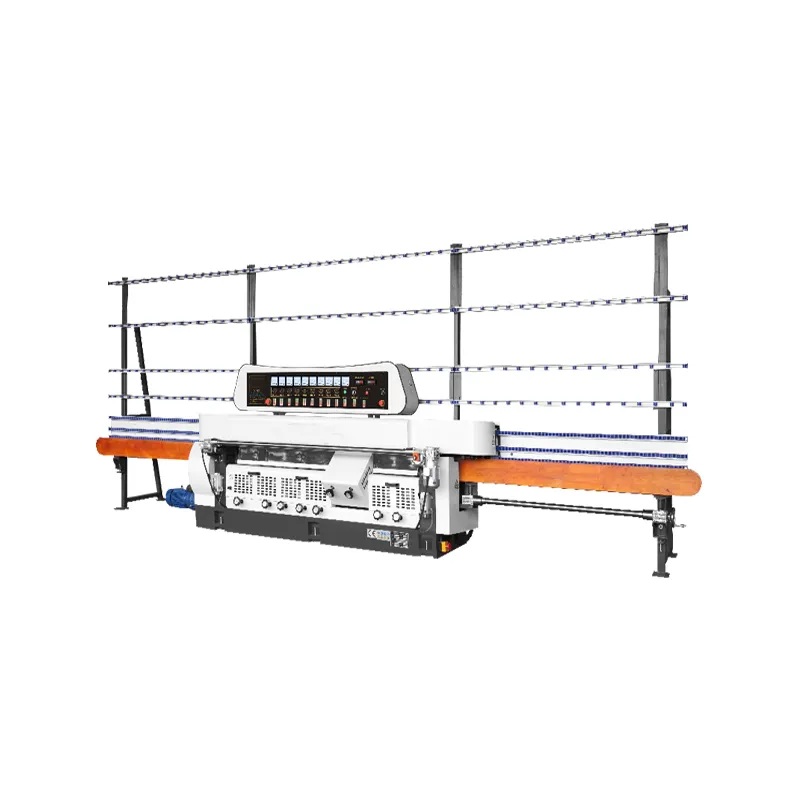

TCGZ9325 Glass Straight Line Edging Machine
Model NO.TCGZ9325
Max. Glass Size2500*2500mm
Min. Glass Size80*80mm
Glass Thickness3-25mm
Transmission Speed0.5-6m/Min
Power19.5kw
Weight3000kg
Grinding Head Number9
Control SystemIndustrial Computer / Digital Display
Quality StandardCE Certified
⚙️
Technical Specifications
| Specification Item |
Data Detail |
| Max. hemline grinding | 3mm |
| Max. arris grinding | 2.5mm |
| Land occupation | 7200×1000×2500mm |
| Glass diagonal error | ≤0.5mm/m |
| Glass parallelism error | ≤0.3mm/m |
🏗️
Major Configuration & Features
| Part Name |
Configuration Data / Supplier |
| Machine Frame | HT250 Cast Iron with annealing treatment |
| Grinding Motors | HUASHUN Motor (2.2kw/1.5kw) |

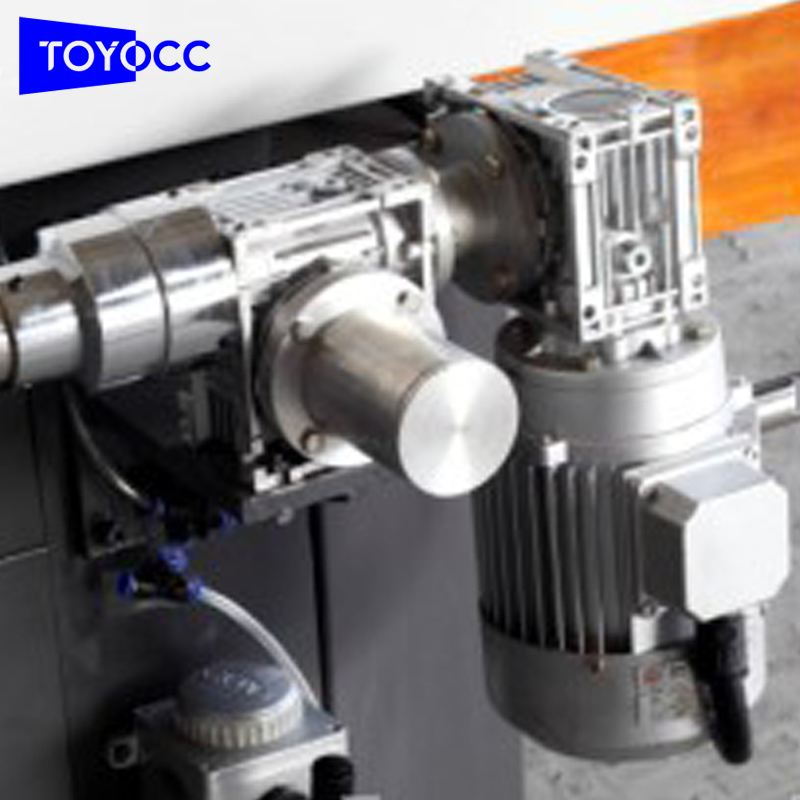

| Step-less Reducer | XG-TRANSMISSION |
| Worm Reducer | ZHUJIANG REDUCTION |
| Transmission Pads | Longxi Brand (Rubber & Plastic) |
| Transmission Chain | Hangzhou Donghua Chain |
| Bearings | Harbin Bearing Group (HRB) |
| Component |
Brand / Supplier |
| AC Contactor | Schneider Electric |
| Overload Relay | Schneider Electric |
| Transformer | Schneider Electric |
| Circuit Breaker | Schneider Electric |
| Ammeter/Voltmeter | CHINT Electric |
| Digital Display | OMRON |
🔄
Wheels Placement (9 Heads)
| Head # |
Function |
Wheel Type |
Power |
| 1# / 2# | Rough Grinding | Diamond Wheel (Ф150) | 2.2kw |
| 3# / 5# | Chamfer Angle | Resin Wheel (Ф130) | 1.5kw |
| 4# / 6# | Angle Polishing | 10S40 Polishing Wheel | 1.5kw |
| 7# | Rough Grinding | Resin Wheel (Ф150) | 2.2kw |
| 8# | Polishing | 10S40 Polishing Wheel | 2.2kw |
| 9# | Fine Polishing | Felt Wheel (Italy Brand) | 1.5kw |
🛠️
Core Structural Components

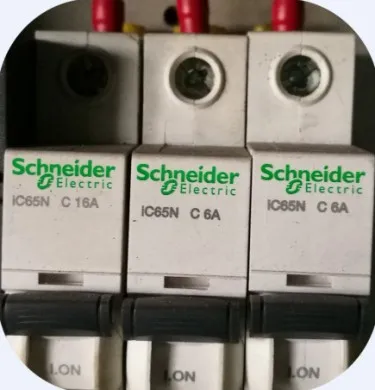

Schneider Electrical Components: Ensures the machine runs smoothly with industrial-grade durability.

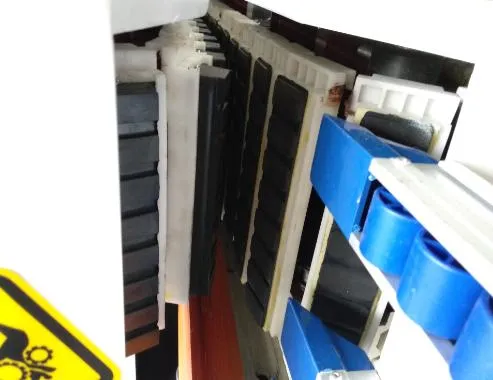

Reinforced Conveying System: Quality plastic and rubber pads with heavy-duty chains for precise glass clamping.

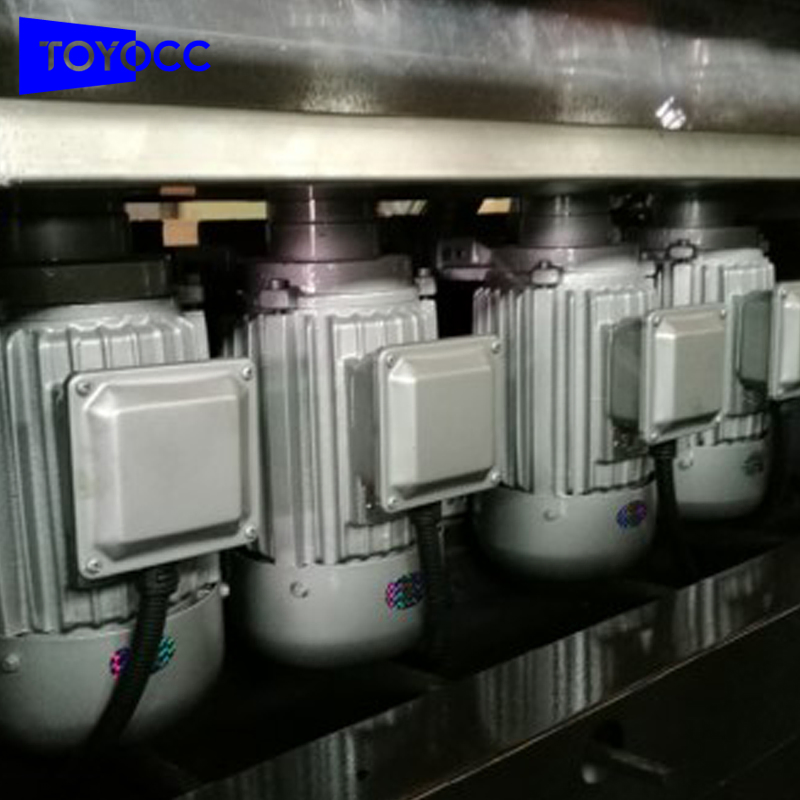

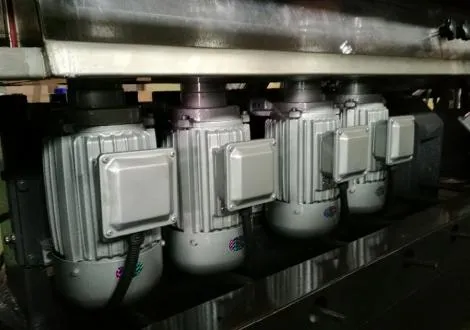

HUASHUN Grinding Motors: High-performance motors specialized for glass grinding, reliable for continuous operation.

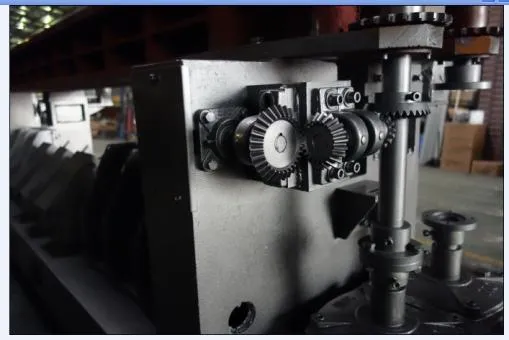

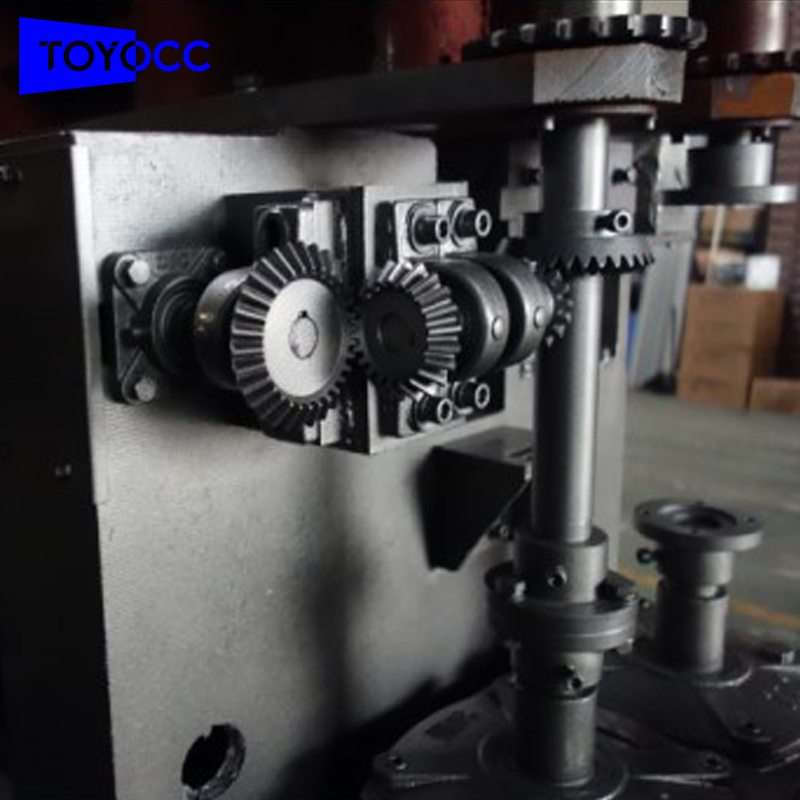

Industrial Strength Gears: Oversized gears designed for high stability and long-term wear resistance.

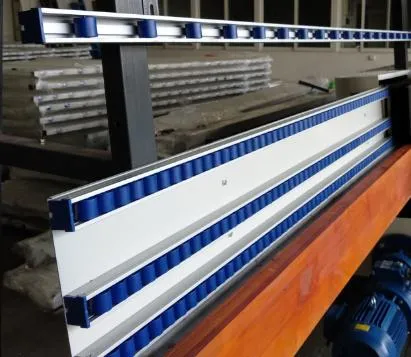

Aluminum Fluency Strips: Replacing traditional iron frames for more stable transmission and rust prevention.

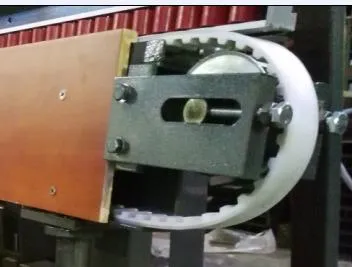

Italy Barbieri Timing Belt: Premium timing belt for ultra-smooth glass conveying.
| Parts Description |
Quantity |
| Waterproof Rubber (130mm) | 1 PC |
| Waterproof Rubber (100mm) | 1 PC |
| Flexible Water Pipe | 3 PCS |
| Quality Polishing Powder | 2.5 KGS |
| Complete Toolbox | 1 Set |
🌟
Why Choose Our Machinery?
- Top Tier Industry Leader: Recognized among the top glass machinery suppliers in China with a solid global reputation.
- Global Trust: Successfully served over 864 international clients and partner to world-renowned glass factory brands.
- Deep Expertise: 28 years of manufacturing experience combined with 9 years of professional export handling.
- Quality Assurance: Strict 15-step quality control inspection and 6S production standards for every machine.
- Superior Service: 8 comprehensive service segments including fast delivery (stock items ship same-day) and lifetime support.
- Value Guarantee: Competitive pricing (5%-10% lower than market average) and a price match guarantee.
Frequently Asked Questions
What is the range of glass thickness this machine can process?
The TCGZ9325 is designed to handle glass thickness ranging from 3mm to 25mm, making it versatile for various architectural and industrial glass needs.
What are the maximum and minimum glass dimensions?
The machine can process a maximum glass size of 2500x2500mm and a minimum size of 80x80mm.
Does the machine feature high-quality electrical components?
Yes, it utilizes world-class brands including Schneider Electric for contactors and circuit breakers, and OMRON for digital displays to ensure stability and safety.
What kind of maintenance is required for the grinding heads?
The machine includes 9 grinding heads using diamond, resin, and felt wheels. Regular inspection of the wheels and ensuring the water cooling system is clear will maintain optimal polishing quality.
What is the expected delivery time?
Standard stock machines can be shipped same-day. Custom configurations typically require 2 to 3 weeks for production and testing.
What kind of after-sales support do you provide?
We offer a 1-year after-sales service period, including technical follow-up, installation guidance, and lifetime software upgrades for digital systems.
