Ce Vertical Glass Mirror Straight Line Bevelling Machine

Customization:	Available
Application:	Building Material, furniture
Power Supply:	220/240/380/415/480V

📋

Basic Specifications

Model NO.

YD-Be-10S

Processing Thickness

3-19 mm

Warranty

1 Year

Min. Glass Size

30*30mm

Bevel Width

40mm

Spindle

10

Size

7m * 1.2m * 2.6m

Weight

3800kg

Control System

PLC

Power

24.5kw

Certification

CE

Machine Type

Glass Beveling Machine

⚙️

Product Description

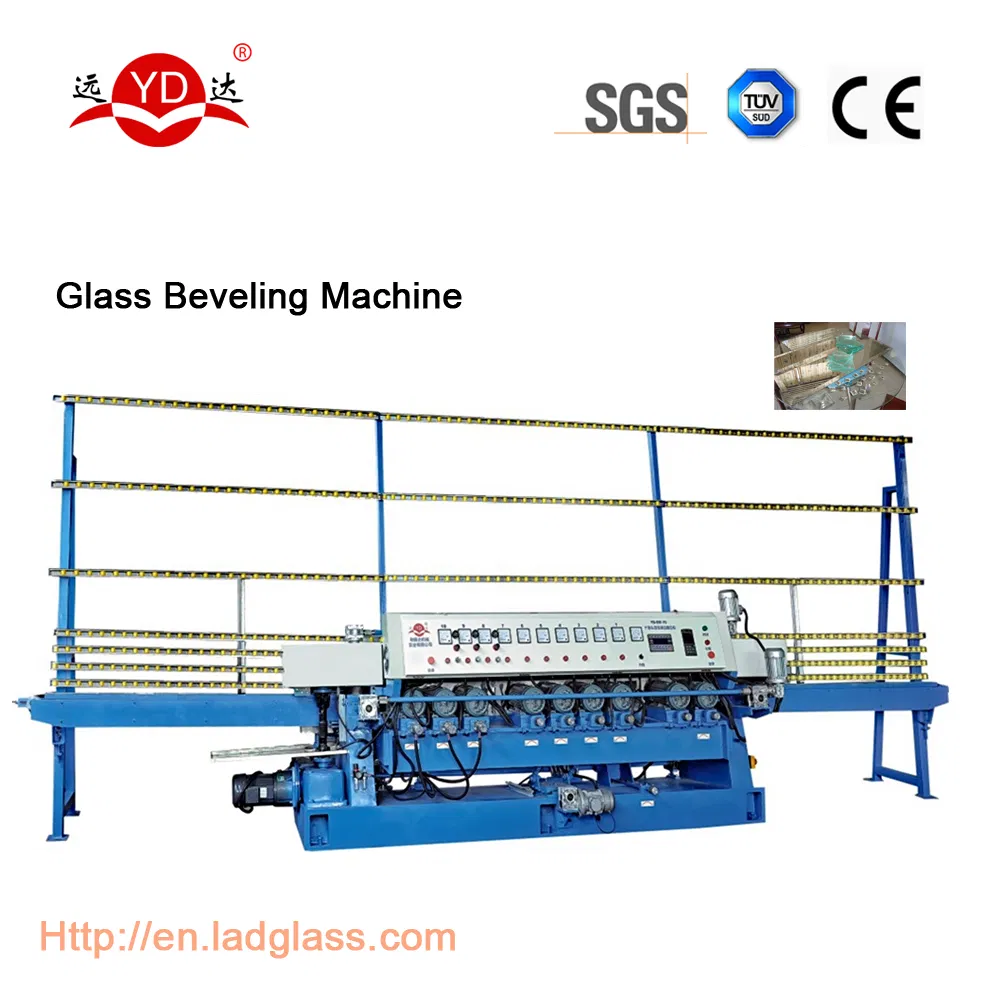

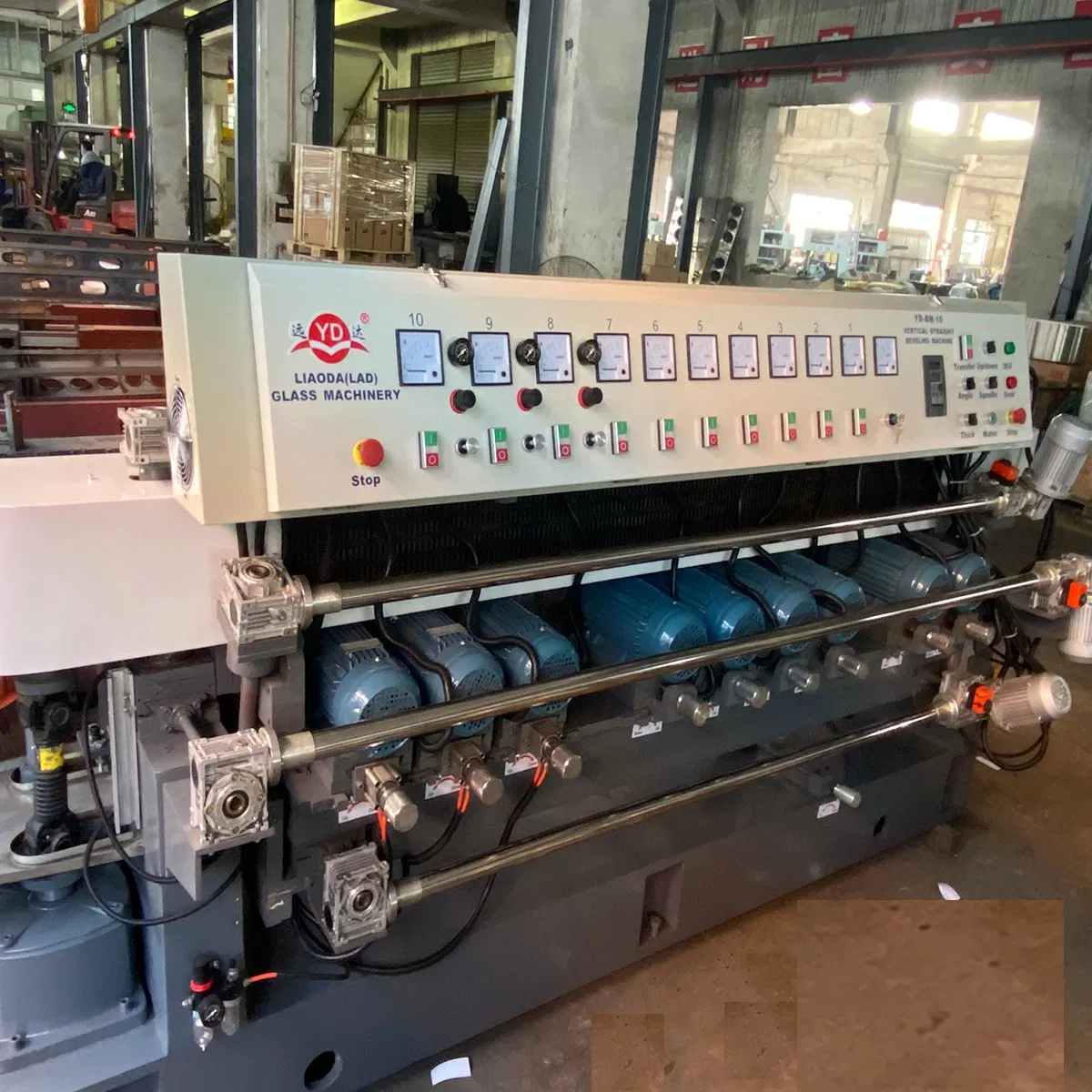

CE Vertical Glass Mirror Straight Line Bevelling Machine

This professional machine is engineered to create high-quality beveling edges on glass and mirrors. It is capable of processing bevel widths up to 40mm with precision and stability.

💎

Advanced Control: PLC/single chip controller system options where all processing data is adjusted via screen for production efficiency.

✨

Superior Finish: Equipped with 3 Pneumatic polishing wheels to achieve a mirror-like shine on the beveling edge.

🏗️

Robust Construction: Cast steel machine basement ensures maximum stability and long-term durability.

🚀

High Efficiency: High-quality motors combined with a vertical structure allow for consistent processing of various glass thicknesses.

📊

Technical Comparison

Model Number	YD-BM-9	YD-BM-10	YD-BM-10-45	YD-BM-11	YD-BM-13
Total nr. of spindle	9	10	10	11	13
Glass thickness(mm)	3~19	3~19	3~19	3~19	3~19
Min. glass size(mm)	150×150	150×150	30x30	150×150	150×150
Bevel angle	0~30°	0~30°	0~45°	0~30°	0~30°
Max. bevel width(mm)	35	35	40	35	35
Power(kw)	21	23.5	23.5	25	30
Weight(kg)	3300	3800	3800	4000	4300

🛠️

Support & Services

Warranty

One year comprehensive coverage

Installation

Video guidance & English user manual

Aftersales

Lifetime technical and parts support

Delivery

30 days after down payment

Package

Plastic bubble sheet or Plywood case

Experience

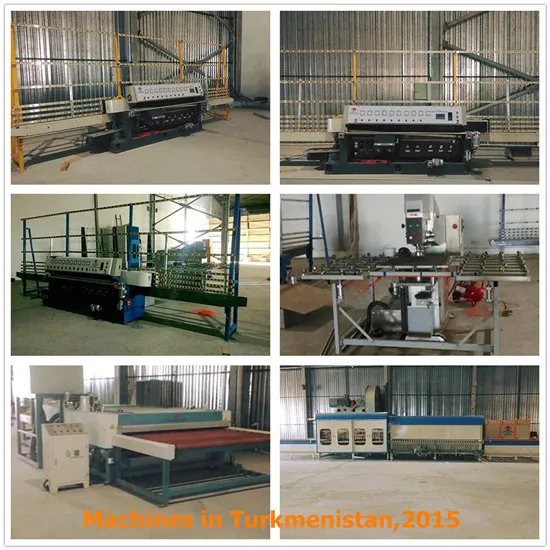

Global supply to Saudi Arabia, Australia, Turkey, etc.

📸

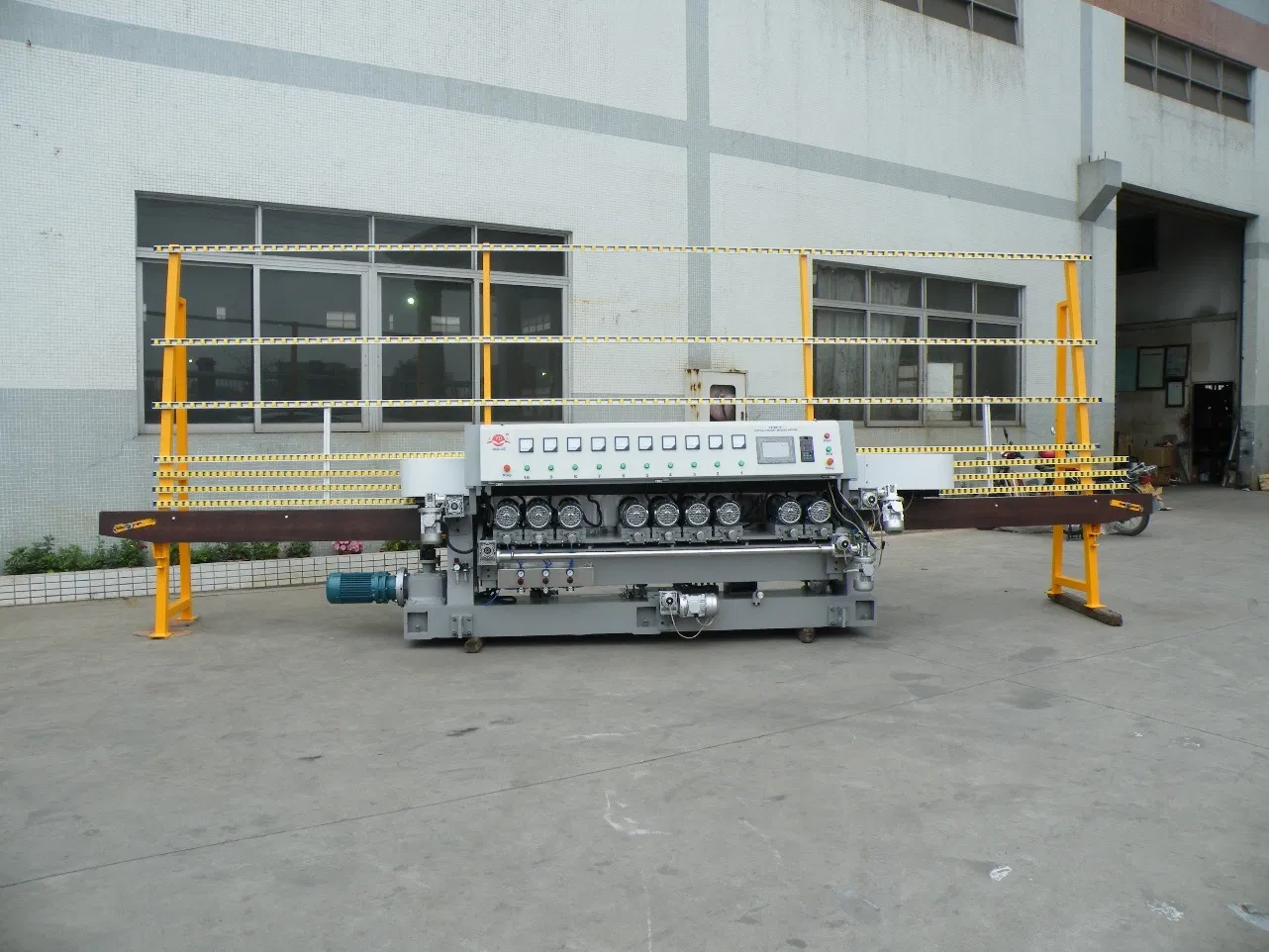

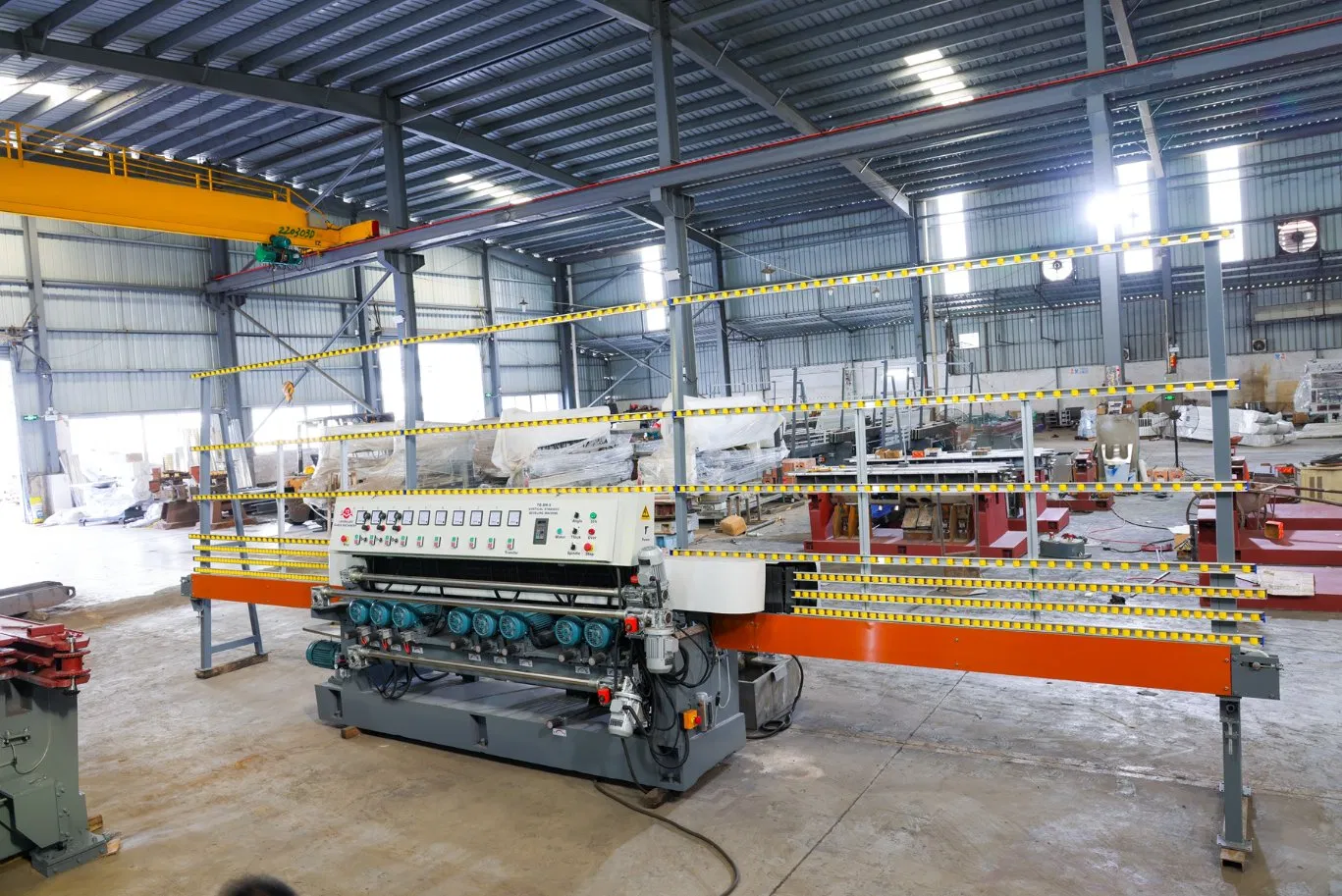

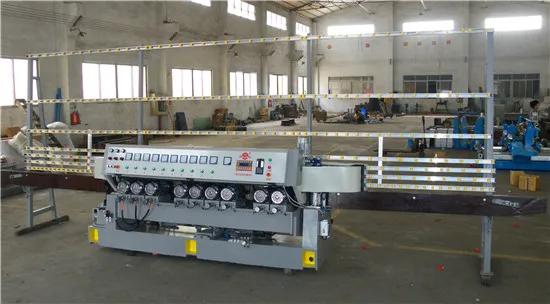

Machine Showcase

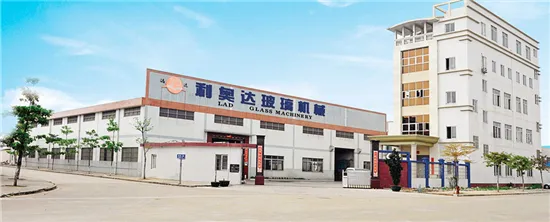

Factory Overview

❓

Frequently Asked Questions

Q1: What is the maximum bevel width this machine can process?

The machine can process a maximum bevel width of up to 40mm, depending on the specific model and glass thickness.

Q2: What range of glass thickness is compatible with this bevelling machine?

The machine is designed to process glass and mirror thicknesses ranging from 3mm to 19mm.

Q3: How is the machine controlled and adjusted?

It utilizes a PLC or single-chip controller system where all processing data is set and adjusted via a user-friendly screen.

Q4: What kind of polishing quality can I expect?

Equipped with 3 pneumatic polishing wheels, the machine ensures a high-quality, mirror-like shine on the bevelled edges.

Q5: What is the lead time for delivery and what's included in the package?

Standard delivery time is 30 days after payment. Machines are securely packed in thick plastic bubble sheets or plywood cases with steel frames for safe transport.

Q6: Do you provide support for installation?

Yes, we provide detailed machine installation videos and comprehensive English user guidance to ensure smooth setup and operation.
