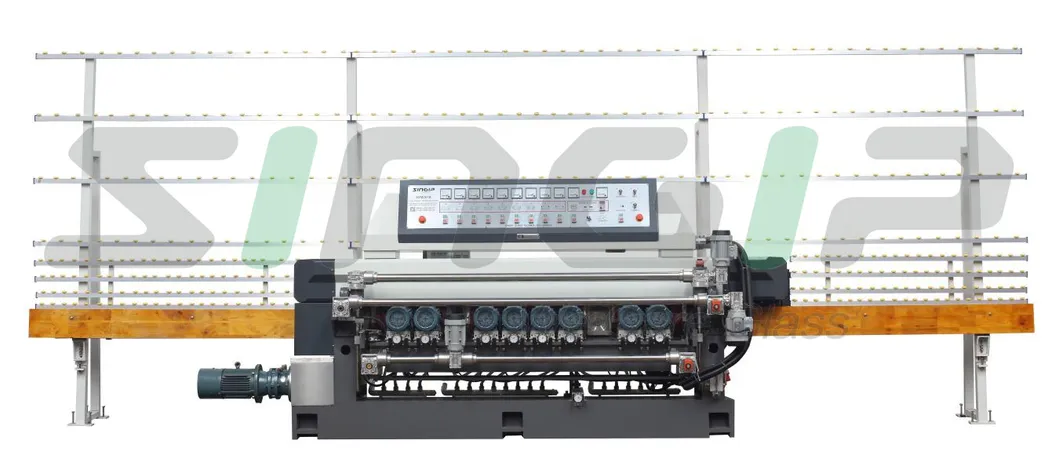

EXCELLENCE IN THE MOST DEMANDING PROCESSING
Bevelling is recognized as one of the most challenging glass processes. Machines must be extremely precise to ensure bevel quality, processing accuracy, and strict dimensional tolerances. Our models offer high productivity without compromising on the end product's quality.
QUALITY FIRST
The conveyor is equipped with 40cr steel pads without ball bearings. All pads maintain a surface error range within 0.02mm, ensuring the high precision essential for beveling. The structure utilizes thick cast iron for the bedplate, beams, and stand columns, combined with high-precision guide rails to eliminate vibrations.
MINIMIZED MAINTENANCE & USER-FRIENDLINESS

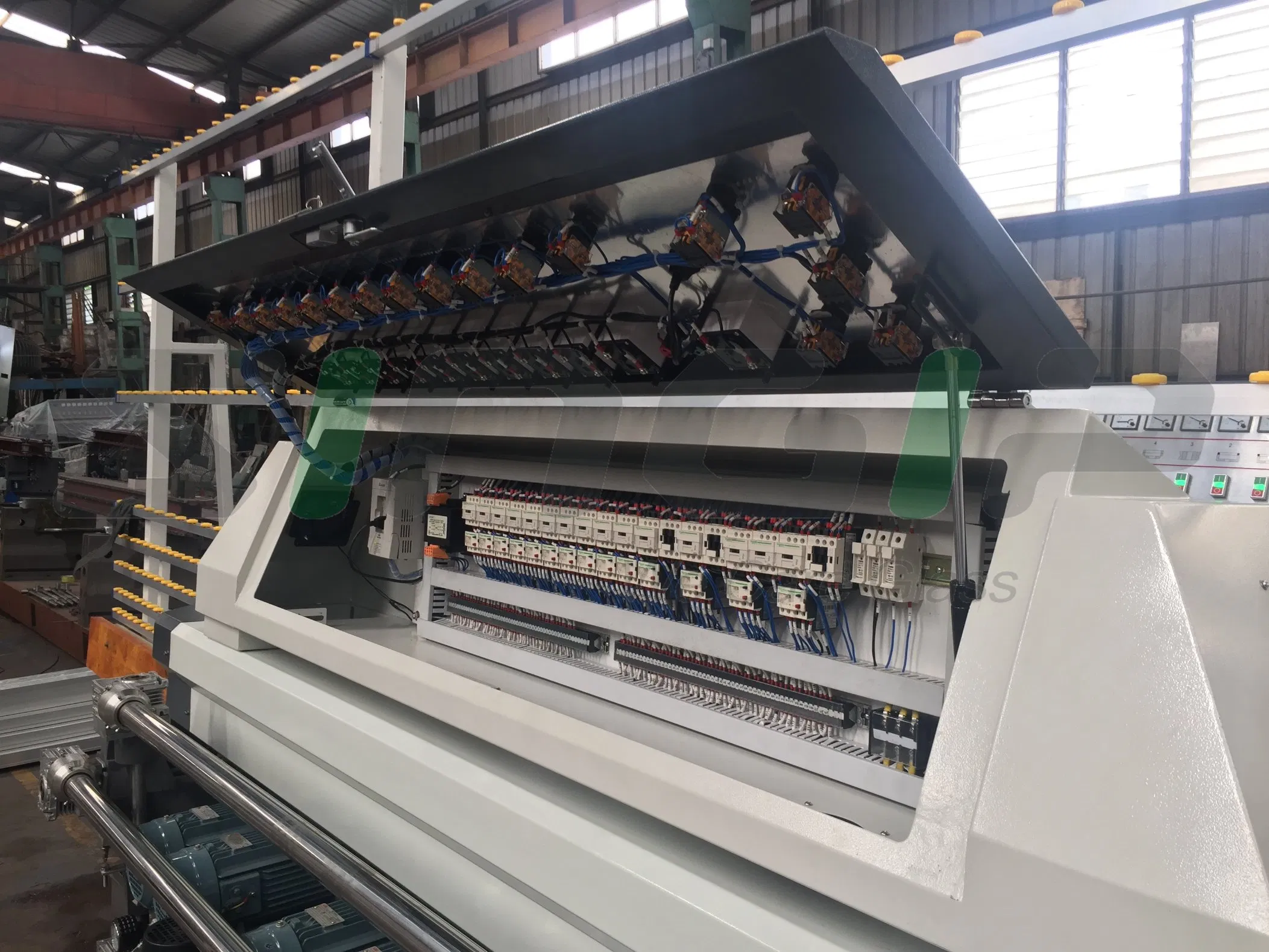

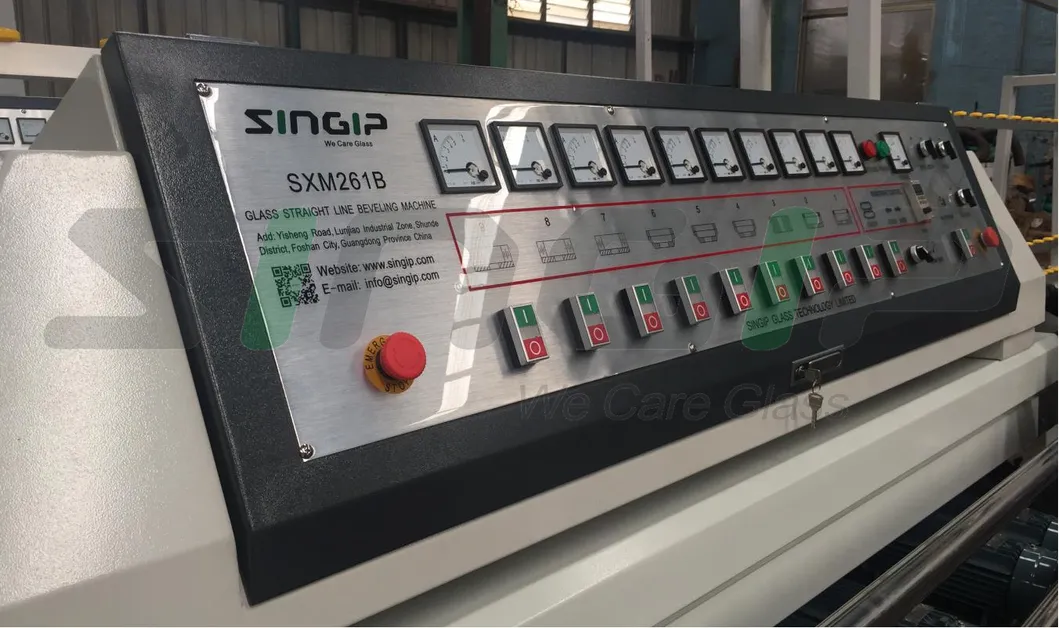

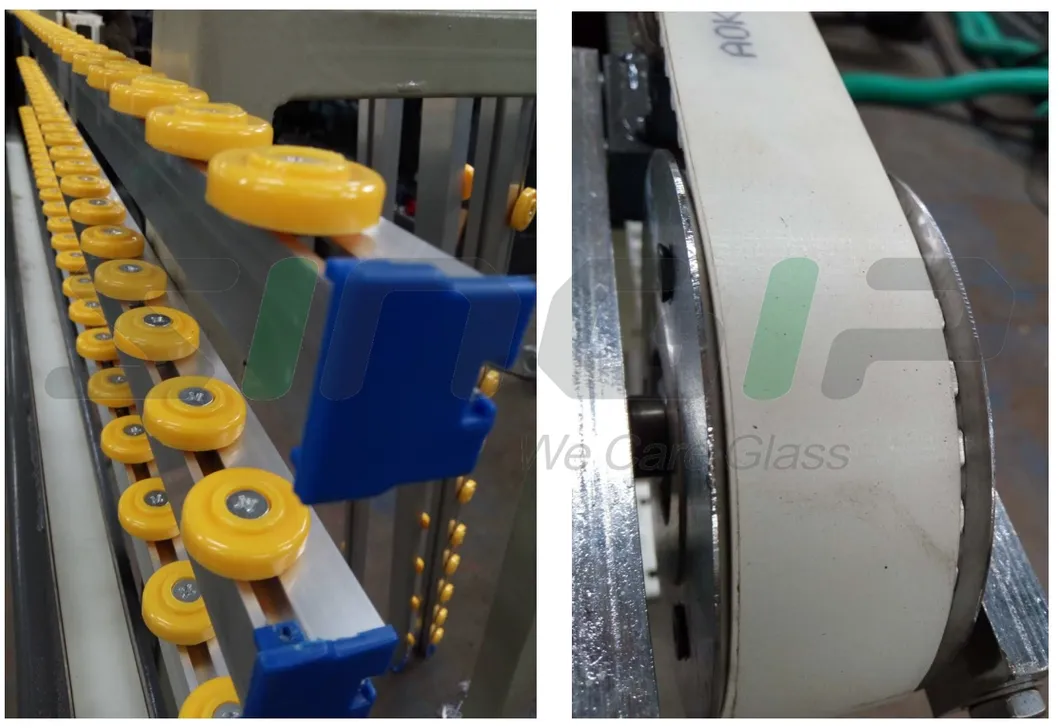

These machines are recognized for reliability and longevity. Features include a maintenance-free conveyor, centralized lubrication, and individually replaceable synchronous belts. The electric cabinet features a glue-protected control panel with intuitive icons for fast learning and advanced production statistics.
| Name | Main Specification |
|---|---|
| Machine Frame | High quality thick material castings with heat annealing treatment. |
| Conveyor Trucks | Armor plate 40Cr for stability and low breakdown rates. |

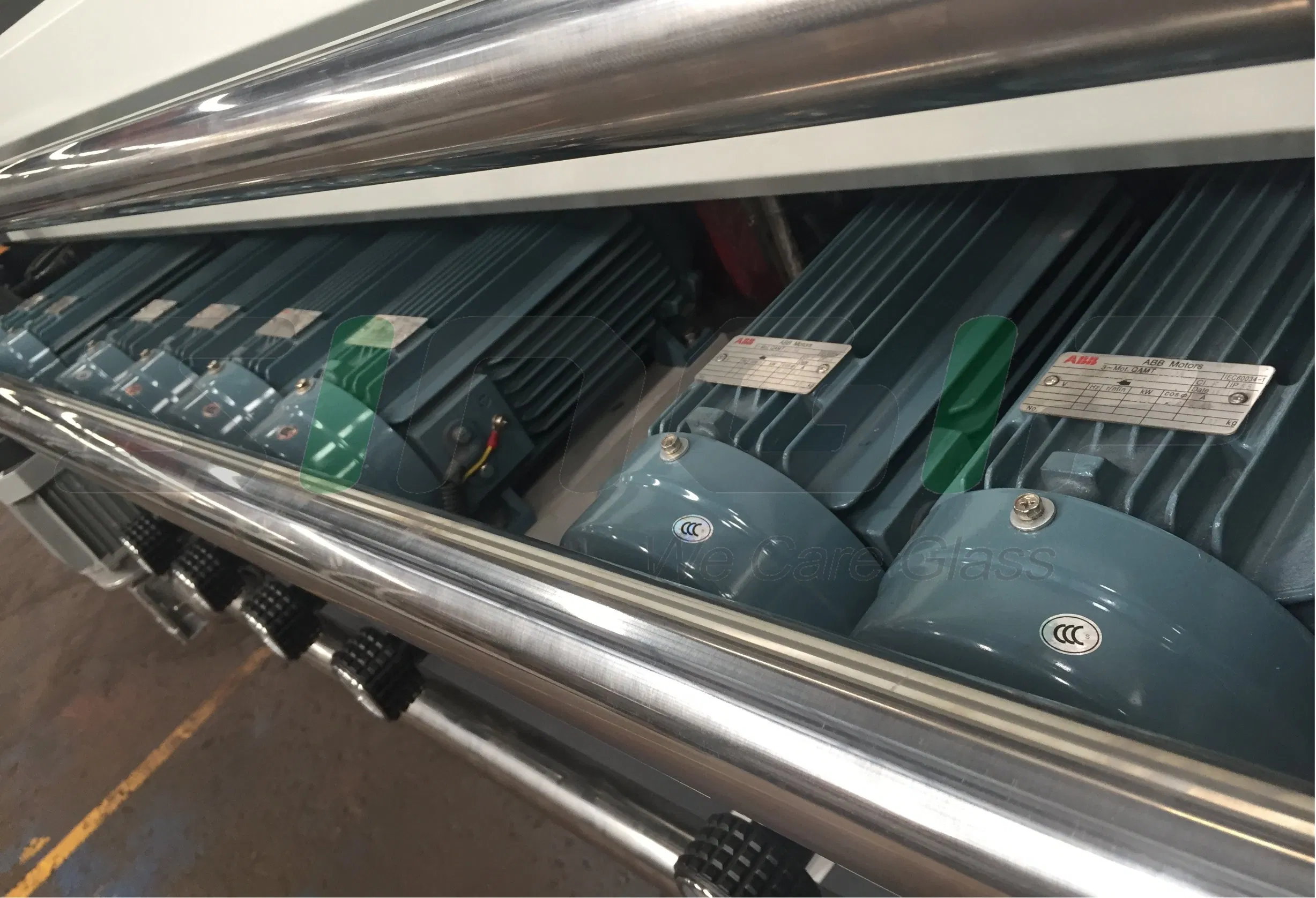

| Grinding Motor | ABB Motors |
| Water Pump | SHANQING Brand |

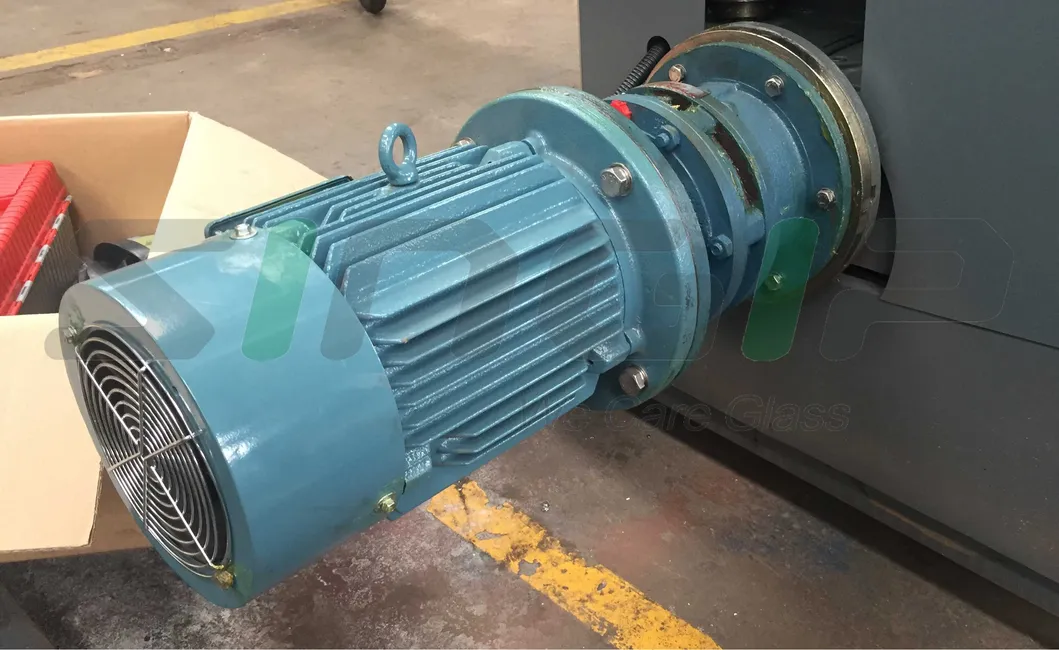

| Speed Mechanism | Xing Guang Brand Stepless Variable Mechanism |

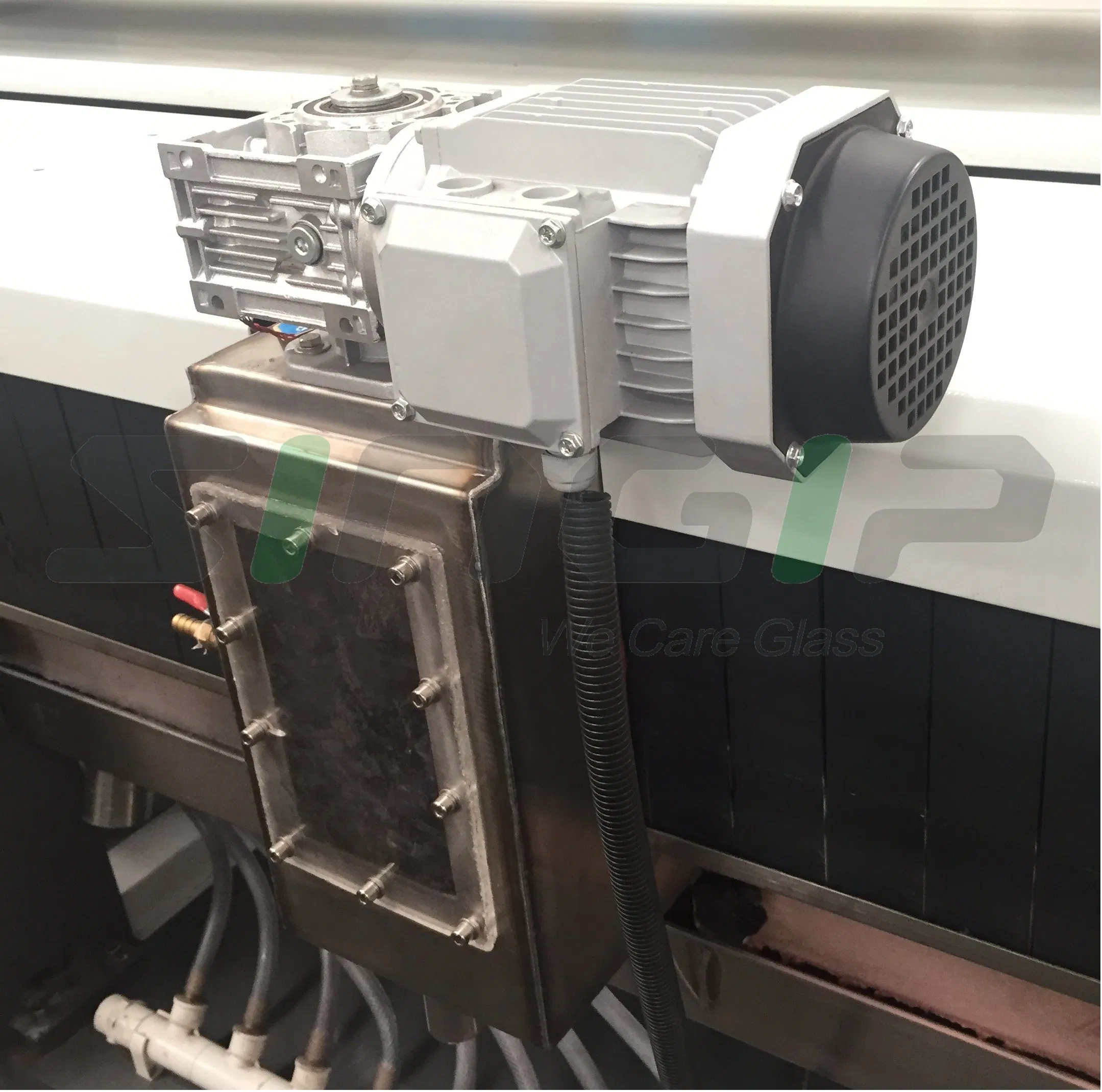

| Gear Box | ZHUJIANG Brand Transfer worm gear box |
| Pneumatic Parts | PUNAN Brand |
| Bearings | HRE Brand |

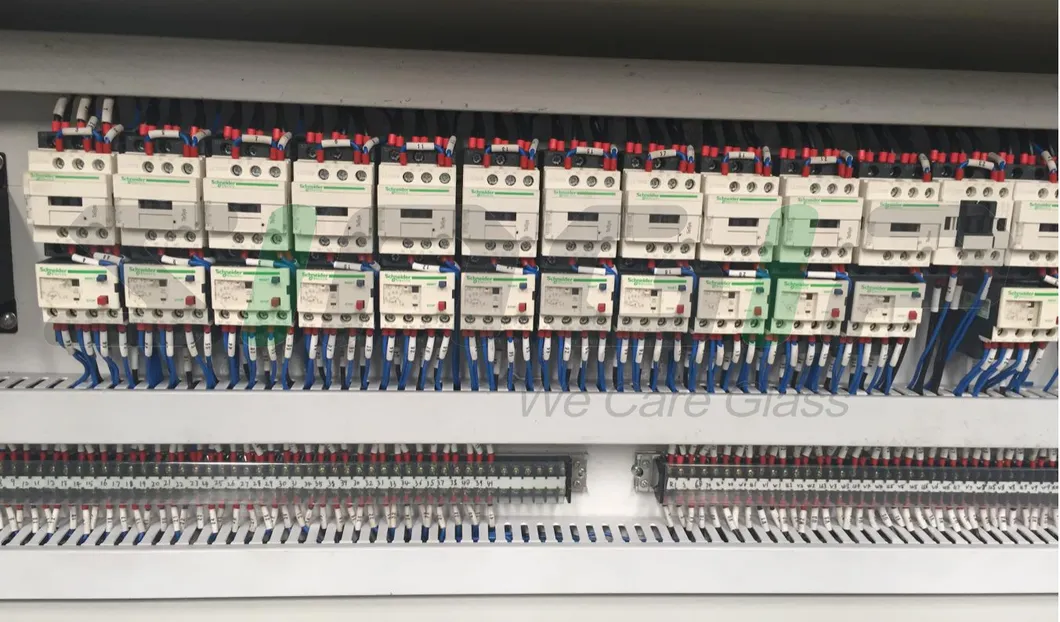

| Electric Breaker | SCHNEIDER Brand |
| Timing Belt | YONGLI Brand |

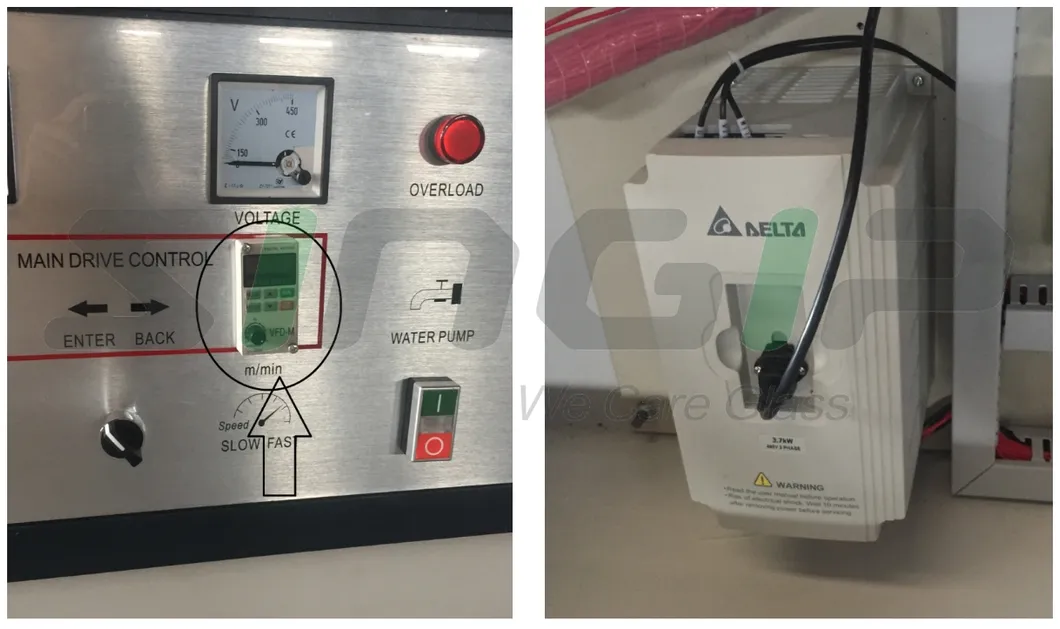

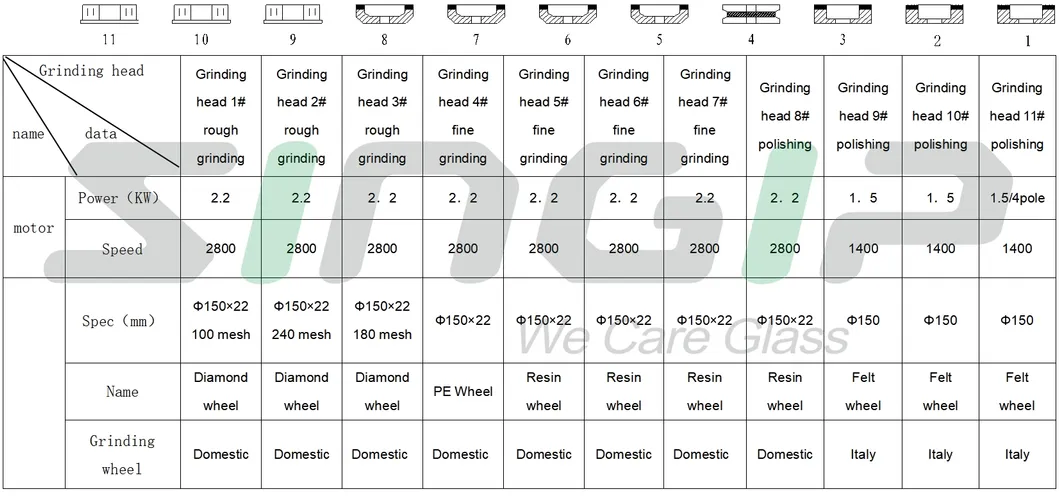

Wheel Placement: Processed with two diamond wheels, base modification with one wheel, refining with four wheels, and polishing with two wheels. The grinding speed is controlled via frequency inverter.

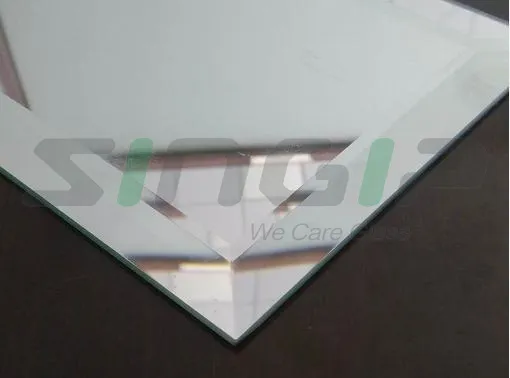

Application: Suitable for high-precision glass beveling for furniture, mirrors, and architectural glass.
