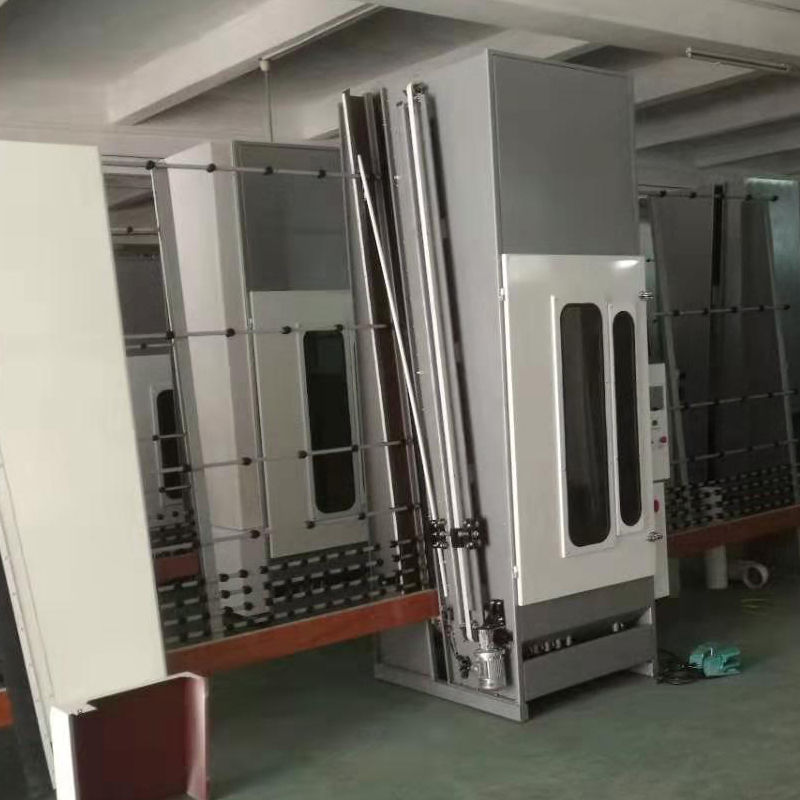

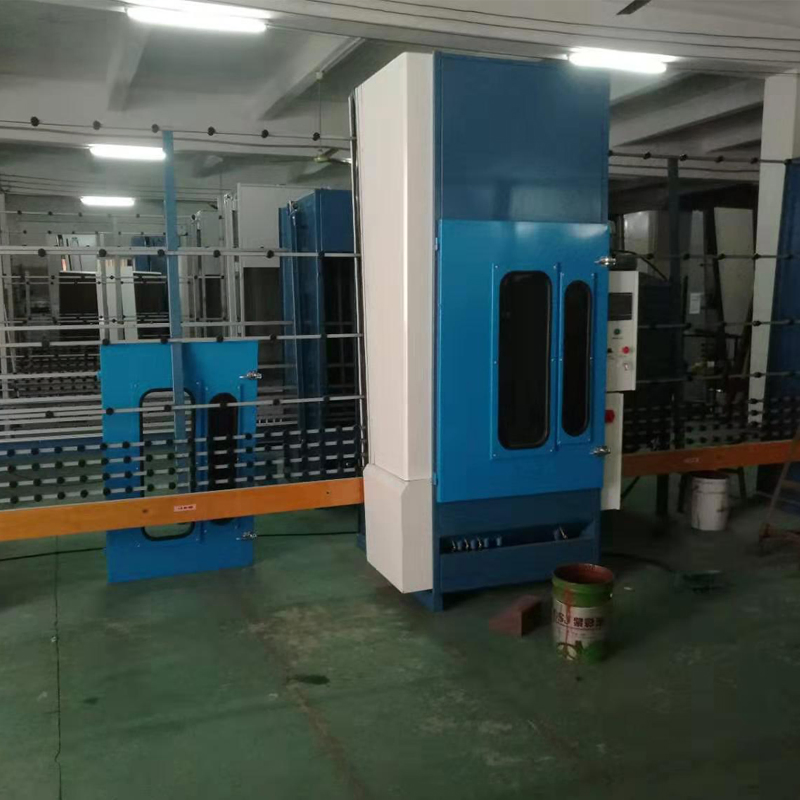

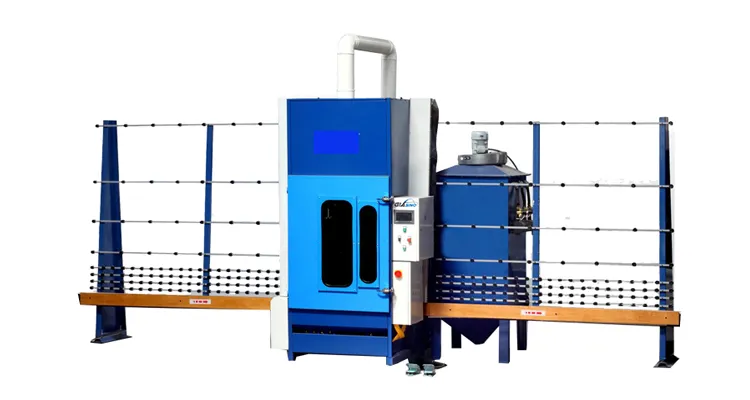

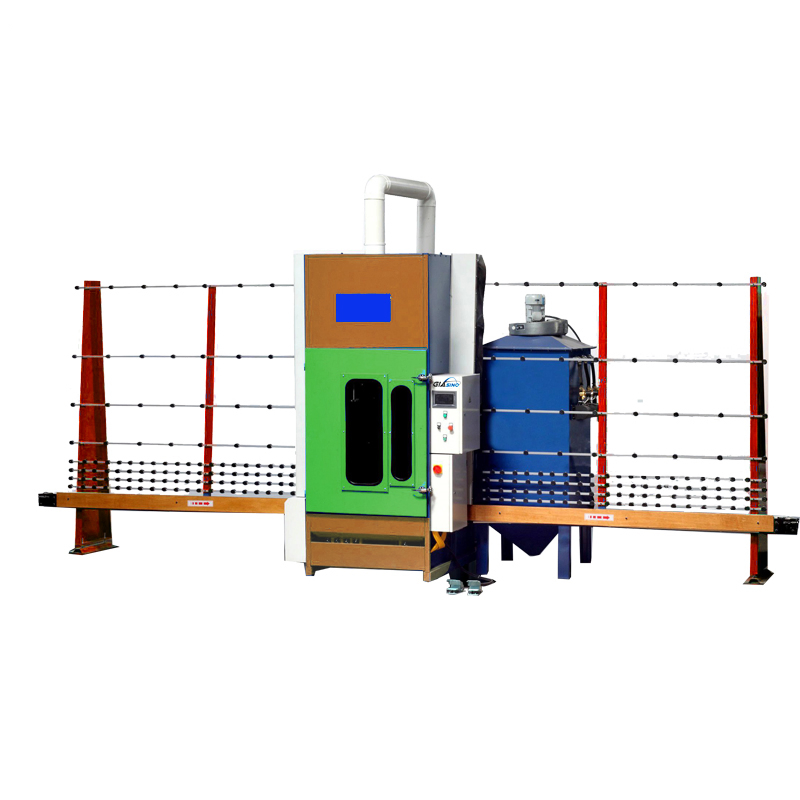

GS series glass sandblasting machine automatic system is controlled via touch screen and PLC. This advanced system features three automatic spray guns and one manual spray gun, enabling both manual and automatic sandblasting functionality.
The machine is designed for easy operation and can automatically process glass of various sizes according to pre-set programs. It features an integrated dust collector to separate dust and sand automatically, ensuring a clean and quiet working environment.
Detailed Features

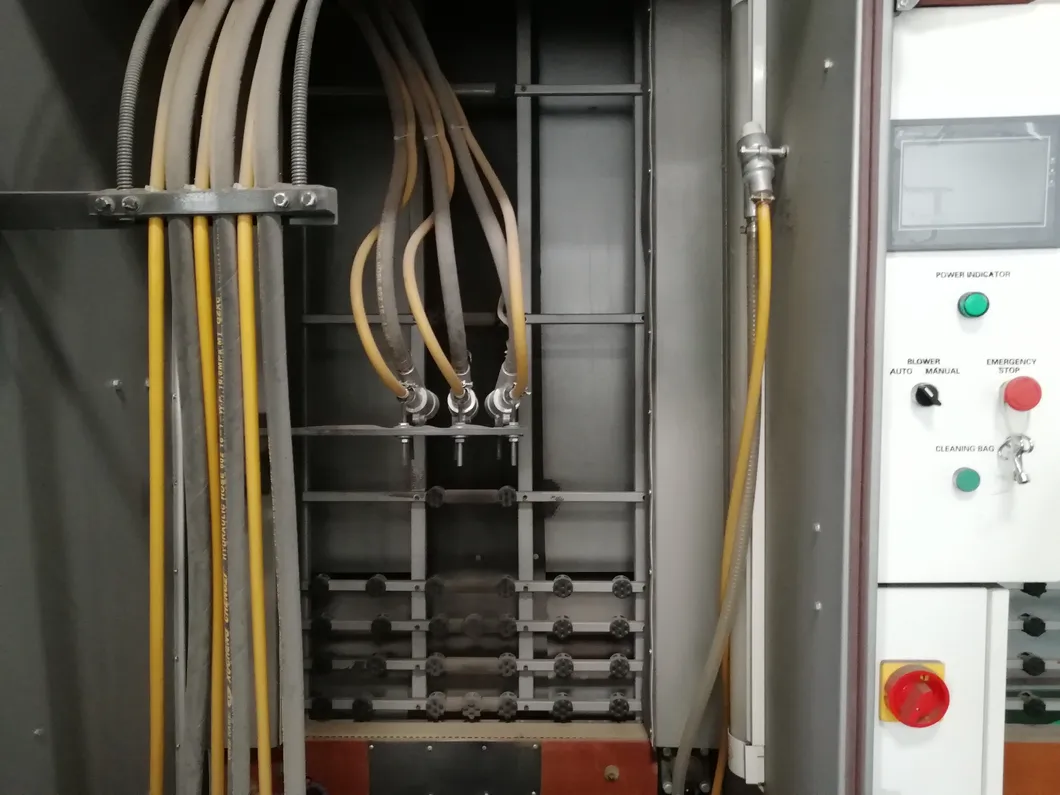

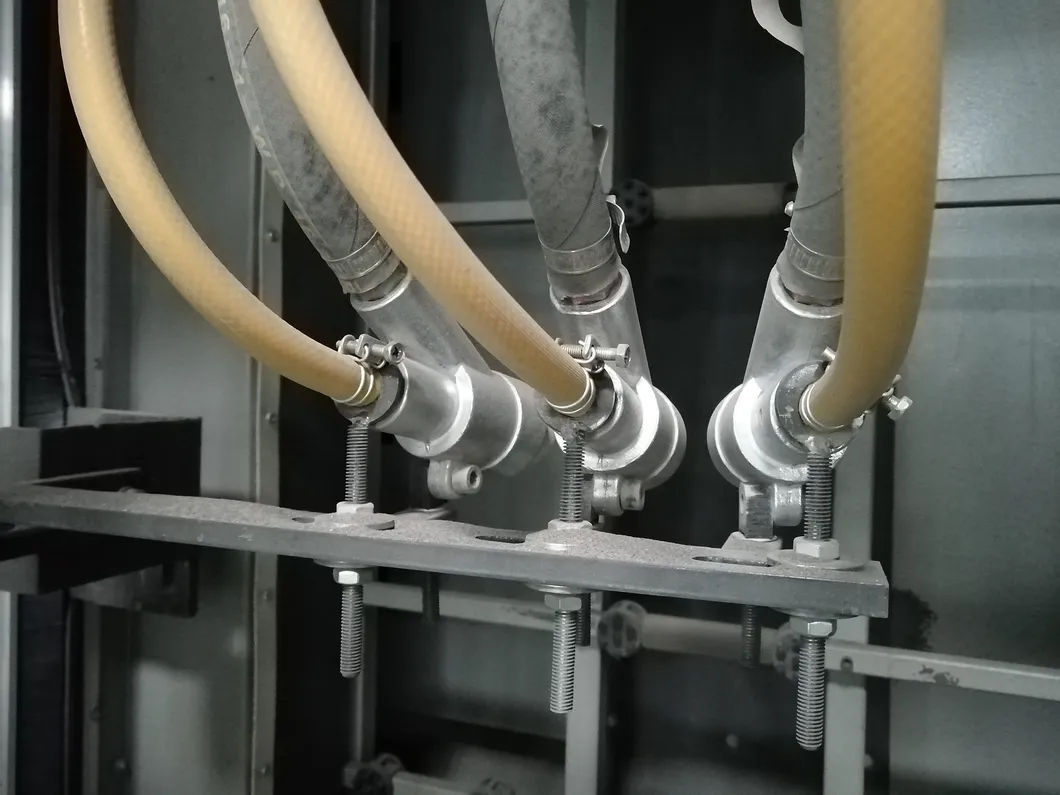

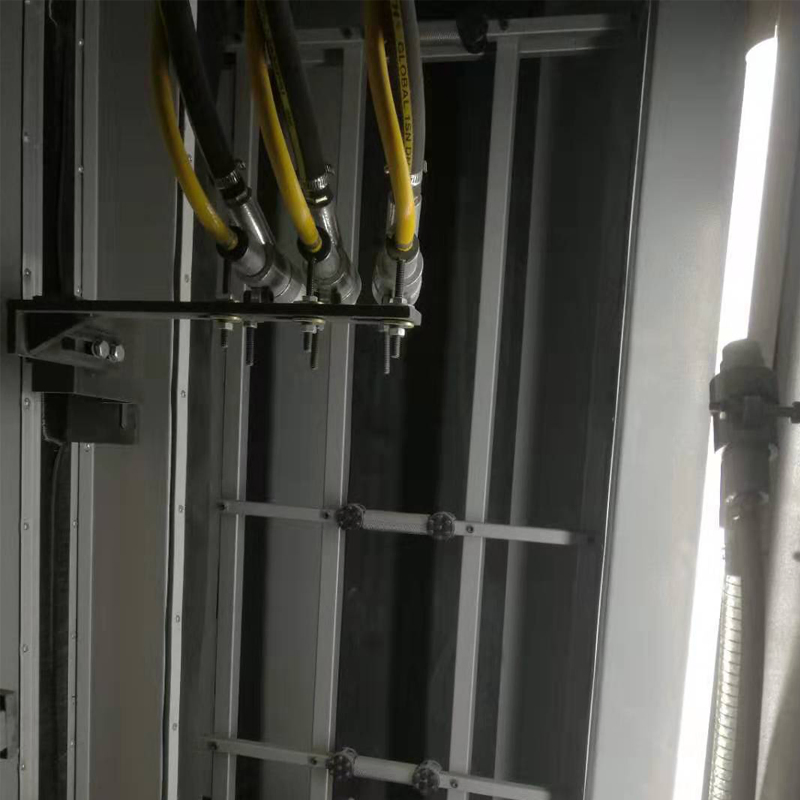

The gun nozzles are crafted from specialized materials to significantly extend their service life. The system integrates a conveying section, sandblasting cabinet, automatic sand spraying system, and specialized collection equipment.

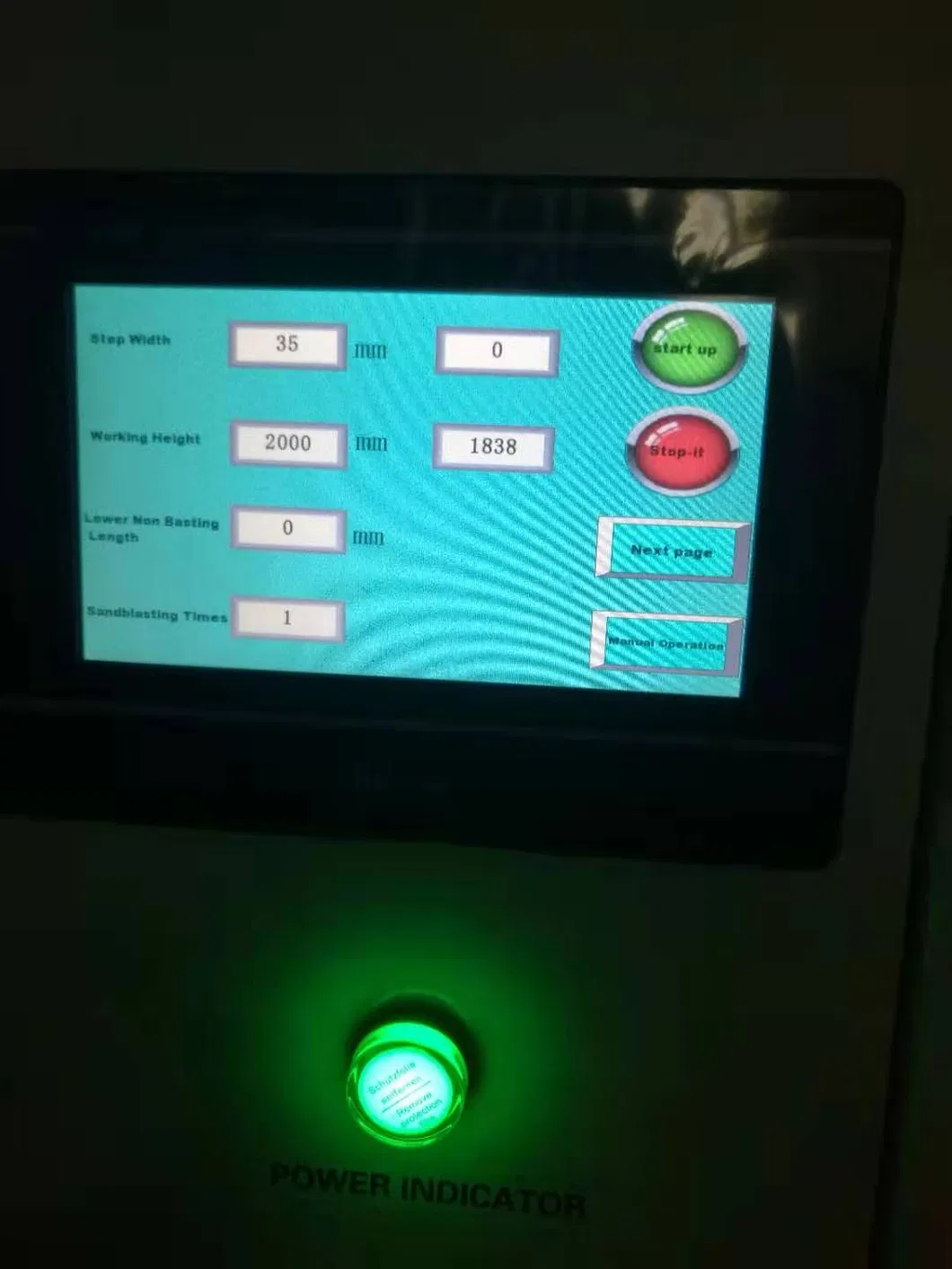

Smart Control: Adopts a high-performance PLC system for automatic adjustments based on processing data input. Both automatic and manual operation modes are readily available.
Technical Parameters
Model Number
GS-1500
GS-2000
GS-2500
Glass height (mm)
1500
2000
2500
Max glass size (mm)
1500*3000
2000*3000
2500*3000
Min processing size (mm)
200*500
200*500
200*500
Nozzle speed (m/min)
5-25
5-25
5-25
Working pressure
0.6-0.8MPa
0.6-0.8MPa
0.6-0.8MPa
Power (kw)
3.5kw
3.5kw
3.5kw
Working Samples
Essential equipment for processing high-quality glass partition walls and decorative frosting effects.
Industry Experience
Founded in 2003, we are a high-tech enterprise specializing in the production of glass tempering furnaces, CNC glass cutting machines, and insulating glass machinery. Our comprehensive range includes automatic cutting lines, CNC sealing machines, and full set processing machines.
With European CE and Switzerland SGS certification, and adhering to ISO 9001:2008 quality standards, we maintain a commitment to innovation and quality as the lifeblood of our operations.
Frequently Asked Questions
How long is the manufacturing lead time?
Production typically takes 30 days following the receipt of the down payment.
What kind of sand is compatible with this machine?
The machine uses alum sand, specifically grid 60#. We provide 100kg of sand free with the machine shipment.
What is the daily sand consumption?
Under normal operating conditions, the machine consumes approximately 25kg of sand per day.
Does the machine come with a warranty?
Yes, we provide a 12-month warranty on our glass sandblasting machines.
Is technical support available after purchase?
We offer 24-hour after-sales service to ensure your production remains uninterrupted.
What certifications do your machines hold?
Our equipment is fully certified with European CE and ISO standards to ensure safety and quality.
