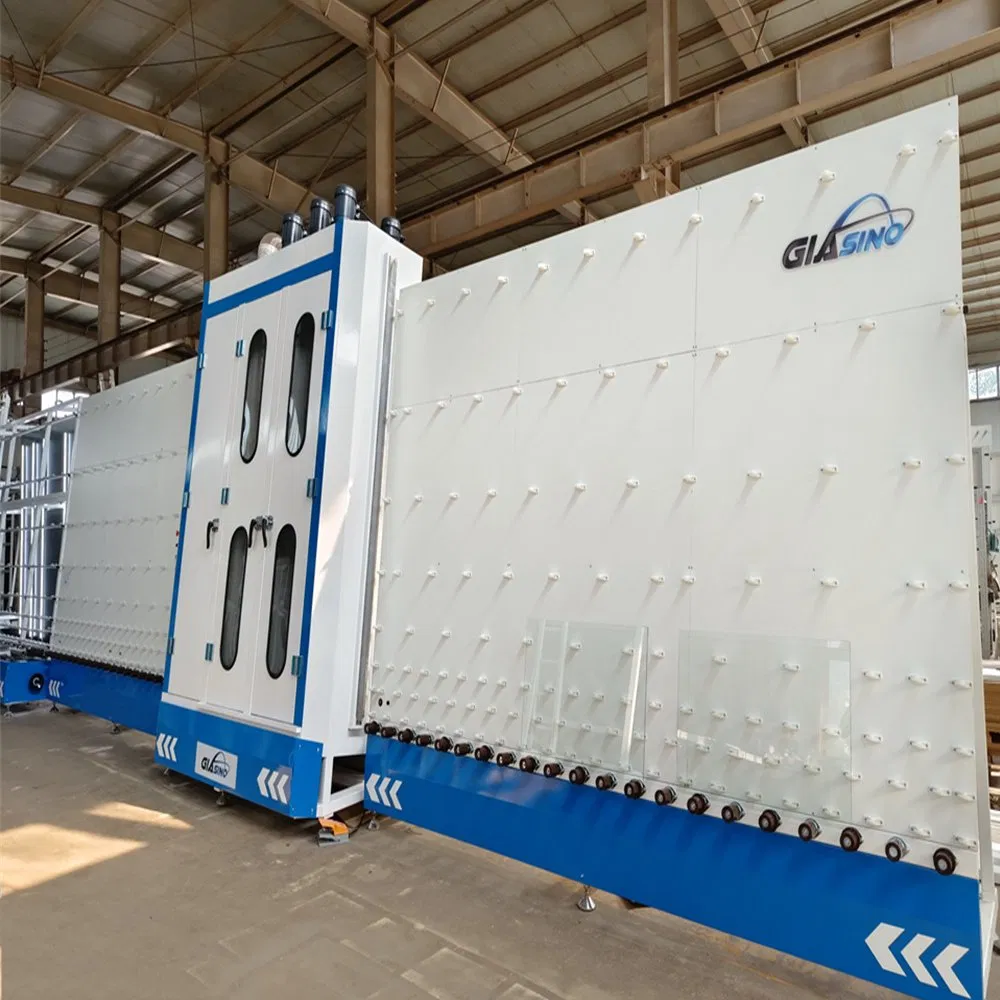

Vertical Double Glazing Glass Production Line 2537 with Gas Filling

Customization:	Available
Certification:	CE
Control System:	PLC

Send Inquiry

Product Description

📋 Basic Information

Model NO.

LB2537

Glass Thickness

3-19 mm

Product Name

Vertical Double Glazing Glass Production Line 2537

Type

Insulating Glass Production Line

Structure

Vertical

Condition

New

Warranty

1 Year

Specification

2500x3660mm

⚙️ Product Description

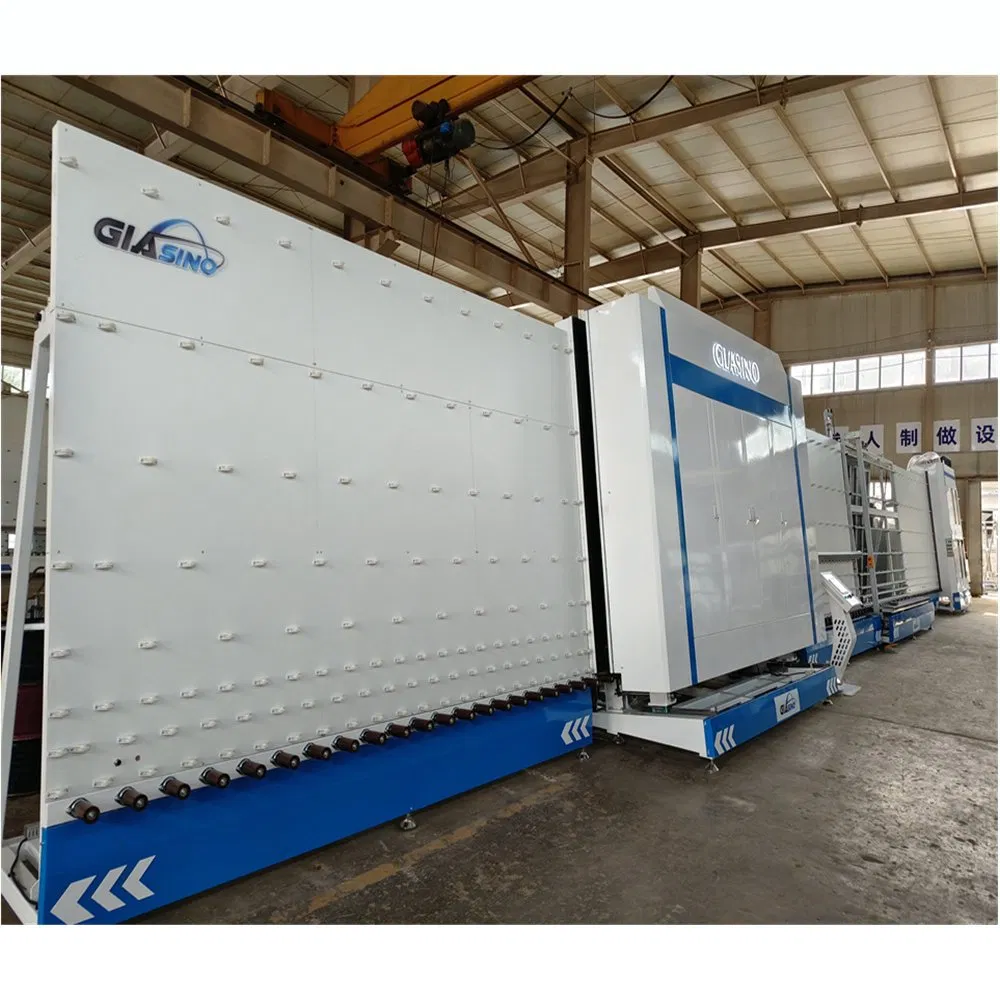

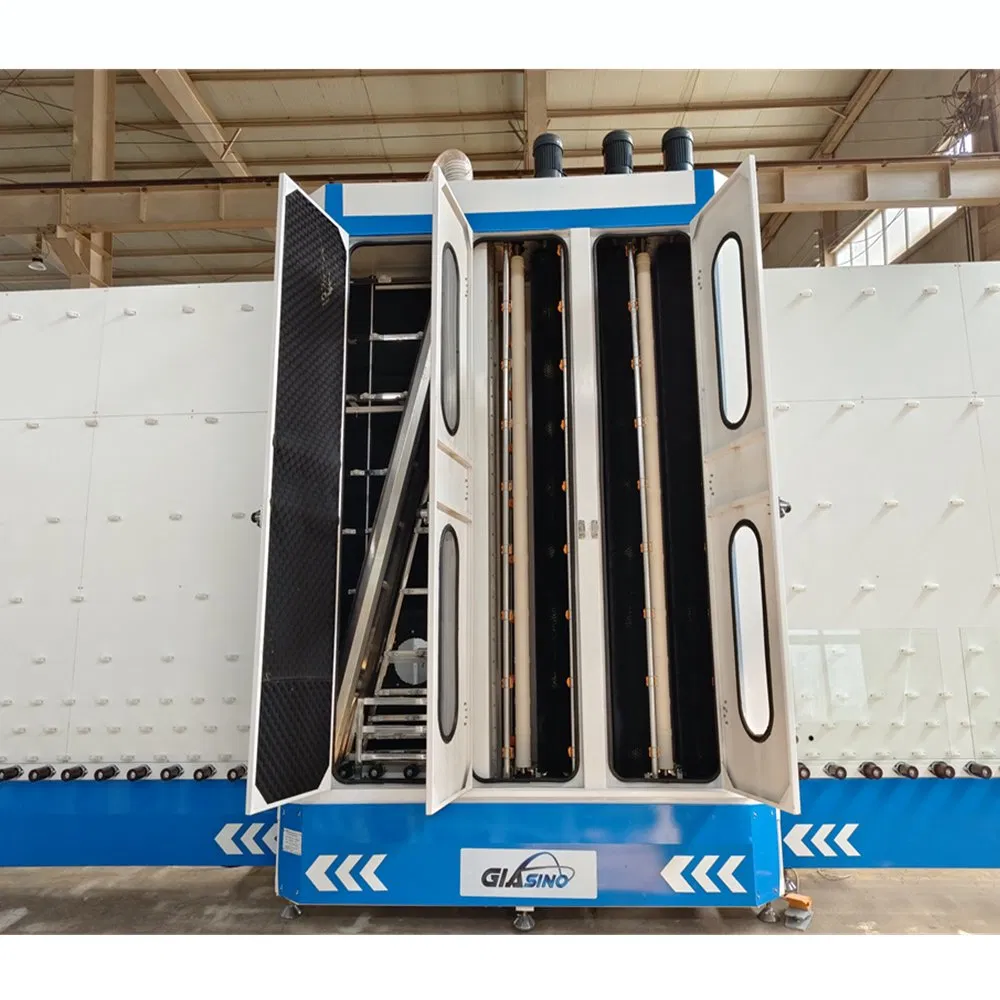

Vertical Double Glazing Glass Production Line 2537 with Gas Filling

Equipment Features:
This insulating glass production line is the standard machine for high-quality glass manufacturing. It is highly versatile and capable of processing:

Double layer insulating glass
Triple-layer insulating glass
Stepped sheet production
Abnormal shape insulating glass

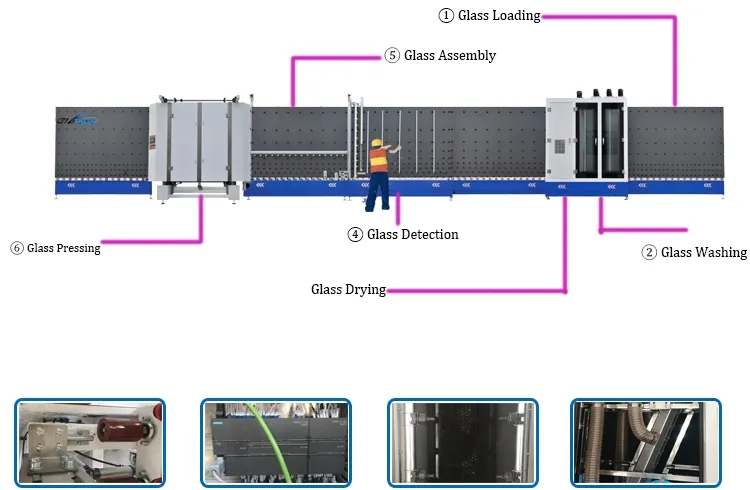

The system is composed of 7 specialized sections. The fifth section is dedicated to the assembly of the insulating glass, featuring one-time pressing for maximum efficiency. Optional auxiliary machinery includes glass cutting units, polishing machines, lifters, automatic sealant spreaders, and spacer bending machines to create a complete production facility tailored to specific requirements.

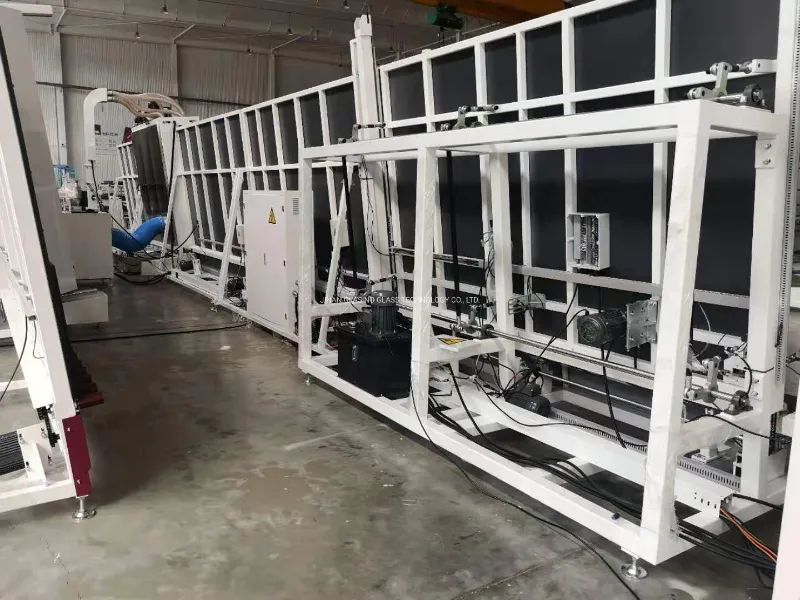

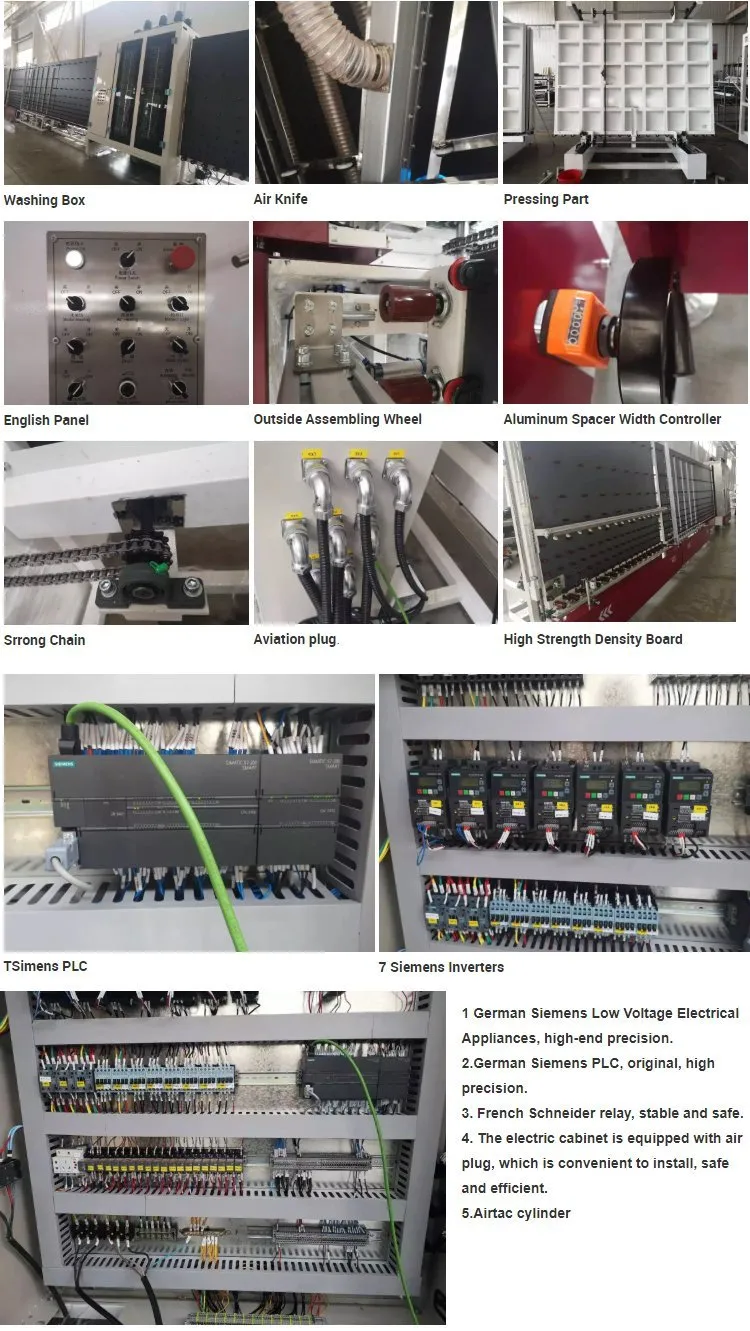

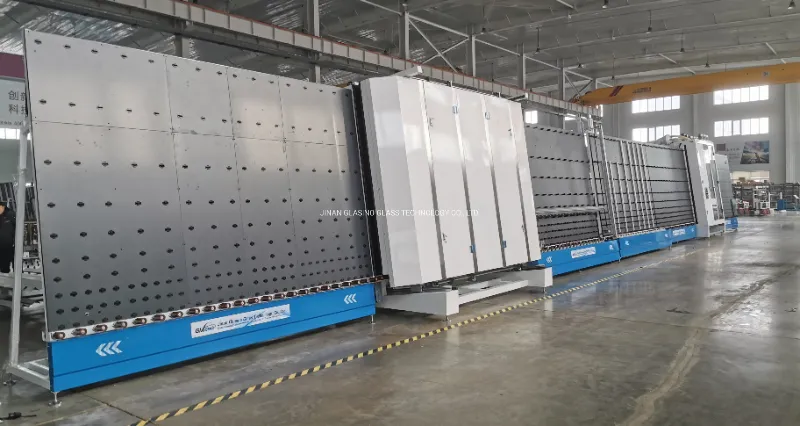

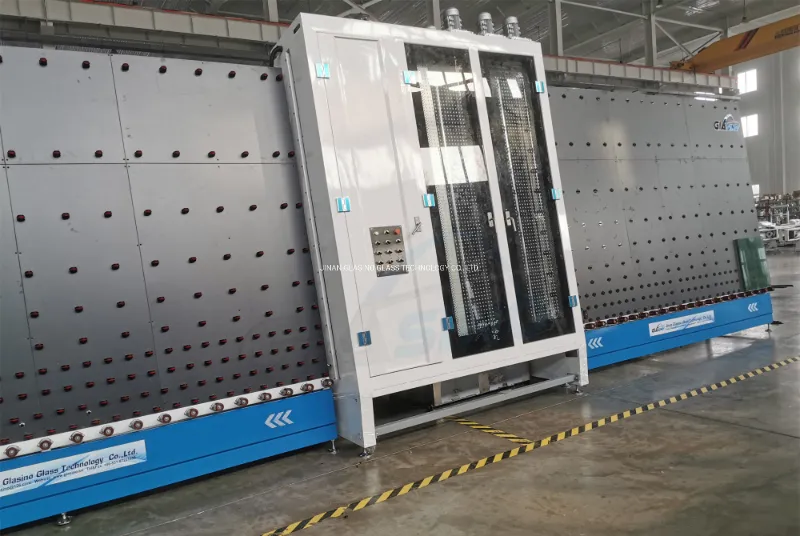

📸 Equipment Overview

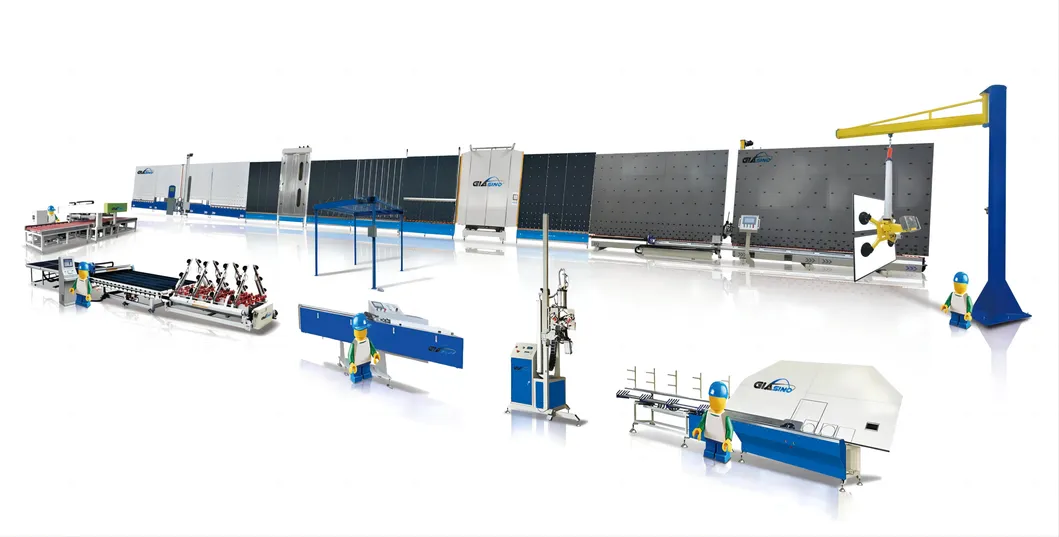

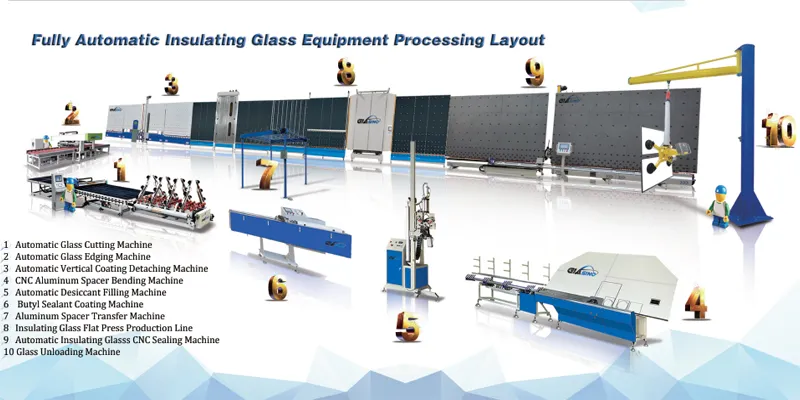

Fully Automatic Layout Plan

📊 Technical Parameters

Parameter	LB2025	LB2030	LB2536
Power Supply	380v 50Hz	380v 50Hz	380v 50Hz
Power	30kw	30kw	34.0kw
Max Size	2000×2500mm	2000×3000mm	2500×3660mm
Min Size	300×500mm	300×500mm	300×500mm
Glass Thickness	3-12mm	3-12mm	3-12mm
Transport Speed	8-45m/min	8-45m/min	8-45m/min
Weight	5500kg	6000kg	6500kg
Overall Dimension	19000×1800×3100mm	22000×1800×3100mm	22000×1800×3600mm

📦 Packaging & Shipping

🏢 Manufacturer Profile

Our company is a high-tech enterprise specializing in the production of glass tempering furnaces, CNC glass cutting machines, insulating glass machines, and aluminum/uPVC window door making machinery. We believe that outstanding quality is the foundation of our reputation. We continuously improve our production management level and research advanced technology to meet global market needs, aiming to create a brilliant future together with our clients.

International Exhibition

❓ Frequently Asked Questions

1. Are you a manufacturer or a trading company?

We are a specialized factory with our own production facilities for glass processing machinery.

2. How long is the equipment warranty period?

We provide a comprehensive one-year warranty on our equipment.

3. What after-sales services do you provide?

We provide on-site installation, commissioning, and professional training. We also offer free accessories within the first year, alongside remote technical support and video guidance.

4. What is the standard delivery time?

The standard delivery time is 30 to 40 days after receiving the initial deposit.

5. Can the production line handle triple-layer glass?

Yes, this vertical production line is specifically designed to work for double layer, triple-layer, and even stepped or abnormal shape insulating glass.

6. Is technical training included for operators?

Yes, we provide complete operation manuals, video guides, and on-site training to ensure your staff can operate the machinery efficiently and safely.
