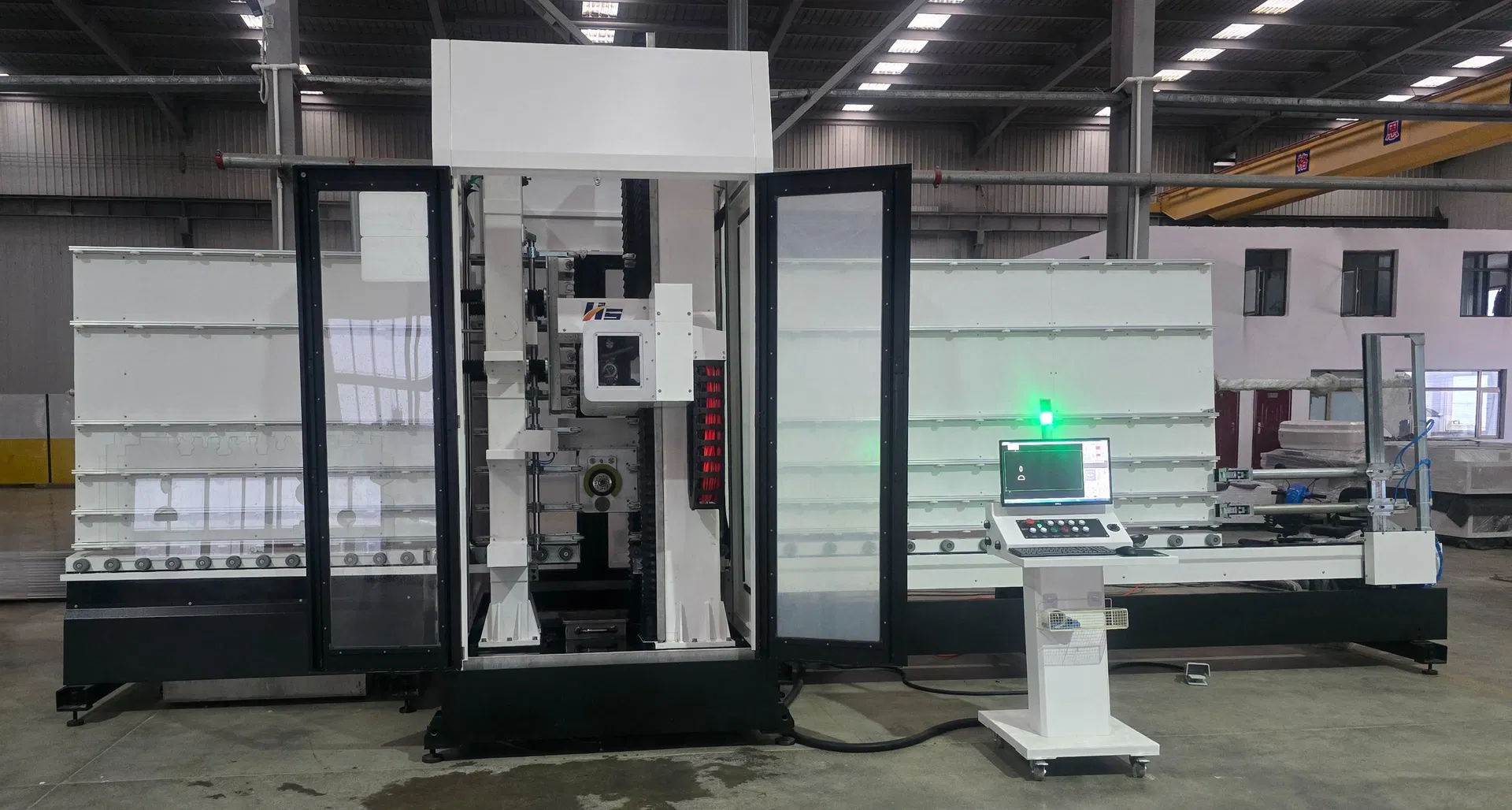

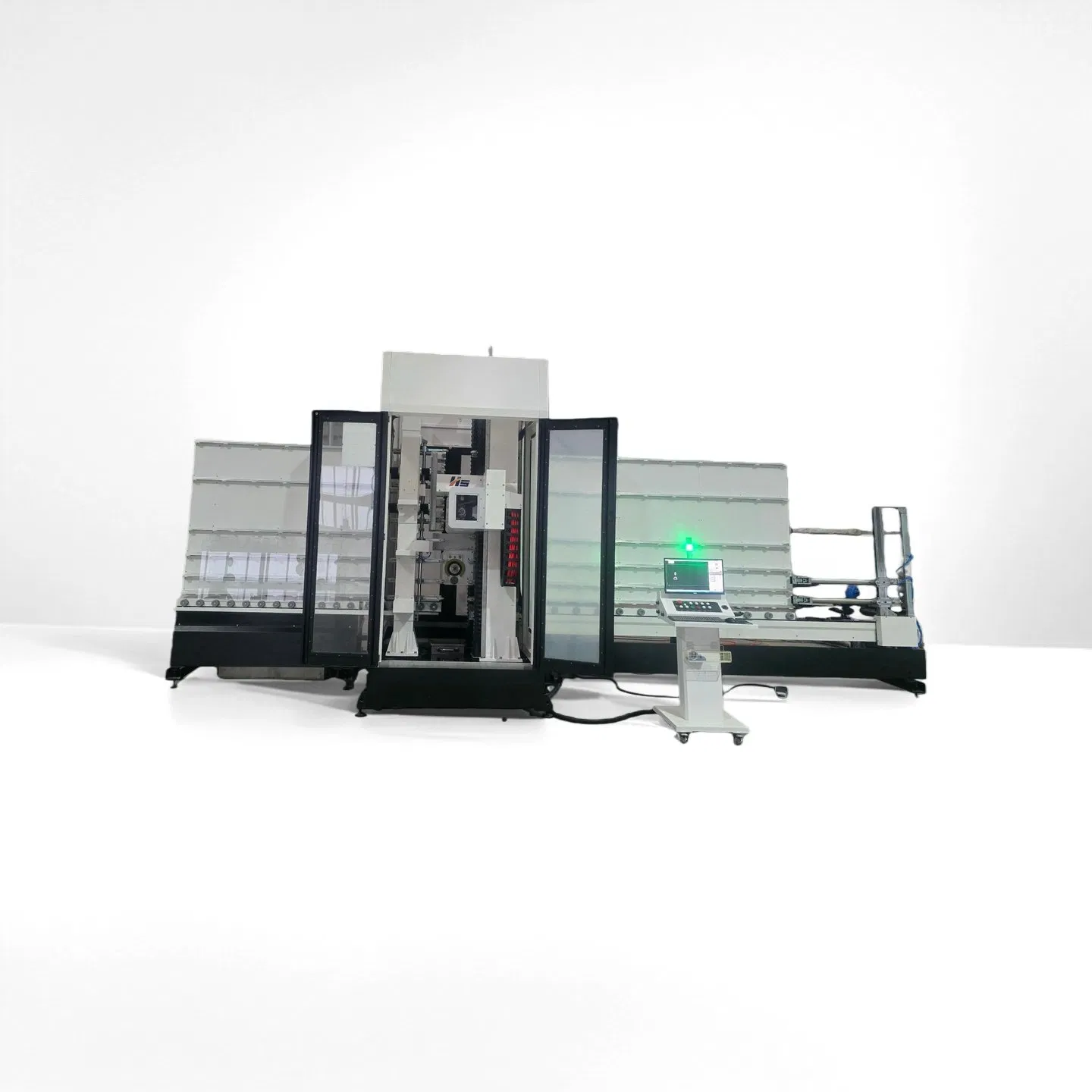

Professional manufacturer of CNC glass processing equipment. Providing high-precision solutions for drilling, milling, and slotting applications.
Uses specialized clamps to position and secure glass during processing, improving rigidity. Clamps are flexibly adjusted based on glass size for optimized force distribution.

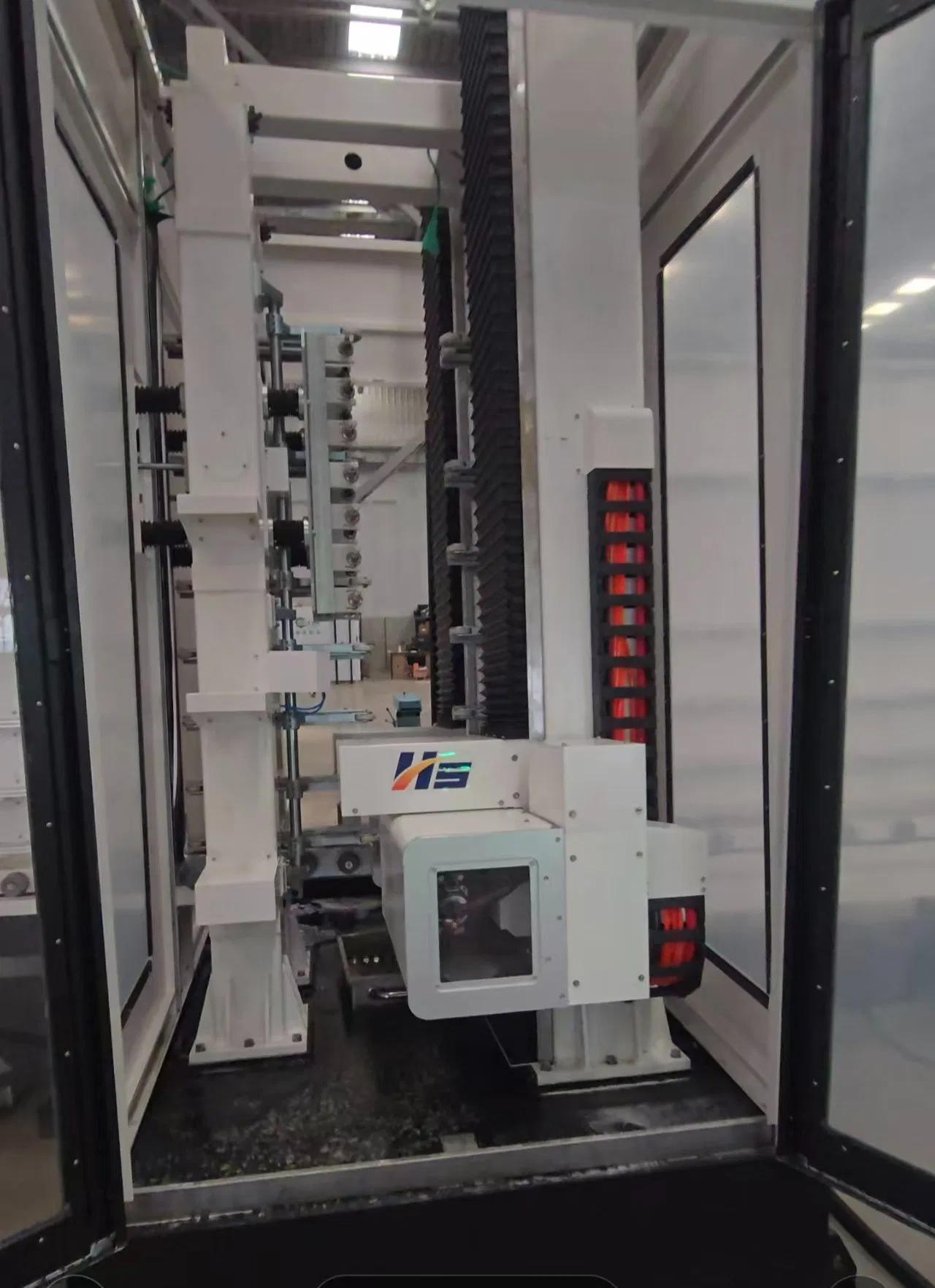

Equipped with a multi-position tool magazine located centrally for rapid changes, meeting various processing technique requirements.

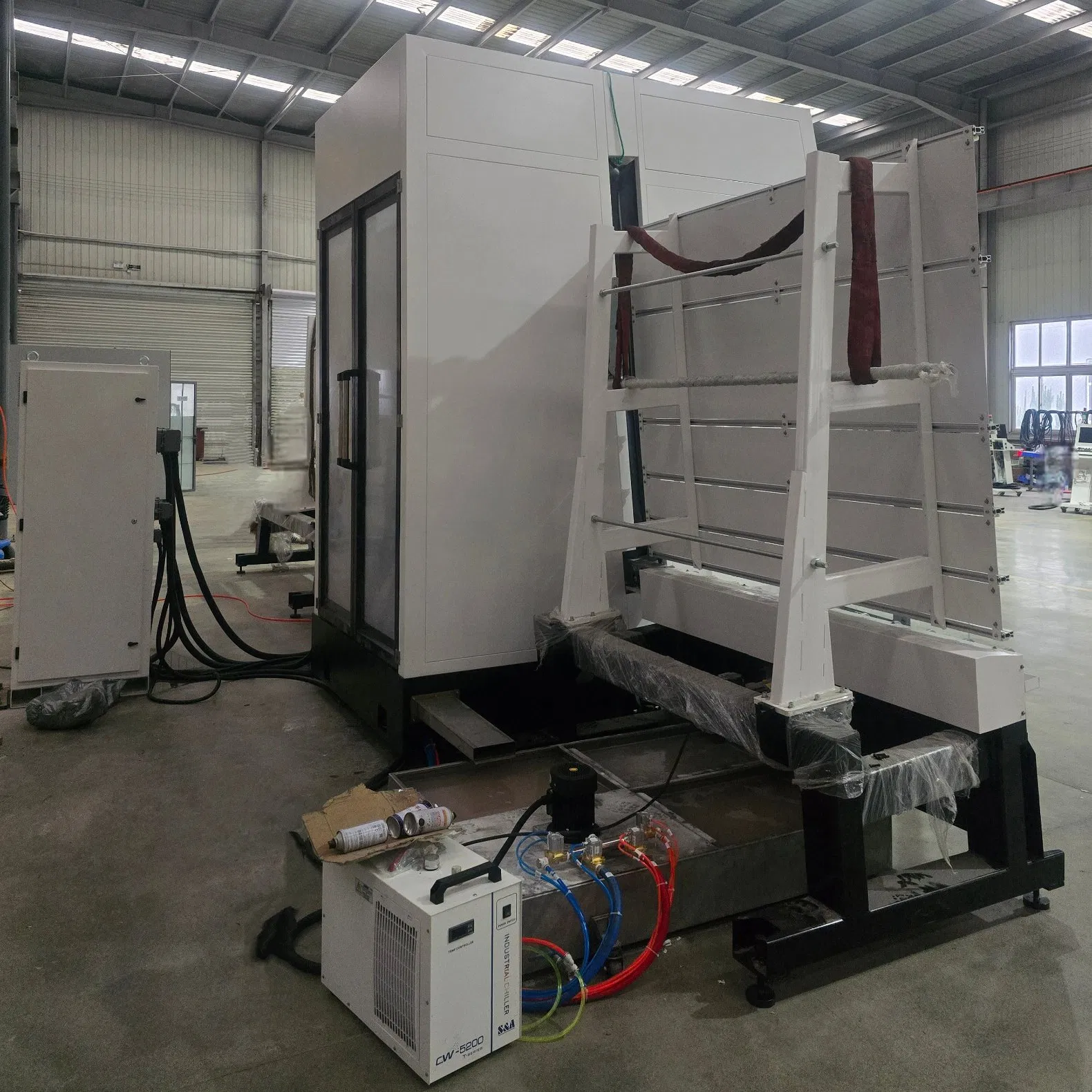

Features an internal coolant delivery system and a constant temperature chiller to protect the tool and extend spindle lifespan while maintaining speed.

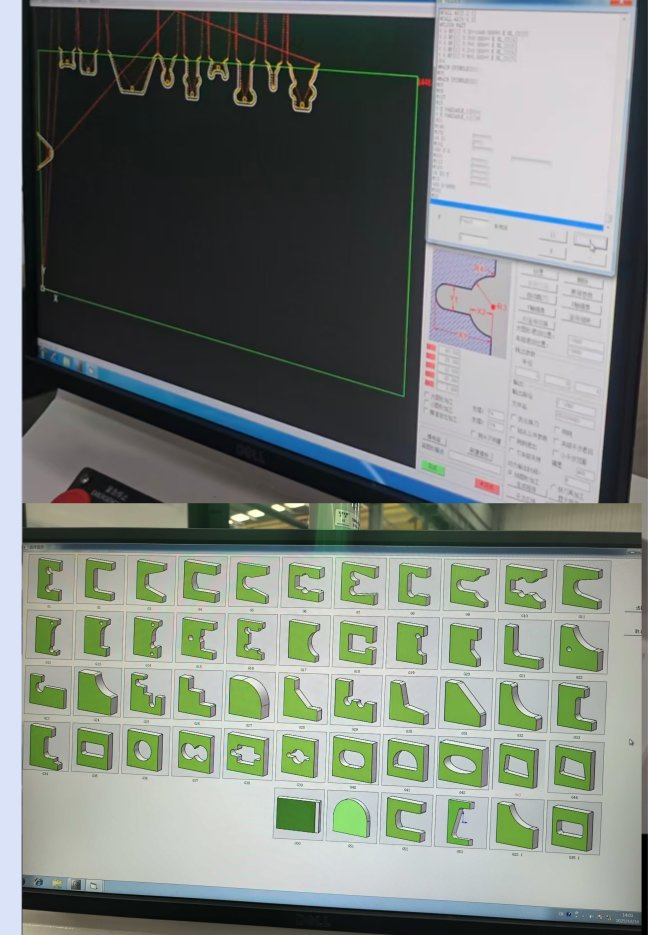

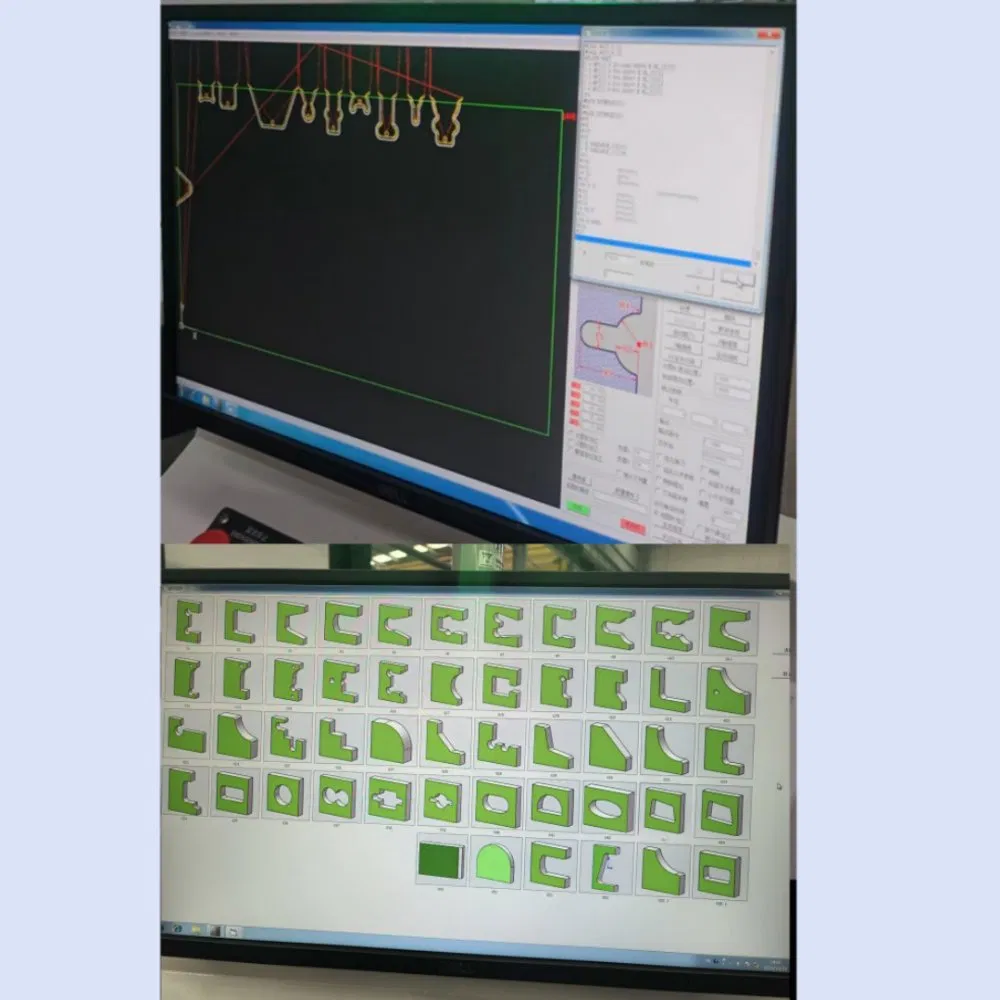

Self-developed system offering flexible operation, front and rear spindle synchronization, and real-time polishing compensation.

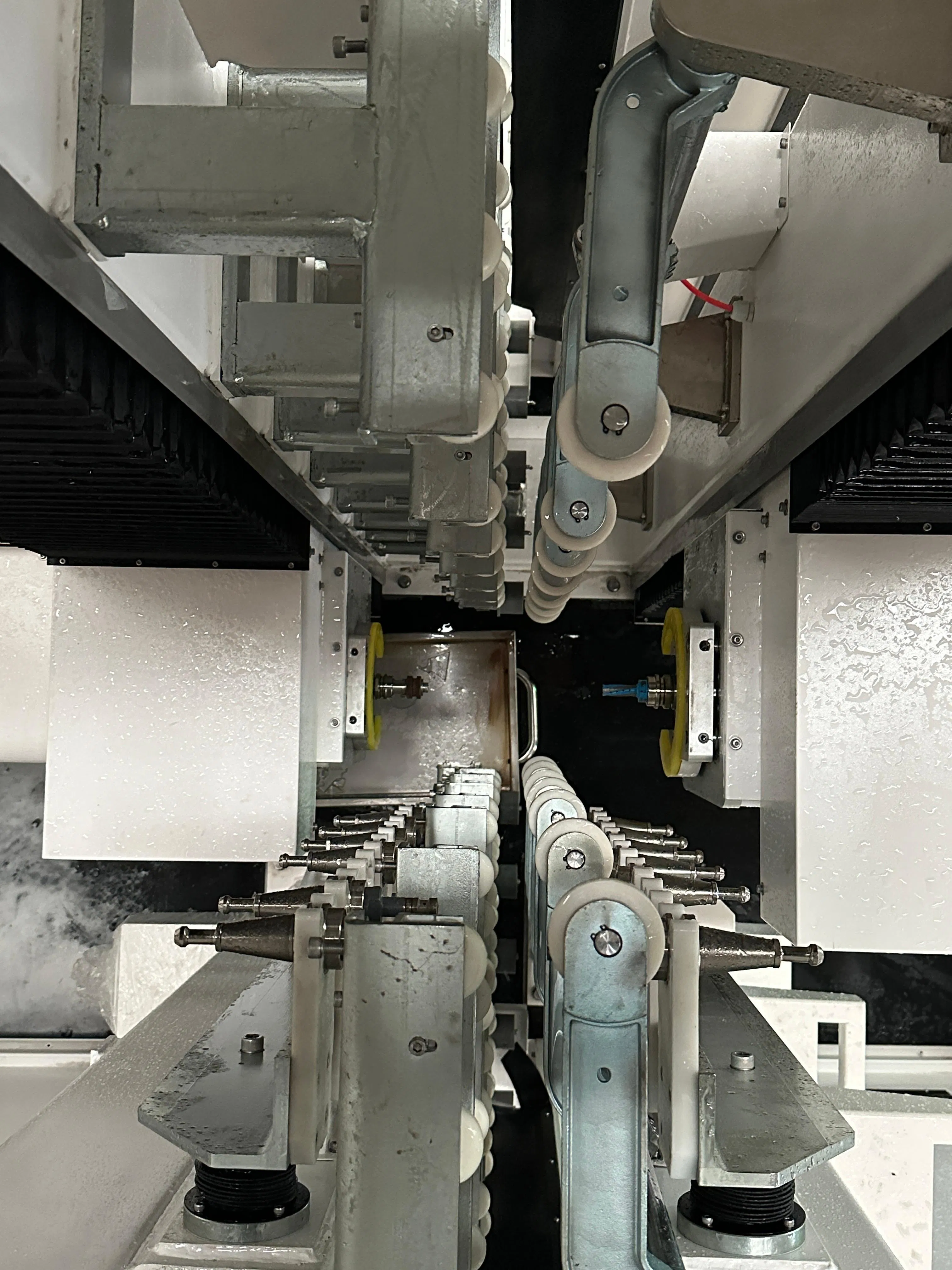

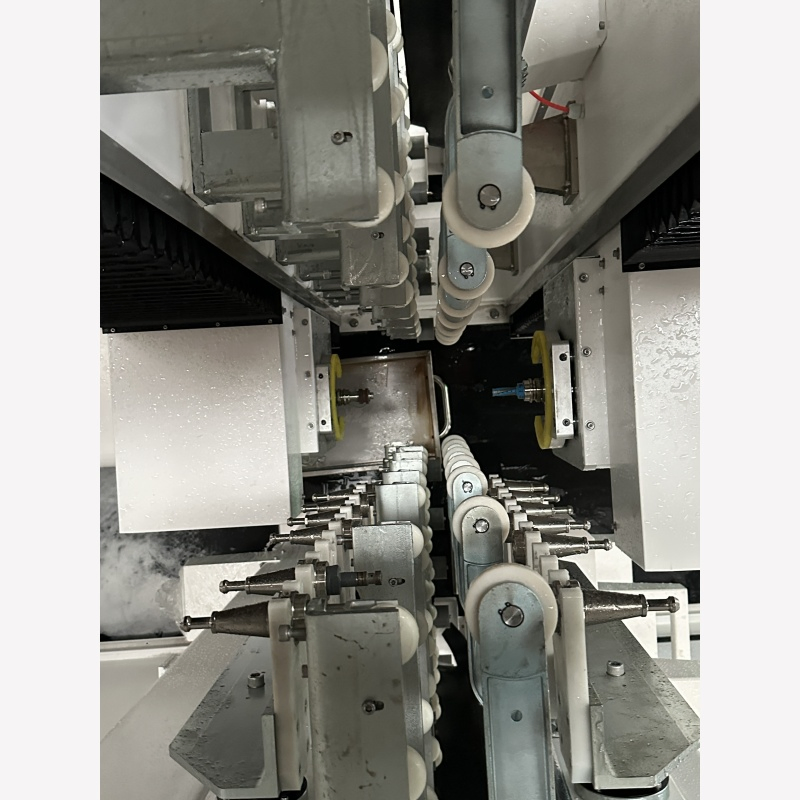

Drilling: High-speed simultaneous double-sided drilling for precision.

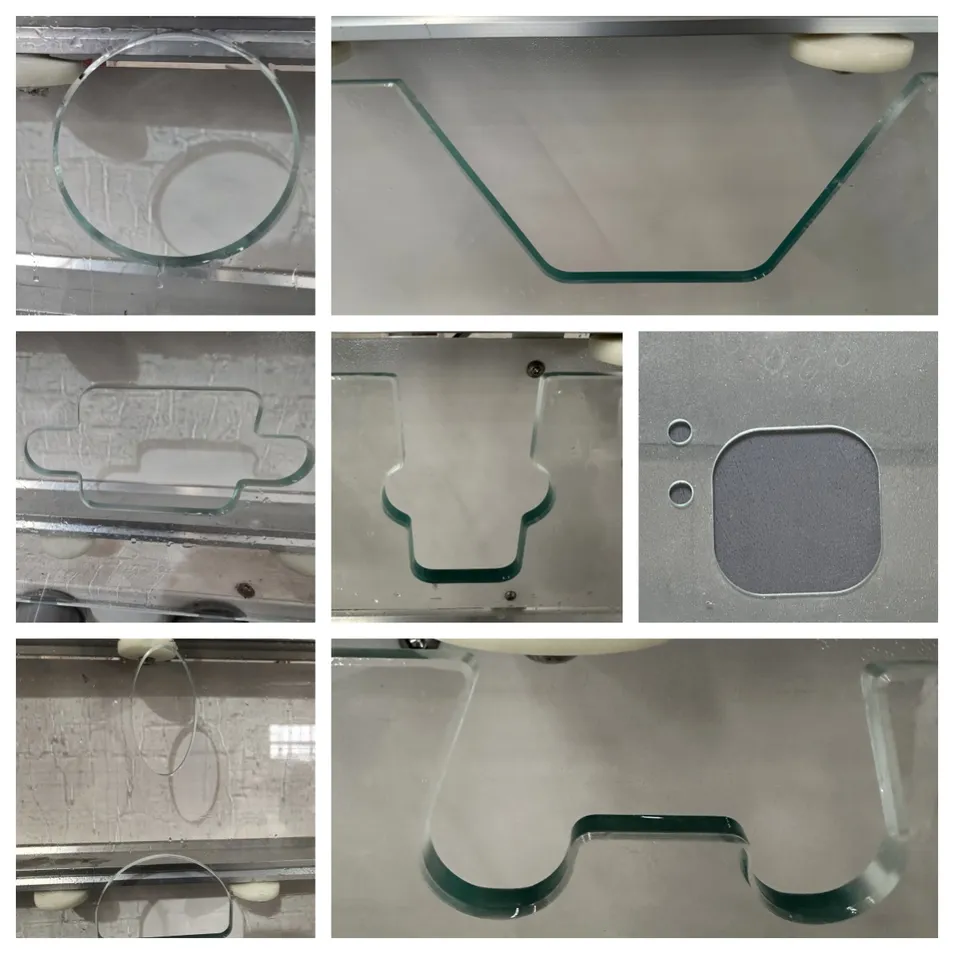

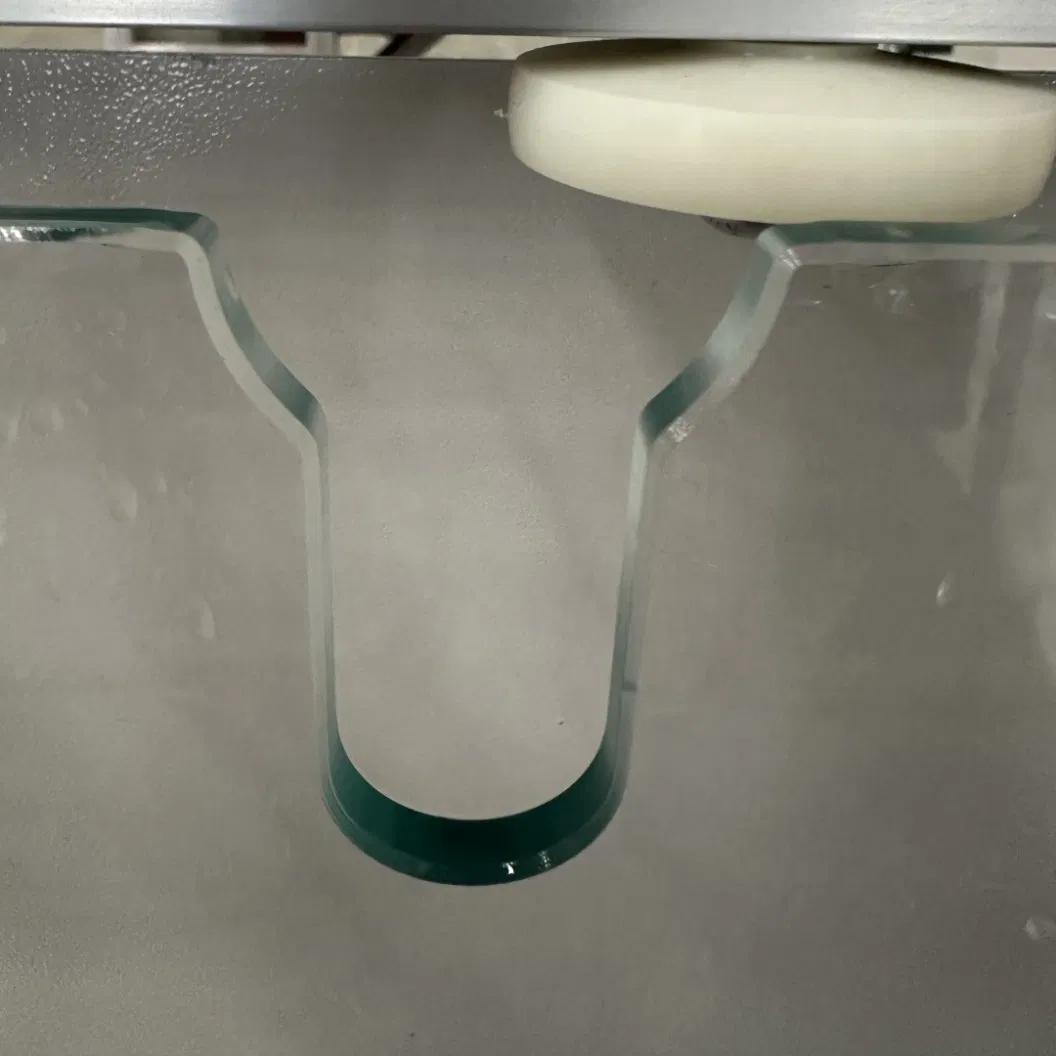

Milling: Front and rear spindles mill and grind inner edges simultaneously.
Chamfering: Options for direct chamfering wheel or drill bit sleeve installation.
Polishing: High-quality finish for inner circular patterns and safety corners.
| Project | HS 2542 Specification |
|---|---|
| Max glass size | 2500x4200mm |
| Min glass size | 500x300mm |
| Glass thickness | 4~19mm |
| Max axis speed | 45, 40, 15m/min |
| Electric spindle power | 7.5 + 7.5kw |
| Max spindle speed | 12000rpm |
| Tool shank | BT30 |
| Tool magazine | 7 + 4 positions |
| Machining accuracy | ±0.15mm/m |
Double Drilling
Multi-functional System
Rich Tool Library
Standard Warranty: 12 months comprehensive coverage.
Extended Warranty: Optional coverage available up to 36 months.
Global Support: 24/7 technical assistance and rapid spare parts supply.
Training: Comprehensive on-site or remote operation and maintenance training.
