Home > Glass Engraving Machine > UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine

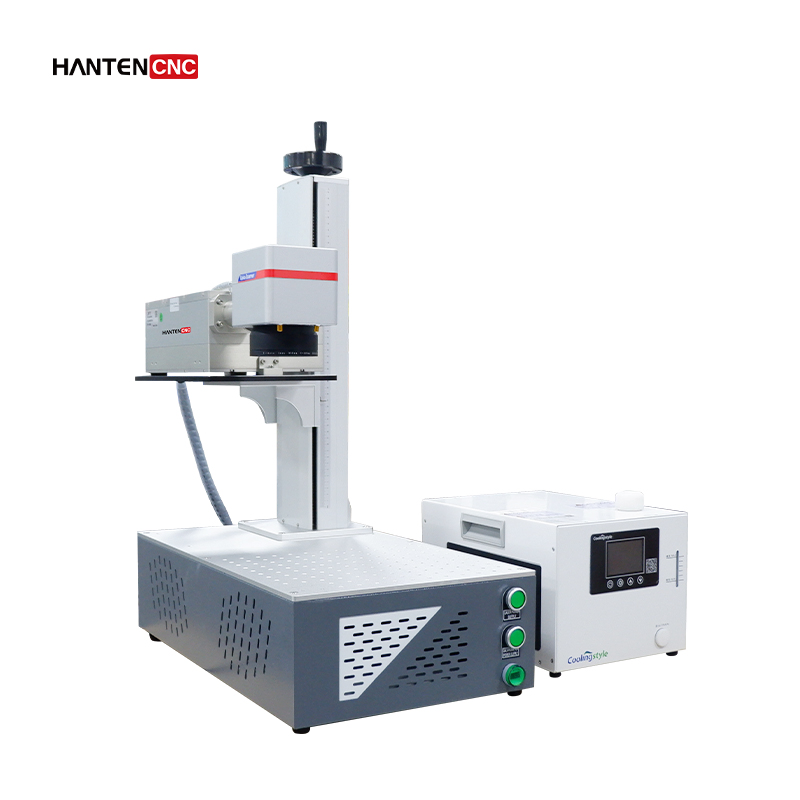

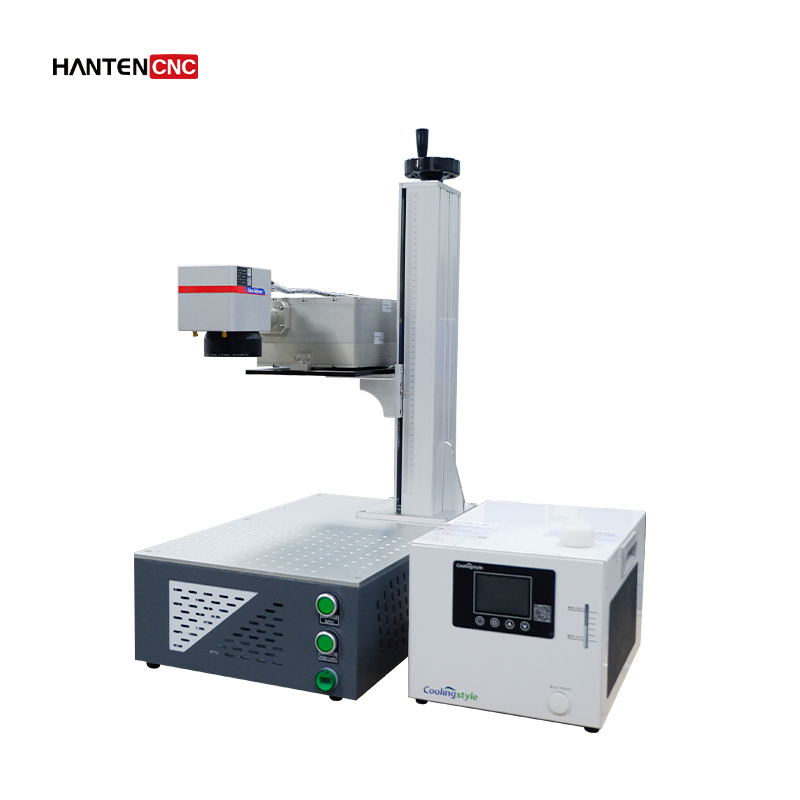

UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine
UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine
UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine
UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine
UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine
1 / 5
UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine
UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine
UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine
UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine
UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine

UV Marking Laser Machine for Glass High Precision Laser Engraving Machine 3W 5W 10W Laser UV Galvo Laser Marking Machine

Customization: Available
After-sales Service: 24 Hours Online After-Sales
Warranty: One Year Machine Warranty Two Years Laser Source W
Send Inquiry

Product Description

📋

Basic Info.

Model NO.
HTU-3/HTU-5/HTU-10
Laser Visibility
Visible
Applicable Material
Plastic/Glass/Wood/Metal
Cooling System
Water Cooling
Technical Class
Pulse Laser
Laser Wavelength
UV Laser
Power
3W/5W/10W
Laser Source
Jpt
Central Wavelength
355nm
Frequency Range
20 kHz-150 kHz
Machine Net Weight
60kg
Origin
China
🛠️

Product Description

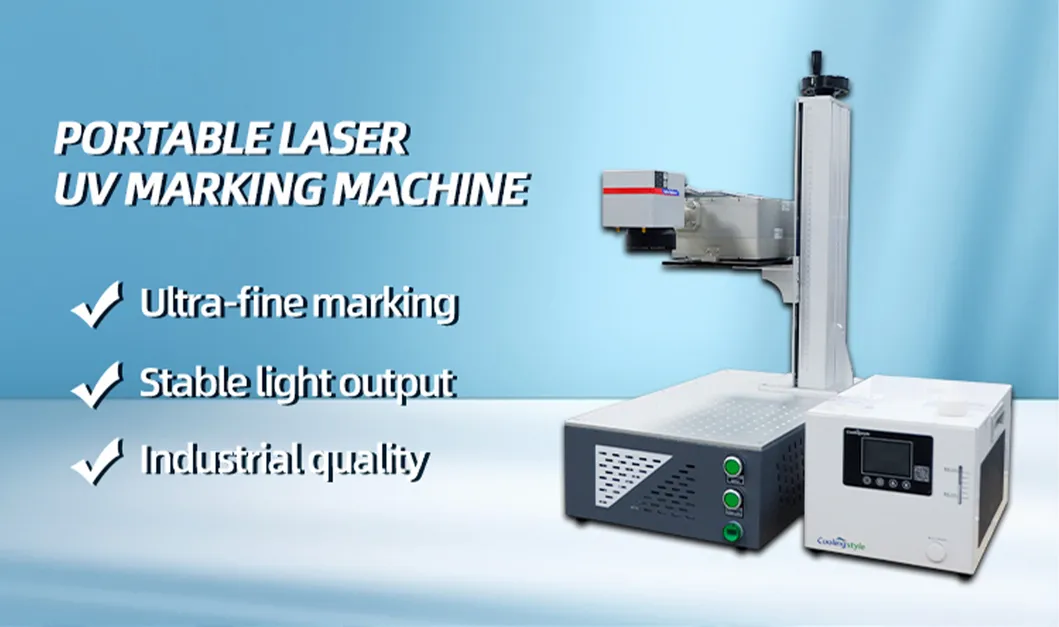

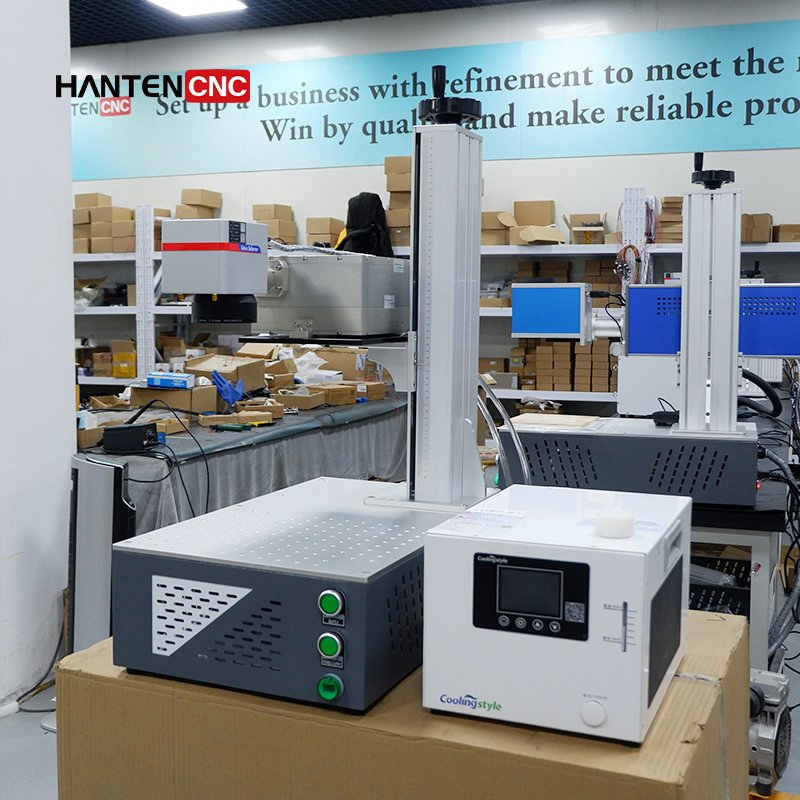

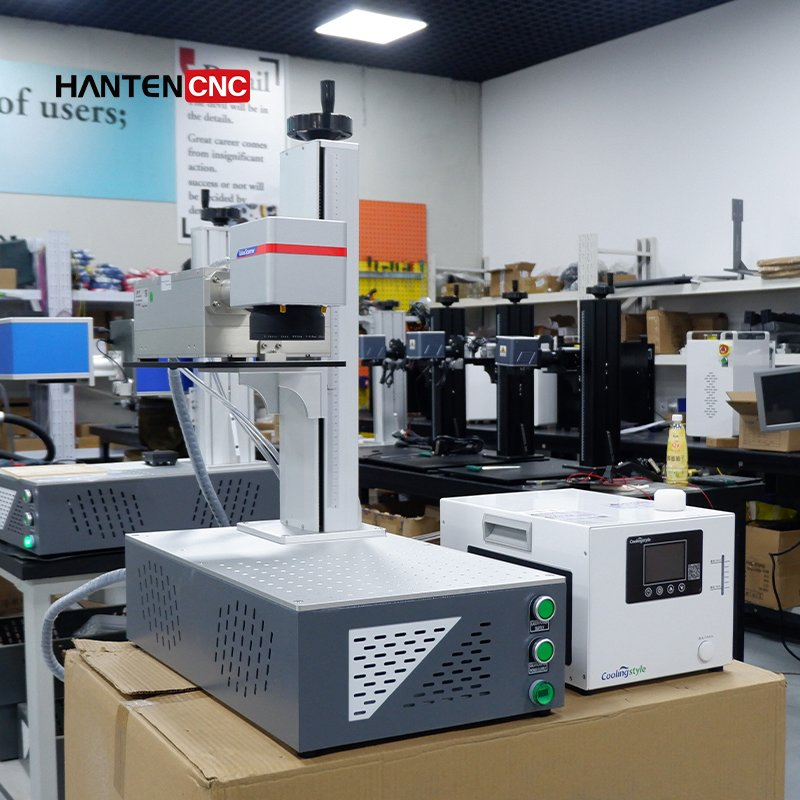

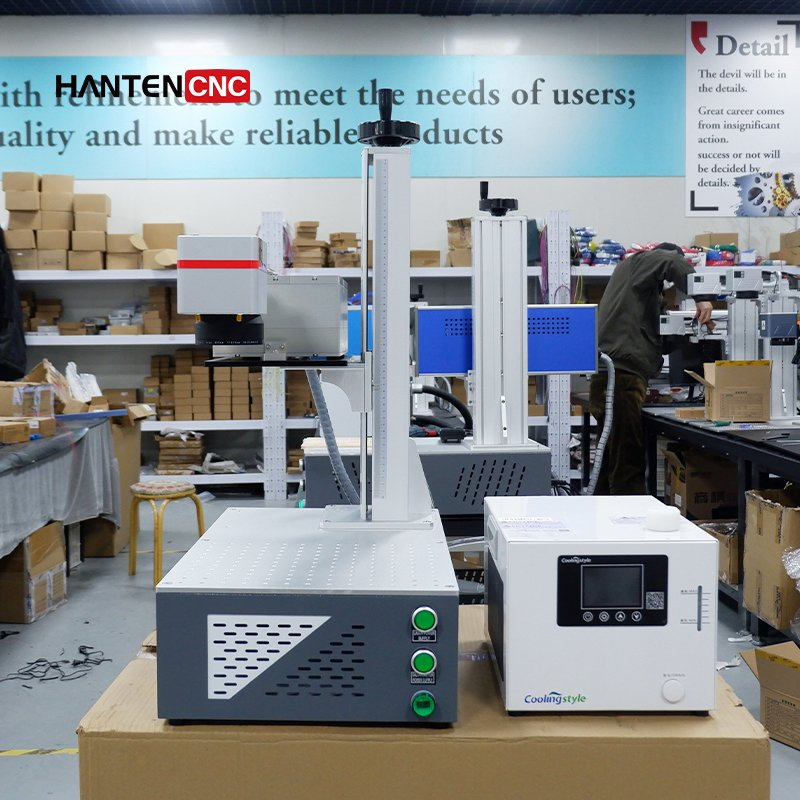

UV Marking Laser Machine
The portable laser UV marking machine is available with power options of 3W, 5W, and 10W, and it comes equipped with a water cooler. This versatile laser UV marking machine can be used for marking on a variety of materials including medical equipment, plastic products, glass products, food packaging, and more.
The portable integrated design of UV Galvo laser marking machine is easy to move and takes up little space. It only requires a small workbench and computer to work.

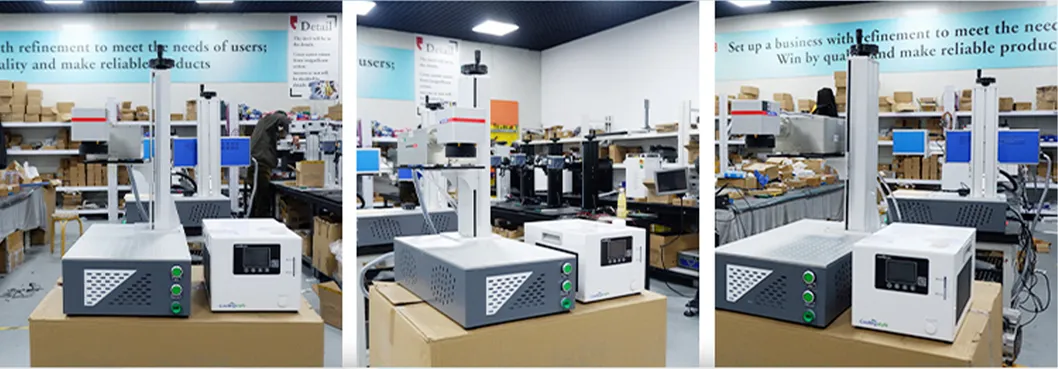

Detailed View 1

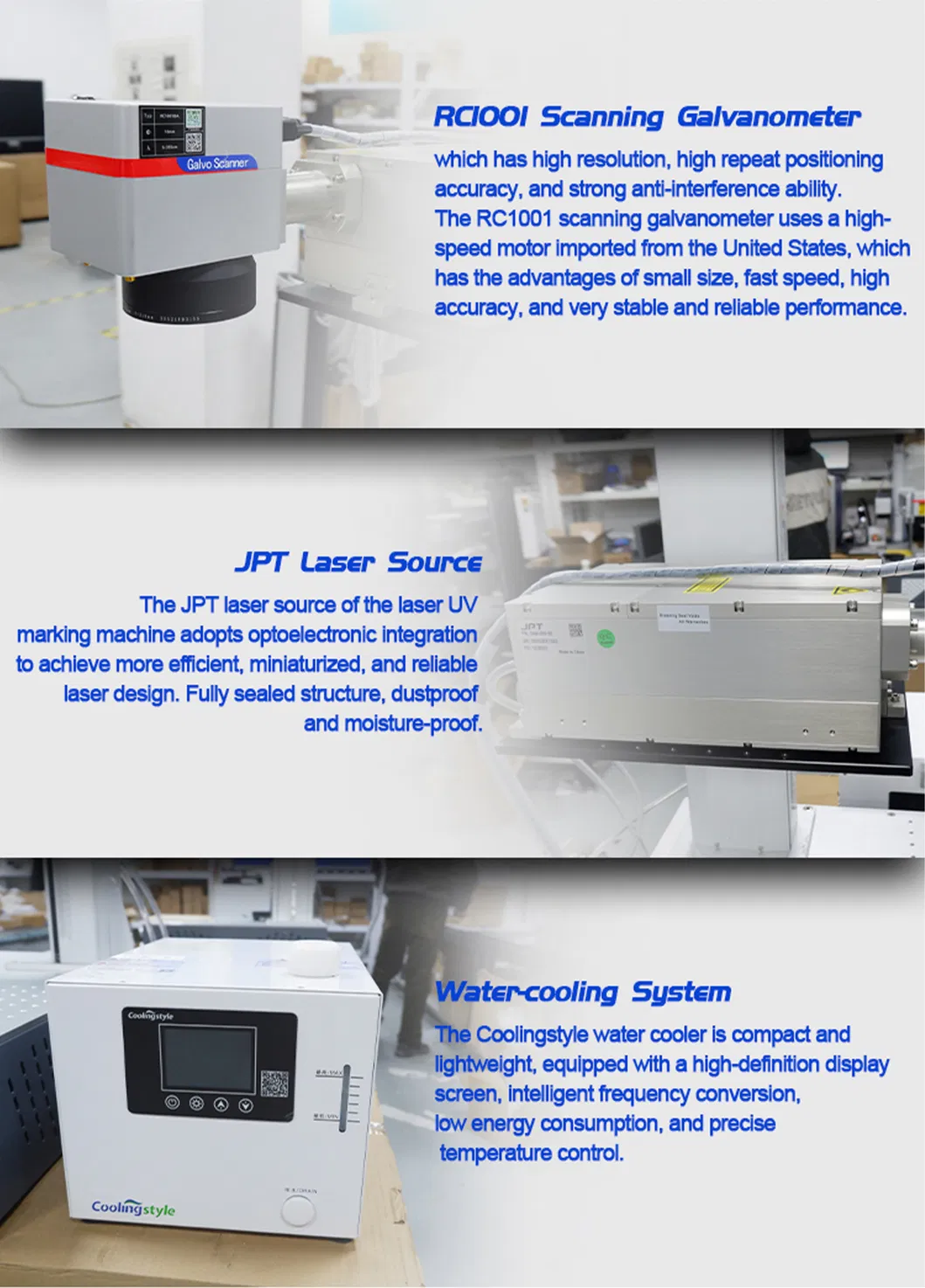

Detailed View 2

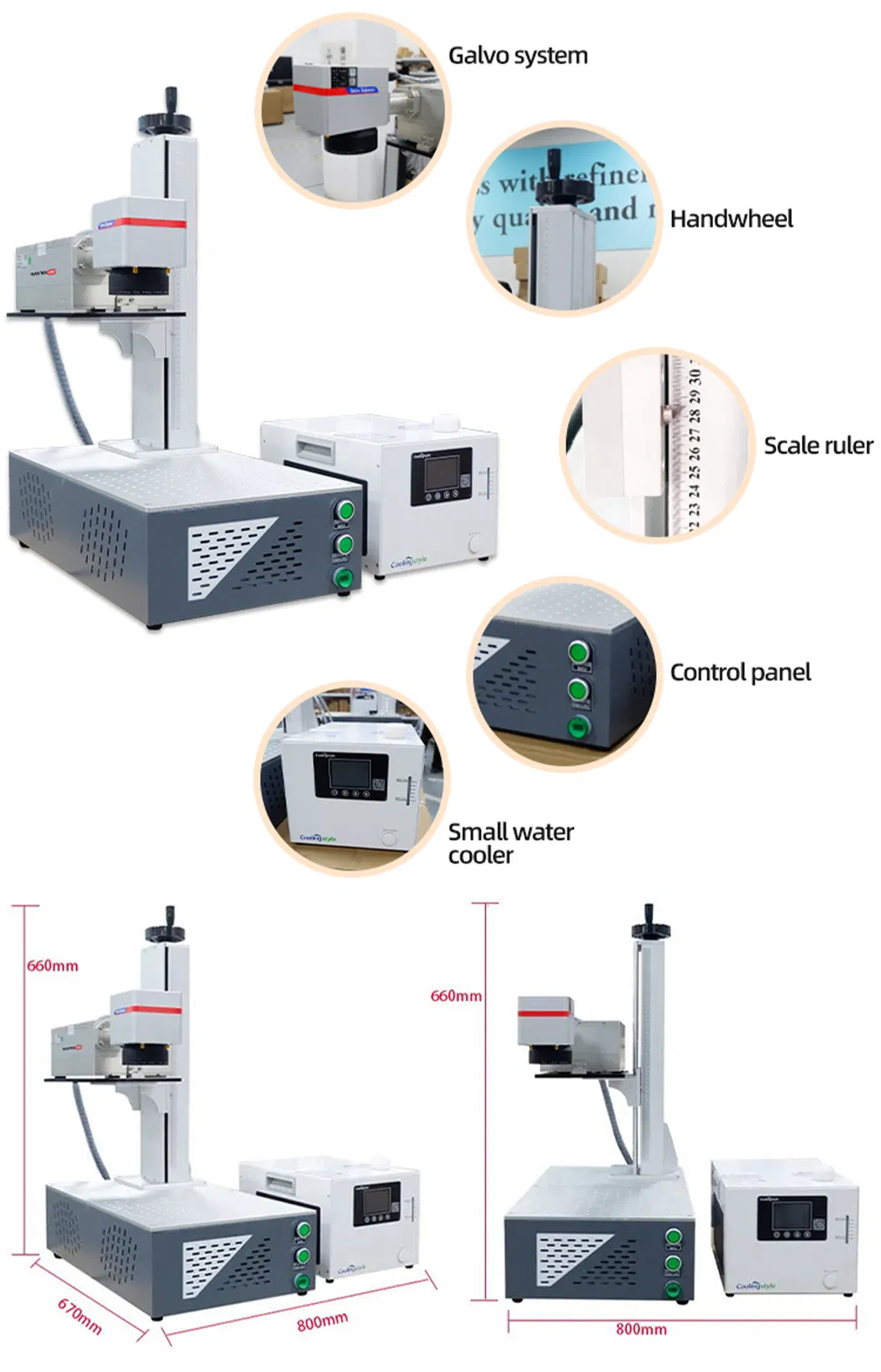

UV Marking Application
📊

Product Parameters

Model HTU-3 HTU-5 HTU-10
Power 3W 5W 10W
Laser source JPT JPT JPT
Central wavelength 355nm 355nm 355nm
Frequency range 20 kHz-150 kHz 20 kHz-150 kHz 40 kHz-300 kHz
Marking area 100mm-300mm 100mm-300mm 100mm-300mm
Beam quality M²≤1.2 M²≤1.2 M²≤1.2
Cooling method Water-cooled Water-cooled Water-cooled
Machine dimension 800*670*660mm 800*670*660mm 800*670*660mm
🖼️

Detailed Photos

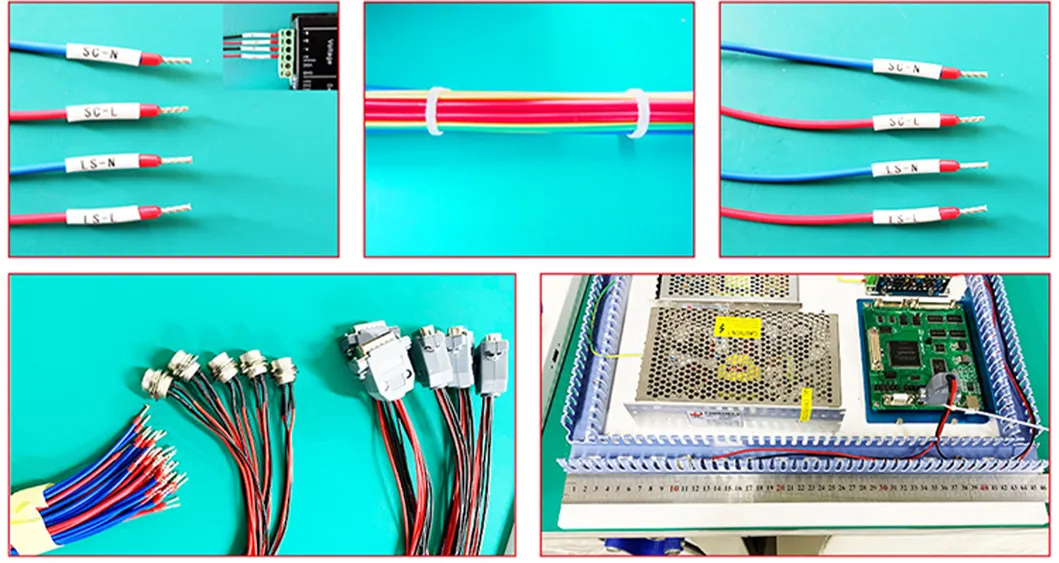

Detail 1

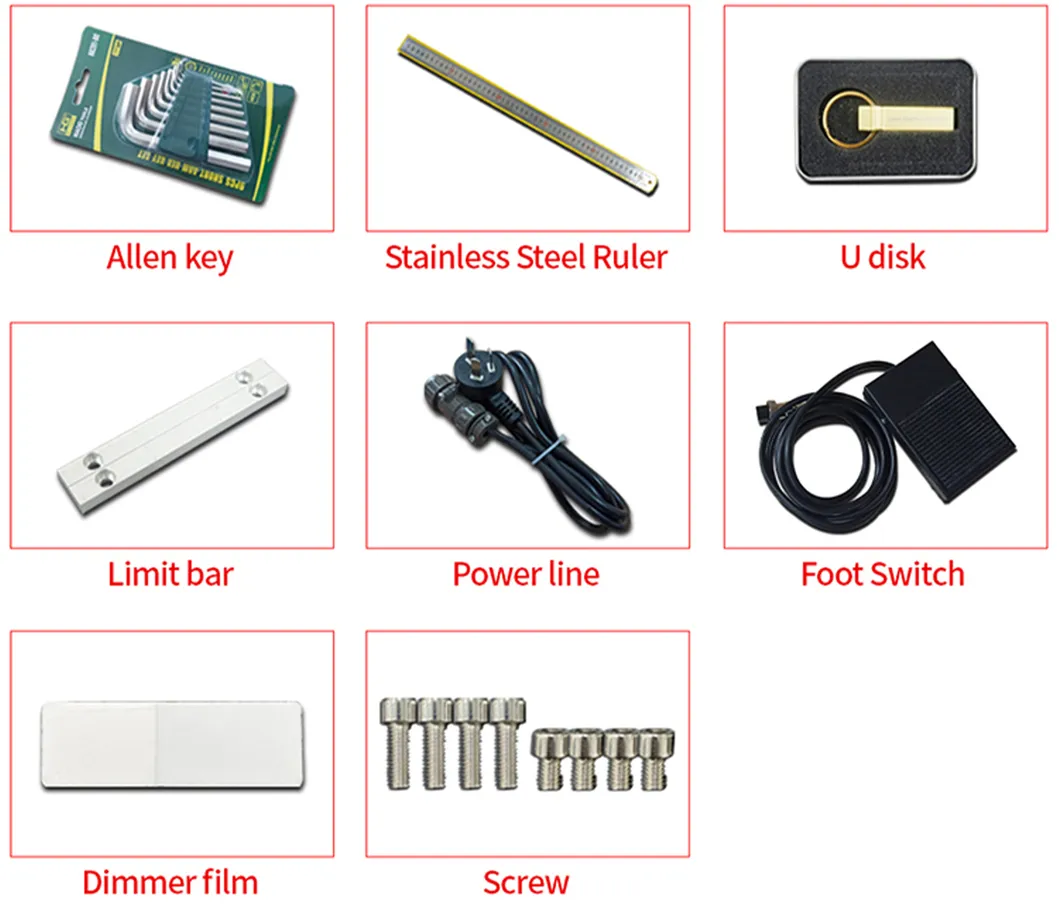

Detail 2

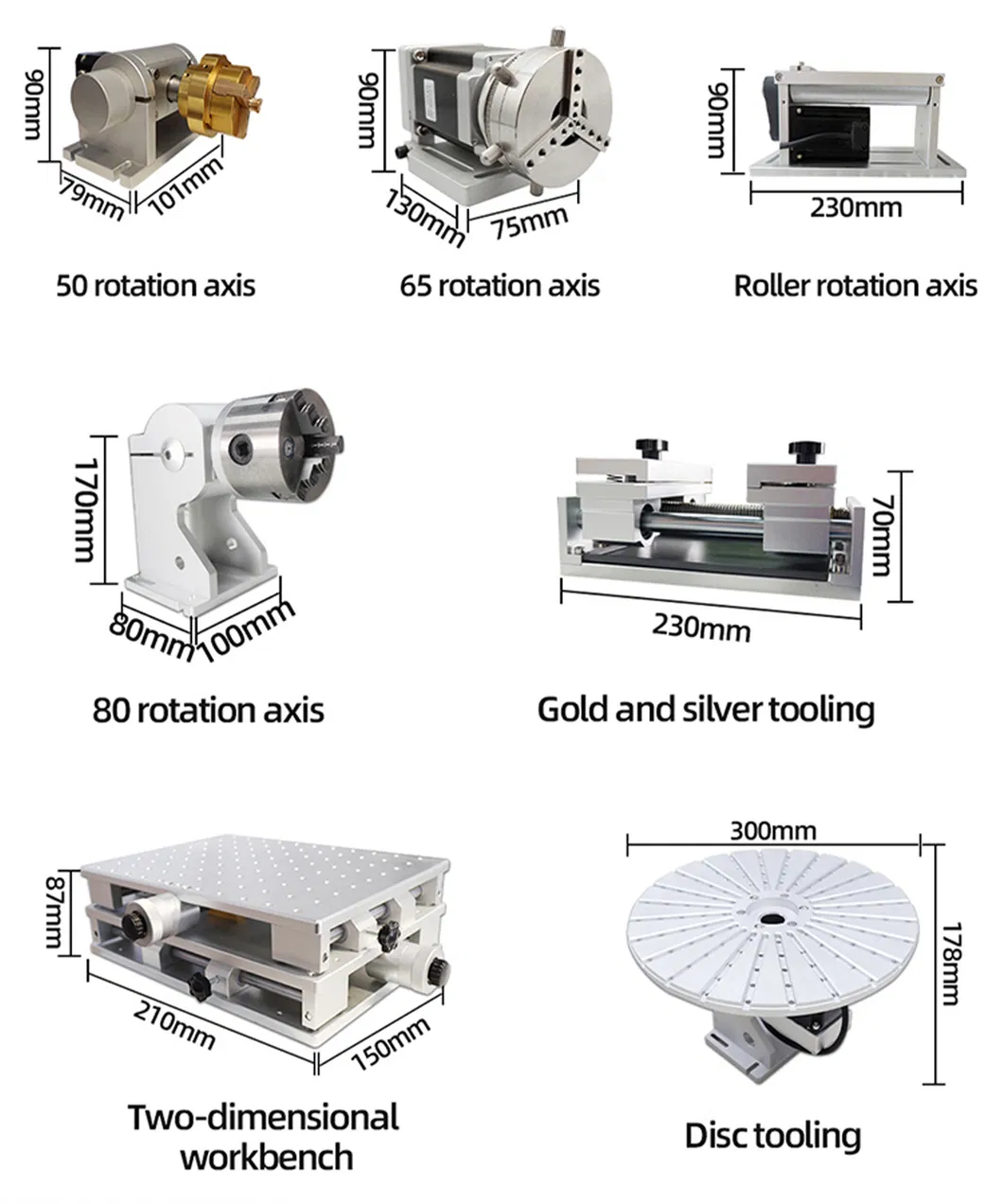

Detail 3
✨

Sample Display

UV Galvo laser marking machine can be used on various materials, including plastics, glass, ceramics, silicon wafers, and organic materials. Its high precision and low thermal impact make it particularly suitable for applications that require high-precision labeling on heat sensitive materials.
  • 1. Food industry: Marking process will not penetrate outer packaging or cause air leakage.
  • 2. Pharmaceutical industry: No damage to outer packaging; enables visual reading and anti-counterfeiting.
  • 3. Hygiene industry: Cold light source coding prevents dust explosions.

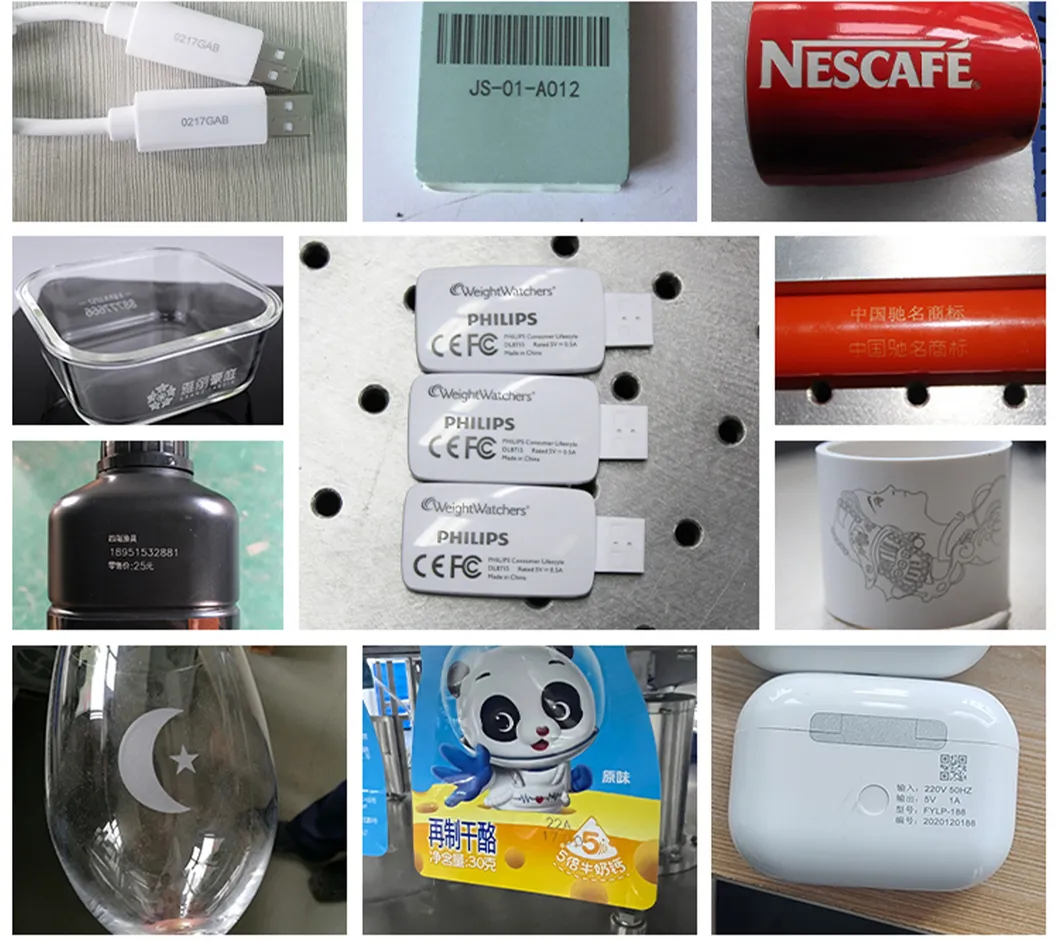

Marking Samples
🏢

Company Profile

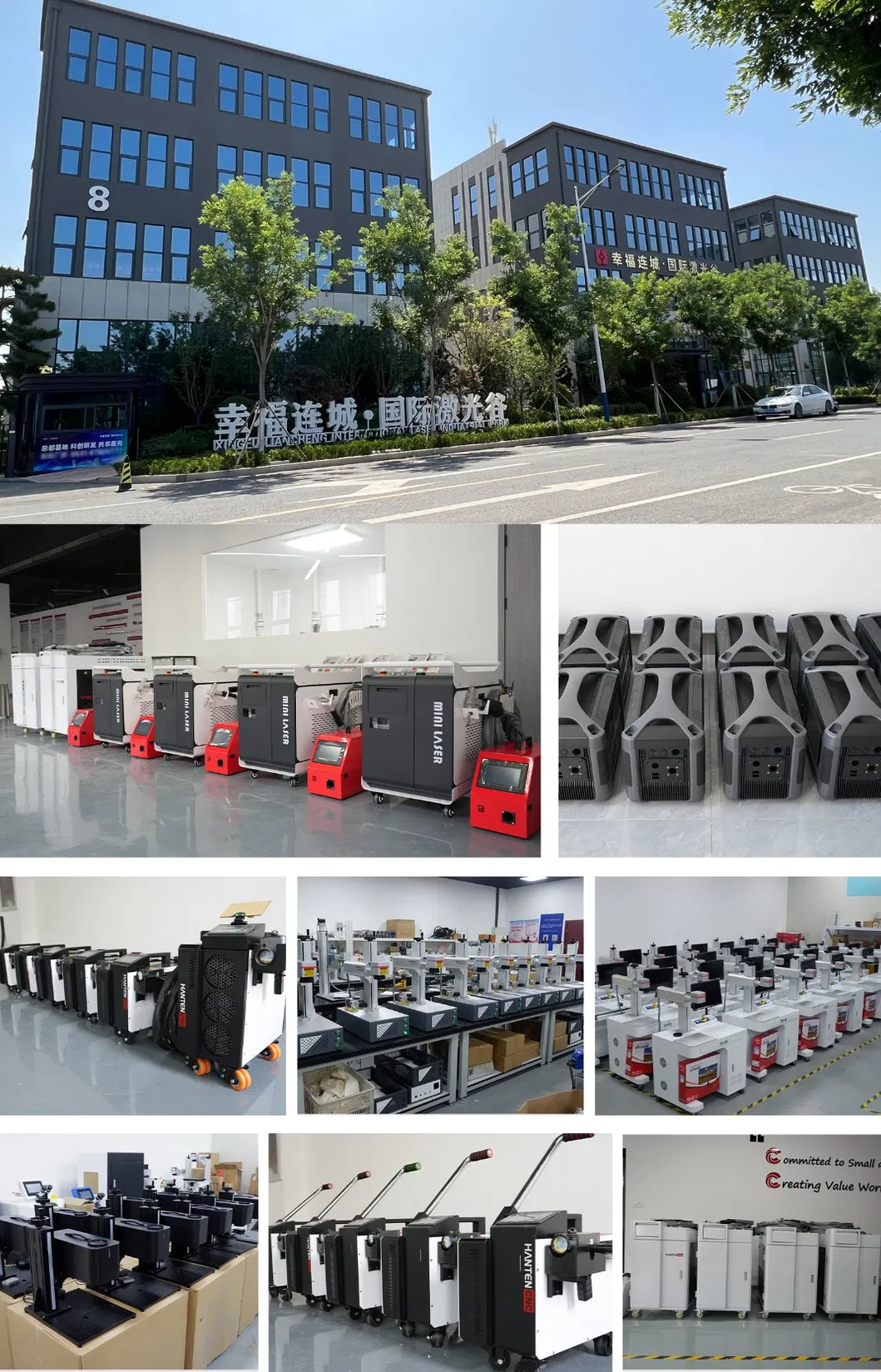

Profile Image
Our team is dedicated to leveraging industrial-grade CNC technology to bring laser applications to the consumer market. We have consistently focused on developing laser technology for civilian applications. Over the years, we have relentlessly pursued innovations to reduce the size of our products and enhance laser safety, ensuring every user experiences the convenience lasers bring to everyday life.
Workshop 1
Workshop 2
🤝

Customer Interaction

Customer Visit

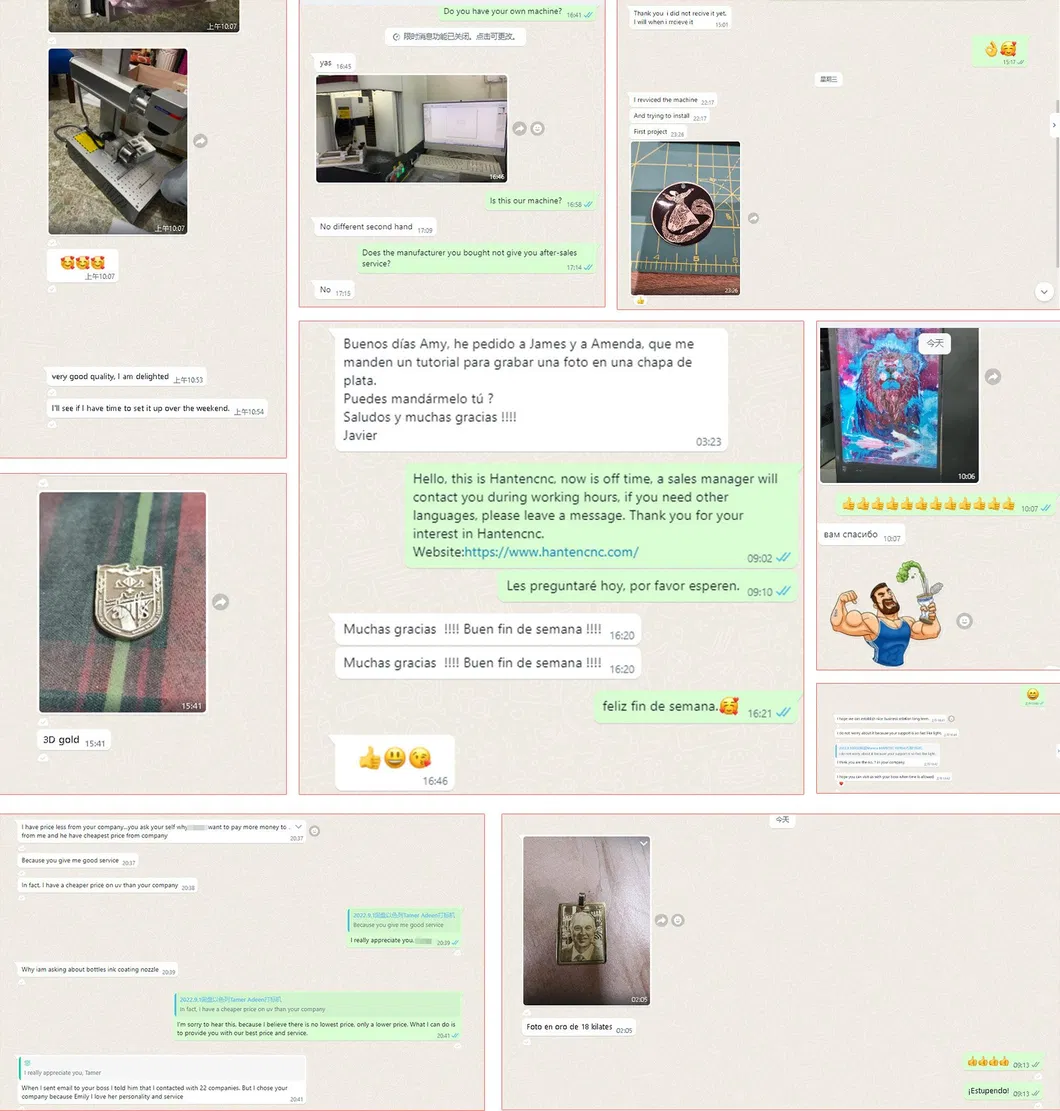

Review 1
Review 2
Review 3
❓

FAQ

How can I get the best machine for me?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet with your requirements or not. Then we can recommend you with the suitable model based on our experience.
How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment.
What can you buy from us?
Laser Marking Machine / Laser Cutting Machine / Laser Welding Machine / Laser Cleaning Machine / CO2 Engraving Machine / CNC Router / UV Printer.
Why should you buy from us not from other suppliers?
We are a specialized branch with engineers and research and development teams active for 15 years. We are professional manufacturers engaged in the research, development, and production of CNC router & laser machines.
How do you ensure that it's the right machine I need?
You can send your materials to us by courier; we will perform marking tests for free and send you the resulting pictures and videos.
What is the cooling method for these machines?
All models in this series (3W, 5W, and 10W) utilize a high-efficiency water-cooled system to ensure stable operation during high-precision tasks.
