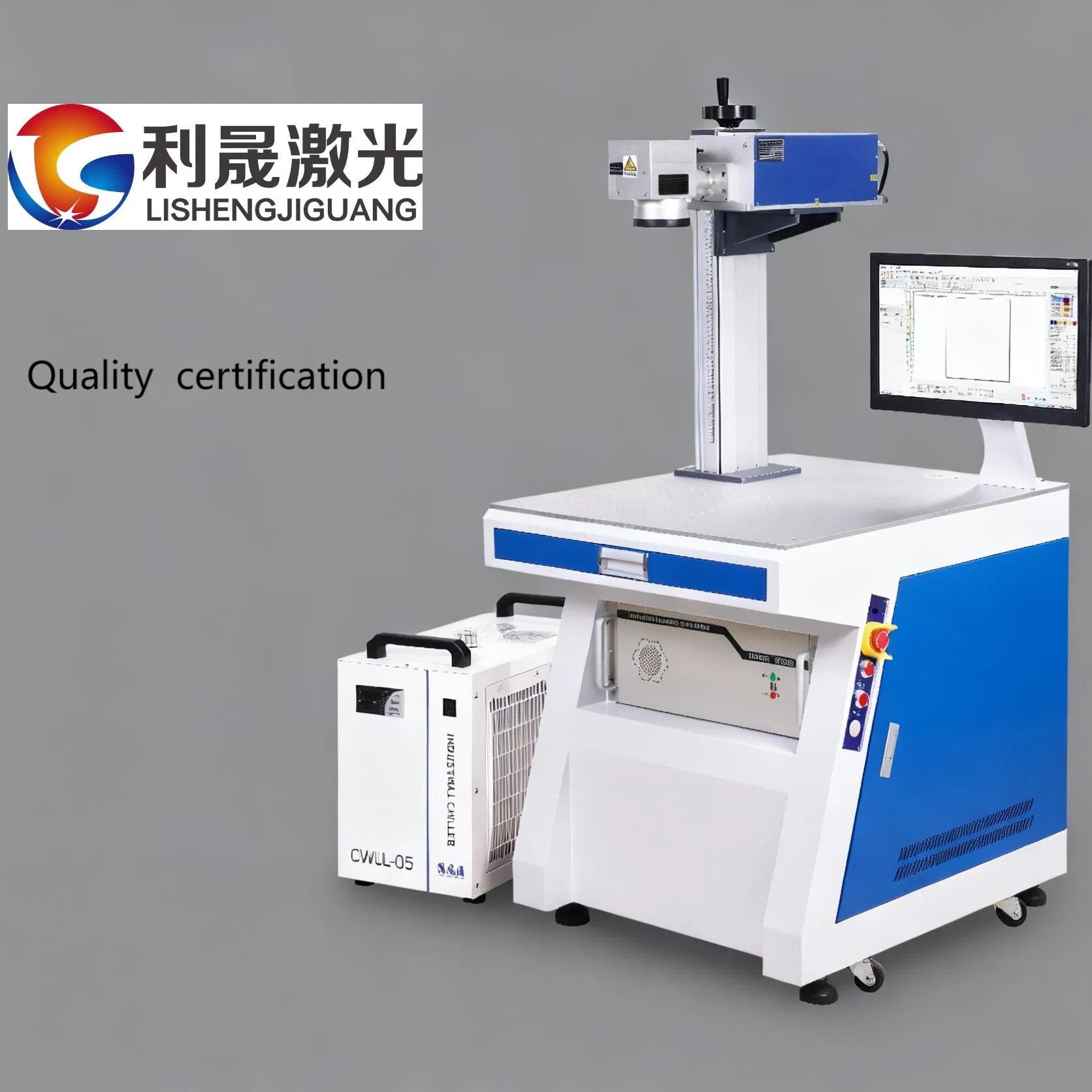

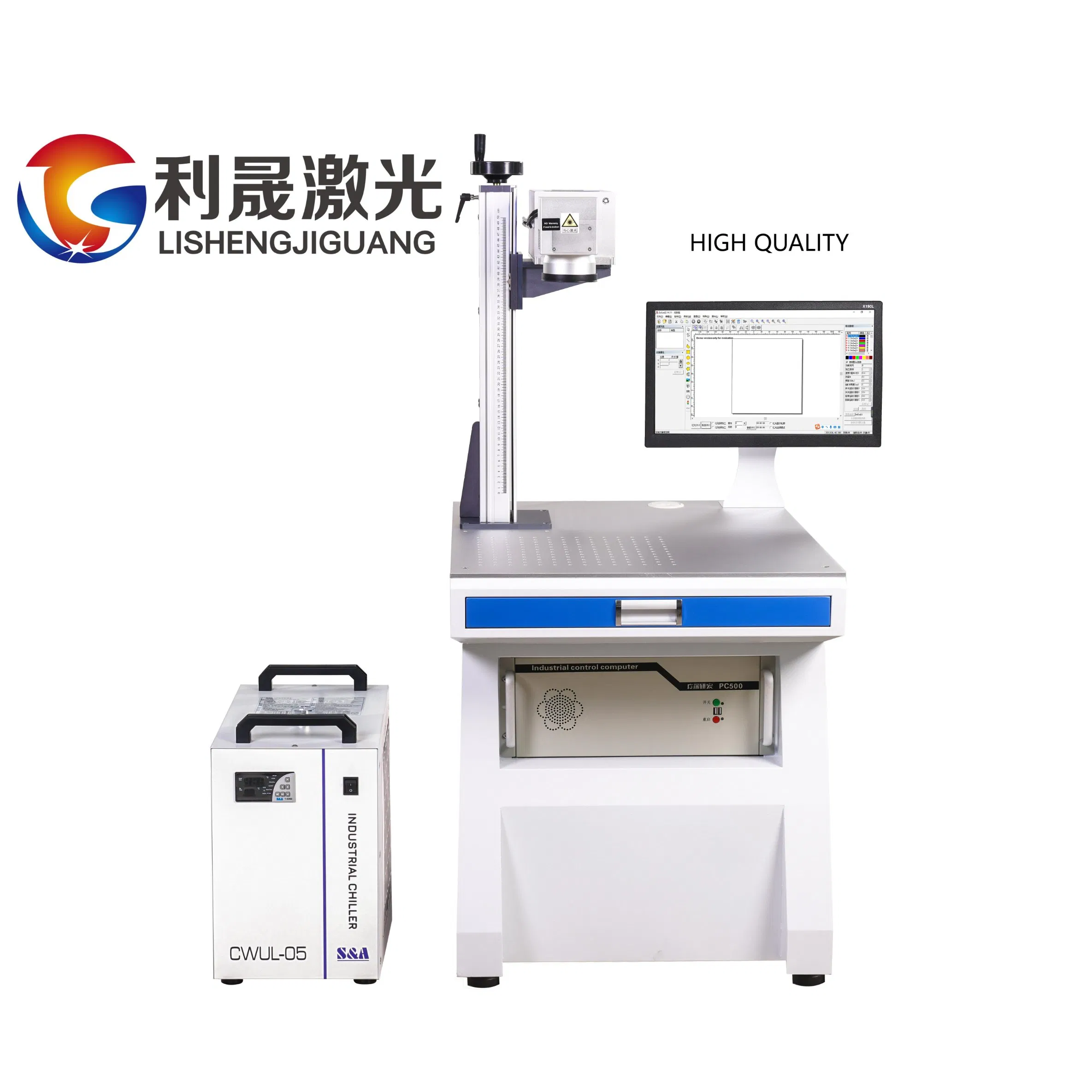

3W 5W 10W UV Static Laser Engraving Machine UV Marking Laser for Metal Glass Plastic

Customization:	Available
After-sales Service:	24 Hours Online After-Sales
Warranty:	18 Months

Send Inquiry

Product Description

📊 Basic Information

Model:UV3W / UV5W / UV10W

Laser Visibility:Invisible

Applicable Material:Nonmetal

Cooling System:Water Cooling

Technical Class:Pulse Laser

Laser Wavelength:355nm (Deep Ultraviolet)

Marking Speed:Max 7000mm/s

Repeat Accuracy:±0.03mm

🔍 Product Introduction

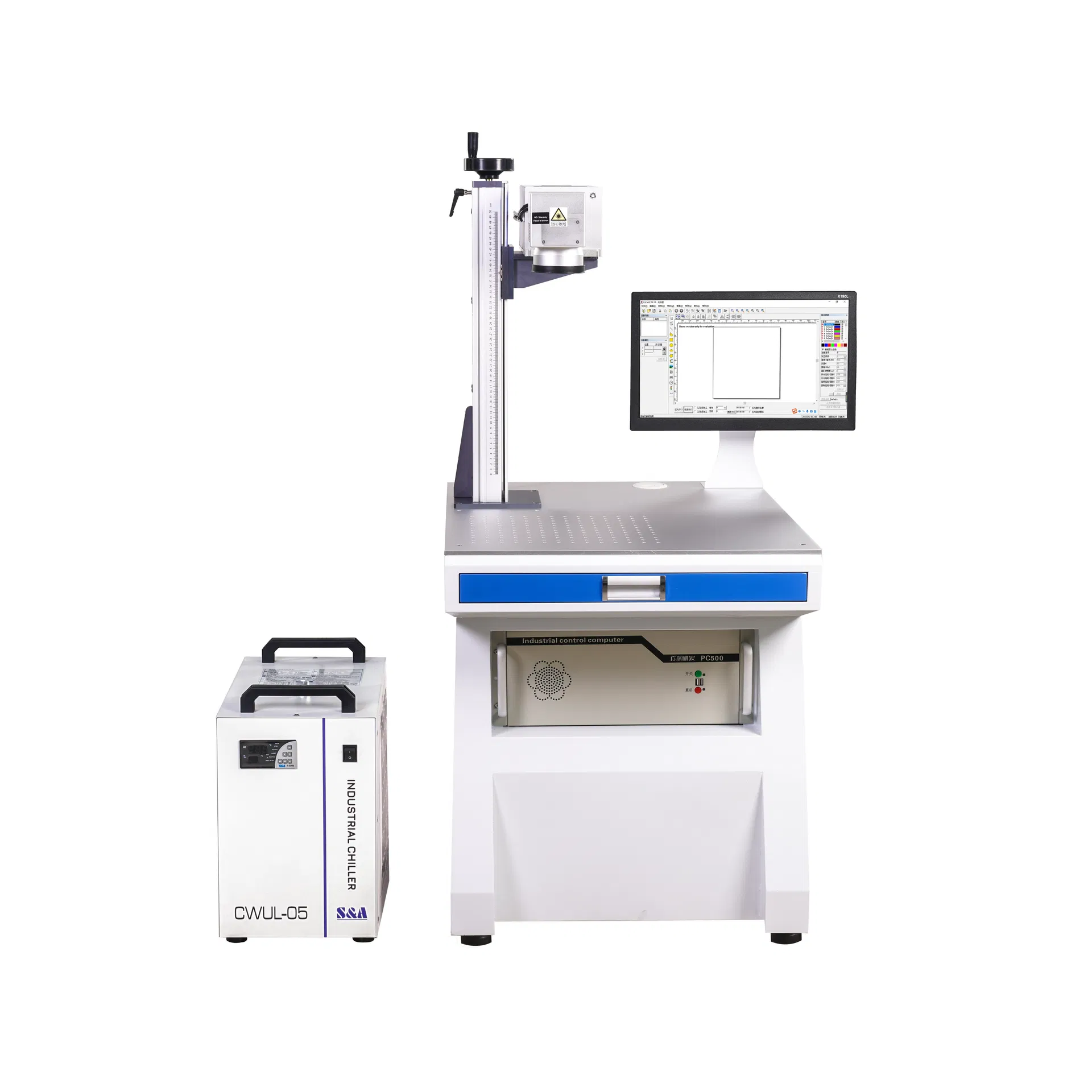

The UV laser marking machine is a high-precision series developed using 355nm UV laser technology, which adopts third-order intracavity frequency doubling technology. Compared with infrared lasers, the focused spot of 355nm UV light is significantly smaller, greatly reducing mechanical deformation and thermal impact on materials. It is the ideal solution for ultra-fine marking, micro-hole drilling, and complex pattern cutting.

⭐ Key Features

Stable Performance Compact size with low power consumption and high electro-optical conversion efficiency.

Precision Marking Extremely small laser spot and excellent light mode, perfect for high-requirement fine graphics.

High Speed Equipped with a high-speed galvanometer and motor for fast response and accurate positioning.

Long Service Life Stable laser output with intelligent water temperature cooling for industrial-grade durability.

⚙️ Technical Parameters

Model	LS-UV-3W	LS-UV-5W	LS-UV-10W
Output Power	3W	5W	10W
Laser Wavelength	355nm	355nm	355nm
Adjustable Frequency	20-100KHZ	20-100KHZ	20-100KHZ
Marking Range	140x140mm	140x140mm	140x140mm
Marking Line Speed	5000mm/s	5000mm/s	5000mm/s
Repeat Accuracy	±0.03mm	±0.03mm	±0.03mm
Cooling Method	Intelligent Water Cooling
Power Supply	220V±10%/50Hz

🚀 Application Scope

Packaging & Retail Ultra-fine marking on medicine bottles, cosmetics, and food polymer materials.

Electronics Marking and dicing flexible PCB boards, micro-hole processing, and silicon wafer cutting.

Industrial Glass QR code marking on LCD glass and drilling on high-end glassware surfaces.

Consumer Goods Marking on plastic buttons, communication equipment, and hardware components.

📦 Packaging & Shipping

Package Size:100cm * 80cm * 125cm

Gross Weight:100.00kg

Package Type:Standard Plywood Export Packing

❓ Frequently Asked Questions

Q1: What is the lead time for standard and customized machines?

A: Standard machines typically take 7-14 days. For customized or non-standard requirements, the delivery time is between 15 to 30 days.

Q2: How do I determine if a UV laser marking machine is suitable for my needs?

A: UV lasers are best for non-metal materials requiring ultra-fine precision. We can provide detailed technical consultations and material testing to recommend the most suitable power level (3W, 5W, or 10W).

Q3: What are the accepted payment methods?

A: We accept various payment methods, including T/T (Telegraphic Transfer), L/C (Letter of Credit), and other standard international trade payment terms.

Q4: What is the warranty policy for the core components?

A: The machine comes with a 12-month general warranty. The core laser generator is covered by an extended 24-month warranty period from the date of successful debugging.

Q5: Do you provide technical support after the purchase?

A: Yes, our after-sales team provides comprehensive technical support, including remote training, installation guidance, and troubleshooting assistance.

Q6: Can parts be repaired or replaced if they malfunction under warranty?

A: Yes, we offer free repairs or replacements for non-consumable parts during the warranty period, provided the damage is not caused by human factors.
