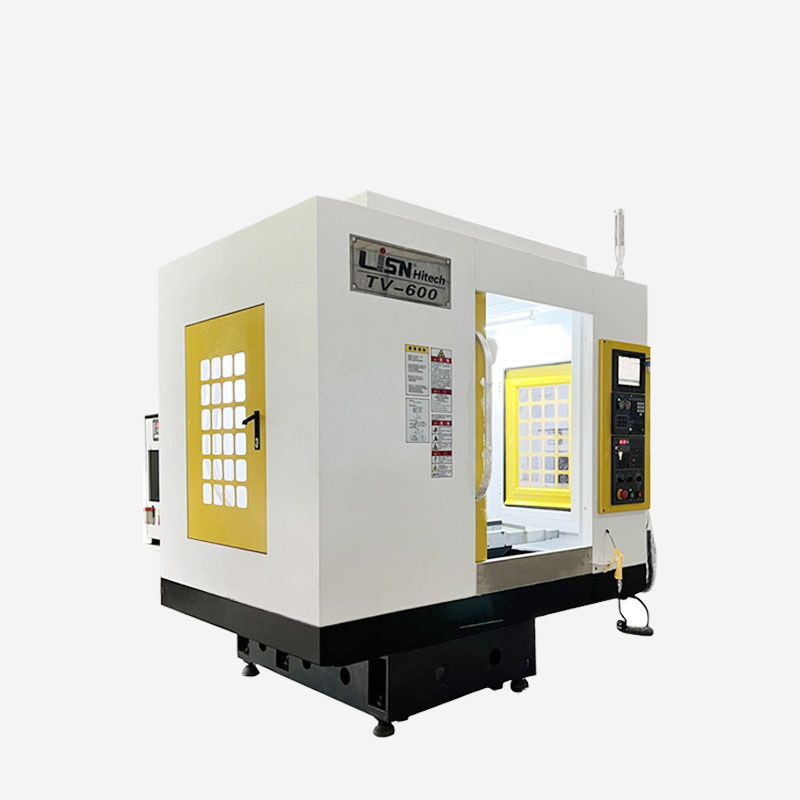

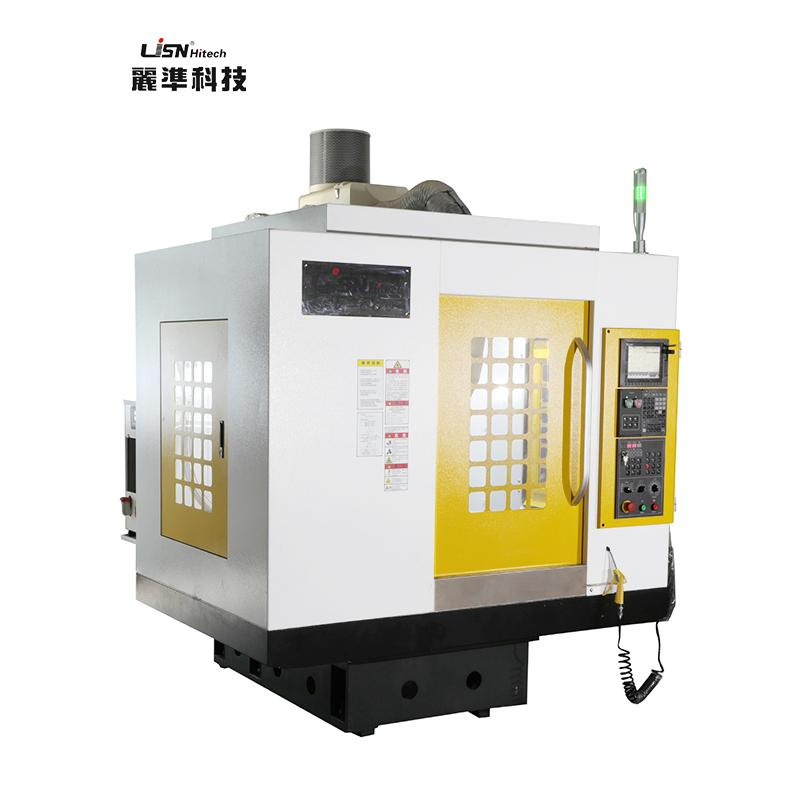

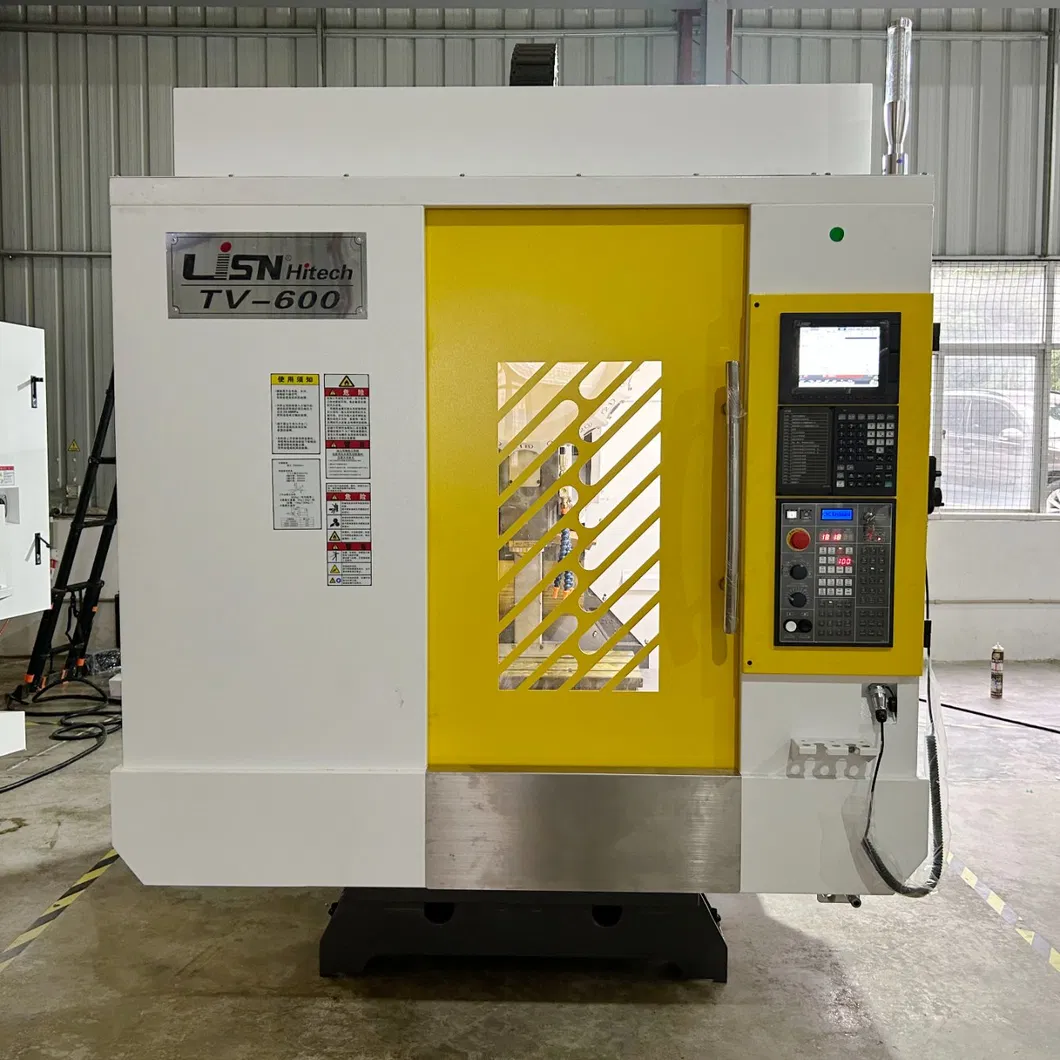

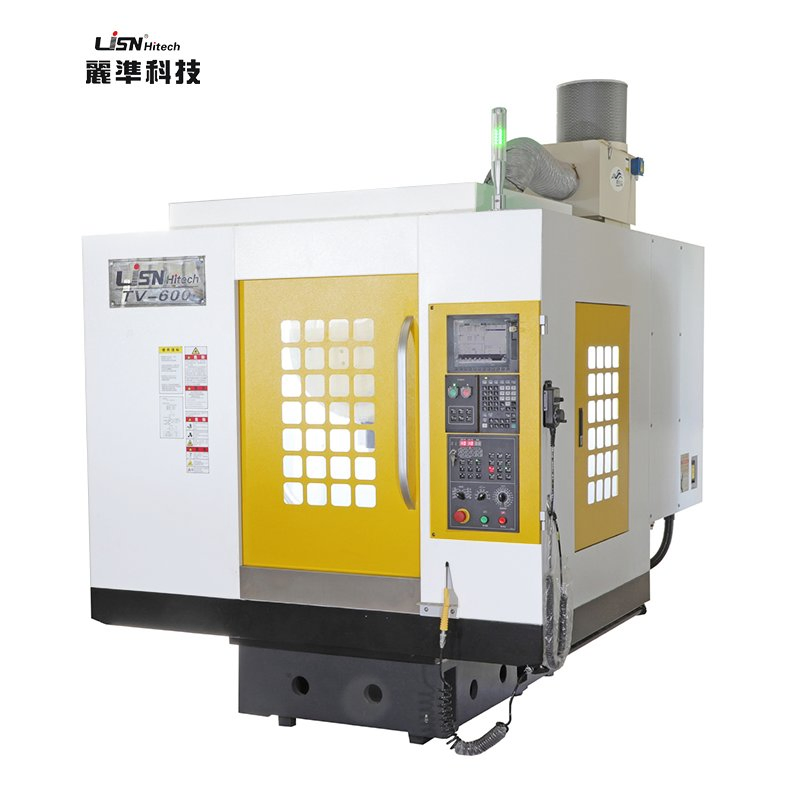

The machine has a safe and convenient operation design. The back of the machine has a box-shaped design and it is equipped with a tank collecting box. The humanized space design and the wide operating door make the loading and unloading of the workpiece very convenient. This machine is also equipped with easy to use operating panel and hand wheel and high efficiency base chip washing system, making the work more efficient.

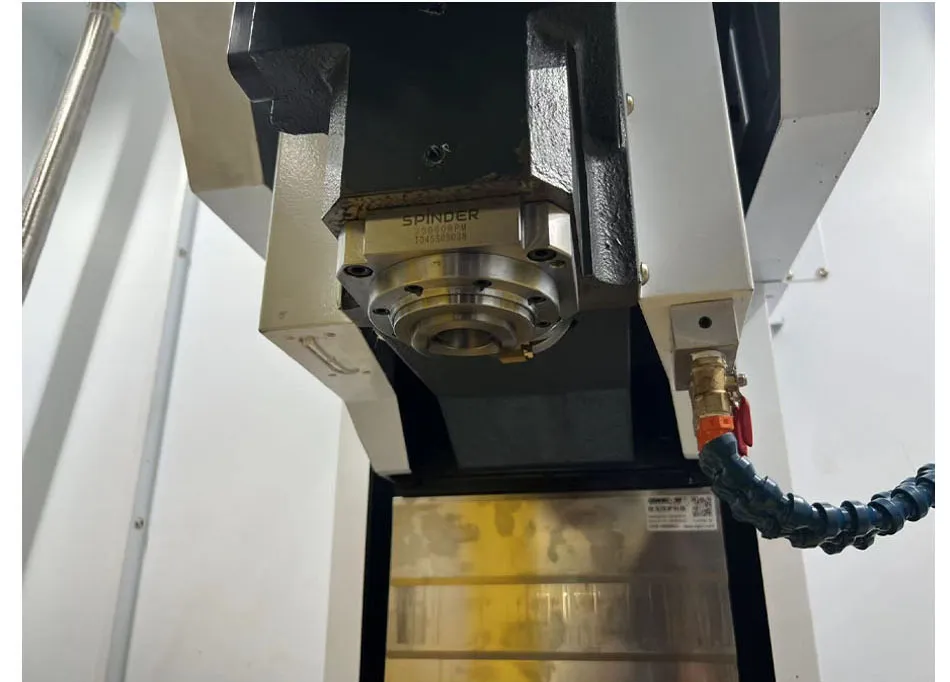

The spindle motor and the spindle are designed to be directly connected, so there is no noise and vibration problem because there is no belt. The machine is equipped with a low-inertia spindle motor, which makes the acceleration time very short, from 0 to 20000RPM in one second. The Thermal Isolated Direct Drive System can effectively block the heat transmission of the motor to the spindle, and can significantly reduce the heat of the spindle.
| ITEM | Unit | TV600 |
|---|---|---|

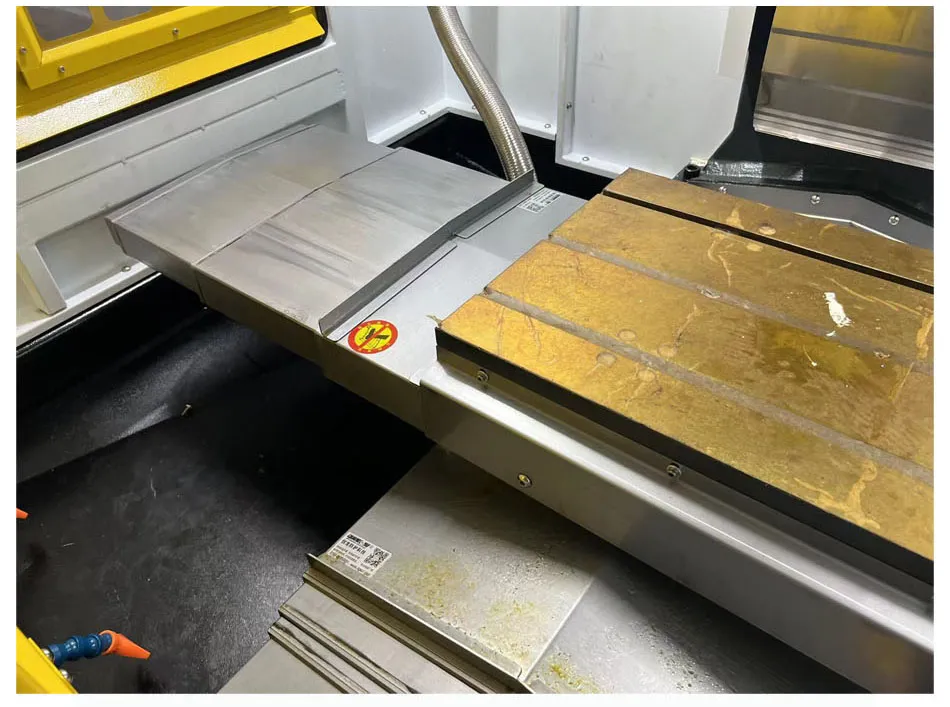

| WORKTABLE (WIDTH*LENGTH) | mm | 720x400 |
| DISTANCE BETWEEN T SLOTS | mm | 3x14x125 |
| MAX LOAD BEARING | kg | 200 |
| X/Y/Z AXIS TRAVEL | mm | 600/400/300 |
| SPINDLE NOSE TO WORKBENCH | mm | 130-480 |
| SPINDLE HOLE TAPER | - | BT30 |
| SPINDLE SPEED RANGE | r/min | 20000 |
| SPINDLE MOTOR POWER | kW | 3.7/5.5 (Mitsubishi) / 5.5/7.5 (Fanuc) |
| X/Y/Z RAPID FEED SPEED | m/min | 48/48/48 |

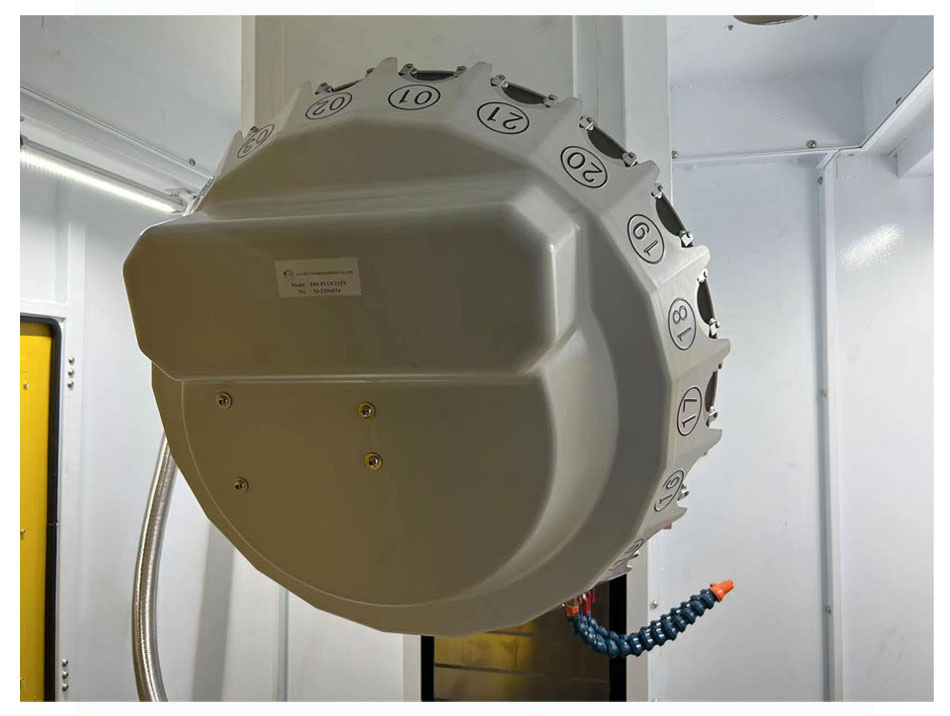

| TOOLS MAGAZINE CAPACITY | pcs | 21 |
| POSITION ACCURACY | mm | ±0.005 |
| MACHINE WEIGHT | kg | 3000 |
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Self-powered electrical shutoff system / Clean air gun / Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler
