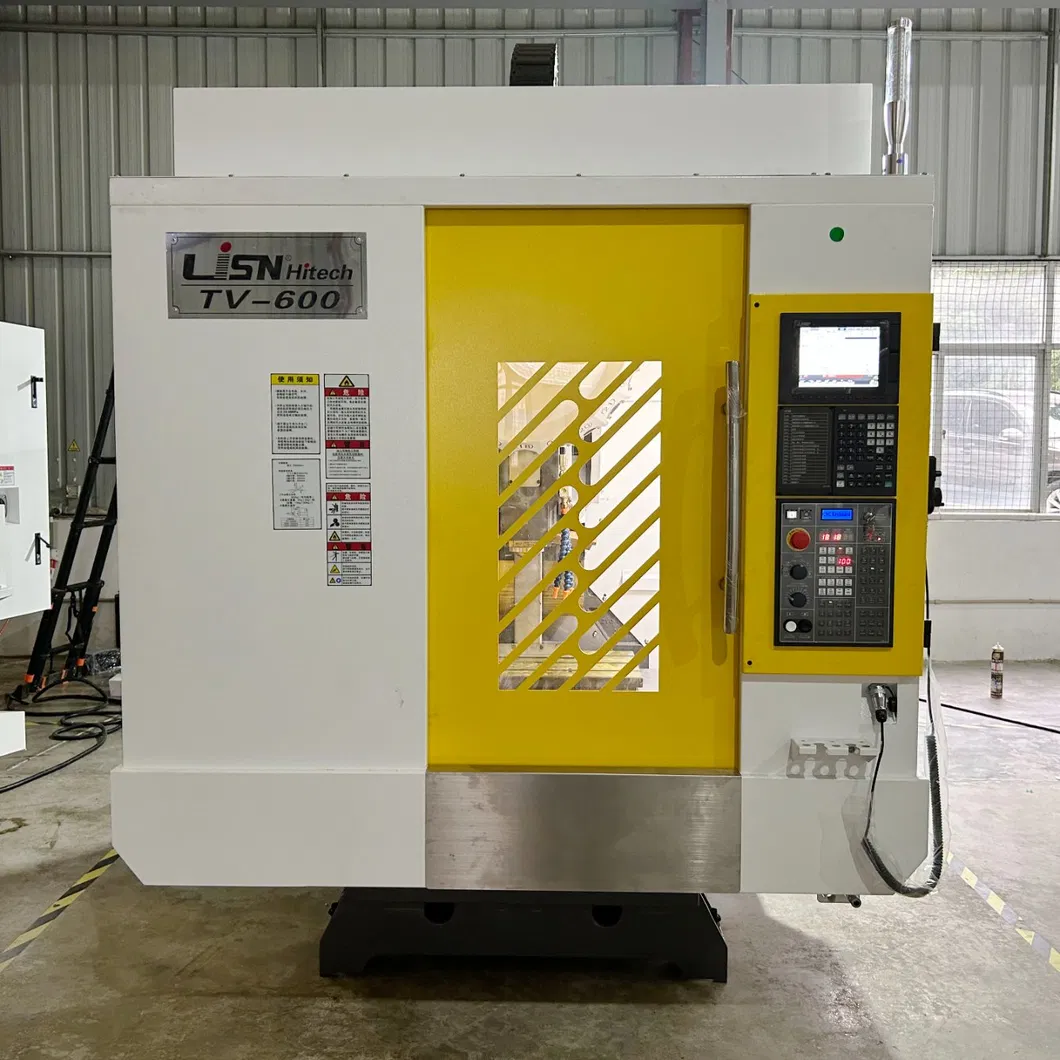

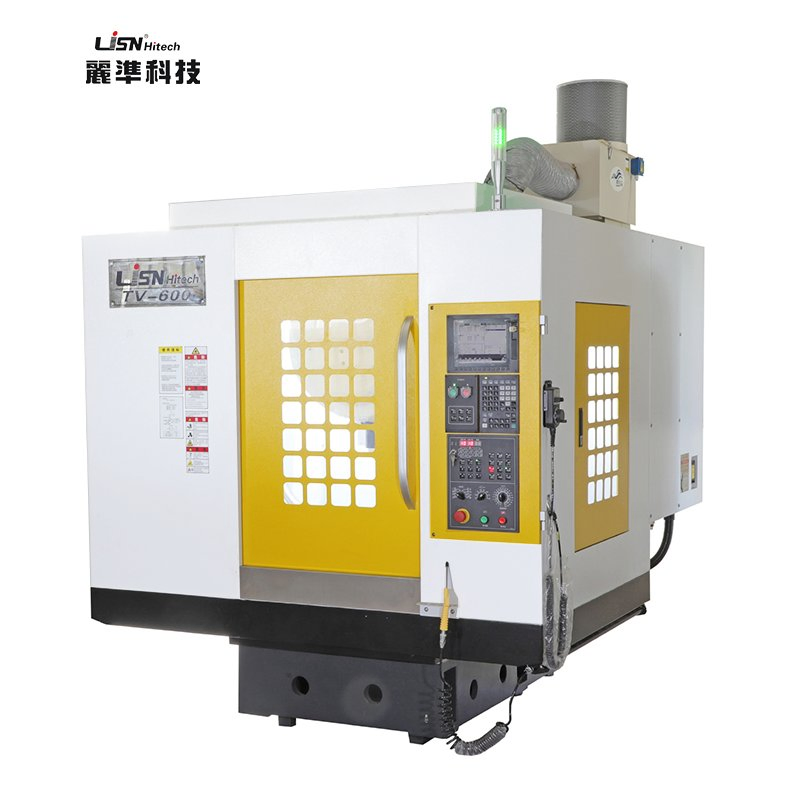

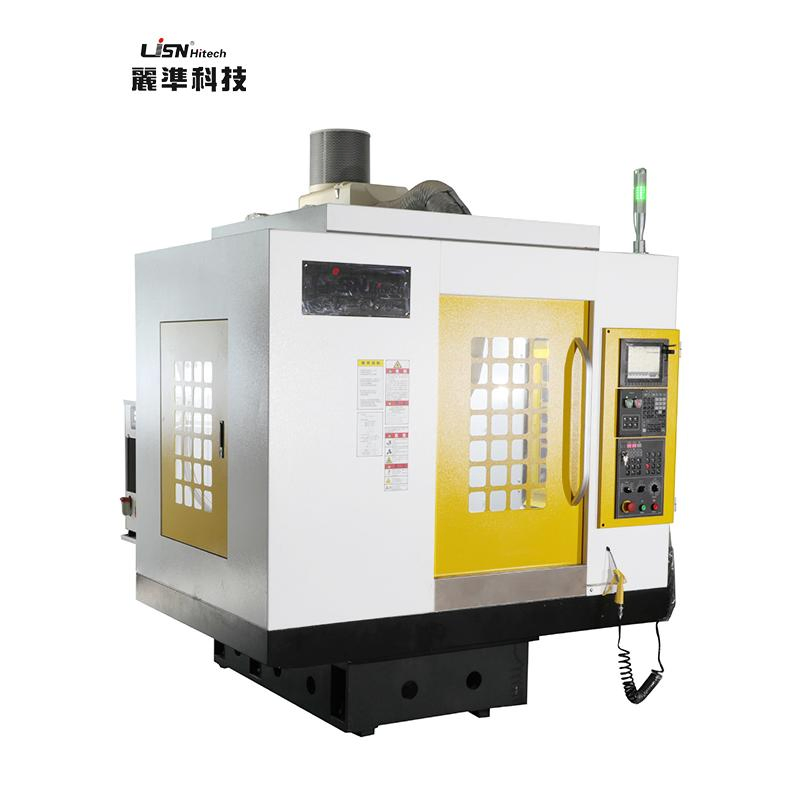

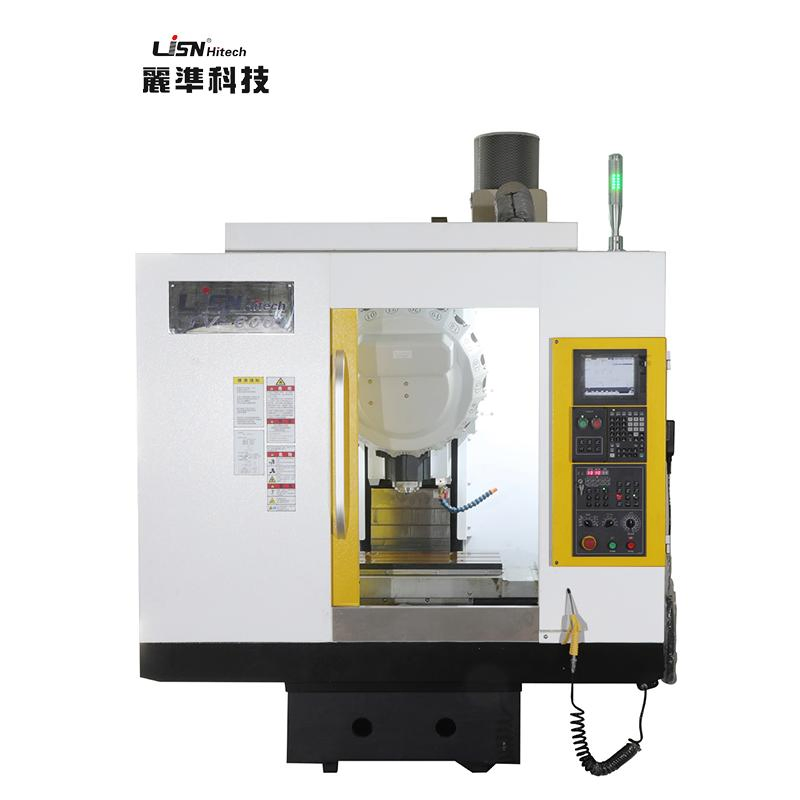

The machine features a safe and convenient operation design. The rear of the machine utilizes a box-shaped structure equipped with a tank collecting box. Humanized spatial design combined with a wide operating door ensures that the loading and unloading of workpieces is extremely efficient.

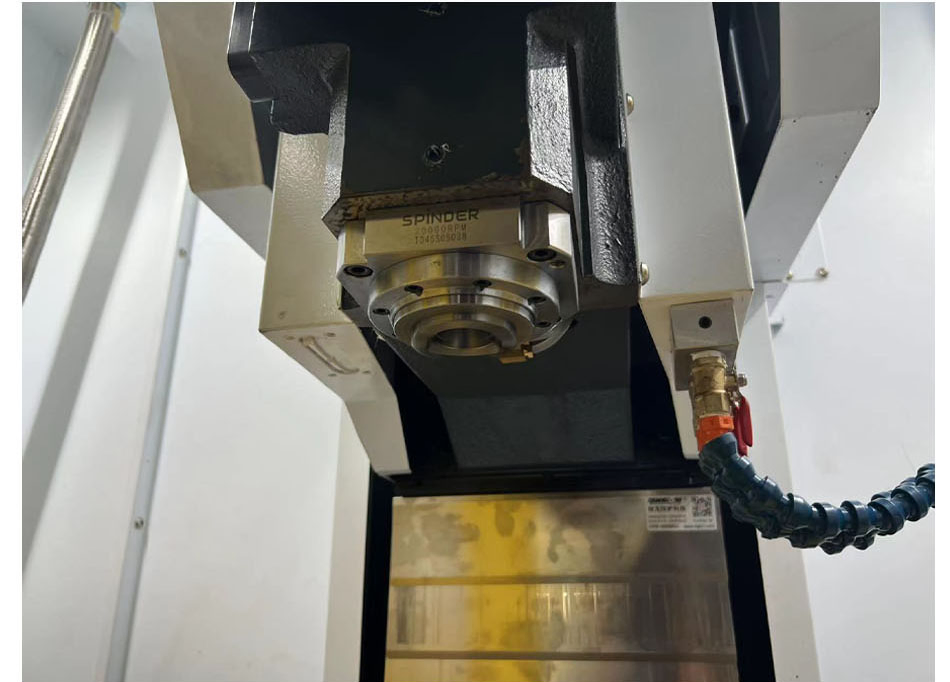

Equipped with an intuitive operating panel, hand wheel, and a high-efficiency base chip washing system, this machine optimizes workflow. The spindle motor and spindle are directly connected, eliminating noise and vibration issues commonly associated with belt-driven systems.
With a low-inertia spindle motor, acceleration is rapid, reaching 0 to 12000 RPM in just one second. The Thermal Isolated Direct Drive System effectively blocks motor heat transmission to the spindle, significantly maintaining precision by reducing thermal expansion.
| ITEM | UNIT | TV600 |
|---|---|---|

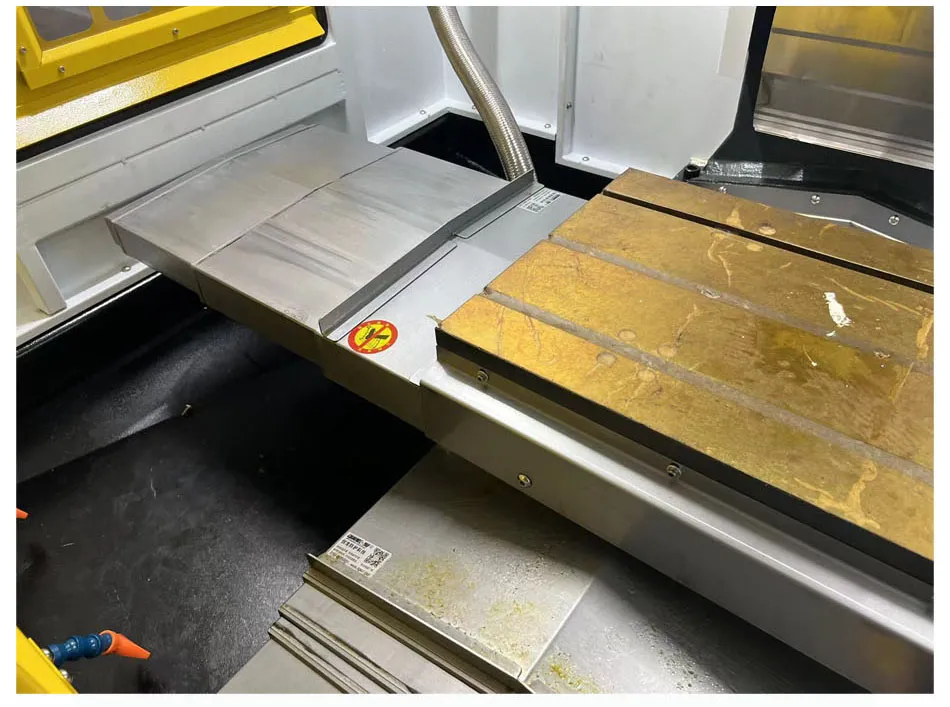

| WORKTABLE (WIDTH*LENGTH) | mm | 720x400 |
| DISTANCE BETWEEN T SLOTS | mm | 3x14x125 |
| MAX LOAD BEARING OF WORKTABLE | kg | 200 |
| X/Y/Z AXIS TRAVEL | mm | 600/400/300 |
| DISTANCE FROM SPINDLE NOSE TO WORKBENCH | mm | 130-480 |
| SPINDLE HOLE TAPER | - | BT30 |
| SPINDLE SPEED RANGE | r/min | 20000 |
| SPINDLE MOTOR POWER | kW | 3.7/5.5 (Mitsubishi) / 5.5/7.5 (Fanuc) |
| X/Y/Z RAPID FEED SPEED | m/min | 48/48/48 |
| MAX CUTTING FEED SPEED | mm/min | 1-20000 |

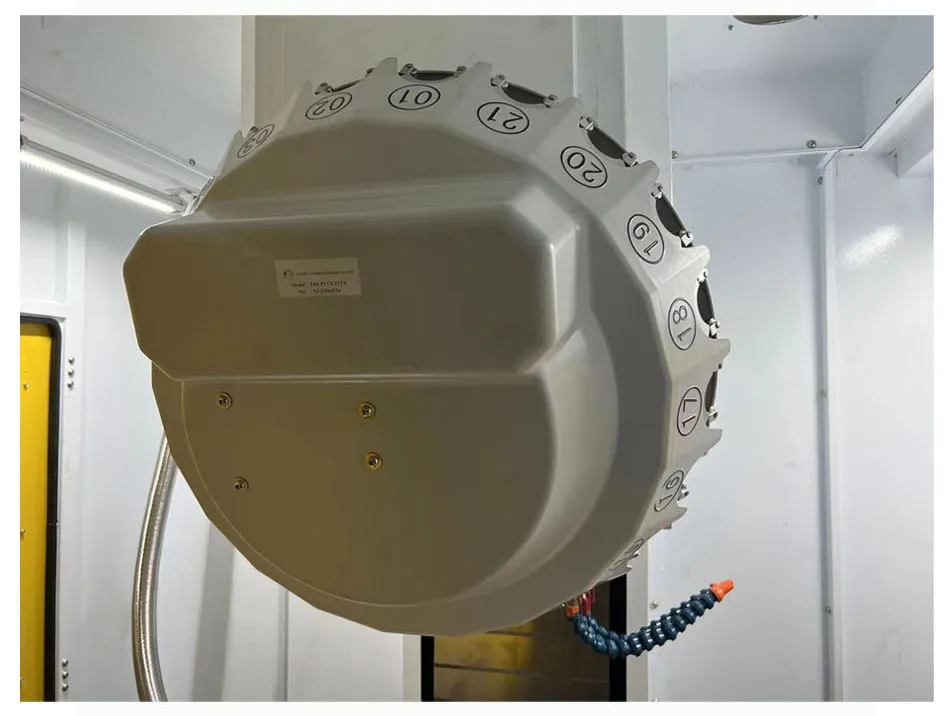

| TOOLS MAGAZINE CAPACITY | pcs | 21 |
| X/Y/Z POSITION ACCURACY | mm | ±0.005 |
| X/Y/Z RE-POSITION ACCURACY | mm | ±0.003 |
| MACHINE DIMENSION | mm | 1930x2450x2450 |
| MACHINE WEIGHT | kg | 3000 |
