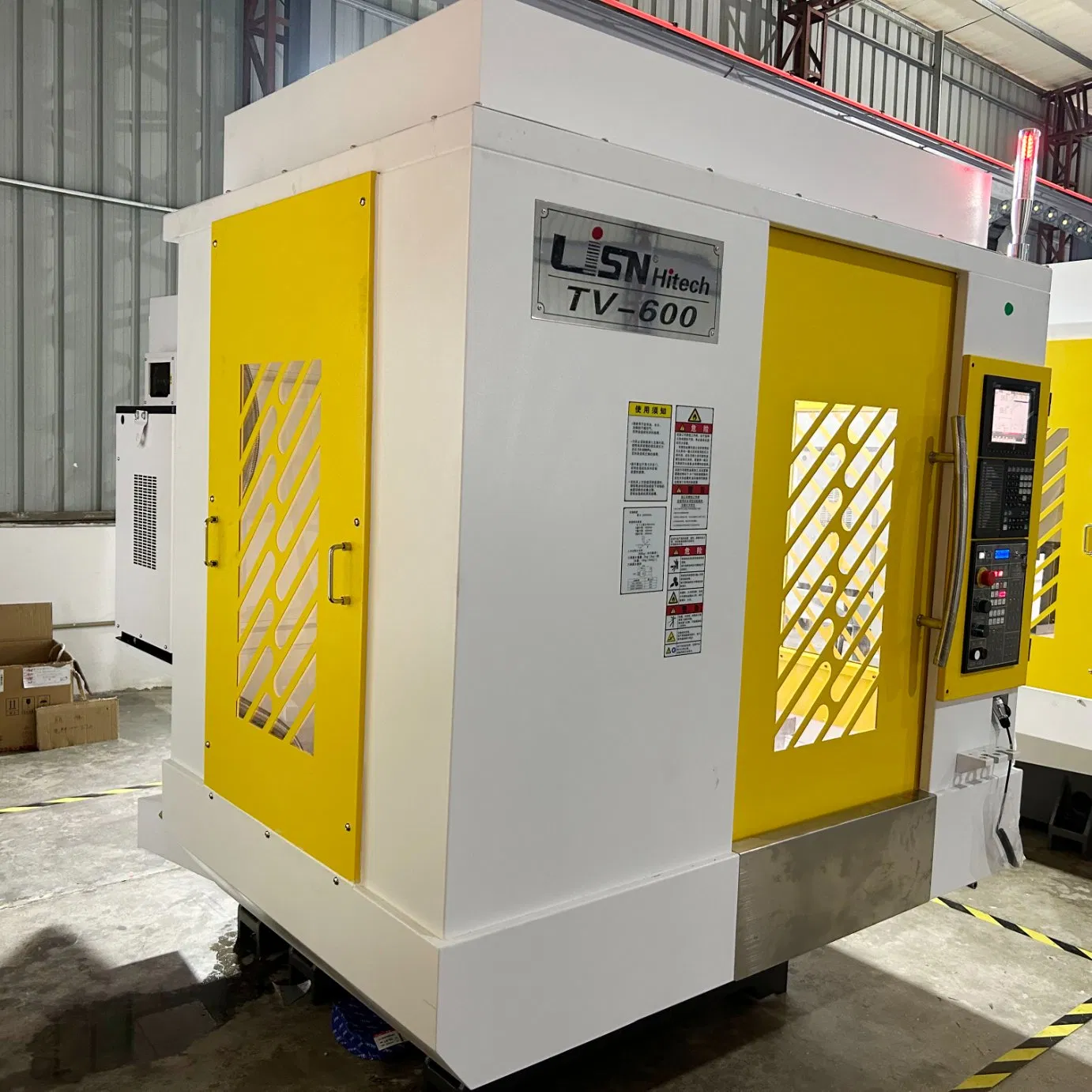

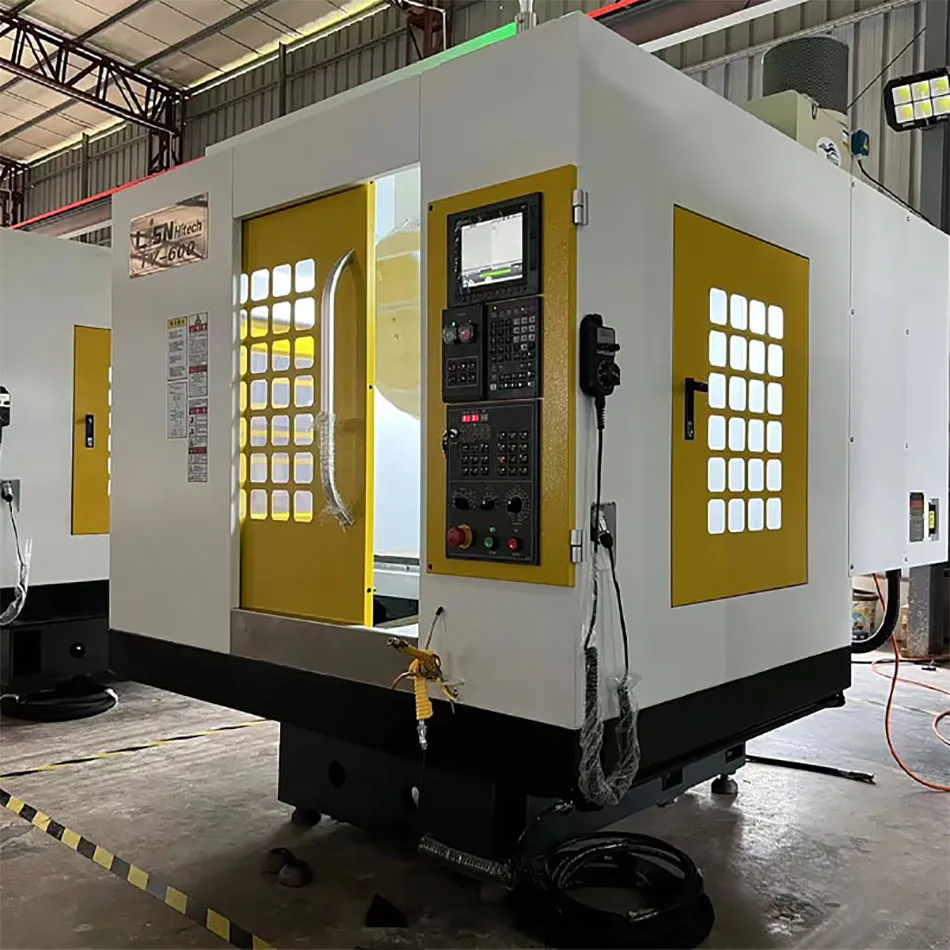

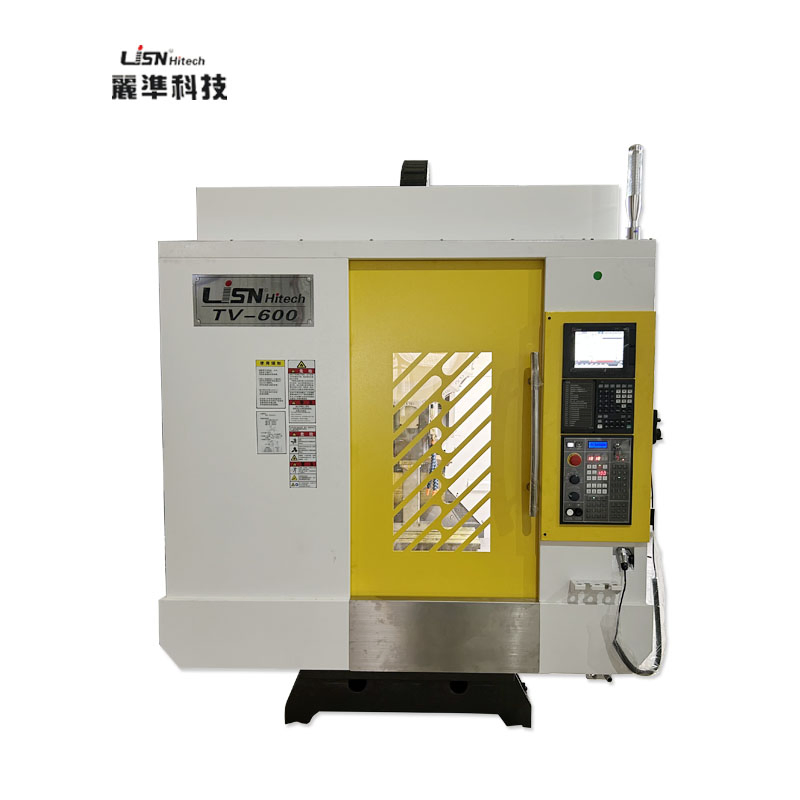

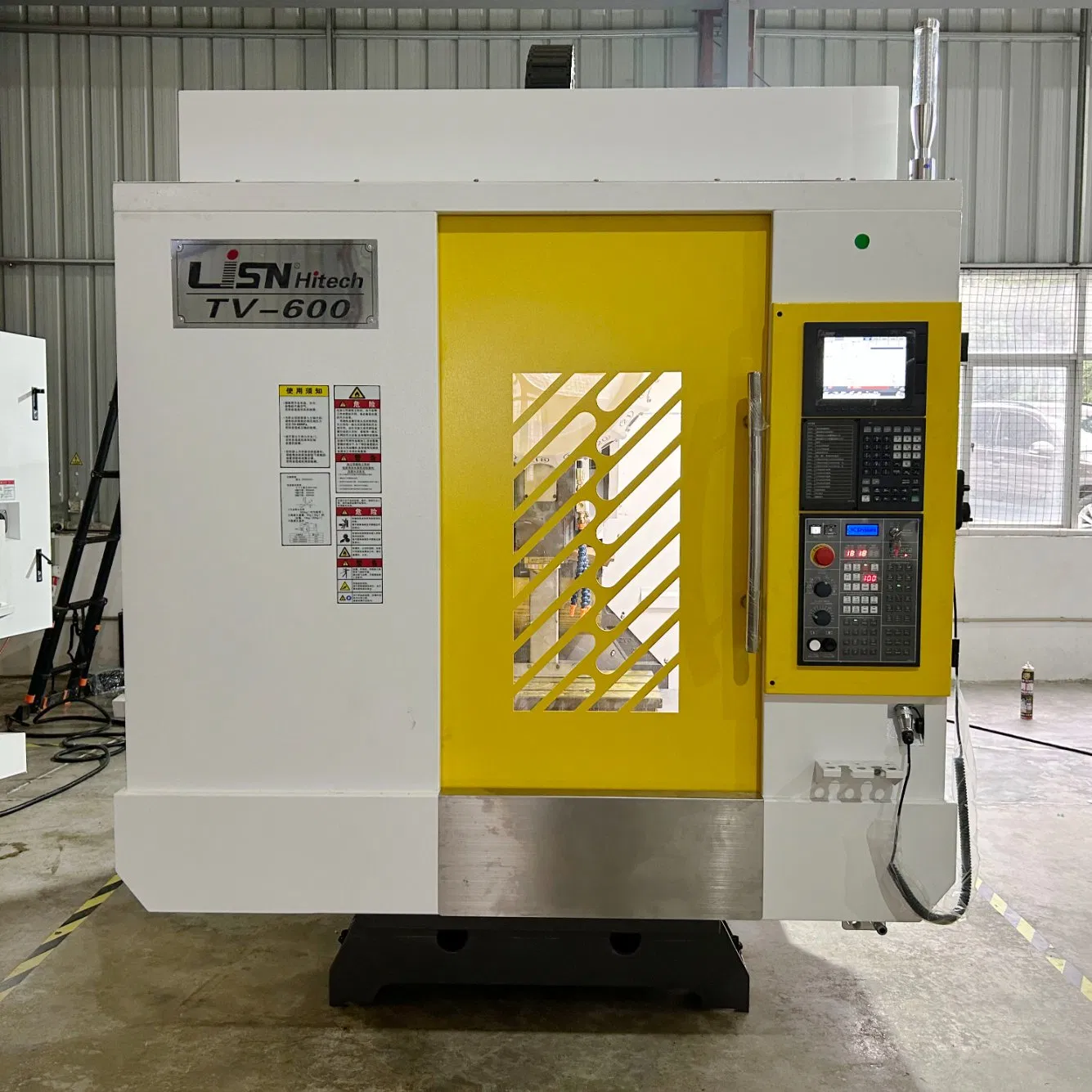

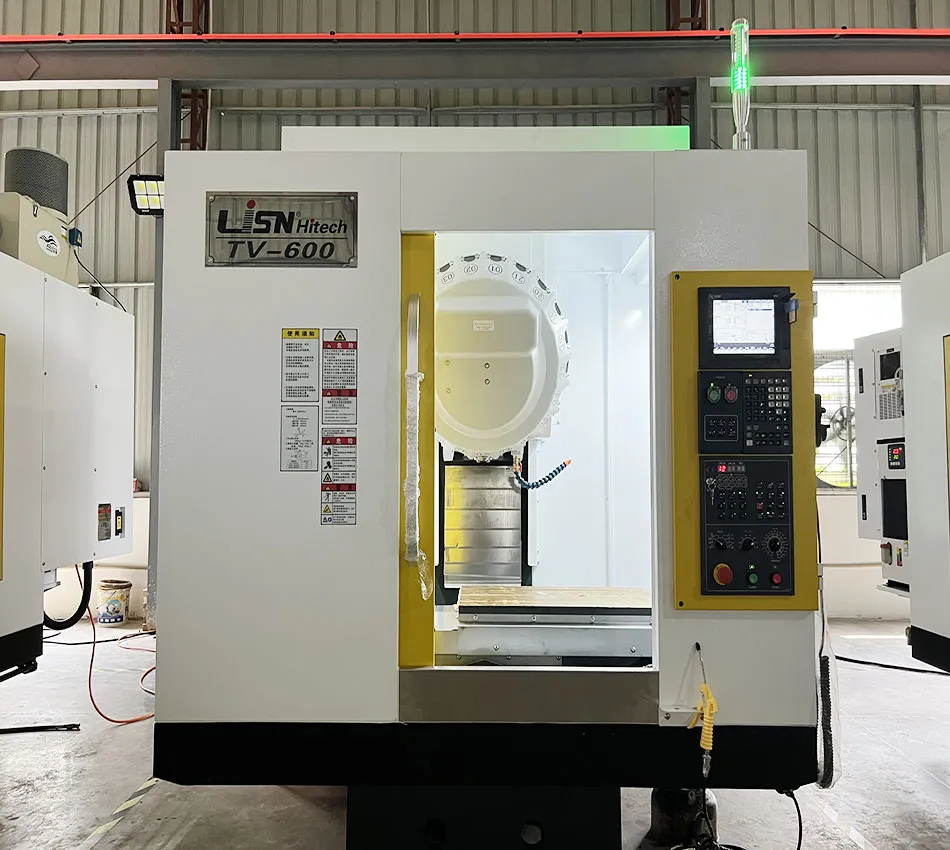

The TV-600 is a high-speed and high-precision CNC Drilling and Tapping Machine Center. The base, saddle, table, column, and other main structures of this machine are manufactured from high-quality materials and have undergone secondary annealing treatment to ensure high rigidity and structural stability.
Equipped with a 200-liter water tank and rear-row crumb system, the drainage channel features a large inclination angle for fast chip liquid re-flux. This allows for rapid chip removal and effectively prevents accumulation. All three axes utilize high-torque motors, providing 1G acceleration and reaching 0-60m in just 0.21 seconds. The straight drive spindle eliminates noise and vibration issues, making it ideal for tapping 2-D and 3-D surfaces of small parts with multiple faces.
Furthermore, the TV-600 incorporates a Thermal Isolated Direct Drive System (TIDD), acting as a heat source barrier. This system effectively blocks motor heat conduction to the spindle, significantly reducing thermal elongation.
| ITEM | UNIT | TV600 |
|---|---|---|
| Worktable (Width*Length) | mm | 700x420 |
| Distance Between T Slots | mm | 3×14×125 |
| Max Load of Worktable | kg | 200 |
| X/Y/Z Axis Travel | mm | 600/400/300 |
| Spindle Hole Taper | / | BT30 |
| Spindle Speed Range | r/min | 20000 |
| Max Cutting Feed Speed | mm/min | 1-20000 |

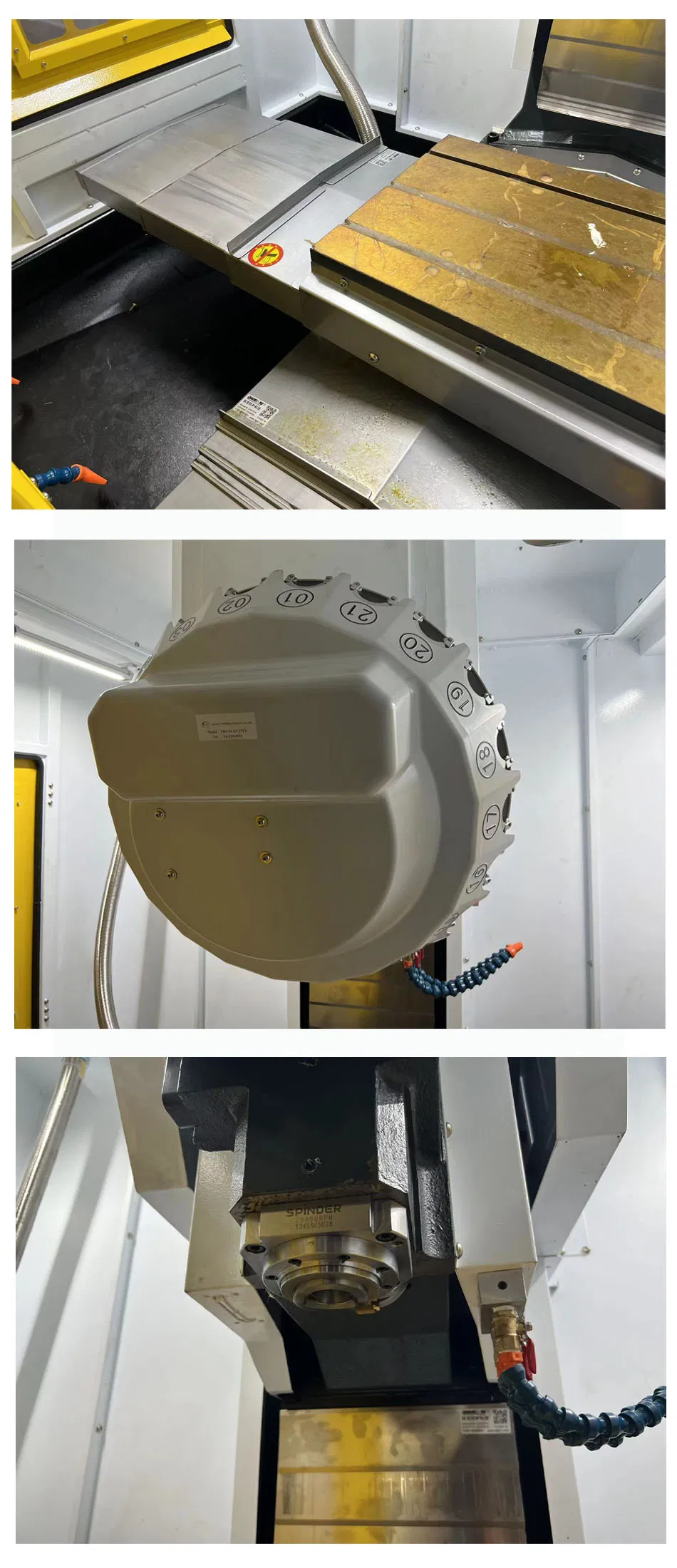

| Tools Magazine Capacity | pcs | 21 |
| X/Y/Z Position Accuracy | mm | ±0.005/300 |
| X/Y/Z Re-position Accuracy | mm | ±0.005 |
| Machine Weight | kg | 3000 |
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun / Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler.
