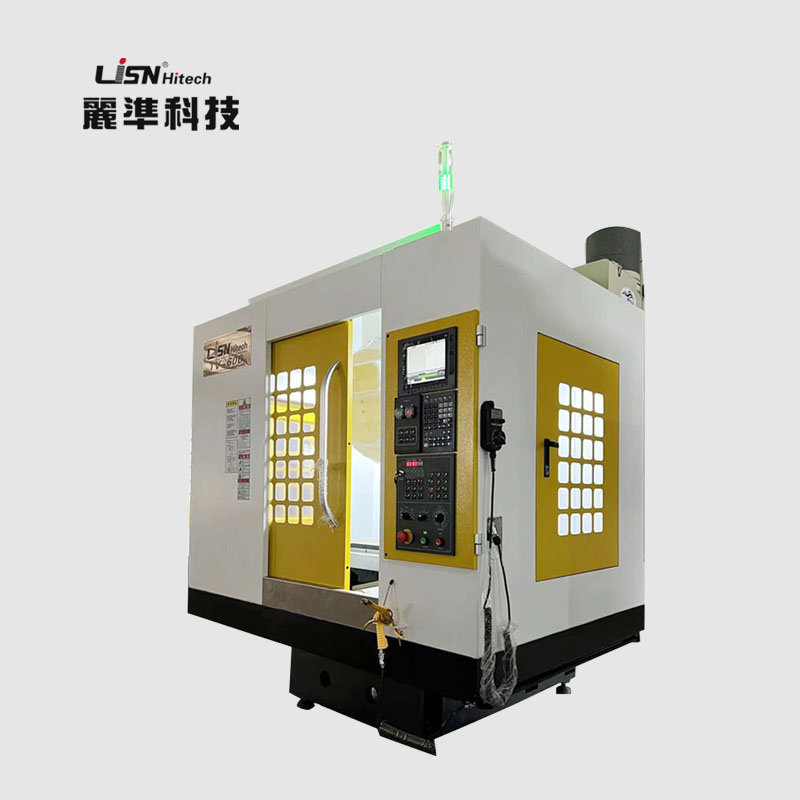

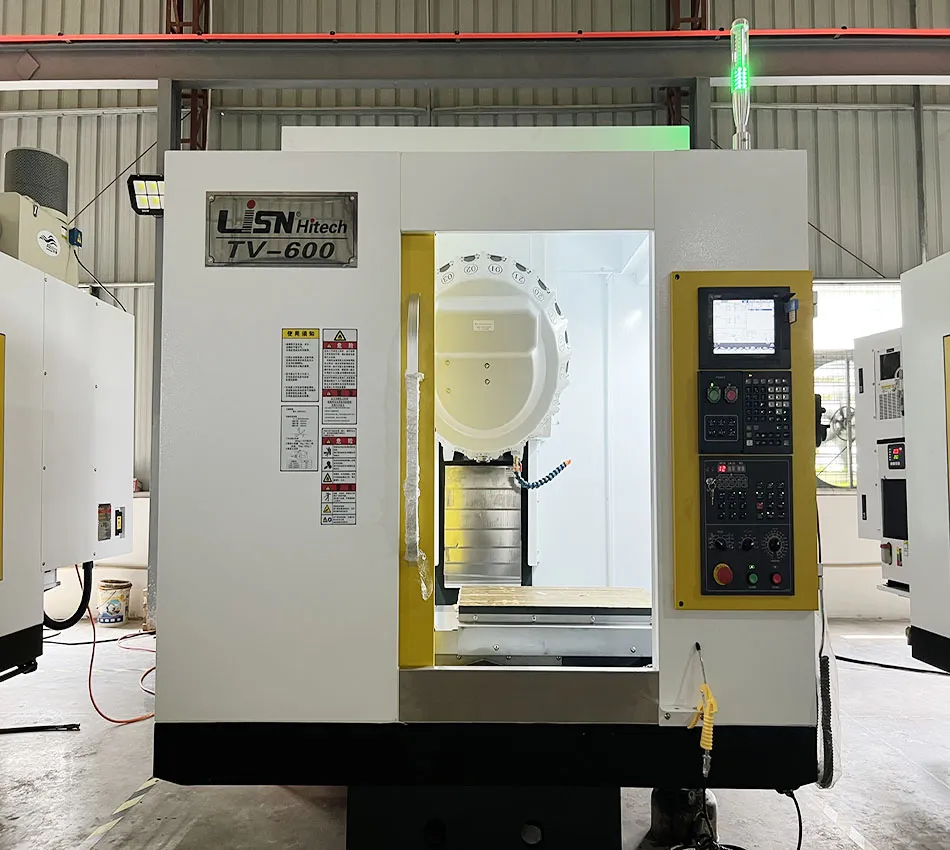

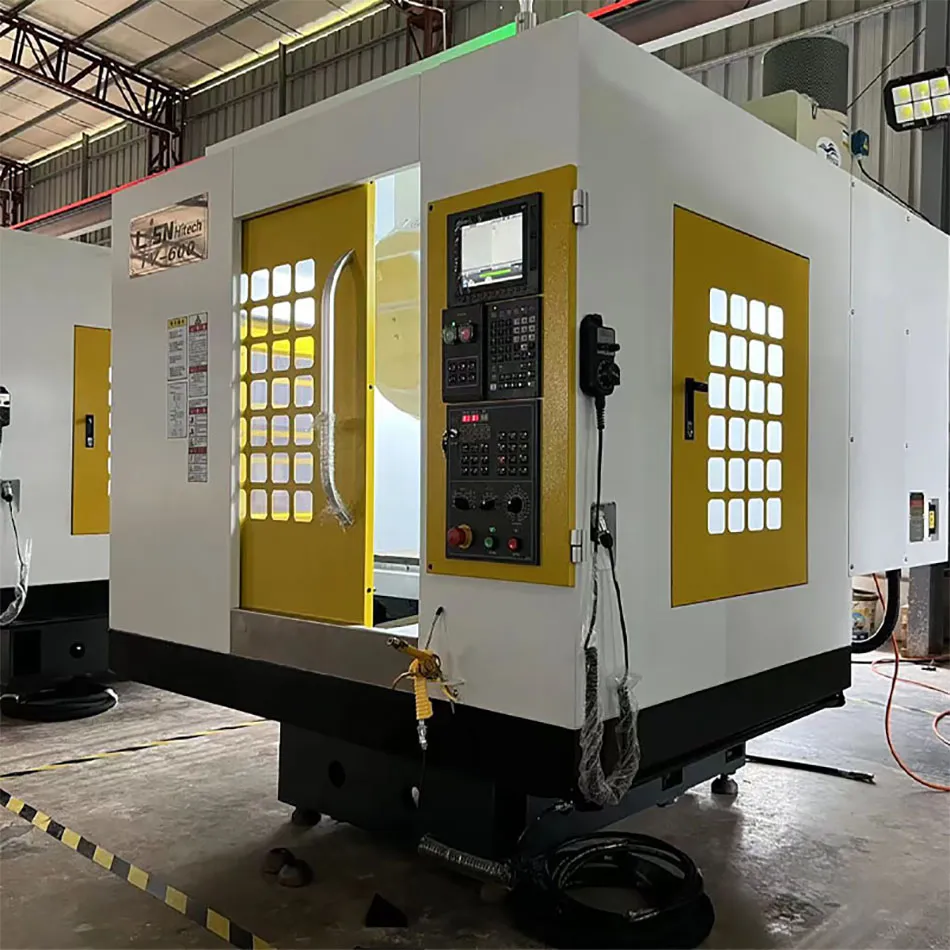

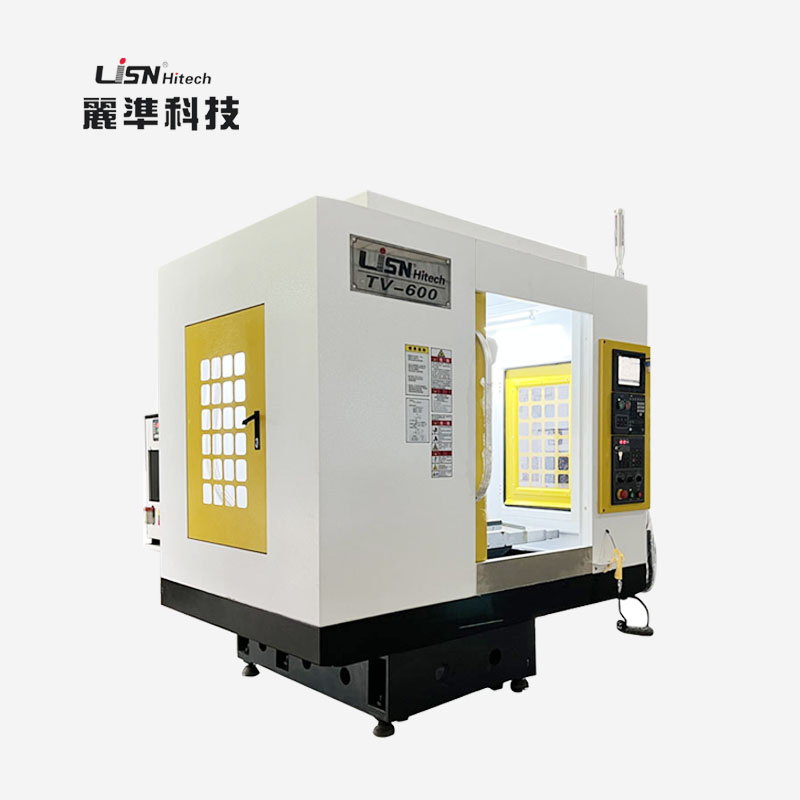

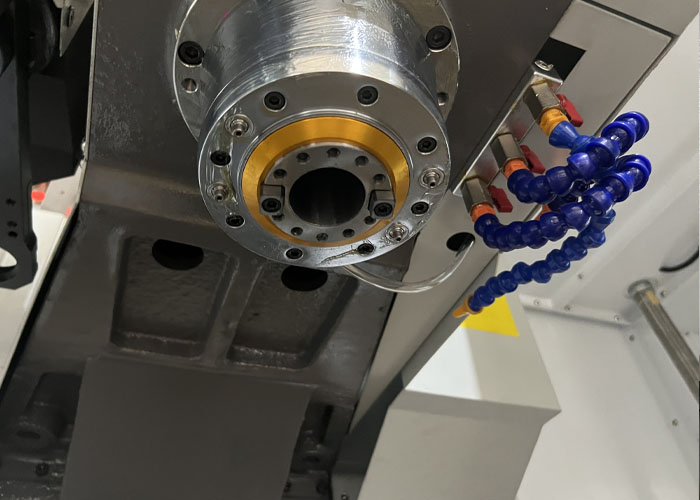

The TV-600 is a high speed and high precision CNC Drilling and Tapping Machine Center. The base, saddle, table, column and other main structures of this machine are made of high quality materials and have undergone secondary annealing treatment to ensure high rigidity and stability of the structure.
This machine is equipped with 200 liter water tank and rear row crumbs. The drainage channel inclination angle is large, chip liquid re-flux speed is fast, allowing it to quickly wash away and remove chips effectively. All three axis use high-torque motors, providing 1G acceleration and achieving 0-60m in 0.21 seconds. The straight drive spindle eliminates noise and vibration issues, making it suitable for tapping 2-D and 3-D surfaces of various small parts.
The TV-600 utilizes a Thermal Isolated Direct Drive System (TIDD), which effectively blocks motor heat conduction to the spindle, significantly reducing thermal elongation.
| ITEM | MODELS | TV600 |
|---|---|---|
| WORKTABLE (WIDTH*LENGTH) | mm | 700x420 |
| DISTANCE BETWEEN T SLOTS | mm | 3×14×125 |
| MAX LOAD BEARING OF WORKTABLE | kg | 200 |
| X/Y/Z AXIS TRAVEL | mm | 600/400/300 |
| SPINDLE HOLE TAPER | / | BT30 |
| SPINDLE SPEED RANGE | r/min | 20000 |
| MAX CUTTING FEED SPEED | mm/min | 1-20000 |

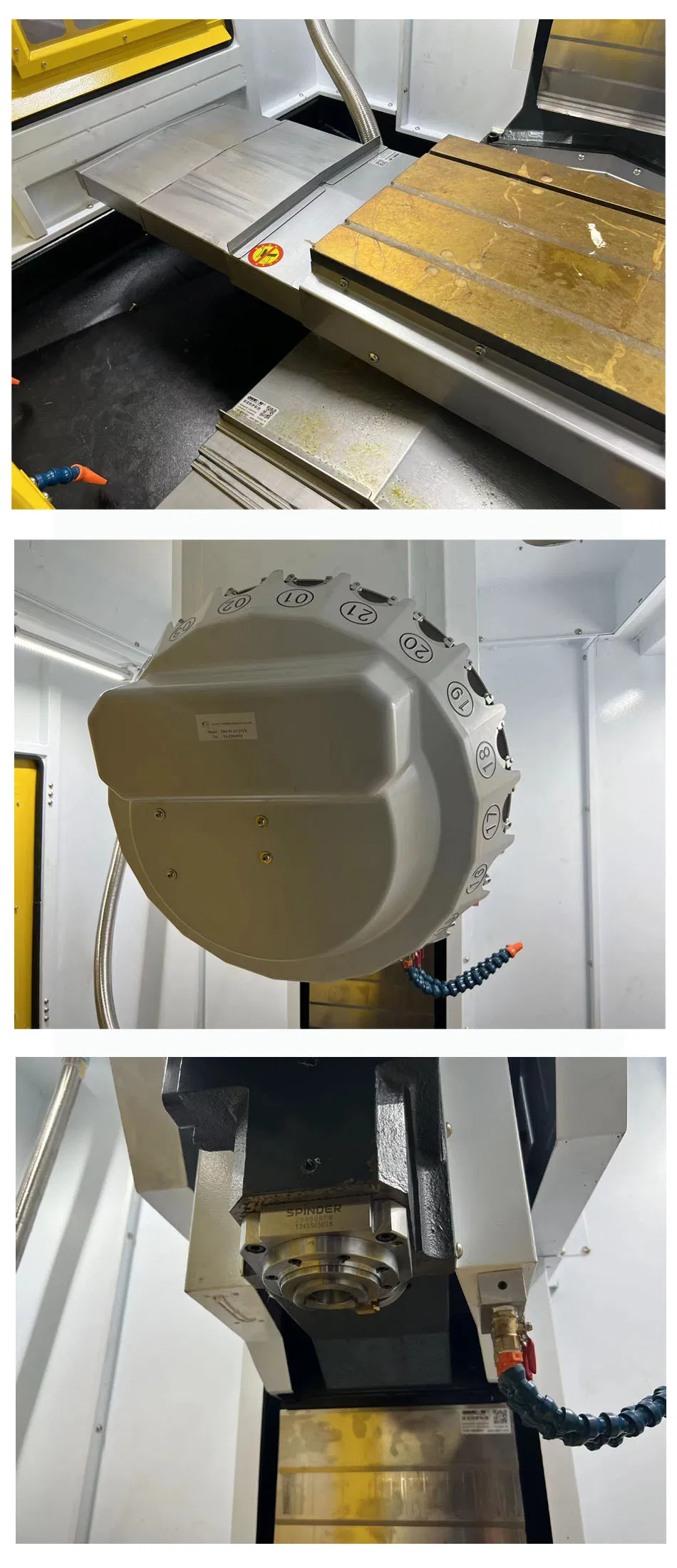

| TOOLS MAGAZINE CAPACITY | pcs | 21 |
| X/Y/Z POSITION ACCURACY | mm | ±0.005/300 |
| X/Y/Z RE-POSITION ACCURACY | mm | ±0.005 |
| MACHINE DIMENSION | mm | 1930×2450×2450 |
| MACHINE WEIGHT | kg | 3000 |
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Self-powered electrical shutoff system / Clean air gun / Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler.
