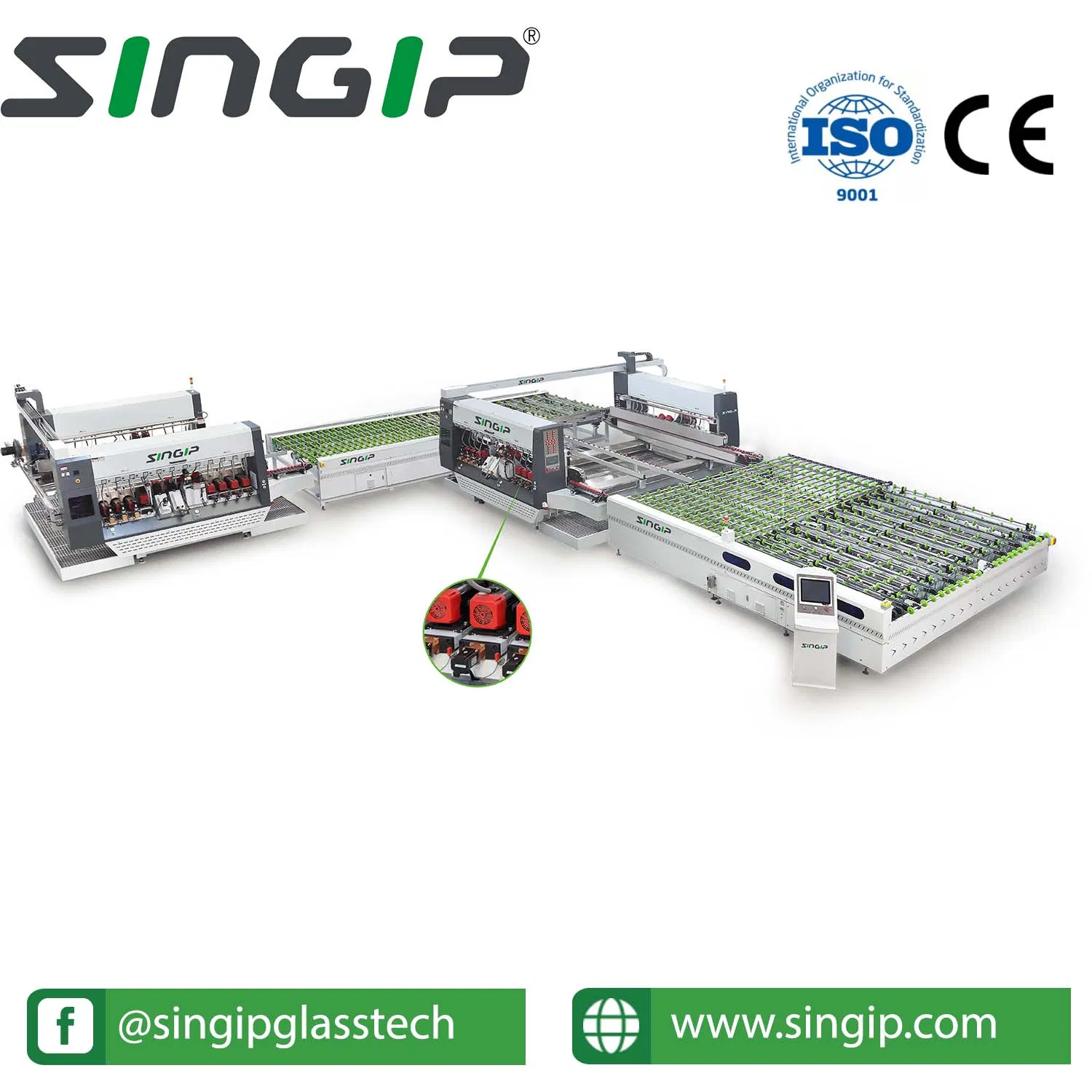

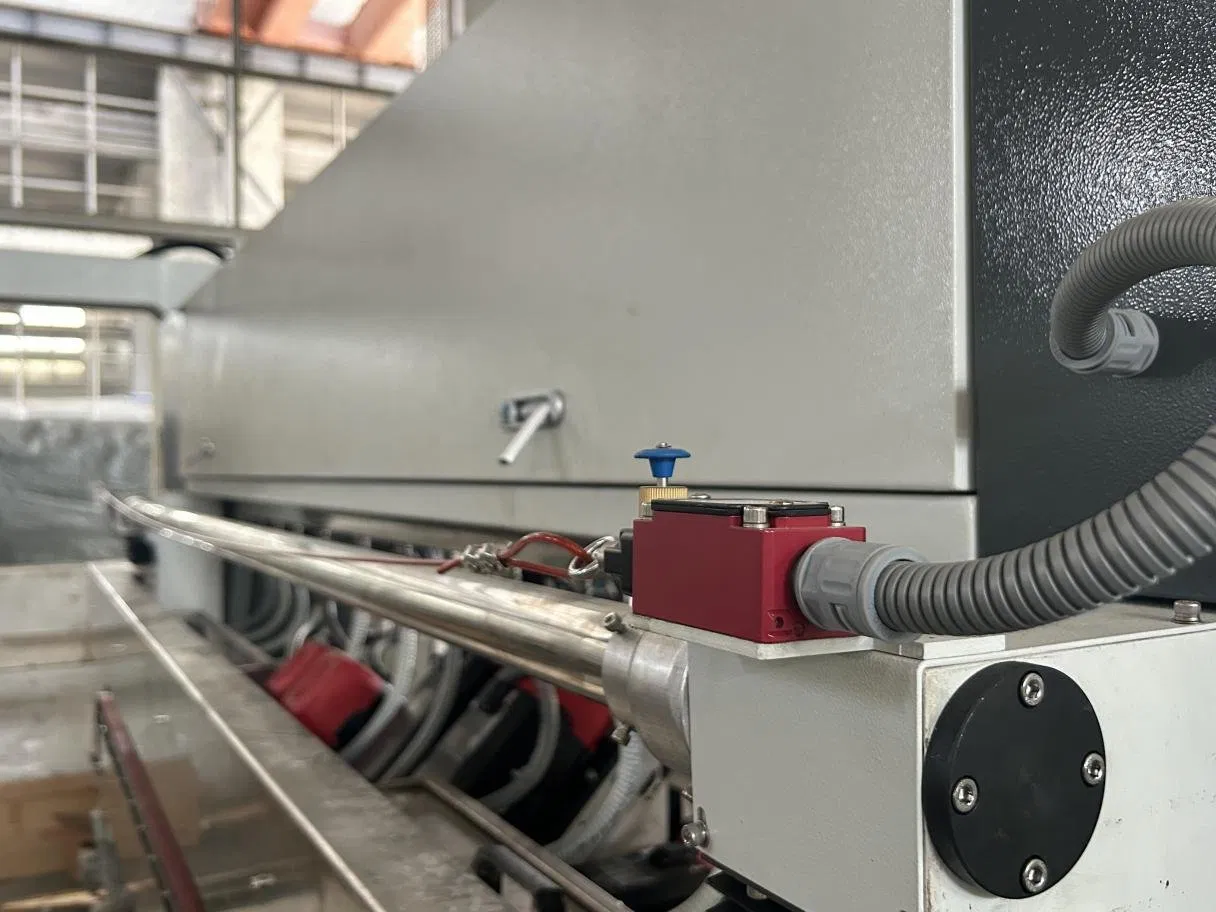

Intelligent High Speed Full Automatic Glass Double Edging Production Line

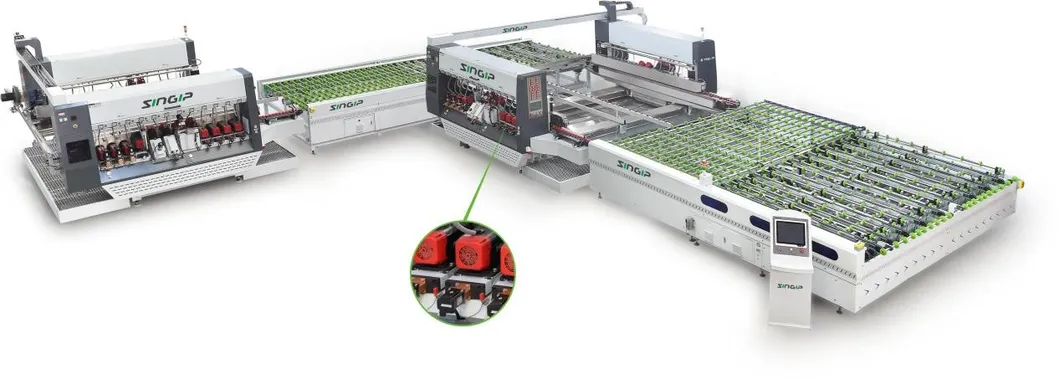

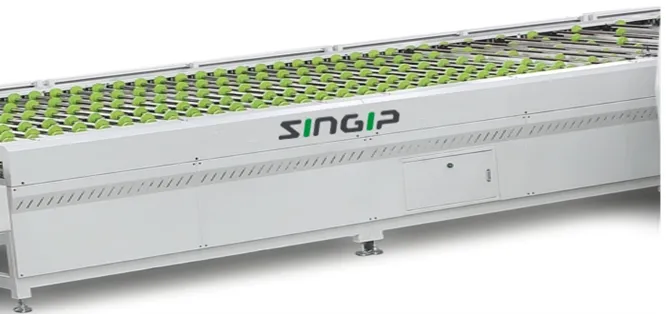

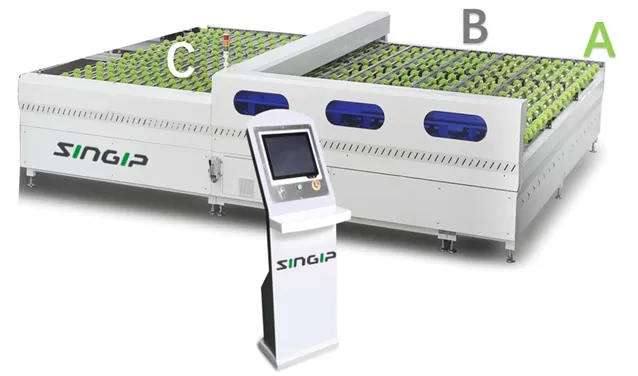

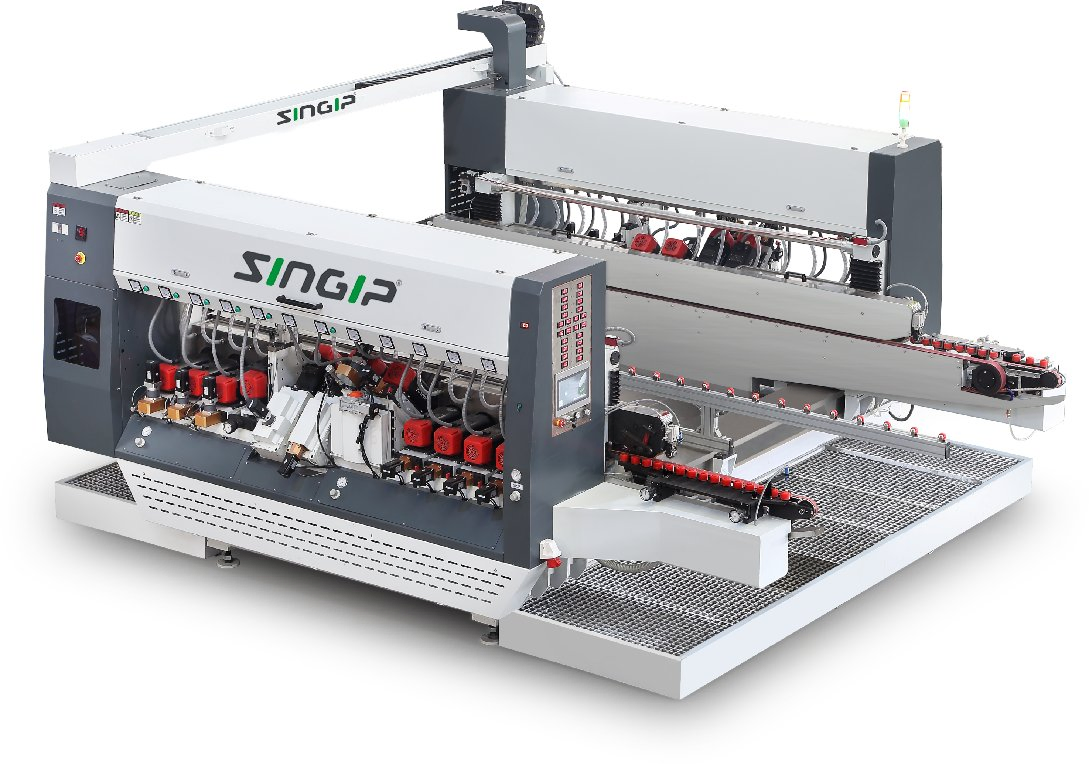

This 18-grinding-head glass high-speed intelligent double-edging production line consists of a testing platform, two glass high-speed intelligent double-edging machines, and an L-shaped turning platform. It is specifically designed for processing double straight edges of flat glass, suitable for construction and furniture industries.
| Model | Min Processing Size | Max Processing Size | Transmission Speed |
|---|---|---|---|
| SSZM-G18AC(P)-3025L | 300*300mm | 3000*2500mm | Max 25m/min |
| SSZM-G18AC(P)-3725L | 300*300mm | 3700*2500mm | Max 25m/min |
| SSZM-G18AC(P)-4530L | 330*300mm | 4500*3000mm | Max 25m/min |
| SSZM-G6030L | 450*300mm | 6000*3000mm | Max 25m/min |

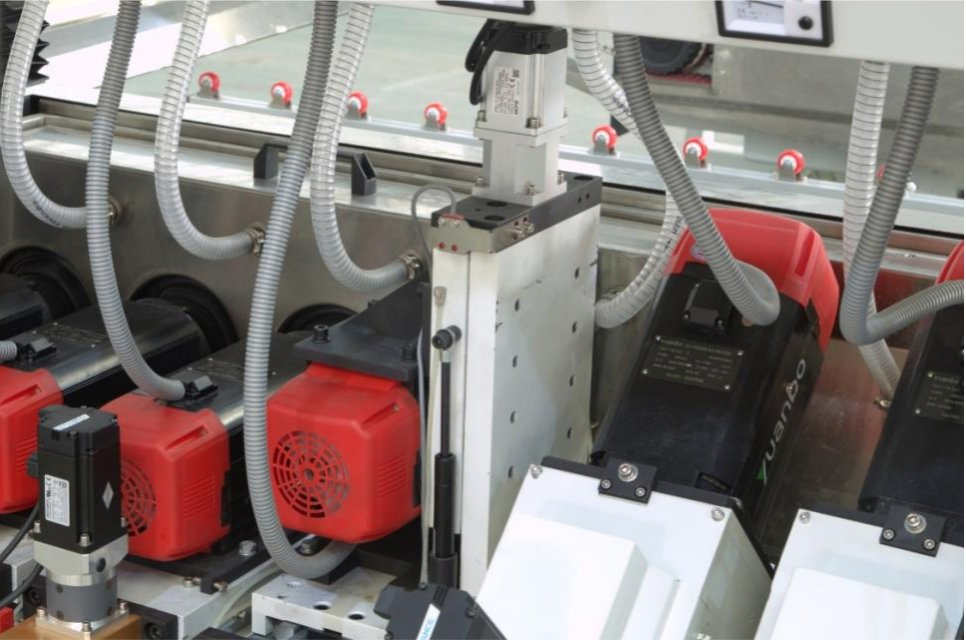

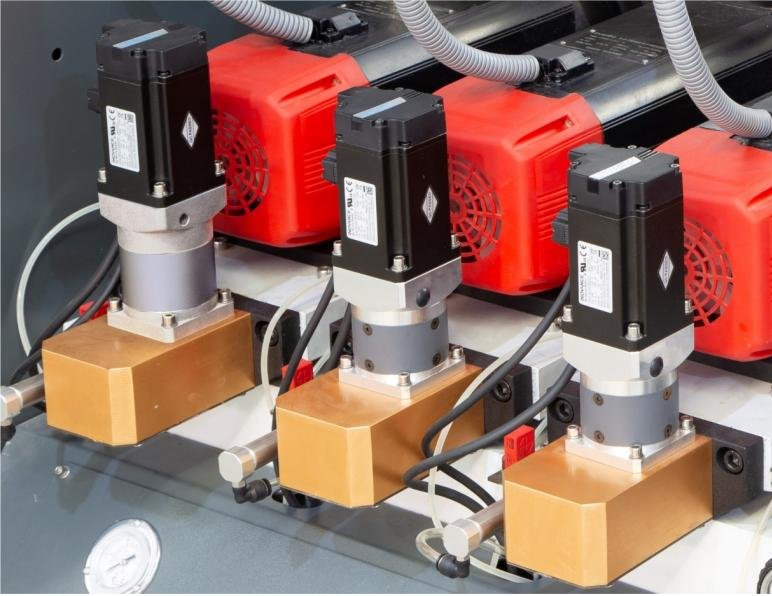

| No. | Use | Motor Power | Wheel Type | Feed Method |
|---|---|---|---|---|
| 1#-2# | Bottom Rough Grinding | 4KW 5500RPM | Diamond Wheel | Servo Feed |
| 3#-4# | Upper Chamfer Rough/Polish | 2.2KW | Resin/Polishing | Servo Feed |
| 5#-6# | Lower Chamfer Rough/Polish | 2.2KW | Resin/Polishing | Servo Feed |
| 7#-8# | Bottom Fine/Polishing | 3KW/2.2KW | Resin/Polishing | Servo Feed |
| 9# | Film Removal/Polishing | 2.2KW | Optional | Servo Feed |

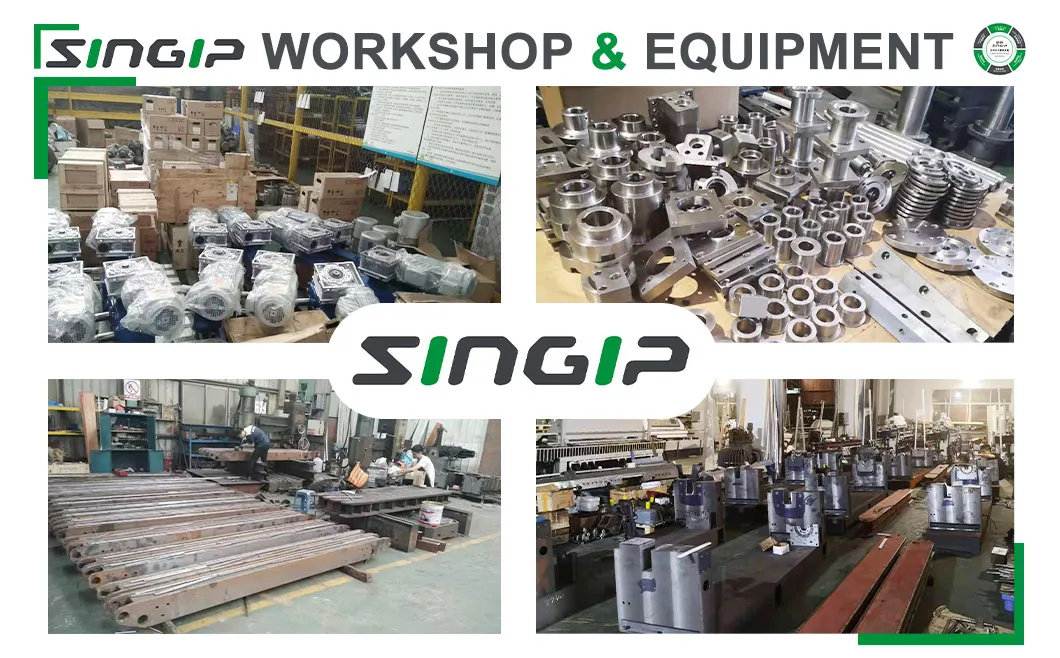

Specializing in industrial machinery, our production lines are designed for efficiency and precision. We provide high-quality cold-processing machinery, consulting, and technical support services. Our workshop is equipped with diverse machines and organized to store precision parts and advanced equipment.
