Singip Glass Four-Sides Edging Machine with 12 Grinding Heads

1 / 5

Singip Glass Four-Sides Edging Machine with 12 Grinding Heads

Customization:	Available
Certification:	CE, ISO
Processing Speed:	1~40m/Min

Send Inquiry

Product Description

Basic Specifications

Model NO.SXL1220DL

Processing Thickness3-12mm

Voltage380V

Warranty1 Year

Air Pressure≥0.6MPa

Water Tank530L

Power22kw

Grinding Heads12

Chamfer Width0.5~2mm

PackagePlastic Film + Pearl Cotton

Specification7800*4500*2100mm

OriginChina

Product Description

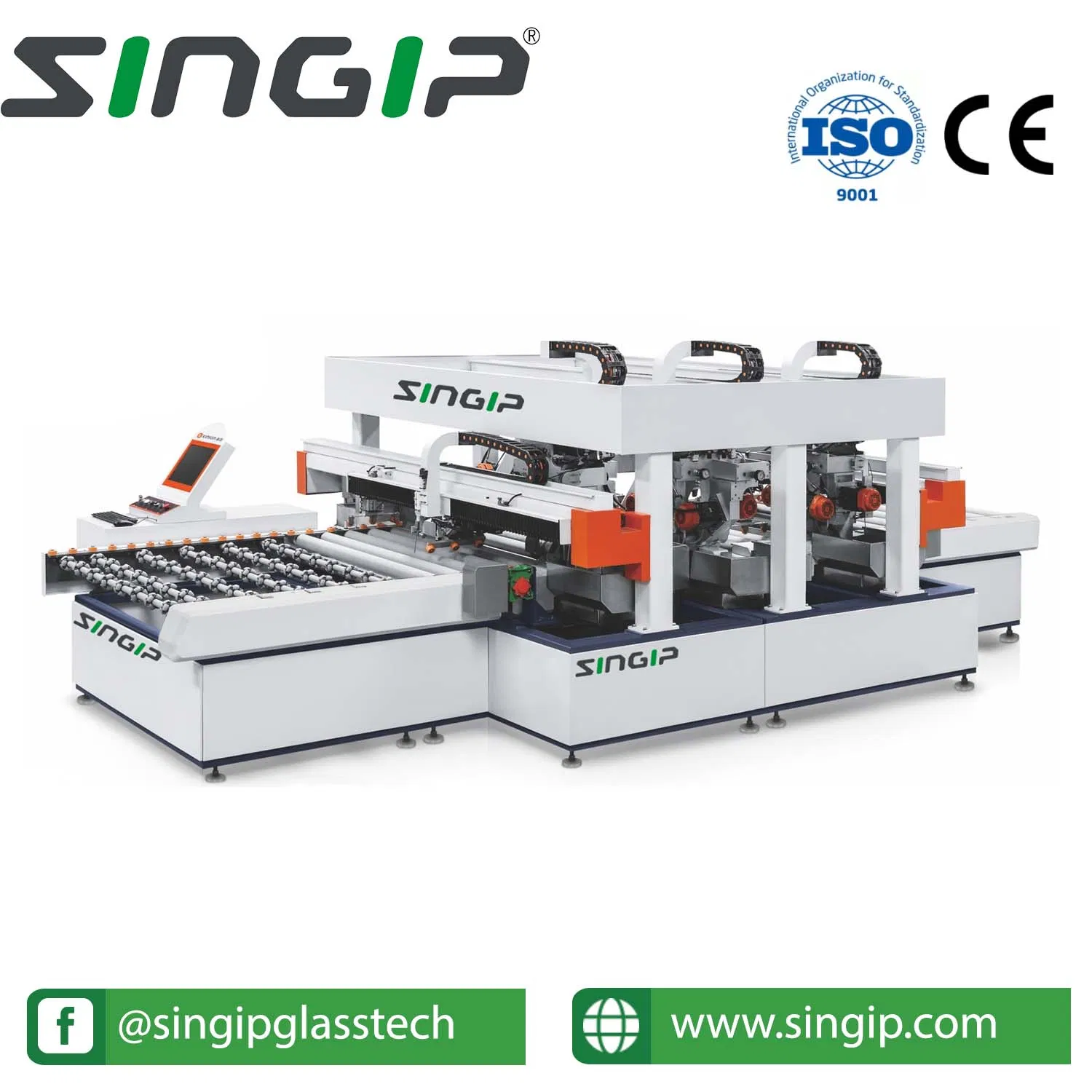

SXL1220DL Horizontal Glass Seaming Machine
Designed for processing insulating glass (IGU) in architecture, doors, and windows. It automatically recognizes glass width and thickness, making it an economic and efficient device. Using an industrial computer control system, it features 3 beams and 4 heads for high-speed automated production.

Main Technical Parameters

Parameter	Value
Model	SXL1220DL
Glass Thickness	3~12 mm
Min. Glass Size	320*650 mm
Max. Glass Size	2000*3000mm
Chamfer Width	0.5~2mm
Grinding Speed	1~40m/min
Efficiency (1000*1000mm)	6 pcs/min
Output (8 hours/day)	2000~2880 pcs
Grinding Head Numbers	12
Voltage/Frequency	380V/50HZ or customized

Unique Design & Structure

Adopt Three beams structure and four grinding heads. Unlike traditional PLC, this machine utilizes a motion controller and premium servo motors for superior transmission speed and network support, ideal for large-scale production.

Key Features

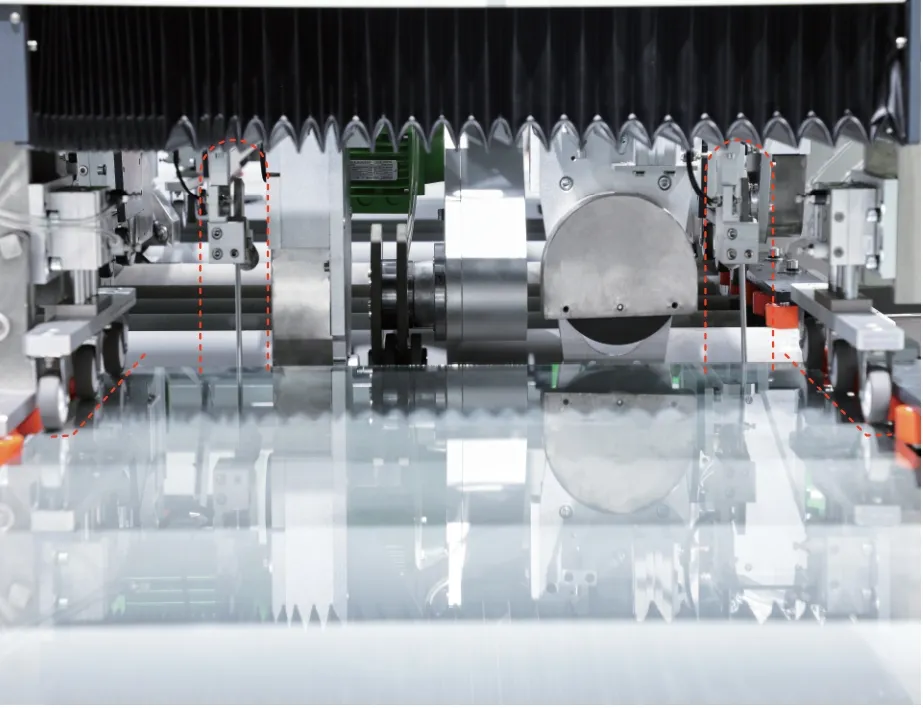

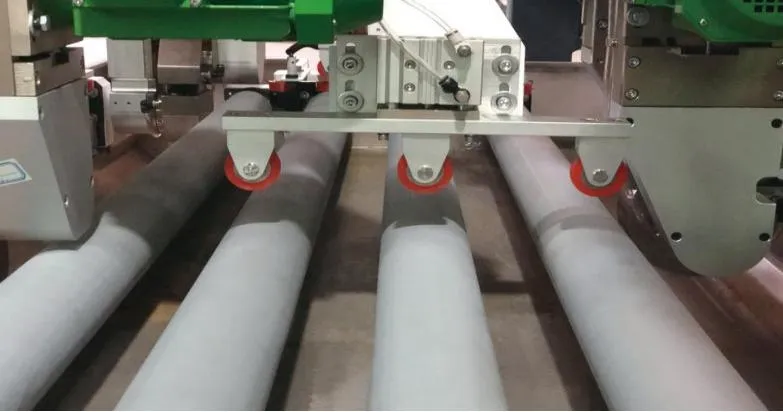

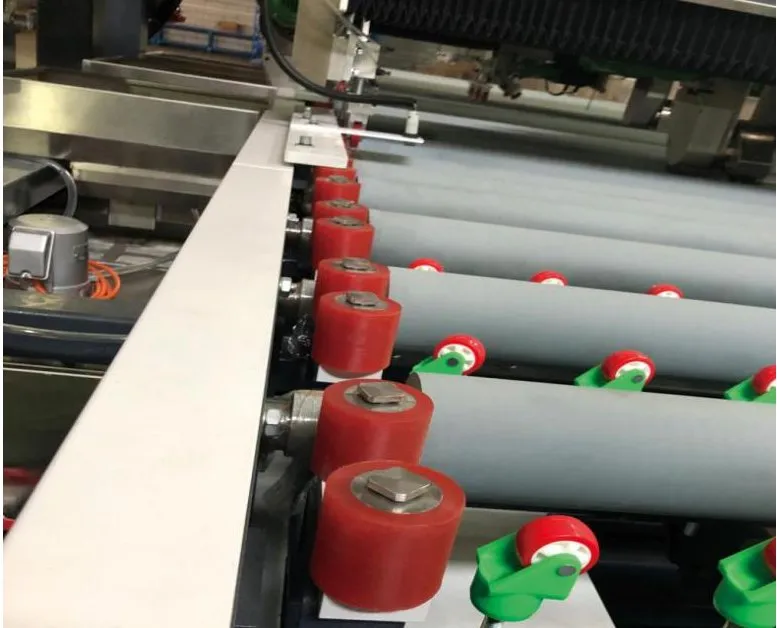

Servo driver and rubber roller for synchronous transmission and stable positioning.
Linear guide and helical gear rack for minimum gap and wear resistance.
Non-contact glass positioning probe for extended service life.
Easy processing of 3-12mm thickness without manual adjustments.
Double-row roller chain for quieter and more stable operation.
High-speed opening/closing (up to 40m/min) via helical rack drive.
Upper and lower arris grinding wheels with cross-structure design.
Space-saving design by canceling grinding head cylinder movements.

Main Configuration

Component	Description
Beam frame	Welded steel with annealing treatment
Linear guide	Taiwan HIWIN / Ender
Grinding motor	KENT from UK
Servo driver	MOTONG High-end 8-in-1 drive
Control system	Industrial Ethernet technology (German brand)
Sensors	Bonner / Banner (USA) & Micro Detectors (Italy)
Pneumatics	Airtac (Magnetic valves & cylinders)
Bearings	NSK

Technical Details

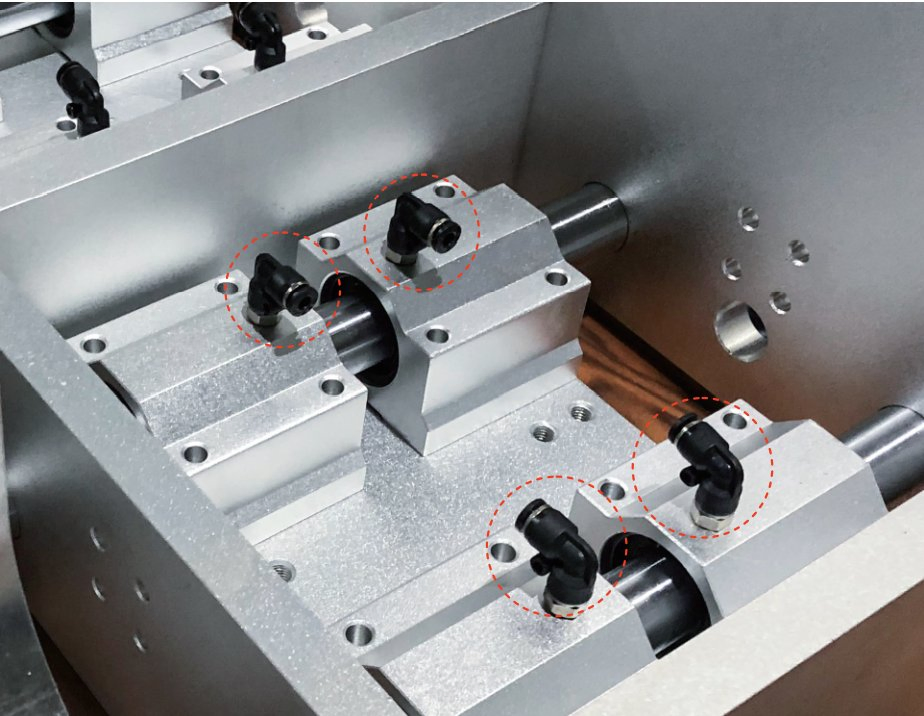

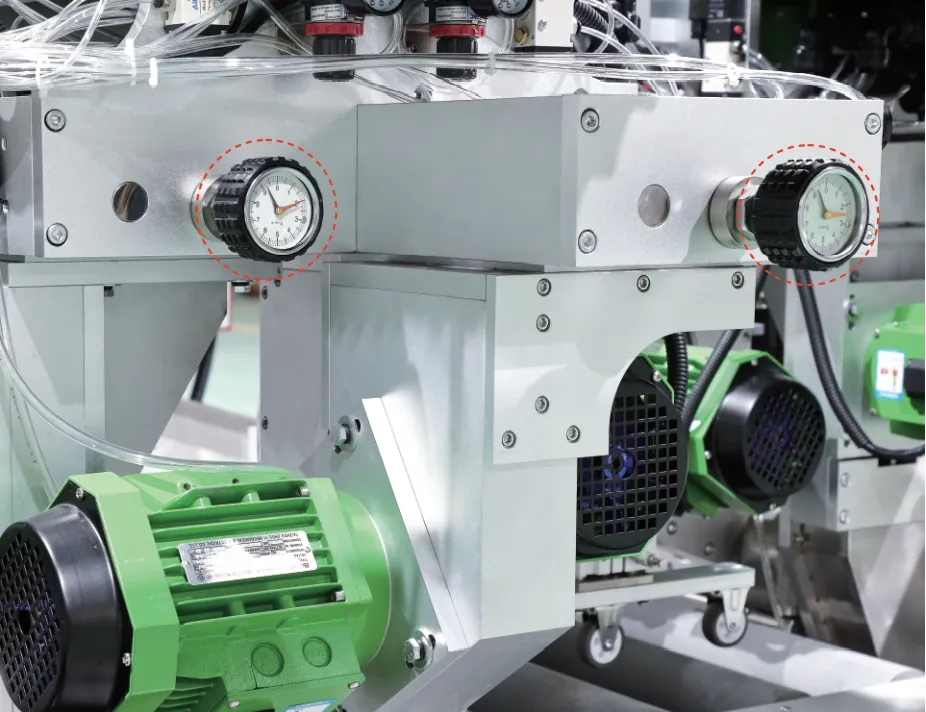

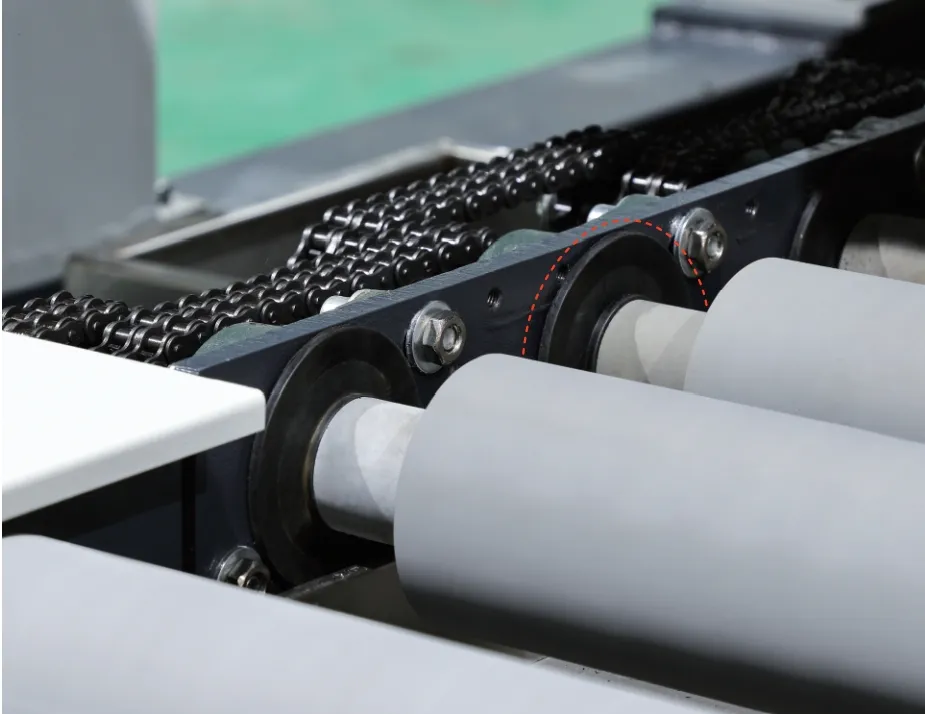

1. Patented Waterproof & Feeding Design

Daily use only needs regular lubrication

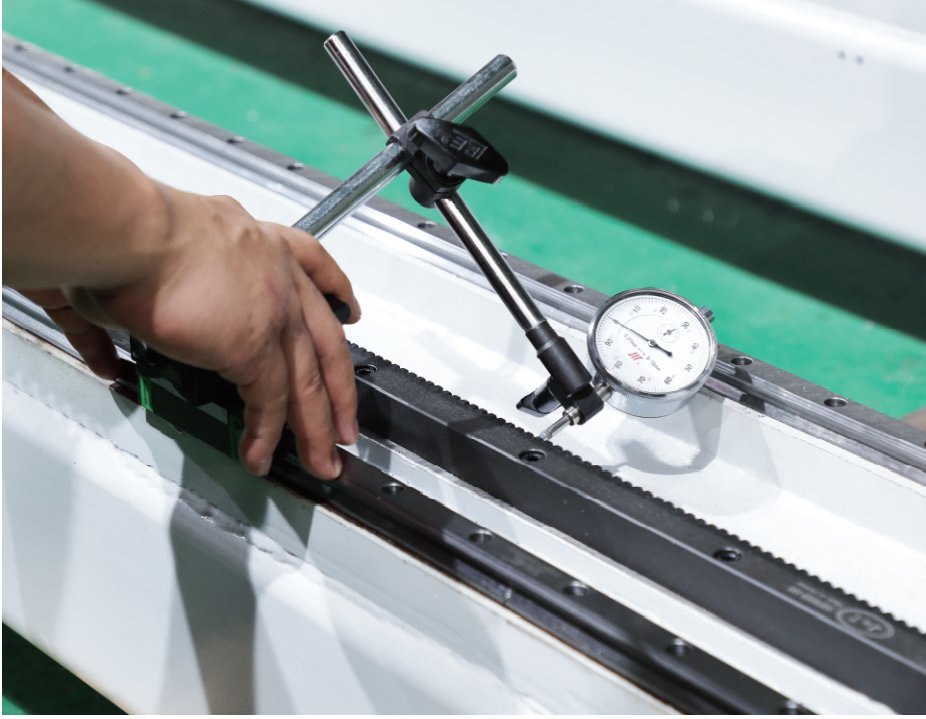

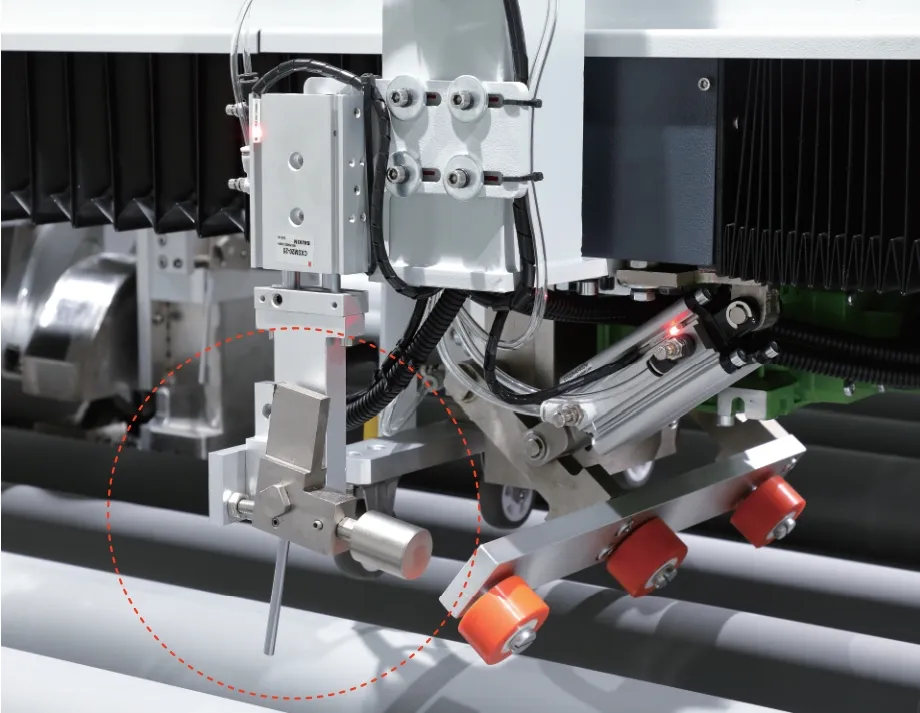

2. Guiding & Position Detection

Low maintenance cost and longevity.

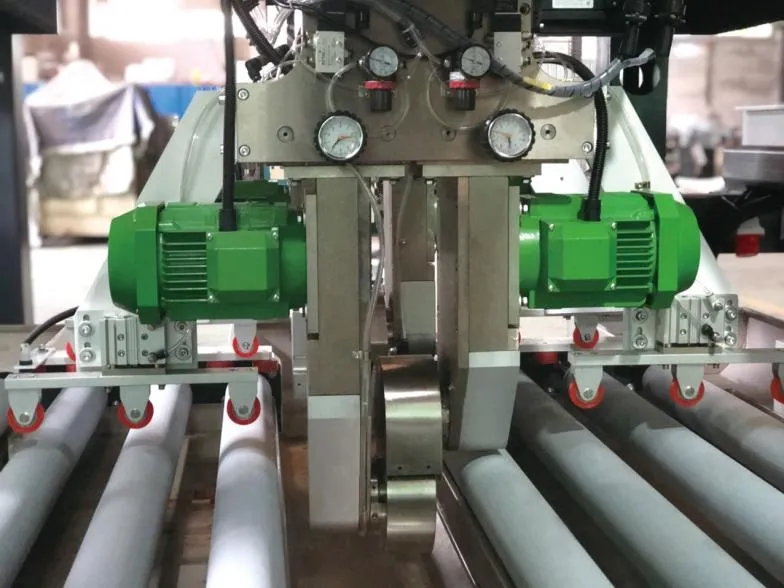

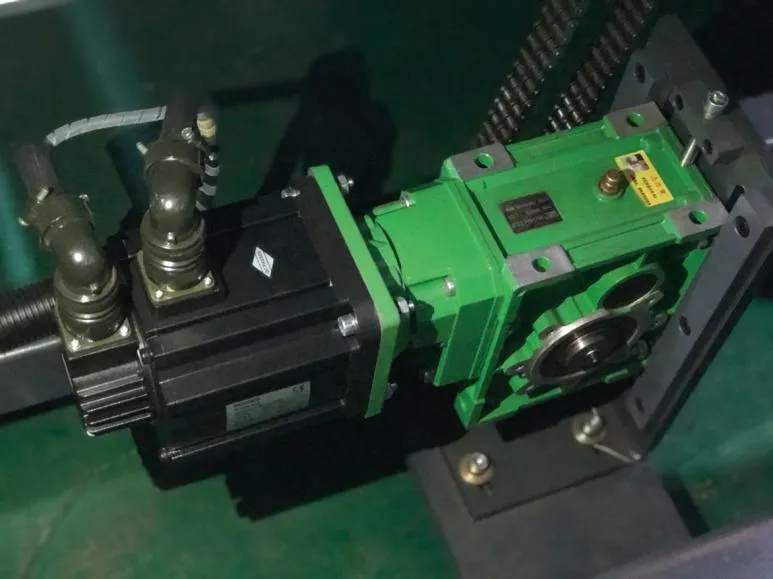

3. Motors & Transmission

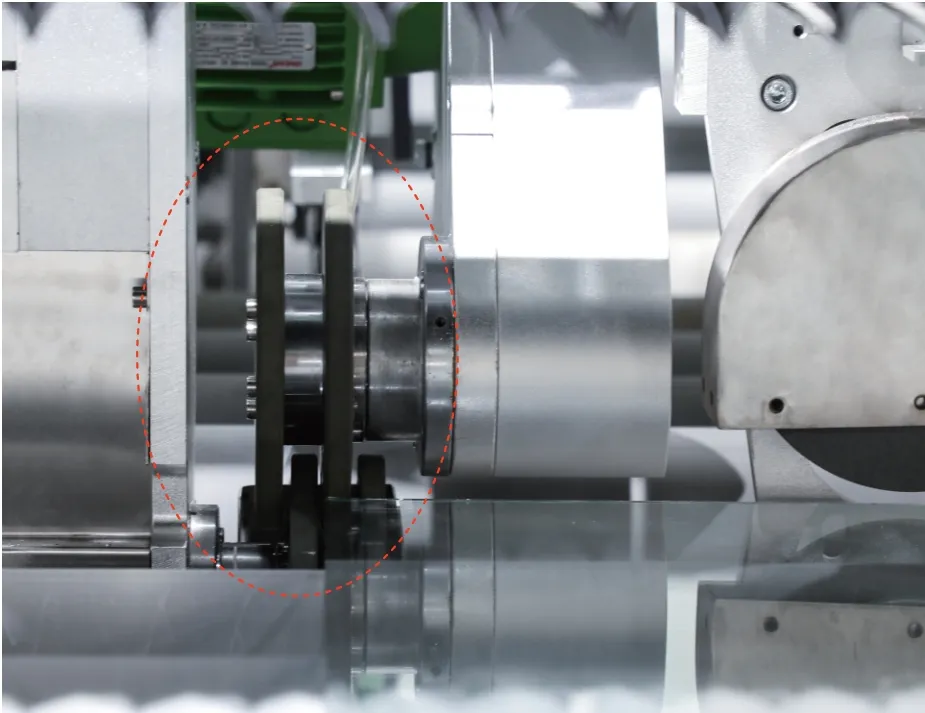

4. Advanced Arris Grinding Technology

The upper and lower chamfering cross-wheel edging adopts static feeding. The wheels won't move to grind until they touch the glass, preventing glass bending or damage.

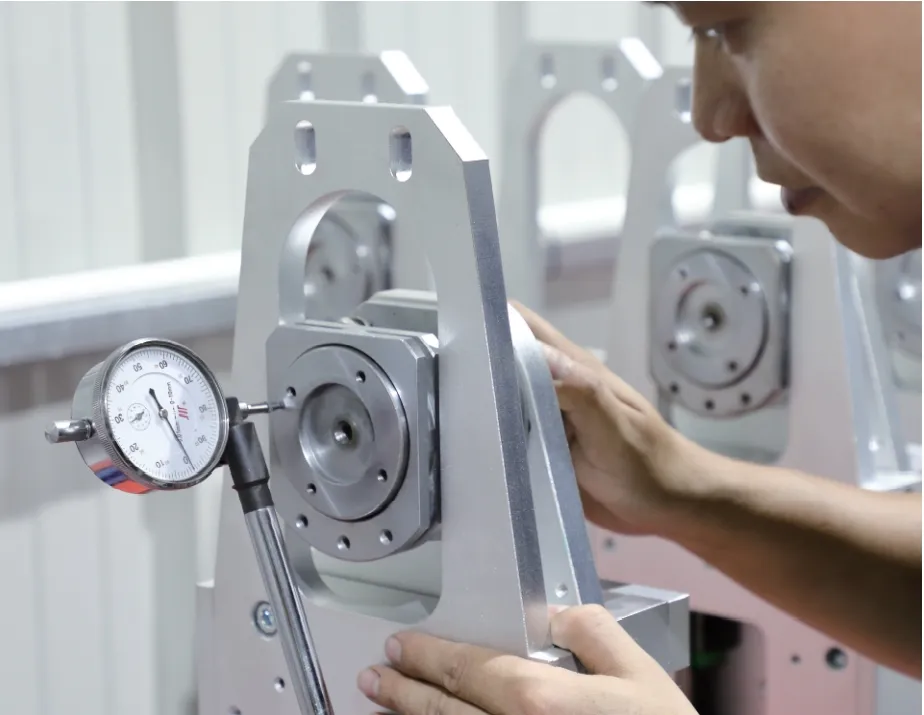

5. Manufacturing Precision

Frequently Asked Questions

Q1: What range of glass thickness can the SXL1220DL handle?

The machine is specifically designed to process glass with a thickness ranging from 3mm to 12mm automatically.

Q2: How does the machine identify glass dimensions?

It utilizes an industrial computer control system and advanced sensors to automatically recognize both the width and thickness of the glass.

Q3: What is the maximum production efficiency?

For standard 1000*1000mm glass, the machine can process approximately 6 pieces per minute, leading to an estimated daily output of 2000-2880 pieces.

Q4: Does the machine require high maintenance for its bearings?

No. It features a patented waterproof design for the bearing seats, which prevents water from entering, significantly reducing maintenance work and damage.

Q5: Can it be integrated into an automated production line?

Yes, its 3-beam and 4-head pass-through structure is specifically designed for seamless connection into automated production environments.

Q6: What brands of components are used in this machine?

The machine uses high-end international components, including HIWIN guides, NSK bearings, Airtac pneumatics, and UK-branded grinding motors.
