Silicone Sealant Double Components Insulating Glass Production Line

1 / 5

Silicone Sealant Double Components Insulating Glass Production Line

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Send Inquiry

Product Description

📋

Basic Info.

Model NO.

SMT 1800

Total Power

380V50Hz 11kw

Air Pressure

0.5-0.7MPa

Max Glass Size

1800*3000mm

Min Glass Size

350*500mm

Machine Size

10800*3800*3300mm

Working Speed

5-40m/Min

Sealing Depth

2-10mm

Sealing Width

6-20mm

Glass Thickness

12-48mm

Convey Weight

120kg

Type

Insulating Glass Production Line

Grinding Heads

Condition

New

HS Code

8464201000

🤖

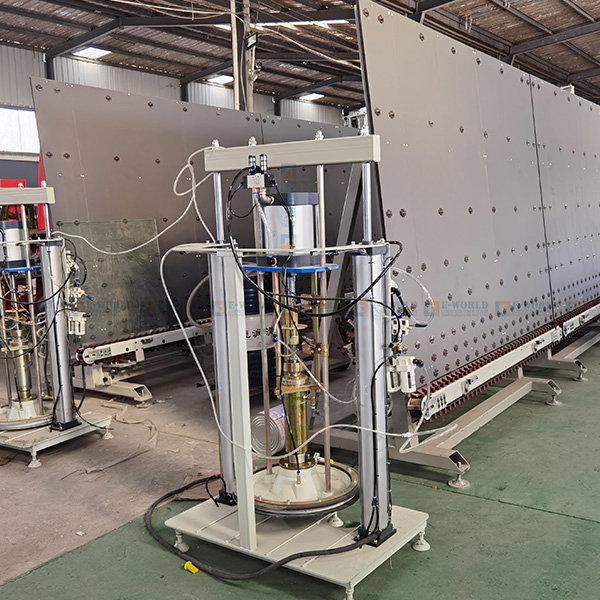

Insulating glass sealing robot

Brief Introduction

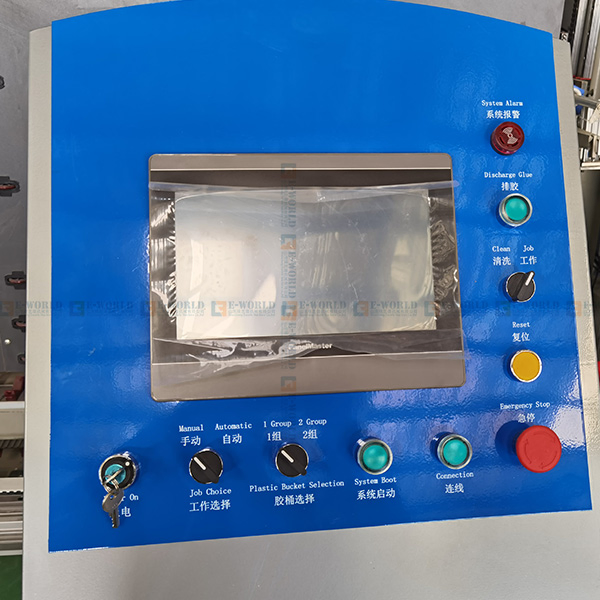

High automation, suitable for glass deep processing enterprise to use. Whole machine adopt man-machine interface, the operation is more convenient and intuitionistic. The glass edge and corner is full without air bubbles, smooth surface. Using two sets of independent sealant supply system, two kinds of sealants switch easily. Servo control system adopts world famous brand, ensuring stable performance.

📊

Technical Parameters

Model	Total Power	Air Pressure	Squeeze Pressure
SMT-1800	380V50HZ 11KW	0.5-0.7MPa	32MPa
Max Glass size	Min Glass Size	Working Speed	Size of Machine
1800*3000mm	350*500mm	5-40m/min	1080038003300mm

💡

Core Features

Applying CNC control system with 9-axis servo motors movement.
Servo motor drive hydraulic pump for precise ratio control.
Automatically checks sealing depth and spacer width.
Rinse system with basic material minimizing waste.
Automatic corner trimming function.
Perfect chain driving style for stable and clean conveying.
Available for polysulfide, silicon, and polyurethane.
Free option for straight line and irregular shape sealing.

🔍

Technical Details

Frequently Asked Questions

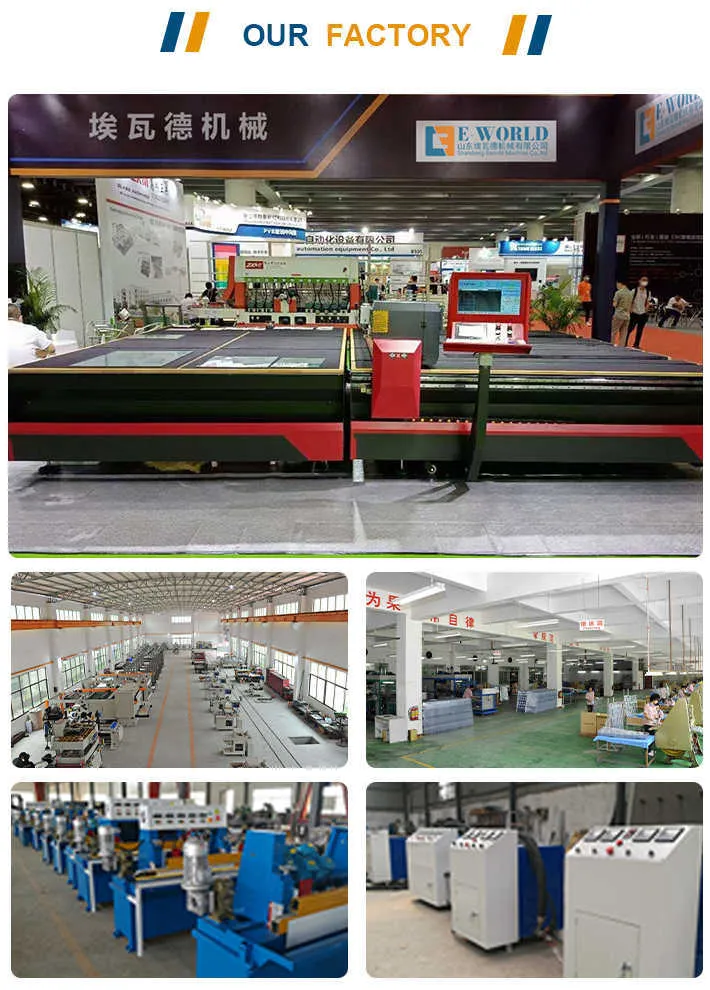

Q1: Are you a professional manufacturer? Answer: Yes, we are a professional manufacture with extensive production facilities and multiple specialized workshops.

Q2: What kind of after-sales service do you provide? Answer: We provide 24-hour after-sale service and technical support. Our team has over 12 years of experience in this field, ensuring smooth communication and effective solutions.

Q3: What is the warranty period for the equipment? Answer: We offer an 18-month guarantee for the machine. Additionally, we provide a 2-year quality guaranty for major components (excluding consumables) and offer technical support via email or call.

Q4: Do you provide equipment operation training? Answer: Yes. Professional engineers can be sent to the working site for equipment installation, adjustment, and comprehensive operation training for your staff.

Q5: Why should we choose your machines over lower-priced alternatives? Answer: Quality is determined by internal components and service. We use world-famous and reliable electronic parts to minimize breakdowns and ensure long-term stability.

Q6: How long is the delivery time for a standard machine? Answer: For standard machines, the delivery time is typically 3-15 days. For customized or non-standard requirements, it ranges from 15 to 30 days.
