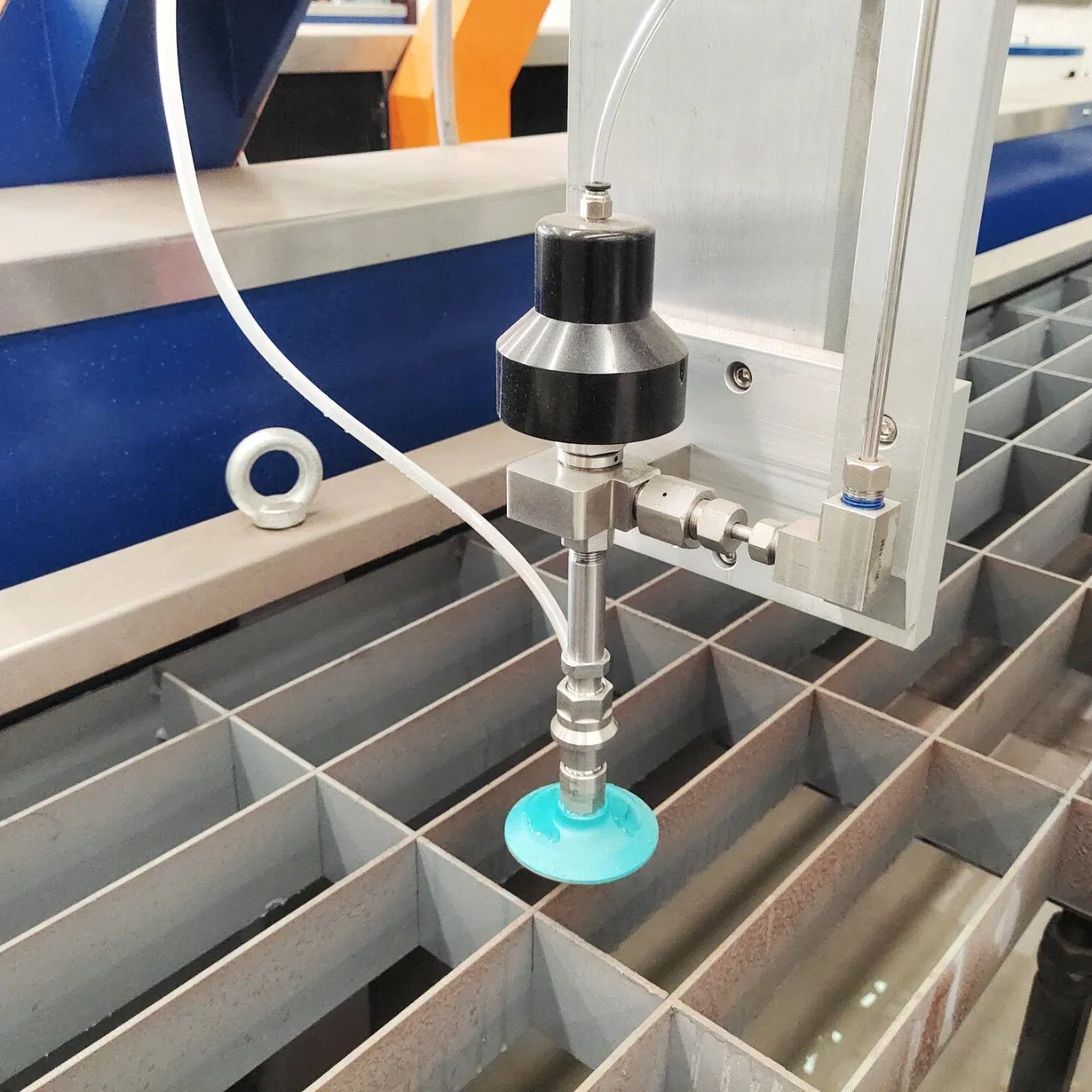

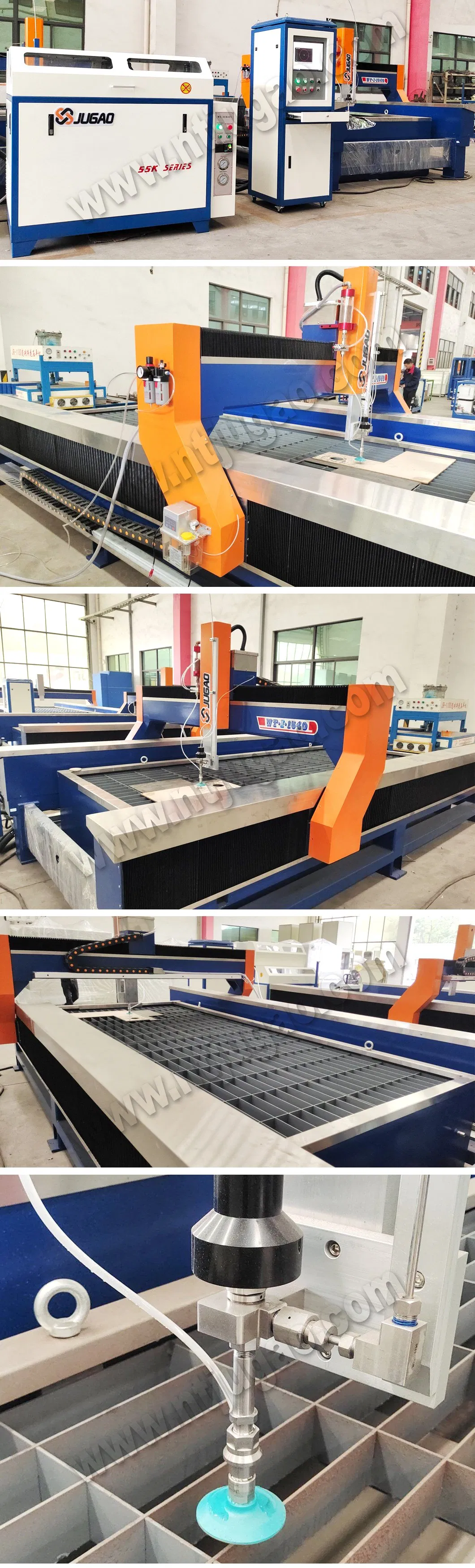

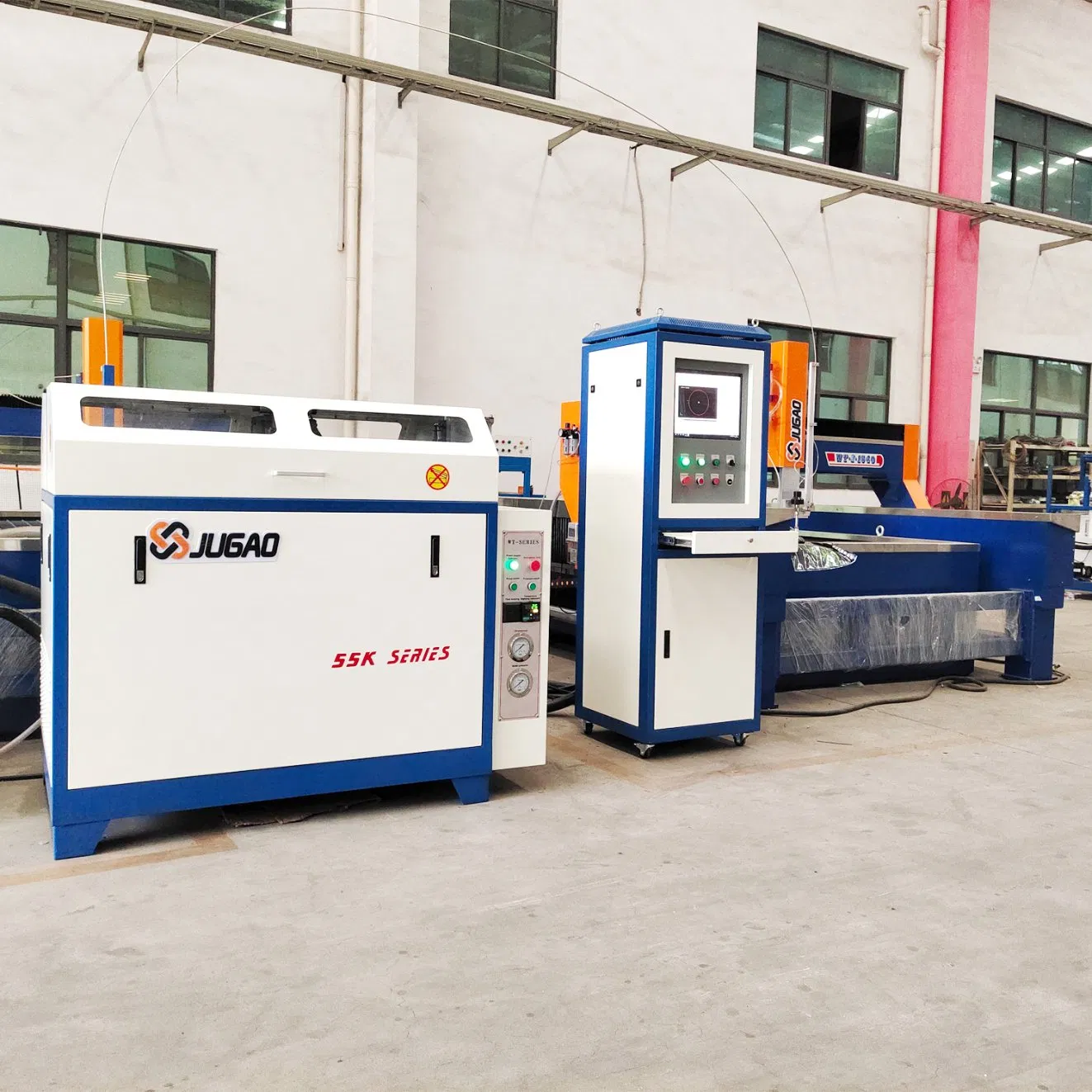

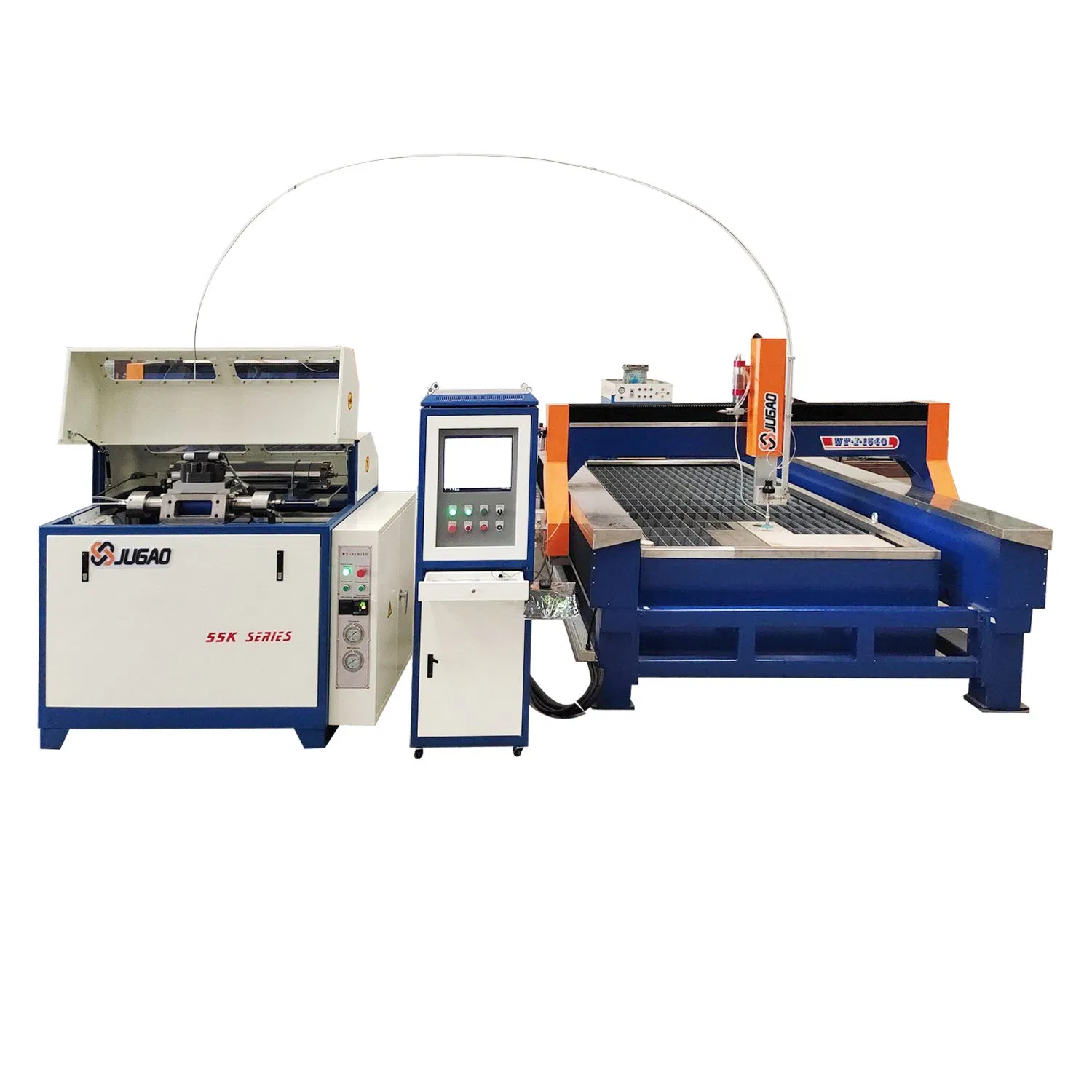

The Monoblock Design Waterjet Cutting Machine is engineered for versatility. Any material can be cut at one time for any curve. The heat generated during cutting is immediately dissipated by the high-speed water jet, ensuring no harmful substances are produced. This cold cutting process prevents thermal deformation, eliminating the need for extensive secondary processing. It is safe, environmentally friendly, fast, and efficient.
| Feature | Specification |
|---|---|
| Net Cutting Area | X=2000mm, Y=1500mm, Z=150mm |
| Inner Table Working Area | 2000 mm x 1500 mm |
| Overall Dimensions | 2200 mm x 1700 mm |
| Rapid Speed | 0 - 9000 mm / min |
| Weight | 2000 Kg (approx. 5000 lb) |
| Positioning Accuracy | ± 0.02 mm |
| Repeatability | ± 0.01 mm |

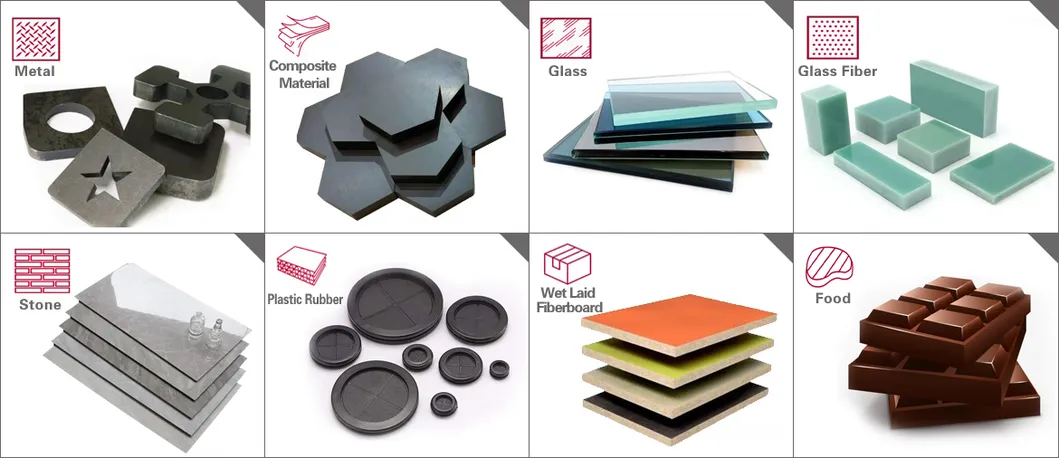

It can cut almost any material, including metal, stone, glass, ceramics, rubber, plastic, fabric, and composite materials.
Cold cutting ensures there is no thermal influence on the material. This prevents warping, hardening, or chemical changes, often eliminating the need for secondary finishing.
The machine offers high precision with a positioning accuracy of ± 0.02 mm and a repeatability of ± 0.01 mm.

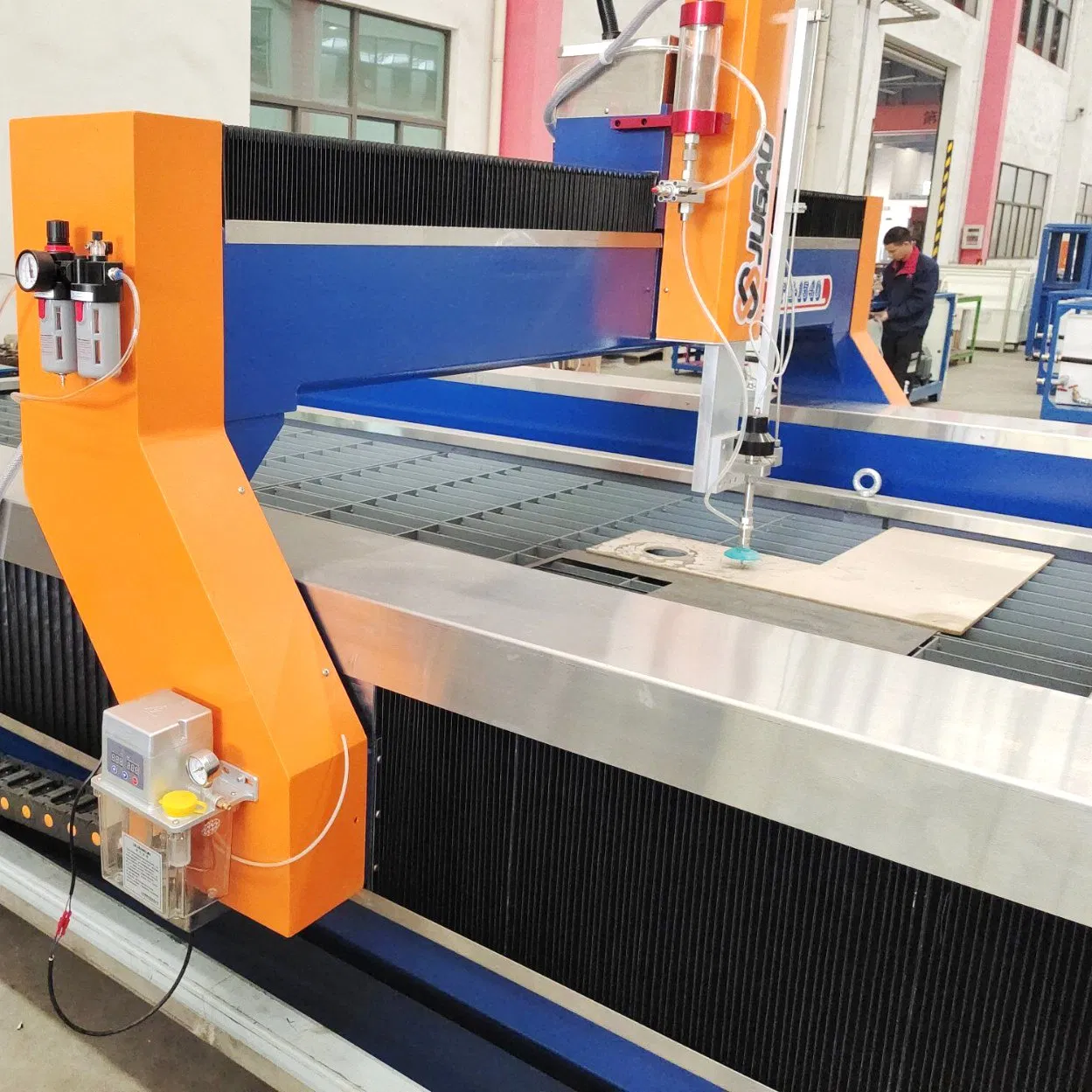

Yes, the cutting table frame undergoes overall heat treatment and stress relief treatment to ensure it never deforms under heavy operation.

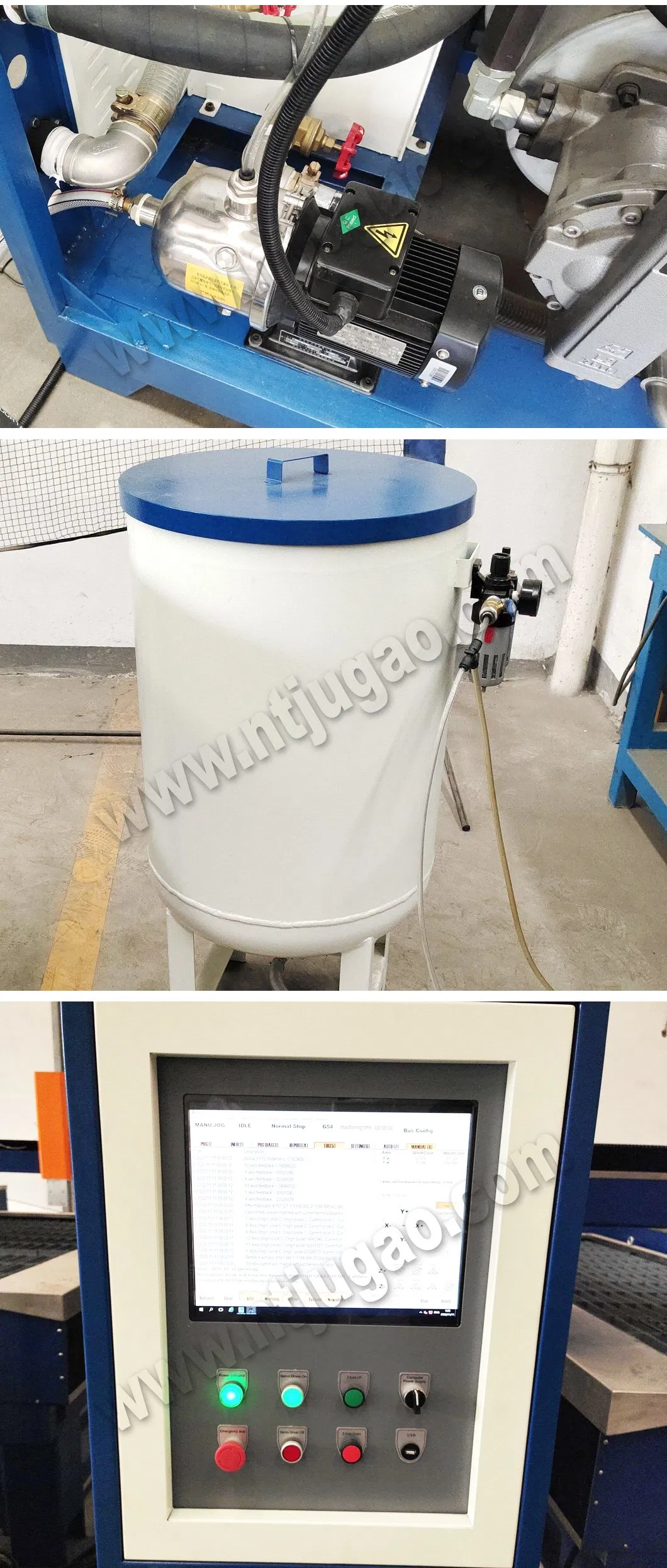

Yes, it features an automatic control system with absolute servo motors for reliable and efficient operation.
The machine can reach a rapid run speed of up to 9000 mm/min, depending on the material and thickness being processed.
