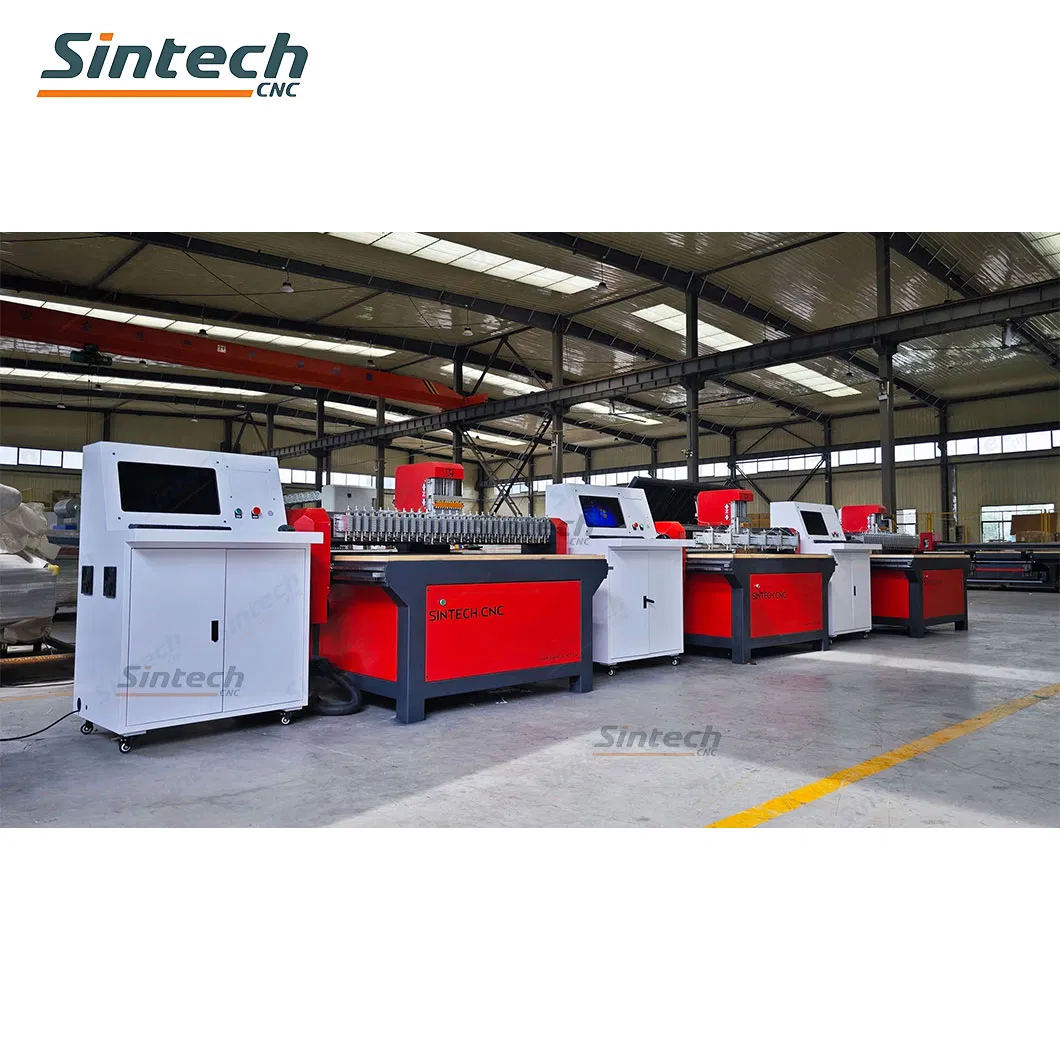

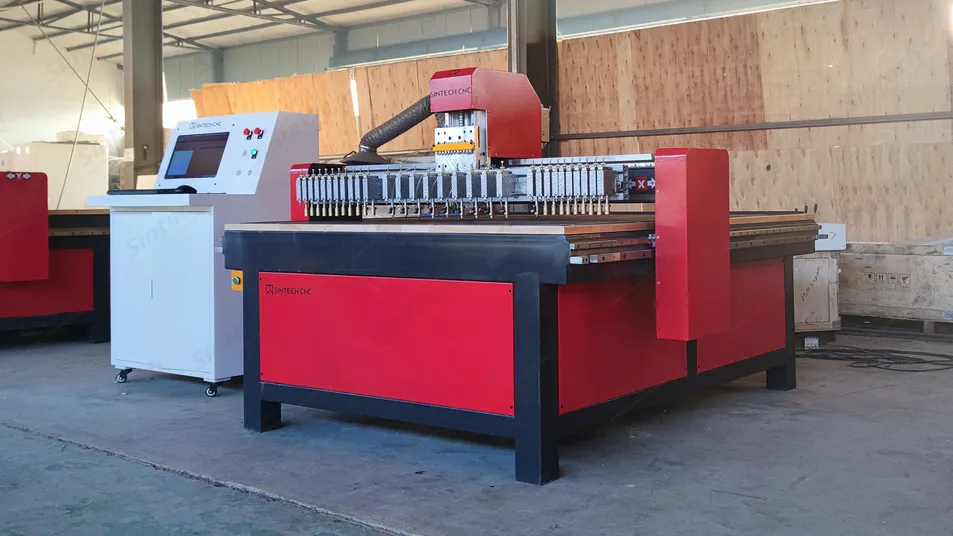

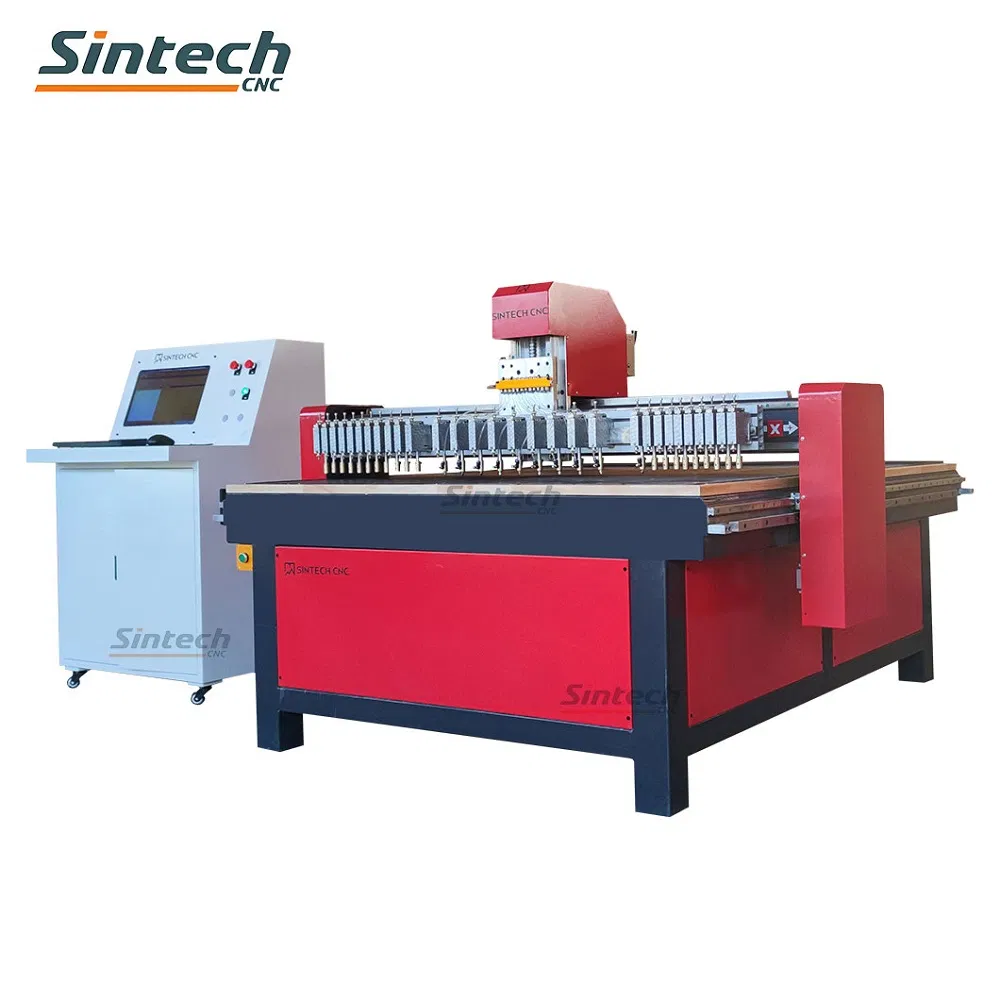

Shaped Glass Multi-Heads CNC Glass Mirror Cutting Machine

Customization:	Available
Certification:	CE
Cutting Method:	Diamond Wheel Cutting

Machine Specification

Model NO.

STG-1313NC

Cutting Thickness

1-19mm

Power Supply

220V/380V

Safety Features

Emergency Stop, Overload Protection, Safety Sensor

Program Software

Artcam

Controller

Nc-Studio

HS Code

8464901100

Production Capacity

30 Set/Month

Product Features

STG-1313NC Multi-heads Glass Cutting Machine is designed for high-precision shaped glass cutting.

1300x1300 mm effective working area

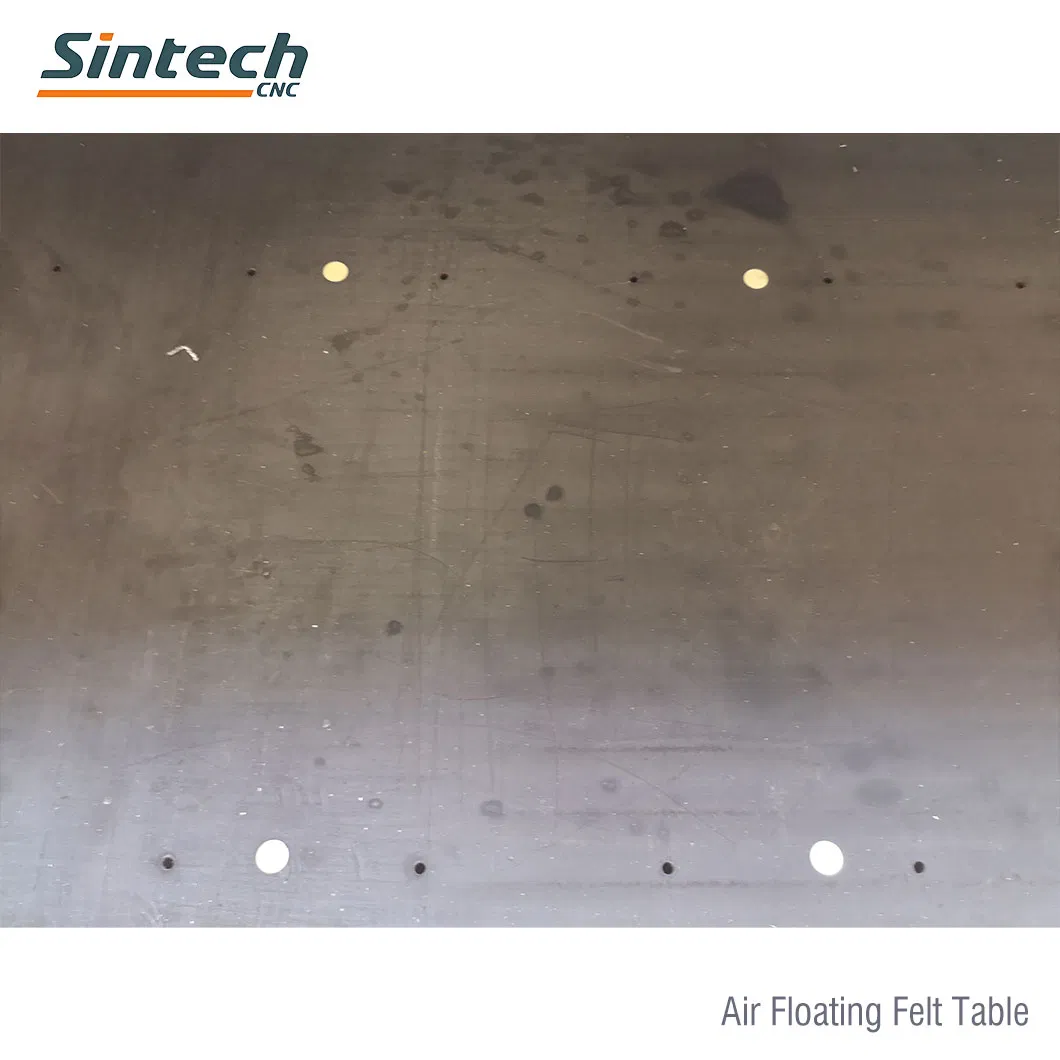

Air floating felt table for easy loading and glass protection
Nc-Studio control system with user-friendly interface

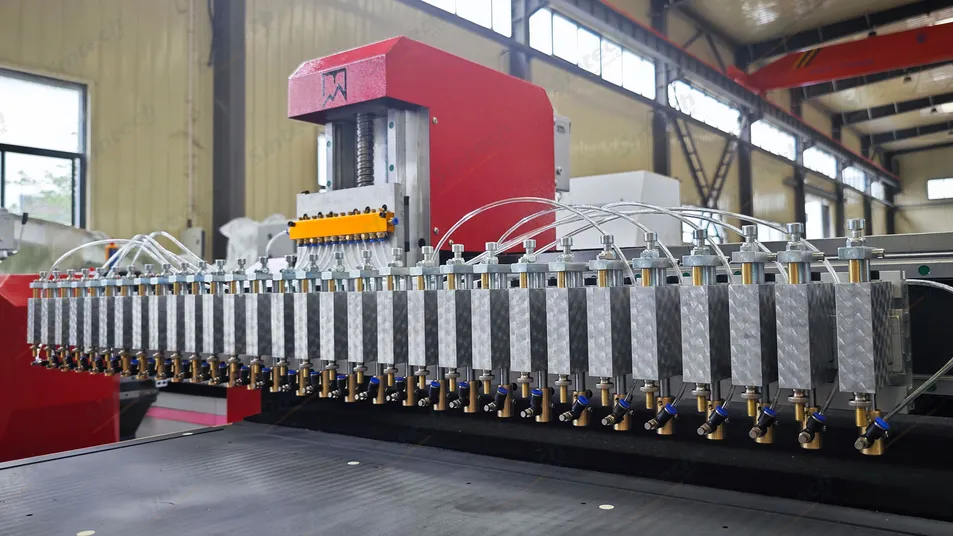

Multi-heads optional to significantly improve cutting efficiency

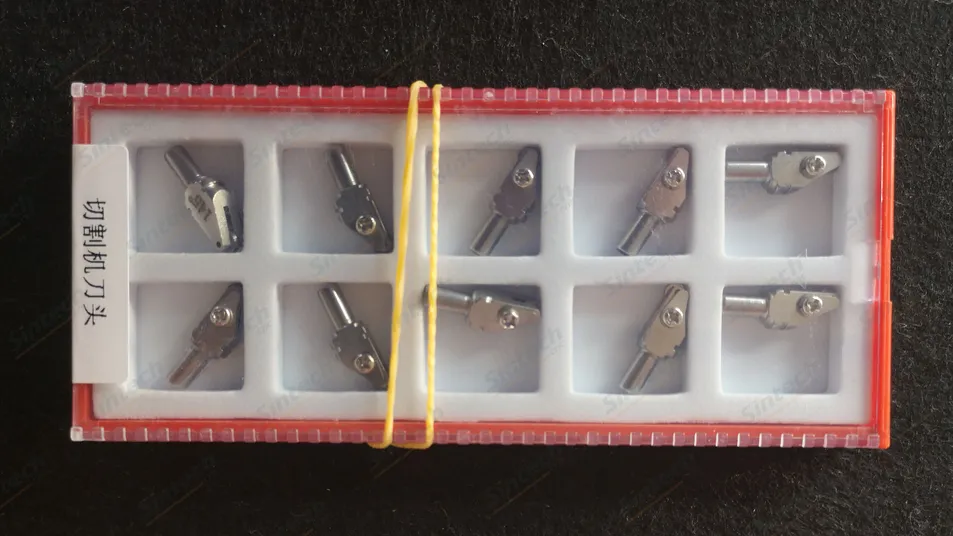

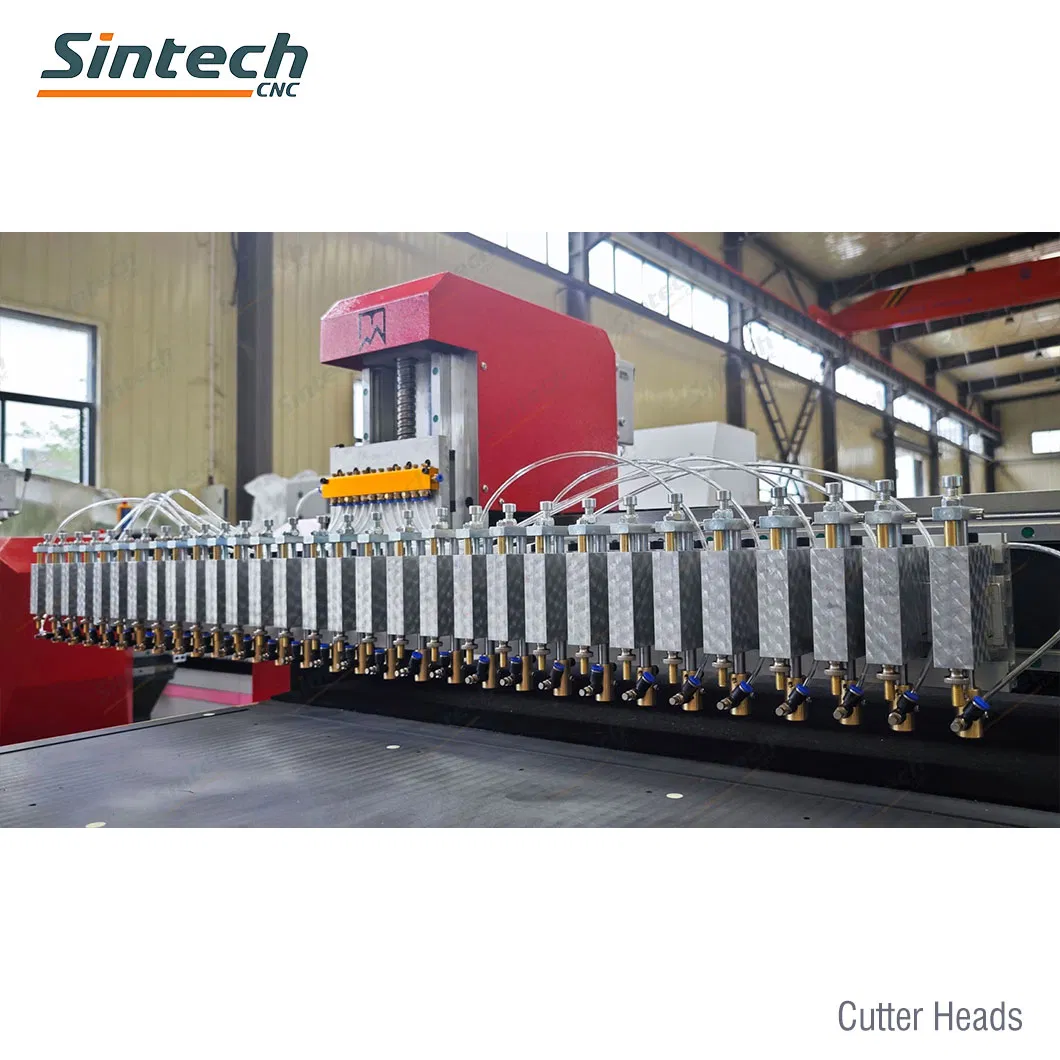

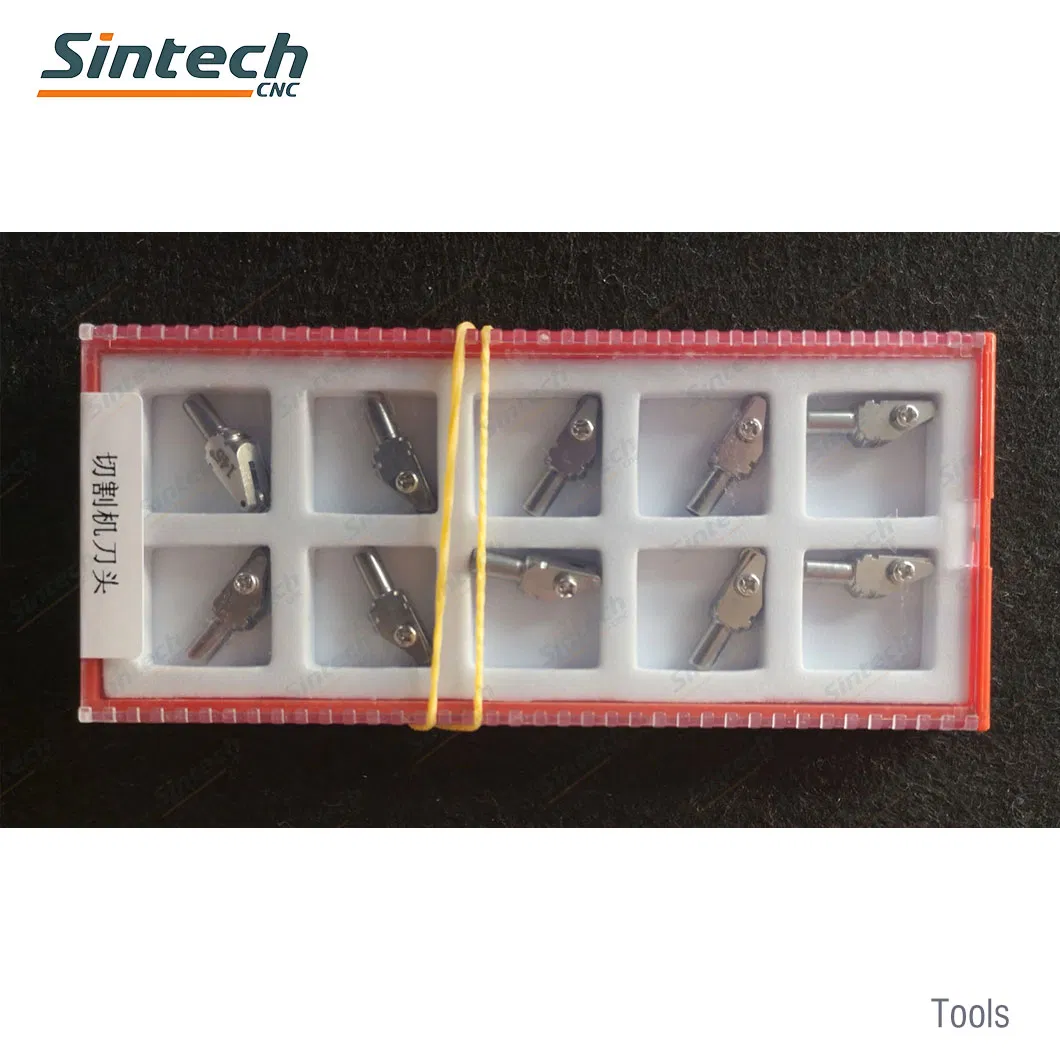

High-precision NC single spring cutter heads

Technical Specifications

Parameter	Value
Working area	1300x1300mm (Customizable)
Cutting head type	Nc cutting head, single spring
Cutting head quantity	Up to 30 (Customizable)
Loading thickness	1-19mm
Cutting parallelism	0.2mm/min
Transmission	X,Y-rack pinion, Z axis ballscrew
Table type	Air floating felt table
Max. Traveling speed	30m/min
Max. Cutting speed	25m/min
Voltage	1 phase 220V/50HZ

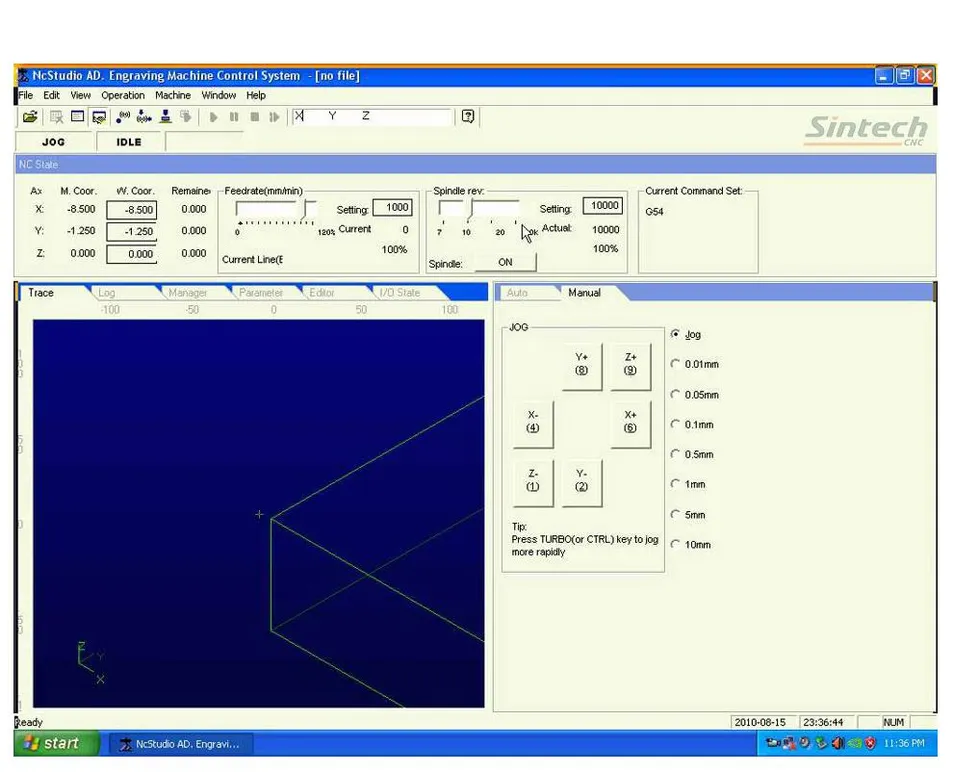

Nc-Studio Controller

User-friendly Interface

Features an intuitive interface that allows operators with limited experience to quickly master the machine, reducing training time and errors.

Real-time Monitoring

Monitor parameters such as speed, position, and tool status in real-time. Immediate adjustments can be made to optimize results.

Cost-Effective

High compatibility with CNC routers and low training requirements make it an economical choice for glass processing.

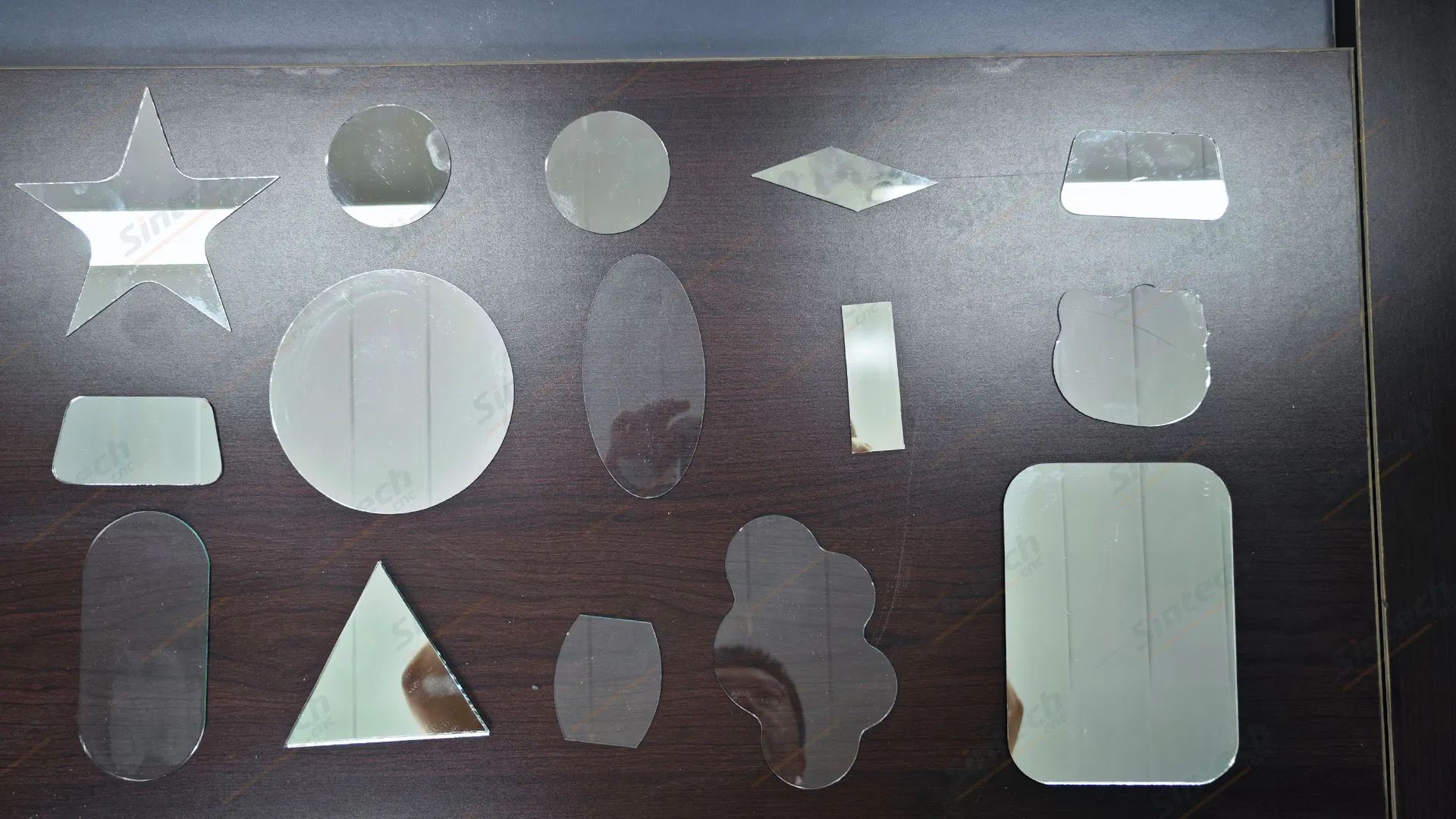

Applications

This machine is widely used for processing various glass products including:

Cosmetic mirror glass, furniture glass, round glass, watch glass, craft glass, various mirror glass, and more.

After-Sales & Support

Standard Warranty

24 months for the whole machine (excluding consumables).

Global Support

24/7 technical assistance and spare parts supply.

Training

On-site or remote operation and maintenance training provided.

Frequently Asked Questions

1. How do I place an order? Please contact our sales team for a formal quote, then confirm your order with a Purchase Order (PO).

2. What is the lead time for orders? Standard models are usually shipped within 15–30 days. Customized units require approximately 30–45 days.

3. Do you provide after-sales service overseas? Yes, we provide free online technical support and can arrange paid on-site service if required.

4. What documents do you provide for export? We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.

5. What are the payment terms? Usually, we require a 30% or 50% deposit via T/T to start production, with the balance due before shipment.

6. Is training included with the machine purchase? Yes, we offer both remote and on-site operation and maintenance training to ensure your team can operate the machine safely.
