Basic Specifications
Model NO.:SZ-YX1
Certification:CE
Structure:Horizontal
Control System:Industrial Computer
Machine Type:Glass Round Edging Machine
Condition:New
Transport Package:Standard Packing for Container
Specification:2100mm
Origin:China
Production Capacity:100 sets/Year
Product Description

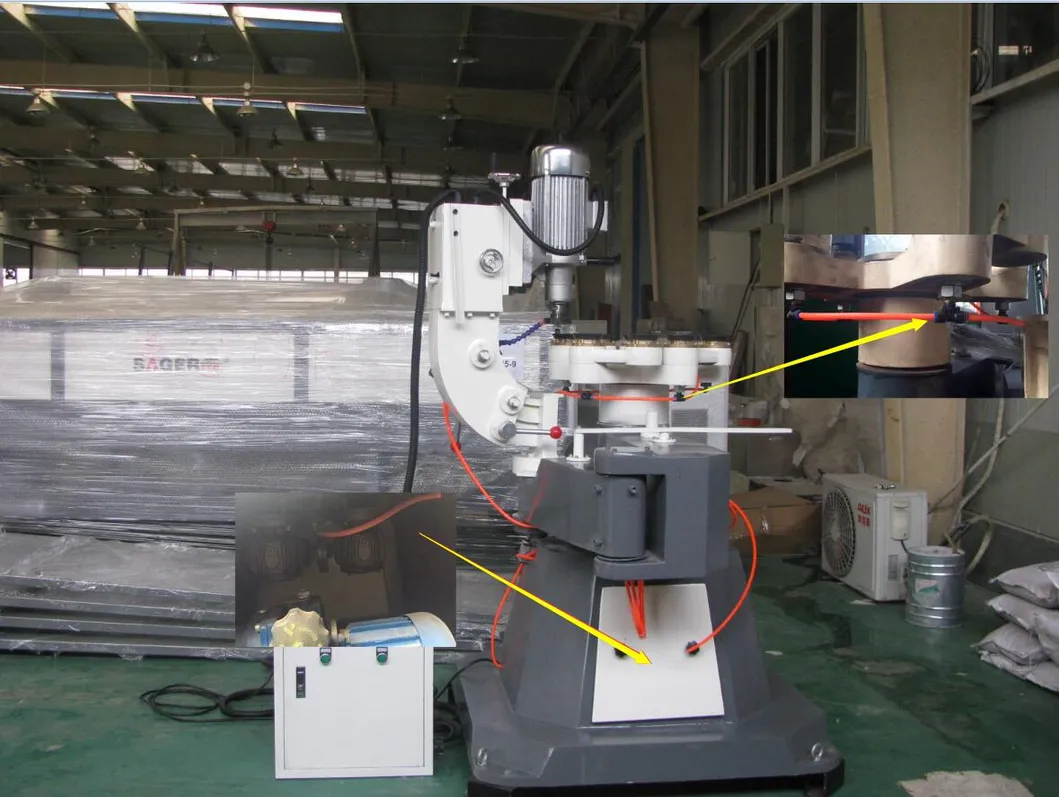

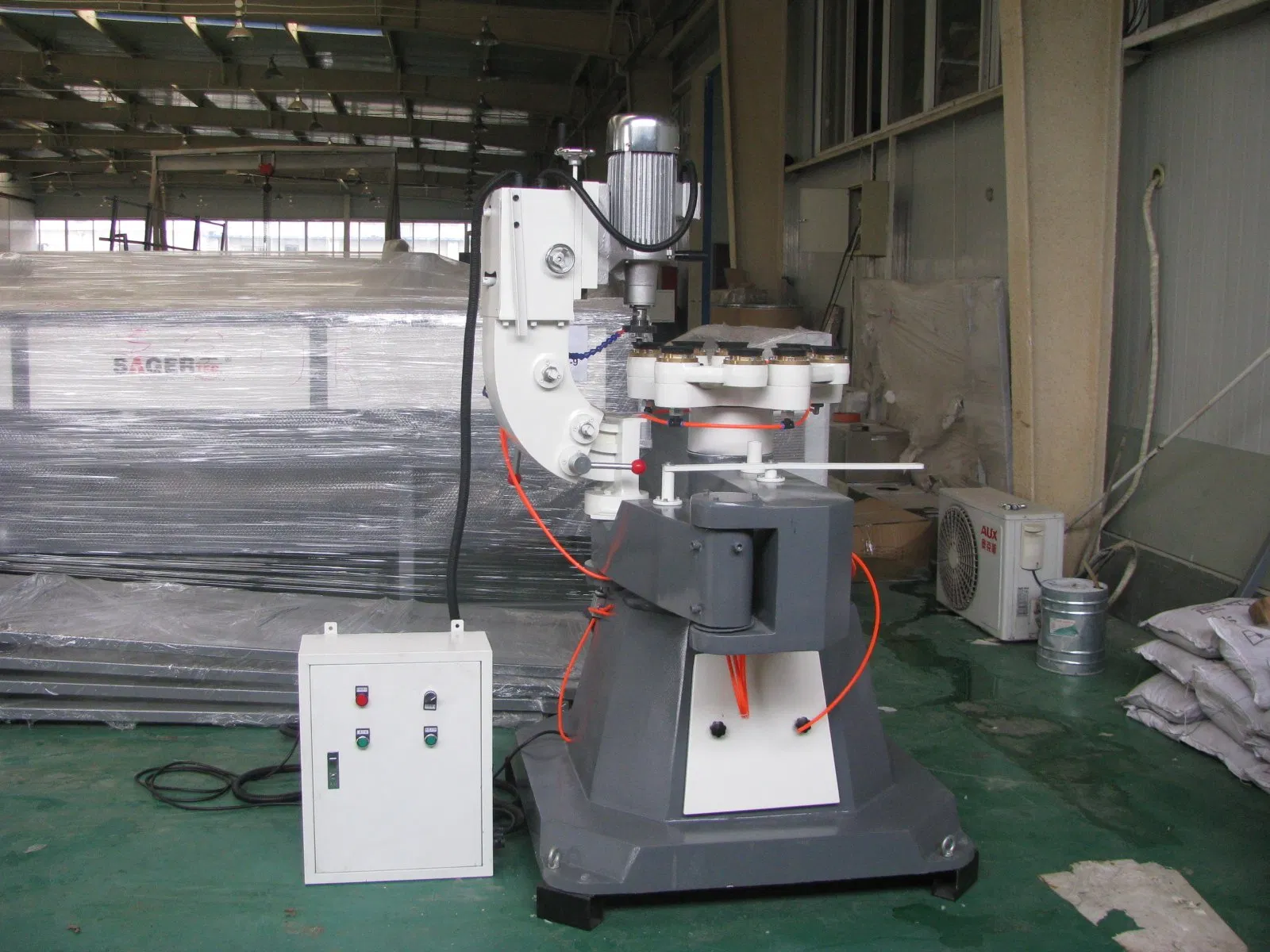

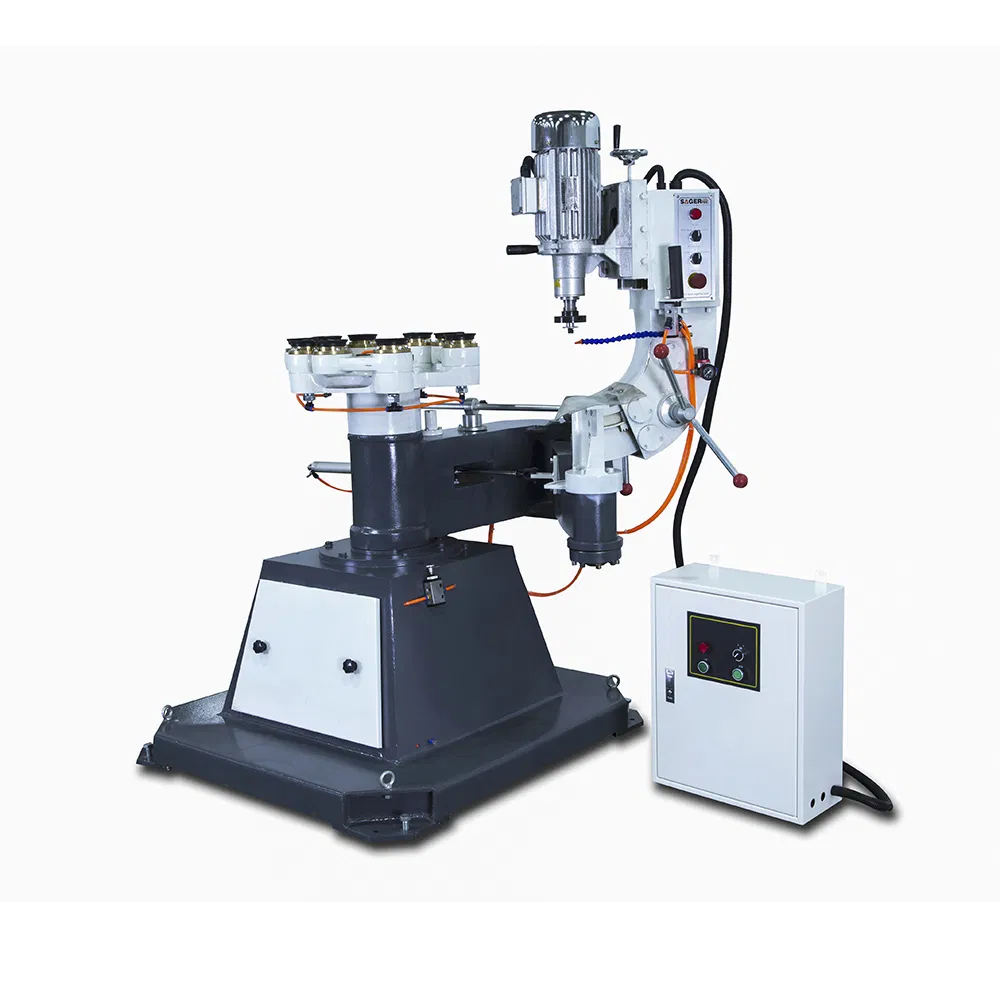

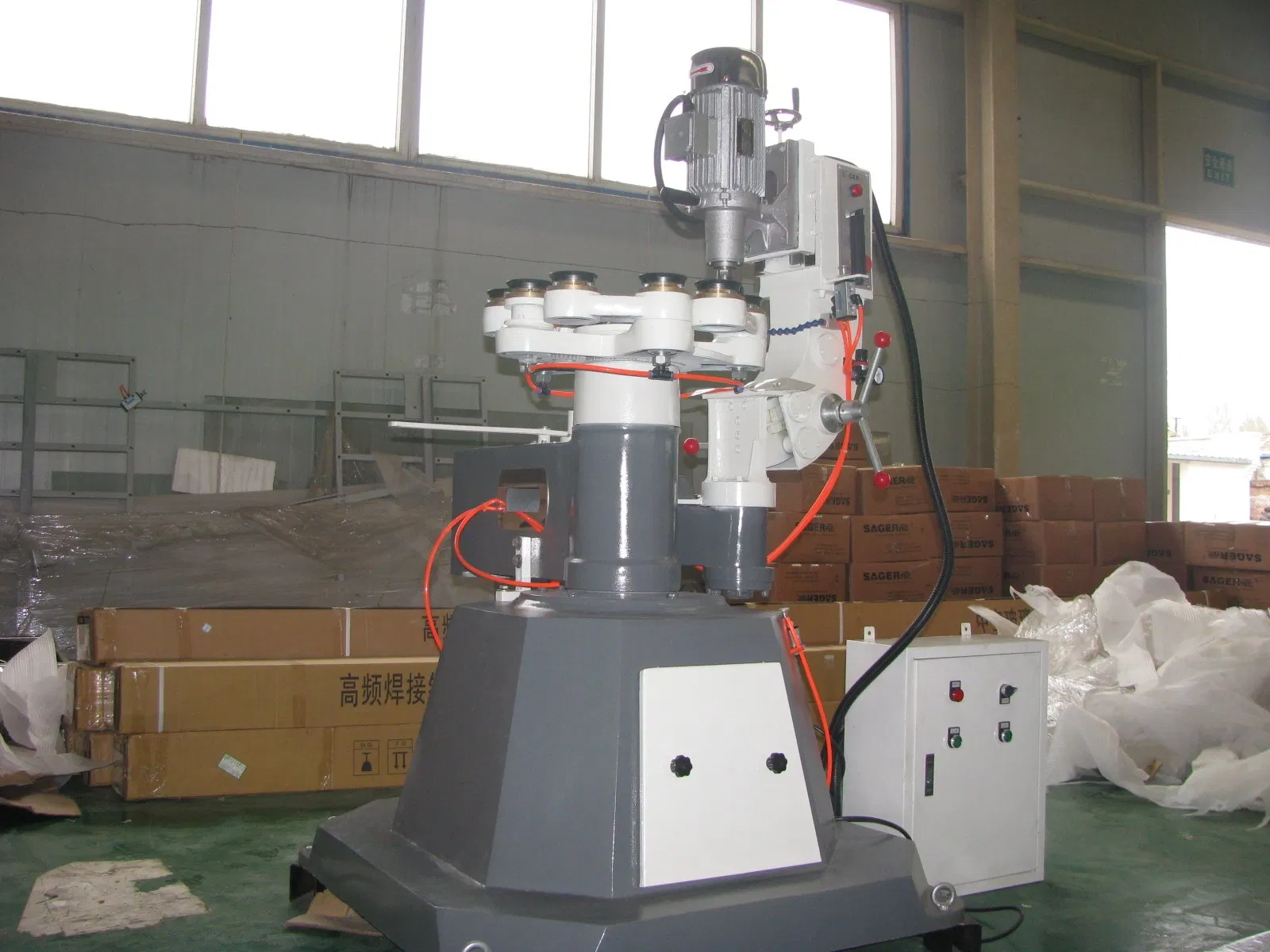

SZ-YX1 Shape Glass Round Corner Edging and Beveling Machine is designed for high-precision processing of glass edges. It is perfectly suitable for handling round, oval, and other irregular glass shapes with various sizes and thicknesses. By adopting different wheels, the machine can process diverse shapes such as semicircular, flat edges, and OG edges. Additionally, by using cup-shaped wheels and adjusting the motor angle, it efficiently processes bevelled edges.
Technical Parameters
| Min. Glass Size |
Max. Glass Size |
Glass Thickness |
Angle |
Power |
Weight |
Dimension |
| Φ100mm |
Φ2100mm |
3-19mm |
0-19° |
4.92kw |
900kg |
1300*1300*1800mm |
Key Features & Details

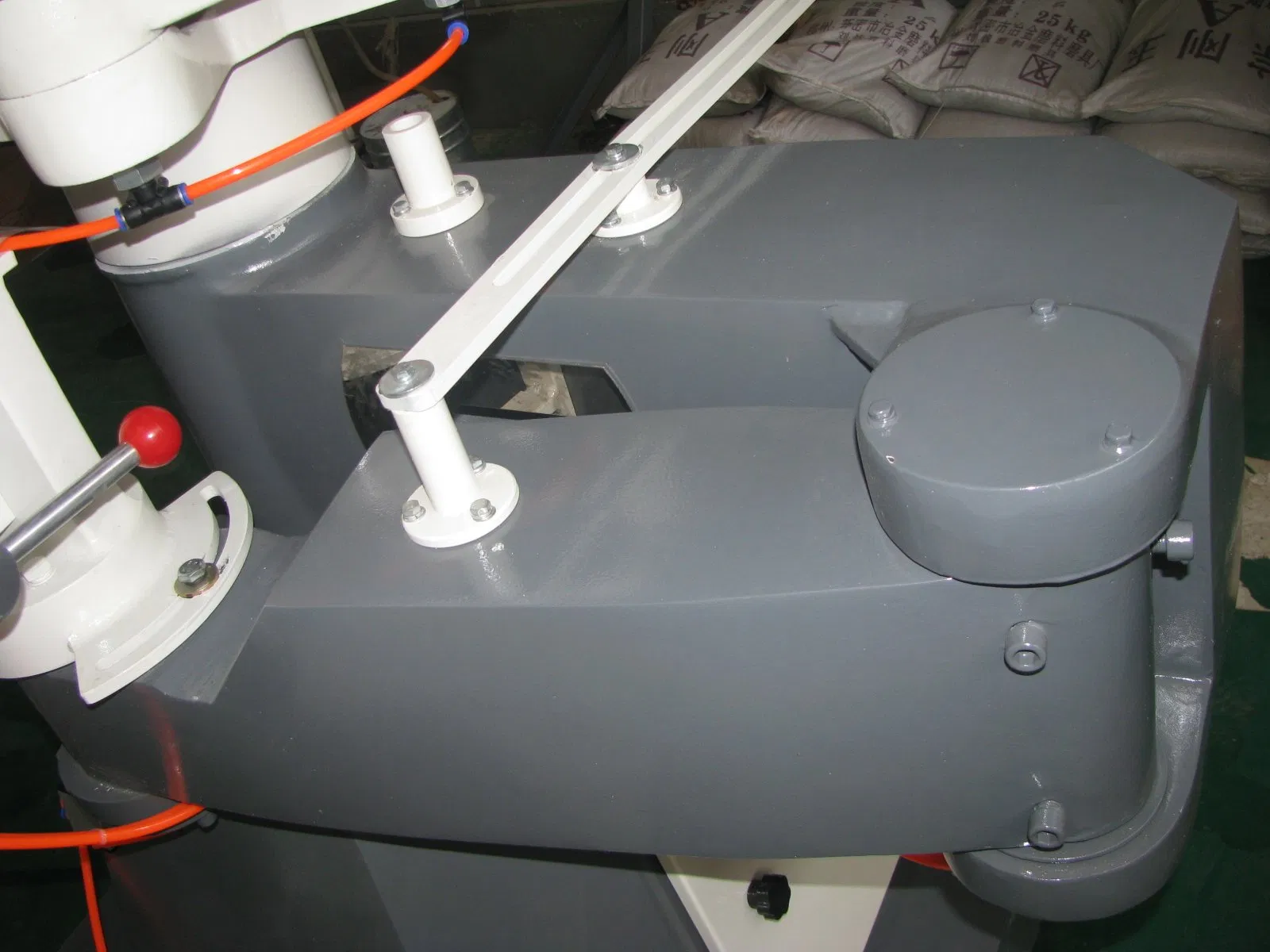

✓Machine base and arm are constructed from cast iron to ensure stability and avoid transformation.
✓Easy operation with waterproof control buttons for enhanced durability.
✓The suction base is made from yellow metal to prevent rust and corrosion.

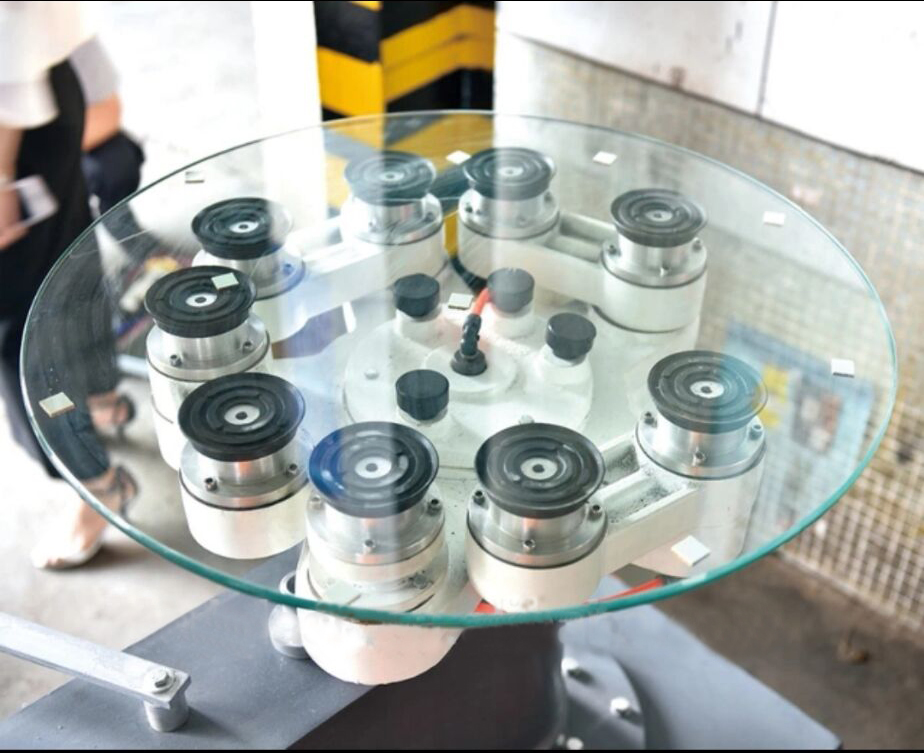

✓Vacuum suction system ensures the glass is fixed tightly during high-pressure processing.
✓Equipped with a digital display for precise monitoring and control.
✓International standard wiring with CE certification for maximum safety.
✓Capable of processing irregular shapes with OG, 2OG, 3OG, pencil, and beveling edges.

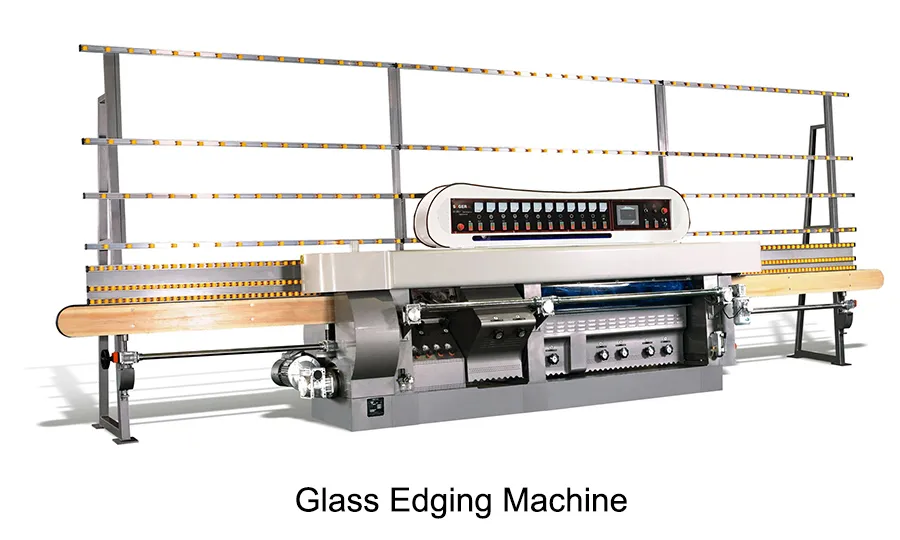

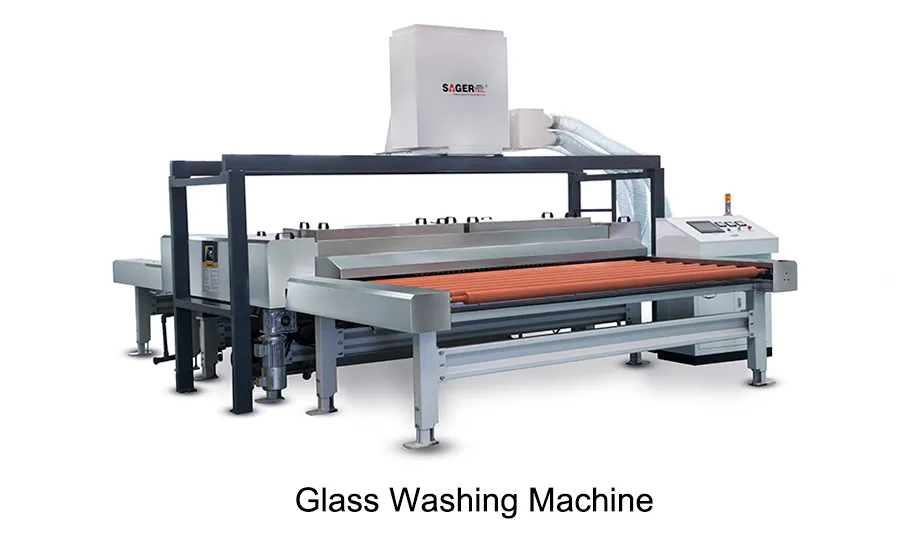

Related Glass Machinery
Loading & Packaging
Our glass machinery is professionally packed and loaded for secure delivery to customers worldwide, ensuring the equipment arrives in perfect condition.
Manufacturing Excellence
With decades of experience in glass machinery design, we maintain a professional technical team consisting of domestic and international engineers. Our products have been successfully exported to more than 80 countries, including Germany, Belgium, Australia, USA, Turkey, and throughout South America.
Frequently Asked Questions (FAQ)
Q1: What shapes can the SZ-YX1 edging machine process?
A: The machine is designed for round, oval, and various irregular shapes of glass sheets.
Q2: What is the range of glass thickness this machine can handle?
A: It can process glass with a thickness ranging from 3mm to 19mm.
Q3: What types of edges can be produced by this machine?
A: It can produce flat edges, semicircular edges, OG (including 2OG and 3OG) edges, pencil edges, and bevelled edges.
Q4: How does the machine ensure the glass remains stable during operation?
A: It features a vacuum suction base made of yellow metal that uses pressure to fix the glass tightly, preventing any movement during processing.
Q5: Is the machine durable for industrial environments?
A: Yes, the base and arms are made of cast iron to prevent deformation, and the control buttons are designed with superior waterproof features.
Q6: Does the machine comply with international safety standards?
A: Yes, the machine is CE certified and follows international standards for electrical wiring and safety.
