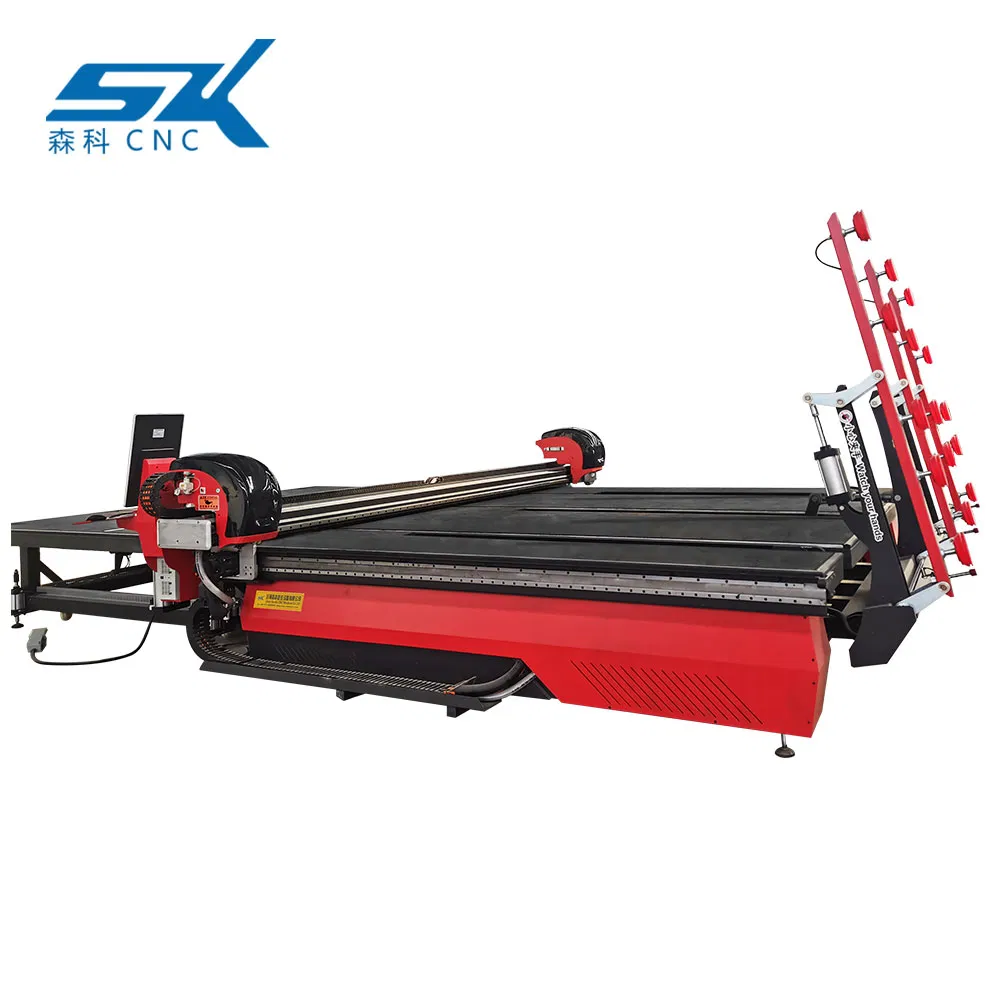

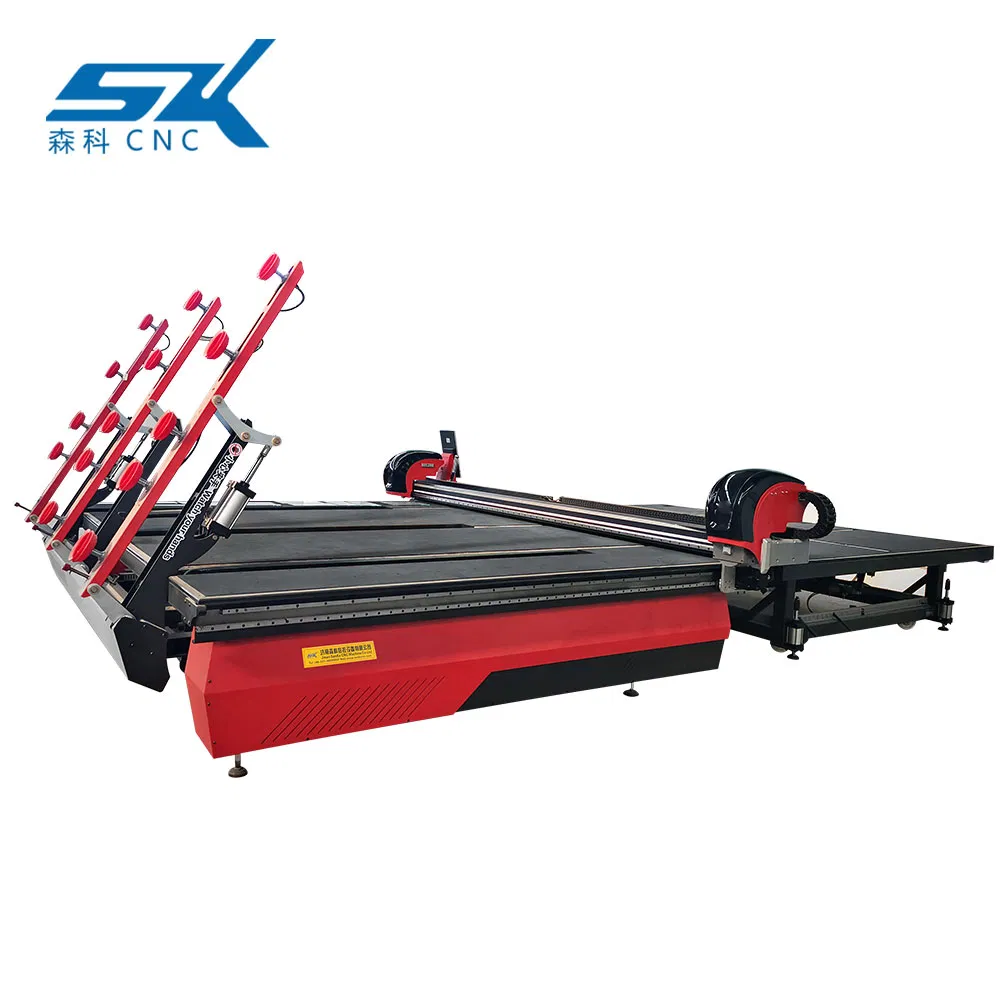

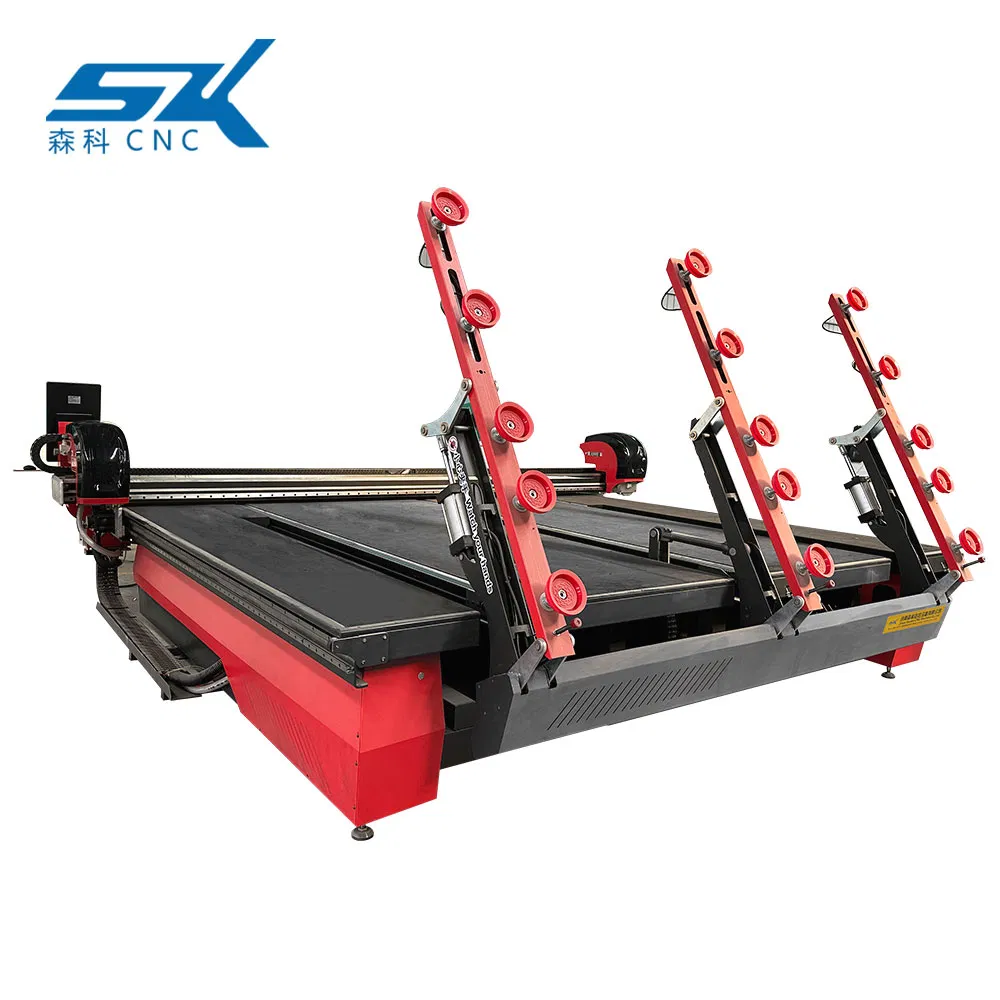

Professional Industrial Semi Fully Automatic Laminated Insulated Round Window and Door Glass Cutting Process Machine

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Specifications

Model NO.:SKQ-3826
Body Structure:Thicken Steel Made
X, Y, Z Structure:Taiwan Rack and Pinion
Rails:Taiwan Hiwin Square Rails
Operating System:Mach 3 Control System
Max Moving Speed:40000mm/Min
Cutting Head:Professional Glass Cutting Head
Cutting Depth:0.6-19mm
Warranty:2 Years
Production Capacity:200sets/Month
🌟

Product Introduction

This professional industrial semi-fully automatic laminated insulated round window and door glass cutting process machine introduces advanced foreign technology and craftsmanship. It utilizes high-performance components including imported wire rods, racks, and side guide rails. Designed with CAD mapping concepts, it offers exceptional stability, high accuracy, and multi-knife cutting functionality.

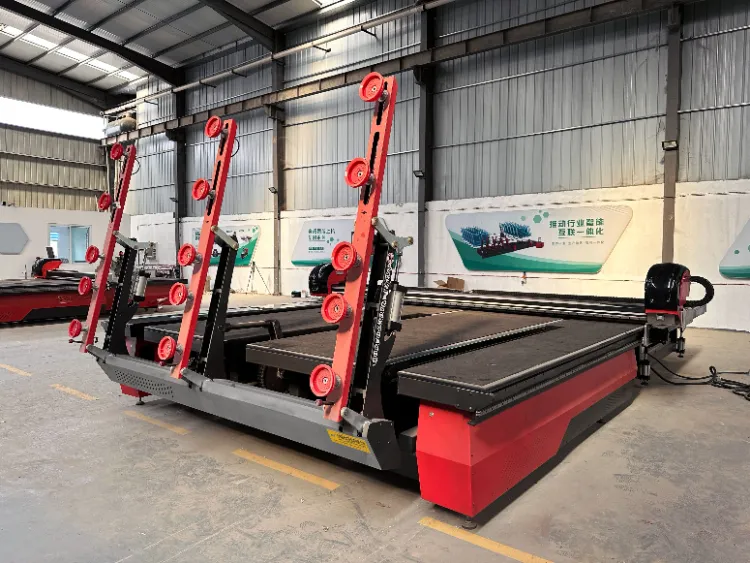

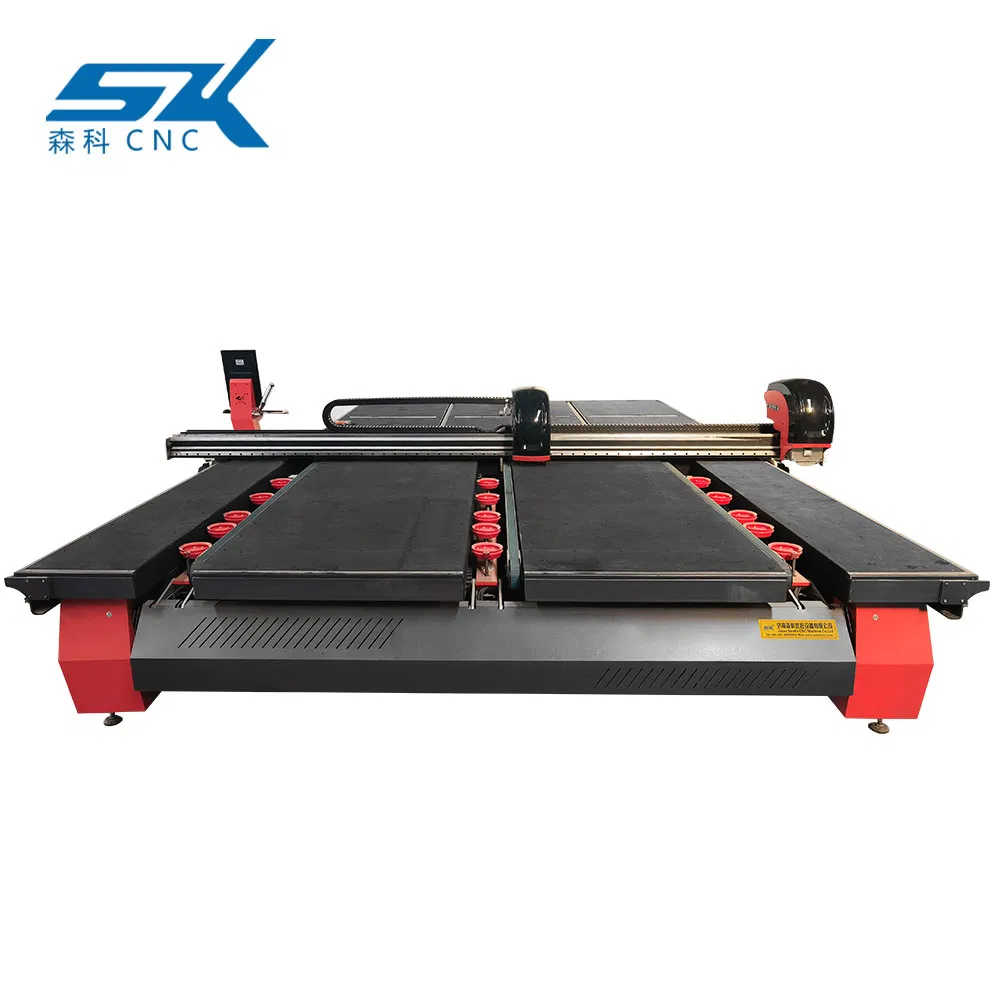

Glass Cutting Machine Front View

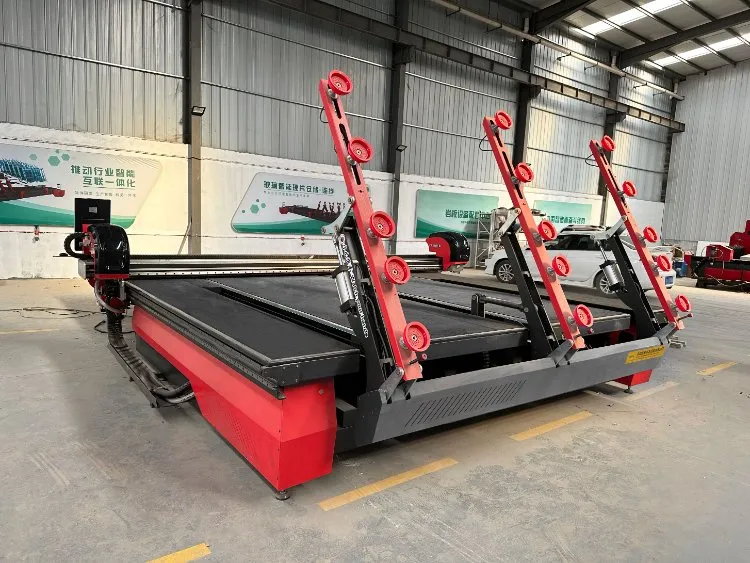

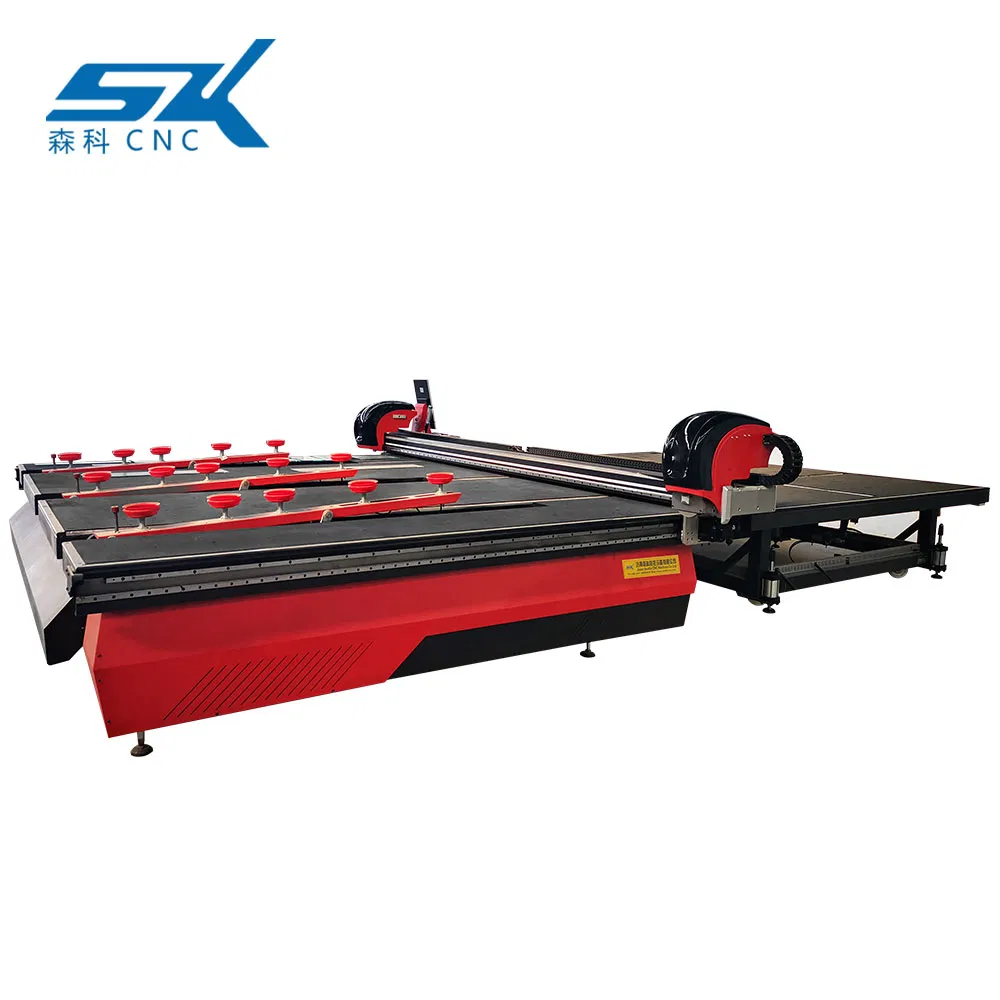

Glass Cutting Machine Detail
⚙️

Main Features

Ideal for construction glass, mirror glass, furniture glass, clock and watch glass, and craft glass cutting. This equipment can effectively replace expensive imported CNC devices with its superior price-to-performance ratio and stability, making it the preferred choice for the glass deep processing industry.

Feature Model 2721 Model 3826
Dimensions (L*W*H)4800X3820X1700mm5700X5000X800mm
Max Cut Glass Size2440*2000mm3660*2440mm
Installed Power6kW~8kW10kW
Cut Glass Thickness2~19mm
X/Y Axis Speed0 ~ 200m / min (adjustable)
Cutting Accuracy≤±0.25mm/m
Cutting Head360-degree rotation for straight and special shapes
📦

Working Samples & Packaging

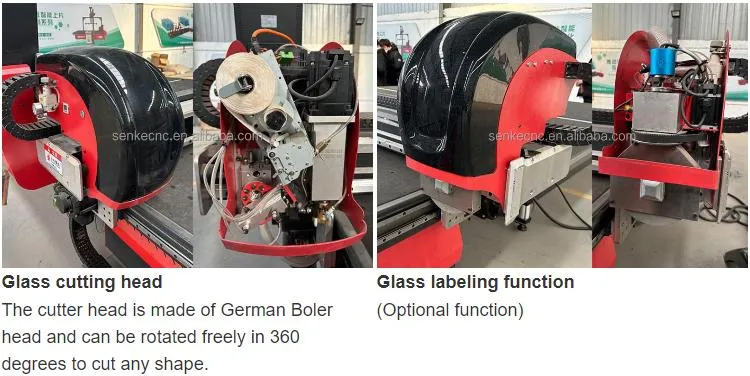

Machine Working

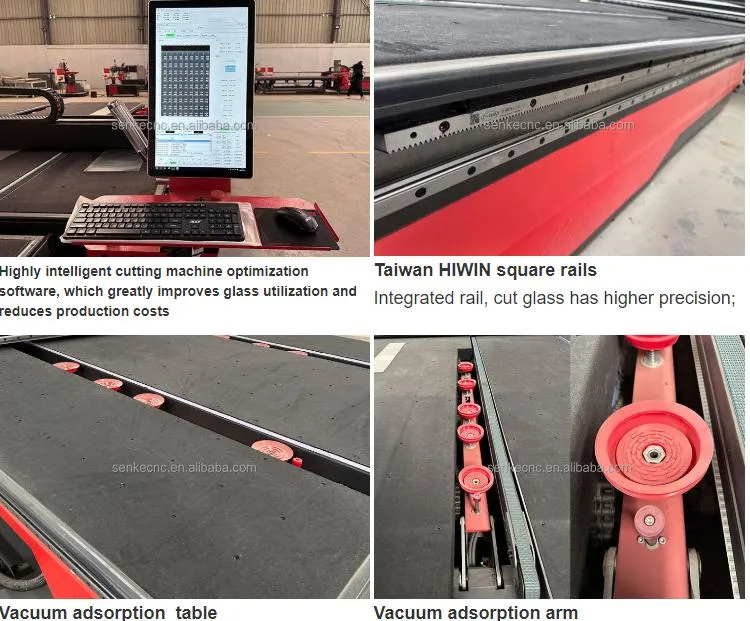

Cutting Sample
Finished Samples
  • Outside Package: Standard export free fumigation wooden box.
  • Inner Package: Moisture-proof and rust-proof elastic plastic film.
  • Certifications: High-quality standards maintained throughout production.
Certificates
Packing Process

Frequently Asked Questions

1. What materials can this CNC machine process?
It is suitable for various materials including glass, mirrors, marble, granite, metals (aluminum, brass, steel), foam (EPS), and PVC.
2. How is the cutting accuracy of the machine?
The cutting accuracy is ≤±0.25mm/m, based on the size of the cutting line before glass breaking.
3. Can the machine handle special shapes?
Yes, the cutting head can rotate 360 degrees, allowing for precise cutting of both straight lines and complex special shapes.
4. Does the machine support customized voltages?
Yes, the power requirements can be customized to 220V Single phase or 380V 3-phase, according to the voltage standards of different countries.
5. What is the warranty period and quality control process?
The machine comes with a 2-year warranty. Quality control involves environmental-friendly raw materials, skillful production handling, and a dedicated department for checking each process.
6. How is the machine packaged for international transport?
We use standard export free-fumigation wooden boxes for the outside and moisture-proof elastic plastic film for the inner packaging to ensure safety.
