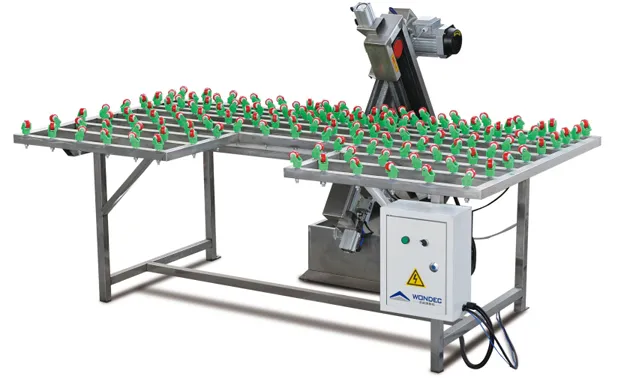

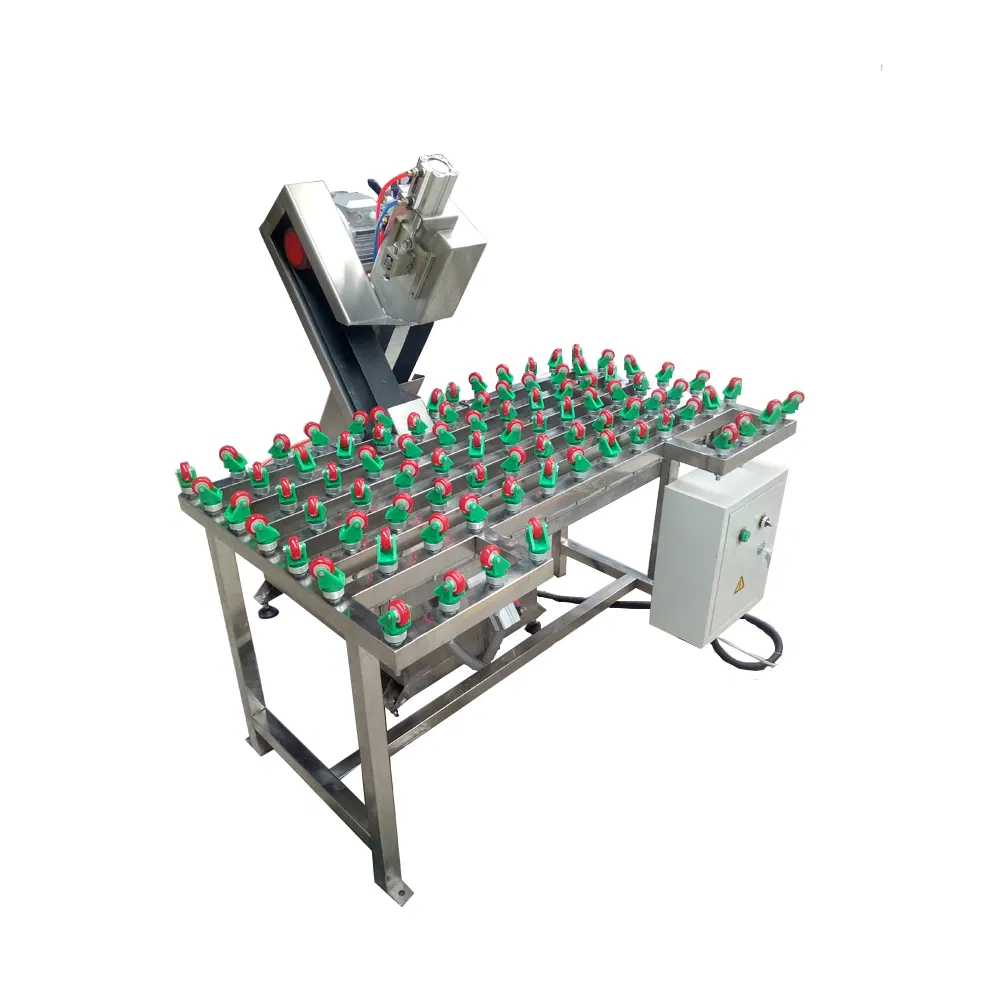

Semi Automatic Shaped Glass & Flat Glass Grinding Polishing Machinery Double Wet Belt Edging Machine

📌 Basic Information

Model NO.

EM80-WT

Color

Customizable

Selling Points

Easy to Operate, Automatic, High-Accuracy

Type

Insulating Glass Production Line

Structure

Vertical

Washing Type

Ultrasonic Glass Washing

Condition

New

Warranty

1 Year

Capacity

80 set/Per Quarter

Specification

2500x1600mm

⚙️ Product Description

Double Water Wet Belt Edging Machine

Equipment Advantages

Exceptional edge grinding effect, comparable to CNC seaming machines.
Specialized solution for small glass pieces (below 800x400mm) that four-sided grinding cannot handle.
Versatile processing for shaped glass: Triangle, trapezoidal, semi-circular, circular, and partial wavy patterns.
Safety angle grinding capability to eliminate sharp edges and safety hazards.
High efficiency with low energy consumption (less than 2kw/h).

📷 Detailed Photos

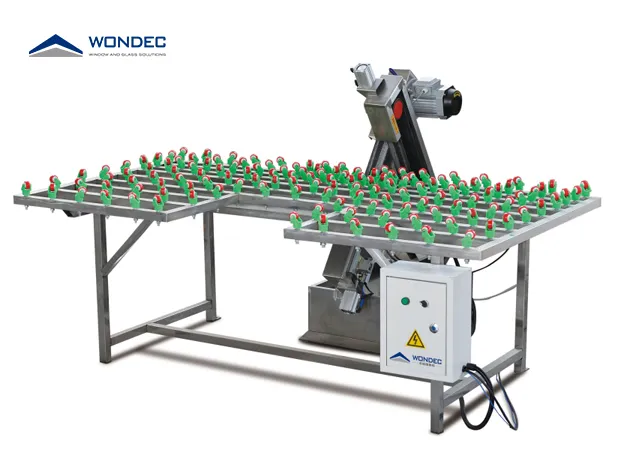

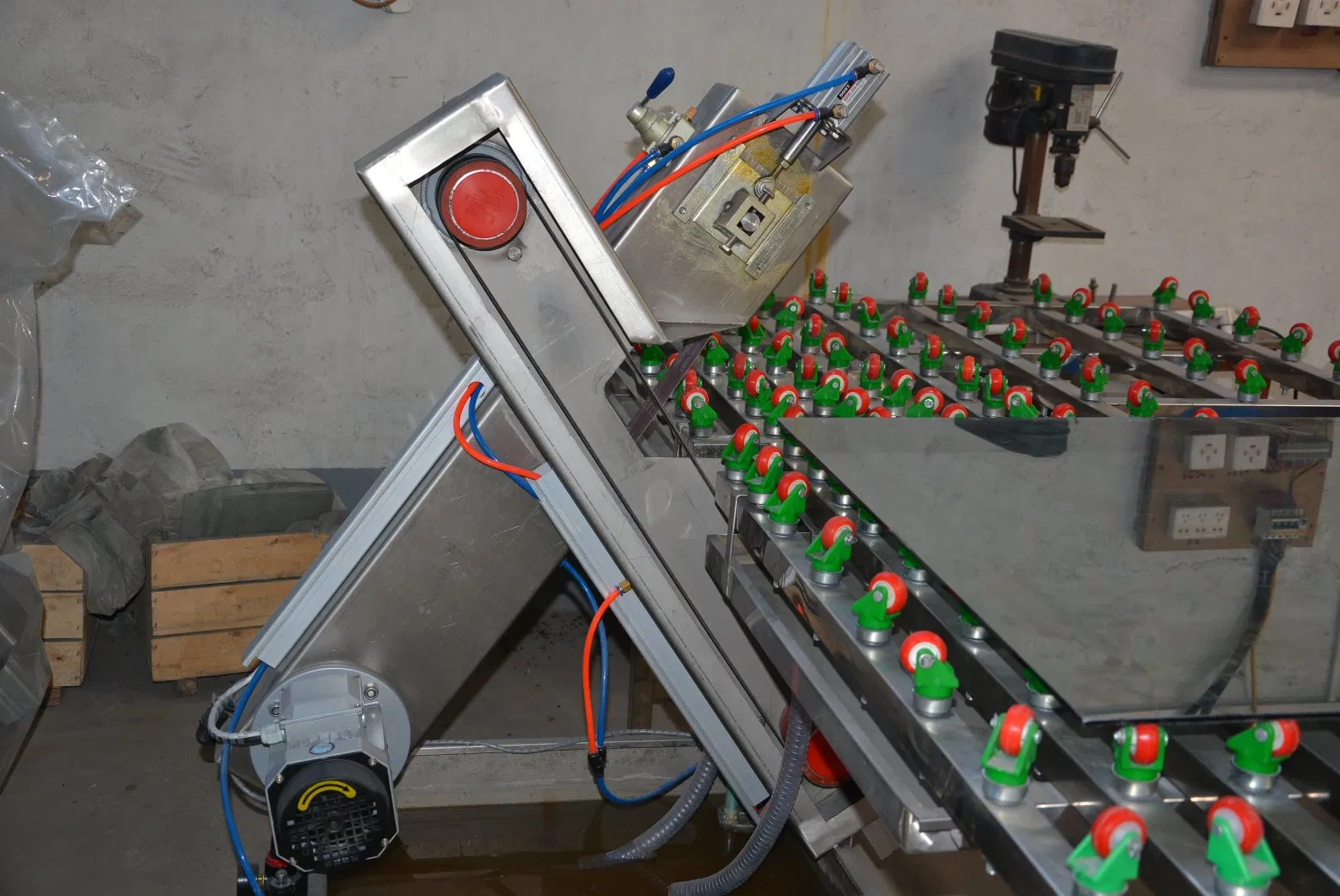

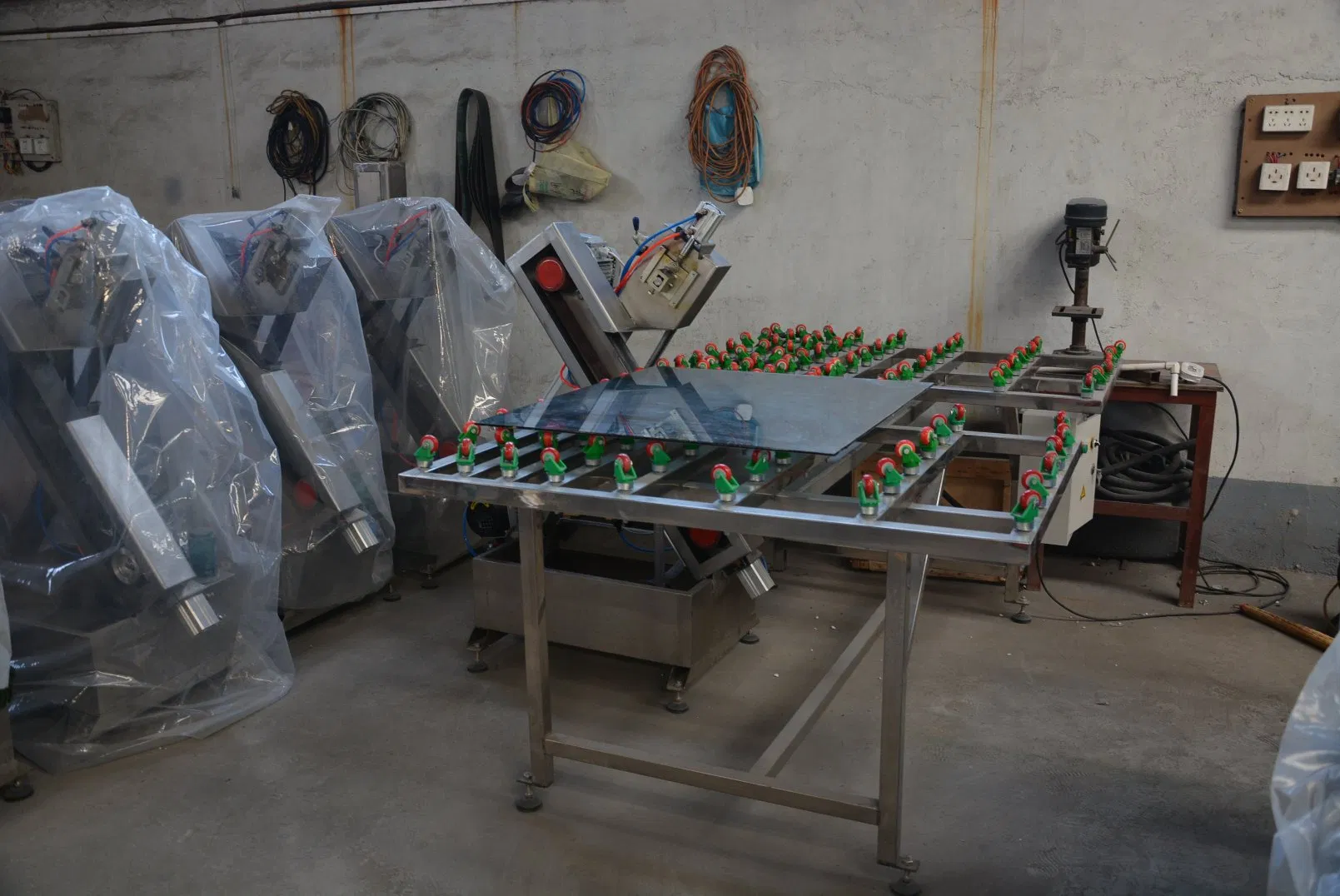

• Used for rough grinding and polishing of single glass edges.

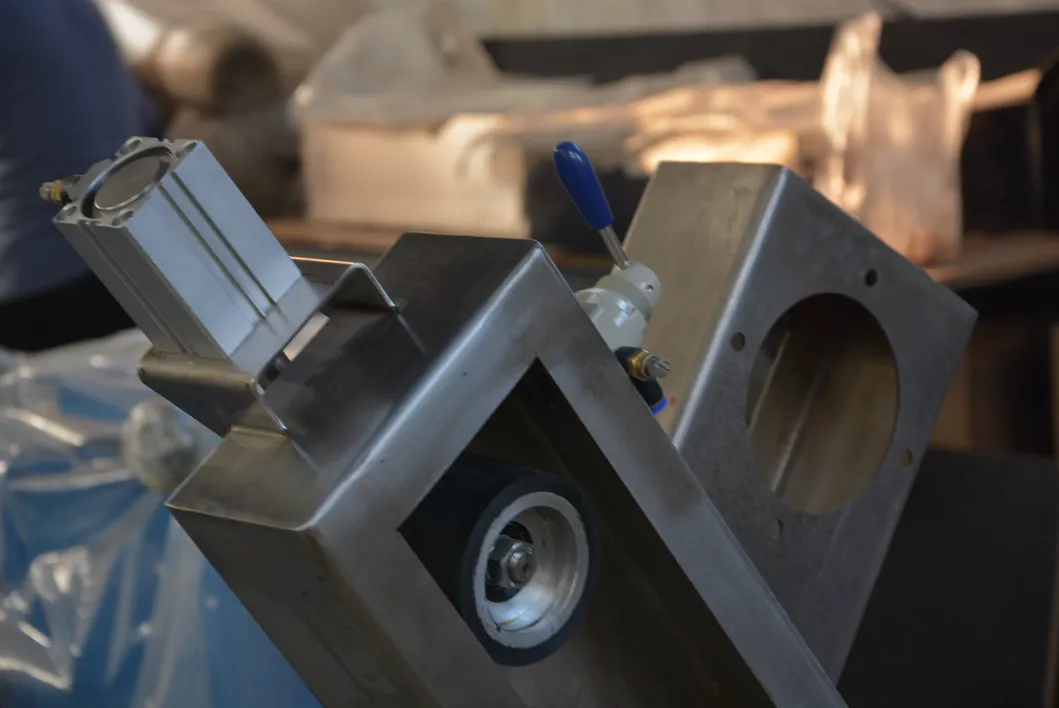

• Integrated water-spray device with waterproofing grinding belts.

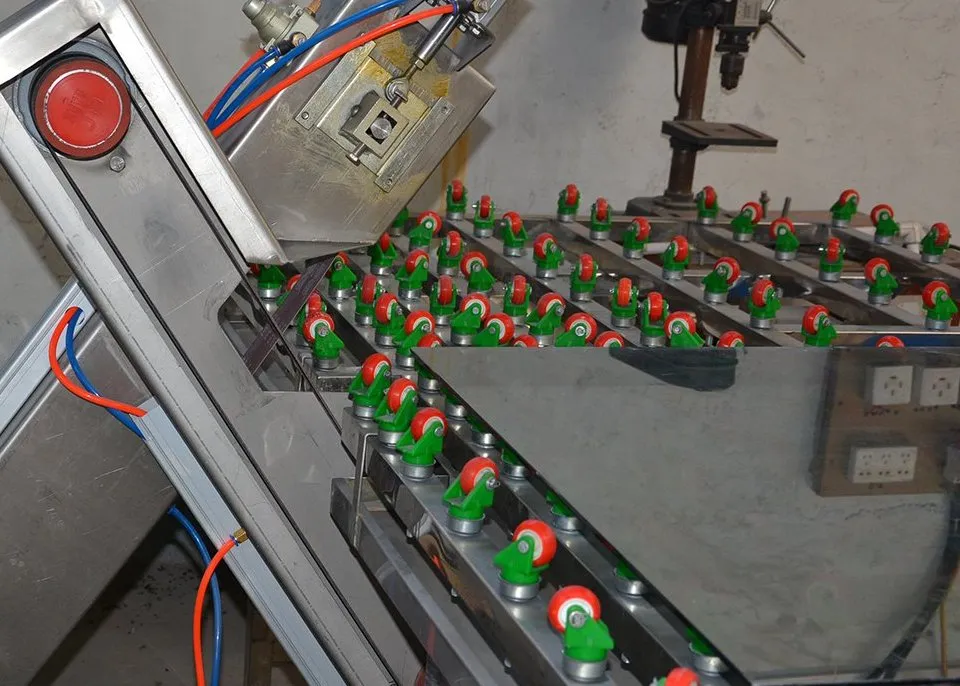

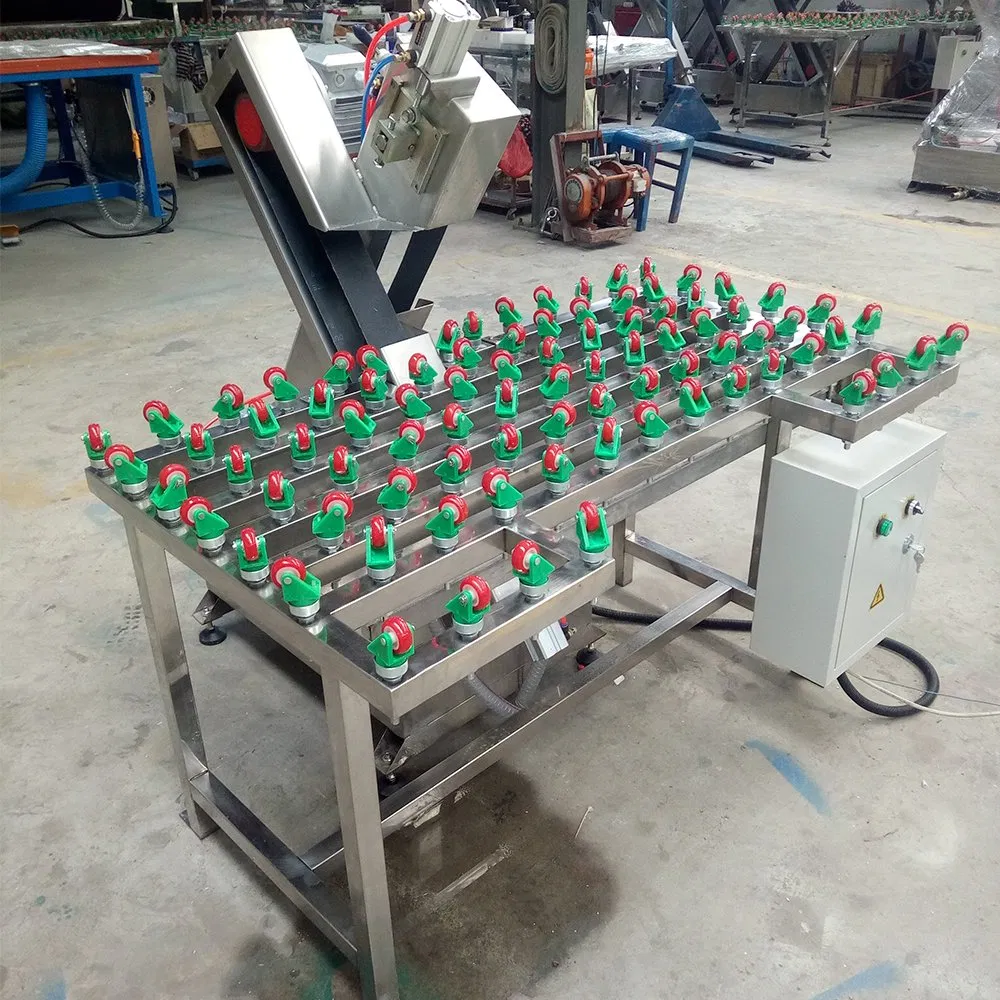

• Features a worktable with universal wheels for seamless glass support during edging.

💡 Why Glass Edging is Essential

Protect Equipment: Reduces wear on washing brushes and prolongs conveyor roller life significantly.
Safety First: Removes sharp cutting edges to protect operators' hands.
Structural Integrity: Eliminates micro-cracks from cutting, reduces stress concentration, and increases overall glass strength.

📊 Technical Parameters

Technical Parameter	EM80-MT Data
Power supply	380v / 50hz
Motor power	2 * 0.75kw
Glass thickness	1.5 ~ 19mm
Max. glass size	2000 * 1600mm
Min. glass size	400 * 400mm
Sand linear speed	14m/s
Sand belt size	2000 * 80mm * 100p
Main machine dimension	930 * 620 * 1350mm
Working table dimension	2200 * 1200 * 900mm

📦 Packaging & Service

🛠️ Pre-sales Service

- Professional equipment layout based on your floor plan.

- Customized technical drawings tailored to specific requirements.

✅ After-sales Support

- Weekly production progress reports.

- On-site installation, debugging, and staff training.

- One-year warranty and lifetime technical maintenance.

🌐 Quality & Trust

❓ Frequently Asked Questions

Which regions do you export your glass machinery to?

Our equipment is exported to over 50 countries and regions, including South America, India, Turkey, Canada, Russia, and various European nations.

How can we learn to operate the machine?

We provide comprehensive English manuals and offer hands-on training via video or on-site visits until your operators are fully proficient.

How do you ensure equipment quality?

Every component is inspected before assembly. The complete machine undergoes rigorous testing and performance validation before leaving the factory.

What is your experience in the glass processing industry?

We are professional manufacturers with over 10 years of specialized experience, offering not just machines but complete production solutions.

What happens if the machine encounters a problem?

Free replacement parts are provided during the warranty period. We offer 24/7 technical support via phone, WhatsApp, and email for the lifetime of the machine.

Do you provide installation services?

Yes, we arrange for expert engineers to visit your facility for installation and personnel training once the machinery arrives.
