Sanken Vertical Glass Router for Precision Drilling and Milling

Applications:	Architectural, Commercial, Furniture, Interior Design, Residential
Certification:	CE
Glass Thickness:	5-19 mm

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.SKDM-CNC-2442V

ProcessingCutting, Drilling, Edging, Polishing

Warranty1 Year

Weight8 Tons

Delivery60 Days

ConditionNew

After-Sales1 Year

Spec2400 * 4200 mm

TrademarkSANKEN

HS Code8475291900

Capacity40 Sets/Year

💎 Product Description

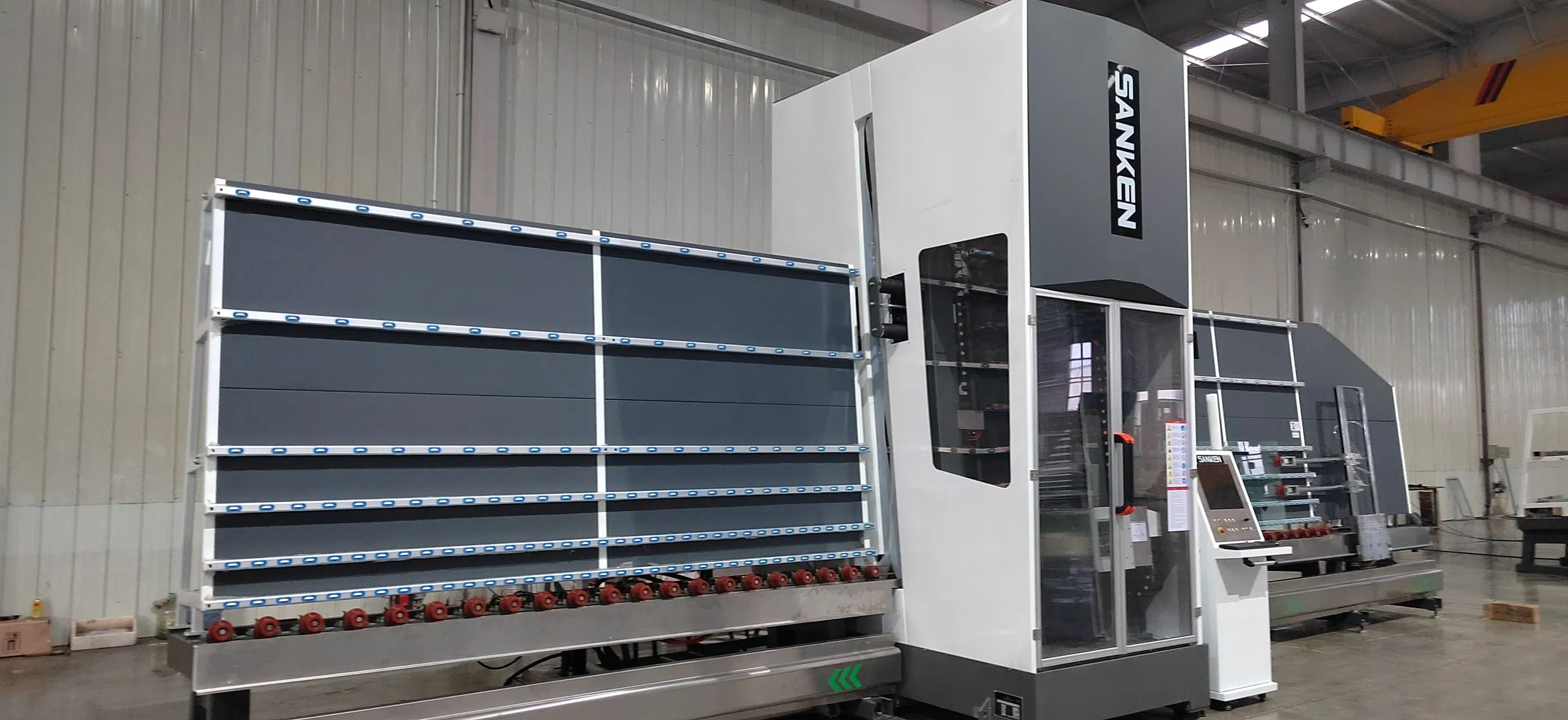

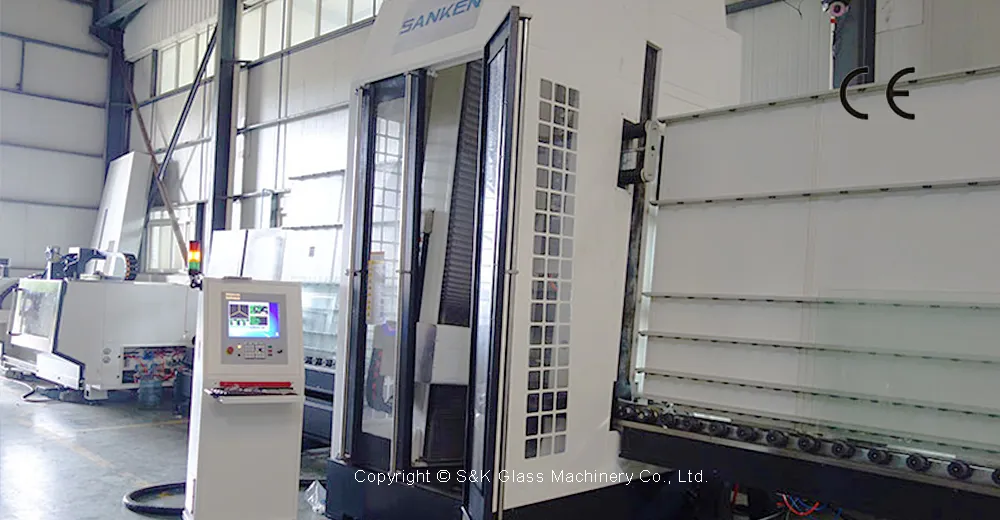

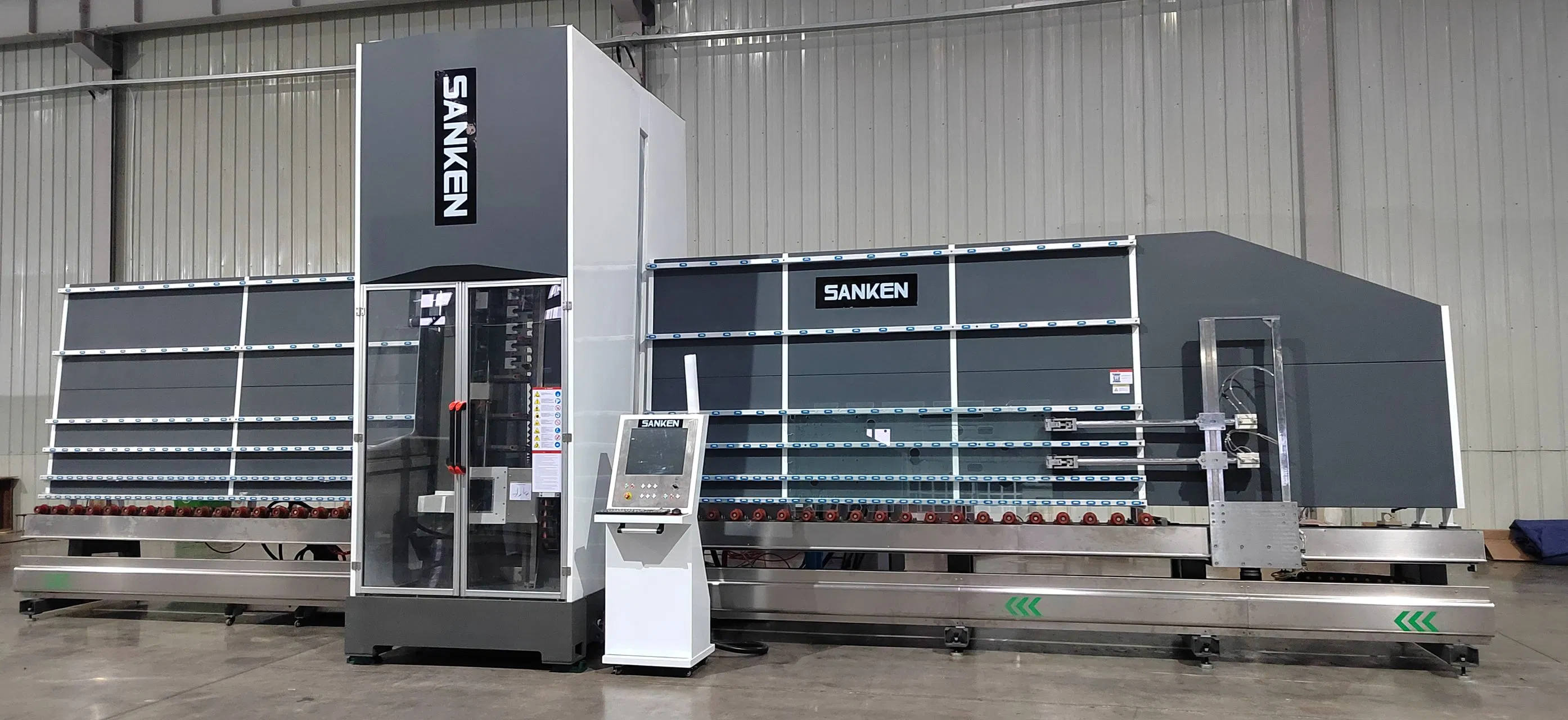

SANKEN Vertical CNC Milling Router SKDM-CNC-2442V

• The CNC working center applies numerical operation and control system to achieve dynamic management of each axis and speed precision control, allowing it to process high precision shapes.

• It is a highly intelligent CNC vertical drilling and milling machine designed to process simple or complex drawings, featuring the most advanced technology for high speed and simple operation.

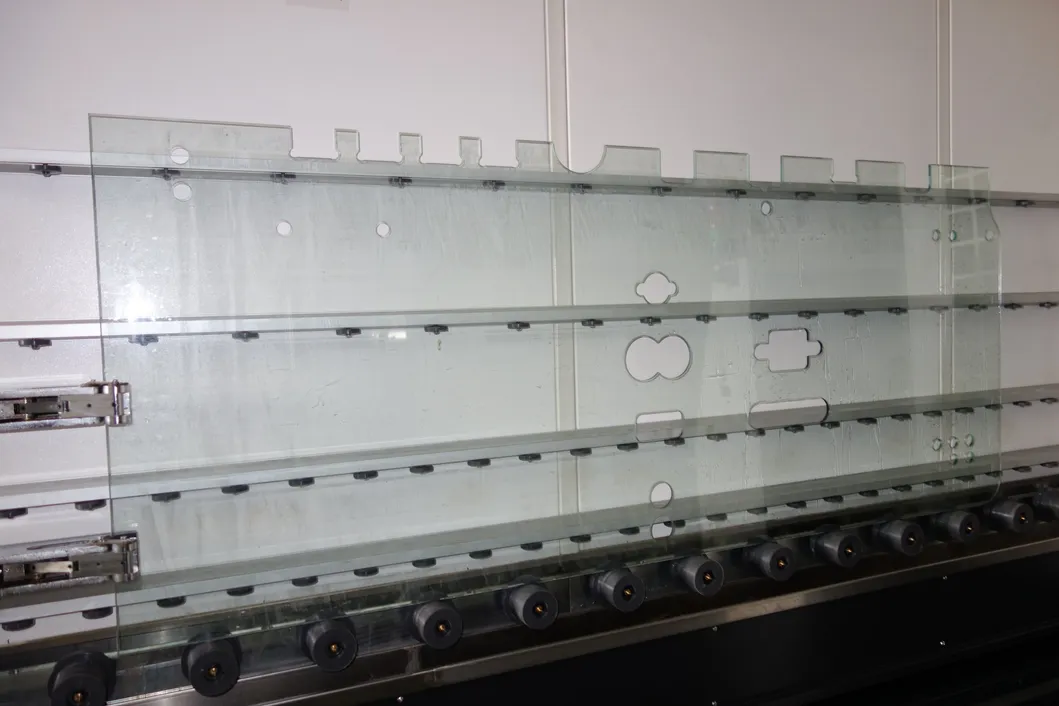

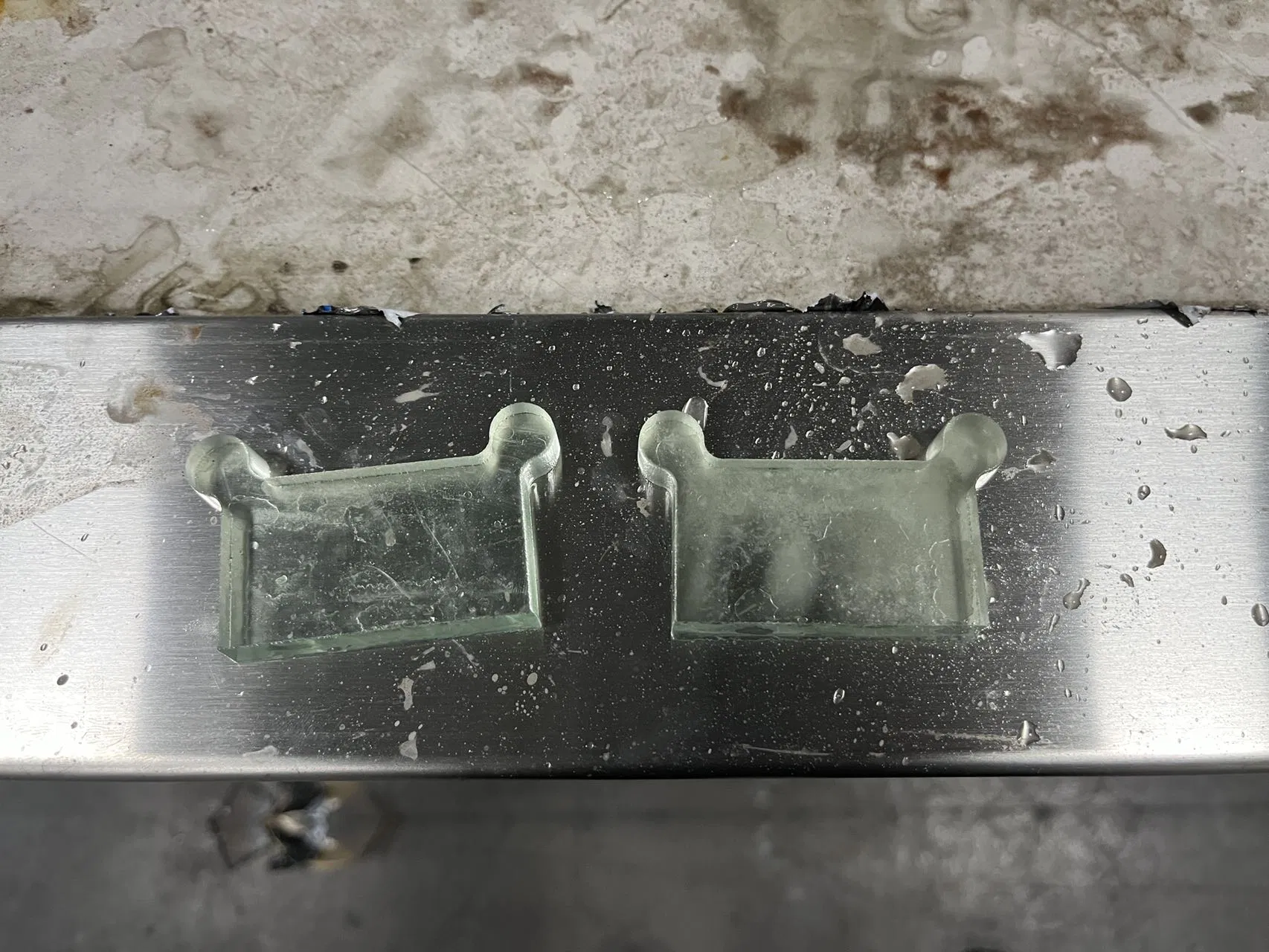

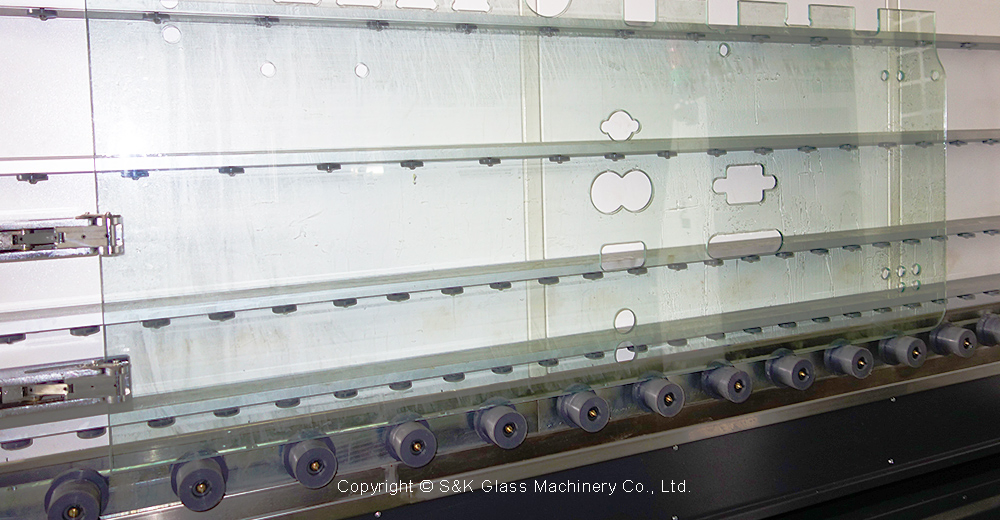

• Suitable for automatically processing complex drilling, milling, and chamfering on large flat glass, including frameless glass doors, curtain wall glass, and shower room glass.

📊 Technical Parameters

Model	Speed	Min. Size	Max. Size	Thickness	Power	Weight	Occupation Area
SKDM-CNC-2030V	12000rpm/min	200x500mm	2000x3000mm	5-19mm	22kw	5000kg	9300x2500x3700mm
SKDM-CNC-2436V	12000rpm/min	200x500mm	2440x3660mm	5-19mm	22kw	7000kg	9400x2500x4100mm
SKDM-CNC-2442V	12000rpm/min	200x500mm	2400x4200mm	5-19mm	22kw	8000kg	9000x2500x4100mm
SKDM-CNC-2550V	12000rpm/min	200x500mm	2500x5000mm	5-19mm	22kw	9000kg	11700x2500x4200mm
SKDM-CNC-3060V	12000rpm/min	200x500mm	3000x6000mm	5-19mm	22kw	10000kg	15800x2500x4700mm

🖼️ Equipment Showcase

❓ Frequently Asked Questions

1. What glass processing functions does this CNC machine support?

The machine is capable of performing high-precision drilling, milling, edging, polishing, and chamfering on various types of flat glass.

2. What is the maximum glass size compatible with the SKDM-CNC-2442V?

The SKDM-CNC-2442V model can process glass with a maximum specification of 2400 x 4200 mm.

3. What is the processing glass thickness range?

This series of vertical CNC working centers can handle glass thicknesses ranging from 5 mm to 19 mm.

4. Is the machine suitable for architectural glass?

Yes, it is ideal for processing frameless glass doors, curtain wall glass, and shower room glass that require high precision and complex drilling/milling.

5. What is the spindle speed of the CNC working center?

The system operates at a high speed of 12000 rpm/min to ensure smooth finishing and efficient processing.

6. How does the control system manage high-precision tasks?

It applies a numerical operation and control system to achieve dynamic management of each axis, ensuring speed precision and complex shape accuracy.
