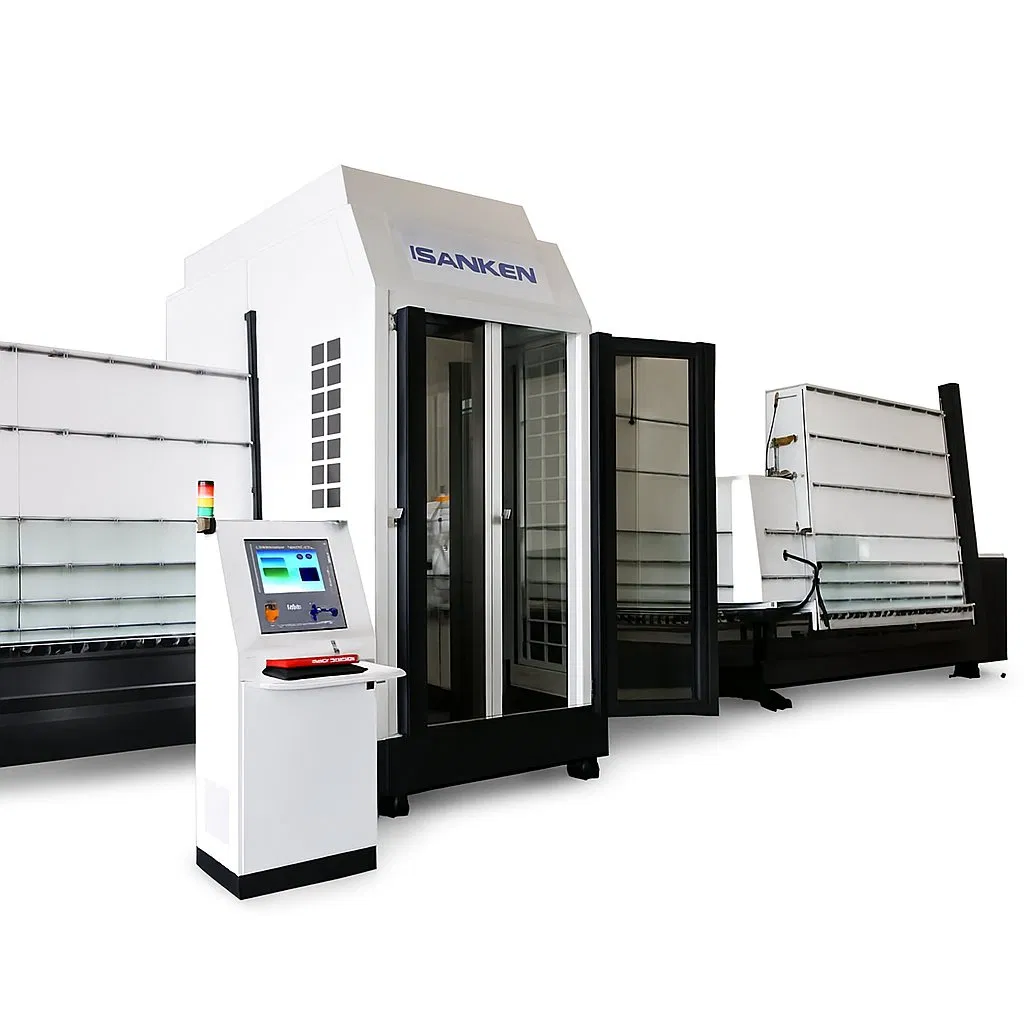

Advanced Sanken Vertical CNC Glass Processing Center for Toughened Glass

1 / 5

Advanced Sanken Vertical CNC Glass Processing Center for Toughened Glass

Applications:	Architectural, Commercial, Furniture, Residential
Certification:	CE, ISO
Glass Thickness:	5-19 mm

Send Inquiry

Product Description

Basic Specifications

Model NO.

SKDM-CNC-2030V

Processing

Cutting, Drilling, Edging, Polishing

Warranty

1 Year

Thickness

5-19 mm

Weight

5 Tons

Condition

New

Specification

2000 * 3000 mm

Capacity

40 Sets/Year

HS Code

8475291900

Gross Weight

999.000kg

★

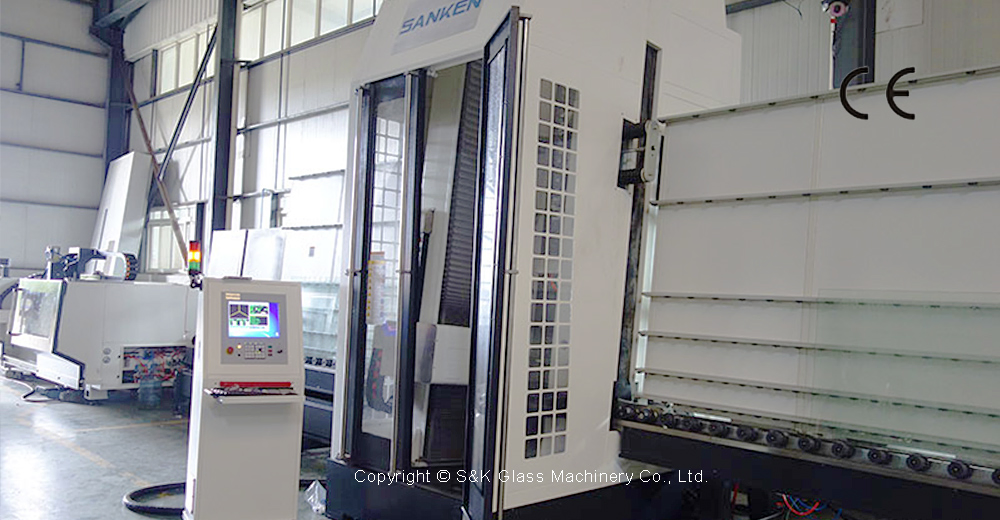

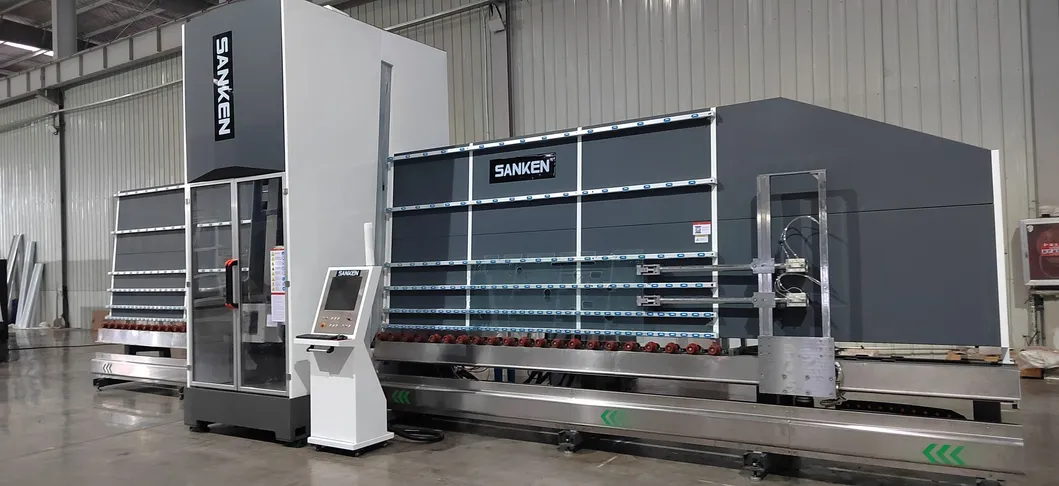

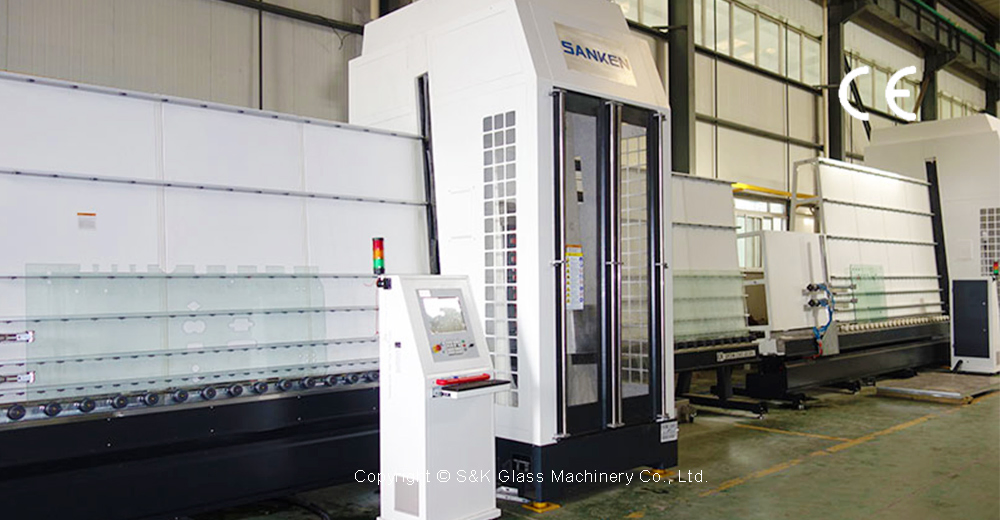

Vertical CNC Drilling & Milling Center

The Vertical CNC Drilling and Milling Working Center is engineered with high technology for superior glass processing. It performs complicated tasks in short cycles, ensuring high-quality results for demanding industrial applications.

Advanced Control System: Utilizes a numerical operation and control system to achieve dynamic management of each axis and precise speed control. This makes it ideal for processing complex high-precision shapes.

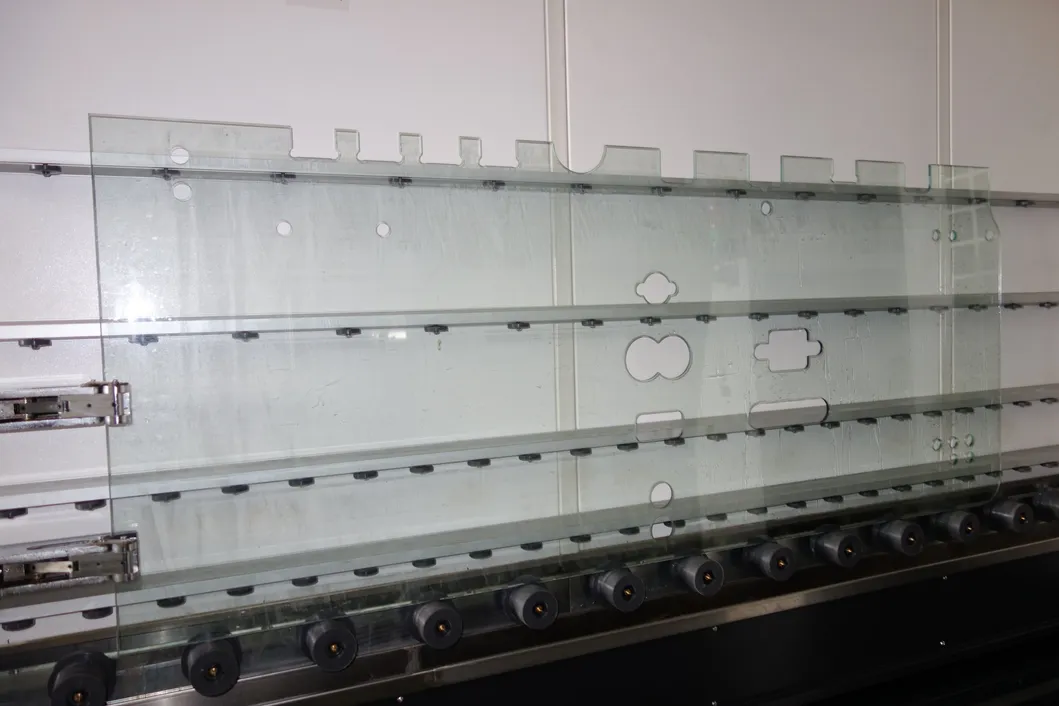

Designed for flexibility, the system handles complex drilling, milling, and chamfering on large flat glass automatically. It is the perfect solution for processing frameless glass doors, curtain walls, and shower room glass.

⚙

Technical Parameters

Model	Speed	Min. Size	Max. Size	Thickness	Power	Weight
SKDM-CNC-2030V	12000rpm/min	200x500mm	2000x3000mm	5-19mm	22kw	5000kg
SKDM-CNC-2436V	12000rpm/min	200x500mm	2440x3660mm	5-19mm	22kw	7000kg
SKDM-CNC-2442V	12000rpm/min	200x500mm	2400x4200mm	5-19mm	22kw	8000kg
SKDM-CNC-2550V	12000rpm/min	200x500mm	2500x5000mm	5-19mm	22kw	9000kg
SKDM-CNC-3060V	12000rpm/min	200x500mm	3000x6000mm	5-19mm	22kw	10000kg

Frequently Asked Questions

What types of glass can this CNC machine process?

The machine is designed for large flat glass processing, specifically for glass thicknesses ranging from 5mm to 19mm.

What are the main functions of the SKDM-CNC series?

It can automatically perform complex drilling, milling, edging, polishing, and chamfering in a single working cycle.

What is the maximum glass size supported?

Depending on the specific model, the maximum processing size can reach up to 3000 x 6000 mm (Model SKDM-CNC-3060V).

Which industries typically use this vertical CNC center?

It is highly suitable for manufacturers of frameless glass doors, glass curtain walls, shower room enclosures, and other architectural glass products.

How does the machine ensure processing accuracy?

The machine applies a high-tech numerical control system that provides dynamic management of each axis and precision speed control at 12000 rpm.

What is the production capacity for these units?

The facility maintains a production capacity of approximately 40 sets per year to ensure high quality and attention to detail for each machine.
