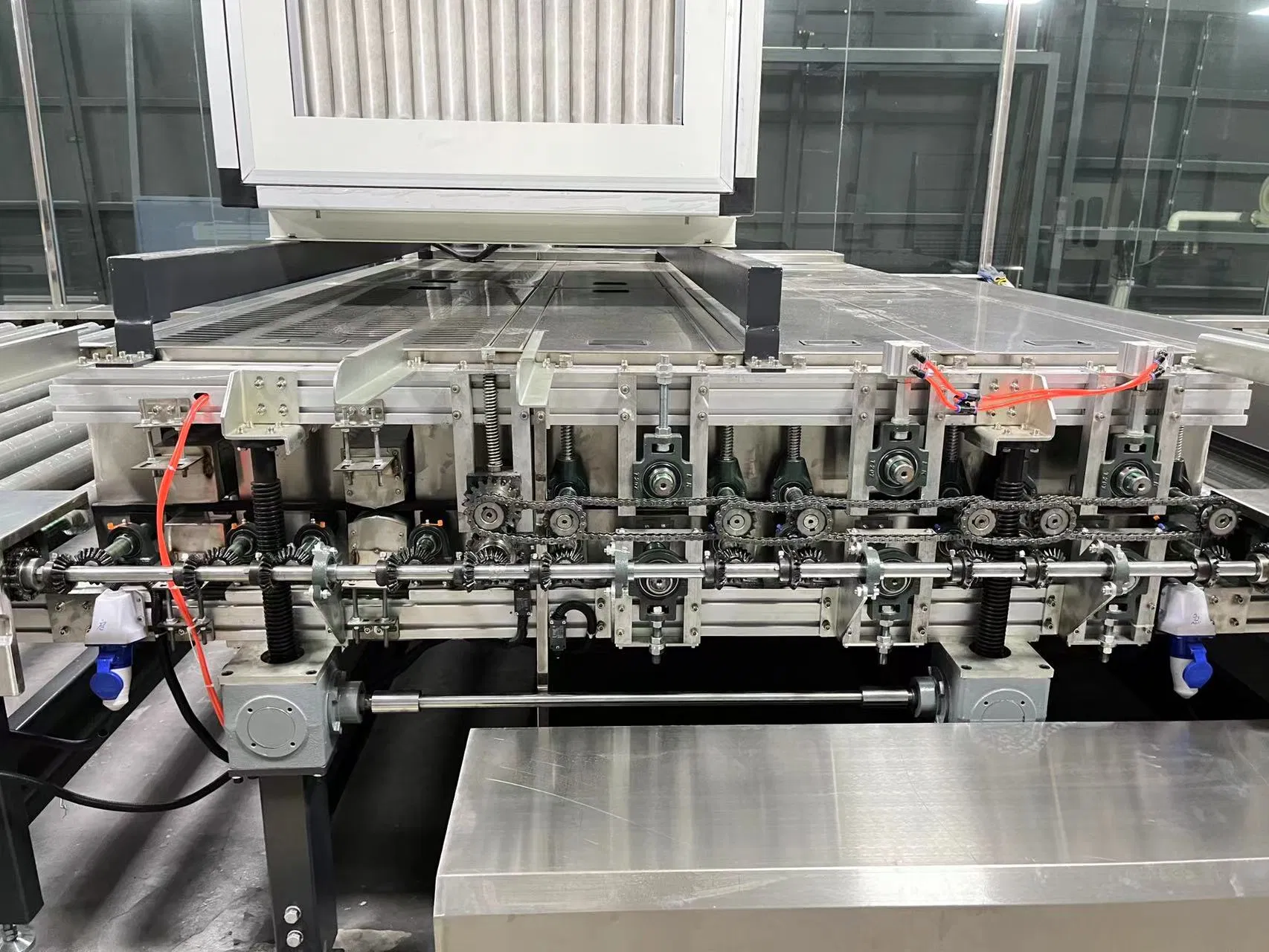

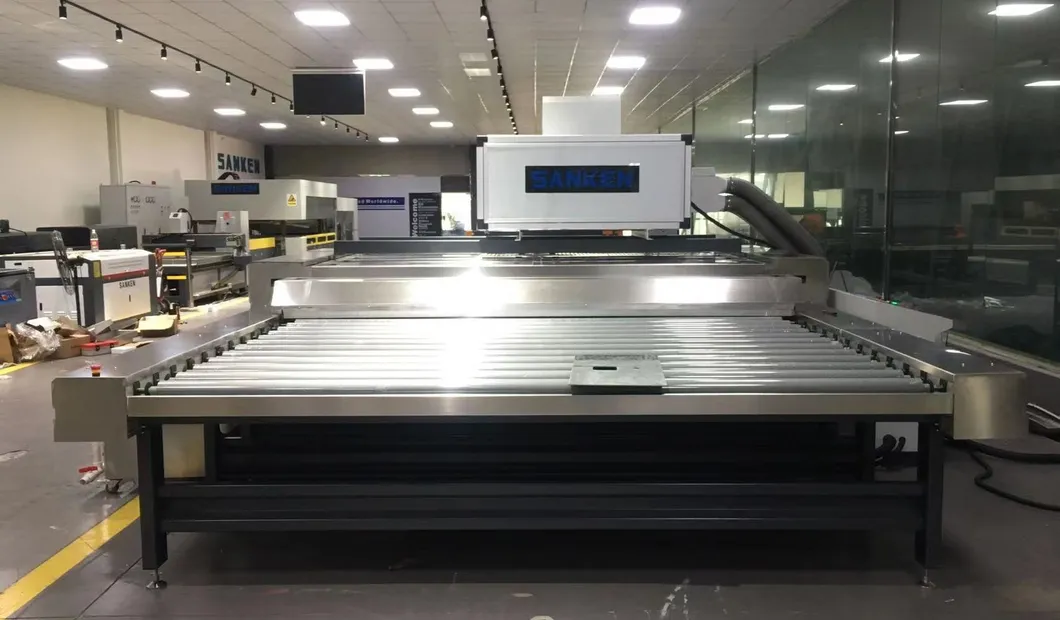

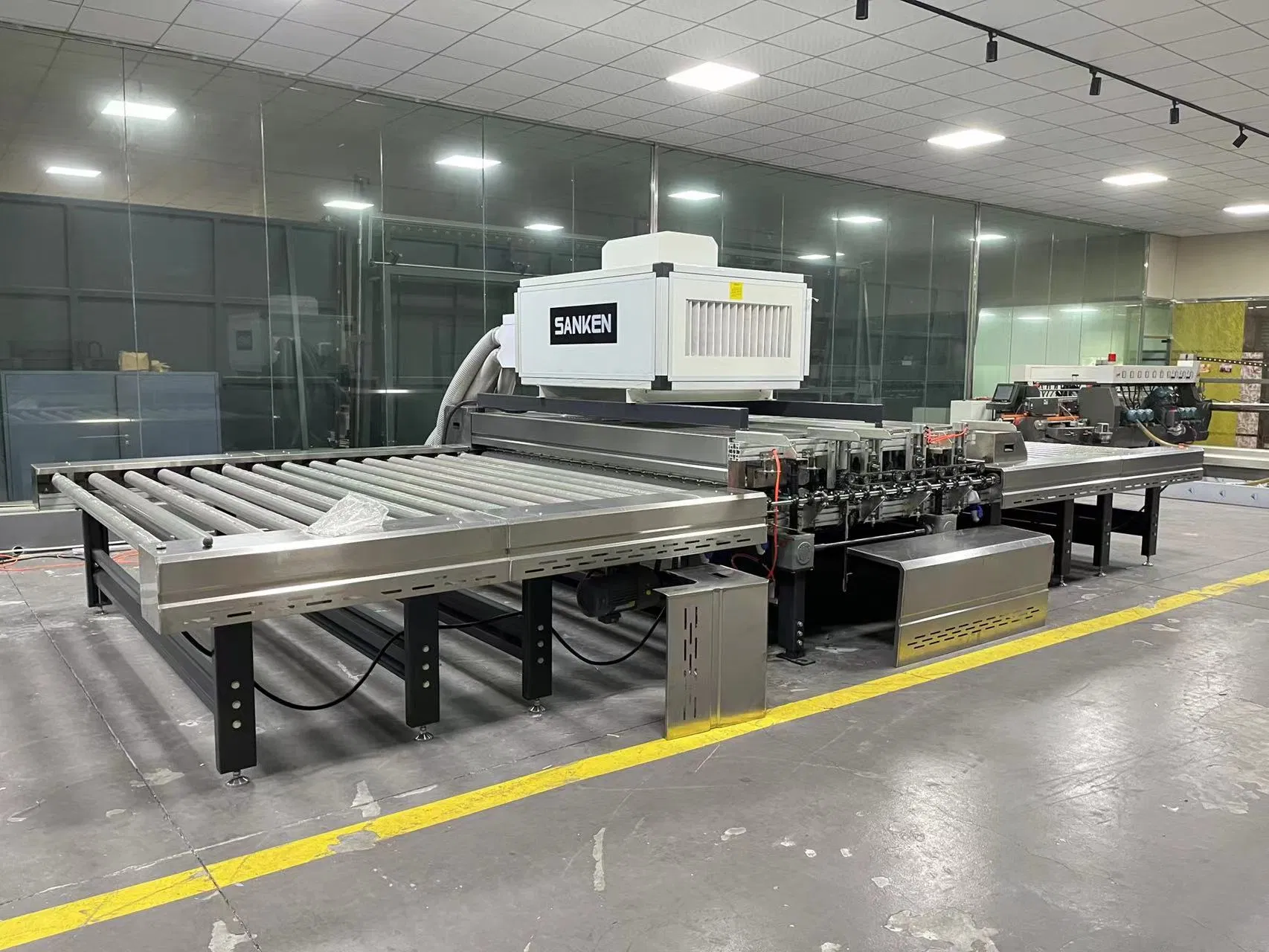

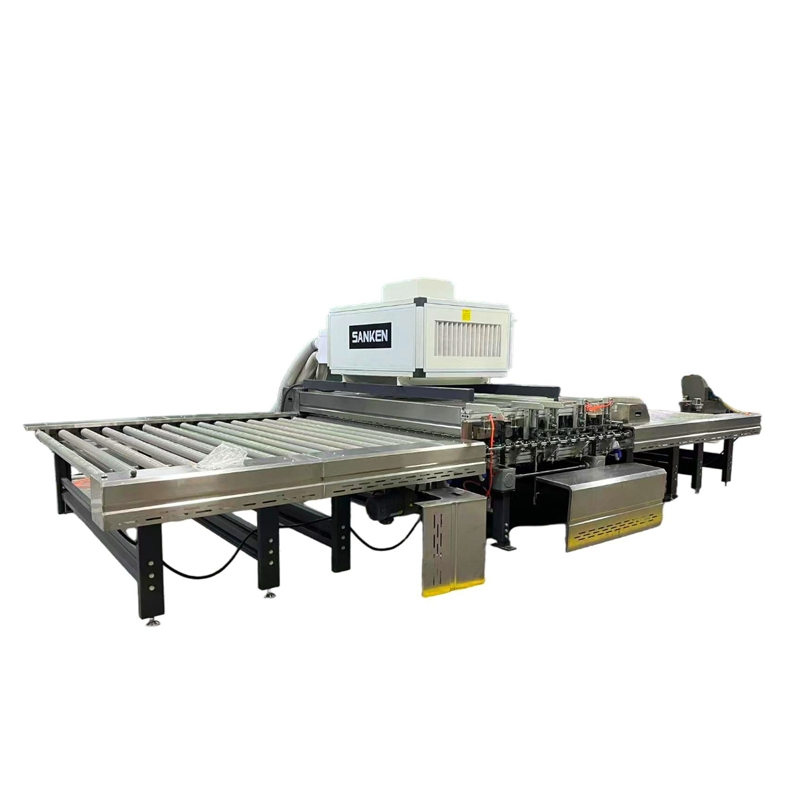

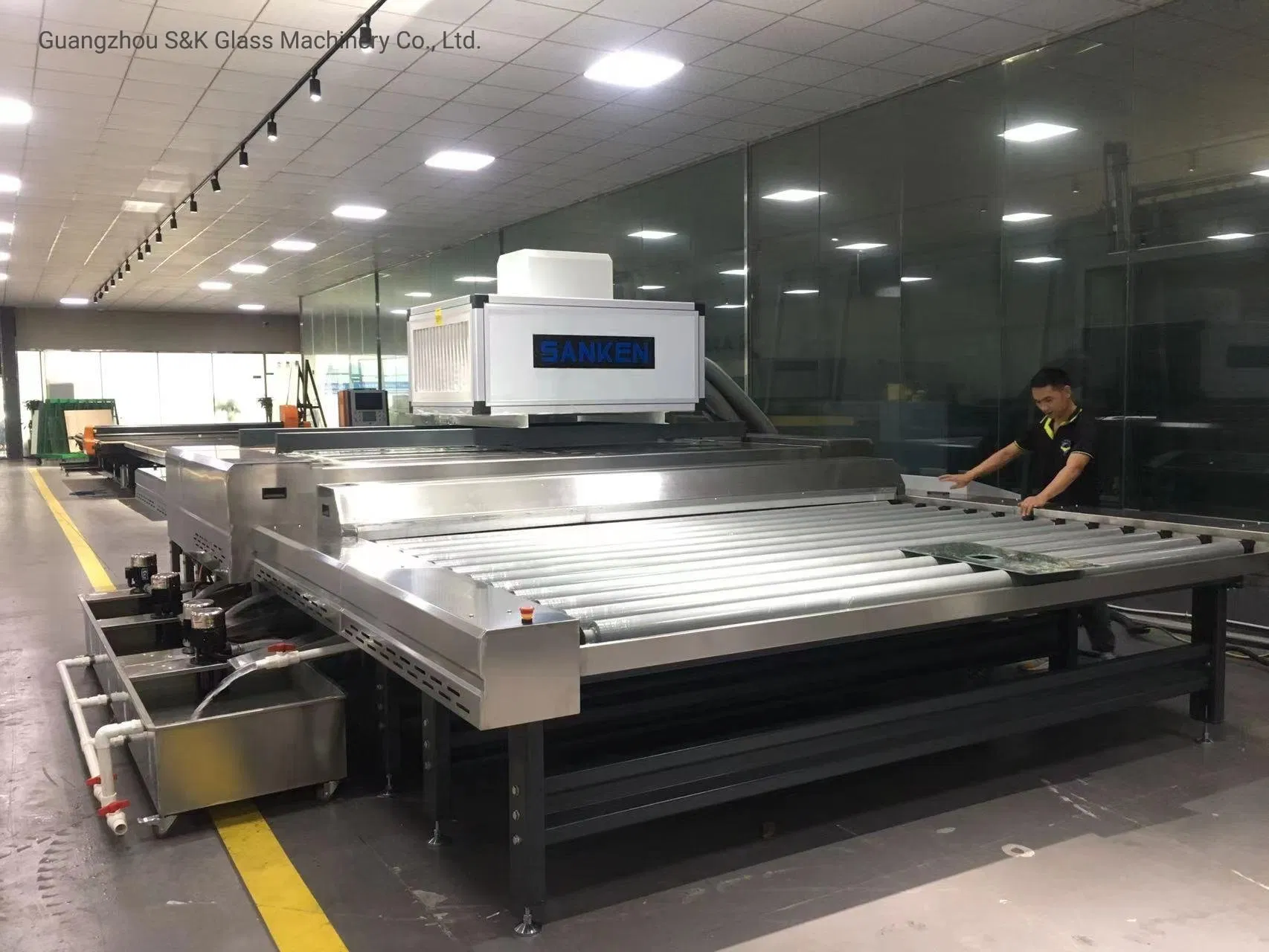

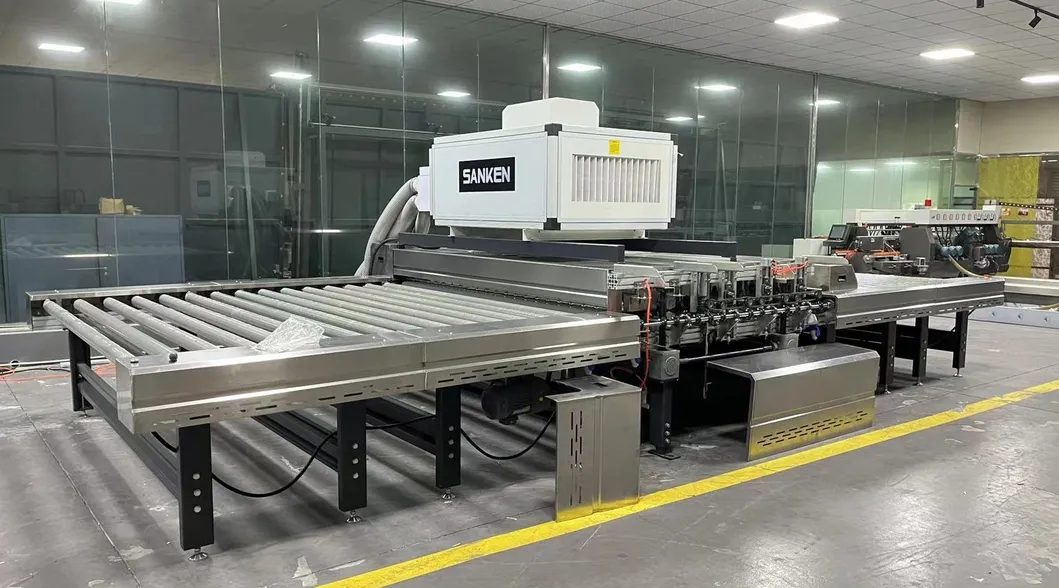

High-pressure Air Knife Low-e Glass Washing Machine SKW-2500A
Glass Washing Machine with high pressure air knife, is special designed for tempering glass production line, laminating glass production line, insulating glass production line, etc. It has function of three step washing, used with stepless regulator driving system, which is also easy to wash different size of glass.

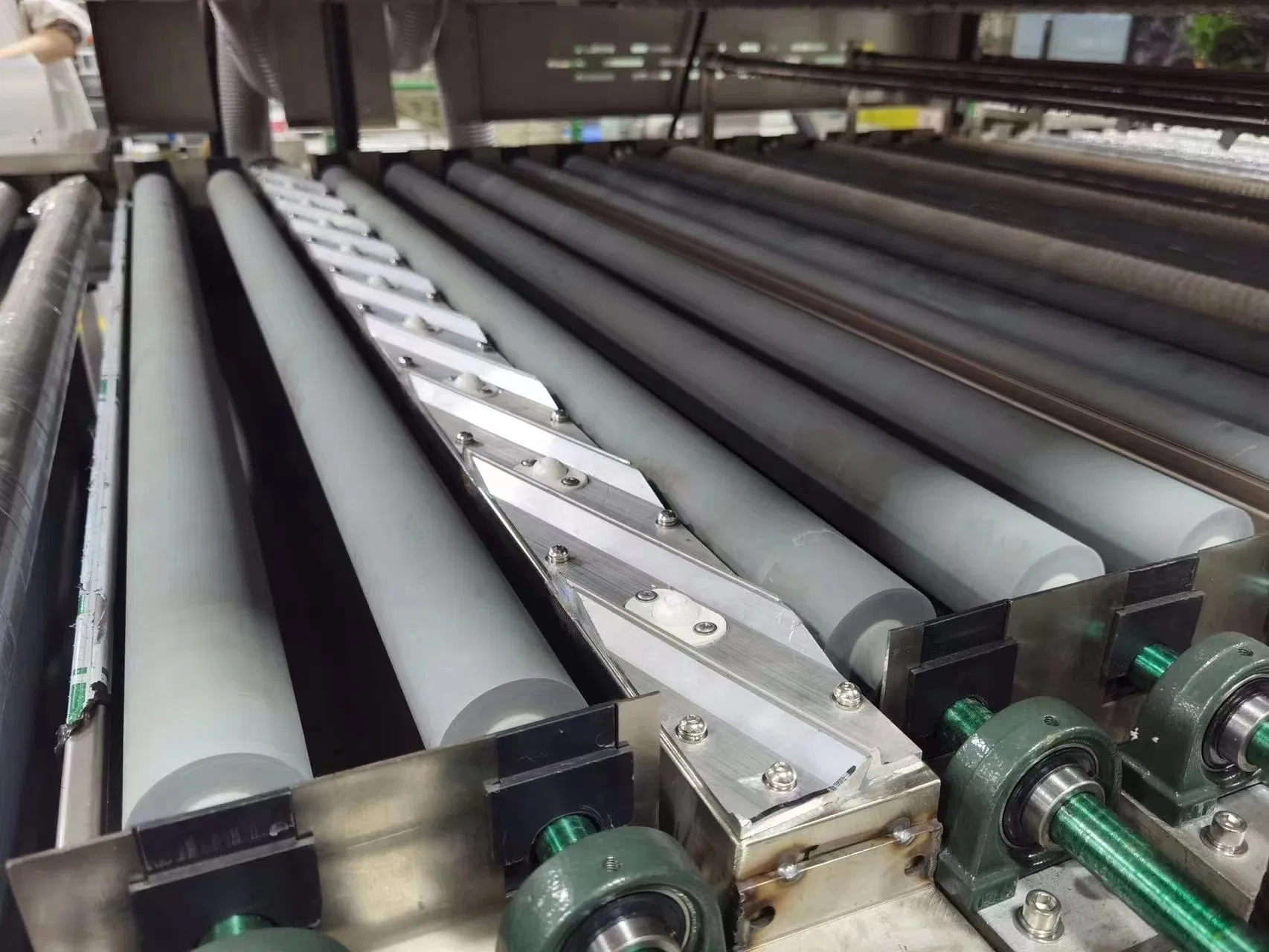

Each washing area is installed with stainless steel or other special treatment steel. Optional hard and soft brush devices are available, specifically designed for hard Low-e glass washing. We look forward to offering you excellent glass processing machines with high-tier quality. We will treat your projects with the utmost care, ensuring the best quality for your production needs.
| Model | Max. Size | Min. Size | Total Power | Thickness | Weight | Machine Size |
|---|---|---|---|---|---|---|
| SKW-1200A | 1200 x 3660 mm | 200 x 100 mm | 17 KW | 3-19 mm | 1.3 Tons | 4200 x 1800 x 2200 mm |
| SKW-1600A | 1600 x 3660 mm | 200 x 100 mm | 18.5 KW | 3-19 mm | 1.5 Tons | 4200 x 2500 x 2200 mm |
| SKW-1800A | 1800 x 3660 mm | 200 x 100 mm | 22 KW | 3-19 mm | 2.6 Tons | 5200 x 3200 x 2500 mm |
| SKW-2000A | 2000 x 3660 mm | 200 x 200 mm | 22.5 KW | 3-19 mm | 3.0 Tons | 6500 x 3500 x 2800 mm |
| SKW-2500A | 2440 x 3660 mm | 400 x 100 mm | 29 KW | 3-19 mm | 3.5 Tons | 6500 x 3900 x 2500 mm |
| SKW-2800A | 2800 x 5000 mm | 400 x 100 mm | 36 KW | 3-19 mm | 4.0 Tons | 7500 x 4100 x 2500 mm |
| SKW-3300A | 3300 x 6000 mm | 400 x 100 mm | 45 KW | 3-19 mm | 4.0 Tons | 7800 x 4500 x 2500 mm |
