Sanken Glass 11-Motor Tempering Glass Furnace Tempered Glass Multilevel Facet Polishing Machine

1 / 5

Sanken Glass 11-Motor Tempering Glass Furnace Tempered Glass Multilevel Facet Polishing Machine

Certification:	CE
Processing Speed:	1-5 m/min
Processing Thickness:	3-19 mm

Send Inquiry

Product Description

Basic Information

Model NO.SK45-11

Voltage380V

Warranty1 Year

Function45 Degree Angle

Wooden Package Size4500 * 1400 * 2120 mm

Delivery35 Days

Control SystemPLC Touch Screen

Service3 Days

Transport PackageExport Packing

Specification1830 * 2440 mm

HS Code8464201000

Production Capacity45 Sets/Year

Product Description

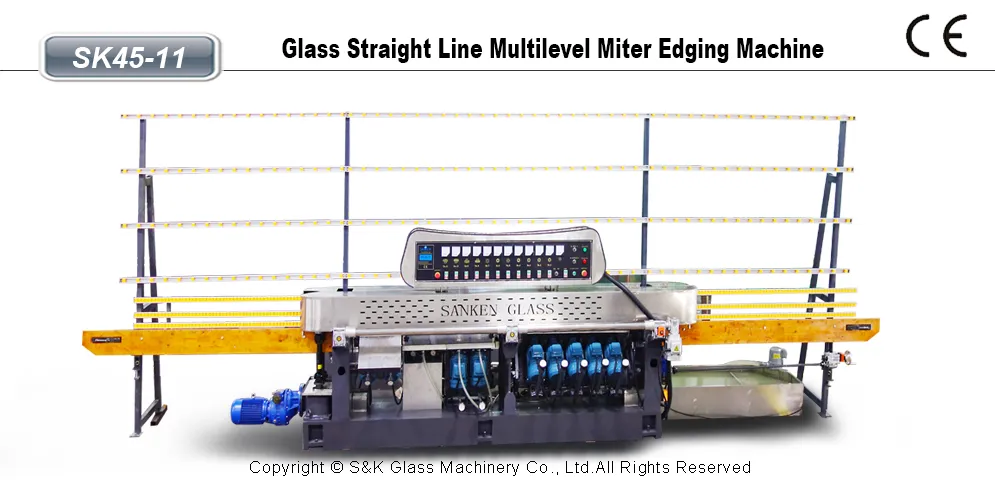

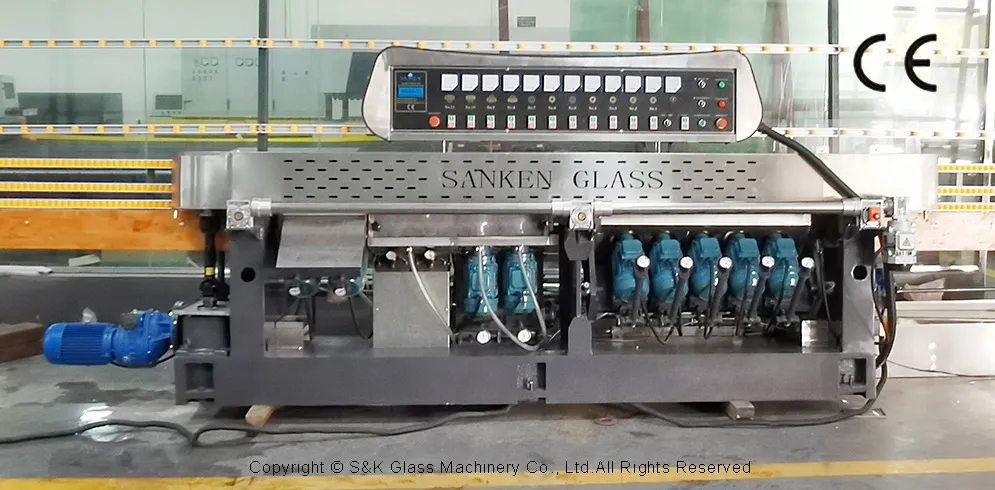

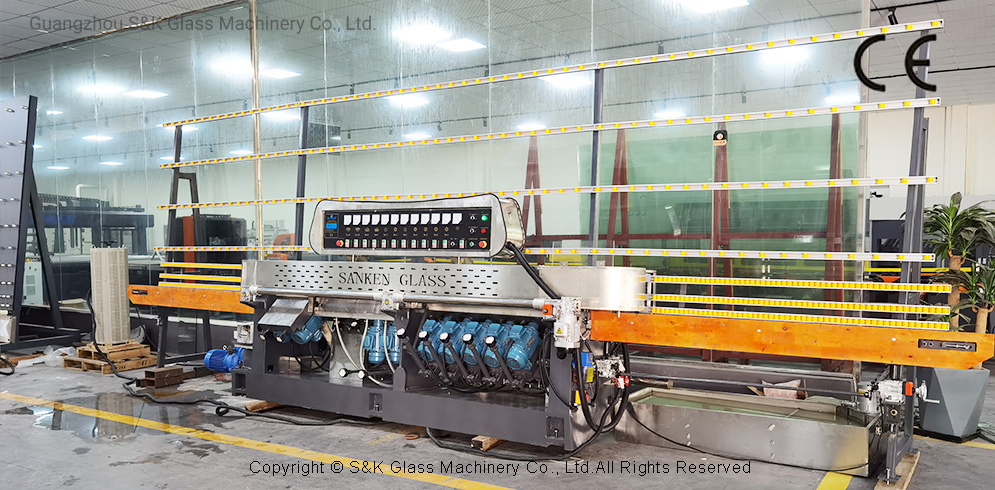

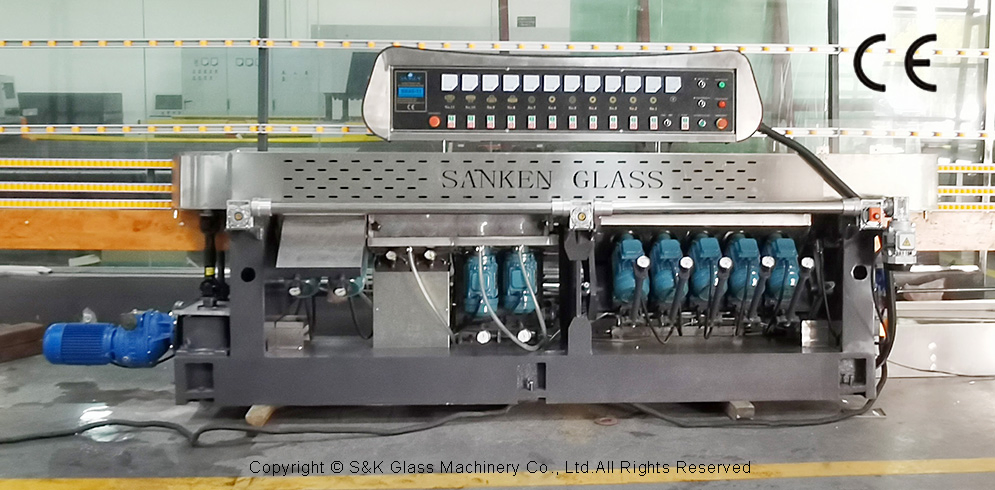

11-Motor 45 Degree Angle Multilevel Facet Machine SK45-11

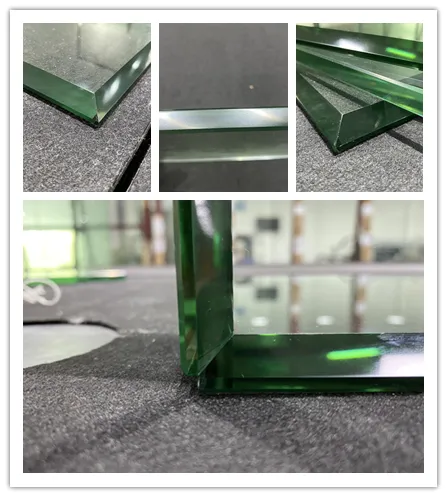

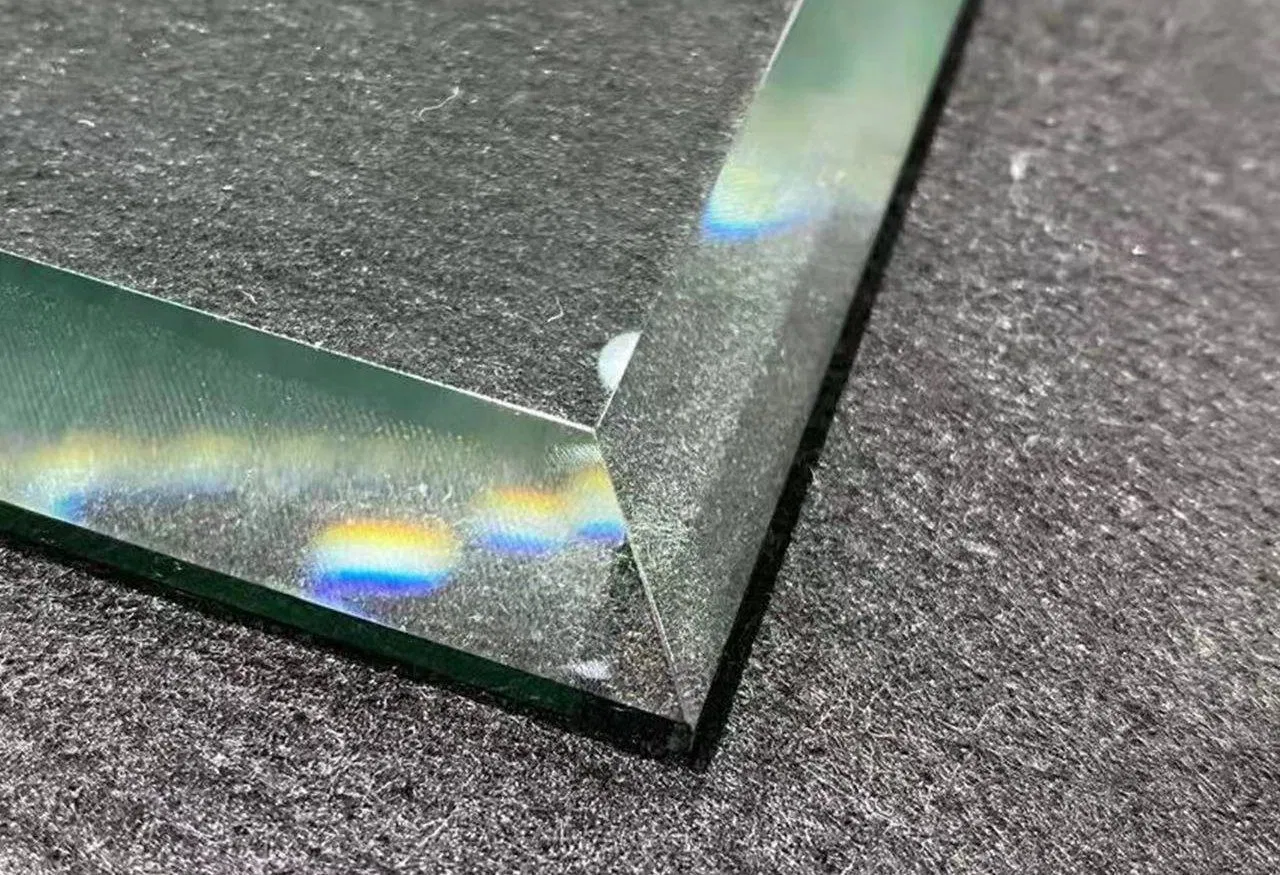

Glass Straight Line Multilevel Single Facet Polishing Machine on different thickness of flat glass. The coarse grinding, fine grinding, polishing and chamfering can be completed nicely in one time process. Easy installation, easy operation with high productive efficiency, this Glass Straight Line Edging Machine will be one of your best choices (SK45- series machines with FLAT & 45 degree angle changing function).

Model	Speed	Min. Size	Max. Size	Thickness	Power	Weight	Occupation Area
SK45-9	1~5 m/min	60 x 60 mm	1830 x 2440 mm	3-19 mm	20 kw	2800 kg	6800 x 1200 x 2500 mm
SK45-10	1~5 m/min	60 x 60 mm	1830 x 2440 mm	3-19 mm	23 kw	3100 kg	7000 x 1200 x 2500 mm
SK45-11	1~5 m/min	60 x 60 mm	1830 x 2440 mm	3-19 mm	26 kw	3600 kg	7500 x 1200 x 2500 mm
SK45-9PLC	1~5 m/min	60 x 60 mm	1830 x 2440 mm	3-19 mm	20 kw	2800 kg	6800 x 1200 x 2500 mm
SK45-10PLC	1~5 m/min	60 x 60 mm	1830 x 2440 mm	3-19 mm	23 kw	3100 kg	7000 x 1200 x 2500 mm
SK45-11PLC	1~5 m/min	60 x 60 mm	1830 x 2440 mm	3-19 mm	26 kw	3600 kg	7500 x 1200 x 2500 mm

Frequently Asked Questions

What glass thickness can this machine process?

The SK45 series machines are capable of processing flat glass with a thickness ranging from 3mm to 19mm.

Does the machine support angle grinding?

Yes, the SK45 series is specifically designed with a 45-degree angle changing function, supporting both flat edging and multilevel facet polishing.

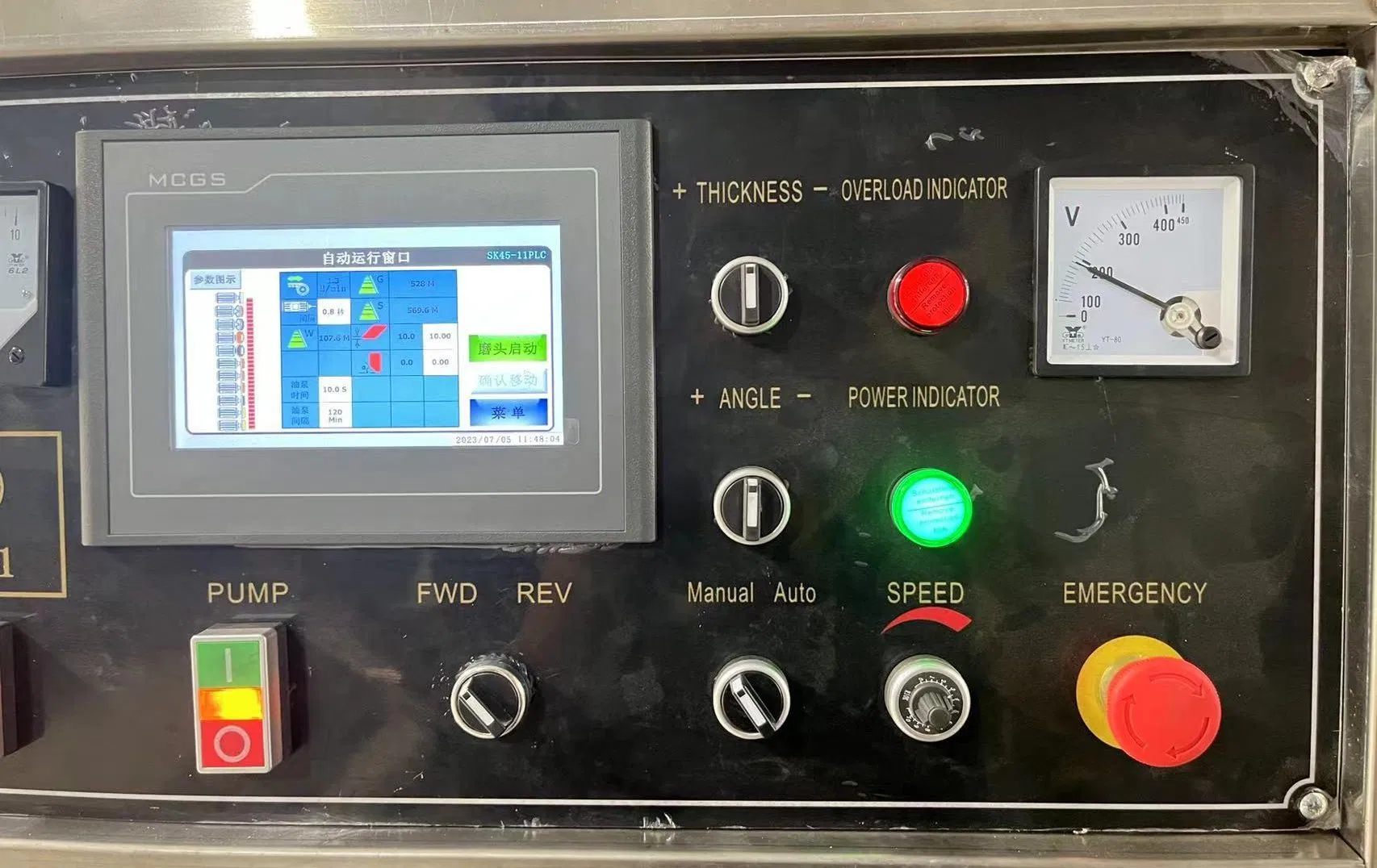

What is the control system used in this equipment?

The machine features a high-performance PLC Touch Screen control system for easy operation and precise adjustments.

What is the minimum glass size for processing?

The minimum glass size requirement for this machine is 60 mm x 60 mm.

How is the machine protected during transportation?

The machine is packed using standard export packing in a wooden case, with dimensions of approximately 4500 * 1400 * 2120 mm to ensure safety during transit.

What is the expected production capacity?

The estimated production capacity for the SK45-11 model is approximately 45 sets per year.
