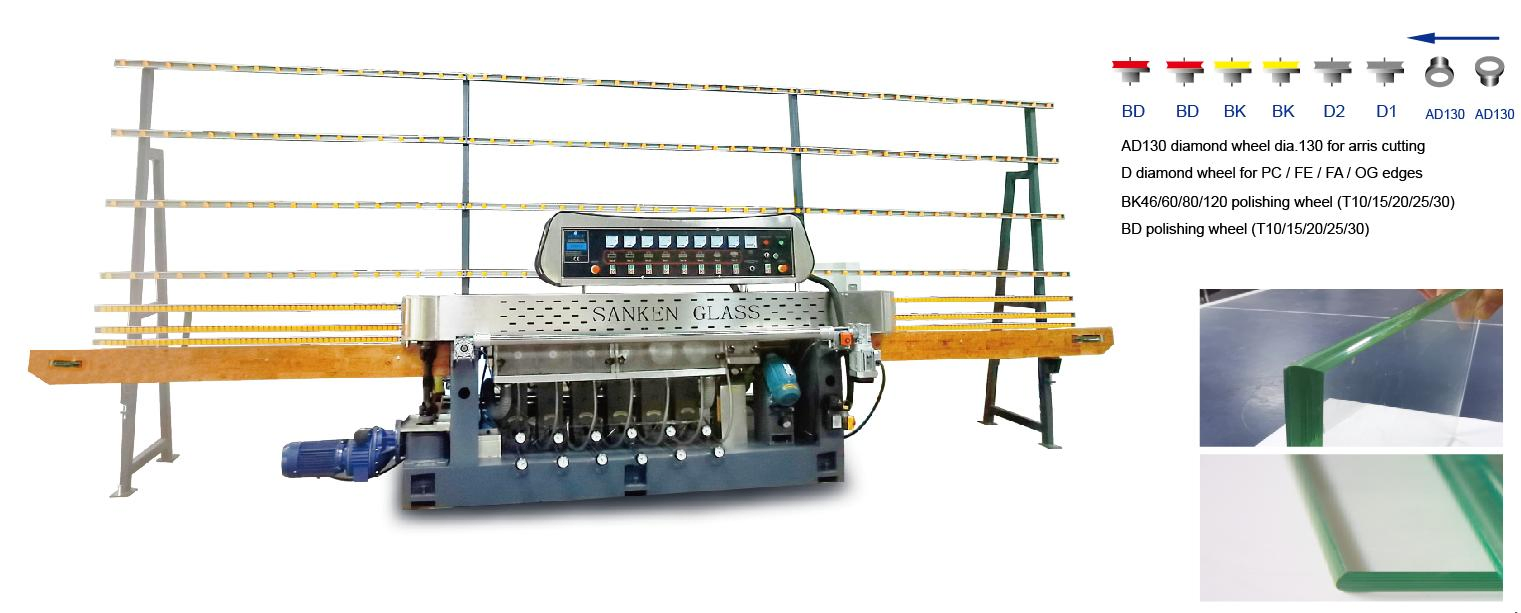

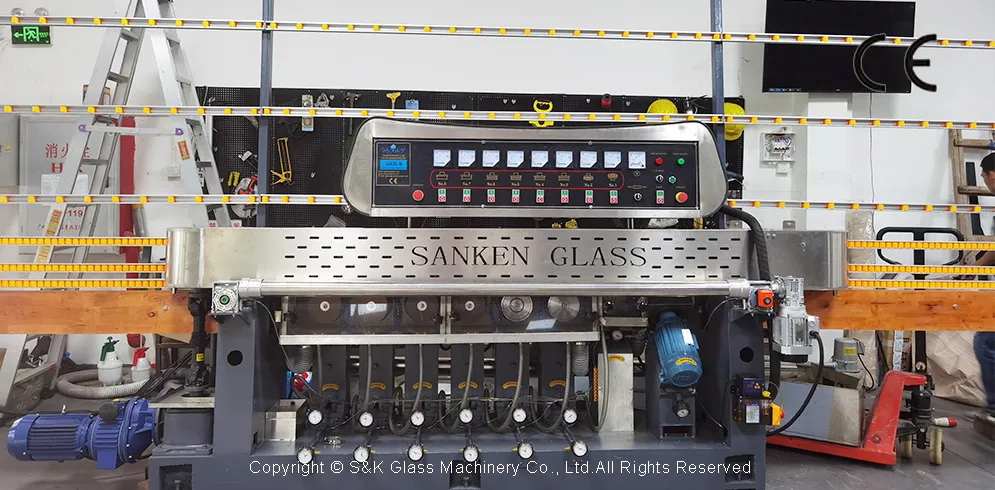

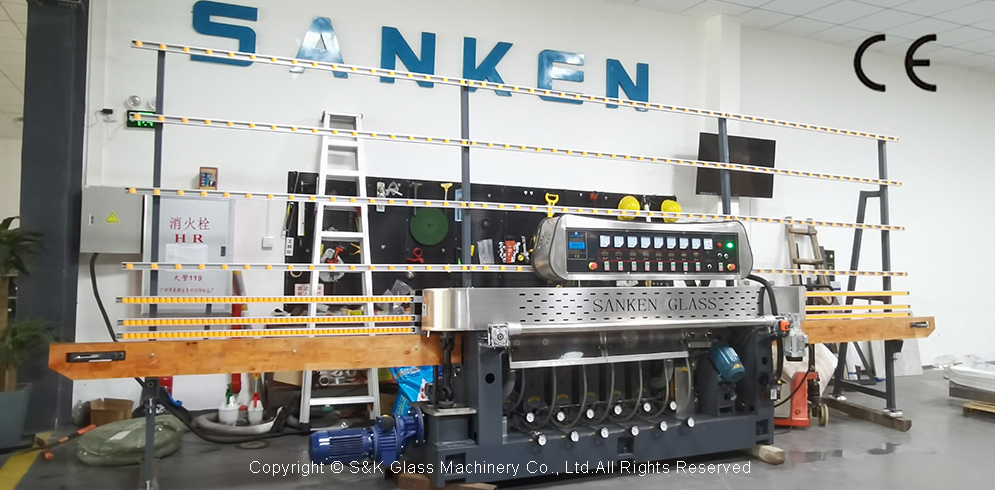

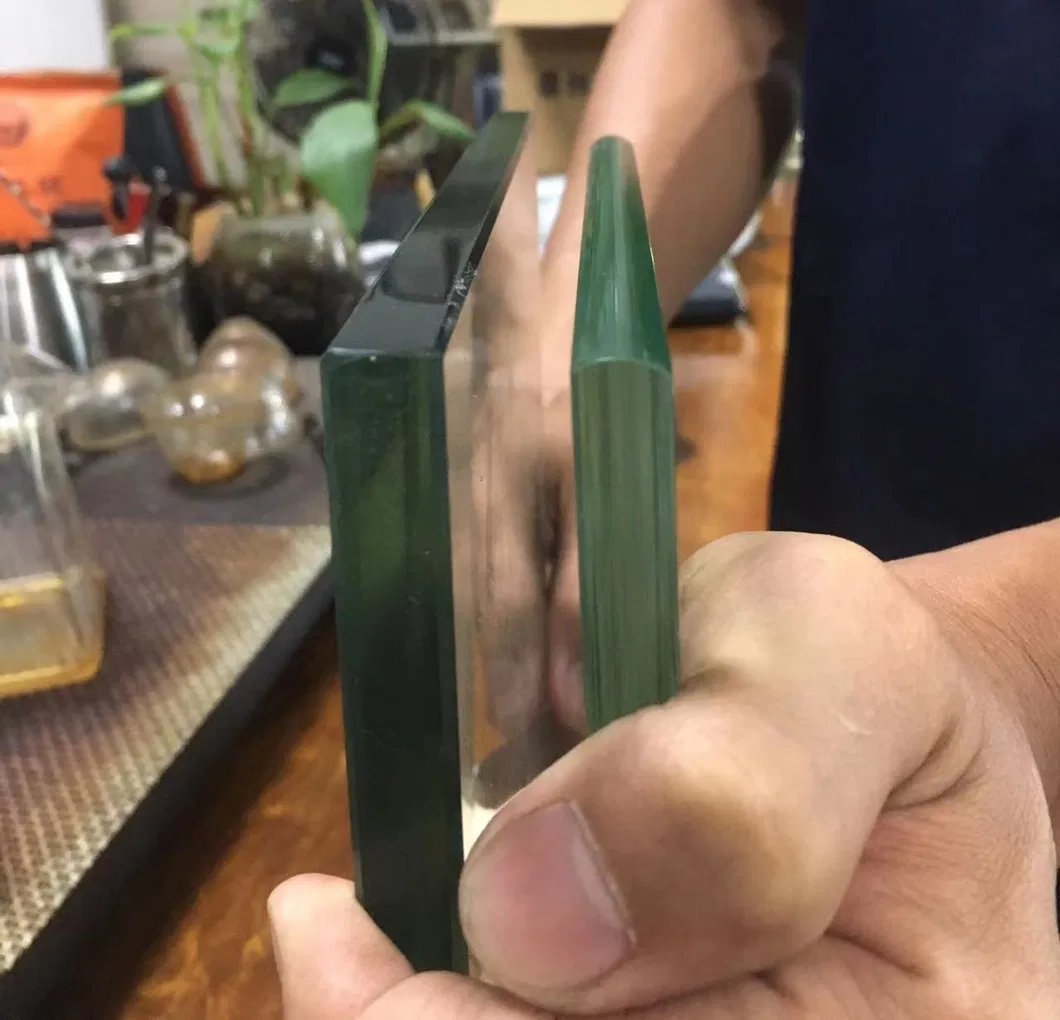

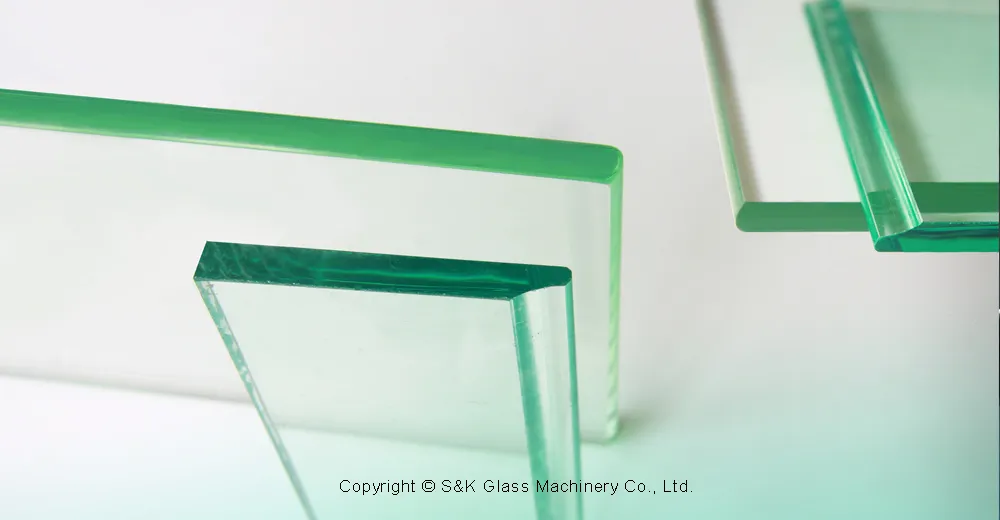

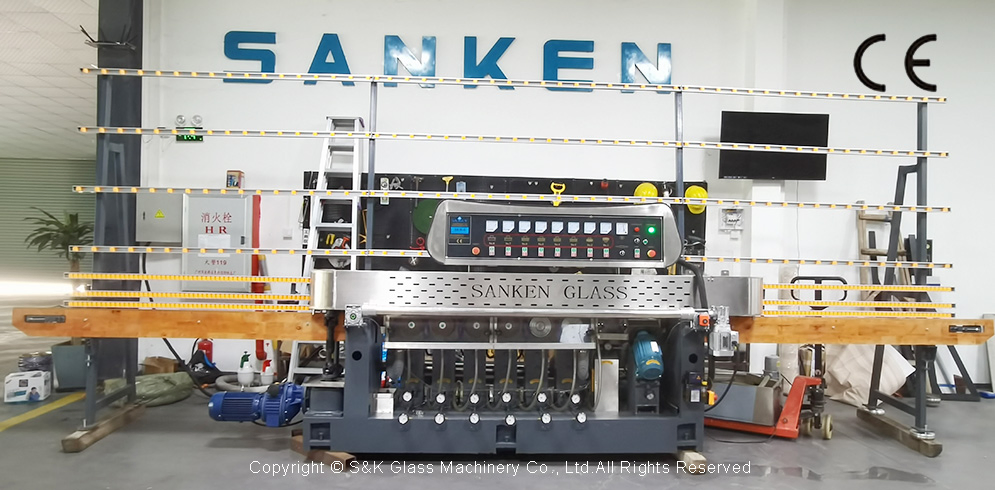

The Glass Round Pencil OG/2OG/3OG Facet Machine is a high-performance, multi-purpose edging solution. Specifically designed for precision glass processing, it is ideally suited for creating various edge profiles including straight line pencil round edges (PC), flat edges without arris (FE), and flat edges with arris (FA).

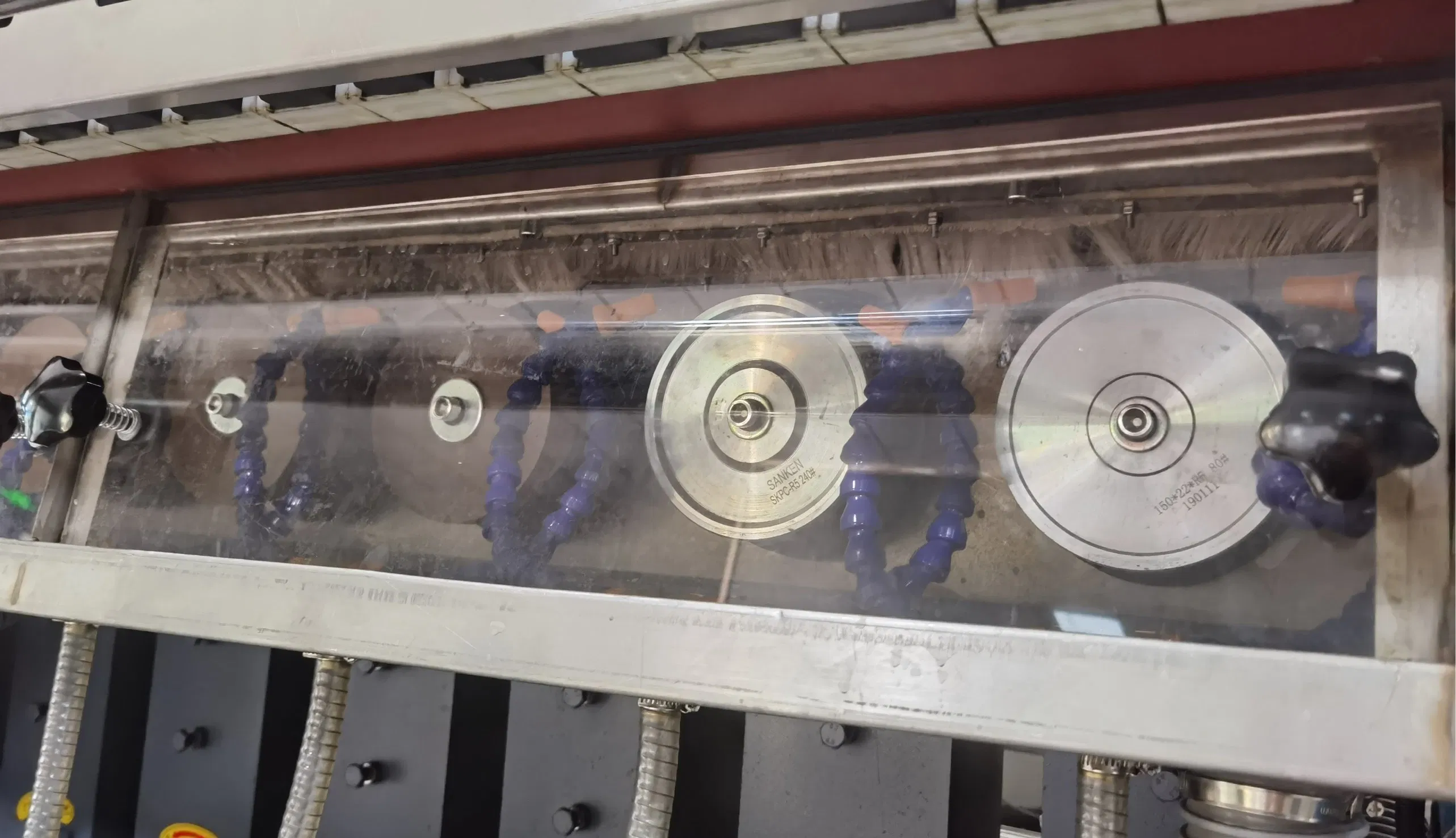

Furthermore, this machine supports 1OG, 2OG, and 3OG edge profiles. It offers maximum flexibility by allowing the use of different wheel shapes and thicknesses to accommodate various glass specifications. The system is engineered to perform both rough grinding and fine polishing in a single pass, ensuring high efficiency and superior finish quality.
| Model | Speed | Min. Glass Size | Max. Glass Size | Thickness | Power | Weight | Occupation Area |
|---|---|---|---|---|---|---|---|
| SKR-4 | 0.5~5 m/min | 100 x 100 mm | 1830 x 2440 mm | 3-19 mm | 11.5kw | 1700 kg | 5500 x 1500 x 2200 mm |
| SKR-6 | 0.5~5 m/min | 100 x 100 mm | 1830 x 2440 mm | 3-19 mm | 16.0kw | 2200 kg | 6000 x 1500 x 2200 mm |
| SKR-8 | 0.5~5 m/min | 100 x 100 mm | 1830 x 2440 mm | 3-19 mm | 19.5kw | 2700 kg | 6060 x 1500 x 2200 mm |
