Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine
Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine
Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine
Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine
Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine
1 / 5
Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine
Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine
Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine
Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine
Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine

Sanken Hardening Glass Oven 10-Motor 45 Angle Glass Multilevel Facet Polishing Machine

Certification: CE
Processing Speed: 1-5 m/min
Processing Thickness: 3-19 mm
Send Inquiry

Product Description

Basic Technical Information

Model NO.
SK45-10PLC
Voltage
380V
Warranty
1 Year
Function
Flat and 45 Angle
Package Size
4300 * 1400 * 2120 mm
Delivery Time
35 Days
Control System
PLC Touch Screen
Transport Package
Export Packing
HS Code
8464201000
Production Capacity
55 Sets/Year

Product Description

Glass Straight Line Multilevel 0-45 degree edging Polishing on different thickness of flat glass. The coarse grinding, fine grinding, polishing and chamfering can be completed nicely in one time process. Easy installation, easy operation with high productive efficiency, this Glass Straight Line Edging Machine will be one of your best choices. This series of machines comes with FLAT & 45 degree angle changing function.

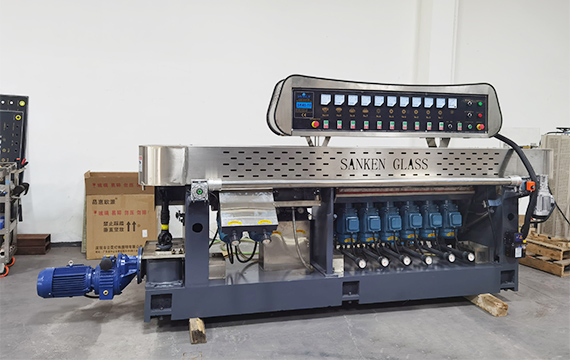

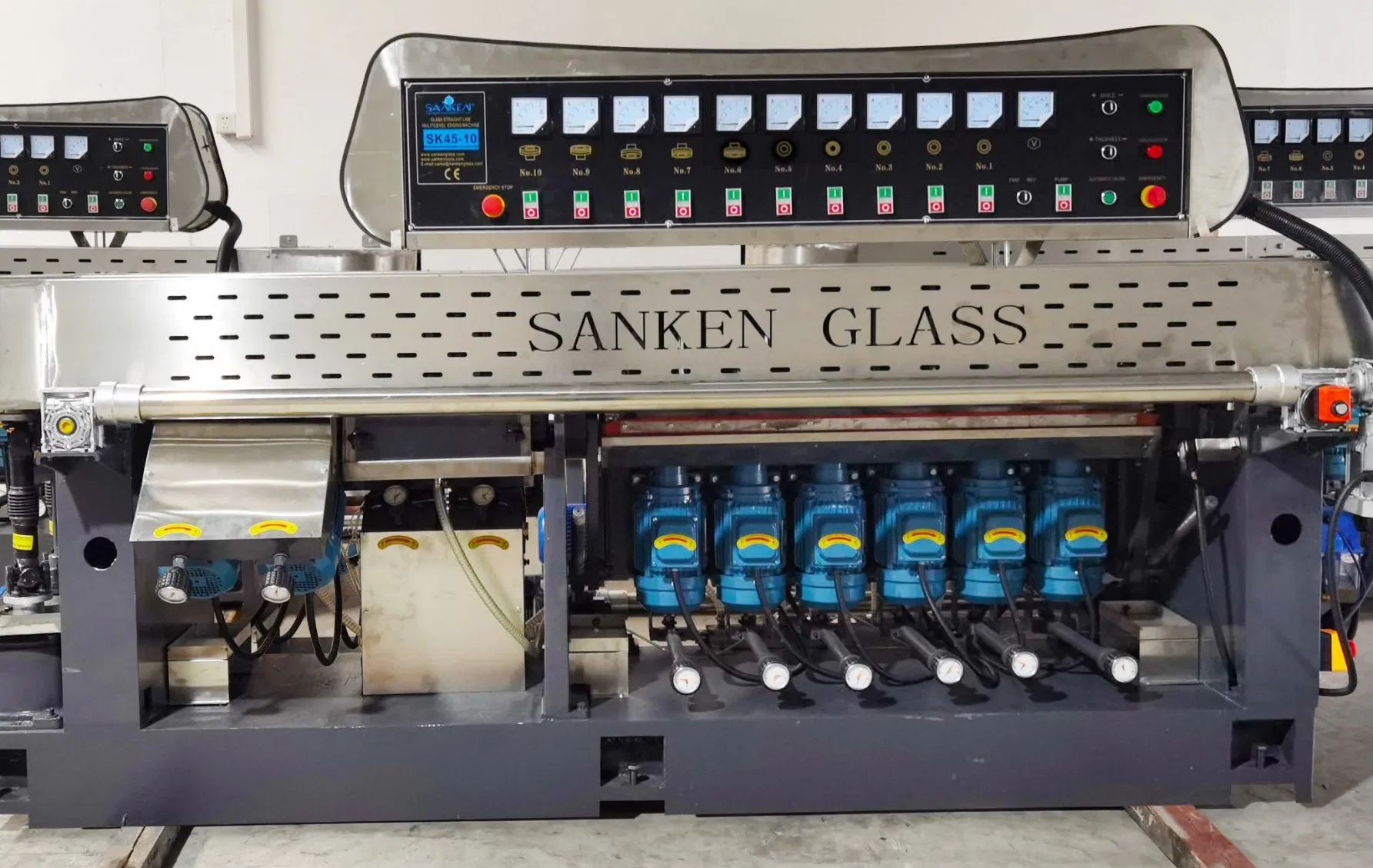

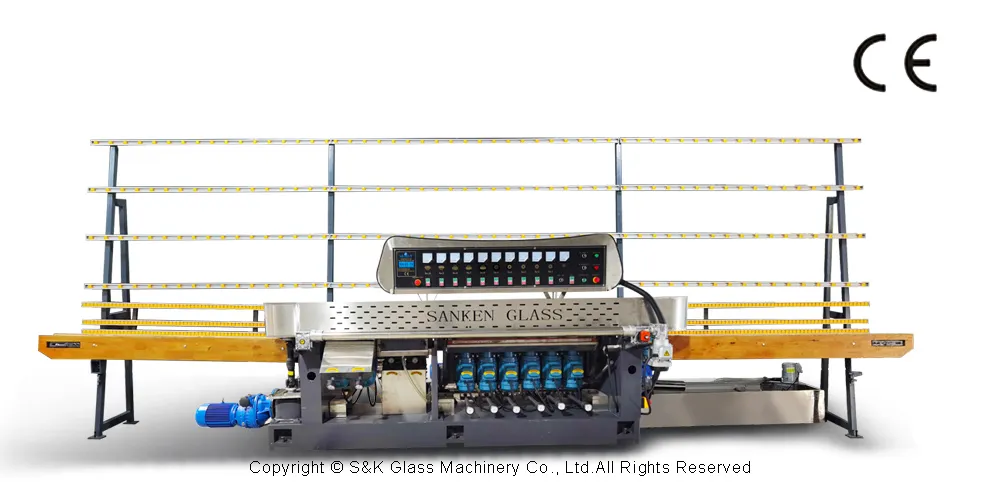

10-Motor 45 Angle Glass Multilevel Facet Polishing Machine

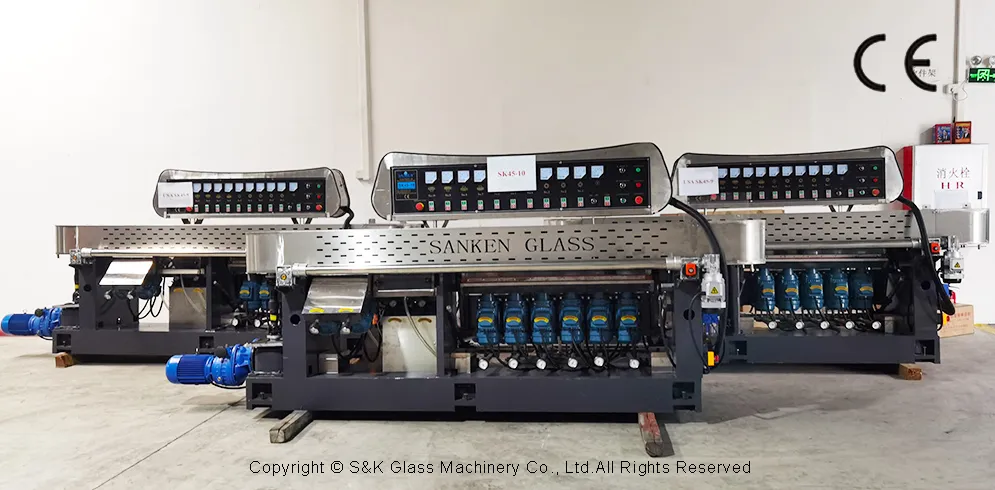

Glass Multilevel Facet Polishing Detail
Model Speed Min. Size Max. Size Thickness Power Weight Occupation Area
SK45-91~5 m/min60 x 60 mm1830 x 2440 mm3-19 mm20 kw2800 kg6800 x 1200 x 2500 mm
SK45-101~5 m/min60 x 60 mm1830 x 2440 mm3-19 mm23 kw3100 kg7000 x 1200 x 2500 mm
SK45-111~5 m/min60 x 60 mm1830 x 2440 mm3-19 mm26 kw3600 kg7500 x 1200 x 2500 mm
SK45-9PLC1~5 m/min60 x 60 mm1830 x 2440 mm3-19 mm20 kw2800 kg6800 x 1200 x 2500 mm
SK45-10PLC1~5 m/min60 x 60 mm1830 x 2440 mm3-19 mm23 kw3100 kg7000 x 1200 x 2500 mm
SK45-11PLC1~5 m/min60 x 60 mm1830 x 2440 mm3-19 mm26 kw3600 kg7500 x 1200 x 2500 mm
Feature Icon
Machine Structure Detail

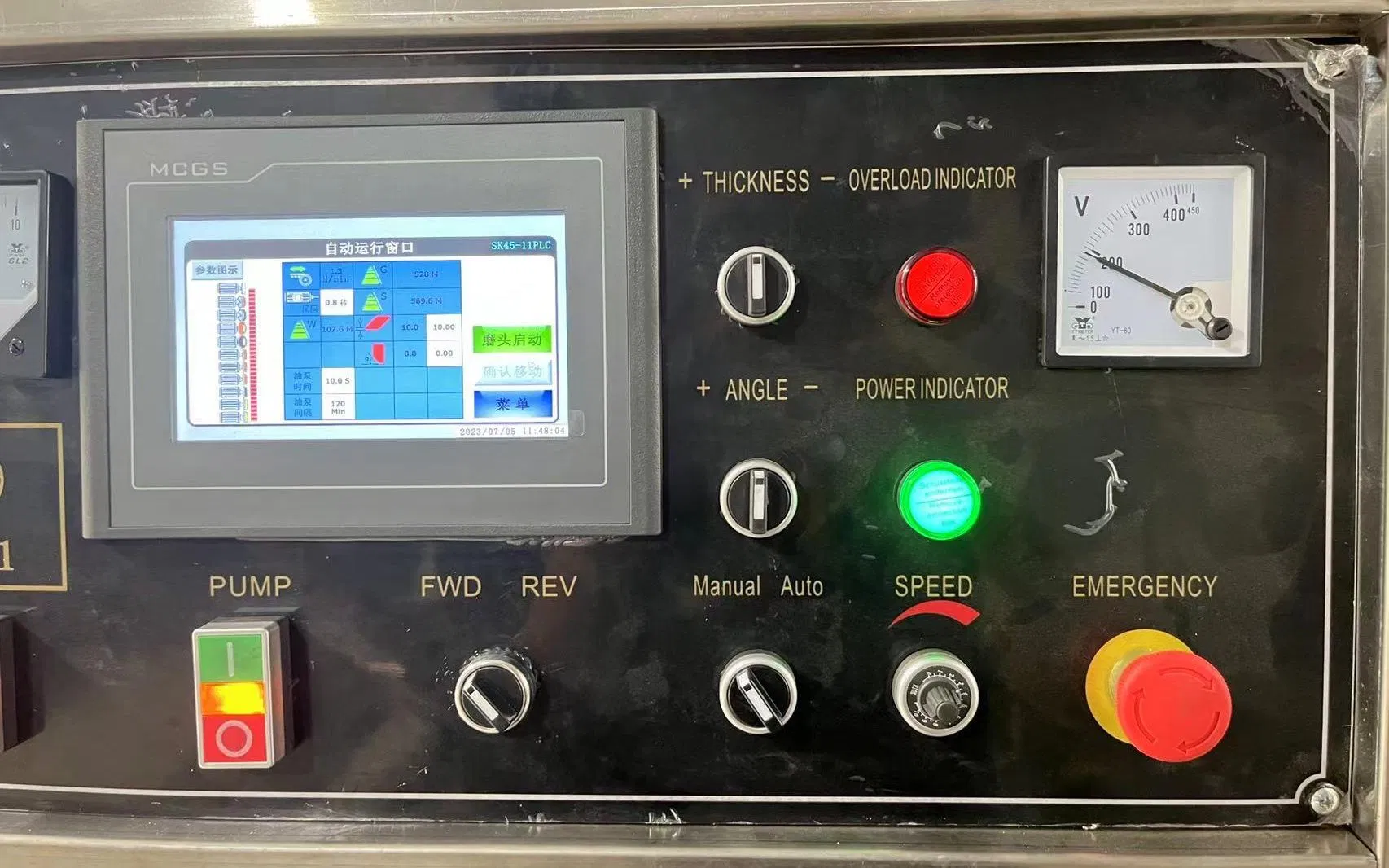

Operation Interface
Internal Components
Polishing Wheels

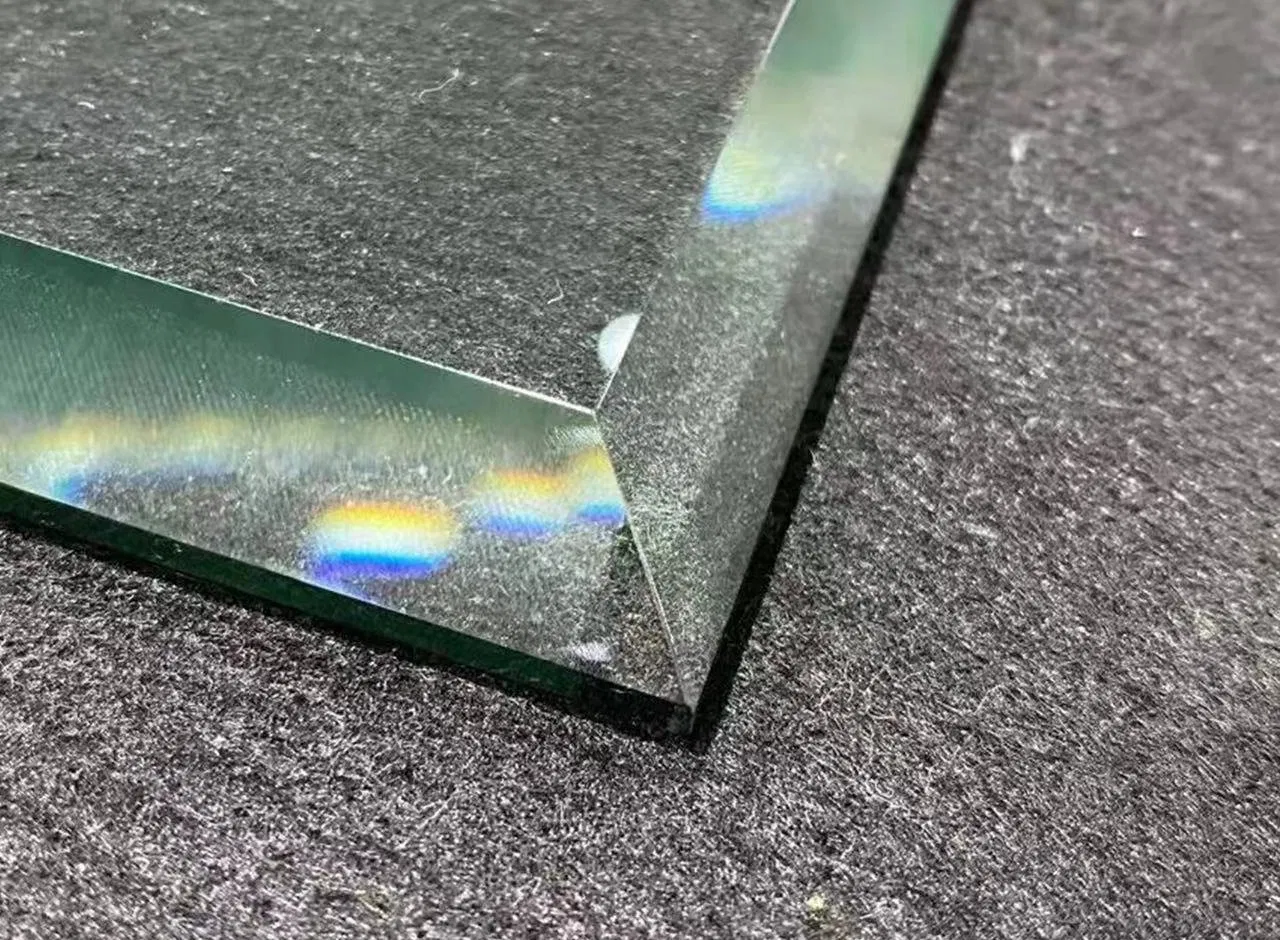

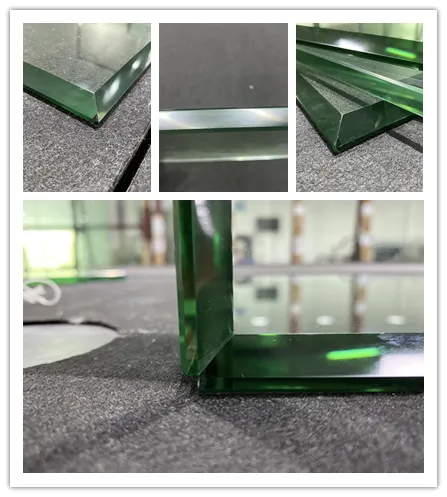

Finished Glass Sample
Feature Banner Processing Path Performance Icon Quality Standard

Frequently Asked Questions

● What is the range of glass thickness this machine can handle?
The machine is designed to process flat glass with a thickness ranging from 3mm to 19mm.
● Does the machine support bevel or angle grinding?
Yes, the SK45 series features a multilevel 0-45 degree edging function, allowing for both flat and angled polishing.
● What is the minimum glass size for processing?
The machine can process glass pieces as small as 60mm x 60mm.
● How is the machine controlled?
The PLC series machines are equipped with a PLC Touch Screen control system for easy operation and high efficiency.
● What functions are completed in a single pass?
Coarse grinding, fine grinding, polishing, and chamfering can all be completed in one continuous process.
● What is the standard warranty and delivery time?
The machine comes with a 1-year warranty, and the typical delivery time is approximately 35 days.
