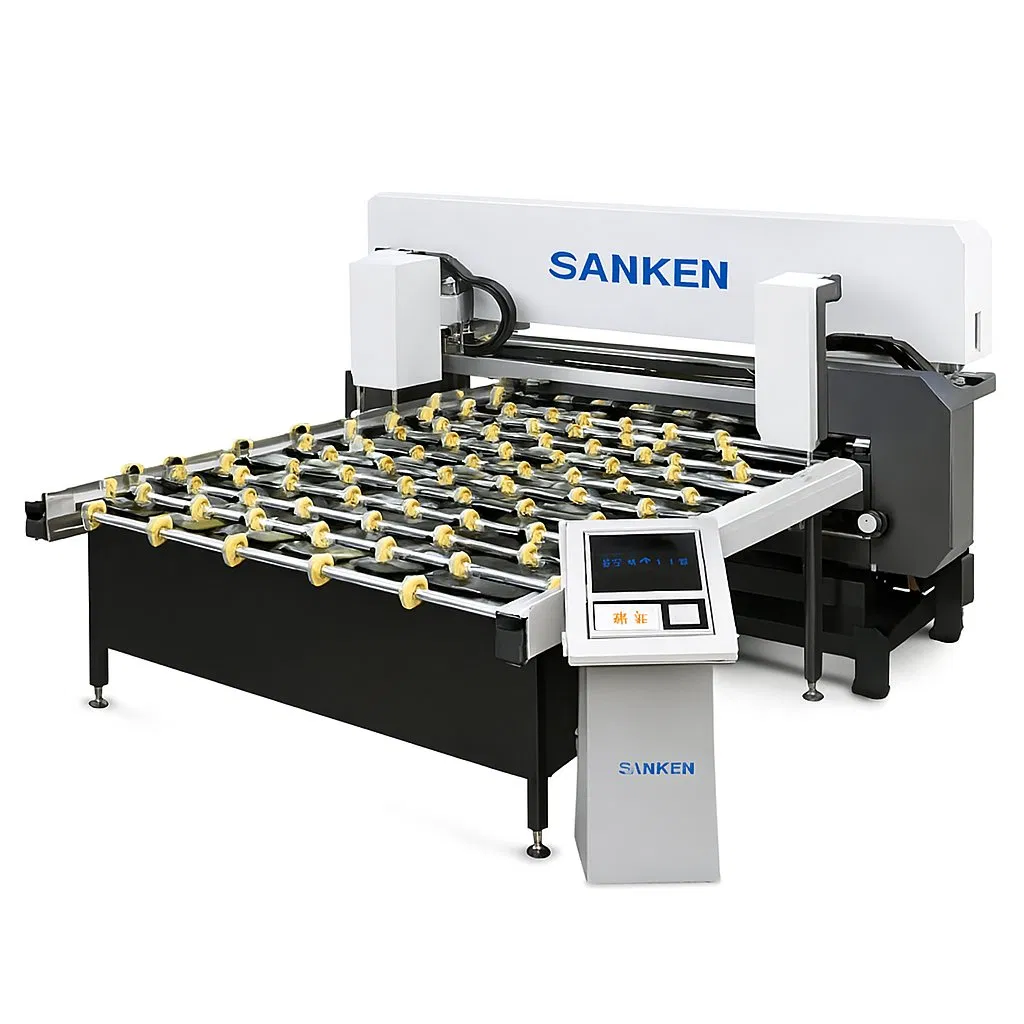

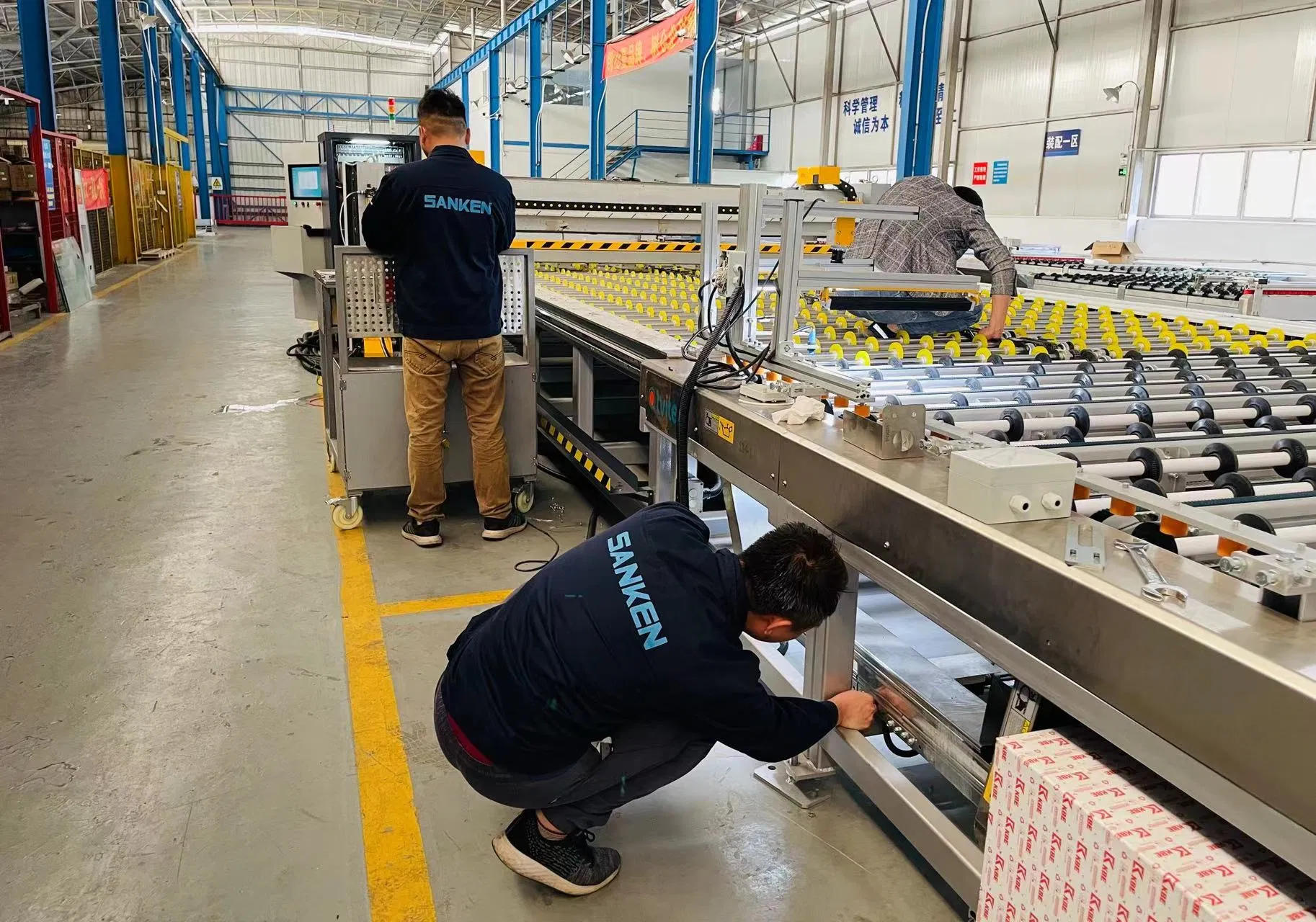

This Glass CNC Online Quenching Drilling Machine consists of X/Y/Z axes SERVO and CNC controlled system. It is a perfect driller for connecting with glass double edging production lines and glass washing machines to build a fully-automatic edging and washing processing line.
When the glass finishes edging and comes out from the double edging line, it can drill the holes and clean the glass automatically. This CNC drilling machine can also share signals with the glass loader and unloader, achieving a completely seamless on-line process from loading to unloading.
| Model | Max. Width | Min. Size | Drilling Dia. | Power | Thickness | Weight |
|---|---|---|---|---|---|---|
| SKD-CNC151A | 1500 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.0 Tons |
| SKD-CNC152A | 1500 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.5 Tons |
| SKD-CNC201A | 2000 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.3 Tons |
| SKD-CNC202A | 2000 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.6 Tons |
| SKD-CNC251A | 2500 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 3.8 Tons |
| SKD-CNC252A | 2500 mm | 300 x 800 mm | 4-50 mm | 20 KW | 4-19 mm | 4.1 Tons |
