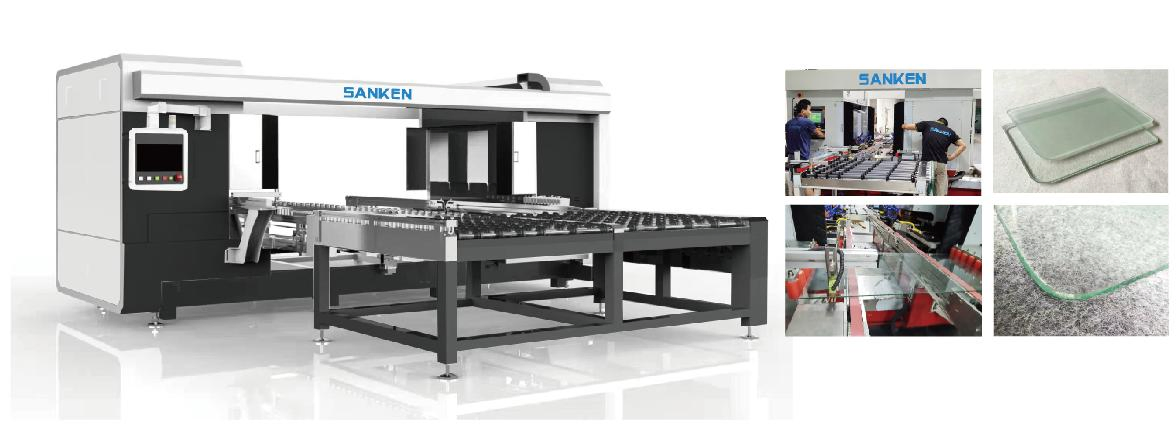

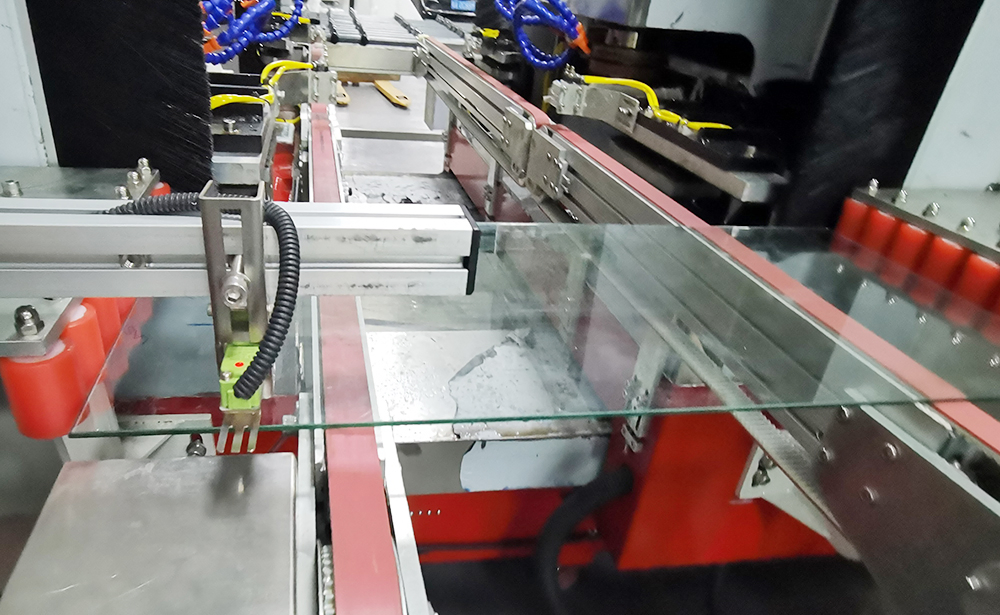

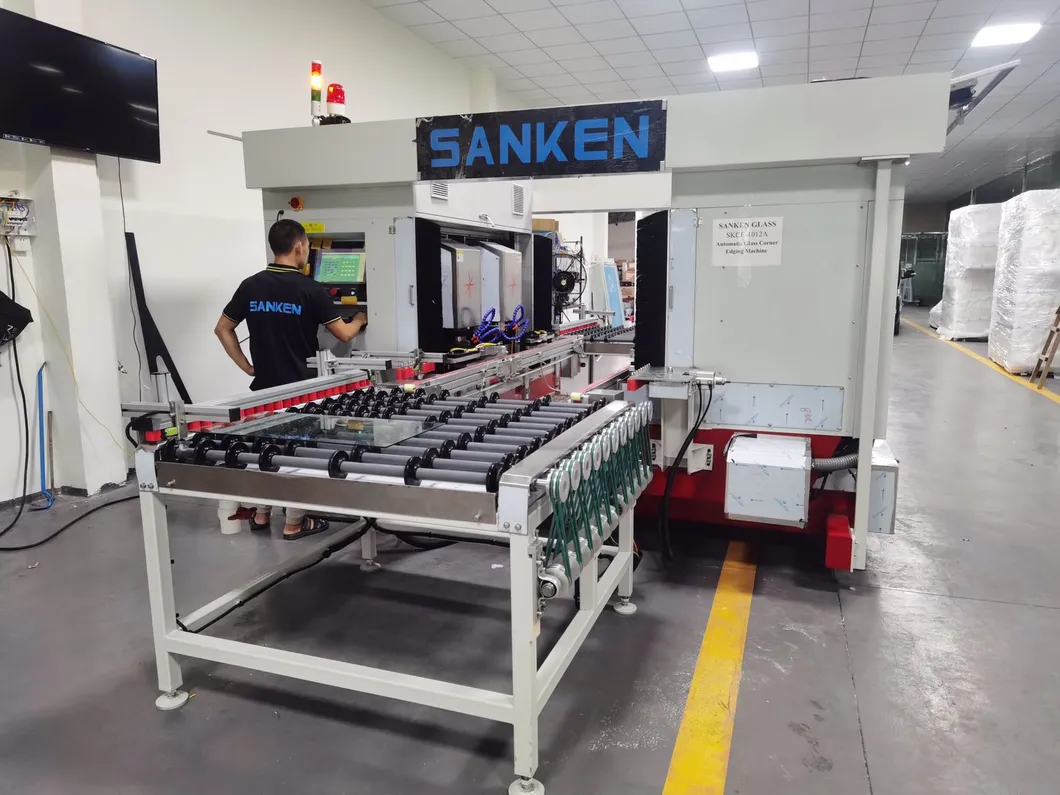

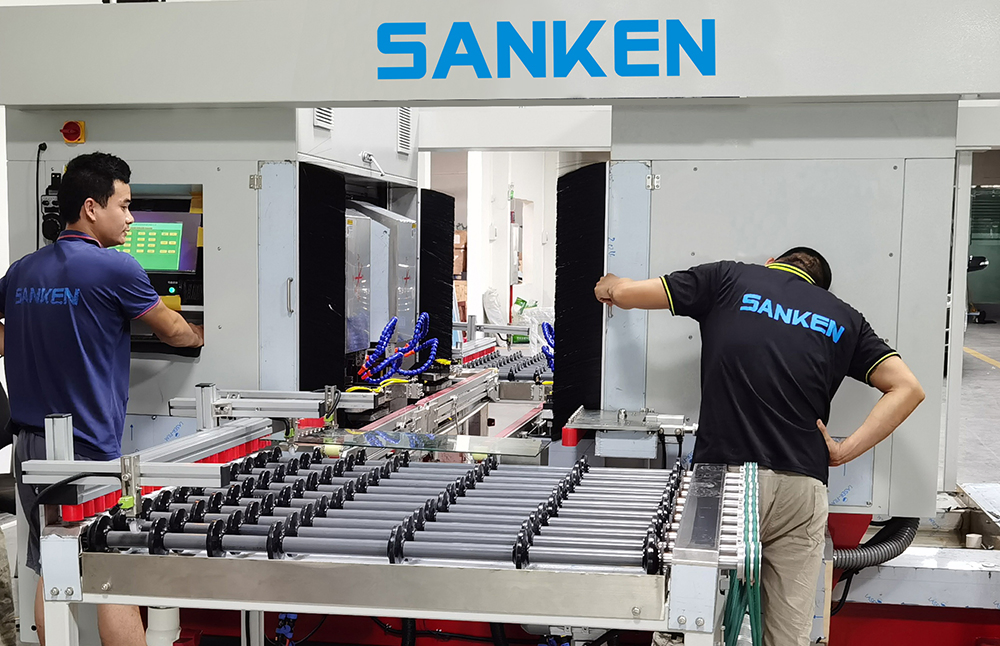

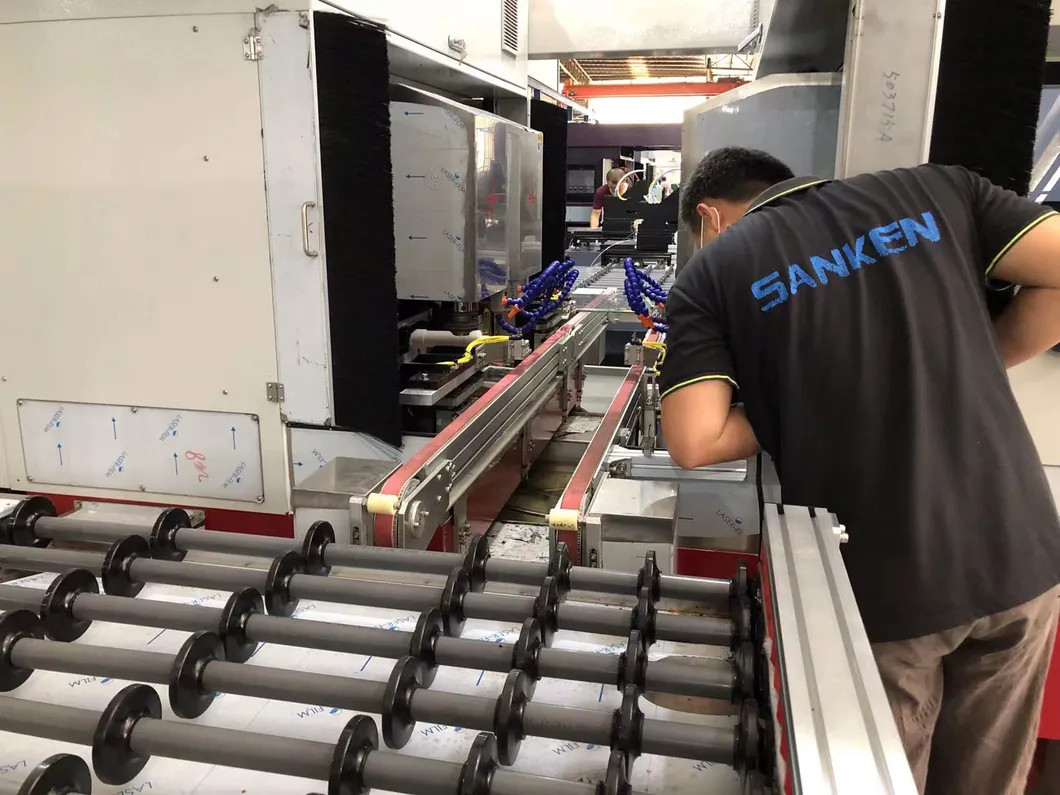

Glass Corner Cutting Facet Polishing Machine SKCE-1215A

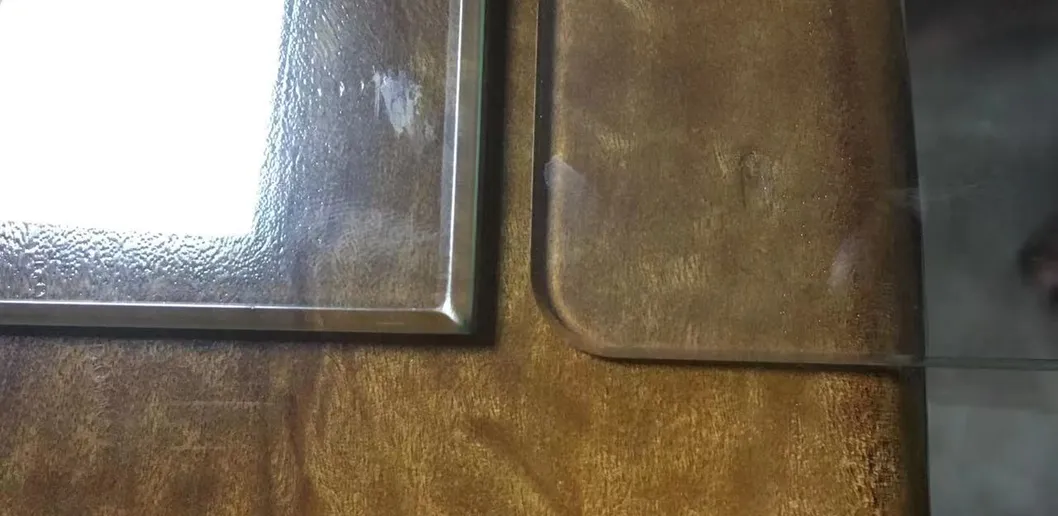

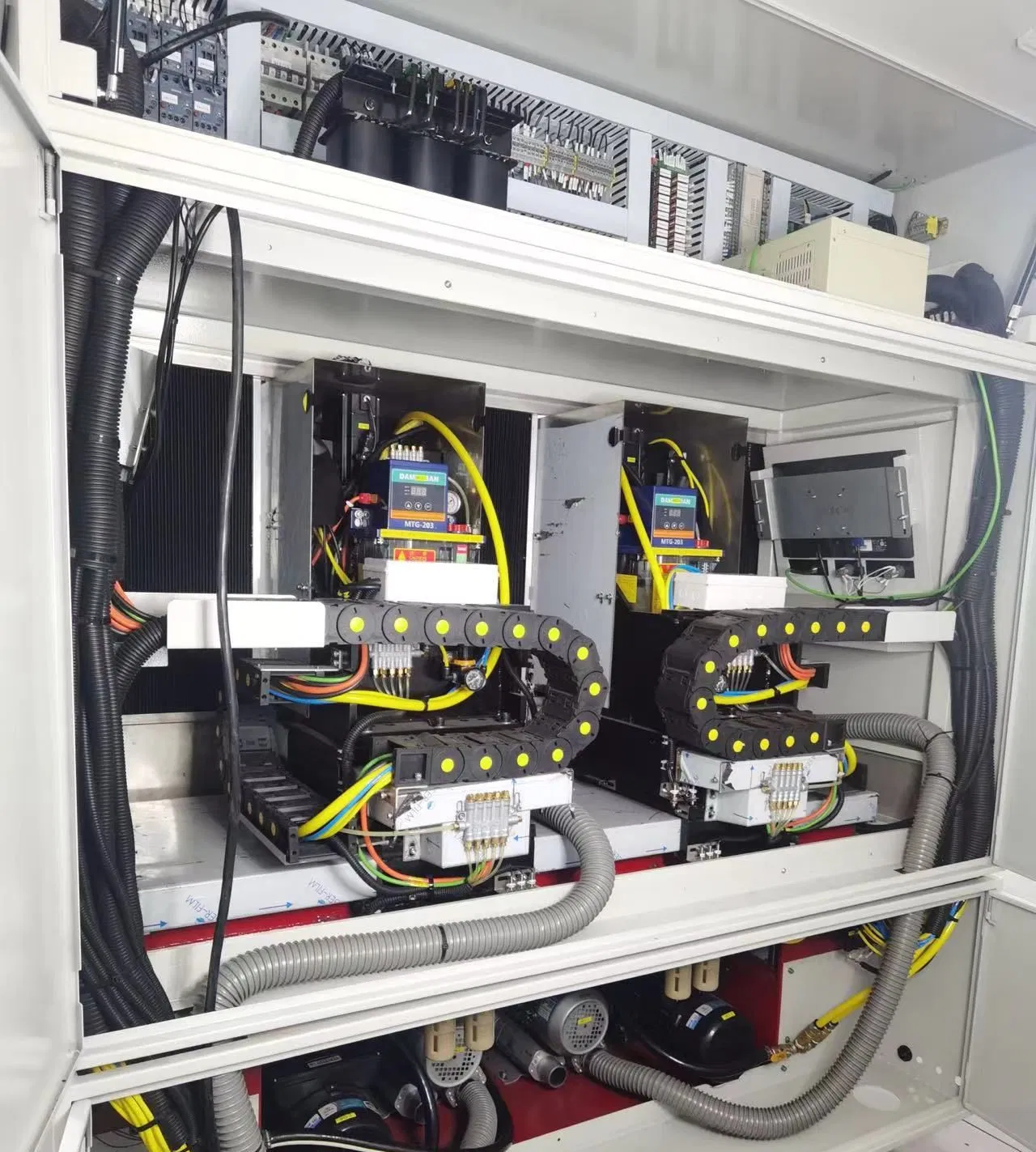

This edging and polishing machine is suitable for chamfering and polishing of round glass, duck Tsui side, square side, and oblique side glass. Within the stroke range, any shape can be accurately completed for easy operation. The touch screen operation panel and the grinding head controlled by the servo system ensure that the grinding arc is accurate and smooth. Processed products feature high precision, high efficiency, and high quality.
| Model | Max. size | Min. size | Thickness | Chamfering range | Power | Machine size |
|---|---|---|---|---|---|---|
| SKCE-1013A | 1000 x 1300 mm | 220 x 400 mm | 3-12 mm | R1-R40 mm | 23 kw | 4100 x 3500 x 2200 mm |

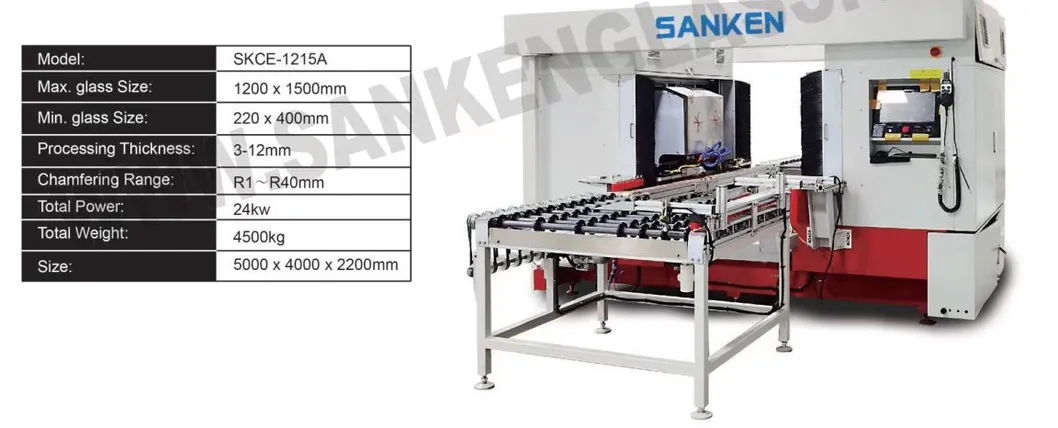

| SKCE-1215A | 1200 x 1500 mm | 220 x 400 mm | 3-12 mm | R1-R40 mm | 24 kw | 5000 x 4000 x 2200 mm |
| SKCE-1218A | 1200 x 1800 mm | 220 x 400 mm | 3-12 mm | R1-R40 mm | 24 kw | 4800 x 4200 x 2200 mm |
| SKCE-1530A | 1500 x 3000 mm | 300 x 600 mm | 3-12 mm | R1-R40 mm | 24 kw | 5200 x 5200 x 2200 mm |
| SKCE-2030A | 2000 x 3000 mm | 300 x 600 mm | 3-12 mm | R1-R40 mm | 25 kw | 6200 x 5200 x 2200 mm |
| SKCE-2436A | 2400 x 3600 mm | 300 x 600 mm | 3-12 mm | R1-R40 mm | 28 kw | 9200 x 4700 x 2200 mm |
