Model NO.SK45-9PLC
Voltage380V
Warranty1 Year
Function0-45 Angle Facet
After-Sales Service3 Days
Wooden Package Size4100 * 1400 * 2120 mm
Delivery35 Days
Transport PackageExport Packing
Specification1830 * 2440 mm
HS Code8464201000
Production Capacity45 Sets / Year

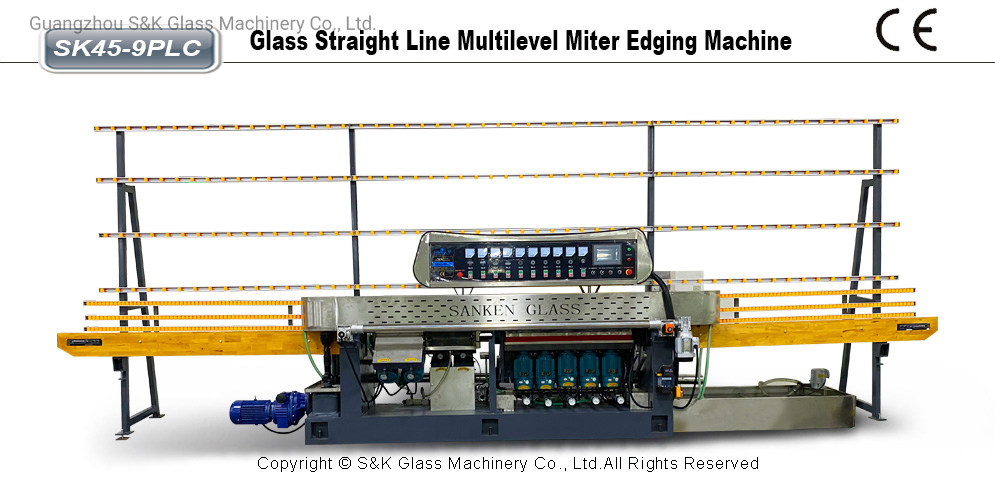

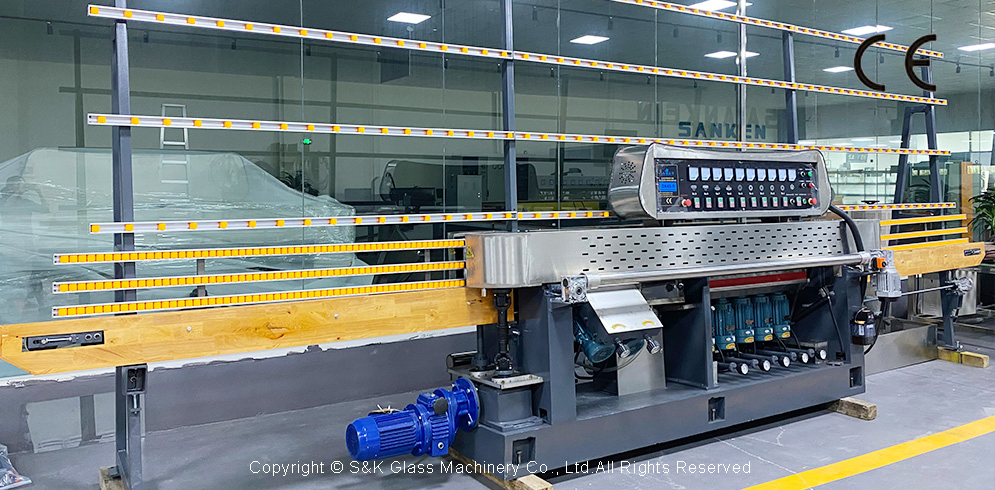

Glass 45 Degrees Multilevel Facet Machine SK45-9PLC

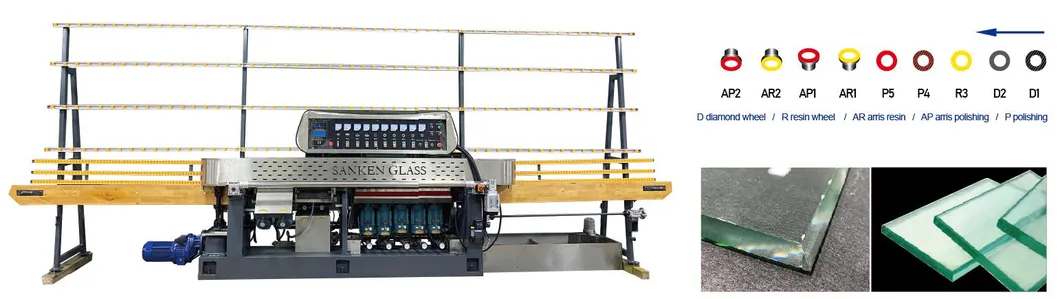

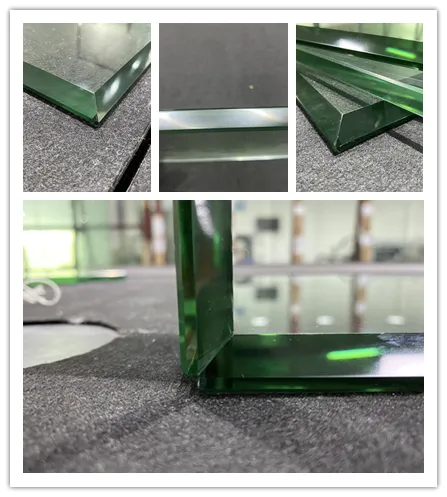

Glass Straight Line Multilevel and multilevel Facet Polishing angle edges on different thickness of flat glass. The coarse grinding, fine grinding, polishing and chamfering can be completed nicely in one time process. Easy installation, easy operation with high productive efficiency, this Glass Straight Line Edging Machine will be one of your best choices. (SK45- series machines with FLAT & 45 degree angle changing function). Your most reliable and responsible partner in glass deep processing, cooperating with us, let's make your project be put into production smoothly and successfully.
| Model |
Speed |
Min. Size |
Max. Size |
Thickness |
Power |
Weight |
Occupation Area |
| SK45-9 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800 x 1200 x 2500 mm |
| SK45-10 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000 x 1200 x 2500 mm |
| SK45-11 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500 x 1200 x 2500 mm |
| SK45-9PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800 x 1200 x 2500 mm |
| SK45-10PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000 x 1200 x 2500 mm |
| SK45-11PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500 x 1200 x 2500 mm |
Frequently Asked Questions
Q1: What range of glass thickness can this machine process?
A: The SK45 series is designed to handle flat glass with a thickness ranging from 3mm to 19mm.
Q2: Can the machine perform both grinding and polishing in one pass?
A: Yes, the machine completes coarse grinding, fine grinding, polishing, and chamfering in a single continuous process.
Q3: What is the maximum angle for facet polishing?
A: This machine features a 0 to 45-degree angle changing function, allowing for versatile multilevel facet edges.
Q4: What is the minimum glass size that can be processed?
A: The minimum processing size for these models is 60 x 60 mm.
Q5: How many spindles does the SK45-9PLC model have?
A: The SK45-9PLC model is equipped with a 9-spindle system to ensure high-quality polishing and efficient production.
Q6: What are the installation requirements regarding space?
A: Depending on the specific model, the occupation area ranges from approximately 6800 x 1200 mm to 7500 x 1200 mm.
