Basic Specification
Product Description

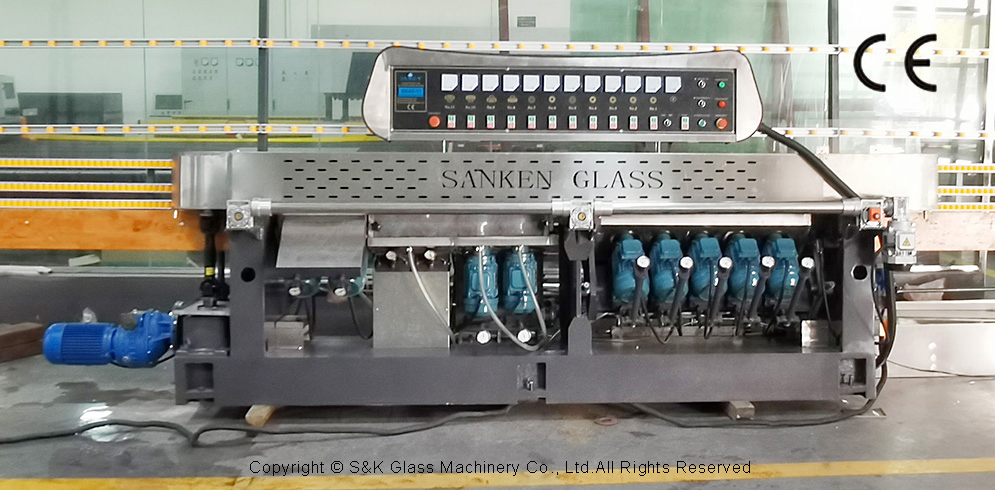

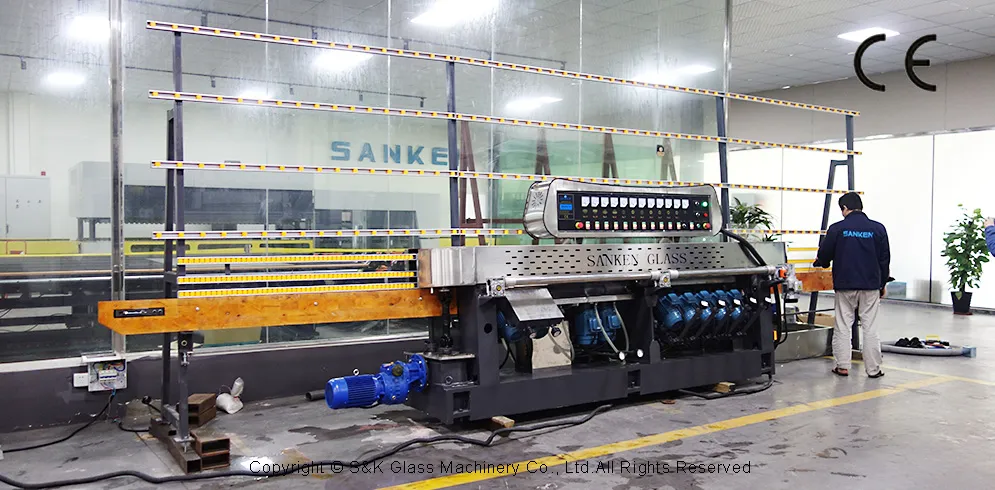

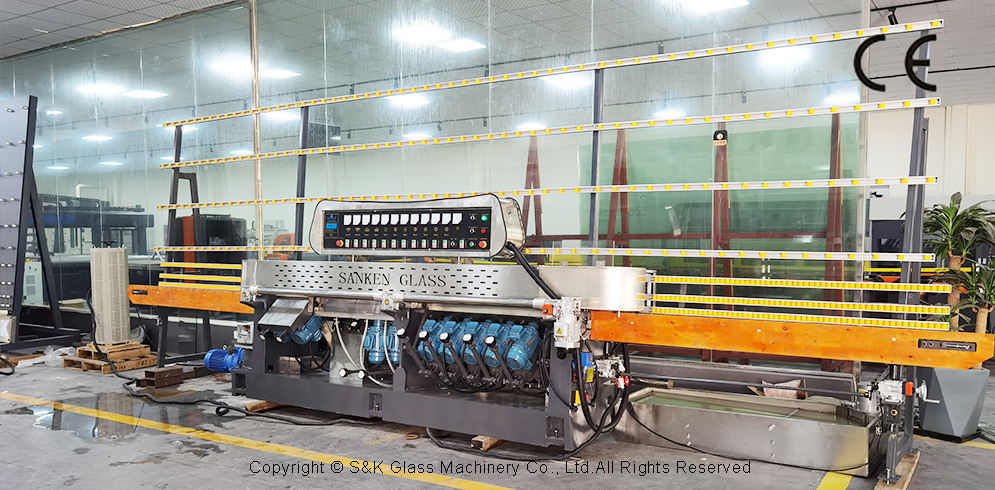

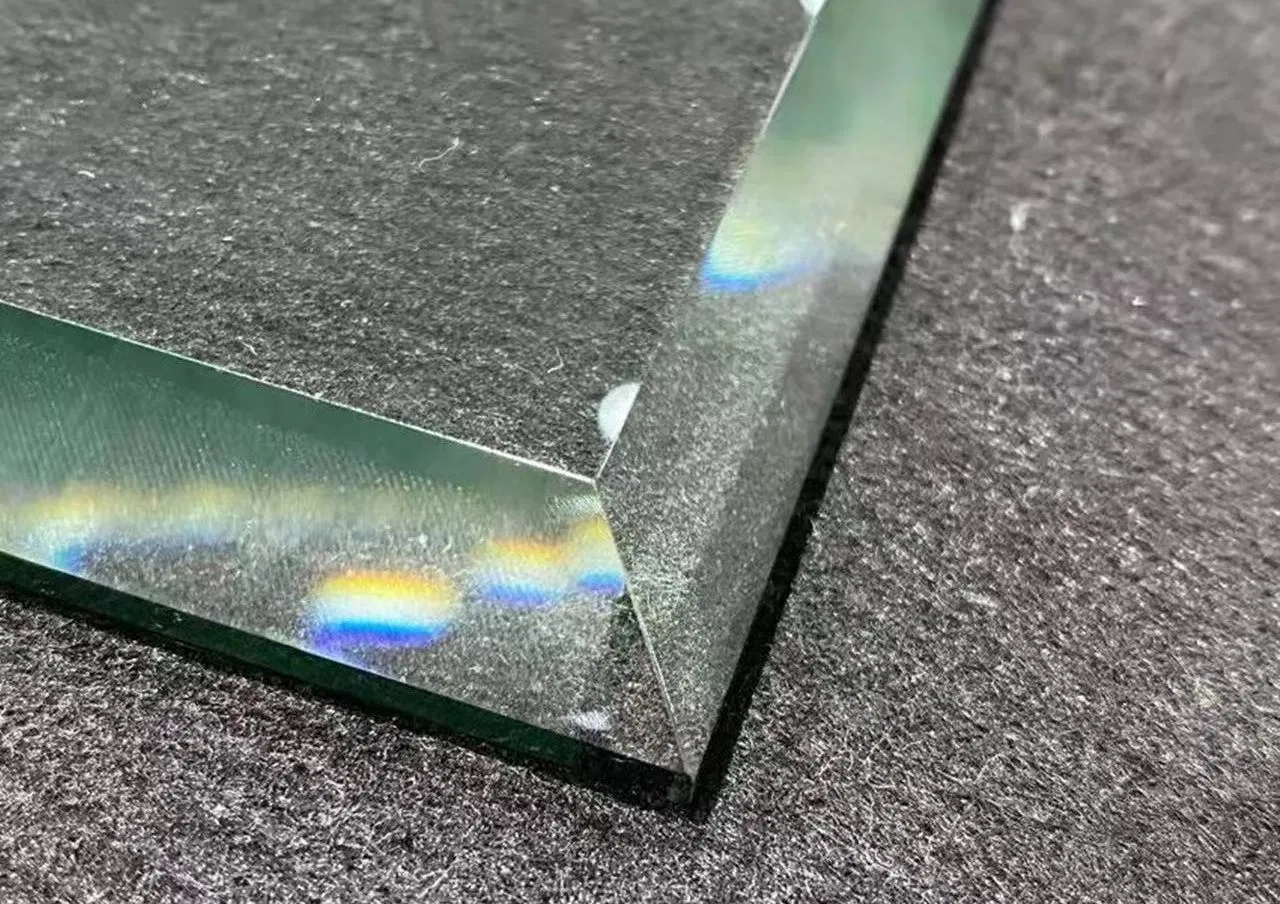

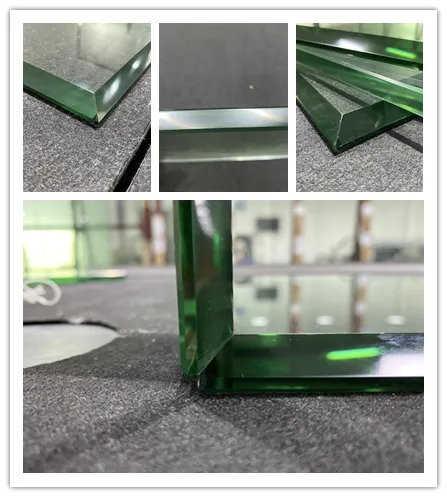

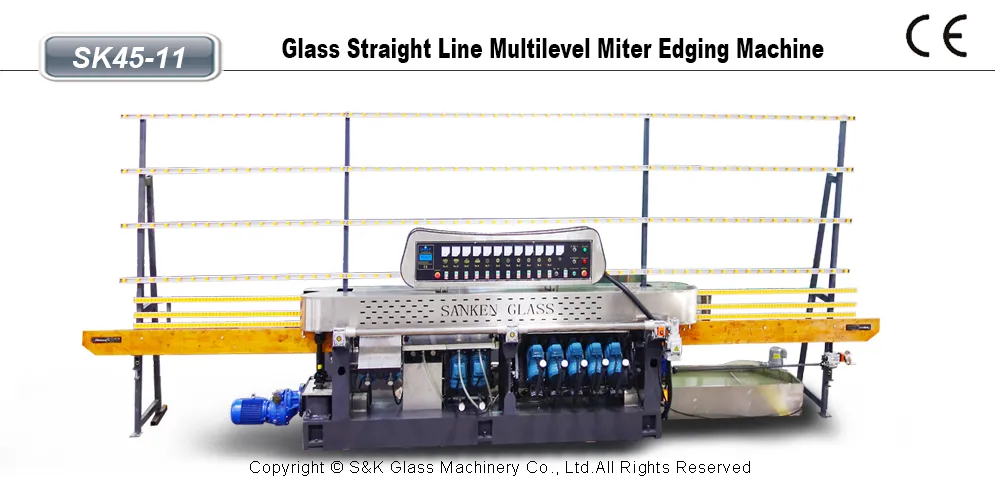

This Glass Straight Line PLC Multilevel Facet Polishing Machine works on different thickness of flat glass. The coarse grinding, fine grinding, polishing and chamfering can be completed nicely in one time process. Easy installation, easy operation with high productive efficiency, this Glass Straight Line Edging Machine will be one of your best choices (SK45- series machines with FLAT & 45 degree angle changing function). Your most reliable and responsible partner in glass deep processing, let's make your project be put into production smoothly and successfully.
| Model | Speed | Min. Size | Max. Size | Thickness | Power | Weight | Occupation Area |
|---|---|---|---|---|---|---|---|
| SK45-9 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800 x 1200 x 2500 mm |
| SK45-10 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000 x 1200 x 2500 mm |
| SK45-11 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500 x 1200 x 2500 mm |
| SK45-9PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800 x 1200 x 2500 mm |
| SK45-10PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000 x 1200 x 2500 mm |
| SK45-11PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500 x 1200 x 2500 mm |
