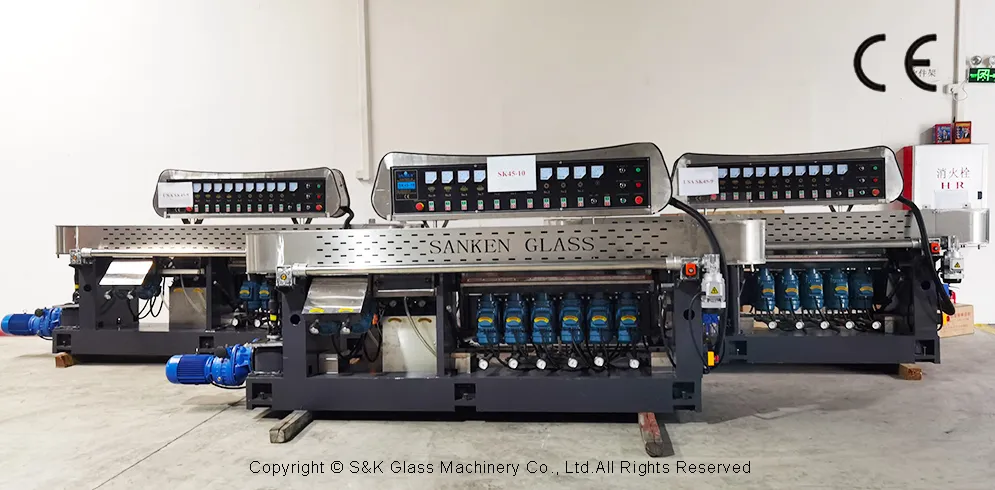

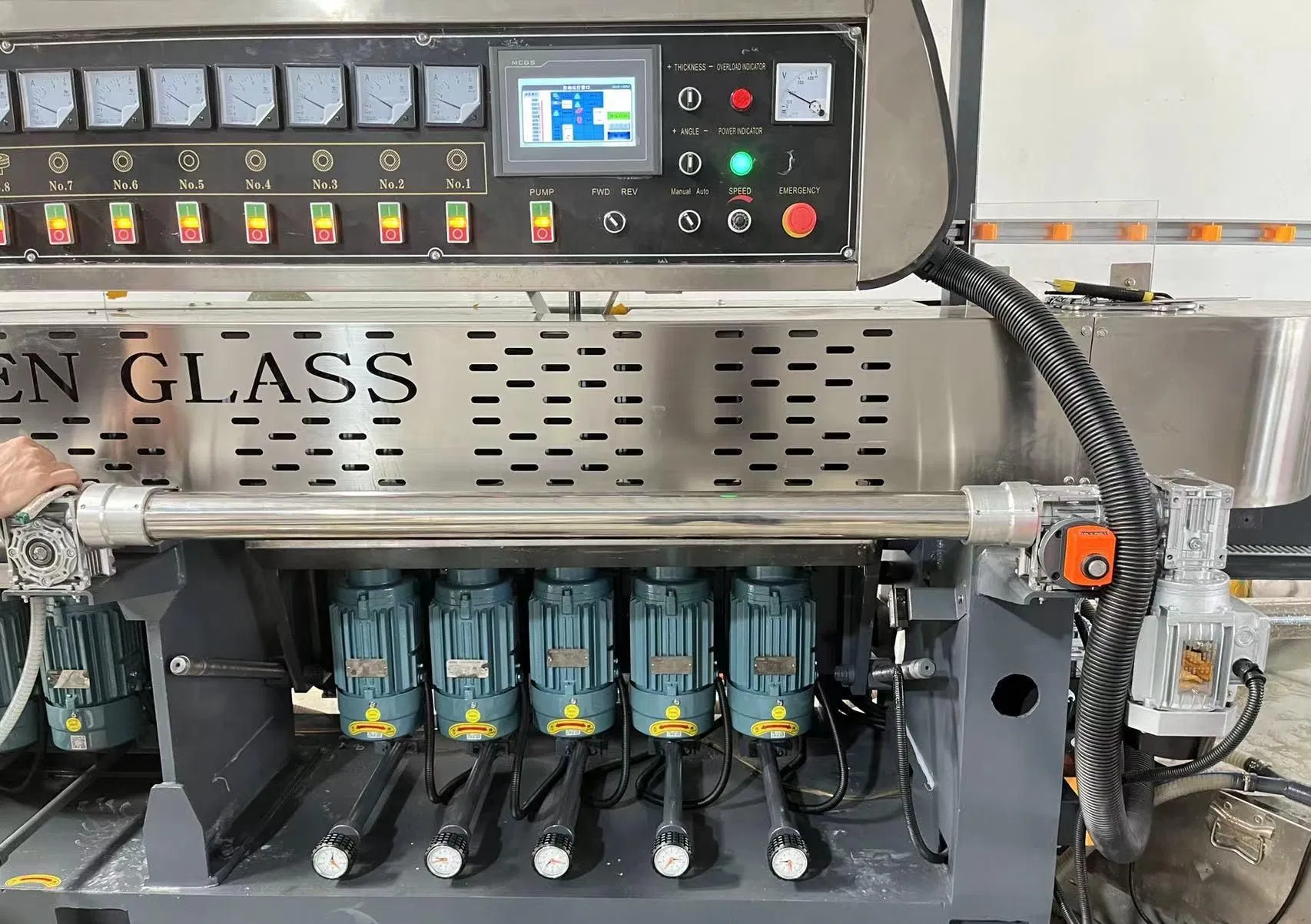

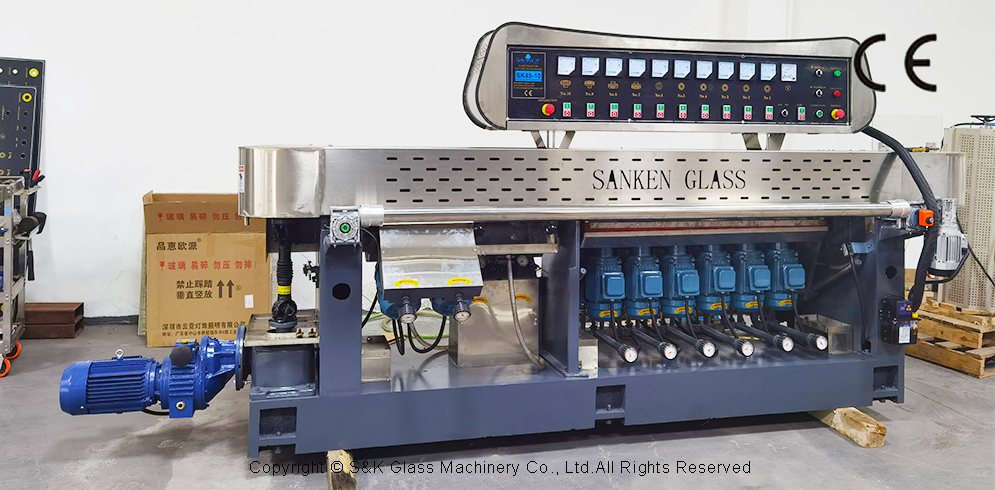

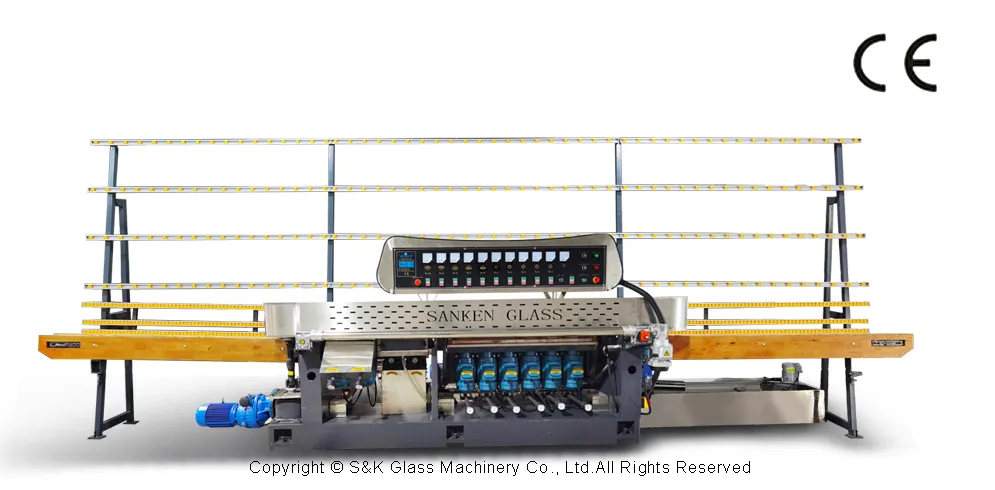

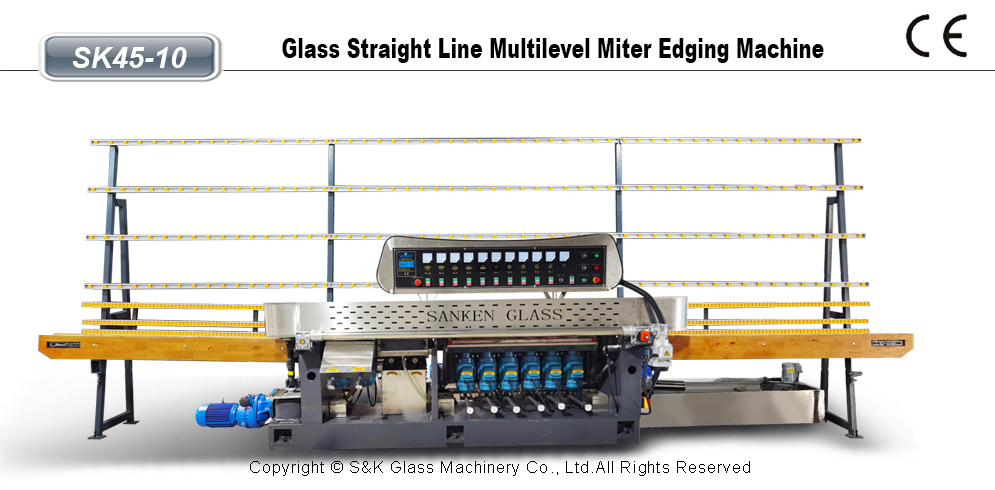

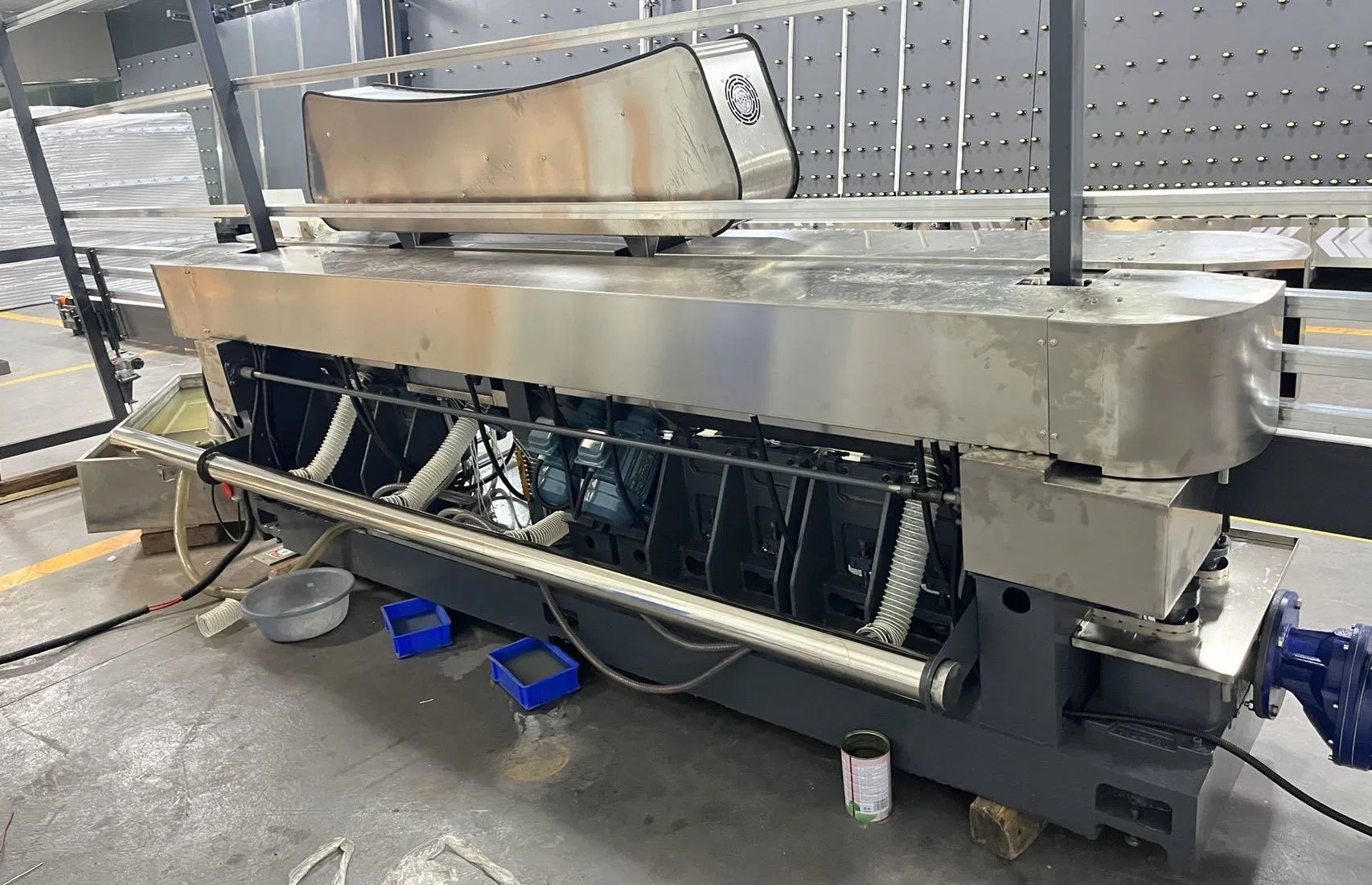

Glass 10-Motor Multilevel Vertical Single Edger SK45-10

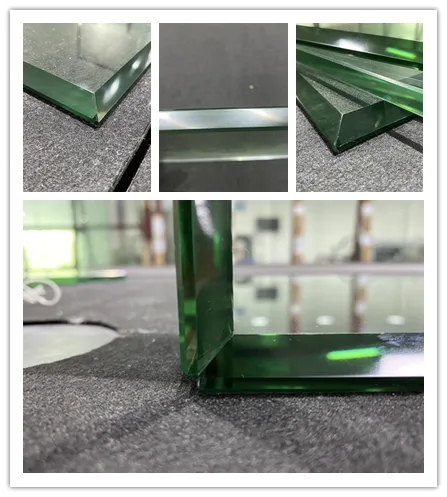

This Glass Straight Line Multilevel 0-45 degrees Angle Vertical Single Edger is designed for different thicknesses of flat glass. The coarse grinding, fine grinding, polishing, and chamfering can be completed efficiently in a single pass. Featuring easy installation and operation with high productivity, this machine is an ideal choice for professional glass processing. The SK45-series machines provide both FLAT and 45-degree angle changing functions to meet diverse project requirements.
| Model | Speed | Min. Size | Max. Size | Thickness | Power | Weight | Occupation Area |
|---|---|---|---|---|---|---|---|
| SK45-9 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800x1200x2500 mm |
| SK45-10 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000x1200x2500 mm |
| SK45-11 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500x1200x2500 mm |
| SK45-9PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800x1200x2500 mm |
| SK45-10PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000x1200x2500 mm |
| SK45-11PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500x1200x2500 mm |
