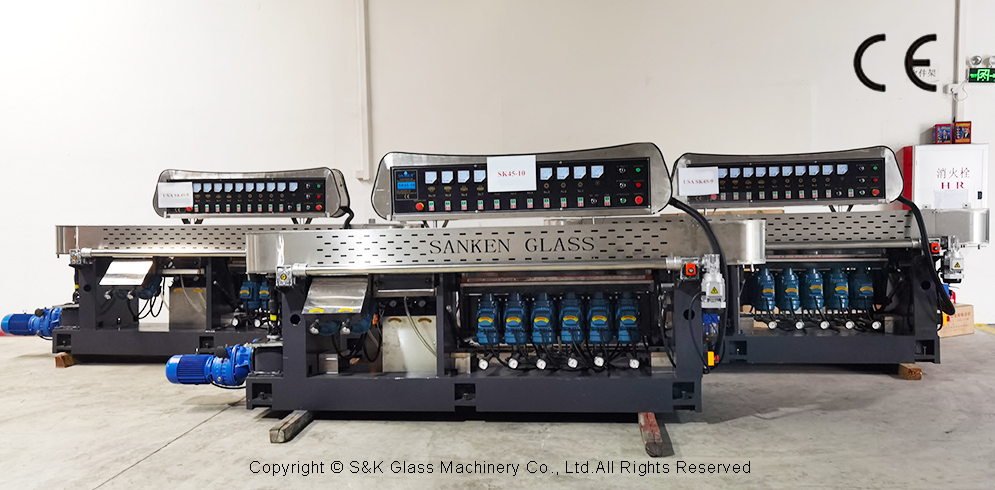

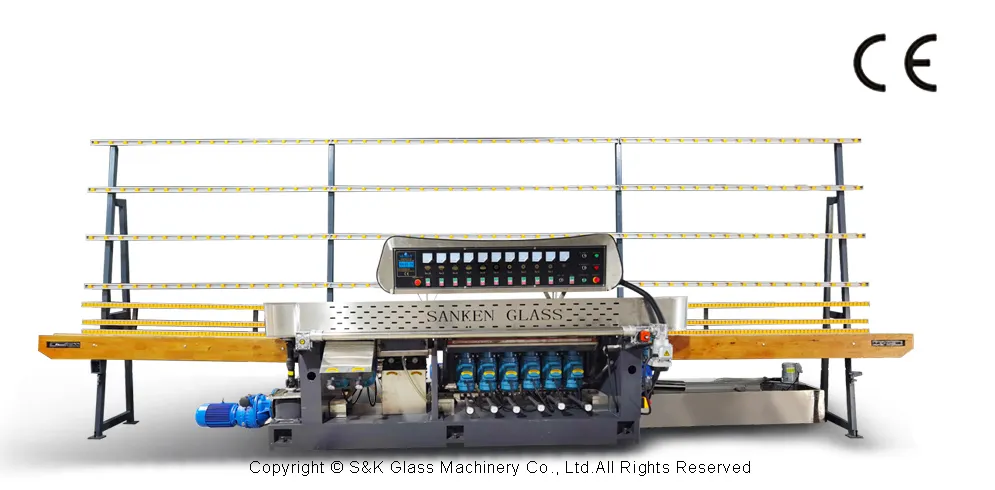

Glass Straight Line Multilevel 0-45 Degree Edging Machine

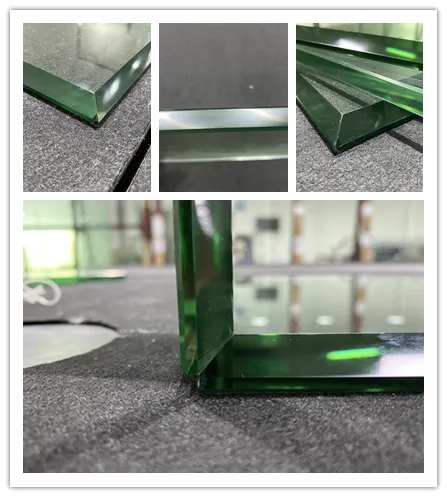

Designed for different thicknesses of flat glass. Coarse grinding, fine grinding, polishing, and chamfering can be completed efficiently in a single pass. Easy installation and operation make this machine an ideal choice for high productivity (SK45- series machines feature FLAT & 45-degree angle changing functions).
| Model | Speed | Min. Size | Max. Size | Thickness | Power | Weight | Occupation Area |
|---|---|---|---|---|---|---|---|
| SK45-9 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800 x 1200 x 2500 mm |

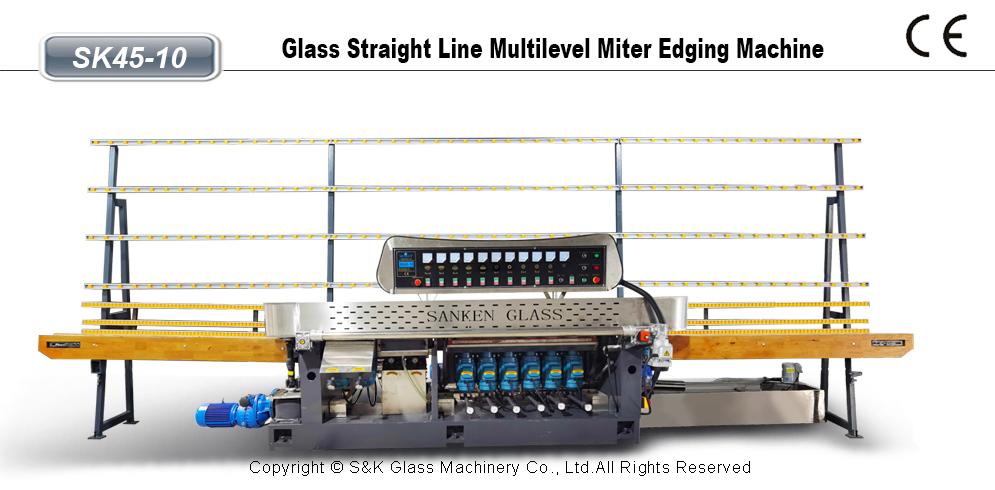

| SK45-10 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000 x 1200 x 2500 mm |
| SK45-11 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500 x 1200 x 2500 mm |

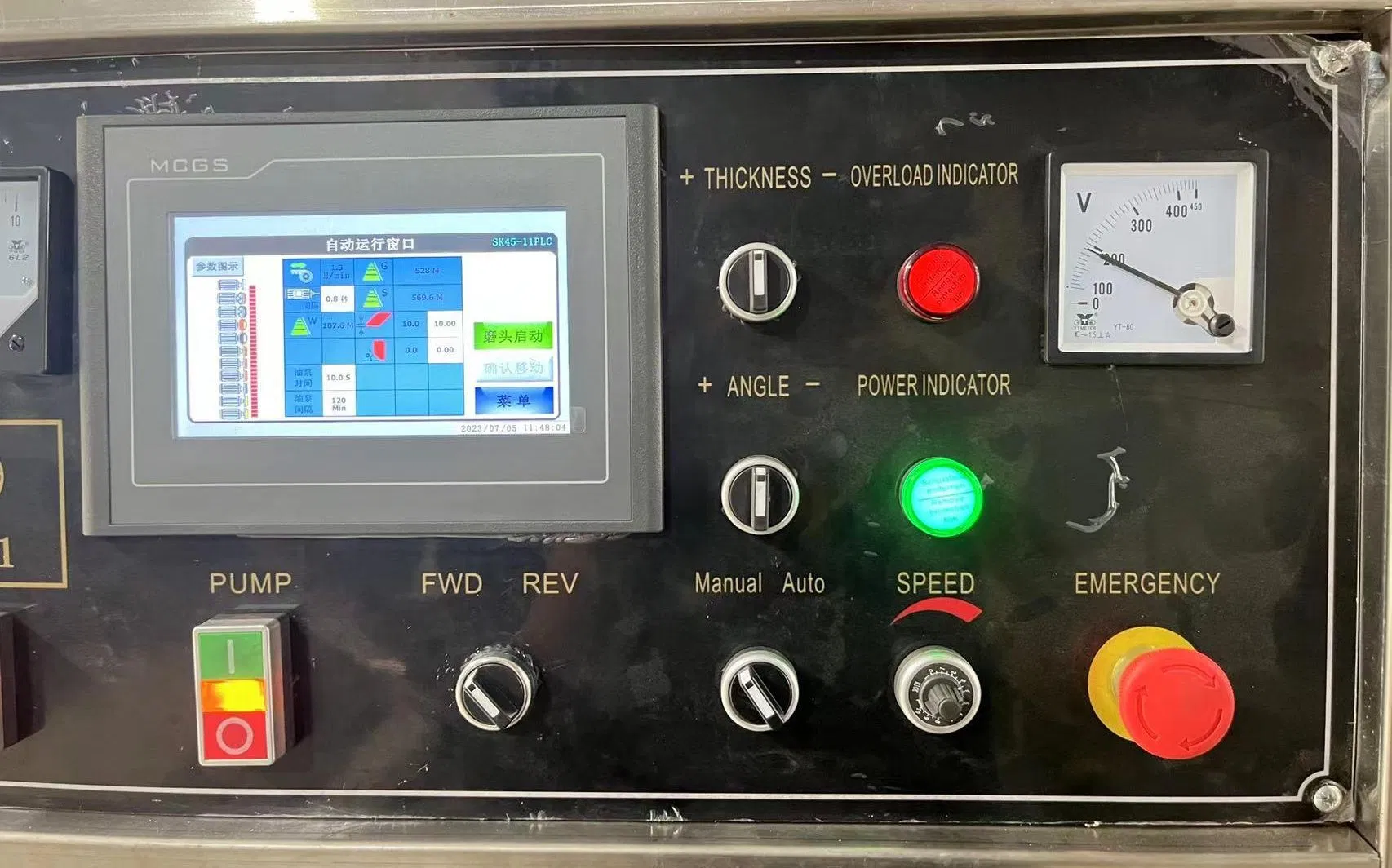

| SK45-9PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800 x 1200 x 2500 mm |
| SK45-10PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000 x 1200 x 2500 mm |
| SK45-11PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500 x 1200 x 2500 mm |
