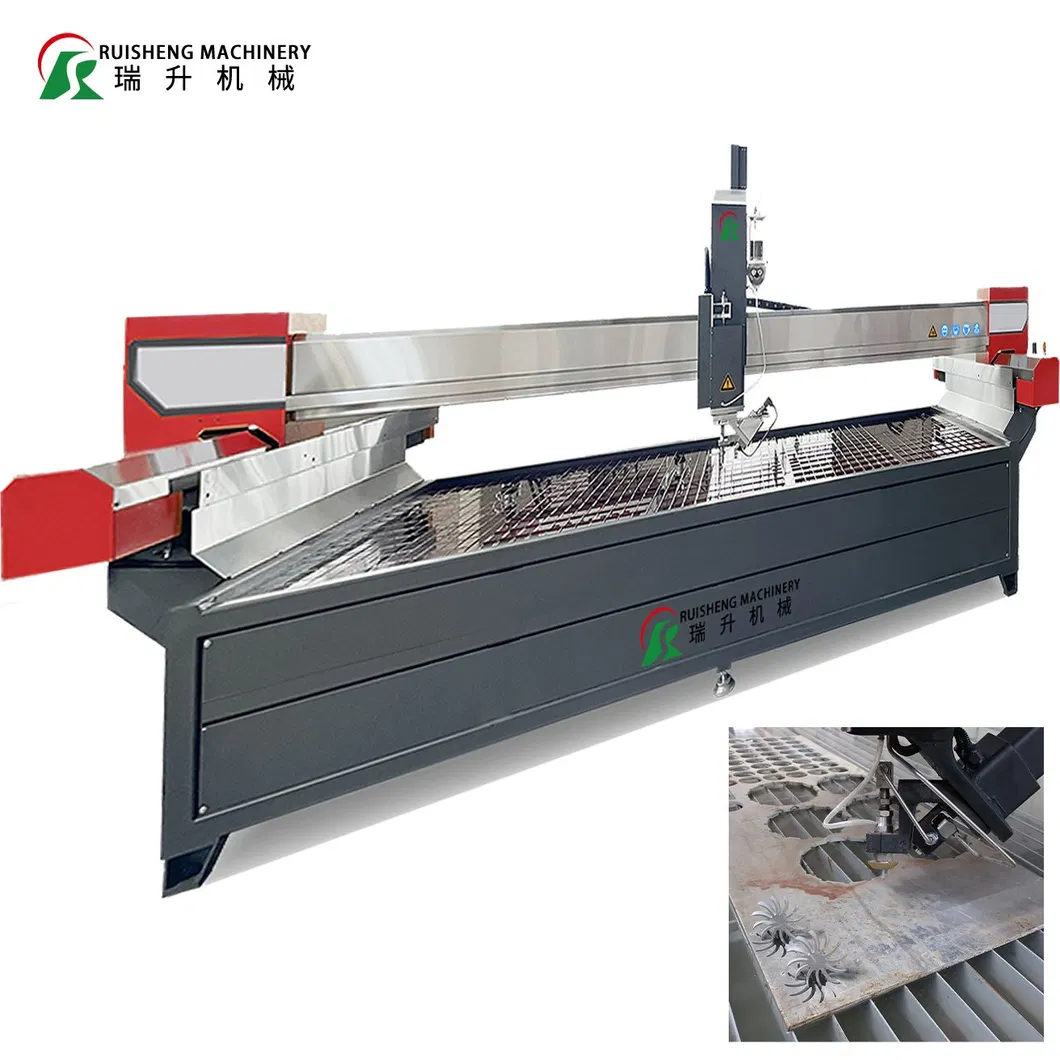

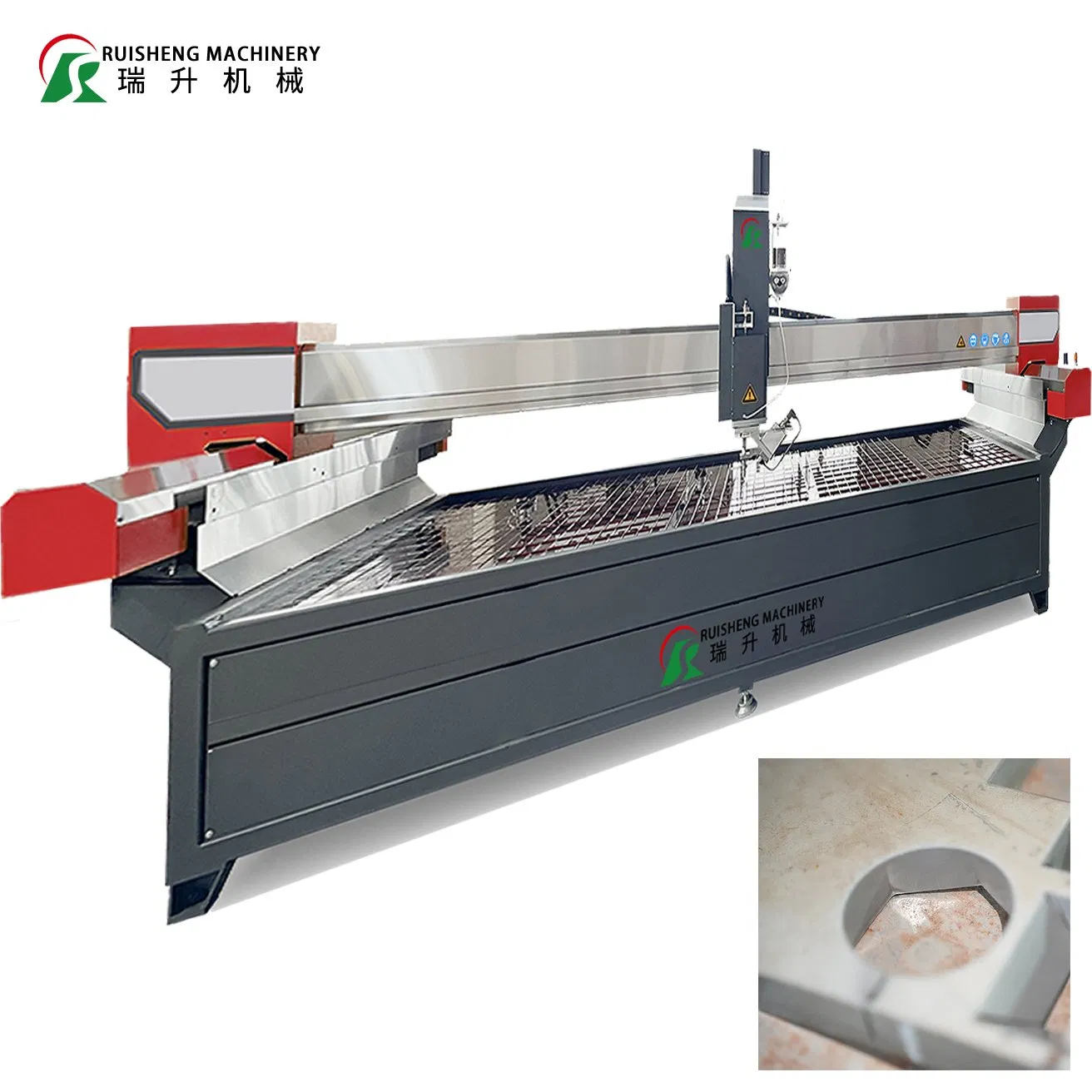

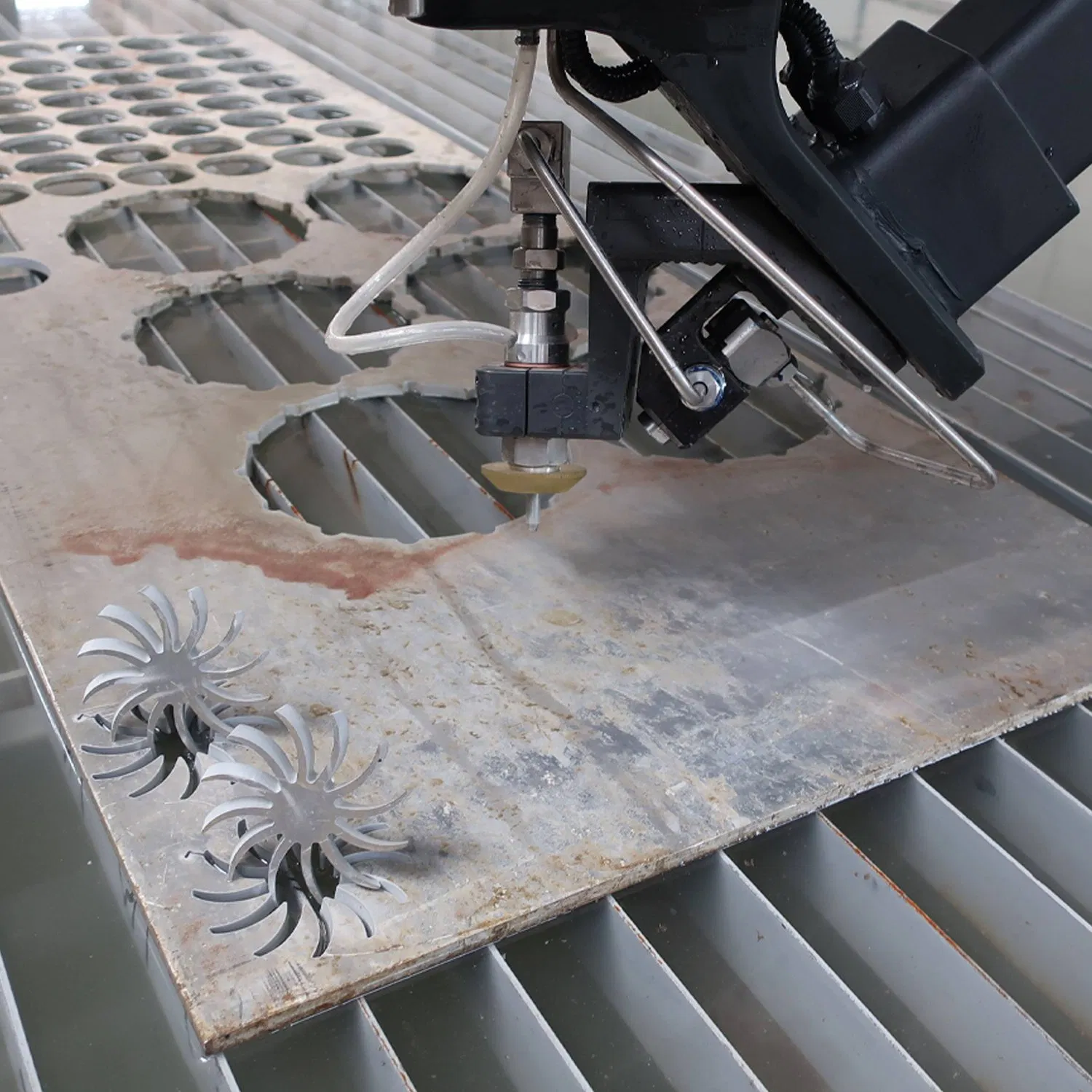

Ruisheng CNC Waterjet Stone Cutting Machine 5 Axis CNC Water Jet Industrial Work Granite Marble Glass Cutting Machine

1 / 5

Ruisheng CNC Waterjet Stone Cutting Machine 5 Axis CNC Water Jet Industrial Work Granite Marble Glass Cutting Machine

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Information

Model NO.

5 Axis CNC Water Jet

Certification

Condition

New

Control

Automatic

Application

Metal, Rubber, Glass, Stone, Plastic

Power Source

Electric

Style

Gantry

Type

Five-Axis

Working Area

4100*2100mm

Traverse Speed

6500/15000mm/Min

CNC Controller

AC Servo System

Production Capacity

200 Pieces/ Month

📝 Product Description

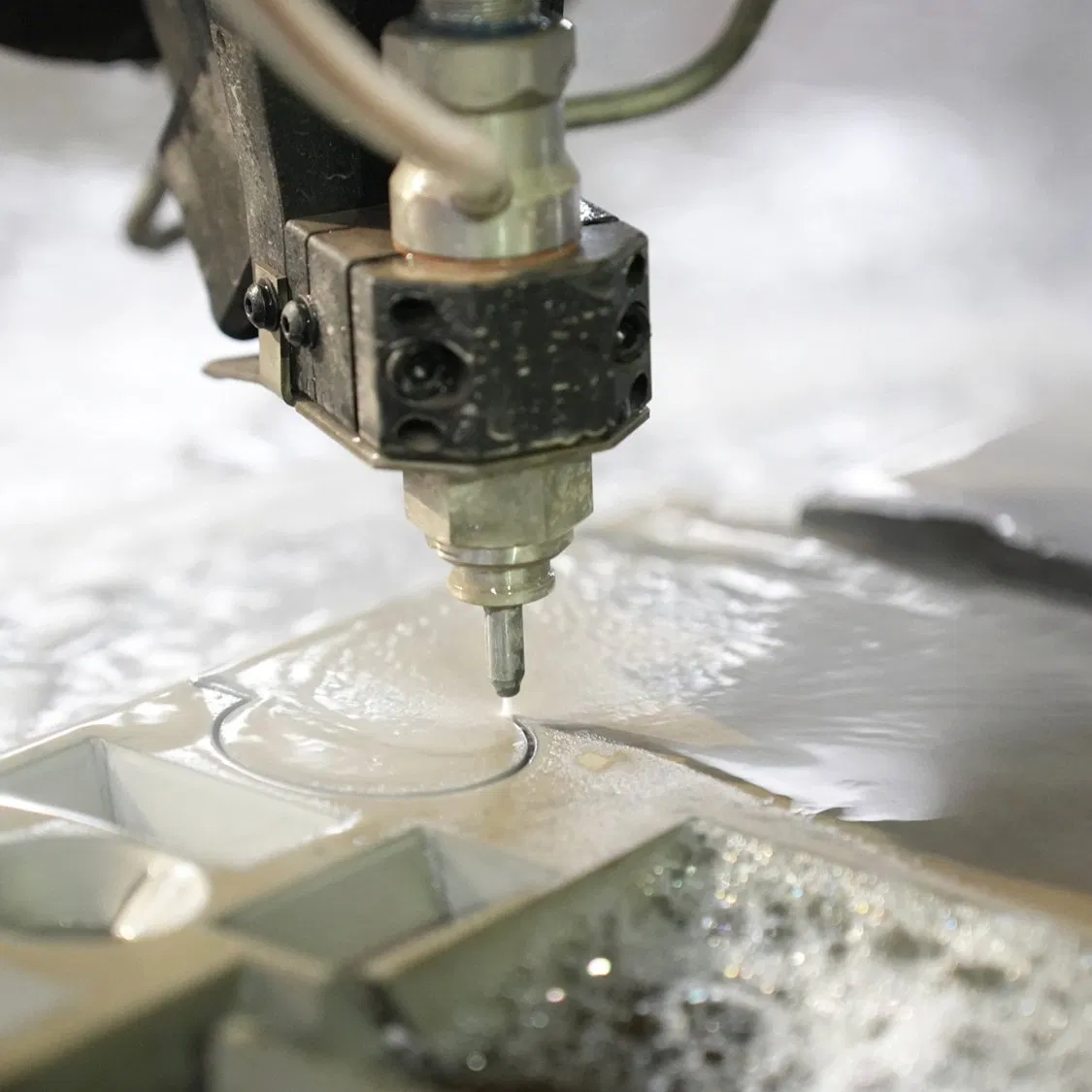

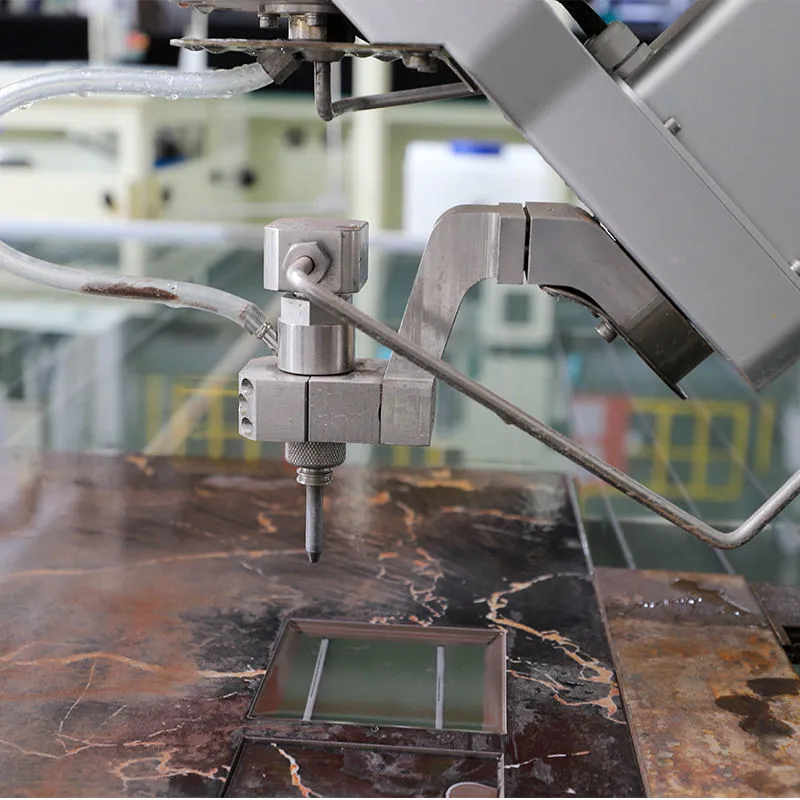

✓Processable any curve cutting, flexible, convenient and versatile.

✓Driver system sealed against water, dust and grit for long working life.

✓Programmable Z axis height; Z axis retracts between pierces.

✓Narrow kerf (0.5-1.0 mm wide) optimizes material use and cost effectiveness.

✓High-Performance drive system with servo motor for rapid and smooth axial movement.

✓High-precision production of parts at the highest processing speed.

✓Fast and smooth notch, no dust, no thermal deformation, and no pollution.

⚙️ Technical Data

Specification	Unit	RSWJ-3020	RSWJ-4020
Working area	cm	310*210	410*210
X-axis stroke	mm	3000	4000
Y-axis stroke	mm	2000	2000
Z-axis stroke	mm	80-130	80-130
Max. angle of C axis rotation	°	+/- 360	+/- 360
Max. angle of A axis swing	°	+/- 60	+/- 60
Cutting accuracy	mm	+/- 0.1	+/- 0.1
Repeatable accuracy	mm	+/- 0.05	+/- 0.05
Traverse speed	mm/min	6500/15000	6500/15000
Main motor power	kw	45	45
Dimensions (L x W x H)	cm	420x278x220	475x280x223
Weight	KG	4900KG	5100KG

❓ Frequently Asked Questions

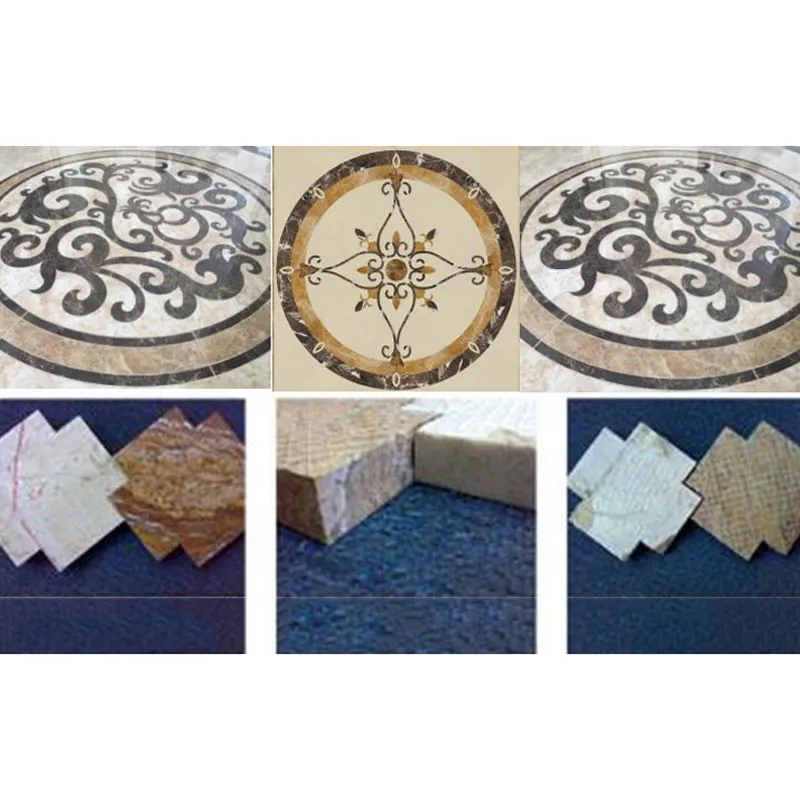

1. What materials can this 5-axis water jet machine cut?

The 5-axis CNC water jet is highly versatile and can cut a wide range of materials including metal, rubber, glass, stone, marble, granite, and various plastics.

2. What is the cutting accuracy of the machine?

The machine provides high-precision cutting with an accuracy of +/- 0.1mm and a repeatable accuracy of +/- 0.05mm.

3. How does the 5-axis system improve cutting compared to 3-axis?

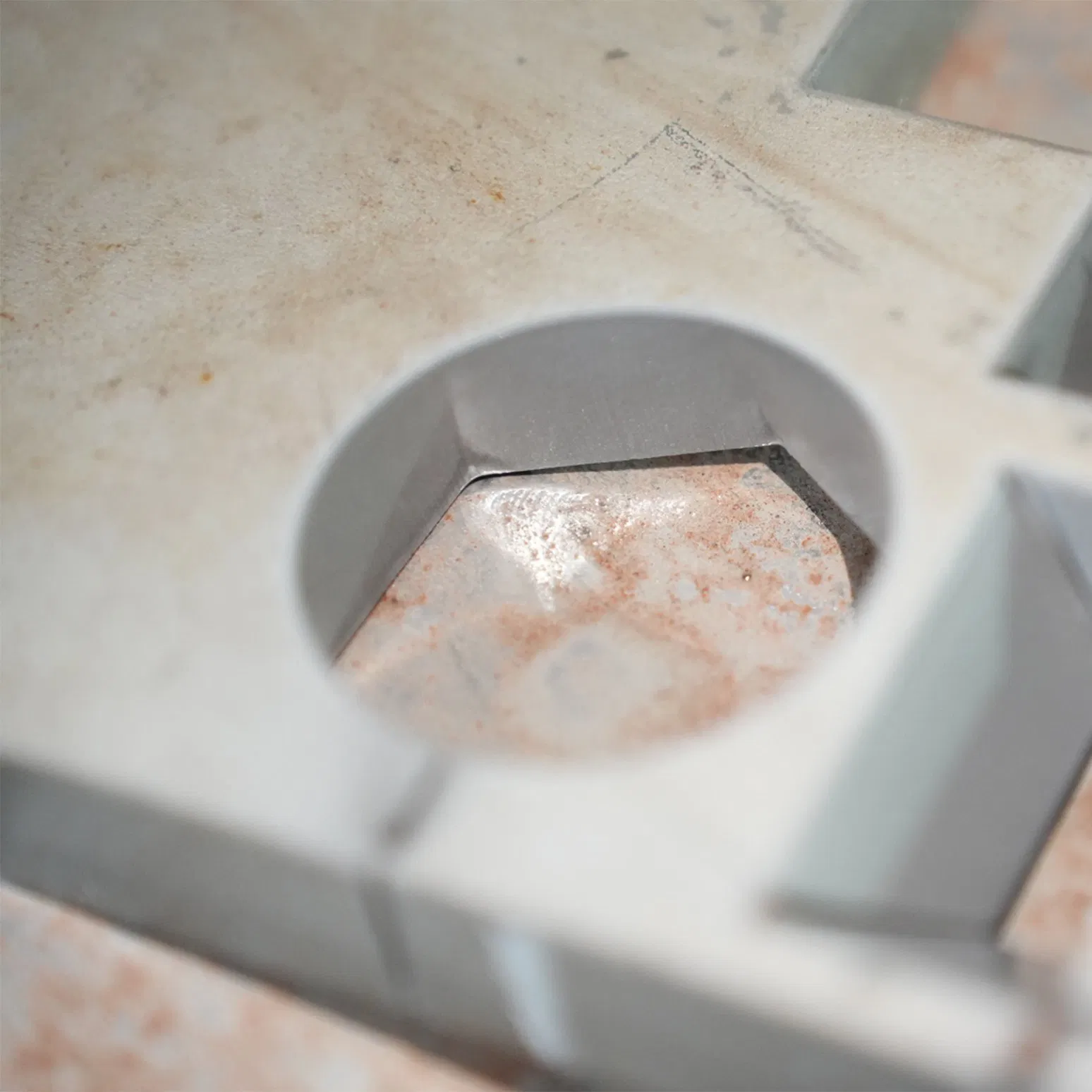

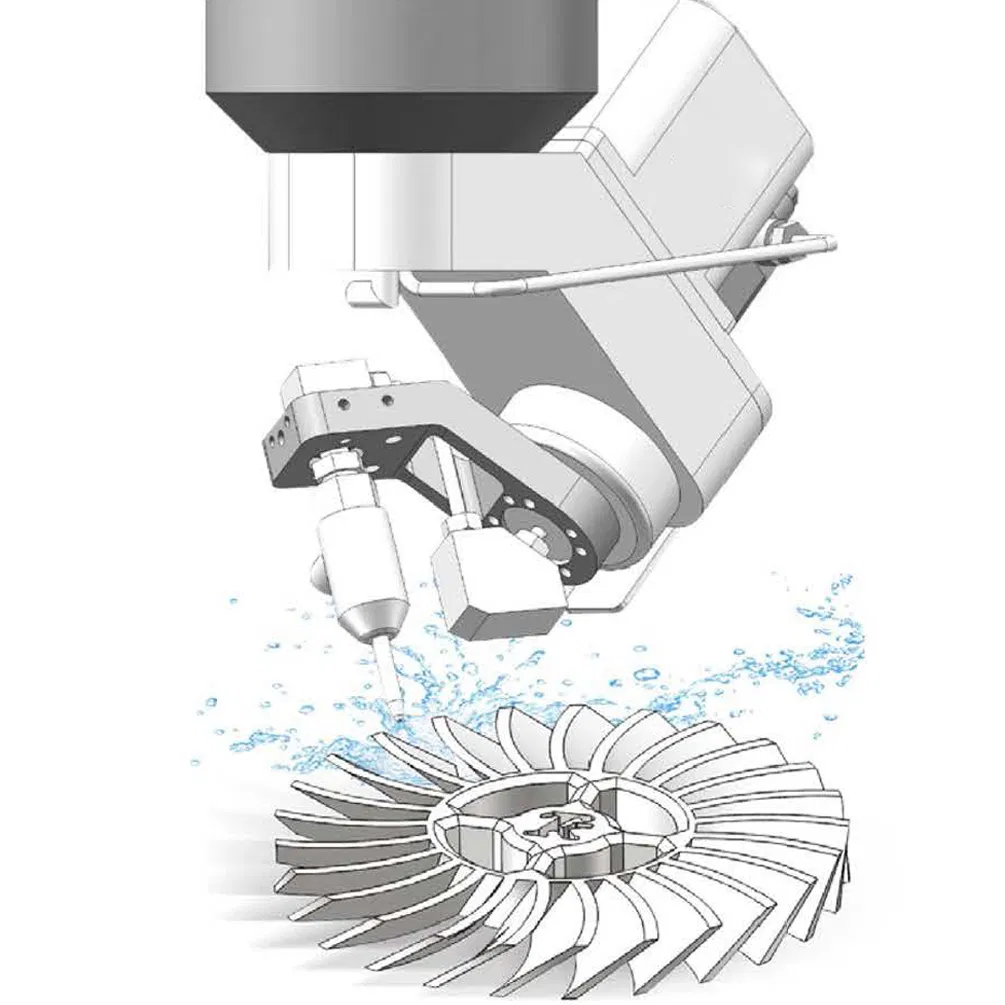

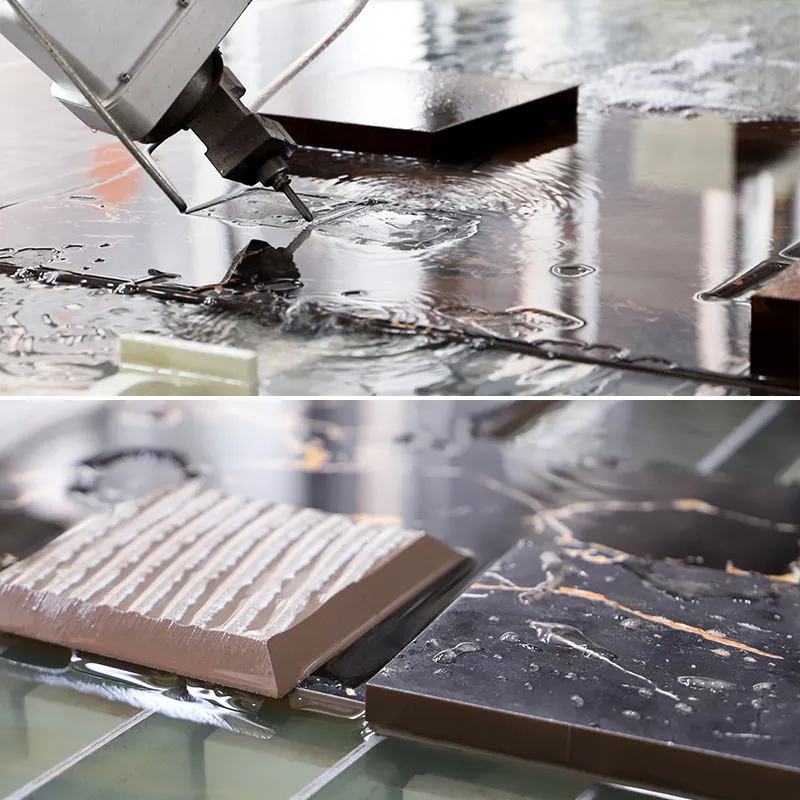

The 5-axis system allows for complex curve cutting and tilting (A-axis +/- 60° and C-axis +/- 360°), enabling bevel cuts and intricate 3D shapes that standard 3-axis machines cannot achieve.

4. Is there any thermal deformation during the cutting process?

No. Water jet cutting is a cold cutting process, which means there is no thermal deformation, no hardening of the material edges, and no hazardous dust or fumes.

5. How is the machine protected from water and grit?

The driver system is completely sealed against water, dust, and abrasive grit to ensure a long working life and stable performance in harsh industrial environments.

6. What is the width of the cutting kerf?

The amount of material removed by the water jet stream is typically very narrow, between 0.5mm and 1.0mm, which optimizes material usage and increases cost effectiveness.
