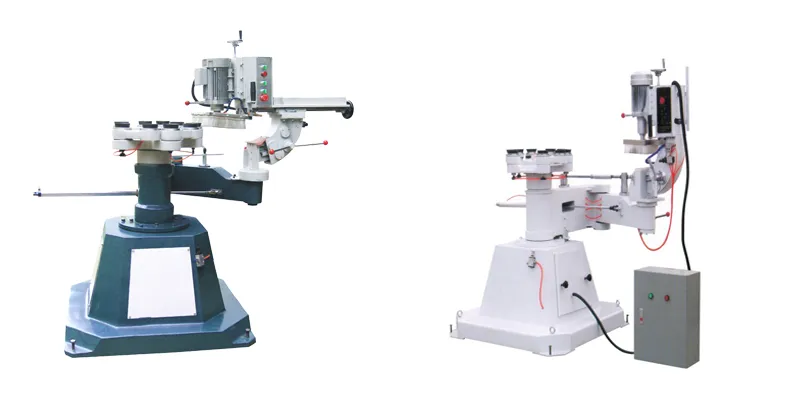

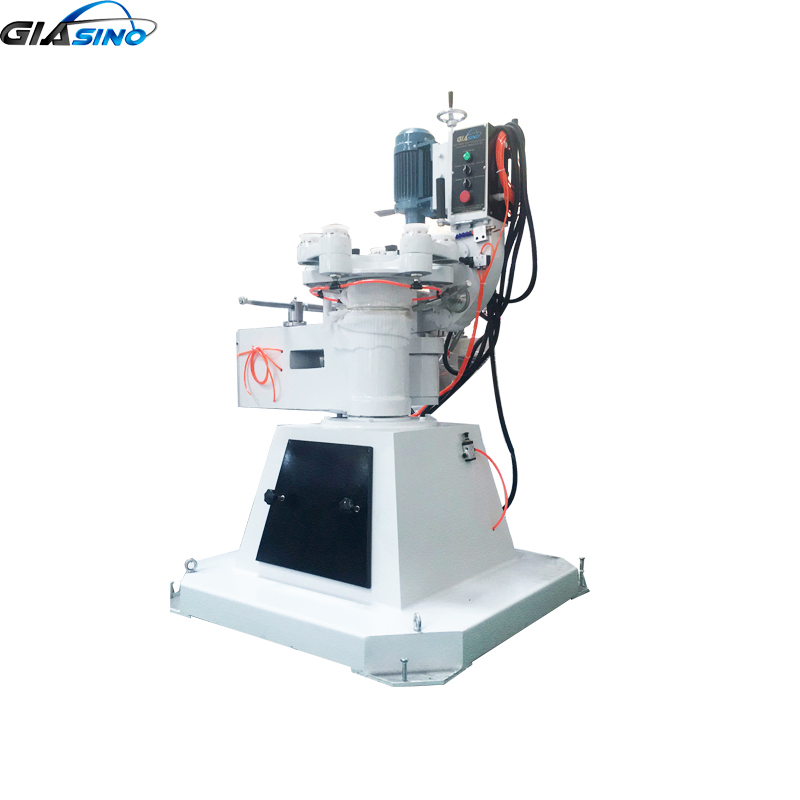

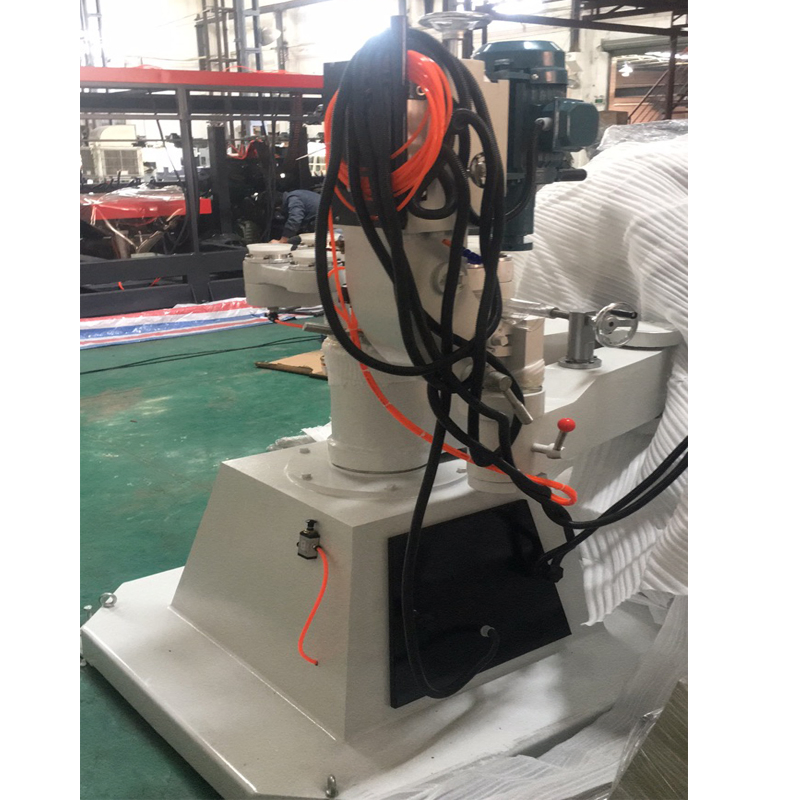

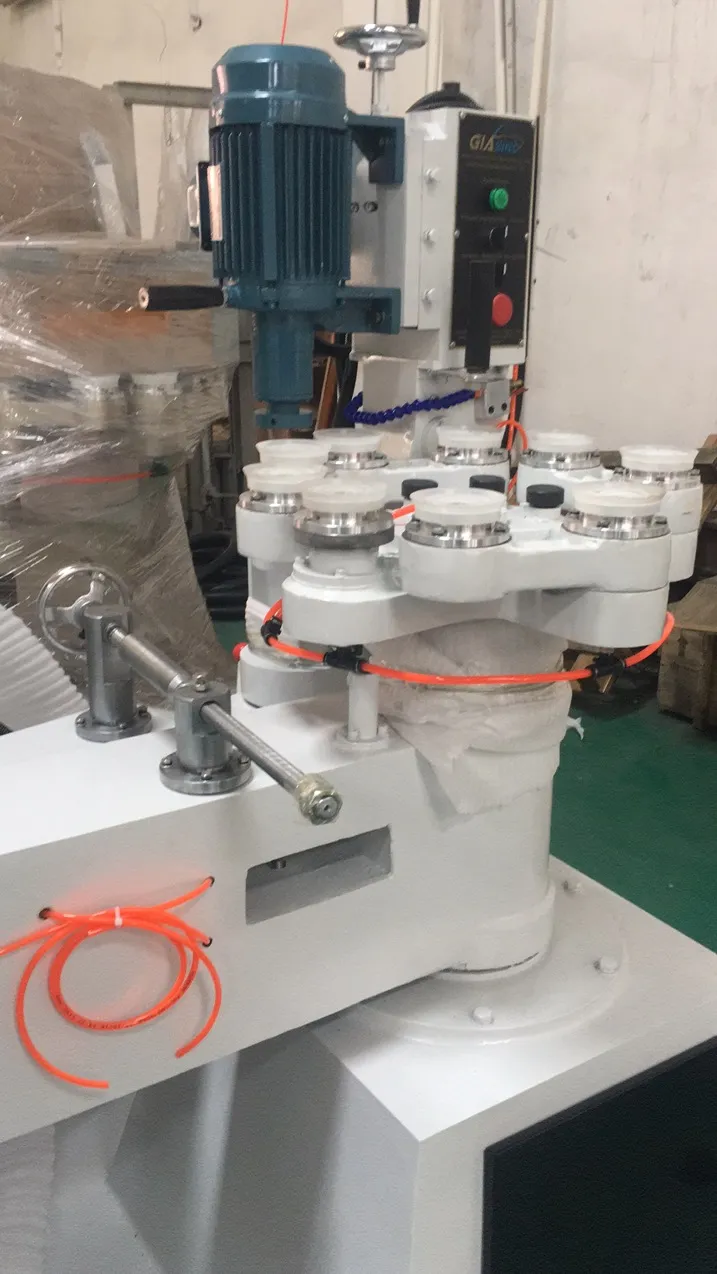

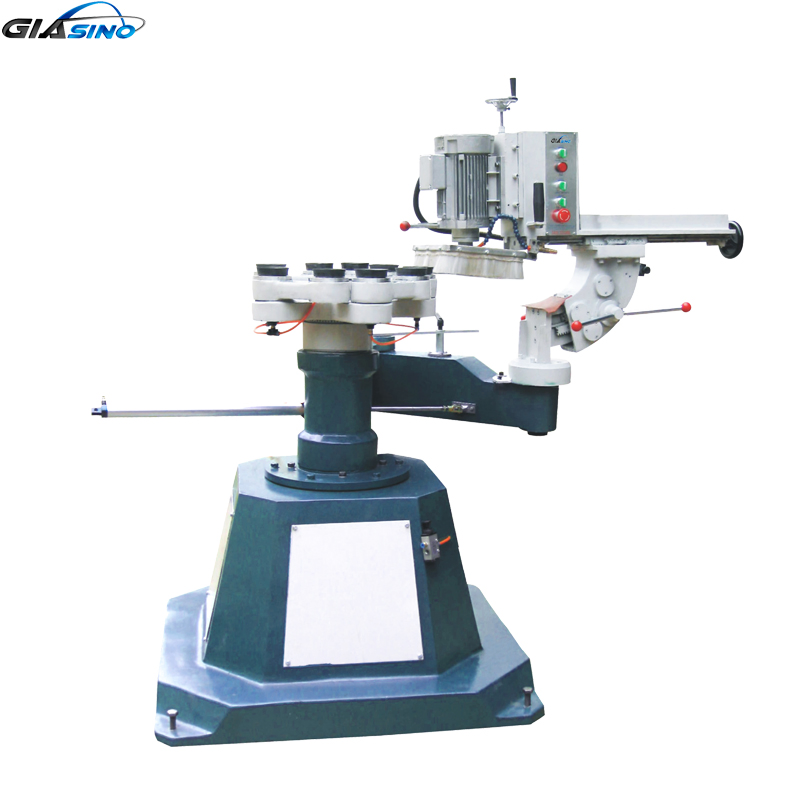

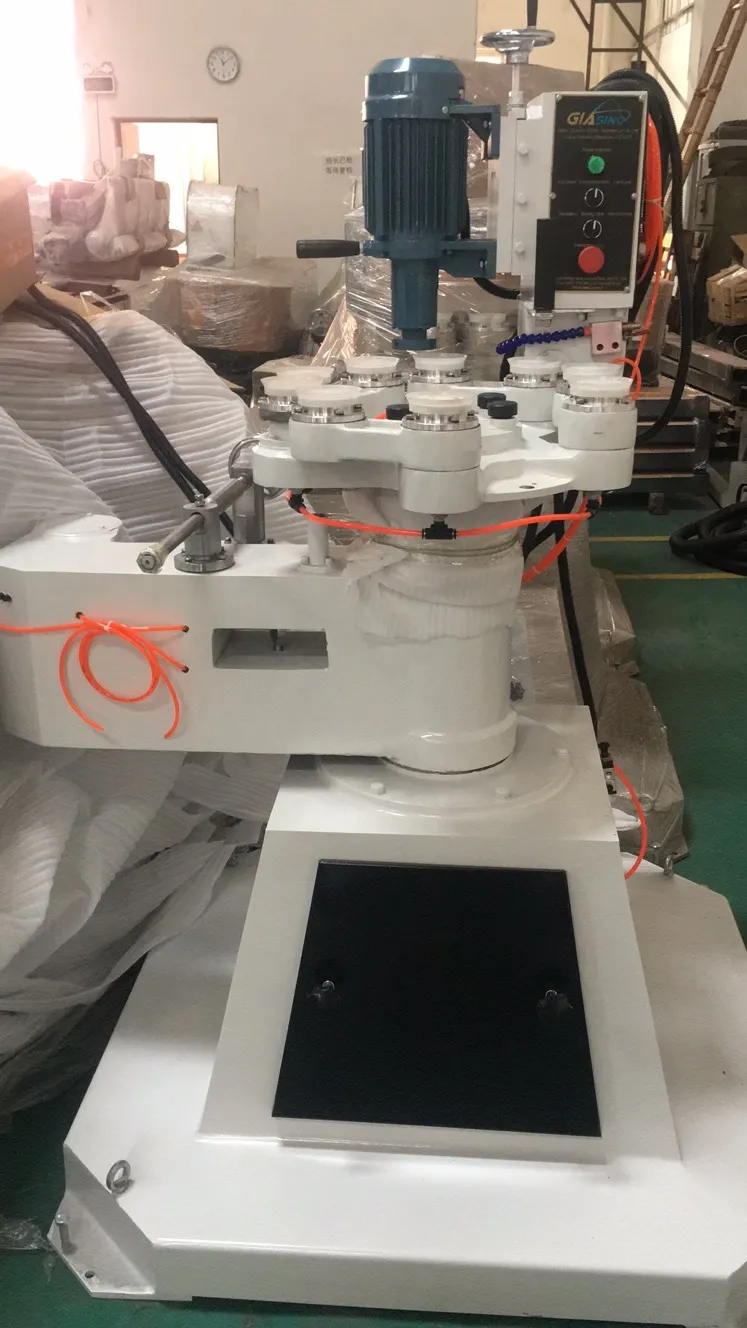

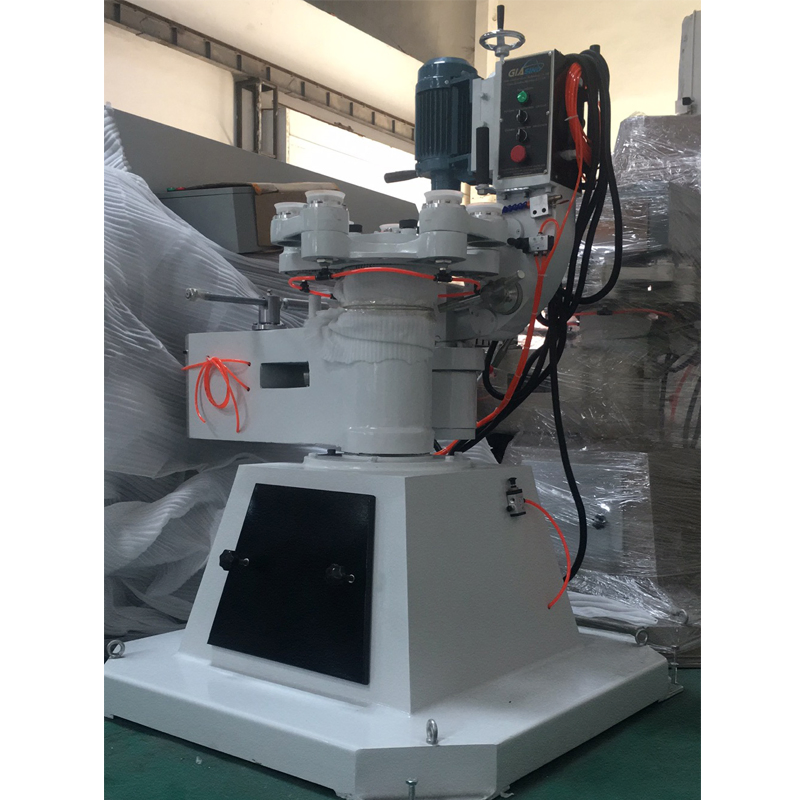

Round Glass Edging Machine

I. INTRODUCTION

GS1321 Irregular glass grinding machine

• Suitable for grinding and polishing the outer edge with rounded or duckbilled shape for circle, oval and irregular flat glass.

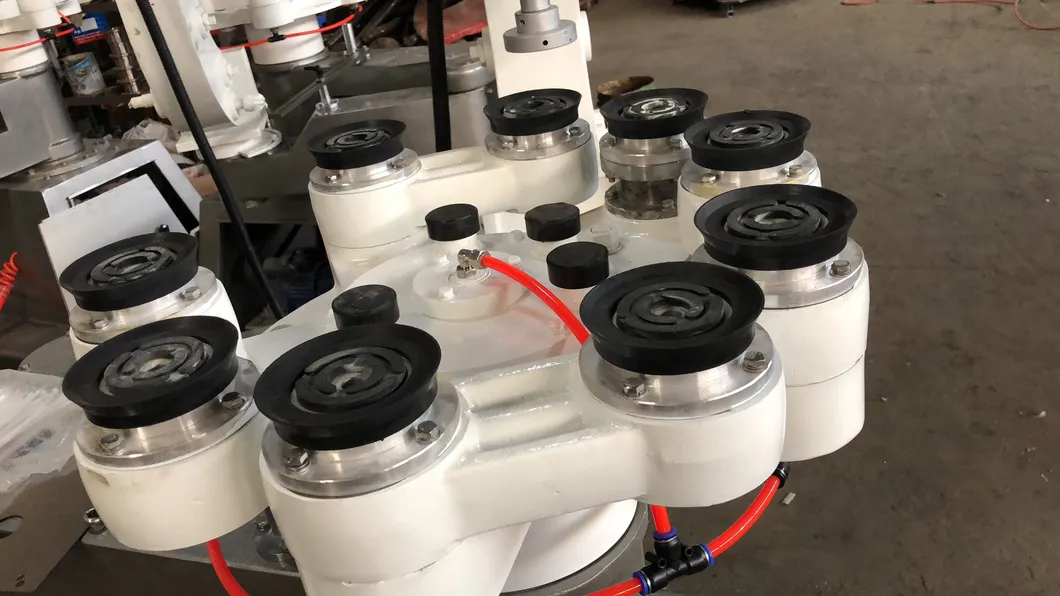

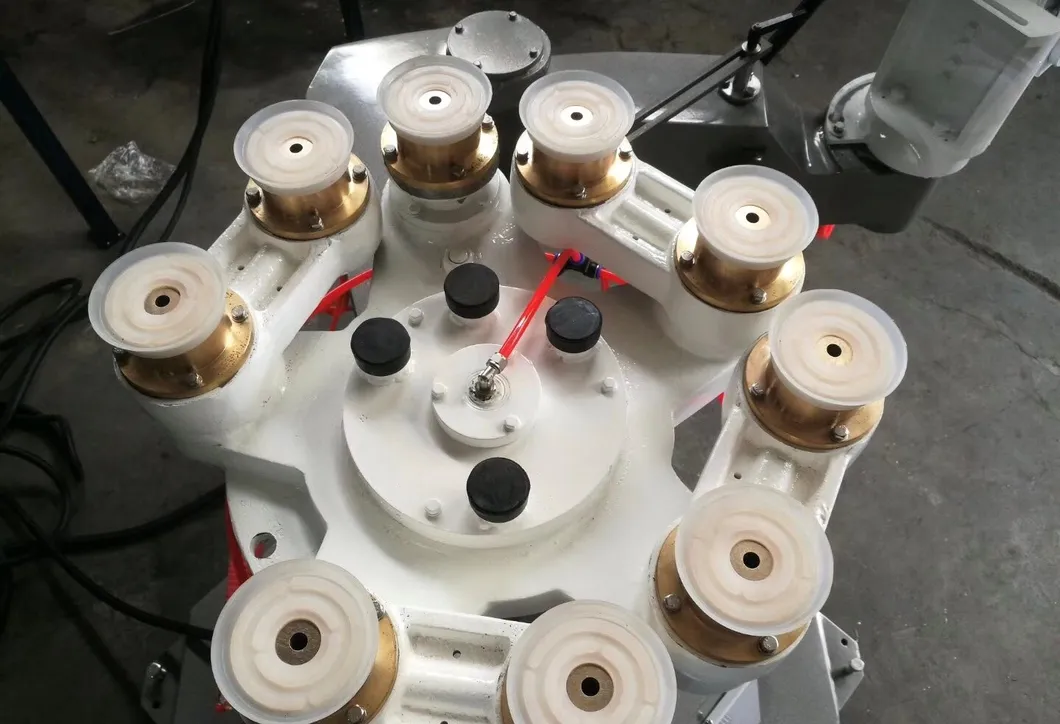

• Glass is absorbed onto vacuum sucker, motor driven rotary plate or a separate disk drive is an independent five-star turntable rotation. Rotary speed can be adjusted as required.
• Adopt air cylinder to grind simple shape glass semi-automatically.
• When grinding the pencil edging, install three grinders to process coarse grinding, fine grinding and polishing.
• When grinding the beveling, adopt bowl shaped grinding wheels, adjustment the bevel angle by head tilted back the grinders.

II. TECHNICAL SPECIFICATIONS
